UTM – Thales Perspective Enabling safe, secured and efficient UAV operations www.thalesgroup.com OPEN
Background www.thalesgroup.com OPEN
The Market Continues To Grow…
part or disclosed to a third party without the prior written consent of Thales - © Thales 2015 All rights reserved.
This document may not be reproduced, modified, adapted, published, translated, in any way, in whole or in
2.7B€ 770K
DRONES
COMMERCIAL DRONES REGISTERED
IN USA
---- 2016 GLOBAL----
37K
PERSONAL DRONES PURSUING
1.7B€
REMOTE PILOT
CERTIFICATION
IN USA
7M
3.6B€ DRONE
COMMERCIAL DRONES REGISTRATIONS
ANTICIPATED
BY 2020
------ EST 2017 GLOBAL------
IN USA
PERSONAL DRONES
2.3B€
COMMERCIAL IN CONFIDENCE
… While low altitude airspace Airspace Is Becoming A No Man’s
Land…
part or disclosed to a third party without the prior written consent of Thales - © Thales 2015 All rights reserved.
Infringement of no fly area (airports, security infrastructures, etc…)
This document may not be reproduced, modified, adapted, published, translated, in any way, in whole or in
Air Prox/Miss

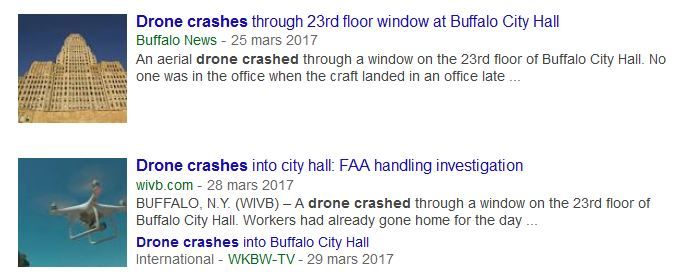

Crash of drones over buildings
Privacy issues
Malicious act
COMMERCIAL IN CONFIDENCE
… Driving authorities to regulate…
part or disclosed to a third party without the prior written consent of Thales - © Thales 2015 All rights reserved.
EASA Prototype Rule (foreseen entry into force in 2019)
This document may not be reproduced, modified, adapted, published, translated, in any way, in whole or in
● Geo-Fencing class 2 (permanent function) and class 3 (selectable function)
● Electronic Identification (ID, Localization) according to UAV category
French Law voted in October 2016 (entry into force 1st July 2018)
● Drones whose mass exceeds a threshold to be fixed between 0 and 800
grams have to carry an electronic or numerical reporting device.
● The device insure the issuing of ID and Localization information
Regulations are coming while the industry standards and concepts
are not ready (yet?!)
COMMERCIAL IN CONFIDENCE
What Type of Commerc
part or disclosed to a third party without the prior written consent of Thales - © Thales 2015 All rights reserved.
This document may not be reproduced, modified, adapted, published, translated, in any way, in whole or in
Now 2 – 4 Years
4 – 8 Years

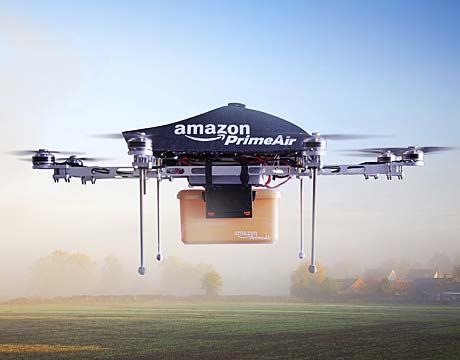

Photography / Movies Point to Point Packaged delivery
Building/Mining Progress Medical Sample Delivery

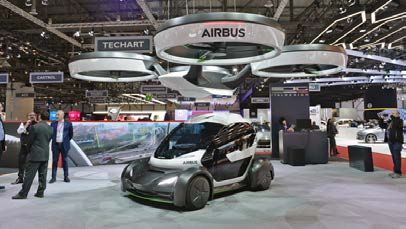

Agriculture Transplant Delivery Personal Air Transport
Critical Infrastructure examination Package to pickup Point delivery Uber Drone
Bushfire Surveillance
1 – 2 Years 3 – 6 Years

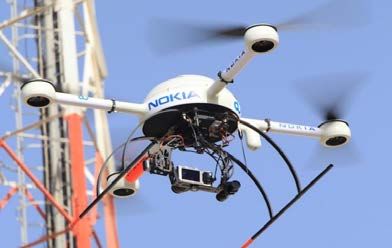

Tower Maintenance Point to Many Packaged
Traffic Watch delivery
Shark Watch House Delivery of
News Reporting packaged
Police monitoring Pizza Delivery
Crime Scene
examination COMMERCIAL IN CONFIDENCE… a very complex playground!
part or disclosed to a third party without the prior written consent of Thales - © Thales 2015 All rights reserved.
UAV characteristics
This document may not be reproduced, modified, adapted, published, translated, in any way, in whole or in
● From micro UAV(25kg)
● Performance
● Equipment
UAV operation patterns
● VLOS and E-VLOS
● BVLOS and long range BVLOS (>100km)
● Automatic flights and Manual Flights
UAV operation
● From agriculture in country side to parcel delivery in urban areas
One size can’t fit all!
COMMERCIAL IN CONFIDENCEProposed approach www.thalesgroup.com OPEN
Potential UTM Airspace Structure
CLASS A 60,000 ft
part or disclosed to a third party without the prior written consent of Thales - © Thales 2015 All rights reserved.
UAS PRIORITY AIR SPACE
This document may not be reproduced, modified, adapted, published, translated, in any way, in whole or in
EMERGENCY
18,000 ft
NORTH
12,500 ft
CLASS E EAST Levels allocated to direction of flight
or specific corridors designated
8,500 ft SOUTH like “Roads in the sky”.
CLASS C
WEST
WORKING
Line of Sight non Controlled
1,500 ft
Automatic approval of drone flights,
airspace removal for manned flights
CLASS G CLASS G when required, UAS Tracking in non
UAS Priority Airspace line of sight airspace
Manual approval of UAS flights on a
case by case basis, Flights tracked
and reported to other uses. COMMERCIAL IN CONFIDENCECooperative surveillance is an enabler
part or disclosed to a third party without the prior written consent of Thales - © Thales 2015 All rights reserved.
Authorities
This document may not be reproduced, modified, adapted, published, translated, in any way, in whole or in
● Air situation (cooperative UAV discrimination)
● Detect and Alert (non-conformance)
Drone Operators
● Support their mission by providing local information
● Alert in case of unexpected event (UTM to Operator)
● Local information sharing (Operator to UTM)
Social acceptance (privacy concerns)
● Social sharing on drone flights
Cooperative surveillance actively contribute to safety, security,
efficient operations and societal acceptance
COMMERCIAL IN CONFIDENCESingle solution vs Multiple solutions
part or disclosed to a third party without the prior written consent of Thales - © Thales 2015 All rights reserved.
A single solution fitting to all?
This document may not be reproduced, modified, adapted, published, translated, in any way, in whole or in
● Theoretically the most attractive approach
● But such solution does not exist today while it could lead to discriminatory
effects
Multiple solutions according to operations, UAVs category and
environment?
● Enable to adapt the on-board solution(s) to the business objective(s) of the
UAVs and its capabilities (payload, etc.)
● Enable authorities to tailor the requirement(s) to the risk(s)
The multiple solutions approach is pragmatic but require a particular
standardization strategy
COMMERCIAL IN CONFIDENCEPerformance based standardization
For Identification
part or disclosed to a third party without the prior written consent of Thales - © Thales 2015 All rights reserved.
This document may not be reproduced, modified, adapted, published, translated, in any way, in whole or in
● A single format or a set of interoperable format (between nations)
● Cyber secured (spoofing) and protected from malicious act (ID
modification, etc.)
For Localization (ex: GPS) and Datalink (ex: 4G LTE Mobile Network)
● For each candidate localization technology , insure that, at least, the
following values are standardized (define class of performance?)
– Accuracy
– Latency
– Frequency
– Integrity (jamming, etc.)
COMMERCIAL IN CONFIDENCEWhat will it look like?
In-flight phase
part or disclosed to a third party without the prior written consent of Thales - © Thales 2015 All rights reserved.
This document may not be reproduced, modified, adapted, published, translated, in any way, in whole or in
● An operator is flying lie of sight operations in line of sight airspace only will
identify his position.
● A UAV in UAS airspace will broadcast its ID and Position
● The UTM tracker receives the data and use the ID(UAS or Operator) to get
the UAV characteristics (including its surveillance equipment and
performance) from the registry
● Then, the system handles the fusion and does sanity checks (expected
performance vs actual performance, airspace capacity)
The foreseen high level of UTM automation will handle the
complexity induced by this multi-criteria approach
COMMERCIAL IN CONFIDENCEIn a nutshell
▌ Multiple UAS types and Missions will need to be handled, BVLOS, VLOS,
part or disclosed to a third party without the prior written consent of Thales - © Thales 2015 All rights reserved.
This document may not be reproduced, modified, adapted, published, translated, in any way, in whole or in
Commercial, Automatic flights, Hobbyist.
▌ UAS or operators will be responsible for separation, UTM will be responsible
for capacity management.
▌ Drones will need to be tracked, with multiple solutions and requirements
depending on the area and type of use.
▌ Drone Classification, airspace classification and planning is needed to
enable effective, efficient and safe drone operations.
COMMERCIAL IN CONFIDENCEThis document may not be reproduced, modified, adapted, published, translated, in any way, in whole or in
part or disclosed to a third party without the prior written consent of Thales - © Thales 2015 All rights reserved.
COMMERCIAL IN CONFIDENCE
