Tracking Detectors for the sLHC, the LHC Upgrade Hartmut F.W. Sadrozinski SCIPP, UC Santa Cruz Hartmut Sadrozinski “Tracking Detectors for the sLHC” 5th STD Hiroshima June 2004 1
sLHC, the Machine Albert De Roeck CERN 626 Upgrade in 3 main Phases: • Phase 0 – maximum performance without hardware changes Only IP1/IP5, Nb to beam beam limit → L = 2.3•1034 cm-2 s-1 • Phase 1 – maximum performance while keeping LHC arcs unchanged Luminosity upgrade (β*=0.25m, #bunches,...) → L = 5 - 10•1034 cm-2 s-1 • Phase 2 – maximum performance with major hardware changes to the LHC Energy (luminosity) upgrade → Ebeam = 12.5 TeV NOT cheap! Hartmut Sadrozinski “Tracking Detectors for the sLHC” 5th STD Hiroshima June 2004 2
The sLHC as a necessity ! In 2015, the LHC detectors will have seen 8 years of beams and need to be replaced mainly because of radiation damage. The LHC discovery potential has an even shorter time span: in 2012 after two years at full luminosity, the time to halve the errors is 8 years ! Jim Strait (US LARP) LHC --> sLHC Luminosity Scenario 8 80 Schedule of 7 70 Upgrades Years sLHC 6 60 5 Machine: 50 Years LHC 100 fb -1 Convert LHC ’13 – ‘14 4 40 3 30 Detectors: 2 20 Need to start ‘04 R&D ‘04 - ‘09 1 10 10 35 Construction ’10 -’13 0 0 Installation ’14 2007 2009 2011 2013 2015 2017 2019 2021 Years to halve Error (LHC) Year Years to halve Error (sLHC) L @ Year End Intergrated L Are we too late already?? Hartmut Sadrozinski “Tracking Detectors for the sLHC” 5th STD Hiroshima June 2004 3
Expected Detector Environment LHC sLHC √s [TeV] 14 14 Luminosity [cm -2s-1] 1034 1035 Bunch spacing ∆t [ns] 25 12.5/25 σpp (inelastic) [mb] ~ 80 ~ 80 # interactions/x-ing ~ 20 ~ 100/200 dNch/dη per x-ing ~ 150 ~ 750/1500 charg. Part. [MeV] ~ 450 ~ 450 Tracker occupancy * 1 5/10 Dose central region * 1 10 LAr Pileup Noise [MeV] 300 950 µ Counting Rate [kHz] 1 10 * Normalized to LHC values: 104 Gy/year R=25 cm Problems are daunting Æ Have a Workshop! Jan 04 http://atlaspc3.physics.smu.edu/atlas/ US only Feb 04 http://agenda.cern.ch/fullAgenda.php?ida=a036368 Jul 04 http://agenda.cern.ch/fullAgenda.php?ida= a041379 Hartmut Sadrozinski “Tracking Detectors for the sLHC” 5th STD Hiroshima June 2004 4
Goals for ATLAS ( CMS) Upgrade @ 1035 • Detector Performance – Strive to have same detector performance @ 1035 as will be achieved @ 1034,33 • Needed for rare modes such as H -> µµ, H-> Zγ, ZL-ZL • However, physics ‘imperative’ will evolve with LHC data Emphasis may narrow to study of massive objects produced centrally decaying into e+e- • Some compromises may be necessary, e.g. less coverage at high |η| • Detector Reliability – Strive to have detector elements and electronics sufficiently rad-hard as to be able to run for long periods @ 1035 (~1,000 fb-1/yr) • Assume that replacement of components on ~ one year time scale would be unacceptable • Upgrade R&D Program to be mindful of these goals – Detailed simulation of radiation environment @ 1035 : scaling possible? – Critical appraisal of detector performance under expected high rates (beam tests!) • For ATLAS, upgrade of Inner Detector (Tracker) is highest priority No subsystem is entirely in the clear - extending operation to 1035 will pose problems Hartmut Sadrozinski “Tracking Detectors for the sLHC” 5th STD Hiroshima June 2004 5

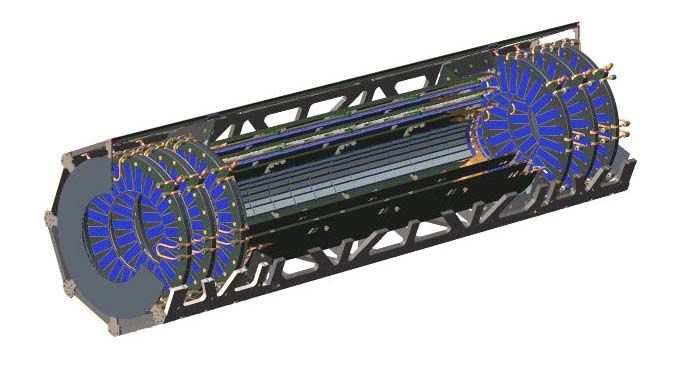

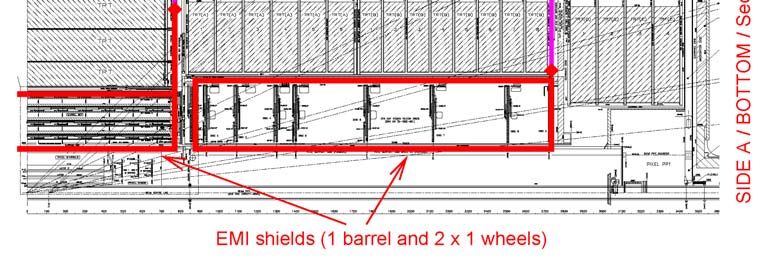

ATLAS ID Upgrade TRT barrel TRT endcap A+B TRT endcap C SCT barrel SCT endcap Pixels Replace entire ID (200m2) Keep Modularity -> (Pixels, Barrel, 2 endcaps) Catch up with CMS: -> replace gaseous TRT detectors Find Rad-hard Sensors Optimize Sensor Geometry Increase Multiplexing Hartmut Sadrozinski “Tracking Detectors for the sLHC” 5th STD Hiroshima June 2004 6
sLHC Detectors: Issues – Problems - Nightmares • Size of Detector • High Instantanous Rate – Support Structures – Sensor Geometry – Large-scale assembly – Pile-up – Reliability – Data Transmission – Large Power & Cooling Budget – Routing of Services • High Collision Frequency – Simple Module design – Speed of FEE – Simple, low-power FEE design – Cost • High Integrated Fluence/Dose – Schedule – Sensor Technology – Radiation damage • Fine granularity – Activation – Multiplexing – Number of Links and Services – Material Imperative to not forget “Lessons learned”! Tyndel Hartmut Sadrozinski “Tracking Detectors for the sLHC” 5th STD Hiroshima June 2004 7
CMS Head Start: Efficient Assembly Organization Identical systems at 7 sites to produce ~20K modules (Cattai) Hartmut Sadrozinski “Tracking Detectors for the sLHC” 5th STD Hiroshima June 2004 8
Material Reduction Challenge: FEE Problem! CMS ALL Si TKR: ATLAS 10% Active detector 10% Support Many Modules = Many Servives 80% “Electronics” (Sandro Marchioro LECC 2003) Hartmut Sadrozinski “Tracking Detectors for the sLHC” 5th STD Hiroshima June 2004 9
sATLAS Tracker Regions Straw-man layout (Abe Seiden): Inner Mid-Radius Outer Radius Inner: 6 cm ≤ r ≤ 12 cm 3 layers pixel Pixels Short Strips “SCT” pixels style readout Middle: 25 cm ≤ r ≤ 50 cm 4 layers short strips space points Outer: 50 cm ≤ r ≤ 1 m 4 layers “long strips” single coordinate Hartmut Sadrozinski “Tracking Detectors for the sLHC” 5th STD Hiroshima June 2004 10
Pile-up, Occupancy The 10x higher luminosity increases the rate of min.bias events For 1034, occupancies and cluster merging are less severe (x2) in pile up events than in B jets from Higgs decay. At 1035 the situation is reversed by ~ x 5. Solution: Adjust geometry of detectors to radius, can scale from SCT : Reduce detector length from 12 cm to 3cm, at twice the radius -> factor 16 less occupancy. OR use 6 cm long detectors at twice the radius with 12.5 ns bucket timing. A major constraint on the tracker is the existing ATLAS detector • Implies a maximum radius of about 1m and a 2 Tesla magnetic field. • Gap for services is a major constraint. • Limited Granularity? (Outer silicon layers require more services than the TRT!) Space available does not allow for the increase due to granularity. Hartmut Sadrozinski “Tracking Detectors for the sLHC” 5th STD Hiroshima June 2004 11

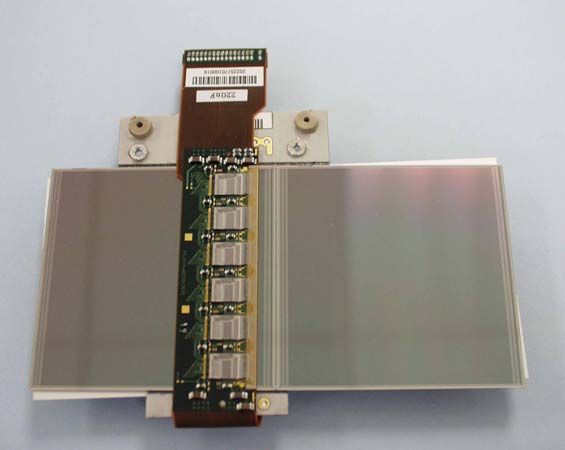

Region of Outer-Radius r > 50 cm No SSD problems are expected for the outer region – if the detectors work at the LHC!- But the limited space in the outer region ( r > 50 cm) will require careful tradeoffs between detector length, F.E. power, noise and amount of multiplexing and granularity. CMS Readout hybrid stereo Sensors 768 strips on 80 um pitch 6 cm Future ATLAS sID “Stave” ? (a la CMS and CDF) between 20cm and 1m Allows testing of 12 cm large Sub-Assermblies Present SCT Module used between 30 and 57 cm (Unno, Terada, Ohsugi, Jackson, Sandaker, ) Hartmut Sadrozinski “Tracking Detectors for the sLHC” 5th STD Hiroshima June 2004 12
Region of Mid-Radius 20 cm < r < 50 cm Scaling of the SCT rates allow a readout region of about 80 µm x 1 cm but this is too coarse a z – measurement. Options: (1) Short-strips (long-pixels) with dimension of order 80 µm x 2 mm. Requires very many channels. (2) Longer detector dimensions (3 cm length), coupled with faster electronics. With improve rise-time by a factor two (assuming machine crossing frequency is doubled) get a factor of 4 due to detector length and a factor of 2 due to electronics wrt present SCT, compensating for higher luminosity. Small-angle stereo arrangement similar to present SCT: Confusion area in matching hits in the back-to-back stereo arranged detectors is proportional to the detector length squared. Compared to the present SCT, confusion would be reduced by factor of 16 due to reduced length and factor of 2 due to faster electronics, I.e. improvement wrt present ATLAS. Survival of the detector (and the electronics and optical readout) is a crucial issue: (Bruzzi, Harkonen, Kinoshita,Hara, Oshima, Kagan, Hall, Hou,Laird) Hartmut Sadrozinski “Tracking Detectors for the sLHC” 5th STD Hiroshima June 2004 13
Sensors for Mid-Radius Region 20 cm < r < 50 cm 6 cm Short Strips ~ 3 cm long 2 sets on one detector with hybrid straddling the center a la SCT Single-sided 6 cm or σz ≈ 1cm larger Back-to-back single-sided stereo σz ≈ 1mm 3 cm or ISD (2-D sensors) Æ Zheng Li FPGA Explore availability of p-type substrates (RD50) No type inversion Collect electrons Partial depletion operation (increased headroom) Hartmut Sadrozinski “Tracking Detectors for the sLHC” 5th STD Hiroshima June 2004 14
sCMS Pixels Detailed Pixel System Layout (including power & price tag) Roland Horisberger LHC: Wermes, Saveedra Hartmut Sadrozinski “Tracking Detectors for the sLHC” 5th STD Hiroshima June 2004 15
Performance Specification sLHC Tracker has 3 radial regions with 10x fluence increase “ move LHC systems outward” Based on present performance, (i.e. without drastic improvement of electronics), guess at a specification of the collected charge needed in the 3 regions: Radius Fluence Specification for Limitation [cm] [cm-2] Collected Signal due to: Detector Technology (CCE in 300 um) > 50 1014 20 ke- Leakage “present” LHC SCT Technology, (~100%) Current Consider: n-on-p 20 - 50 1015 10 ke- Depletion “present” LHC Pixel Technology ? (~50%) Voltage Consider: n-on-p < 20 1016 5 ke- Trapping RD50 - RD39 - RD42 Technology (~20%) Time 3-D! Hartmut Sadrozinski “Tracking Detectors for the sLHC” 5th STD Hiroshima June 2004 16

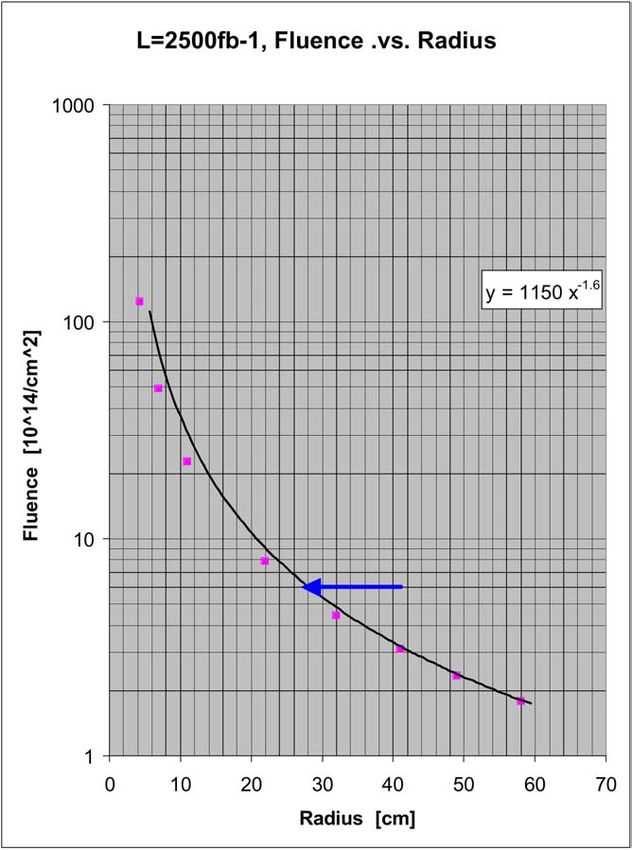

Radiation Damage in Si: the Good News Efficiency of Charge Collection in 280 um thick p-type SSD G. Casse et al., (RD50): After 7.5 *1015 p/cm2, charge collected is 6,700 e- sLHC R=20cm sLHC R=10cm Trapping times 2.4 x larger than extrapolated from previous measurements? Charge collection in Planar Silicon Detectors might be sufficient for all but inner-most Pixel layer? For 3-D after 1 *1016 n/cm2, predicted charge collected is 9,000 e- (right on our CCE target) Parker, Piemonte Hartmut Sadrozinski “Tracking Detectors for the sLHC” 5th STD Hiroshima June 2004 17
F.E.E. Technologies for sLHC: Sub-µ CMOS “accidentally” rad-hard, low power, used for pixels,CMS, also in sCMS (Hall) Bipolar power-noise advantages for large capacitances and fast BiCMOS shaping, also excellent matching (Cioccio) technologies used in ATLAS SCT are not sufficiently rad- hard beyond the LHC because of current gain β degrading from about 100 to about 40 at 1014cm-2, limited availability SiGe BiCMOS very fast (fT > 50GHz and β > 200), used in cell phones, backend: DSM CMOS “du jour”, available IBM–MOSIS rad hardness measured to 1014cm-2 looks ok when extrapolated up to 1015cm-2 (need to measure!) SiGefor sLHC? Expect that largest area of sLHC tracker will be made of long strips a la SCT, so SiGe could give an advantage, specially for short shaping times strips (Power (SiGe) < Power (0.25 µm CMOS) for “long” strips) Need careful simulations to decide first on layout, Hartmut Sadrozinski “Tracking Detectorsoptimal then select for the sLHC” 5th STD Hiroshima FEE technology (noise, power,June 2004 speed) 18
Single-Bucket Timing Pulse rise time depends on both charge collection and shaping time If rise time falls within the clock cycle, single-bunch timing is possible Decrease collection time 10000 Pulse Height (arb units) ATLAS SCT: with increased bias voltage Bias = 100V, Shaping 20ns 8000 p-on-n Collection 6000 (n-on-p even Time [ns] 4000 faster) (M.Swartz) 100V 300V sATLAS ID Bias = 300V, Shaping 10ns 2000 Holes 14 7 0 Electrons 5 2.5 0 10 20 30 40 50 Time [ns] With 20ns shaping and 100V bias, do single-bunch timing at LHC (25ns) With 10ns shaping and 300V bias, the entire rise of the pulse is within 12 ns: 80MHz single-bunch timing is possible for sLHC, reducing occupancy by 1/2 Hartmut Sadrozinski “Tracking Detectors for the sLHC” 5th STD Hiroshima June 2004 19
Summary The LHC luminosity upgrade to 1035 cm-2s-1 (sLHC) • allows to extend the LHC discovery mass/scale range by 25-30% • extends the LHC program in a efficient way into 2020 sLHC looks like giving a good physics return for modest cost ⇒ Get the maximum out of the (by then) existing machine “Big Bang for the Buck” “No-brainer” The sLHC will be a challenge for the experiments: Detector R&D needs to start now to upgrade the Inner Tracker especially if one wants to be ready to “go” soon after 2013/2014 Need to solve and overcome Issues/ Problems/ Nightmares: The path to the SLHC will be a mix between Exciting R&D (Rad-hard Semiconductor Detectors, Low-power & fast FEE) & Sophisticated Engineering (Modules, Cooling, Data Transmission) & Pedestrian Civil Engineering (How to find Space for Cables) Hartmut Sadrozinski “Tracking Detectors for the sLHC” 5th STD Hiroshima June 2004 20
Back-ups Hartmut Sadrozinski “Tracking Detectors for the sLHC” 5th STD Hiroshima June 2004 21
References Radiation Background Task Force (M. Shupe et al.) http://atlas.web.cern.ch/Atlas/GROUPS/PHYSICS/RADIATION/RadiationLevels.html F. Gianotti, M.L. Mangano, T. Virdee, et al. hep-ph/0204087 (April 1, 2002) O. Bruhning et al. LHC Project Report 626 Int’l Workshop on Future Hadron Colliders, FNAL, Oct. 2003 http://conferences.fnal.gov/hadroncollider/ ATLAS & CMS TDRs Upgrade Workshops • http://atlaspc3.physics.smu.edu/atlas/ • http://agenda.cern.ch/fullAgenda.php?ida=a036368 • http://agenda.cern.ch/fullAgenda.php?ida=a041379 • http://rd50.web.cern.ch/rd50/ Hartmut Sadrozinski “Tracking Detectors for the sLHC” 5th STD Hiroshima June 2004 22
The sLHC as part of a grand scheme ? • Continue Energy Frontier with Hadron Machines – LHC – sLHC = LHC Upgrade – VLHC (?) • Fill in Precision Frontier with Lepton Machines – Linear Collider – CLIC – Muon Collider Hartmut Sadrozinski “Tracking Detectors for the sLHC” 5th STD Hiroshima June 2004 23
Physics reach of different machines 20%-30% extension mass-scale reach F. Gianotti Int’l Workshop on Future Hadron Colliders, FNAL, Oct. 03 Hartmut Sadrozinski “Tracking Detectors for the sLHC” 5th STD Hiroshima June 2004 24
2D Interleaved Stripixel Detector (ISD) X-strip readouts Zheng Li Talk (2nd Al) Y-strip readouts Line connecting Contact to Y-pixels 2nd Al on (1st Al) X-pixel Advantage: 2d from single layer, Y-cell FWHM for charge Single-sided processing X-cell (1st Al) diffusion (1st Al) Disadvantage: ½ signal (charge sharing), 2-3 times higher capacitance Hartmut Sadrozinski “Tracking Detectors for the sLHC” 5th STD Hiroshima June 2004 25
Radiation Damage to SSD: Depletion Voltage Increase Much of RD50 effort in mitigating the depletion voltage increase, which depends “linearly” on the fluence Φ and on the initial material used (“resistivity ρ”) : Vdep ~ f(Φ,ρ)*w2 Material engineering of detectors: oxygenated Czochralski (“Cz”) Epi Low-resistivity p-type or a combination there-of See M. Bruzzi’s talk Complete depletion possible up to Φ = 1015 cm-2 , i.e. in the outer and mid-radius region RD50, Frettwurst et al. Hartmut Sadrozinski “Tracking Detectors for the sLHC” 5th STD Hiroshima June 2004 26
Inner Region: sLHC Pixels will apply “Lessons learned” CMS Pixels 2 layers, 2 disks ATLAS Pixels 2 (3) layers, 3 disks Center Frame Section (1) Disks Disk Section (2) Disk sectors (8) Internal End Cone (2) Interior Barrel Layers Disk Rings (Services not shown) 3 Hartmut Sadrozinski “Tracking Detectors for the sLHC” 5th STD Hiroshima June 2004 27
