The world’s fastest panel bending line for shelving systems wemomachines.com
Content
Our DNA 3
PBL-1550 for shelving systems 4-5
Add-on: Extra loading position 6
Add-on: Sheet metal storage system 7
Add-on: Punching technology 8
Add-on: Automated unloading 9
Add-on: Lip bending 10
Add-on: Clinching 11
Add-on: Angle correction system 12
Add-on: Lean 4.0 software 13
Add-on: Remote assistance 14
Shelves 15
WEMOCARE 16
References 17
2
Our DNA About WEMO WEMO is a family owned company in The Netherlands with more than 55 years of experience. We design, build and install tailor configured production lines for punching, bending, and joining of sheet metal for customers all over the wor- ld. We provide the complex realization of production lines using the product design of the customer. We have developed various techniques for sheet metal working, enabling us to provide an appropriate WEMO solution to virtually any problem. We have been able to achieve good global coverage for our services thanks to our extensive and reliable agents’ network. We can work all material types, from metals with a high tensile strength to extremely thin aluminum, both untreated and treated (pre-painted, with or without film, etc.). 3

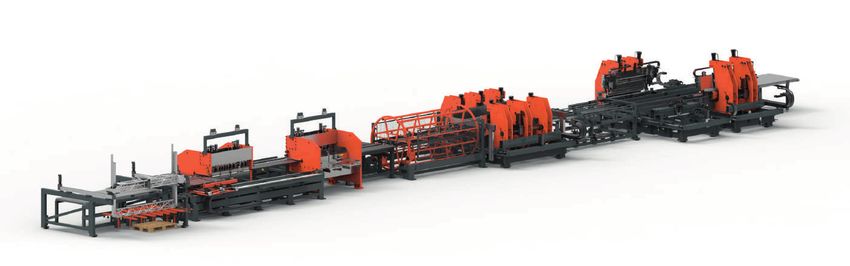

PBL-1550 Head CNC-bending
(with auto tool changer)
Head CNC-bending
(with auto tool changer) Unloading
for shelving systems
Longitudinal
CNC-bending Turning
Loading
Width: 7 m / 22.9658 ft
Length: 18 m / 59.0551 ft
4
PBL-1550
for shelving systems
Technical specifications
Production speed 6 - 15 sec. / prod. Material type Steel - SS - Aluminum
Bent width 70 - 1.500 mm / 2.75” - 60” Material thickness 0.5 - 2 mm / .020” - .078”
Bent length 300 - 2.550 mm / 12.60” - 100” Drive Fully electric CNC-bending
Key benefits Bending form examples
The highest production of parts per shift
Starting from batch size 1
No changeover time due to integrated auto tool changer
High flexibility for future product types
Quick response on your customer demand
5

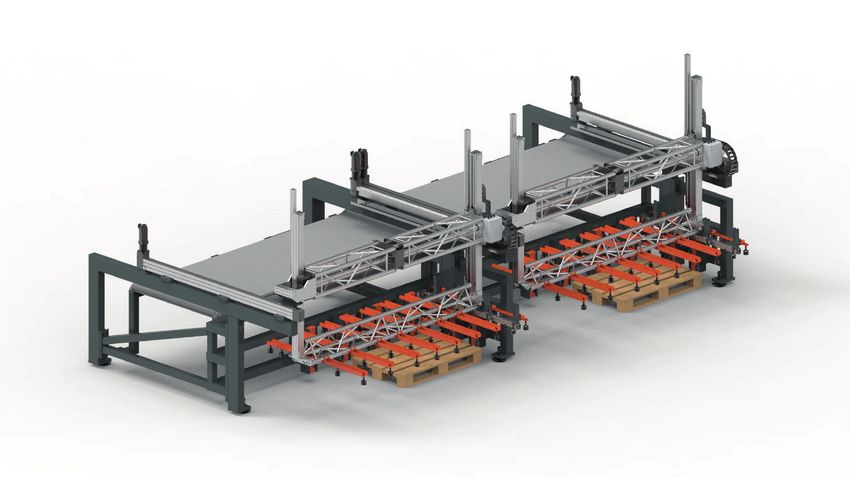

ADD-ON Extra loading positions Extra loading positions perfect for Batch size 1 production. 6
ADD-ON Sheet metal storage system Sheet Metal Storage System perfect for Batch size 1 production. 7
ADD-ON
Sheet Punching / Bending
Sheet punching is applied when higher flexibility
and productivity plays an important part in the Sheet punching
production process. Sheet punching starts with the
cut sheet and is carried out with the aid of
standard thick turret tooling or special tools.
ADD-ON
Coil Punching / Bending
Coil punching guarantees high productivity, and low Coil punching
costs. Side cutters in the punching station increase
flexibility, obviating the need for coil changes and
also increasing the availability of your line.
8

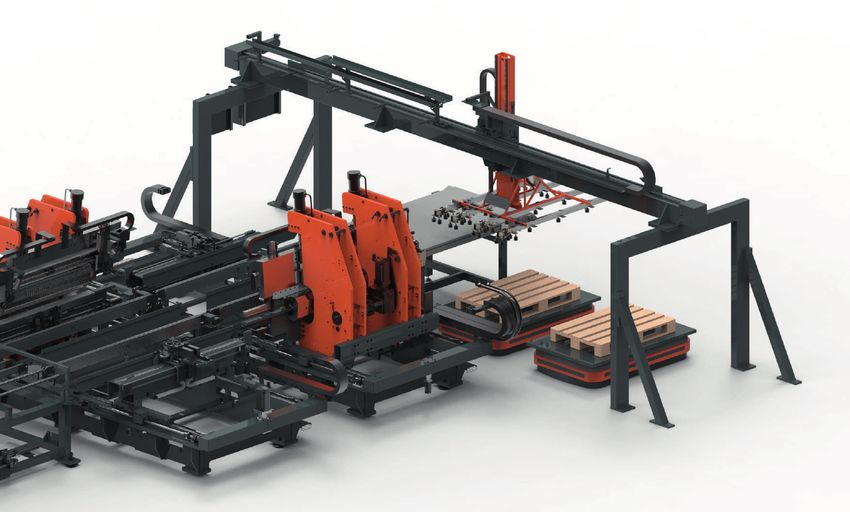

ADD-ON
Automated
unloading
Automated unloading process with Automated
Guided Vehicles for your Shelves.
AGV
AGV
9
ADD-ON
Lip bending
Automated lip bending process for your Shelves.
Head
Lip clinching
bending
Lip
Longitudinal bending
clinching

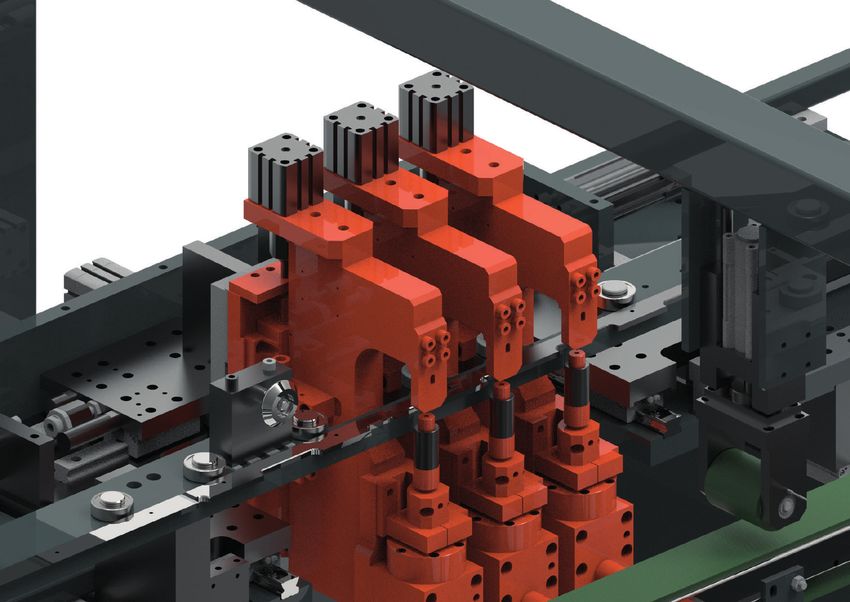

10ADD-ON Clinching Strong corner joints and bent tube shapes or double-bent edges. 11

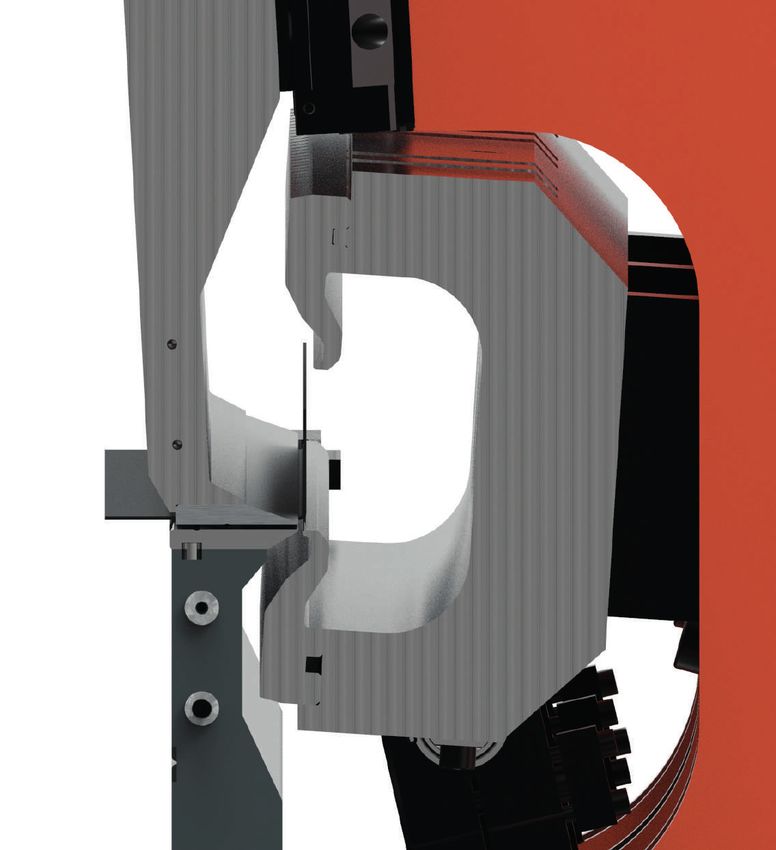

Angle
correction
ADD-ON
Angle
correction systeem
This Angle Correction System guarantees first time right production
and perfect repeatability thanks to precise optical angle
measurement.
12ADD-ON
Lean 4.0 software
WEMO software provide a clear and user-friendly visualisation of all relevant What’s the afford?
information regarding primary processes within production and the technical
department. WEMO modules below gives you full insight into
different facets of your production proces:
Increasing delivery reliability
Optimisation software Reducing the production costs per product
WEMO modules below gives you full insight into different facets of Managing changeover times
your production proces:
Ensuring that quality requirements are met
OEE calculation & reporting
Insight into energy consumption
Production planning & ERP link
Predicting staffing needs
Real-time operator link
Easy-to-read flexible planning
Instructions & quality management
Control of material use
Traceability
Paperless production environment
Monitoring of production parameters
Insight into production parameters
Maintenance
Significant increase in production output
13ADD-ON Remote assistance Sometimes help is essential. Stoppage is no option. Using the Remote Assistan- ce application helps you to immediately save time and money. Because thanks to the accurate cameras in the AR headset, our service experts can look along with your op-erator. This enables solutions and advice to be offered very fast and in real time. A unique working method. Smart, effective and really fast. 14

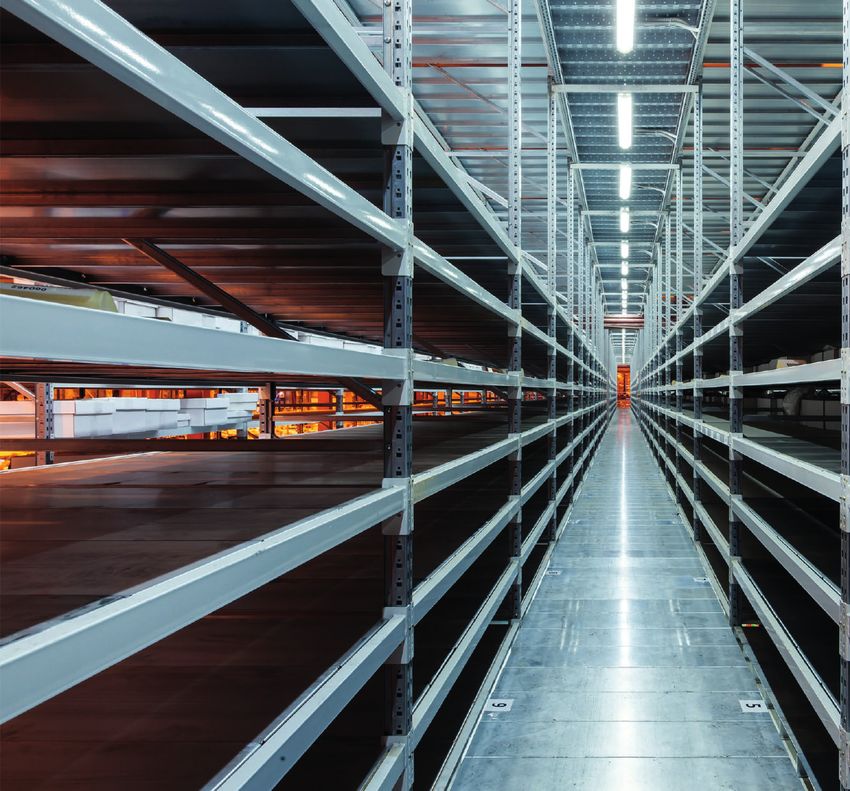

Shelves Thanks to the strong corner joints and bent tube shapes or double-bent edges, our sheet metal production lines deliver shelves with an extremely high bearing capacity. Moreover, these features ensure welcome cost savings and space economy. Our lines can apply information to your products, such as your company logo, batch number or maximum bearing capacity. 15
WEMOCARE
Customer support
To ensure the required operational performance throughout the entire lifecycle,
WEMOCARE delivers all kinds of life-cycle services to support over 100
customers worldwide.
Preventive maintenance Inspection Upgrade & conversion
A long service life with as few breakdowns A carefully conducted machine inspection gives an Smart upgrade and conversion packages with
as possible. exact picture of the condition of your machine. which you can optimise your machine.
Warranty extension Spare parts Training & education
In order to optimise this warranty, we offer you a Fast and expert delivery of our high quality Effective training for new employees will
supplementary warranty extension. machine parts. significantly increase the output and life
of your machine.
16Trusted by the best brands in the world
Bending the world
into a better shape.
