The Python Software Environment in KM3NeT Johannes Schumann (Speaker), Tamas Gal on behalf of the KM3NeT Collaboration PyHEP Conference 2021-07-08
KM3NeT
● Water Cherenkov detector infrastructure
in the Mediterranean sea (more than 2km depth)
Oscillation Research with Cosmics in the Abyss
– dense instrumentation for few-GeV atmospheric ν
– determine neutrino mass hierarchy
– effective target volume ~ 6 Mm3
Astroparticle Research with Cosmics in the Abyss
– sparse instrumentation for TeV-PeV cosmic ν
– discover high-energetic astrophysical neutrino sources [1] KM3NeT LoI
● Challenging task to build, operate and scientifically exploit the
detector
– Large (uneven) datasets need to be processed (on different levels)
– Challenge: Minimize obstacles to access data from multiple languages and
platforms
PyHEP 21 - 2021-07-05 – Johannes Schumann 2

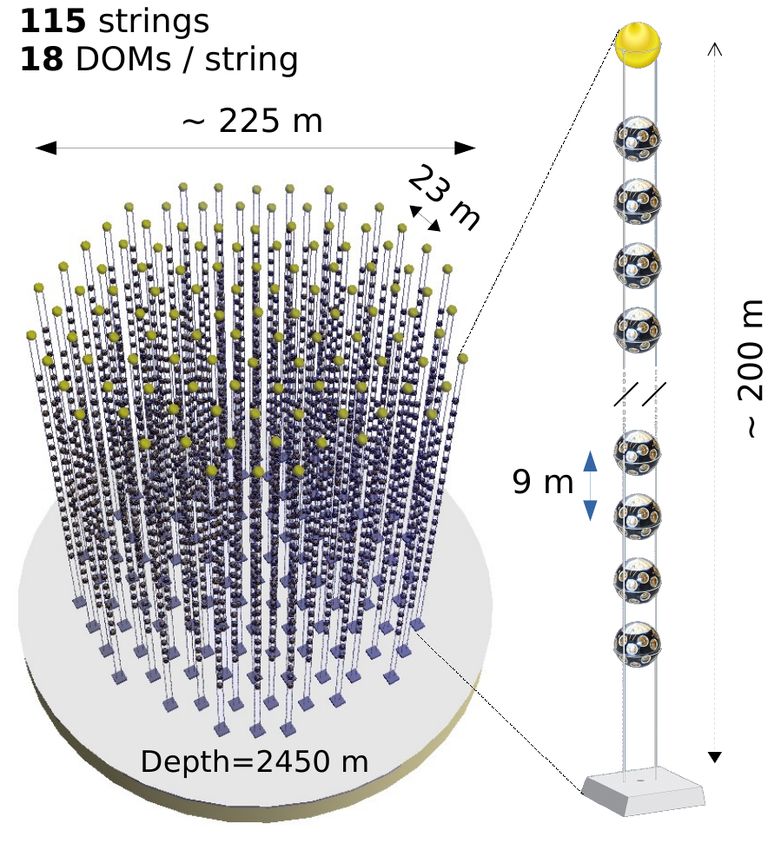

Detector Setup Artist’s impression
of KM3NeT/ORCA
ν l
π
e-
Sources µ-
π
[5] P2O LoI
12 PMTs
17”
[2] [3] [4] 19 PMTs

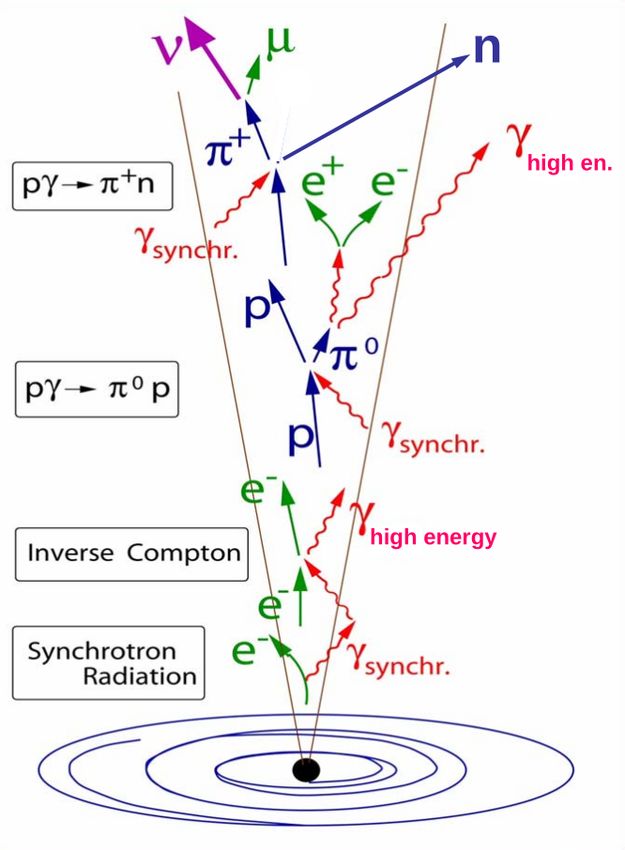

Atmospheric Active Galactic
Supernova [1] KM3NeT LoI
Nuclei
Digital Optical Module
31 x 3” PMTs
PyHEP 21 - 2021-07-05 – Johannes Schumann 3
Computing and Python Environment
Shore Station Computing Center
C++ /
ν l tier-based
π0 processing chain
µ- -
e .root
π+ Data Writeout
km3io
Microservices
DB
km3db
km3services
Online
Monitoring
cca004$> _
km3mon
● km3pipe
● km3cuts
● km3flux
● km3astro
● ...
PyHEP 21 - 2021-07-05 – Johannes Schumann 4
C++ & PyROOT in KM3NeT
● Main KM3NeT codes (trigger, calibration, reconstruction) are C++
● ROOT6/PyROOT/cppyy allows use of the C++ codebase in Python
● For analysis & development: offline data format ROOT Classes
designed with Python usage in mind from the start, e.g. printing.
● Offline framework that supports both C++ and Python user code
– providing e.g. user-friendly event-file reading
– C++ out of the box, with some pythonizations.
– Freedom to choose where to use Python and C++
● ‘low level’ C++ with ‘high-level’ Python scripting commonly used:
e.g. summary file creation, astronomy searches and cascade
reconstruction.
PyHEP 21 - 2021-07-05 – Johannes Schumann 5
PyROOT perspective PyHEP 21 - 2021-07-05 – Johannes Schumann
km3io
● km3io provides uproot/awkward front-end in order to provide KM3NeT data access
w/o (Py)ROOT
● Main dev: Tamás Gál
● Source: https://github.com/KM3NeT/km3io
● Standard KM3NeT file formats are ROOT based with custom classes
– “Online”: detector DAQ write out format
– “Offline”: format MC simulation and event reconstruction data
● Reading of data files was previously only given via PyROOT bindings
– but ROOT installation is needed
– PyROOT is slow and requires more memory compared to uproot
● Optimised iterator behaviour to allow combined lazy-readings of multiple branches
● Individual number of particles and photosensor readings (hits)
leads to uneven data structure → perfect match with awkward arrays
PyHEP 21 - 2021-07-05 – Johannes Schumann 7
June 22, 2021
[ ]:
]: import uproot
[1]:
[
import km3io
[ ]:
uproot perspective
[12]: from km3net_testdata import data_path
[ ]: data_fname = data_path("offline/km3net_offline.root")
[18]:
[ ]: f = uproot.open(data_fname)
[ ]: f["E"].show()
[19]:
[ ]: name | typename | interpretation
---------------------+--------------------------+-------------------------------
[ ]: Evt | Evt | AsGroup(u4')
Evt/AAObject/usr_… | vector | AsGroup(i4')
Evt/det_id | int32_t | AsDtype('>i4')
[ ]: Evt/mc_id | int32_t | AsDtype('>i4')
[19]: f["E"].show()
...
1
name | typename | interpretation
---------------------+--------------------------+-------------------------------
Evt | Evt | AsGroup(u4') 8
Evt/AAObject/usr_… | vector | AsGroup(
June 22, 2021| AsObjects(AsArray(True, Fal…
Evt/mc_trks/mc_tr… | std::vector*
Evt/mc_trks/mc_tr… | int32_t[] | AsJagged(AsDtype('>i4'))
[1]: Evt/mc_trks/mc_tr…
import uproot | int32_t[] | AsJagged(AsDtype('>i4'))
Evt/mc_trks/mc_tr…
import km3io | std::vector* | AsObjects(AsArray(True, Fal…
Evt/mc_trks/mc_tr… | std::vector* | AsObjects(AsArray(True, Fal…
uproot perspective
[12]: Evt/mc_trks/mc_tr… | std::vector*
from km3net_testdata import data_path | AsObjects(AsArray(True, Fal…
Evt/mc_trks/mc_tr… | std::string* | AsObjects(AsArray(True, Fal…
data_fname = data_path("offline/km3net_offline.root")
Evt/comment | TString | AsStrings()
Evt/index | int32_t
[18]: f = uproot.open(data_fname) | AsDtype('>i4')
Evt/flags | int32_t | AsDtype('>i4')
[ ]:
[20]: f["E/Evt/hits"].keys()
[ ]:
[20]: ['hits.id',
'hits.dom_id', ● Hit data stored in a general purpose class
[ ]:
'hits.channel_id',
'hits.tdc', for DAQ and simulated hits
[ ]:
'hits.tot',
'hits.trig', amplitude, pure amplitude, pure time,
–
[ ]:
'hits.pmt_id', etc. are MC data values
[ ]: 'hits.t',
'hits.a',
[ ]: 'hits.pos.x',
'hits.pos.y',
[ ]: 'hits.pos.z',
'hits.dir.x',
'hits.dir.y',
[19]: f["E"].show()
'hits.dir.z',
name
'hits.pure_t', | typename | interpretation
---------------------+--------------------------+-------------------------------
'hits.pure_a',
Evt
'hits.type', | Evt | AsGroup(u4') 9
Evt/AAObject/usr_… | vector | AsGroup(
't', June 22, 2021
'tdc',
'pos_x',
[1]: import uproot
'pos_y',
import km3io
'pos_z',
'dir_x',
uproot perspective
[12]: from km3net_testdata import data_path
'dir_y',
data_fname = data_path("offline/km3net_offline.root")
'dir_z',
'tot',
[18]: f = uproot.open(data_fname)
'trig']
[ ]:
[36]: evts = r.events[:3]
evts.hits.channel_id[0,:5]
[ ]:
[36]:
[ ]:
[ ]:
[ ]:
[ ]:
[ ]:
[ ]:
[ ]:
[ ]:
[19]: f["E"].show()
name | typename | interpretation
---------------------+--------------------------+-------------------------------
Evt | Evt | AsGroup(u4') 10
Evt/AAObject/usr_… | vector | AsGroup(km3io perspective
[22]: r = km3io.OfflineReader(data_fname)
[43]: print(r.events.keys())
{'n_mc_tracks', 'det_id', 'n_hits', 'mc_run_id', 'w2list', 'trigger_mask', 'w',
'flags', 'mc_id', 't_sec', 'tracks', 'mc_tracks', 'trigger_counter',
'frame_index', 'mc_hits', 'index', 'trks', 't_ns', 'mc_trks', 'w3list',
'comment', 'run_id', 'n_trks', 'n_mc_trks', 'id', 'usr_names', 'n_tracks',
'overlays', 'n_mc_hits', 'hits', 'mc_t'}
[45]: r.events.hits.fields
[45]: ['id',
'channel_id',
'dom_id', Only relevant fields are
't',
'tdc', accessible →compare
'pos_x', a, pure_a, pure_t, ...
'pos_y',
'pos_z',
'dir_x',
'dir_y',
'dir_z',
'tot',
'trig']
[36]: evts = r.events[:3]
evts.hits.channel_id[0,:5]
[36]:
PyHEP 21 - 2021-07-05 – Johannes Schumann
[ ]: 11km3pipe
● Multi-purpose framework based on the thepipe project
● Main devs: Tamás Gál, Johannes Schumann
● Source: https://github.com/KM3NeT/km3pipe
● Focus on pipeline workflow
● Interoperability functions to all relevant detector interfaces (also by
utilising other km3py packages, e.g. km3io)
– Detector data (ROOT / ASCII / custom binary formats)
– DAQ network interface
– Database
● HDF5 output → Conversion between different file formats
● Benchmark tools: timers & performance statistics
● High performance computing → create and submit scripts to TORQUE
● Provenance tracking
PyHEP 21 - 2021-07-05 – Johannes Schumann 12km3pipe
● Set up a simple pipline:
0.0.2 Setup the pipeline
[18]: pipe = km3pipe.Pipeline()
[ ]: pipe.attach(km3pipe.io.online.EventPump, filename=data_fname)
pipe.attach(km3modules.common.StatusBar, every=25)
pipe.attach(km3pipe.calib.Calibration, filename=calib_fname)
pipe.attach(EventHits)
pipe.attach(EventHitsStatistic)
pipe.attach(km3pipe.io.hdf5.HDF5Sink, filename="output.h5")
[20]: pipe.drain()
Pipeline and module initialisation took 0.851s (CPU 0.498s).
Number of Hits: 96
Number of Hits: 124
Number of Hits: 78
================================[ . ]================================
Mean number of hits: 99.33333333333333
2021-06-21 22:07:53 ++
km3pipe.io.hdf5.HDF5Sink.HDF5Sink: HDF5 file written to: output.h5
============================================================
3 cycles drained in 0.953132s (CPU 0.602786s). Memory peak: 247.59 MB
wall mean: 0.029388s medi: 0.019961s min: 0.016951s max: 0.051252s std:
0.015509s
PyHEP 21 - 2021-07-05 – Johannes Schumann
CPU mean: 0.030253s medi: 0.020248s min: 0.017112s max: 0.053400s std: 13WARNING Could not find setup.py for directory
/home/johannes/.pyenv/versions/3.9.5/lib/python3.9/site-packages (tried all
parent directories)
2021-06-21 21:59:19 johannes-t480 pip._internal.vcs.versioncontrol[2283989]
WARNING Could not find setup.py for directory
/home/johannes/.pyenv/versions/3.9.5/lib/python3.9/site-packages (tried all
km3pipe
parent directories)
● Custom modules:
0.0.1 Prepare a custom module
[6]: def EventHits(blob):
hits = blob["Hits"]
print("Number of Hits: {}".format(len(hits)))
return blob
class EventHitsStatistic(km3pipe.Module):
def configure(self):
self._hit_numbers = []
def process(self, blob):
hits = blob["Hits"]
no_of_hits = len(hits)
self._hit_numbers.append(no_of_hits)
return blob
def finish(self):
mean_no_hits = np.mean(self._hit_numbers)
print("Mean number of hits: {}".format(mean_no_hits))
PyHEP 21 - 2021-07-05 – Johannes Schumann 14[4]: pipe = km3pipe.Pipeline()
[5]: pipe.attach(km3pipe.io.online.EventPump, filename=data_fname)
pipe.attach(km3modules.common.StatusBar, every=25)
pipe.attach(km3pipe.calib.Calibration, filename=calib_fname)
pipe.attach(EventHits)
km3pipe pipe.attach(EventHitsStatistic)
pipe.attach(km3pipe.io.hdf5.HDF5Sink, filename="output.h5")
● Run the pipeline:
++ Detector: Parsing the DETX header
++ Detector: Reading PMT information…
++ Detector: Done.
[6]: pipe.drain()
Pipeline and module initialisation took 2.011s (CPU 1.987s).
Number of Hits: 96
Number of Hits: 124
Number of Hits: 78
================================[ . ]================================
Mean number of hits: 99.33333333333333
2021-06-22 15:39:30 ++
km3pipe.io.hdf5.HDF5Sink.HDF5Sink: HDF5 file written to: output.h5
============================================================
3 cycles drained in 2.861304s (CPU 2.829904s). Memory peak: 241.05 MB
wall mean: 0.278396s medi: 0.018987s min: 0.018449s max: 0.797751s std:
0.367240s
CPU mean: 0.275658s medi: 0.019116s min: 0.018727s max: 0.789131s std:
0.363080s
[6]: Blob([('EventPump', None),
('StatusBar', None),
('Calibration', None),
('EventHitsStatistic', None),
('HDF5Sink', None)])
PyHEP 21 - 2021-07-05 – Johannes Schumann 15km3pipe
● Data provenance information:
[14]: print(km3pipe.Provenance().as_json(indent=2))
[
{
"uuid": "d6b77a12-979b-4ff9-9263-9af00482e5b0",
"name": "pipeline",
"parent_activity": "5ef0be78-85d8-4efd-8605-38101689b0ff",
"child_activities": [],
"start": {
"time_utc": "2021-06-22T13:39:27.878522+00:00",
"peak_memory": 217.5
},
"stop": {
"time_utc": "2021-06-22T13:39:30.752623+00:00",
"peak_memory": 241.046875
},
"system": {
"thepipe_version": "1.3.5",
"executable": "/home/johannes/.pyenv/versions/3.9.5/bin/python",
"arguments": [
"/home/johannes/.pyenv/versions/3.9.5/lib/python3.9/site-
packages/ipykernel_launcher.py",
"-f",– Johannes Schumann
PyHEP 21 - 2021-07-05 16
"/home/johannes/.local/share/jupyter/runtime/kernel-c70b0c7e-64ce-4718-bkm3buu
● Python based wrapper for the GiBUU neutrino generator [6]
● Main devs: Johannes Schumann
● GiBUU Overview:
– Monolithic application in FORTRAN90
– Factorized νN interaction model:
●
Primary interaction: Relativistic Fermi Gas with SUSA
potential
●
Final State Interactions: Propagation of phase space
densities using Boltzmann-Uehling-Uhlenbeck-Equation
– Binary output in ROOT file format → parsed using uproot
● KM3BUU uses GiBUU inside of container distributed via the
KM3NeT docker server
● Write out to km3net data format is optional → requires PyROOT
PyHEP 21 - 2021-07-05 – Johannes Schumann 17km3buu ● Setup simulation configuration (jobcard) and run it: PyHEP 21 - 2021-07-05 – Johannes Schumann 18
km3buu ● Setup simulation configuration (jobcard) and run it: PyHEP 21 - 2021-07-05 – Johannes Schumann 19
km3buu ● KM3NeT data format write out: PyHEP 21 - 2021-07-05 – Johannes Schumann 20
km3buu ● KM3NeT data format write out: PyHEP 21 - 2021-07-05 – Johannes Schumann 21
Untitled
km3services June 28, 2021 Can be run on
server or locally
● Microservices API, e.g. for calculating oscillation probabilities:
[1]: import numpy as np
import matplotlib.pyplot as plt
[2]: from km3services.oscprob import OscProb Docker container
oscprob = OscProb()
Numpy Library,
[60]: n = 1000 arrays e.g.
energies = np.logspace(-2, 1, n) OscProb
cos_zenith = 0 REST API
nue_pdgid = 12
numu_pdgid = 14
nutau_pdgid = 16
[61]: prob_ee = oscprob.oscillationprobabilities(nue_pdgid, nue_pdgid, energies,␣
,→cos_zenith) JSON
prob_em = oscprob.oscillationprobabilities(nue_pdgid, numu_pdgid, energies,␣
,→cos_zenith)
prob_et = oscprob.oscillationprobabilities(nue_pdgid, nutau_pdgid, energies,␣
,→cos_zenith)
Python
[62]: plt.plot(energies, prob_ee) REST API program
plt.plot(energies, prob_em)
plt.plot(energies, prob_et) km3services
plt.grid() Numpy
arrays call
plt.xscale("log")
cca004$> _
PyHEP 21 - 2021-07-05 – Johannes Schumann 22Additional km3py packages
● km3db: Interface for the KM3NeT Oracle database which stores
information about detector hardware, calibration,
monitoring data, Q&A results etc.
● km3flux: Parsing of flux tables with interpolation functionality
● km3astro: Extension for astropy for celestial coordinate
transformations
● km3net-testdata: Collection of all kinds of data formats which
can be utilised for unit testing
● rainbowalga: GUI for animating the events and the light
distribution in the detector
PyHEP 21 - 2021-07-05 – Johannes Schumann 23Summary
● The km3py collection provides high compatibility to all interfaces of
the detector and specific functionality
● Focus on data monitoring, pipelines and provenance
● Widely used tools and scripts in KM3NeT based on the km3py
environment
● Most of the packages are open source and distributed via PyPI
● Additionally a environment for KM3NeT is in the making
– Existing framework to process KM3NeT data files (ROOT,
HDF5, binary, etc.) natively in Julia: NeRCA.jl
– Real-time event reconstruction for high-level detector monitoring
– Some general HEP Julia projects which originate from KM3NeT
members: UnROOT.jl, Corpuscles.jl and Neurthino.jl
PyHEP 21 - 2021-07-05 – Johannes Schumann 24Thank you for your attention!
References
[1] S. Adrián-Martínez et al., ‘Letter of intent for KM3NeT 2.0’, J. Phys. G:
Nucl. Part. Phys., vol. 43, no. 8, p. 084001, Jun. 2016,
doi: 10.1088/09543899/43/8/084001.
[2] A. López-Oramas, ‘Multi-year Campaign of the Gamma-Ray Binary LS I
+61◦ 303 and Search for VHE Emission from Gamma-Ray Binary
Candidates with the MAGIC Telescopes’, 2015,
doi:10.13140/RG.2.1.4140.4969.
[3] U. F. Katz and Ch. Spiering, ‘High-energy neutrino astrophysics: Status
and perspectives’, Progress in Particle and Nuclear Physics, vol. 67,
no. 3, pp. 651–704, Jul. 2012, doi: 10.1016/j.ppnp.2011.12.001.
[4] https://what-if.xkcd.com/73/
[5] A. V. Akindinov et al., ‘Letter of interest for a neutrino beam from Protvino
to KM3NeT/ORCA’, Eur. Phys. J. C, vol. 79, no. 9, p. 758, Sep. 2019,
doi:10.1140/epjc/s10052-019-7259-5.
[6] O. Buss et al., ‘Transport-theoretical description of nuclear reactions’,
Physics Reports, vol. 512, no. 1, pp. 1–124, Mar. 2012,
doi:10.1016/j.physrep.2011.12.001.
PyHEP 21 - 2021-07-05 – Johannes Schumann 26You can also read
