The puzzling diversity of pulsar wind nebulae
The puzzling diversity of
    pulsar wind nebulae

George Pavlov (Pennsylvania State University)
Oleg Kargaltsev (George Washington University)
Bettina Posselt (Pennsylvania State University)
Noel Klingler (George Washington University)
Jeremy Hare (George Washington University)
The puzzling diversity of pulsar wind nebulae

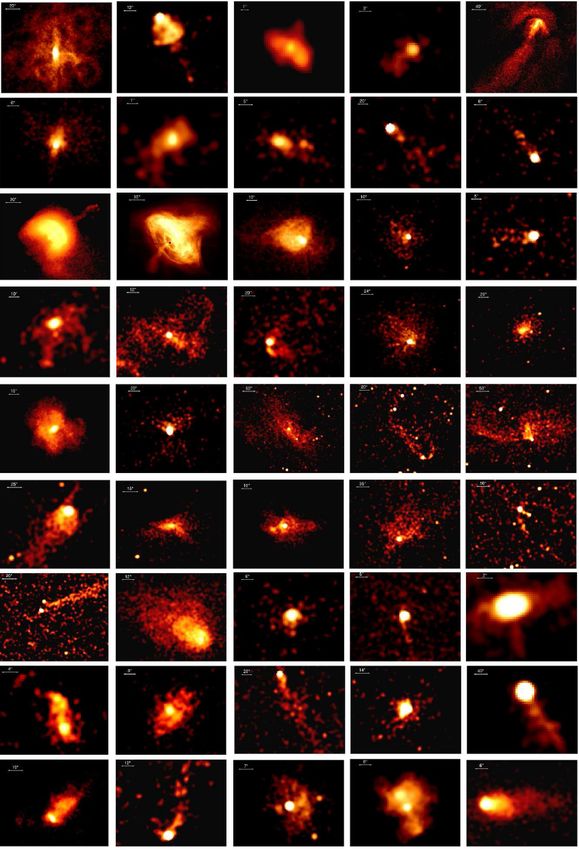

Chandra (and XMM) detected over 60 PWNe
                        Two major classes

                       (I) Young PWNe within SNRs:

                       subsonic motion, torus-jet

                       morphologies in very young ones,

                       interaction with SNR reverse

                       shock in older one (Pat’s talk).

                        (II) Older PWNe, left their

                        SNRs, supersonic motion,

                        bow-shock/tail morphologies

                        Both classes show great variety

                        of shapes and other properties

                        -- particularly surprising for

                        Class II PWNe
The puzzling diversity of pulsar wind nebulae

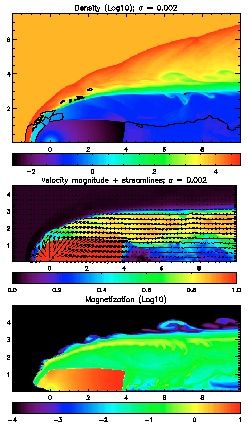

RMHD simulations of isotropic outflow for supersonically moving pulsar

(Bucciantini, Amato, Del Zanna 2005)

Density, velocity, magnetization

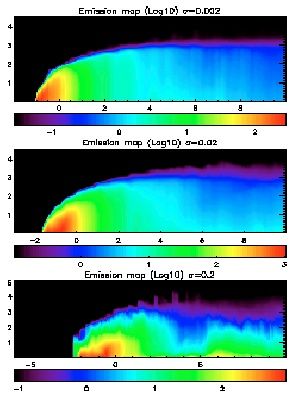

                    Synchrotron radiation for different magnetizations

                                       Forward shock

                                      Contact Discontinuity

                                      Termination shock
The puzzling diversity of pulsar wind nebulae
Some PWNe resemble the simulations.

                                  Example: The Mouse

  PSR J1747-2958

            Edot =2.5×1036 erg/s

    τsd = 25 kyr (true age ~100 kyr)

                                D = 5 kpc

      Vt ~ 400 km/s

120 ks Chandra ACIS (Klingler et al 2015)

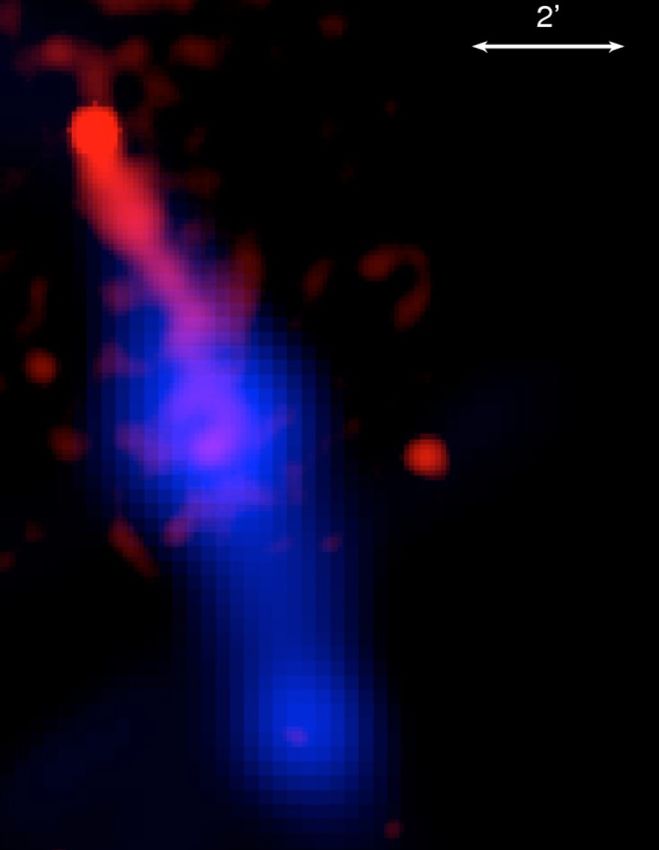

     X-ray (blue) superimposed on Radio (red,VLA, beam = 3.5”)

      At 5 kpc:

      30” à 0.36 pc, 3’ à 4.4 pc

                                                 Comparison with models yields Mach ~ 60, V ~ 600 km/s,

                                                 n ~ 0.3 cm-3 (Gaensler et al 2004)

                                               X-ray and radio – synchrotron radiation from shocked PW

                                                 Rapid synchrotron cooling à
                                                             strong magnetic field ~ 100 μG
The puzzling diversity of pulsar wind nebulae
Quite different picture:

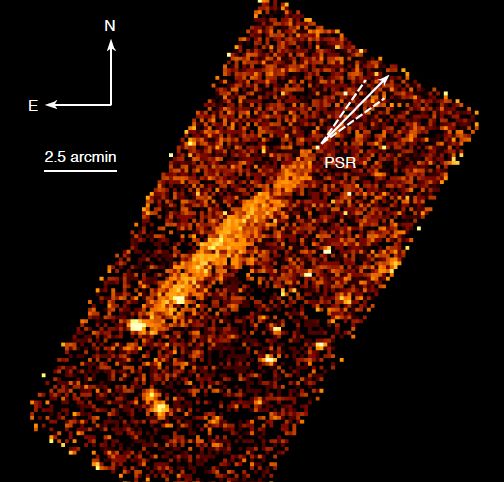

                      Geminga PWN

Chandra ACIS 600 ks (Posselt, XVP-PWN

Collaboration 2015)

                     Edot = 3×1034 erg/s, τsd = 340 kyr, d ~0.2 kpc ,Vt ~340 km/s

                                                Two ~4’-long lateral tails and 50’’-long axial tail

                                                       No radio or H-alpha PWN

                                                 The axial tail might be a jet, and the lateral tails

                                                 resemble a limb-brightened shell (bow shock),

                                                 but no emission is seen between them

                                                 (and such bow shocks are usually seen in Balmer lines,

                                                 not in X-rays)

                                                  The lateral tails could be bent jets?

                                                   But then what is the axial tail?

                                                   Equatorial torus seen edge-on?

                                                 Spectra are very hard, Γ ≈ 0.7 – 1.0 for the lateral tails,

                                                 Γ ≈ 1.4 – 2.0 for the axial tail; no statistically significant

                                                 softening. Additional acceleration in lateral tails?

     The 3D PWN geometry remains unclear, it is not explained by simple theoretical models

                                                                 (Ask Bettina Posselt for details.)
The puzzling diversity of pulsar wind nebulae
B0355+54 (Mushroom PWN)

      Another kind:

                                              Edot = 5×1034 erg/s, τsd = 650 kyr, d ~ 1 kpc, Vt ~ 60 km/s

 Chandra ACIS, 390 ks, Klingler, XVP-PWN

 Collaboration, 2015

Filled-in “head” (mushroom cap), brightened
along the axis, with a sharp lower boundary
and strange “whiskers”, a dimmer “stem, ” and
an even dimmer 7’(~2 pc) - long broadening
trail.

      Only a hint of spectral softening, from Γ = 1.5 in the compact nebula to Γ = 1.7 in the trail
The puzzling diversity of pulsar wind nebulae
Yet another type:

                      J1509-5850

    Edot = 5.1×1035 erg/s, τsd = 154 kyr, d ~ 3.8 kpc, Vt not measured

                                                                              Chandra ACIS, 370 ks, Klingler et al 2015

  Bowshock-like structure around the pulsar, similar to Geminga.

   Long (~6 pc) tail with high outflow speed, >> Vpsr. Very unusual

  “headlight”. Radio tail up to 11 pc, quite different from the Mouse.

   Magnetic field parallel to the tail in the Mouse, perpendicular in

  J1509. Faint Halpha bow shock (Brownsberger & Romani 2014).

                                        Photon index Γ ~ 1.9 in the tail,
Even longer radio tail

              hint of softening in the “headlight”.

(Hui & Becker 2007, Ng et al 2010)
The puzzling diversity of pulsar wind nebulae
Even more exotic:

Lighthouse nebula

 IGR J11014-6103

D ~ 7 kpc, Vt > 1000 km/s (based on SNR MSH 11-61A association

                   Pavan at al. 2013

and SNR age estimate)

  In addition to the “usual” tail-like nebula behind the pulsar, there is

   a very long (~11 pc ) jet-like structure almost perpendicular to the

  direction of motion. Interpreted as a precessing jet (~66 yr period).

 Photon indices:: Γ = 1.6 +/- 0.2 for the “jet”, Γ = 1.9 +/- 0.1 for the “tail”
The puzzling diversity of pulsar wind nebulae

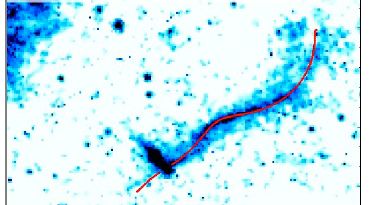

Another misaligned outflow: B2224+65 (Guitar nebula)
                                                                                 2’ (~1 pc)-long jet-like feature in X-rays

d ~ 1.5 kpc                                                                      (Hui & Becker 2007, Johnson & Wang 2010)

Ė = 1.2 x 1033 erg/s

Age ~ 1 Myr
Vt ≈ 900 km/s

A guitar-like nebula in H-alpha (Cordes et al 1993,

Chatterjee & Cordes 2004).

                                                         Photon index in the one-sided jet”: Γ = 1.60 +/- 0.15

                                                         The true nature of the “jet” remains unclear. Might be a leak of

                                                         high-energy electrons from the bow-shock apex and further drift

                                                         in the ambient magnetic field (Bandiera 2008).
The puzzling diversity of pulsar wind nebulae
J0357+3205:                        Turtle’s tail   Chandra ACIS 105 ks

d ~ 0.5 kpc       Ė = 5 1033 erg/s
Age ~ 540 kyrs
Vt ≈ 390 km/s (De Luca et al 2013)

Compact PWN (“bullet”) is

essentially absent!

9’(~1.3 pc) trail, brightness increases with distance

from pulsar, no traces of spectral softening.

  Might be thermal emission from ISM heated by

  the shock driven by the fast-moving pulsar

  (Marelli et al 2013) ?

  No H-alpha

      De Luca et al. 2013
Some structures show fast variability.

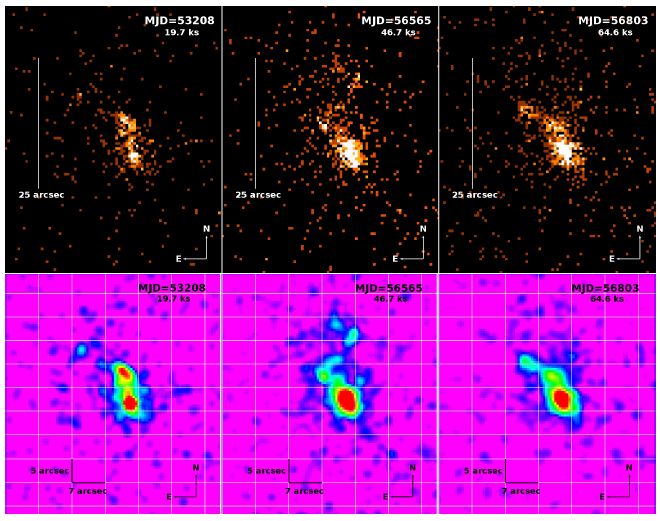

 J1809-1917 – wagging tail PWN

  D ~ 3.5 kpc, Edot = 1.8*1036 erg/s, age ~ 50 kyr,            Vt = ?

                                                                            Chandra ACIS,

                                                                            20 + 47 + 65 ks

                                                                            (Pavlov et al 2015)

   Tail (or jet?) changed its shape and length in just 8 months! A kink instability?

   (Ask Bettina Posselt for a movie on variability of the Geminga PWN)
Not only the detected X-ray PWNe of supersonically moving pulsars

have very different morphologies and spectral properties, but some

apparently similar pulsars do not show clear PWNe at all (or perhaps

show very small and faint PWNe).

 ACIS-S, 5 ks

         PSR B0656+14

                            Birzan et al 2015

                    Nearby, middle-aged pulsar (d = 290 pc, age = 110 kyr,

                    Edot = 3.8 1034 erg/s), Vt = 60 km/s.

                    No spectacular nebula, only a slight excess over the PSF profile in

                    a 4’’ – 15’’ annulus, with a very soft spectrum possibly due to

                    contribution of dust scattering halo.

  HRC-I, 40 ks
Very similar situation with another middle-aged pulsar

 B1055-52

    Posselt et al 2015

D ~350 pc, Edot = 3*1034 erg/s, age = 535 kyr, Vt ~ 70 km/s

  50 ks Chandra ACIS-S image shows only a slight excess over

  the PSF profile in a 5’’ – 20’’ annulus, mostly in the soft band.

What is the reason? Projection effect? Pulsar velocity almost

along the line of sight (Vt unusually small)? Likely, but B0355

also has a low Vt but shows a spectacular PWN. Some

intrinsic peculiarities of the pulsars (e.g., close alignment of

magnetic and spin axes)? Not clear yet.
Thus,

 X-ray PWNe of supersonically moving pulsars show great diversity:

Generally, 3 elements: Tail (trail?), Head, Collimated misaligned outflow

 Not all of them are seen in a given PWN…

The tails/trails are typically a few pc long, with high flow speed in at least some of

them. The visible flow is likely decelerated by entrainment of ambient matter

(tail à trail). We see synchrotron cooling in some cases but not always.

The heads can be “filled-in” (Mouse, Mushroom) or “empty” (shell-like), sometimes

with a short axial tail (Geminga, J1509-5850).

  The misaligned outflows could be jets along the pulsar spin axis or outflows of

  very high energy electrons leaked from bow-shock apex region.

    Some tails show variability with a few months timescale.

  Some pulsars show very faint and/or very small X-ray PWN (or no PWN at all?).

  Might be a projection effect?

    More advanced (3D) models are needed.

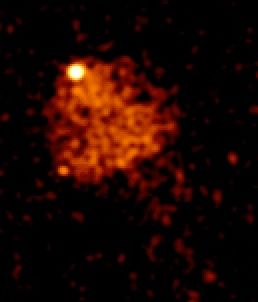

Even more diversity if we include binary pulsars. Here is an example

 A dynamic nebula of the B1259-63/LS 2883 high-mass binary

The animation shows 3 images taken

on Dec 2011, May 2013 and Feb 2014

with about equal exposures ~60 ks.

We see an extended object moving

from the binary with high apparent

velocity, perhaps with acceleration.

 What is this?
High-mass binary LS 2883 with PSR B1259-63
                                                            Fast-spinning, massive
                                                            (M~30 M¤, L=6×104L¤)
                                                            star with a strong wind.

                                                            The wind is dense and slow
                                                            in the decretion disk,
                                                            tenuous and fast outside the
                                                            disk.

                                                               Pulsar B1259-63:
                                                               Spin period = 48 ms
                                                               Edot = 8×1035 erg/s
                                                               Spin-down age =330 kyr
                                                               Should emit pulsar wind

X-ray flux and spectrum vary with orbital period.

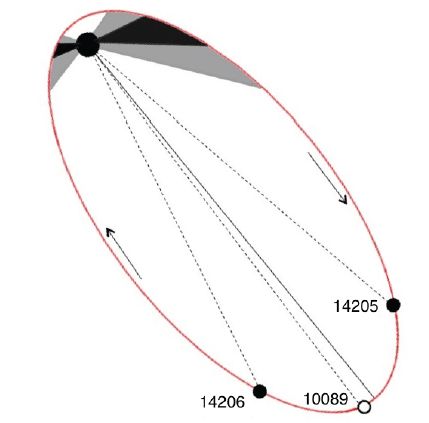

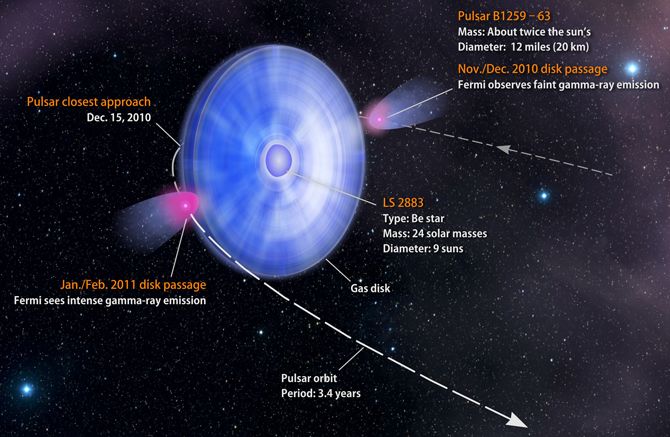

   Orbit:
Gamma-ray flashes near periastron,

                  3.4 yr orbital period
apparently when the pulsar interacts with

           7 AU (3 mas) max. separation
the decretion disk during 2nd passage.

              0.87 eccentricity
Orbital positions, dates, and days from periastron for 3 observations

                      16563(83)"

                        2014 Feb 8

                         1151 d

                                                             2011 Dec 17

                                                                370 d

                                    2013 May 19

                                      886 d
Distance of the extended source from the binary versus time
                             8
                                                                             -

                                                                             -

                             6
      Distance, arcseconds

                                                                  -

                             4
                                                                  -

                                           -

                             2             -

                             0
                                 0   200   400      600       800     1000   1200   1400
                                           Days since periastron passage

Linear fit: V = (0.07+/-0.01)c

If there is no acceleration, the cloud was ejected from the binary

around periastron of 2010 Dec 14

 Apparent acceleration (?) 90+/- 40 cm/sec2
Luminosity decreased from 1 to 0.2*1031 erg/s (~ 3% à 0.7% of binary luminosity)
  The spectra are consistent with power laws,
  photon indices Γ = 1.2+/-0.1, 1.3+/-0.2, and 0.8+/-0.4 (no softening!)

   Synchrotron radiation? B ~ 10-4 G, Ee ~ 10 – 100 TeV

 Confidence contours in Photon Index – Normalization plane
Possible interpretations:

 (1) Variable termination shock in the circumbinary medium,

  similar to PWNe around isolated pulsars (Kargaltsev et al 2014)

But, it requires unrealistically high ambient pressure, pamb ~ 10-10 dyn cm-2,

to explain the shock size.

(11) Ejected clump of stellar (disk) matter moving in the

  unshocked pulsar wind (Pavlov et al 2015) -- looks more plausible.

 The ram pressure of the unshocked pulsar wind can also accelerate the

 clump: vdot ~ ppw A mcl-1.

 mcl ~ 1021 g for the apparent (low-significance) estimated acceleration.

   The clump can be ejected due to interaction of the pulsar (PW) with

   the decretion disk.

  The X-ray emission is due to synchrotron radiation of the pulsar wind

  shocked by the collision with the clump.

  X-ray luminosity LX,cl = ξX Edot (rcl/2r)2, ξX ~ 1.5×10-3

 Other interpretations are possible, new observations are planned.
