THE CFD SIMULATION OF THE FLOW AROUND THE AIRCRAFT USING OPENFOAM AND ANSA

5th ANSA & μETA International Conference

THE CFD SIMULATION OF THE FLOW AROUND THE AIRCRAFT
USING OPENFOAM AND ANSA
Adam Kosík
Evektor s.r.o., Czech Republic

KEYWORDS –
CFD simulation, mesh generation, OpenFOAM, ANSA

ABSTRACT –
In this paper we describe the complete process of modeling and simulation of computational
fluid dynamics (CFD) problems that occur in engineering practice. We focus mainly on the
simulation of the airflow around the aircraft. The fluid flow simulations are obtained with the
open source CFD software package OpenFOAM. We use the solver based on the Semi-
Implicit Method for Pressure-Linked Equations (SIMPLE). The important part is the
preparation of the model with the software ANSA. We will describe the preprocessing
including the creation and modification of the surface mesh in ANSA and the three-
dimensional volume grid generation. We discuss the generation of the three-dimensional grid
by the snappyHexMesh tool, which is included in the OpenFOAM package. Furthermore, we
present a way of analyzing the results and some of the interesting outputs of the simulations
and following analysis. The CFD simulations were performed on the computational model of
the twin turboprop aircraft EV-55 Outback. We made comparison between computations
made by OpenFOAM, ANSYS Fluent and measurements in a wind tunnel. The computations
were performed for different model settings and computational grids. It means, that we
considered laminar and turbulent flow and several combinations of the angle of attack and
inlet velocity.

TECHNICAL PAPER -

1. INTRODUCTION

One of the important activities of the Evektor company is the development of the twin-engine
turboprop aircraft EV-55 Outback, see Figure 1. Recently flight tests with the first prototypes
take place and during the phase of testing the CFD simulations significantly help with the
improvement of technical parameters. The CFD engineers use for these simulations various
software packages like ANSYS Fluent. The package OpenFOAM appeared few years ago
and provided the open-source alternative to the commercial CFD software. It becomes more
and more popular in engineering and academic sphere, yet the main disadvantage is the
user interface. Furthermore it needs surely a good pre-processing tool, because the
precision of the computational approximation considerably depends on the quality of the
computational grid. In our company we concern ourselves with the possibility of the usage of
OpenFOAM together with ANSA for the CFD simulations. In this paper is described the
preparation of the model for the external aerodynamics computations and the results are
shown and discussed.

Although it can be assumed that the reader of this text is familiar with the software ANSA and
OpenFOAM, let us make their brief description. ANSA is a pre-processing tool used in the
CAE to prepare the complete model. ANSA provides a friendly graphical user interface and
plenty of features for the preparation of computational meshes.

OpenFOAM is a CFD software package developed by OpenCFD Ltd, which is currently the
part of the ESI Group. OpenFOAM is distributed under the GNU general public licence
(GPL). The GPL allows the OpenFOAM users to modify and redistribute the software.
OpenFOAM includes tools for meshing, especially the parallelised mesher snappyHexMesh.

5th ANSA & μETA International Conference

The mesher snappyHexMesh is used for complex geometries, it meshes to surfaces from
CAD.

Figure 1 – The twin turboprop aircraft EV-55 Outback.

From theoretical point of view the fluid dynamics is described by the equations for pressure,
density, components of velocity and thermodynamical quantities based on conservation laws.
The solver included in software like OpenFOAM is nothing more than a solver of these
equations. In our computations we consider the steady-state problem. The solver contained
in OpenFOAM for this problem uses the SIMPLE algorithm (Semi-Implicit Method for
Pressure-Linked Equations). In order to get realistic solutions, we have to consider the
turbulence. Therefore it is required to choose the suitable turbulence model.

The whole computational process contains several steps. Taking into account the problem of
external aerodynamics we start with the definition of the geometry of the domain occupied by
the fluid flow. The domain has to be fulfilled with a suitable computational grid containing
hexahedras or tetrahedras in general. Further the boundary conditions should be set, the
solver options chosen and physical properties given. The results of the computation are then
analyzed. We are interested about the drag and lift coefficients, the velocity streamlines and
the pressure distribution.

This was just a brief description of the problem and the computational process. In following
paragraphs we expand the introduced subjects.

2. THEORY OF CFD AND PROBLEM DESCRIPTION

The physical problem of fluid flow is described by the Navier-Stokes equations. These
general equations can be simplified by specific assumptions. In our case we consider a
steady-state incompressible flow. The system for steady-state incompressible flow contains a
continuity equation for incompressible flow and a steady flow momentum equation. We
search the velocity field and the kinematic pressure, i. e. pressure divided by the density. The
density is constant by the assumption of incompressibility. Under the condition of low Mach
number, i.e. the flow velocity divided by the speed of sound in fluid, even compressible fluids
can be modeled as an incompressible flow. We take into account the turbulence. For the

5th ANSA & μETA International Conference

simulation of turbulent flows the formulation of the Navier-Stokes equations is modified. The
OpenFOAM solver uses one of the known approaches, the time-averaged equations the
Reynolds-averaged Navier-Stokes equations (RANS), supplemented with turbulence models.

We solve a problem of external aerodynamics. Our task is to determine the aerodynamic
characteristics of the model of the aircraft EV-55 Outback. We can compare them with the
gained results from measurements on a scale model in a wind tunnel, measurements during
the flight tests and the simulation results obtained using ANSYS Fluent. A general task
contains information about the geometry of the aircraft, angle of attack, velocity, density and
viscosity of air. The aim is to determine drag and lift coefficients of the aircraft and to create
some graphical output of the pressure and velocity distribution.

We use the simpleFoam solver, which is a steady-state solver for incompressible, turbulent
flow. This solver uses the SIMPLE algorithm. The iterative process of this algorithm consists
of several steps, that are iteratively repeated till the convergence. The steps performed by
this algorithm in every iteration are following. First the boundary conditions are set. Then
is obtained an approximation of the velocity field by solving the momentum equation. The
mass fluxes at the cells faces are computed. The pressure equation is formulated and solved
in order to obtain the pressure distribution and the underrelaxation is applied. The mass
fluxes at the cell faces are corrected and so are corrected the velocities on the basis of the
actual approximation of the pressure. The boundary conditions are updated and finally the
convergence condition is checked.

3. PRE-PROCESSING

Figure 2 – The surface mesh of the whole aircraft.

Mesh generation

Each preparation of a CFD simulation starts with the generation of computational mesh. In
the case of external aerodynamics we start from the geometry of a body and the definition of
the surrounding area. The first task is to obtain a high quality surface mesh of the body. It
needs to be as smooth as possible without any humps. We use ANSA for the creation and
modification of the surface mesh. The surface mesh is made up of triangles. Ideally, they
should all be nearly equilateral triangles. The distance between two vertices should not be
too small in the scale of the whole model. This is applied to both vertices of a single triangle

5th ANSA & μETA International Conference

and vertices of any two different triangles. The surface can consist of more regions, but they
must form together one or more closed areas. Further we can specify different regions. We
have to do it, if we would like to set different boundary conditions on some regions, if we
want set the various number or parameters of boundary layers, if we need to divide the
surface for purpose of post-processing, or any other reasons. Usually we get the CAD data in
millimeters, so it is good to check it. The solver works in base units. We can scale the mesh
just before the computation or you can transform it already during pre-processing. Also it is
recommended to check the origin. If you combine more meshes, then it should be the same
for all of them. Often we want to keep some edges of the original geometry. They could be
found automatically or we can select them with ANSA and save them as so called feature
lines.

Figure 3 – The detail of the surface mesh.

Assuming, that we can create high-quality surface mesh with the aid of ANSA, we are ready
for the generation of volume mesh. In the introduction we already mentioned that
OpenFOAM includes its own generator of volume meshes the snappyHexMesh. Besides the
surface mesh of an aircraft this tool needs a suitable background mesh. Background mesh is
a simple hexahedral mesh, which fulfills the surrounding domain. It can be for example
created by OpenFOAM meshing tools. The settings of the volume mesh generation includes
many parameters. We can set the level of refinement and we can set it specifically near
different surface regions or near the feature lines. Further we can set some simple areas like
boxes, balls, cylinders, or plates, where we define the mesh to be finer. We often need to
add boundary layers to properly capture the behavior near walls. Finally we can control the
maximum number of elements and the quality of the elements, i.e. the maximal skewness,
concavity, volume, etc.

If there are no errors by the snappyHexMesh execution on a proper background, we obtain
the resulting volume mesh. We are required to make some examination. We can use tools
provided for checking of the mesh and we should control the visualization of the mesh. Then
we may continue with computation of the fluid flow equations. Recently the snappyHexMesh
development went ahead and the preparation of the surface mesh and the work with
snappyHexMesh is quite fast and easy. Still, many people want prefer different approaches
for mesh generation. Also, you could have already a lot of meshes prepared from other
computations with other software. This is quite easy to overcome. OpenFOAM and ANSA

5th ANSA & μETA International Conference

also offers a wide range of converters from other formats. Namely as example we can
convert from the files of ANSYS, CFX4, Fluent, Gambit, GMSH, or STAR-CD.

Case settings

Let's describe the settings of solved cases. We consider steady-state incompressible viscous
turbulent flow. For the computations we used different geometries of the turboprop aircraft
EV-55 Outback, because one set of computations is with model with landing gear retracted
and the other with landing gear extended. In presented computations we consider just the
initial position of flaps. The meshes were generated with the aid of ANSA and the
snappyHexMesh tool or with TGrid. The fluid is considered to be air. Because of the
incompressibility condition the density is set to the constant value 1.225 kg/m3 and the
viscosity was set to 1.825 kg/(m.s). For the computation we set different angles of attack and
different inlet velocity. For the incompressible case we don't need to set the pressure value.
The pressure is relative to the output value.

The computation starts with estimation of a potential solution and then we run the solver
simpleFoam for 1500 iterations. On the end the convergence is checked and the results are
ready for post-processing. The complete solution of typical case takes approximately 5 hours
across 8 CPUs.

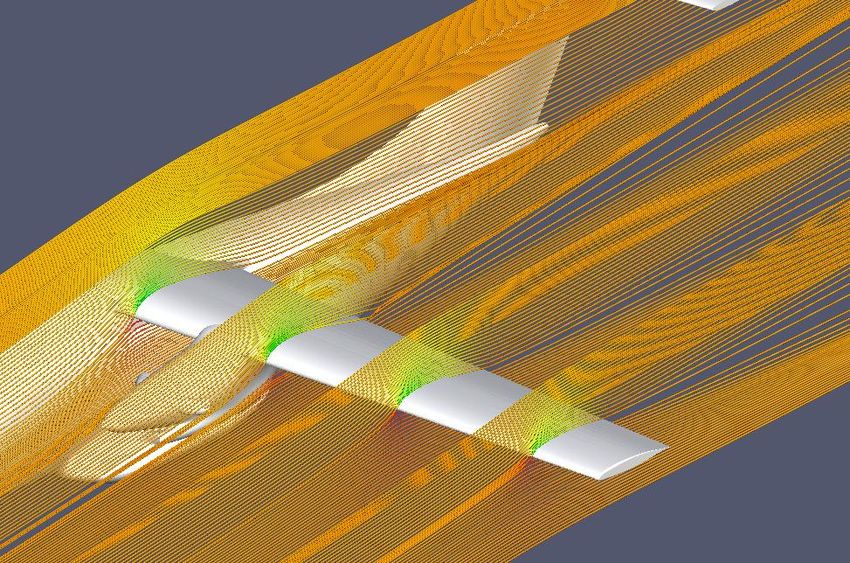

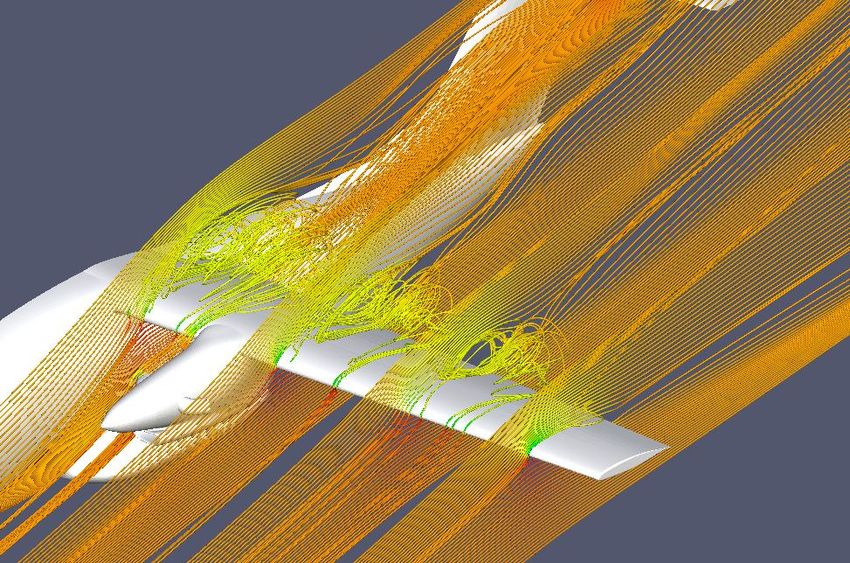

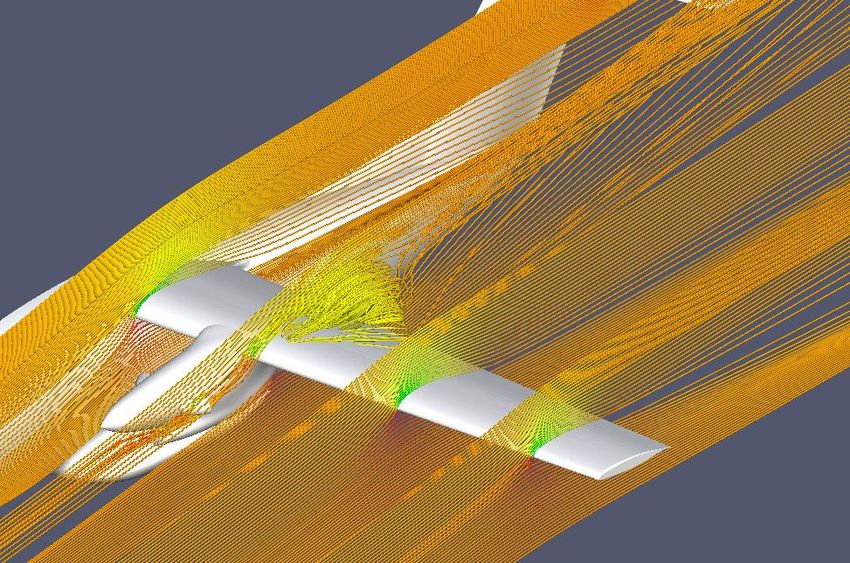

Figure 4 – The velocity streamlines visualization, simulation of EV-55.

4. CFD SIMULATIONS OF THE AIRCRAFT

In the following two subparagraphs the first includes the description and the solution of the
CFD simulation for the aircraft EV-55 Outback and the aim was to obtain the general
aerodynamic characteristics, the latter is focused on the computation of the pressure
distribution on the landing gear door.

EV-55 Outback aerodynamic characteristics
The goal was to compute the lift coefficient for the aircraft EV-55 Outback. We wanted to
compare different approaches for the mesh generation and the use of different software with
some theoretical results obtained on the basis of measurements in a wind tunnel. Let us
describe the case settings. The inlet flow velocity rate was set to 55.0 m/s and the boundary

5th ANSA & μETA International Conference

conditions were given by different angles of attack. For the OpenFOAM computations we set
the values 0.0, 2.0, 4.0, 6.0, 8.0, 10.0, 12.0, 14.0, 16.0 and 18.0 degrees. We computed on
the meshes generated by the snappyHexMesh and TGrid, but for this comparison we have
the snappyHexMesh mesh for the OpenFOAM and TGrid mesh for Fluent. The meshes were
on comparable amount of elements and satisfying the same quality conditions. The
computation was done for just a half of the aircraft by the assumption of symmetry of the
flow. We used the Spalart-Allmaras turbulence model for all the computations. On the Figure
5 is the comparison of the lift coefficient for the two described approaches and for the
theoretical results from measurements. You can see that for the higher angle of attack the
values are significantly different. This is caused because of the turbulent effects for
separated flow. For lower angles of attacks the results are comparable. We present a few
visualizations of the velocity streamlines and the pressure distribution on the surface of the
aircraft for the OpenFOAM computations.

Figure 5 – The comparison of the lift coefficient for the OpenFOAM, Ansys Fluent and the
theoretical results from measurements.

Figure 6 – The velocity distribution on two cuts of the computational domain.

5th ANSA & μETA International Conference

Figure 7 – The pressure distribution on the body of the aircraft EV-55. The pressure values
are relative to the outlet pressure.

On the Figure 7 the pressure distribution on the aircraft surface is shown. This is the case by
the settings of the angle of attack of 4.0 degrees.

5th ANSA & μETA International Conference

Figure 8 – The streamlines of velocity for different angles of attack. Top 0.0 degrees, bottom
8.0 degrees.

On the Figure 8 we can see, that the flow is laminar round the wings.

5th ANSA & μETA International Conference

Figure 9 – The streamlines of velocity for different angles of attack. Top 12.0 degrees,
bottom 18.0 degrees.

On the Figure 9 contrary to previous Figure 8 the flow is separated.

5th ANSA & μETA International Conference

Figure 10 – The model of aircraft EV-55 Outback with landing gear extended.

Landing gear door

In this paragraph we will present the solution of another task. The basic geometry model was
the aircraft EV-55 Outback again. But this time we were interested about the pressure
distribution on the landing gear doors when the doors are opened and the landing gear is
extended, see Figure 10. The computations were provided on the mesh created with ANSA
and TGrid. This time there was no symmetry boundary condition. The chosen case, which
was compared with Fluent computation, had following settings. The angle of attack was 5.0
degrees and the yaw angle was -11.0 degrees. The inlet velocity was set to 220.0 km/h, i.e.
61.11 m/s. We used two turbulence models the Spalart-Allmaras and the k-Omega SST. The
aim of the computation was to get the momentum coefficient of every single door and to
visualize the pressure distribution on the door. There are the visualizations for the Spalart-
Allmaras turbulence model on the Figure 11. The comparison of momentum coefficients for
the left door follows.

                                     Momentum coefficient
OpenFOAM kOSST                                   0.233
OpenFOAM Spalart-Allmaras                        0.235
Fluent kOSST                                     0.237
Fluent Spalart-Allmaras                          0.242
Test                                             0.228

The test result was obtained for slightly different conditions, the inlet velocity was 216.0 km/h,
the angle of attack was 4.7 degrees and the yaw angle -11.2 degrees.

5th ANSA & μETA International Conference

Figure 11 – The pressure distribution on the landing gear doors for the Spalart-Allmaras
turbulence model.

5. CONCLUSIONS

In this paper we presented the CFD computations with the aid of ANSA and OpenFOAM. All
the shown results were made for the simulation of the fluid flow round the twin-engine
turboprop EV-55 Outback. The main goals were to control the aerodynamic characteristics of
the aircraft. Further, we have shown one practical task, when we were interested about the
pressure distribution on the landing gear door. The practical part was preceded by a brief
introduction to the theory of CFD simulations and the description of the solver and the solver
settings. In description of the computational process we focused on the pre-processing part
including the mesh generation.

Considering our experience with the OpenFOAM software package we can conclude, that
this package offers a suitable alternative to commercial software, but for daily use it is
necessary to prepare some templates for the standard cases and to have some useful pre-
processing tool. This is mainly done by the preparation of the model with ANSA. We also
made a few tests with the meshing tool snappyHexMesh. This seems to be one of the pros of
the OpenFOAM package. The other significant advance is the possibility to run the case in
parallel on up to thousand of CPUs or to run more problems at once on more machines
without any need of buying license for it. Although we can comfortable say, that we can solve
the basic and advanced problems of external aerodynamics, there are some tasks to be
done in future. Above all it is the endless work finding a suitable turbulence model and the
improvement of the settings of the mesh generation.

REFERENCES

(1)    ANSA version 13.2.4. User’s Guide, BETA CAE Systems S.A., December 2012
(2)    CFD Online, http://www.cfd-online.com
(3)    OpenFOAM User Guide, 2012. http://openfoam.com/docs/user/index.php
