» The Braumeister of all brewing devices
Homebrewing equipment made of stainless steel
2019
» Don’t buy the copy, buy the original There are many brewing devices. But there is only one Braumeister. Not surprising, because the malt tube technology is an invention of Spei- del. With 15 years of lead in development, no one can outdo us here - at most, they can copy us.
2 3
» Like brewing beer,
only easier
The ingenious twist of the Braumeis- This loosens the malt during pump
ter is that the malt is not washed out breaks and the malt is washed out
by a stirring device, but by gently optimally and gently for a more inten-
circulating the wort. This way nothing sive malt aroma.
burns and it does not have to be
stirred during the brewing phases. The control system controls the
Mashing, lautering and hop boiling - brewing process fully automatically.
everything takes place in the same The time and temperature are
boiler. This makes brewing beer so precisely maintained in all brewing
easy and clean. phases. The control can be pro-
grammed with preset or individual
In contrast to the complicated equip- recipes. With the optional wireless
ment of some other hobby brewers, LAN module, you can synchronize
with the Braumeister you do not have your recipes with the Braumeister
to stir all the time. By the patented and monitor and control him during
malt pipe technology the beer wort is the brewing process in your own
circulated carefully and comfortably wireless LAN network.
with pipelines, which are not visible
from the outside. So nothing burns The Braumeister consists almost
and it does not have to be transferred entirely of stainless steel and
during the brewing phases. The impresses with its high-quality work-
Braumeister is the only brewing de- manship - Made in Germany!
vice that pumps from bottom to top
- against the gravity of the malt.
4 5
Stainless steel hood
Handy filling aid and
extraction aid
Screenplate
Top and bottom with
coarse filter and fine filter Double jacket
Cooling without accesso-
ries, perfect for
Malt pipe Low-Oxygen-Brewing
Completely removable
for easy lautering
flow direction
Heating
Does not come into
contact with the malt
BRAUMEISTERmobil
Remote control everything Control system
with the WLAN module Fully automatic and
easy to use
Pump
Gentle circulation of the
wort from bottom to top
» Good reasons for having a Braumeister
Patented malt pipe technology Service-friendly
With our patented malt pipe techno- Components such as controller,
logy, the mash is gently circulated pump or sensors can be easily
from bottom to top. In This way we replaced by means of electrical plug
achieve optimum malt washing wi- connections. This allows you to carry
thout constant stirring. At the same out minor repairs yourself.
time, we have cleverly hidden the
pipelines. Our original concept has
existed since 2003 and we have had
it patented.
Automatic brewing control
The fully automatic brewing control
has a colour display, status lighting
Braumeister PLUS and a memory for 10 recipes. It can
be used in automatic mode or in
Due to the welded on double jacket manual mode. It also has a timer
of the Braumeister PLUS you achieve function for starting the brewing pro-
a clean and effective cooling and an cess. The Braumeister is expandable
even clearer wort even without a to use with the My Speidel digital
cooling spiral. brewing cockpit.
Easy to clean Always up to date
Perfect craftsmanship and our best Regular software updates can be
welding seams facilitate cleaning. installed via the wireless LAN mo-
The Braumeister's pump can be dule BRAUMEISTERmobil. Even old
opened and cleaned manually. The devices remain compatible with new
Braumeister PLUS also has an addi- accessories.
tional outlet tap at the bottom of the
container. This makes it easy to drain
off the dirty water.
6 7

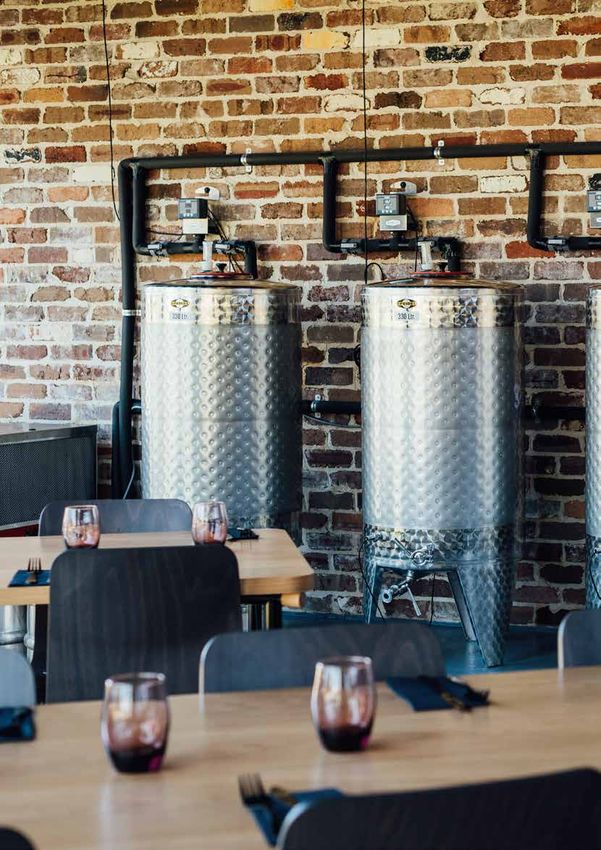

Accessories and fermentation tanks Experience
We offer a large selection of accesso- We have more than 100 years of
ries and fermentation tanks from our experience in tank construction for
own production for both brewing and wine and beer production. In additi-
fermenting. on, we can refer to over 15 years of
experience with small breweries. Our
know-how can be seen in practical
details, the coordinated accessories
and the automatic brewing control
with timer function.
My Speidel
With My Speidel, we offer you a free
portal for recipe creation, manage-
ment, synchronization and control of
brewing and fermenting equipment. Worldwide Service
So you can share your favourite re-
cipes with the community or discover We offer our customers all over the
new ones. You can manage all your world advice and support by e-mail
Speidel equipment online here. and telephone and take our time for
individual solutions.
Made in Germany
Our products are manufactured ex-
clusively in Ofterdingen, Germany.
» For the kitchen
» 10 litre Braumeister
So small and already a real Brau- This makes it ideal for the small
meister: The 10 litre Braumeister is brewing experience in between or
so handy that it can even be set up in for testing very special beers in
the smallest kitchen. Nevertheless, it small quantities. You won't want to
has all the advantages of a real Brau- put away your new Braumeister any
meister: patented malt tube techno- more!
logy, high-quality craftsmanship and
fully automatic control.
10 LITRE BRAUMEISTER DIMENSIONS FOR 10 LITRE BRAUMEISTER MODELS
Capacity Item no. Weight Shipping weight
l kg kg
10 41010 10 13
Height
TECHNICAL DETAILS OF 10 LITRE BRAUMEISTER
› Heating coil: 1,200 W output
› Pump: 9 W
› Power supply connection: 230 V
(fuse protection min. 10 A)
› Control system: fully automatic brewing control
(temperature, time, pump)
› Max. malt quantity: 2.8 kg Capacity Height ø Packaging size
l cm cm l x w x h cm
10 48 30 60 x 40 x 50
8 9
» Starter kit 10 litre
KIT BM-10-ECO
Consisting of Starter kit 1–7
Item no.
1 10 litre Braumeister 5 Outlet tap for fermentation vessel 41011
2 Stainless steel wort chiller 10 litre 6 Airlock and plug for fermentation vessel
3 Malt mill 7 Large malt shovel
4 12 litre fermentation vessel
Our malt kits can be
found on page 55
1 2 3 4 5 6 7
» For your hobby room
»2
0 litre Braumeister
20 litre Braumeister PLUS
The Braumeister has been specially brewing unit that pumps from bottom
developed as a brewing unit for the to top. This loosens the malt during
budding and active hobby and home pump breaks and the malt is washed
brewer. The compact dimensions and out optimally and gently for a more
easy handling make the unit ideal for intensive malt aroma.
domestic use. The fully automatic
control system brews with preset The Braumeister PLUS can be reco-
or individual recipes. In all brewing gnized by the weld-on double jacket.
phases, the time and temperature The double jacket for cooling makes
are exactly maintained. In addition, previous accessories unnecessary
there are hundreds of recipes in our and gives you even more freedom
brewing community at www.myspei- when brewing beer, for example with
del.com the low oxygen brewing method. This
makes it even easier for you to brew
The Braumeister does not require more complicated beers than ever
constant stirring. Due to the patented before. To drain off the dirty water,
malt pipe technology with pipes not there is an additional drain with tap
visible from the outside, the beer at the bottom of the boiler, which
wort is gently and conveniently cir- makes cleaning even easier.
culated. The Braumeister is the only
20 LITRE BRAUMEISTER
Model Item no. Weight Shipping weight
l kg kg
20 47070 15 20
20 PLUS 47070-10 19 2410 11
Left: Braumeister
Right: Braumeister
PLUS
TECHNICAL DETAILS 20 LITRE BRAUMESITER DIMENSIONS FOR 20 LITRE BRAUMEISTER MODELS
› Heating coil: 2,000 W output
› Pump: 9 W
› Power supply connection: 230 V
(fuse protection min. 10 A)
› Control system: fully automatic brewing control
(temperature, time, pump)
Height
› Max. malt quantity: 6 kg
TECHNICAL DETAILS 20 LITRE BRAUMEISTER PLUS
› Heating coil: 2,000 W output
› Pump: 9 W
› Power supply connection: 230 V
(fuse protection min. 10 A)
› Control system: fully automatic brewing control
(temperature, time, pump) Model Height ø Packaging size
› Maximum malt quantity: 6 kg l cm cm l x w x h cm
› Weld-on double jacket for cooling
20 60 40 74 x 60 x 61
› Cold water connection on the back 1" AG (2x)
20 PLUS 60 40 74 x 60 x 61
› Additional outlet tap ¾" on tank bottom
› Perfect for low oxygen brewing» Starter kits 20 litre
KIT BM-20-ECO
Consisting of Starter kit 1–7
Item no.
1 20 litre Braumeister 5 Outlet tap for fermentation vessel 47071
2 Stainless steel wort chiller 20 litre 6 Airlock and plug for fermentation vessel
3 Malt mill 7 Large malt shovel
4 30 litre fermentation vessel
1 2 3 4 5 6 7
KIT BM-20-BASIC
Consisting of Starter kit 1–7
Item no.
1 Braumeister 20 Liter 5 Stainless steel outlet tap 47073
2 Stainless steel wort chiller 20 litre 6 Airlock and plug for fermentation vessel
3 Malt mill 7 Large malt shovel
4 30 litre universal stainless steel keg
1 2 3 4 5 6 712 13
Our malt kits can be found on page 55
KIT BM-PLUS-20-ECO
Consisting of Starter kit 1–7
Item no.
1 20 litre Braumeister PLUS 4 Outlet tap for fermentation vessel 47071-10
2 Malt mill 5 Airlock and plug for fermentation vessel
3 30 litre fermentation vessel 6 Large malt shovel
1 2 3 4 5 6
KIT BM-PLUS-20-BASIC
Consisting of Starter kit 1–6
Item no.
1 20 litre Braumeister PLUS 4 Stainless steel outlet tap 47073-10
2 Malt mill 5 Airlock and plug for fermentation vessel
3 30 litre universal stainless steel keg 6 Large malt shovel
1 2 3 4 5 6
KIT BM-PLUS-20-PRO
Consisting of Starter kit 1–8
Item no.
1 20 litre Braumeister PLUS 6 Airlock and plug for fermentation tank 47072-10
2 Malt mill 7 Threaded jacket NW 10 for thermometer
3 30 litre conical tank (pressureless) 8 Thermometer
4 Stainless steel ball valve (2x) 9 Large malt shovel
5 Sampling tap NW 10 10 Cooling unit »cool«
1 2 3 4 5 6 7 8 9 10» For the brewing room
»5
0 litre Braumeister
50 litre Braumeister PLUS
Anyone who wants to brew a little pump breaks and the malt is washed
more beer needs the 50-litre Brau- out optimally and gently for a more
meister. This model also comes with intensive malt aroma.
patented malt tube technology, fully
automatic control and high-quality Whether wheat, Märzen or Altbier: all
processing as standard. The 50 litre types of beer can be brewed with the
Braumeister is available as a PLUS Braumeister. You will clearly taste the
model with a weld-on double jacket difference in quality between your
for cooling and an additional drain own beer and exchangeable mass-
at the bottom. Here, too, the optional produced beers. But be careful: once
wireless LAN module opens the door you get a taste of it, you'll never want
to the brewing community at www. to drink anything else again. Natural
myspeidel.com and to hundreds of brewing methods without pasteuriza-
recipes. And of course the beer wort tion, good ingredients and the renun-
is also pumped from bottom to top ciation of chemical additives will then
here. This loosens the malt during be indispensable.
50 LITRE BRAUMEISTER
Model Item no. Weight Shipping weight
l kg kg
50 45050 24 31
50 PLUS 45050-10 30 3714 15
TECHNICAL DETAILS 50 LITRE BRAUMESITER DIMENSIONS FOR 50 LITRE BRAUMEISTER MODELS
› Heating coil: 3,200 W output
› Pump: 2 x 9 W
› Power supply connection: 230 V
(fuse protection min. 16 A)
› Control system: fully automatic brewing control
(temperature, time, pump)
Height
› Max. malt quantity: 13 kg
TECHNICAL DETAILS 50 LITRE BRAUMESITER PLUS
› Heating coil: 3,200 W output
› Pump: 2 x 9 W
› Power supply connection: 230 V
(fuse protection min. 16 A)
› Control system: fully automatic brewing control
(temperature, time, pump)
› Maximum malt quantity: 13 kg Model Height ø Packaging size
› Weld-on double jacket for cooling l cm cm l x w x h cm
› Cold water connection on the back 1" AG (2x)
50 70 50 74 x 60 x 61
› Additional outlet tap ¾" on tank bottom
PLUS 50 70 50 74 x 60 x 61
› Perfect for low oxygen brewing» Starter kits 50 litre
KIT BM-50-ECO
Consisting of Starter kit 1–7
Item no.
1 50 litre Braumeister 5 Outlet tap for fermentation vessel 45051
2 Stainless steel wort chiller 50 litre 6 Airlock and plug for fermentation vessel
3 Malt mill 7 Large malt shovel
4 60 litre fermentation vessel
1 2 3 4 5 6 7
KIT BM-50-BASIC
Consisting of Starter kit 1–7
Item no.
1 50 litre Braumeister 5 Stainless steel outlet tap 45053
2 Stainless steel wort chiller 50 litre 6 Airlock and plug for fermentation vessel
3 Malt mill 7 Large malt shovel
4 60 litre universal stainless steel keg
1 2 3 4 5 6 716 17
Our malt kits can be found on page 55
KIT BM-PLUS-50-ECO
Consisting of Starter kit 1–7
Item no.
1 50 litre Braumeister PLUS 4 Outlet tap for fermentation vessel 45051-10
2 Malt mill 5 Airlock and plug for fermentation vessel
3 Gärfass 60 Liter 6 Large malt shovel
1 2 3 4 5 6
KIT BM-PLUS-50-BASIC
Consisting of Starter kit 1–6
Item no.
1 50 litre Braumeister PLUS 4 Stainless steel outlet tap 45053-10
2 Malt mill 5 Airlock and plug for fermentation vessel
3 60 litre universal stainless steel keg 6 Large malt shovel
1 2 3 4 5 6
KIT BM-PLUS-50-PRO
Consisting of Starter kit 1–10
Item no.
1 50 litre Braumeister PLUS 6 Airlock and plug for fermentation tank 45052-10
2 Malt mill 7 Threaded jacket NW 10 for thermometer
3 60 litre conical tank (pressureless) 8 Thermometer
4 Stainless steel ball valve (2x) 9 Large malt shovel
5 Sampling tap NW 10 10 Cooling unit »cool«
1 2 3 4 5 6 7 8 9 1010 LITRE BM 20 LITRE BM
Height (cm) 48 60
Diameter 30 40
Weight (kg) 11 15
Shipping weight (kg) 13 20
Packaging size (l × w × h cm) 60 × 40 × 50 74 × 60 × 61
Heating coil (W) 1.200 2.000
Pump (W) 9 9
Power supply connection 230 V / 10 Amp 230 V / 10 Amp
Wall strength (mm) 1,0 0,8
Material Stainless steeel 1.4301 Stainless steeel 1.4301
(V2A / AISI 304) (V2A / AISI 304)
Surface Outside: glossy polished IIId (2R)
Inside: brushed
Max. malt quantity (kg) 2,8 6
Suggested brewing location Kitchen Kitchen - Hobby room
Amount of beer 10 litres of beer 20 litres of beer
Extras none none
Item no. 41010 4707018 19
20 LITRE BM PLUS 50 LITRE BM 50 LITRE BM PLUS
60 70 70
40 50 50
19 24 30
24 31 37
74 × 60 × 61 74 × 60 × 61 74 × 60 × 61
2.000 3.200 3.200
9 2×9 2×9
230 V / 10 Amp 230 V / 16 Amp 230 V / 16 Amp
1,5 0,8 1,5
Stainless steeel 1.4301 Stainless steeel 1.4301 Stainless steeel 1.4301
(V2A / AISI 304) (V2A / AISI 304) (V2A / AISI 304)
IIId (2R) IIId (2R) IIId (2R)
6 13 13
Kitchen - Hobby room Hobby room - Brewing room Hobby room - Brewing room
20 litres of beer 50 litres of beer 50 litres of beer
Cooling jacket, water none Cooling jacket, water
connection, additional connection, additional
outlet tap outlet tap
47070-10 45050 45050-10» Something to be proud of The big Braumeister is not only a perfect brew- ing device, it also looks good. So it's not surpri- sing that in the Brexx in Genrzau, Germany, the 500 litre Braumeister is displayed for the guests to see. With such a nice view, the beer tastes even better!
20 21
» 200 litre Braumeister
Some dreams come true! Make your- This makes it ideal for restaurants,
self independent and brew individual pubs, events or brewing communi-
and special beer for your guests. ties. The low acquisition costs and a
Make use of the proven Braumeister low price per litre ensure short-term
concept of a compact brewing plant. amortization.
Brewing, lautering, hop boiling, whirl-
pool and cooling are all carried out
in one boiler. In addition, the system
is mobile and easy to move and the
space requirement remains minimal.
200 LITRE BRAUMEISTER
Capacity Item no. Weight Shipping weight
l kg kg
200 45200 150 20022 23
DIMENSIONS FOR BRAUMEISTER 200 LITRE
Height
TECHNICAL DETAILS 200 LITRE BRAUMEISTER
› Heating coil: 3 x 3,000 W output
› Pump: 370 W
› Power supply connection: 400 V
th (fuse protection min. 16 A at star, 32 A at delta)
ng
Le › Total power consumption: 9.4 kW
Width
› Cooling: 1.3 m2 double jacket surface,
with ice water, approximately 50 min
Capacity Length Width Height Wooden crate to 25 °C with whirlpool
l cm cm cm l x w x h cm › Control system: fully automated brewing
regulation (temperature, time, pump)
200 136 90 210 132 x 100 x 175
› Max. malt quantity 42 kg» 500 litre Braumeister
Even with the 500-liter Braumeister, Despite the increased volume, the
the brewing process remains as system remains mobile, easy to move
simple as with its little brother. The and takes up minimal space. The
fully automatic brewing control takes lautering is done easily and quickly
over the brewing of individually set by lifting out the malt tube with the
recipes and runs through all brewing attached lifting device. Thus you
phases with time and temperature achieve a spill-free and fast lautering
accuracy. The integrated timer func- process.
tion saves time because, for example,
the brewing water can be heated
early in the morning.
500 LITRE BRAUMEISTER
Capacity Item no. Weight Shipping weight
l kg kg
500 46500 380 500
500 Additional cooker 4651024 25
DIMENSIONS FOR BRAUMEISTER 500 LITRE
TECHNICAL DETAILS 500 LITRE BRAUMEISTER
› Heating coil: 6 x 3,000 W output
› Pump: 370 W
› Power supply connection: 400 V
(fuse protection min. 32 A at star, 63 A at delta)
Height
› Total power consumption: 18.4 kW
› Cooling: 1.8 m2 double jacket surface,
with ice water, approximately 2 h to 25 °C
with whirlpool, for shorter times additional
external cooling necessary
› Control system: fully automated brewing
regulation (temperature, time, pump)
› Max. malt quantity: 120 kg
th
ng
Le
Width
UPGRADE 500 LITRE BRAUMEISTER
Capacity Length Width Height Wooden crate › Additional cooker made of stainless steel
l cm cm cm l x w x h cm › For the cooking of 500 to 600 l wort in order
for the 500 litre Braumeister to be available anew
500 253 130 277 245 x 135 x 141 for mashing during the second brew» 1000 litre Braumeister
NEW
In response to many customer re- The large malt pipe can also be ea-
quests, we have now developed the sily lifted using the easy-to-operate
1000 litre Braumeister. This model crane with hand crank. The manhole
is just right for anyone who wants facilitates access to the inside of the
to brew even more beer. Even with a boiler. The Braumeister can be set up
1000 litre brew, the brewing process securely with its adjustable feet, but
remains as simple as with the other remains flexible due to its wheels. In
big Braumeisters. And here too, the spite of the impressive volume, even
integrated timer function makes the very tall master brewer remains
brewing easier because, for example, a compact brewing plant.
the brewing water can be heated up
early in the morning.
1000 LITRE BRAUMEISTER
Capacity Item no. Weight Shipping weight
l kg kg
1.000 41000 850 98026 27
DIMENSIONS FOR 1000 LITRE BRAUMEISTER
Height
Capacity Length Width Height Wooden crate
l cm cm cm l x w x h cm
1.000 305 180 345 310 x 190 x 195
TECHNICAL DETAILS 1000 LITRE BRAUMEISTER
› Heating coil: 4 x 3.000 W + 8 x 2.725 W output
Length › Pump: 370 W
› Power supply connection: 400 V
(fuse protection min. 63 A at star,
min. 125 A at delta)
› Total power consumption: 34,2 kW
› Cooling: 2,56 m2 double jacket surface, an addtional
Height
Length
heat exchanger plate for cooling is recommended
› Control system: fully automated brewing control
(temperature, time, pump)
› Vaulted top with DN 150 connection piece for ext-
ractor hood and hop delivery opening
Width Width › Max. malt quantity: 225 kg» Starter kits 200 / 500 litre
STARTER KIT »200 LITRE BRAUMEISTER«
Consisting of Starter kit 1–12
Item no.
01 200 litre Braumeister 45201
02 Stainless steel roller tray
03 Malt mill
04 Hose set 5 metres
05 Wort chiller ”Chilly“ 1,7 kW
06 240 litre stainless steel fermentation tank
07 Rollsockel
08 Stainless steel ball valvle
for fermentation tank FD (2x)
09 Airlock and plug for fermentation tank
10 Support cylinder for hydrometer
11 Hydrometer
12 Cleaning set
1 2 3 4 5 6 7 8 9 10 11 12
For maturing, corresponding pressurized maturing tanks or a corresponding number of KEGs need to be taken into account.28 29
STARTER KIT »500 LITRE BRAUMEISTER«
Consisting of Starter kit 1–12
Item no.
01 Braumeister 500 Liter 46501
02 Thermomanschette
03 Stainless steel roller tray
04 Malt mill
05 Hose set 5 metres
06 Wort chiller ”Chilly“ 1,7 kW
07 625 litre stainless steel fermentation tank
08 Stainless steel ball valvle
for fermentation tank FD (2x)
09 Airlock and plug for fermentation tank
10 Support cylinder for hydrometer
11 Hydrometer
12 Cleaning set
1 2 3 4 5 6 7 8 9 10 11 12
For maturing, corresponding pressurized maturing tanks or a corresponding number of KEGs need to be taken into account.200 LITRE BM
Height (cm) 210
Length (cm) 136
Width (cm) 90
Weight (kg) 150
Shipping weight (kg) 200
Heating coil (W) 3 × 3.000
Pump (W) 370
Power supply connection 400 V / 16 Amp
Total power consumption (kW) 9,4
Wall strength (mm) 1,5
Material Stainless steel 1.4301
(V2A / AISI 304)
Surface IIId (2R)
Malt quantity (kg) 42
Suggested brewing location Brewery
Amount of beer 200 litres of beer
Item no. 4520030 31
500 LITRE BM 1000 LITRE BM
277 345
253 305
130 180
380 850
500 980
6 × 3.000 4 × 3.000, 8 × 2.725
370 370
400 V / 32 Amp 400 V / 63 Amp
18,4 33,8
1,5 2,0
Stainless steel 1.4301 Stainless steel 1.4301
(V2A / AISI 304) (V2A / AISI 304)
IIId (2R) IIId (2R)
120 225
Brewery Brewery
500 litres of beer 1000 litres of beer
46500 41000» All good things are
worth waiting for
It is not surprising that many brewers do not only
brew in the Braumeister, but also ferment and
mature in Speidel tanks.32 33
» Fermentation vessels and eggs
Cooling sprial for bottom-
fermented beer on p. 52
PLASTIC FERMENTATION VESSELS
Product Item no.
Fermentation vessel 12 litre 21047
Fermentation vessel 20 litre 21052
Fermentation vessel 30 litre 21006
Fermentation vessel 60 litre 21007
Fermentation vessel 120 litre 21008
Delivery without tap and airlock
STAINLESS STEEL UNIVERSAL KEG
NEW
Produkt Item no.
Universal keg 30 litre UF-035 Var 0005
Universal keg 60 litre UF-035 Var 000634 35
SPEIDELS KELLERMEISTER ›› The Kellermeister is a conical tank,
ideal for unpressurised fermentation.
Product Item no. ›› Due to its special design the yeast collects
in the cone and can be harvested and re-used.
›› Fermented beer can be tapped off and
Kellermeister 30 litre 77367 bottled at the clear beer tap.
Kellermeister 65 litre 77368 ›› The lid with dipping edge acts as fermentation
Kellermeister 120 litre 77369 lock. No separate airlock is necessary.
›› The Kellermeister is made of food-safe
polyethylene. Due to its smooth inner
surface it is very easy to clean.
›› Clear beer tap and main tap, ¾" female thread
›› Includes 2 x outlet tap
›› Includes thermometer
Cooling sprial for bottom-
fermented beer on p. 52
FERMENTEGG
Product Width Height Item no.
cm cm
Gärei Fermentegg 60 litre 48 79 21090
Gärei Fermentegg 250 litre 76 120 21070
Gärei Fermentegg 600 litre 103 157 21080
›› Suited for the fermentation of wine, beer and must
›› Made of food-safe PE
›› Wine, must and beer can float freely during
the fermentation phase and the storage
›› Spontaneous fermentation, more complex
and more sophisticated wines and beers
›› The oxygen permeability of the food-safe plastic
allows a consistent oxygen impact and thus leads
to an ideal process of fermentation and maturation.
›› After the fermentation the smooth surface
can be cleaned easily
›› For 60 litre: Outlet 2 x ¾" female thread
›› 250 litres and more: Outlet 2 x 1" female thread Shape based on
”the golden ratio“» Stainless steel fermentation tanks
SMALL STAINLESS STEEL FERMENTATION TANKS (PRESSURELESS)
Product ø Height Item no.
cm cm
Fermentation tank 60 litre 44 90 FD-044-S Var 0019
Fermentation tank 120 litre 44 127 FD-044-S Var 0020
›› For the fermentation of bigger amounts of beer we
recommend Speidel’s stainless steel fermentation
tank.
›› The special 3D inner surface facilitates the cleaning.
›› The design of the double cooling jacket allows the
connection of a cooling unit for the production of
bottom-fermented beer.
›› The stainless steel fermentation tank stands on
three stable legs.
›› Racking outlet ¾" IT
›› Bottom outlet ¾" IT
›› Double jacket 2 x 1" ET
›› NW 10 nozzle with blind cap for thermal
detector sheath
›› With cooling jacket
›› Lid with drill hole for fermentation lock
Accessories for these tanks
can be found on page 5236 37
BIG STAINLESS STEEL FERMENTATION TANKS (PRESSURELESS)
Product ø Height Item no.
cm cm
Fermentation tank 240 litre 55 152,4 FD-055-S Var 0047
Fermentation tank 525 litre 82 146,6 FD-082-S Var 0067
Fermentation tank 625 litre 82 166,1 FD-082-S Var 0068
›› For the fermentation of larger quantities
of beer we recommend Speidel’s stainless
steel fermentation tank.
›› The special 3D inner surface facilitates cleaning.
›› For the production of bottom-fermented beers
the double cooling jacket is arranged
for the connection of a chiller.
›› The stainless steel fermentation tank
is safely supported by three stable feet.
›› Racking outlet 1" ET
›› Bottom outlet 1" ET
›› Double jacket , 2 x 1" male connector
›› NW 10 nozzle with blind cap for thermal
detector sheath
›› Cooling jacket
›› Lid with hole for fermentation lock
CONICAL STAINLESS STEEL FERMENTATION TANKS (PRESSURELESS)
Product ø Height Item no.
cm cm Accessories for these tanks
can be found on page 52
Conical fermentation tank 30 litre 35 83 FD-035-S Var 0002
Conical fermentation tank 60 litre 35 109 FD-035-S Var 0001
›› For the fermentation of smaller amounts of beer we
recommend the conical stainless steel fermentation
tank from Speidel
›› The special 3D inner surface facilitates the cleaning.
›› The design of the double cooling jacket allows the
connection of a cooling unit for the production of
bottom-fermented beer.
›› The stainless steel fermentation tank stands on
three stable legs.
›› Nozzle for sample taking NW 10 DIN 11851
›› Temperature measuring-welded threaded
connector NW 10 DIN 11851
›› Racking outlet ¾" IT
›› Bottom outlet ¾" IT
›› Double jacket 2 x 1" ET
›› With cooling jacket
›› Lid with drill hole for fermentation lock
›› Conical bottom 60°» Stainless steel pressure tanks
STAINLESS STEEL PRESSURE TANKS
›› For the maturation / fermentation (conical tanks) of Complete tank sets can
larger amounts of beer we recommend Speidel’s be found in our configu-
stainless steel pressure tank for up to max. 1.2 bar ration tank flyer
The special 3D inner surface facilitates cleaning
›› With double cooling jacket at the tank cylinder for the
maturation and fermentation of bottom-
fermented beers outside a cooling chamber
›› Made in compliance with the guidelines for
pressure equipment 2014 / 68 /EU including
approval from Germany’s Technical Inspection
Agency (TÜV).
›› Curved top layer with pressure dome NW 400
›› Safety valve mounted on top layer
›› Type plate for the identification of the container
›› Multi use connection: nozzle NW 25 DIN 11851
moulded on top layer for T-adapter for the
connection of CO₂ valve and plug apparatus or spray-
head holder NW 10 for cleaning.
›› Nozzle for sample taking NW 10 DIN 11851
›› Temperature measuring-welded threaded
connector NW 10 DIN 11851
›› Racking outlet 1" ET
›› Bottom outlet 1" ET
›› Double jacket 2 x 1" ET
›› Tank with cone-shaped base 60°
or bumped boiler head.38 39
STAINLESS STEEL PRESSURE TANK
Product ø Height Item no.
cm cm
Pressure tank 240 litre 1.2 bar 55 147 FD-055-S Var 0045
Pressure tank 240 litre 2.5 bar 55 147 FD-055-S Var 0082
Pressure tank 625 litre 1.2 bar 82 174 FD-082-S Var 0064
Pressure tank 625 litre 2.5 bar 82 174 FD-082-S Var 0113
Pressure tank 1.150 litre 1.2 bar 100 222 FD-100-S Var 0001
Pressure tank 1.150 litre 2.5 bar 100 222 FD-100-S Var 0002
CONICAL STAINLESS STEEL PRESSURE TANK
Product ø Height Item no.
cm cm
Pressure tank ZKG 240 litre 1.2 bar 55 175 FD-055-S Var 0043
Pressure tank ZKG 240 litre 2.5 bar 55 175 FD-055-S Var 0083
Pressure tank ZKG 625 litre 1.2 bar 82 215 FD-082-S Var 0063
Pressure tank ZKG 625 litre 2.5 bar 82 215 FD-082-S Var 0114
Pressure tank ZKG 1.200 litre 1.2 bar 100 270 FD-100-S Var 0003
Pressure tank ZKG 1.200 litre 2.5 bar 100 270 FD-100-S Var 0004
On special request the ZKG is also available as a non-pressurised version
SURCHARGE FOR JACKET INSULATION
Product
Jacket insulation
› 10 mm Armaflex insulation on stainless steel
sheet - mounted on tank shell
› Can only be ordered in conjunction with the tank
Stainless steel pressure tank FD-055 240 litre
Stainless steel pressure tank FD-082 625 litre
Stainless steel pressure tank FD-100 1.200 litre» Everything’s under control With the wireless internet module and the new platform myspeidel.com you can control your Braumeister while sitting on the couch and even manage your recipes. The fermentation process can also be supervised with the GÄRSPUND mobil or the GärmeisterCONTROL.
40 41
» MySpeidel.com
Everything is more fun if you can The module can be retrofitted for all
share it with others. That's why we Braumeister with the new control
launched “MySpeidel”, a digital play- panel (since 2015). Just assemble the
ground for all those who are inter- module to the device and connect it to
ested in brewing beer with Speidels the control. The power for the module
Braumeister. is supplied by the Braumeister. Your
delivery includes a mini USB cable.
With this online platform you can cre- Thus the BRAUMEISTERmobil can
ate your own favourite recipe, save it also be used for updating to the new-
and share it with other members of est firmware of the Braumeister.
the community. Every Braumeister
customer has his own login. Via Register now under
myspeidel.com you can manage sev- www.myspeidel.com
eral devices like the Braumeister and
GÄRSPUNDmobil (see page 45).
The wireless internet module
BRAUMEISTERmobil is your ticket
to MySpeidel. With this module
you can sync your recipes with the
Braumeister and also monitor and
control him during the brewing
process while you are logged in to
you wireless internet connection. So
while sitting on the couch, you know
what is happening in the brewing
kitchen.42 43
The wireless
internet module
BRAUMEISTERmobil
is available for all
Braumeister with the
new control panel
2015
ACCESSORIES FOR THE SIMPLIFIED BREWING PROCESS
Product Item no.
BRAUMEISTERmobil 77455
› Your ticket to MySpeidel
› Wireless internet module for supervision of the brewing process within
the wireless local network area via wireless internet router
› For updating the Braumeister control system to the latest
software (firmware)
› For all 10 to 500 litre Braumeister with control system, respectively
with control unit 2015
› Network standard: IEEE 802.11 b / g / n
› Software for update: PC with minimum system requirements
Windows 7 or higher
› Connection via local wireless network»C onvenient supervision for the fermenting process Not only the brewing process, but The professional version of the fer- also the fermenting process can mentation control is the Gärmeister be supervised from a distance. The CONTROL. It is the perfect one tank GÄRSPUNDmobil measures the control if you own a Speidel stain- fermenting activity by counting the less steel fermentation tank with a number of Blops of your fermentation cooling jacket and a thermal detector. bung as well as the temperature Besides the simple desired temper- and sends these information to your ature control it is possible to use MySpeidel account. You can use this fermentation programs with up to information to supervise and analyse five different phases, which allow you the fermenting process. This way you to specify the temperature and time can predict and plan the bottling date for each medium. The settings can be better. altered via a touch screen display. The GÄRSPUNDmobil is the perfect The Gärmeister CONTROL has outlets accessory to unlock the full potential. for the cooling circuit magnetic valve You can use its data to identify the and an optional heating circuit. The correlation between the fermentation scope of delivery includes a magnetic curve, the temperature curve and the valve, a two metres cable, a thermal taste of your beer. And thus optimise detector and a 24 volt power connec- your brewing process. You will be tion with international connectors. able to improve your beer step by With the wireless internet module, step and brew it how you like it. The the Gärmeister CONTROL can also be delivery includes a temperature sen- monitored and controlled online via sor cable, a plug with an entry for the My Speidel. cable and an adapter cable from mini USB to USB.
44 45
ACCESSORIES FOR THE SIMPLIFIED BREWING PROCESS
Product Item no.
GÄRSPUNDmobil 21100
› Measures the fermentation activity by counting the number of Blops of
your fermentation lock as well as the temperature
› Sends these information to MySpeidel via wireless internet connection
› Network standard: IEEE 802.11 b / g / n
› Light-emitting diodes indicate the status of the device
› Including mini-USB to USB cable, thermal detector cable as well as
a plug with an entry for the cable
› Without fermentation lock (only in conjunction with Speidel
fermentation lock)
You can find the fermentation lock
on page 53 (Item no. 21010).
The fermentation
curve: That’s what a
typical fermentation
process looks like
ACCESSORIES FOR THE SIMPLIFIED BREWING PROCESS
Product Item no.
Gärmeister CONTROL 77278
› One tank control for Speidel stainless steel fermentation tank with
cooling jacket and thermal detector (p. 38, Item No. 64071)
› Fermentation program with 5 phases (temperature and time/h)
› Temperature range -5 °C to +50 °C
› Simple desired-temperature control
› Touch screen TFT display
› Outlets: magnetic valve for cooling circuit, optional heating circuit
› Delivery includes magnetic valve and 2 metres cable for magnetic valve,
thermal detector, power connection (24 V DC including international
connectors for Europe, USA, GB, Australia)
› With the wireless internet module, the Gärmeister CONTROL can also be
monitored and controlled online via My Speidel» Low-Oxygen-Brewing What? You've never heard that before? Low Oxy- gen Brewing, LOB for short, is an attempt to keep contact with oxygen during the brewing process to a minimum, in the area of mashing and cooling. By minimizing oxygen contact, existing flavors in the beer are better preserved and the beer gets a longer lasting taste stability and shelf life.
46 47
» Brewing accessories 10 / 20 / 50 litre ACCESSORIES FOR THE BREWING PROCESS Product Item no. Stainless steel wort chiller for 10 litre Braumeister 77445 Stainless steel wort chiller for 20 litre Braumeister 72899 Stainless steel wort chiller for 50 litre Braumeister 72900 Stainless steel lid for 10 litre Braumeister 78035 Stainless steel lid for 20 litre Braumeister 78032 Stainless steel lid for 50 litre Braumeister 78033 Thermo sleeve for 10 litre Braumeister 77451 Thermo sleeve for 20 litre Braumeister 77354 Thermo sleeve for 50 litre Braumeister 77355 Wort pump device for 20-litre Braumeister 66712 Wort pump device for 50-litre Braumeister 66713
48 49
ACCESSORIES FOR THE BREWING PROCESS
Product Item no.
Support cylinder for hydrometer 72897
Hydrometer
› With temperature correction for measuring original gravity 72896
Shortened malt pipe for 20 litre Braumeister
› For 10 litre brew with 20 litre Braumeister
› Markings at bottom of draw-bar: 12 l
› Max. malt quantity: 3 kg
› With the Braumeister PLUS, cooling via the double jacket only functions
to a limited extent with half the amount of wort 77421
Shortened malt pipe for 50 litre Braumeister
› For 25 litre brew with 50 litre Braumeister
› Markings at bottom of draw-bar: 20 l, 25 l, 30 l
› Max. malt quantity: 6 kg
› With the Braumeister PLUS, cooling via the double jacket only functions
to a limited extent with half the amount of wort 79263
Large malt shovel 72898
Cleaning set 78027
Mattmill Braumeister
› Grinder with gap adjustment
› Support frame (height adjustable)
› Stainless steel funnel with approx. 25 l content
› Crank handle and bit (for cordless screwdrivers)
› Hardened rollers 77467
Malt mill 72903
Hop sieve
› Blocks outlet tap on 20 and 50 litre Braumeister 77391
Low-Oxygen-Brewing-Kit Braumeister 20 litre
› Incl. floating lid, support ring for sieve and knurled nut 66736
Low-Oxygen-Brewing-Kit Braumeister 50 litre
› Incl. floating lid, support ring for sieve and knurled nut 66733» Brewing accessories 200 / 500 litre ACCESSORIES FOR THE BREWING PROCESS Produkt Item no. Thermo sleeve for 200 litre Braumeister 77357 › Boiler insulation Thermo sleeve for 500 litre Braumeister › Boiler and lid insulation 77380 Thermo sleeve for 1000 litre Braumeister › Boiler insulation 77470 Support cylinder for hydrometer 72897 Hydrometer › With temperature correction for measuring original gravity 72896 Large malt shovel 72898 Cleaning set 78027 Hose set › Hose connector, 1" female connector (IT) 1 5m 77363 2 10 m 77366 Malt mill Maltman with additional funnel and portal stand › 230 V 50 Hz 77371 120 litre barrel › For crushed malt › Fits exactly under the malt mill 21008
50 51 ACCESSORIES FOR THE BREWING PROCESS Product Item no. Stainless steel try on castors for 200 litre Braumeister › For the support of the malt pipe 66584 Stainless steel try on castors for 500 litre Braumeister › For the support of the malt pipe 66605 200 litre PE universal pan with castors › For the disposal of spent grain or the like › 126.5 x 85.5 x 46 cm (L x W x H) plus height of castors 10103 95 litre universal stainless steel keg › For the storage of malt › Airtight UF-044-0095 Wooden mash paddle 77390
» Accessories for fermentation tanks ACCESSORIES FOR FERMENTATION TANKS / MATURATION TANKS Product Item no. Cooling unit “Cool” 0,3 kW › The perfect solution for small 60 and 120 litre FD fermentation tanks › Including an integrated circulation pump, temperature control and Gardena connection › Temperature -6 °C up to +20 °C › 230 V / 50 Hz 77457 Cooling unit “Chilly” 1,7 kW › Temperature -10 °C to +25 °C › Hose connector set for 240 l / 525 l / 625 l / fermentation tank and pressure tanks › 230 V / 50 Hz 72905 Gärmeister CONTROL › See page 45 for more information 77278 Cooling sprial for plastic fermentation vessels › Stainless steel sprial for mounting into the lid of the fermentation vessel › For plastic fermentation vessels from 12 litre to 60 litre round 77482 Wort chiller for Kellermeister › For mounting into the lid of the Kellermeisters › For Kellermeister with a volume from 30 litre to 120 litre 77397 Threaded jacket NW 10 for thermometer / Thermal detector Gärmeister CONTROL 64071 Thermometer 63887 Pedestal on castors for FD 60 litre / 120 litre › Elevation 16 cm 77520 Pedestal on castors for FD 240 litre / Fermentegg 250 litre › Elevation 16 cm 77400 CIP and filling lid for fermentation tanks FD 86162 Disc valve for fermentation tank FD / pressure tanks › IT–ET 1", AISI 304 › Delivery without blind cap 87882
52 53 ACCESSORIES FOR FERMENTATION TANKS / MATURATION TANKS Product Item no. Stainless steel ball valve for fermentation tank FD / ferment-egg 60 litre › ET–ET ¾", AISI 304 75104 Stainless steel ball valve for fermentation tank FD / pressure tanks › IT–ET 1", AISI 304 64939 Stainless steel ball valve for ferment-egg 250 litre / 600 litre › ET–ET 1", AISI 304 69315 Sampling tap NW 10 › Standard edition › Without knuckle spiral option 64949 Reduction / extension of ET ¾" to ET 1" › IT ¾"–IT 1" 45062 Fermentation lock and plug for the fermentation tank 21010 Outlet tap for fermentation vessel 21043 Thermometer strip 66715 Stainless steel discharge outlet › ET ¾" with counter nut › AISI 304 65276 GEKA-coupling › IT 1", AISI 304 66540 GEKA-coupling › Spout ½", AISI 304 66633 Gardena connection › IT ½", AISI 304 66686 › IT ¾", AISI 304 89672 › IT 1" , AISI 304 66685 Clamp adapter › IT 1"–Clamp DN 25, AISI 304 › DIN 32676 66702
» Accessories for pressure tanks
ACCESSORIES FOR STAINLESS STEEL PRESSURE TANKS
Product Item no.
T-adapter piece
› For CO2-connection / shut-off tap and plug apparatus
› Lateral 2 x ET ¾"
› At bottom NW 25 for the connection to the fuel nozzle on top layer 87711
Plug apparatus Piccolino
› Fits on T-adapter piece
› IT–ET ¾“ 87712
CO2-shut-off tap
› Fits on T-adapter piece
› IT–ET ¾“ 87986
Spray nozzle with spray nozzle holder
› Spray nozzle NW 10
› NW 25 for connection to the fuel nozzle on top layer
87833 + 87847
Sampling tap NW 10 knuckle
› Flame-resistant tap
› Connection thread for knuckle spiral 83922
Knuckle spiral
› For sampling tap 83866
Closing cap ¾“ 64524
Closing cap NW 25 7649354 55
» Accessories KEGS
ACCESSORIES FOR THE MATURATION PROCESS: KEGS
Product Item no.
9 litre beer keg NC
› Large cleaning port on top 77376
18 litre beer keg NC
› Large cleaning port on top 77377
»A
ccessories ingredients
ACCESSORIES INGREDIENTS
Product Item no.
Brewing kit including hops and yeast
for Speidel recipes
1 Festbier 77270
2 Rauchbier (Smoked beer) 77271
3 Weizenbier (Wheat beer) 38� 77272
4 Pilsner (Lager) 77273
5 IPA 77274
6 Pilsner Eichenbock 77275
Recommendations
› 1 package is sufficient for 2 brewing processes with the 10 litre Braumeister
1 brewing process with the 20 litre Braumeister
› 2 packages are sufficient for 1 brewing process with the 50 litre Braumeister
Recipes can be found on www.myspeidel.com»B eer tap accessories BEER TAP ACCESSORIES Product Item no. “Picnic” beer tap kit NC – KEG – beer gun › CO2 bottle 2 kg › Pressure regulator › Hoses including connectors › Tap “Beer Pistol” with compensator 47100 “Barbecue” beer tap kit NC – KEG – beer dispenser › CO2 bottle 2 kg › Pressure regulator › Hoses including connectors › Beer dispenser with continuous-flow cooling Pygmy 25, 230 V 47101 “Pub” beer tap kit (Euro – KEG – beer dispenser) › CO2 bottle 2 kg › Pressure regulator › Dispense head “Korb” › Hoses including connectors › Beer dispenser with continuous-flow cooling Pygmy 25, 230 V 47102 “Pubflex” beer tap kit (NC + Euro – KEG – beer dispenser) › CO2 bottle 2 kg › Pressure regulator › Dispense head “Korb” › Euro + NC hoses including connectors › Beer dispenser with continuous-flow cooling Pygmy 25, 230 V 47103
56 57 » Fan merchandise ACCESSORIES T-SHIRTS Product Item no. T-Shirts 1 “Braumeister” 4777-M / L / XL / XXL 2 “Selbst braut der Mann” 4778-M / L / XL / XXL 3 “Logo” 4780-M / L / XL / XXL 4 “Die Braut” 4779-S / M / L / XL Apron “Speidels Braumeister” 77389
» End mass beer production now! An everyday horror scenario: mixed with indefi- nable ingredients, beer is squeezed into plastic crates and transported through half of Germany, arriving completely frightened in the mouth. Under these conditions, an international brewery produces 409,900,000 hl of beer per year. This is where the Braumeister can help. Help to end mass beer production.
58 59
» The brewing process
PROGRAMMING MASHING
Depending on the recipe, the Depending on the recipe and
Braumeister is programmed with method, water is poured in and
the appropriate brewing times or a heated up to 38 °C. Then the malt
recipe from My Speidel gets synchro- pipe with the sieve inserts is put
nized. The brewing process starts by in position. Malt is poured between
switching over to automatic brewing. the sieve inserts. The malt pipe is
The control system guides the fixed with bracket and draw-bar.
user through the various steps and
executes the four brewing phases
automatically.
Kettle with malt pipe Kettle with malt pipe removed Kettle without malt pipe
(Brewing process) (lautering) (Boiling the hops)60 61
The individual steps of the brewing process are described again in detail in the manual.
MASHING / BREWING BOILING HOPS
The pump switches on. Due to the With the lid open, the wort is boiled
resulting water / wort circulation, for 80 minutes with hops being added
the starch is extracted from the malt. several times. The evaporated water
The four brewing phases are execut- is to be replaced by adding fresh
ed as programmed, for example as brewing water. The original gravity
follows: can be finally adjusted by adding or
leaving out water. The draw-bar on
1P rotein rest the Braumeister serves as a level
55 °C, approximately 5 min meter. At the end of the boiling phase,
2 Maltoserast an acoustic signal sounds again.
63 °C, approximately 30 min
3S accrification rest FERMENTATION / MATURING
72 °C, approximately 20 min Immediately after the boiling of
4S accrification rest the wort the temperature of the wort
78 °C, approximately 10 min is brought to the level of the fermen-
tation temperature by a wort cooler
LAUTERING or (in the case of the Braumeister
At the end of the four phases an PLUS or the 200 and 500 litre
acoustic signal sounds. The sub Braumeister) by a double jacket; the
sequent lautering process is quickly wort is also mixed with yeast and
executed by simply removing the fermented in a suitably large tank
malt pipe. In the case of the 200 and (accessory). After several weeks of
500 litre Braumeister this is done by storage in bottles or in a maturing
means of the lifting device. Allow to barrel (accessory), the well cooled
drain a few minutes and remove – if beer can be consumed.
necessary, pour water through the
malt (sparge) to achieve a
better yield.» Hops and malt
HOP PELLETS UMBELS
Aroma or bittering hops in pressed Aroma hops or bittering hops in the
form. The bitterness of the hops is form of dried umbels. The bitterness
given in % alpha acid and usually of the hop is given in % alpha acid.
ranges from 4 % to 17 % alpha. Be- Umbel hops are primarily used for
cause they are practical to store and flavouring the beers at the end of the
use, this is the most common type. brewing process.
Hop pellets might
not look as nice as
umbels, but they are
easy to dose.62 63
PILSNER MALT (EBC 2–3) LIGHT WHEAT MALT (EBC 3–5)
Pilsner malt is suitable for the To enhance the typical top-fermented
production of all light beers or as aroma. Makes lean, tangy beers and
a base malt for specialty beers. highlights the typical wheat beer
› Pilsner beers aroma.
› Any other type of beer › Wheat beers
› Kölsch beers
MUNICH MALT (EBC 15–20) › Altbier types
Munich malt underlines the typical › Top-fermented draught beers
character of beer by enhancing the › Light beers
aroma. It also achieves a strong beer
colour. CARAPILS MALT (EBC 3–5)
› Malt beers Carapils improves foam and
› Fest beers foam stability and makes the
› Strong beers beer full-bodied.
› Pilsner beers
VIENNA MALT (EBC 7–9) › Light beers
To achieve “gold coloured › Non-alcoholic beers
coloured” beer and to enhance
full flavour / rich taste. SMOKED MALT (EBC 3–6)
› Lagers Smoked malt gives the typical
› Fest beers smoky flavour.
› Home-brew beers › Smoked beers
› Lagers
› Cellar Beers
› Beer specialties
› Wheat beers»C
ost calculation
200 litre Braumeister
The following cost calculation ingredients, electricity and taxes in
can be applied to a brew of the respective Federal State.
approximately 200 litres of beer.
The calculation does not include
The numbers are rough figures for labour costs.
Germany and depend on the costs of
EXAMPLE OF CALCULATION
Malt + hops 45.00 Euro
Electricity 09.00 Euro
Water 10.00 Euro
Beer tax (Germany) 17.00 Euro
Total 81.00 Euro
041 cents per litre64 65
»L
egal aspects
(valid for Germany)
Hobby brewers who produce location of the production to the Main
home-made beer for personal use Customs Office prior to the brewing.
are allowed to make up to 200 litres The declaration must specify the
of beer per year free of tax. This beer amount of beer expected to be pro-
must not be sold. Larger amounts duced in the current calendar year.
of beer require the payment of a The Main Customs Office may allow
so-called beer tax. The home brewer exemptions. The competent Customs
has to give notice to the nearest Main Office where the first brewing activity
Customs Office prior to the beginning needs to be registered can be found
of the brewing. This is set out in writ- on the website of the local customs
ing in the Directive on Implementa- office. For the sale or dispensing
tion of the German Law on Beer Tax: of home-brewed beer, the beer tax
has to be paid right from the start
§ 2 - Production by home and and the brewing quantity has to be
hobby brewers declared in advance. Since 2004 no
(1) beer, when made by home and brewmaster title is required for self
hobby brewers in their own house brewers, even if the beer is sold or
hold for private use only and without traded in larger amounts. The only
being sold, is exempt from taxes up distinction that is made is whether
to an amount of 2 hectolitres within the beer is served in your own
one calendar year. restaurant / pub – in this case you
Beer made by home brewers in will be assessed as restaurant – or
non-commercial communal brewer- sold in shops – in this case you will
ies is considered as beer produced in be assessed as business.
the home brewers’ households.
(2) Home and hobby brewers must
declare both the production and the» Brewing recipes
FESTBIER RAUCHBIER (SMOKED BEER)
20 LITRE BRAUMEISTER 20 LITRE BRAUMEISTER
Ingredients Ingredients
23 l Brewing water to start 23 l Brewing water to start with
with plus sparging water plus sparging water
2.0 kg Pilsner malt 2.70 kg Munich malt
2.5 kg Munich malt 1.35 kg Smoked malt
0.5 kg Carapils 0.45 kg Carapils
40 g Tettnang hop 25 g Hallertau hops
(4,2 % alpha) (4,2 % alpha)
1 packet Saflager S23 yeast 1 packet Saflager WB 34 / 70 yeast
Preparation Preparation
Mash programme Mash programme
1 60 �C › Mashing 1 60 �C › Mashing
2 63 �C › 25 min 2 63 �C › 20 min
3 73 �C › 40 min 3 73 �C › 30 min
4 78 �C › 10 min 4 78 �C › 5 min
5 Boiling › 80 min 5 Boiling › 80 min
Hop addition Hop addition
30 g Tettnang hop 20 g Hallertau hop
› 70 min before end of boil › 70 min before end of boil
10 g Tettnang hop 5 g Hallertau hop
› 10 min before end of boil › 10 min before end of boil
Original gravity Original gravity
12 ºP at 21 l 12 ºP at 21 l
Fermentation Fermentation
Fermentation temperature Fermentation temperature
at around 12 °C at around 12 °C
Maturation Maturation
2–3 days at room temperature, 2–3 days at room temperature,
then 3–4 weeks in fridge at 5 °C then 3–4 weeks in fridge at 5 °C66 67
Tip: The cover can
be used as a great
filling aid for when
pouring in the malt
IPA
20 LITRE BRAUMEISTER
Ingredients Original gravity
23 l Brewing water to start 12 ºP at 21 l
with plus sparging water Fermentation
4.0 kg Pale Ale malt Fermentation temperature
0.5 kg Carapils at around 22 °C
50 g Centennial hop Maturation
(12.3 % alpha) 2–3 days at room temperature,
100 g Cascade hop then 2–3 weeks in the fridge at 5 °C
(6.8 % alpha)
1 packet Safale US-05 yeast
Preparation
Mash programme
1 63 �C › Mashing More recipes can be found on our
2 63 �C › 70 min website www.speidels-braumeister.de
3 73 �C › 5 min and on www.myspeidel.com
4 78 �C › 5 min
5 Boiling › 80 min
Hop addition
25 g Centennial
› 70 min before end of boil
25 g Centennial
› 55 min before end of boil
40 g Cascade
› 40 min before end of boil
30 g + 30 g Cascade
› End of boiling + cooling11-2018 / 1 TANKS MADE WITH PASSION Speidel Tank- und Behälterbau GmbH Krummenstraße 2 72131 Ofterdingen Telephone +49(0)7473 9462-0 Fax +49(0)7473 9462-99 verkauf@speidel-behaelter.de www.speidels-braumeister.de You can also find us at Facebook and Instagram. Technical implementation of the products are without obligation.
You can also read
