STORAGE CUPBOARDS, CABINETS & LOCKERS - Furniture & Equipment for the Medical World 2
Furniture & Equipment for the Medical World

                                               20
                                                 13
STORAGE CUPBOARDS,
 CABINETS & LOCKERS
STORAGE CUPBOARDS, CABINETS & LOCKERS - Furniture & Equipment for the Medical World 2
Storage Cupboards, Cabinets & Lockers                                                                                                             Storage Cupboards
02                                                                                                             Storage Cupboards - Single Door, 870mm High
                                                                                                               Features
                                                                                                               •    Single-point locking using a flush fitting CAM lock fitted with a handle (supplied
                                                                                                                    with 2 keys)
                                                                                                               •    0.9mm mild steel welded construction
                                                                                                               •    Modular design allows for easy interchange with HTM 63 storage systems
                                                                                                               •    Worksurface (removable to assist with positioning under existing worktops)
                                                                                                               •    Available with plastic trays/shelves or shelves & dividers

                                                                                                               Plastic Trays
                                                                                                               •     Interchangeable with our popular CT range
                                                                                                               •     3 x 100mm, 2 x 160mm Trays supplied per cupboard
                                                                                      Shelves/ Dividers        •     Internal tray dimensions 360 x 430mm (max load per tray 5kg)
                                                                                                               •     Each tray supplied with four removable dividers (2 x long, 2 x short) complete
                                                                          BU075                                      with a plastic clip on label cover
                                                                                                               •     Each cupboard is supplied with five sheets of perforated coloured label strips
                                                                                                                     (white, blue, green, yellow and red)

                                                                                                               Flat Shelves
                                                                                                               •     Down turned sides
                                                                                                               •     Adjustable at 50mm increments
                                                                                                               •     3 shelves per cupboard

                                                                                                               Shelves & Dividers
                                                                                                               •    Down turned sides
                                                                Flat Shelves               Trays               •    Adjustable at 50mm increments
                                   BU005                                                                       •    Supplied with dividers to assist with the segregation of stored items
                                                                                                                    (adjustable at approx 25mm increments)
                                                                                                               •    3 shelves & 12 dividers per cupboard

                                                                                                               Overall Dimensions (w x d x h)
                                                                                                               •    510 x 536 x 867mm
Right Hinging    Left Hinging   Description                                                           Weight   Standard Colours
Without Drawer
                                                                                                               •    Paint - White
BU005            BU020          Single Door, 870mm High, Plastic Trays                                39.0kg   •    Worksurface - Beech
BU010            BU025          Single Door, 870mm High, Flat Shelves                                 34.0kg
BU015            BU030          Single Door, 870mm High, Shelves & Dividers                           38.0kg   Options
With Drawer                                                                                                    •    BU901 - Joining Kit & Full Width Worktop (connects two cupboards)

BU065            BU080          Single Door, Drawer, 870mm High, Plastic Trays                        40.0kg
BU070            BU085          Single Door, Drawer, 870mm High, Flat Shelves                         37.0kg
BU075            BU090          Single Door, Drawer, 870mm High, Shelves & Dividers                   41.0kg

email: sales@bristolmaid.com		                fax: +44 (0)1258 455056
STORAGE CUPBOARDS, CABINETS & LOCKERS - Furniture & Equipment for the Medical World 2
Storage Cupboards                                                                                                 Storage Cupboards, Cabinets & Lockers

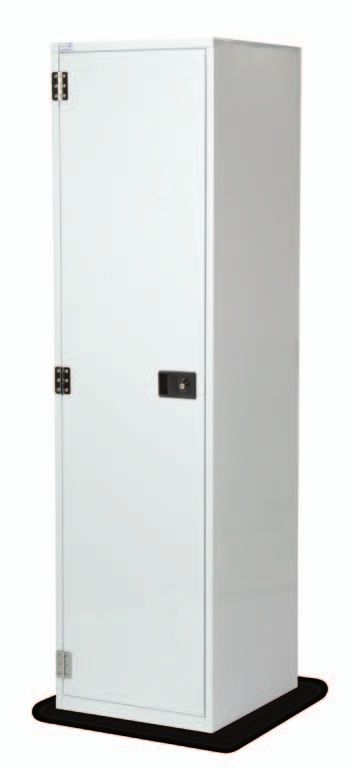

Storage Cupboards - Single Door, 1850mm High
                                                                                                                                                                                        03
Features
•    Single-point locking using a flush fitting CAM lock fitted with a handle (supplied
     with 2 keys)
•    0.9mm mild steel welded construction
•    Modular design allows for easy interchange with HTM 63 storage systems
•    Available with plastic trays/shelves or shelves & dividers

Plastic Trays
•     Interchangeable with our popular CT range                                                                    Shelves/ Dividers
•     7 x 100mm, 5 x 160mm Trays supplied per cupboard
•     Internal tray dimensions 360 x 430mm (max load per tray 5kg)
•     Each tray supplied with four removable dividers (2 x long, 2 x short) complete
      with a plastic clip on label cover
•     Each cupboard is supplied with ten sheets of perforated coloured label strips
      (white, blue, green, yellow and red)

Flat Shelves
•     Down turned sides
•     Adjustable at 50mm increments
•     8 shelves per cupboard

Shelves & Dividers
•    Down turned sides
•    Adjustable at 50mm increments                                                                                    Flat Shelves
•    Supplied with dividers to assist with the segregation of stored items(adjustable
     at approx 25mm increments)
•    8 shelves & 32 dividers per cupboard

Overall Dimensions (w x d x h)
•    500 x 530 x 1850mm

Standard Colours
•    Paint - White
                                                                                                                         Trays
Options                                                                                                                                                            BU110
•    BU902 - Joining Kit (connects two cupboards)
                                                                                          Right Hinging   Left Hinging   Description                                                   Weight
                                                                                          BU095           BU110          Single Door, 1850mm High, Plastic Trays                       72..0kg
                                                                                          BU100           BU115          Single Door, 1850mm High, Flat Shelves                        63.0kg
                                                                                          BU105           BU120          Single Door, 1850mm High, Shelves & Dividers                  73.0kg

                                                                                                                         Sales Hotline: +44 (0)1258 484455		               www.bristolmaid.com
STORAGE CUPBOARDS, CABINETS & LOCKERS - Furniture & Equipment for the Medical World 2
Storage Cupboards, Cabinets & Lockers                                                                      Storage Cabinets

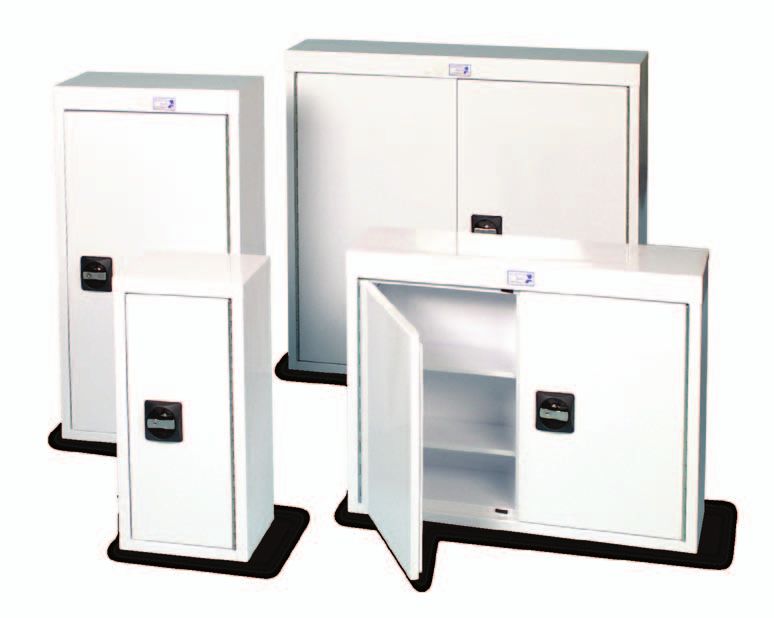

04                                                             Storage Cabinets - Single & Double Door
                                                 SC045
                                                               Features
                                                                •    Single-point locking using a flush fitting CAM lock fitted with a handle (supplied
              SC015
                                                                     with 2 keys)
                                                                •    Adjustable & removable 250mm deep shelves
                                                                •    0.9mm mild steel welded construction
                                                                •    Mounting holes in back (fixings not included)
                                                                •    Modular design allows for easy interchange with HTM 63 storage systems

                                                               Standard Colours
                                                                •    Paint - White

                                                                                      Other
                                                                                     Colours
                                                                                     Available

                                                             Item           Overall Dimensions (w x d x h)     Shelves    Shelf Size          Weight
                                                             Single Door
                                                     SC040   SC005          300 x 300 x 600mm                  2          238 x 255mm         13.0kg
                SC005
                                                             SC010          500 x 300 x 600mm                  2          438 x 255mm         16.5kg
                                                             SC015          500 x 300 x 900mm                  3          458 x 255mm         24.5kg
                                                             SC020          600 x 300 x 600mm                  2          538 x 255mm         19.5kg
                                                             SC025          600 x 300 x 900mm                  3          358 x 255mm         26.0kg
                                                             Double Door
                                                             SC030          800 x 300 x 600mm                  4          355 x 255mm         26.5kg
                                                             SC035          800 x 300 x 900mm                  6          355 x 255mm         42.0kg
                                                             SC040          1000 x 300 x 600mm                 4          458 x 255mm         32.5kg
                                                             SC045          1000 x 300 x 900mm                 6          458 x 255mm         45.0kg

email: sales@bristolmaid.com		   fax: +44 (0)1258 455056
STORAGE CUPBOARDS, CABINETS & LOCKERS - Furniture & Equipment for the Medical World 2
Storage Cabinets                                                                                        Storage Cupboards, Cabinets & Lockers

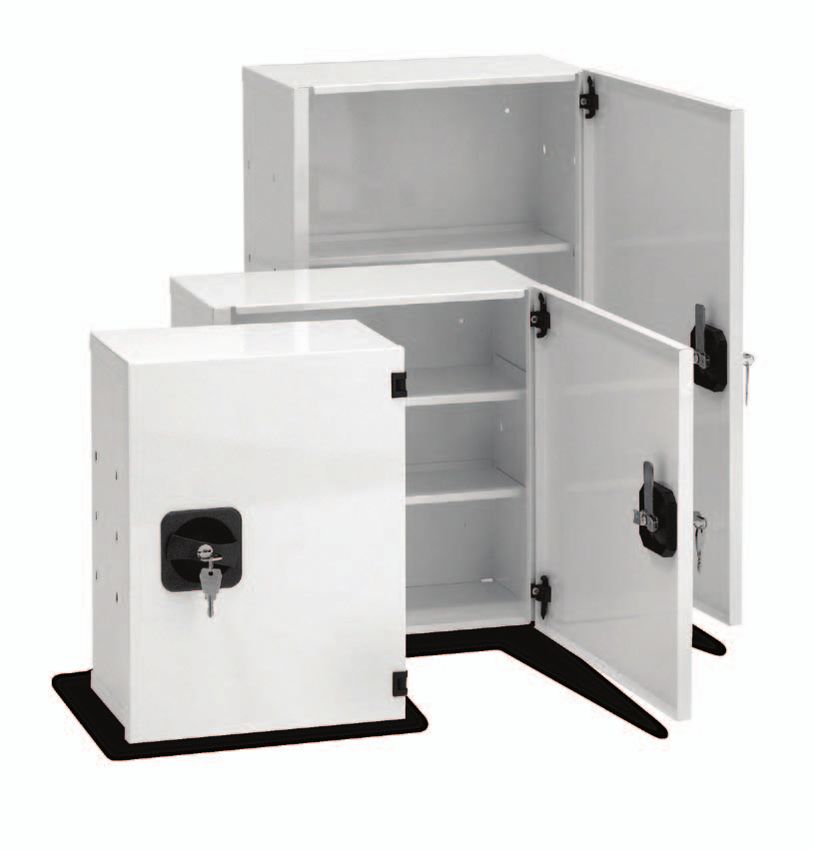

Storage Cabinets - First Aid & Clinical Reagents
                                                                                                                                                              05
                                                                                                                         GC015

Features
•      Single-point locking using a flush fitting CAM lock fitted with a handle (supplied
       with 2 keys)
•      Adjustable & removable 155mm deep shelves (2 per cabinet)
•      0.9mm mild steel welded construction
•      Mounting holes in back (fixings not included)
•      Modular design allows for easy interchange with HTM 63 storage systems
•      Supplied with self-adhesive labels ‘First Aid’ & ‘Clinical Reagents’

Standard Colours
•      Paint - White

                                                                                                                                   GC010

                                                                          Overall Dimensions               GC005
Item         Description                                                  (w x d x h)          Weight
GC005        First Aid & Clinical Reagents, Small                         300 x 200 x 400mm    5..0kg
GC010        First Aid & Clinical Reagents, Medium                        400 x 200 x 400mm    6.0kg
GC015        First Aid & Clinical Reagents, Large                         400 x 200 x 600mm    8.0kg

                                                                                                           Sales Hotline: +44 (0)1258 484455		   www.bristolmaid.com
STORAGE CUPBOARDS, CABINETS & LOCKERS - Furniture & Equipment for the Medical World 2
Storage Cupboards, Cabinets & Lockers                                                                                          Storage Cabinets
06                                                                                  Storage Cabinets - Key
                                                                                    Features
                                                                                    •      Range of key cupboards to securely store 20/40/60/120 keys
                                                                                    •      Single-point locking using a CAM lock (supplied with 2 keys)
                                                                                    •      0.9mm mild steel welded construction
                                                                                    •      Mounting holes in back (fixings not included)
                                                                                    •      Supplied with a self-adhesive data strips to support an identification label

                                                                                    Standard Colours
                                                                                    •      Paint - Grey

                                                                           KS/120

                                                                   KS/60

                                                                                    Item              Hooks                 Overall Dimensions (w x d x h)          Weight
                                                          KS/40
                                 KS/20                                              KS/20             20 Hooks              275 x 55 x 200mm                        1.5kg
                                                                                    KS/40             40 Hooks              310 x 55 x 280mm                        2.5kg
                                                                                    KS/60             60 Hooks              310 x 55 x 440mm                        4.0kg
                                                                                    KS/120            120 Hooks             380 x 55 x 600mm                        6.0kg

email: sales@bristolmaid.com		           fax: +44 (0)1258 455056
STORAGE CUPBOARDS, CABINETS & LOCKERS - Furniture & Equipment for the Medical World 2
Storage Lockers                                                                           Storage Cupboards, Cabinets & Lockers

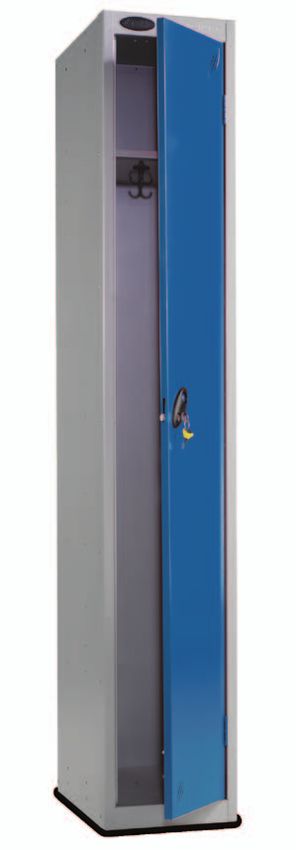

Storage Lockers - Personal Effects
                                                                                                                                                     07
Features
•   Range of personal effects lockers
    •     Single Door lockers supplied with a double coat hook & shelf
    •     Double door lockers supplied with a double coat hook
    •     3, 4 & 5 door lockers do not have a double coat hook or shelf
•   Available as individual lockers or in nests of two or three
•   Choice of CAM Lock (supplied with 2 keys) or hasp & staple (padlock/not
    supplied)
•   0.9mm mild steel welded construction
•   Mounting holes in back (fixings not included)
•   Optional stands and sloping tops
Overall Dimensions (w x d x h)
•   300 x 450 x 1800mm (21.5kg)

Standard Colours
•   Body - Grey
•   Doors - Blue
                                                  Nest Bank
Hasp & Staple
Compartments               1                 2                  3
1                          PL005             PL030              PL055
2                          PL010             PL035              PL060                                                 PL095
                                                                              PL105 - Single compartment
3                          PL015             PL040              PL065         lockers in a nest of 2
4                          PL020             PL045              PL070
5                          PL025             PL050              PL075

                                                  Nest Bank
CAM Lock
Compartments               1                  2                  3
1                          PL080              PL105              PL130
2                          PL085              PL110              PL135
3                          PL090              PL115              PL140
4                          PL095              PL120              PL145
5                          PL100              PL125              PL150
                                                   Nest Bank
Options                    1                  2                 3
Stand                      PL900              PL905             PL910
Sloping Top                PL915              PL920             PL925                           PL915 - Sloping top                       PL080

                                                                                                  Sales Hotline: +44 (0)1258 484455		   www.bristolmaid.com
STORAGE CUPBOARDS, CABINETS & LOCKERS - Furniture & Equipment for the Medical World 2
General Information

Dimensions & Weight                                                                      Stainless Steel
•    Dimensions are stated in millimetres (width x depth x height)                       •   We use 304 and 430 grade stainless steel
•    Weights are stated in kilograms                                                     •   Grade 304 is non-magnetic and used on products which are not painted
•    Please ensure you are aware of the item size and weight prior to ordering           •   Grade 430 is magnetic and used on painted products
                                                                                         •   Other grades are available on request, i.e. 316
                                                                                         •   Please note that the term ‘stainless’ is not entirely accurate, as certain chemicals
Castors                                                                                      can ‘eat’ into the surface. In particular ‘iodine’ which can badly corrode/stain and
                                                                                             as a result should not be used as a cleaning agent
•    All castors are fitted with non-marking tyres (with the exception of some anti-
     static versions)                                                                    Laminate & Wood Products
•    Anti-static castors can be identified by a yellow thread guard or a yellow mark
     on the edge of the tyre                                                             •   Wood products are manufactured from FSC accredited materials
•    Castors are selected to suit the anticipated use of the trolley/piece of                •    High pressure laminate bonded to MDF
     equipment                                                                               •    Melamine faced MDF
•    Castors and wheel bearings do not require specific maintenance other than           •   Edges are protected with 2mm ABS/T-Barb edging or sealed with varnish
     regular cleaning. The use of oil will breakdown the grease applied to the           •   Both laminate and melamine panels offer some resistance to water penetration
     bearings, reducing the life of the castor. We recommend that fittings are checked       under normal usage
     regularly and re-tightened as required                                              •   We only use water based adhesives and varnishes
•    Where anti-static castors are fitted, we recommend that the tyre is periodically
     cleaned to remove any dirt to ensure a good contact between the tyre and the
     floor                                                                               Upholstery
                                                                                         •   Upholstered panels are manufactured from ‘Flame Retardant’ materials,
Locks & Keys                                                                                 independently tested to ‘BS5852 Ignition Source 5’ (BS7176 Medium Hazard)
                                                                                         •   Vinyl’s offer resistance to:
•    Locks should operate smoothly. If they do not, please arrange urgent attention           •    Melsept SF - Code CH - B:4422M32 (0.5% / 5%)
     and where necessary obtain a replacement                                                 •    Hexaquart S - Code CH - B:406432 (1.5% / 5%)
•    Locks require only minimal maintenance and should only be lubricated using a dry         •    Meliseptol - Code CH - B:4273M92 (Undiluted)
     lubricant such as graphite which can be purchased from most locksmiths (NEVER       •   All foam is ‘Fire Retardant’ and free of ‘Hexa-Bromo-Cyclo-Dodecane’
     USE OIL)
•    When ordering replacement locks or keys, please ensure that the product code,
     and any letters/numbers from the key and lock are available
                                                                                         Latex
                                                                                         •   All products are latex free
Paint
•    We only use lead-free epoxy/polyester powder paint
•    Where possible colours are applied in special booths to allow for overspray to be
     recycled
•    Alterative colours are available, this may be incur a small surcharge

email: sales@bristolmaid.com		         fax: +44 (0)1258 455056
STORAGE CUPBOARDS, CABINETS & LOCKERS - Furniture & Equipment for the Medical World 2
General Information

Standards & Symbols                                                                       Cleaning
                                                                                          •     The maintenance of high standards of cleanliness on all surfaces and
                                                                                                equipment is a crucial factor in the prevention and control of infection. Whilst
                                               Meets appendix A (Stability                      dust, dirt and moisture can harbour infection, the key risks are associated
         Signifies that the product conforms
                                               Requirements) of BS3619:1976 Mobile              with contamination arising from contact with blood, body fluids, mucous
         with applicable European directives
                                               Infusion Stands                                  membranes and damaged skin. In all cases surfaces must be thoroughly
                                                                                                cleaned and disinfected in order to destroy pathogenic micro organisms.

                                                                                          •     Bristol MaidTM products have been designed for use in demanding
         Signifies that the product has been   Meets BS4068: 1977 Specification                 environments; full cleaning instructions can be downloaded from
         tested to European standards for      for hospital trolleys for instruments,           www.bristolmaid.com
         electromagnetic compatibility         dressings and for anaesthetists’ use

                                               Meets BS1765: Part 1: 1990                 WEEE Regulations
         Signifies that the product does not   Specification for general purpose
         use any hazardous substances in its   bedside lockers for patients (with the     Hospital Metalcraft meets its obligations as a business to business producer of
         electrical components                 exception of door hinges which are         Electrical and Electronic Equipment (EEE) through:
                                               more robust and practical)
                                                                                          •     Membership of the Veolia Environmental Services WEEE, (Waste Electrical
                                                                                                and Electronic Equipment), Producer Compliance Scheme (Registration No.
                                               Meets BS2483:1977 Specification for              WEE/KE0677RX)
         Flame Retardant                                                                  •     Marking EEE placed on the market by Hospital Metalcraft with the mandatory
                                               overbed tables
                                                                                                crossed out wheeled bin symbol and Bristol Maid logo

                                               Five Pin - BS3621 Anti Pick & Drill, Key
         Resistant to Cold Liquids
                                               Retaining Five Pin Cylinder Lock

                                                                                          •     Making information available, (for EEE placed on the market after April 2007),
                                               Six Pin - BS3621 Anti Pick & Drill, Key          to assist those engaged in treatment, recovery and recycling activities
         Resistant to Mechanical Damage                                                   •     Arranging for the collection, treatment, recovery and environmentally sound
                                               Retaining Six Pin Cylinder Lock
                                                                                                disposal of obligated WEEE

                                                                                          Customers are advised that infected medical devices are not included within the
                                               Independently tested to BS2881: 1989       scope of the WEEE Regulations and that arrangements described above do not
                                               (Security Level One) Specification         extend to such products
         Department of Health Green Book
                                               for Cupboards for the Storage of
                                               Medicines in Health Care Premises          Bristol Maid website (www.bristolmaid.com) and Terms & Conditions refer

         Independently tested to UN3291
         - Certificate of Packaging            Meets The Misuse of Drugs (Safe
         Performance for the Transportation    Custody) Regulations 1973
         of Clinical Waste
                                                                                              Sales Hotline: +44 (0)1258 484455		                       www.bristolmaid.com
STORAGE CUPBOARDS, CABINETS & LOCKERS - Furniture & Equipment for the Medical World 2
How to Order

 Paint Colours (Lead-free Epoxy/Polyester)                                                                 Laminate Colours

                                                                                                                  Cream Claro               Lagon             Bianco Especial      Gris Paloma
              White                 Red                  Spearmint               Light Grey

          Signal Yellow          Signal Blue            Signal Green           Signal Blown                    Chene de Meymac        Charme d’Amboise

             Black                Orange                   Purple

 Upholstery Colours (Flame Retardant)                                                                      Melamine

         Granite Blue       Sand Dune                 Forest Green              Graphite                              Ivory               Spearmint               Beech

         Bristol Blue       Flame Red                 Aquamarine              Onyx Black

                                           Please note that due to discrepancies with colour reproduction the shades depicted here may differ slightly from the finished product

email: sales@bristolmaid.com		              fax: +44 (0)1258 455056
How to Order

How To Order                                                                                                                        Custom Design & Manufacture
•    All orders are required in writing, either by fax, email or post. Unfortunately we cannot accept orders over the phone         If you have been unable to find a product that exactly meets your
•    Orders should be submitted as an ‘official purchase order’ on company headed paper. All information should be clearly          requirements, then please contact us so we can work together to
     displayed                                                                                                                      develop a solution that will exactly match your needs. Our design
•    Your order should contain the following - invoice address, delivery address, full contact details (name, phone & fax number)   capability allows us to provide everything from minor product
     item codes along with descriptions and prices                                                                                  specification changes through to a full design & development service.
•    If applicable, please ensure our quote number is detailed on your order to ensure any agreed discounts are applied
•    Item codes and descriptions in this catalogue supersede all previous editions
•    A full price list can be requested from our website
•    Payments can be made by cheque, bank transfer or credit/debit card (with the exception of American Express)
•    If you are a new customer, the first three orders will be processed on a proforma basis, paid in full prior to manufacture &
     delivery, after which a credit account may be applied for
•    For our terms and conditions refer to www.bristolmaid.com
•    For further information and assistance, please contact our customer services team on +44 (0) 1258 484455

Tenders & Contracts
Bristol Maid™ has wide ranging experience in the facilitation and project management of tenders and contracts. Through many
years’ experience we are uniquely placed to support our customers in the selection, delivery, installation and commissioning of
both large and small projects.

To discuss your tender or contract requirements please contact our Customer Services Team.

•     Site audit and equipment recommendations
•     Full project management
•     Scheduled deliveries
•     Product placement and removal of packaging
•     Installation and commissioning
•     Training

Preventative Maintenance, Spares & Service Support
Bristol Maid™ products are designed and manufactured to meet the demands of everyday use, with the majority of our products
under normal conditions providing many years of trouble free service.

Where annual maintenance or periodic inspections are required, we are able to offer comprehensive planned preventative
maintenance through a scheduled service contract or call out by our own trained Engineers. For your peace of mind and continued
product reliability, please contact our customer service team for details on the following services.

•    Preventative maintenance contracts & packages
•    Supply of spare parts
•    Site audit and equipment recommendations

                                                                                                                            Sales Hotline: +44 (0)1258 484455		                   www.bristolmaid.com
Meet The Team

Sales Director

                   Ian Farnfield                              Sales Representatives
                   01258 451338
                   ifarnfield@bristolmaid.com
                                                                        Chris Farmer
                                                                        07768 057675
                                                                        cfarmer@bristolmaid.com
National Sales Manager

                 Steve Poller
                 07711 095899                                           Jeremy Russell
                 spoller@bristolmaid.com
                                                                        07889 659611
                                                                        jrussell@bristolmaid.com

Sales Support
                 Paul Open                                              James Maplethorpe
                 Technical Services Manager                             07887 534755
                 01258 451338                                           jmaplethorpe@bristolmaid.com
                 popen@bristolmaid.com

                 Ian Mills
                 Sales Support Engineer                                 Tim Pascoe
                 South                                                  07725 543862
                 07921 473241                                           tpascoe@bristolmaid.com
                 imills@bristolmaid.com

                  Eric Hornby
                  Sales Support Engineer                                John Baines
                  North                                                 07876 441477
                                                                        jbaines@bristolmaid.com
                  07702 000953
                  ehornby@bristolmaid.com

email: sales@bristolmaid.com		      fax: +44 (0)1258 455056
Meet The Team
Customer Services

          Lauren Amos
          Customer Service Team Leader
          lamos@bristolmaid.com

          Sam Newton
          Assistant Customer Service
          Team Leader
          snewton@bristolmaid.com

          Mark Champion
          Customer Service Co-ordinator
          mchampion@bristolmaid.com

         Tracy Jackson
         Customer Service Co-ordinator
         tjackson@bristolmaid.com

          Jo Barnwell
          Customer Service Assistant
          jbarnwell@bristolmaid.com

                                          Export

                                                   Chris Morgan
         Ben Spreadbury                                                                           Trudy Cole
                                                   Export Sales Manager
         Customer Service Assistant                                                               Export Co-ordinator
                                                   +44 (0)7917 207617                             tcole@bristolmaid.com
         bspreadbury@bristolmaid.com               cmorgan@bristolmaid.com

                                                                   Sales Hotline: +44 (0)1258 484455		       www.bristolmaid.com
Welcome to the Latest Edition of the Bristol Maid™ Medical Furniture & Equipment Catalogue
Based in Blandford Forum, Dorset we design, manufacture and distribute the extensive range of Bristol Maid™ medical furniture together with other complimentary products from
selected partners. With a broad portfolio and a comprehensive support team we are proud to provide a responsive and flexible service to meet our customer’s needs.

With over 60 years experience, the Bristol Maid™ brand has become synonymous with quality, durability and reliability, with a wide range of customers including the NHS, Private
Healthcare Sector, Pharmacies and a growing network of Distributors throughout the UK, Ireland and many other countries around the world.

Working with our customers we are continually developing and enhancing our product ranges to ensure that they are fit for purpose, easy to use, reliable and above all represent
value for money. We hope that you find this catalogue useful and welcome your suggestions on any improvements.

                                                                                                                          Blandford Heights, Blandford Forum, Dorset. D11 7TG, UK
                                                                                                                                                          Tel: +44 (0) 1258 451338
                                                                                                                                                         Fax: +44 (0) 1258 455056
                                                                                                                                                           sales@bristolmaid.com
                                                                                                                                                            www.bristolmaid.com
You can also read
