Stefano Modena
SOFCpower SpA
The new generation of energy 6 May 2014
OUTLINE • SOFCpower: the company • SOFC technology and applications • Stationary residential mCHP: enefield trials and commercialization • Coal, gasification and CO2 separation: relevant applications 6/5/2014 - Carbonia SOFCpower CONFIDENTIAL INFORMATION 2
THE COMPANY
2014 EnGen™ roll-out within the European
project ene.field: 1000 mCHP systems > 20’000 Cells produced
Europe-wide
> 1500 Stack modules
Production capacity
2 MW/y
Plant ONE
Plant ONE extension: 2013 2008 HotBox™
> 100
Generators
2011 2.5 kW modular mCHP generator design
2008 Pilot Plant Mezzolombardo (IT) operative
2007 SOFCpower set-up, acquisition HTceramix
2000 EPFL (CH) Spin Off Htceramix s.a.
invention HotBox™ technology
6/5/2014 - Carbonia SOFCpower CONFIDENTIAL INFORMATION 3
THE COMPANY
Ceramic Materials Core Components of the SOFC’s Generator Engen2500 m-CHP
HoTbox™
Development road
2014 2015 2015/2016
10 kW 20 kW 1 MW
6/5/2014- Carbonia SOFCpower CONFIDENTIAL INFORMATION 4
THE COMPANY
INTEGRATED
mCHP GENERATOR
Power 2.5 kW
Th. Output 2 kW
Fuel Natural Gas Fuel Cell Power Module
Electric Efficiency 50% LHV
Total Efficiency power+heat, Fuel, Air & Exhaust
90%
usable for cooling management
Dimensions 0.6 x 0.8 x 1.6
wxlxh m
Power Management
Price 4‘000 €/kW
for orders >10‘000 units System
6/5/2014 - Carbonia SOFCpower CONFIDENTIAL INFORMATION 5
• SOFCpower: the company • SOFC technology and applications • Stationary residential mCHP: enefield trials and commercialization • Coal, gasification and CO2 separation: relevant applications 6/5/2014 - Carbonia SOFCpower CONFIDENTIAL INFORMATION 6
TECHNOLOGY Una piccola grande differenza: RISPETTO ALLA COMBUSTIONE, UTILIZZIAMO SEMPLICI REAZIONI CON ARIA ED IDROGENO PER PRODURRE ENERGIA ELETTRICA E CALORE 6/5/2014 - Carbonia SOFCpower CONFIDENTIAL INFORMATION 7
TECHNOLOGY
Electricity
• Natural Gas
• Liquid Fuels SOFC Heating
• Coal
Solid
• Biofuels Chiller
Oxide Cooling
• Hydrogen
Fuel
• Ammonia
Cell
CO2
• Air
Water
6/5/2014 - Carbonia SOFCpower CONFIDENTIAL INFORMATION 8
TECHNOLOGY
SOFC generators:
They are REVERSIBLE Electrolysis
Renewable can be STORED as CHEMICAL ENERGY (FUEL)
Electricity
•Synthetic Fuels,
Hydrocarbons
SOEC Heat
•Hydrogen
Solid
Oxide
Electrolyzer CO2
Cell
Pure Oxygen Water
6/5/2014 - Carbonia SOFCpower CONFIDENTIAL INFORMATION 9
SOFCPOWER: world-wide electrical efficiency record
electric efficiency in methane steam reformate
WORLD RECORD efficiency in single pass at stack level (DC, LHV): 74%
target efficiency proven in full and part-load operation (> 60%)
Stack DC efficiency [%]
100% 1000,0
90% 900,0
74%
average voltage [mV]
80% 800,0
67%
70% 700,0
60% 600,0
ηel [%]
50% 500,0
40%
400,0
300,0 V @ 20 A
30%
200,0
20%
100,0
10%
0,0
0%
0 5 10 15 20 25 30 35 40 45 50 55 60
0,10 0,15 0,20 0,25 0,30 0,35 0,40 0,45 0,50 0,55 0,60
J [A/cm2] # thermal cycles
6/5/2014 - Carbonia SOFCpower CONFIDENTIAL INFORMATION 10SOFC devices: Application by size
EnGen-2500
100kW-1MW
1 kW 10 kW 100 kW 1 MW
Industrial sites
Residential Large buildings
CCS
Mobile and Vehicles
Atomic and Renewable
2
11• SOFCpower: the company • SOFC technology and applications • Stationary residential mCHP: enefield trials and commercialization • Coal, gasification and CO2 separation: relevant applications 6/5/2014 - Carbonia SOFCpower CONFIDENTIAL INFORMATION 12
2013
Biogas operation
ηel = 35% (similar to NG)
2012
FriBorgo Project – Borgo Valsugana

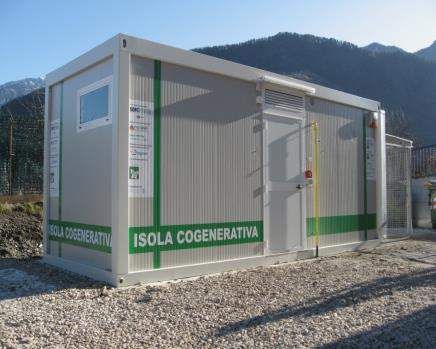

Isola Cogenerativa Installation – Roncegno Terme
6
6/5/2014 - Carbonia SOFCpower CONFIDENTIAL INFORMATION 13SOFCPOWER: UTILITIES/ESCO PARTNERSHIPS
2014-2017
SOFCpower is going to install 2,5 kWel units in
Italy, Slovenia, Switzerland, …
SOFCpower signed several
Associated Field partnerships with
important multi-utilities or Esco
6/5/2014 - Carbonia SOFCpower CONFIDENTIAL INFORMATION 14• SOFCpower: the company • SOFC technology and applications • Stationary residential mCHP: enefield trials and commercialization • Coal, gasification and CO2 separation: relevant applications 6/5/2014 - Carbonia SOFCpower CONFIDENTIAL INFORMATION 15
SOFC and CCS
SOFC can separate CO2 (and water), with minimal impact on efficiency or costs
O2
N2 (79%)
AIR CO2 8% ca.
Combustion:
(Turbine , ICE, N2 73% ca.
Fuel Burner L=ca 1.1) H2O
CH4
Air Hot Air (Heat)
Oxygen
SOFC +
-
Electric Power
750°C
CO2
Fuel CO2/H2O Concentrated Capture
No combustion with air no dilution of the CO2 stream.
6/5/2014 - Carbonia SOFCpower CONFIDENTIAL INFORMATION 16SOFC and CCS
Coal Electricity
SOFC Heating
Gasification
Gas
cleaning
Solid EOR
Enhanced Oil
(Plasma) Oxide Cooling
Recovery
Fuel
Cell
CO2 ECBM
Enhanced Coal
Bed Methane
Water Recovery
Waste

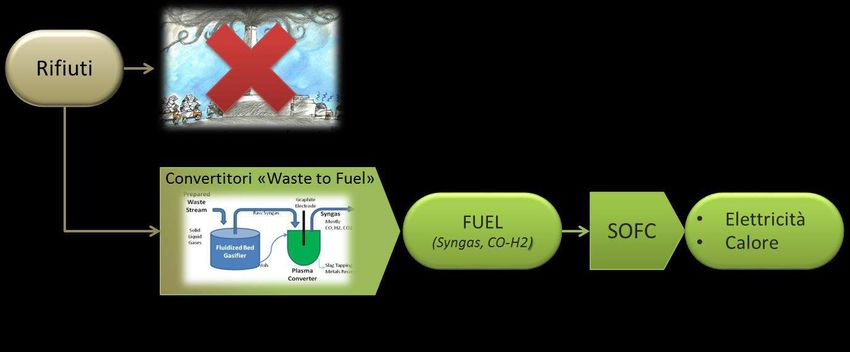

6/5/2014 - Carbonia SOFCpower CONFIDENTIAL INFORMATION 17PROGETTO WASTE-TO-ENERGY 6/5/2014 - Carbonia SOFCpower CONFIDENTIAL INFORMATION 18
WASTE-TO-GAS
SOFC grade Elettricita‘
5-10,000 tpa Syngas Calore
Syngas Generator
Cleaning CO2
SOFC-based
process N x 100 kW
40% CO
Residuo da raccolta 40% CO
40% H2
differenziata di rifiuti 40% H2
19% CO2
municipali 20% CO2
1% altri gas
Gasplasma® process
Impianto di sintesi CH4
Biocombustibili da oppure
rifiuti H2
6/5/2014 - Carbonia SOFCpower CONFIDENTIAL INFORMATION 19Gasplasma® Process
The “Gasplasma Process”:
Is a patented two-stage thermal treatment of materials, allowing for the phase-
transformation of materials in a fully-controlled environment;
Produces an end product that is a clean syngas that can be used directly for industrial use
of heat or for generation of electricity;
Is highly efficient, with over 80% calorific capture, substantial net producer of energy,
and with a documented negative carbon footprint;
Allows for the further production (from syngas) of engineered fuels such as synthetic
methane, biodiesel, and synthetic jet-fuel. to be cost-efficiently produced in a gas-to-
liquids transformation.
These “Gasplasma Fuels” belong to a new class of a super-clean engineered fuels, the
common base of which is a high-quality syngas, generated cost-effectively and standardized
to the required specification. Gasplasma fuels can be produced to performance parity with
fossil fuels. The primary input can be from any type of carbonaceous materials, solid, liquid
and gaseous.
6/5/2014 SOFCpower CONFIDENTIAL INFORMATION 20Gasplasma® Process – Unique and Patented
The Gasplasma® Technology Portfolio is Secured by IP Patents in 56 Countries
PREPARED WASTE PROCESSING CAPACITY Simultaneous processing of municipal,
Up to 300 tons per day per processing commercial, industrial and hazardous waste
line
6/5/2014 SOFCpower CONFIDENTIAL INFORMATION 21Gasplasma® How Clean is the Syngas?
20000 5000
Syngas Pre-converter Syngas Post-converter
Condensable Organics (Hexane and
18000 4500
Syngas
Condensable Organics (Toluene) ppm
16000 4000
14000 3500
Composition
12000
Toluene
3000
H2 36%
Phenol) ppm
Hexane CO 37%
10000 Phenol 2500
8000 2000 CO2 17%
6000 1500 N2 3.7%
4000 1000 H2O 4.2%
2000 500 CH4 1.4%
0 0
0 10 20 30 40 50 60 70 80 90 100
Sampling points
High temperatures of operation (1,100˚C+)
Plasma treatment ‘cracks' the crude syngas (from gasifier)
Breaking up complex molecular structure, reforming it into H2,CO & CO2
Clean hydrogen-rich fuel gas of consistent calorific value
Multiple applications: Hydrogen; Bio-SNG; Fuel Cells; GTL
6/5/2014 SOFCpower CONFIDENTIAL INFORMATION 22Gasplasma® technology in combinazione con tecnologia SOFC per:
1. Convertire i rifiuti residui da raccolta differenziata, in Syngas, senza emissioni in
atmosfera, in spazio chiuso.
2. Condizionare il Syngas per ottenere un combustibile di qualita’ adatta al
funzionamento delle SOFC;
3. Installare dei generatori SOFC da 100 kW basati sulla tecnologia SOFCpower;
4. Realizzare un impianto di conversione del Syngas in metano (SNG) o in
Idrogeno. In entrambi i casi tali combustibili possono essere utilizzati per
autotrazione
Possibile anche in Sardegna?
6/5/2014 - Carbonia SOFCpower CONFIDENTIAL INFORMATION 23Grazie per l’attenzione!
Ing. Stefano Modena
R&D – Commissioning and Field-test Manager
M.+39. 388. 92.57.050 / Tel.+39. 0461.607529
stefano.modena@sofcpower.com
