Rockingham, Vermont Designing for Resilience and Durability on the Longest Spliced Precast Concrete Girder Bridge in Vermont
SUMMER 2021

  Designing for Resilience and
      Durability on the Longest
Spliced Precast Concrete Girder
             Bridge in Vermont
                Rockingham, Vermont
                BOH BROS. CONSTRUCTION CO.’S LONGEVITY
                                SERVES THE GULF COAST

              CONDITION EVALUATION OF THE JFK CAUSEWAY
                      POST-TENSIONED SEGMENTAL BRIDGE
                                     North Padre Island, Texas

                    MIDDLEBURY BRIDGE AND RAIL PROJECT
                                         Middlebury, Vermont
Rockingham, Vermont Designing for Resilience and Durability on the Longest Spliced Precast Concrete Girder Bridge in Vermont
Rockingham, Vermont Designing for Resilience and Durability on the Longest Spliced Precast Concrete Girder Bridge in Vermont
CONTENTS
                                                                                               20
                                                                                                                 Features
                                                                                                                 Contractor’s Longevity Serves the Gulf Coast                            6
                                                                                                                 For more than 100 years, family-owned Boh Bros. Construction
                                                                                                                 Co. has shaped the region surrounding its New Orleans home
                                                                                                                 base through heavy civil and concrete bridge work that connects
                                                                                                                 the region

                                                                                                                 Condition Evaluation of the JFK Causeway
                                                                                                                 Post-tensioned Segmental Bridge                                      20
                                                                                                                 Middlebury Bridge and Rail Project                                   24
                                                                                                                 Designing for Resilience and Durability on the
                                                                                                                 Longest Spliced Precast Concrete Girder
Photo: Texas Department of Transportation.                                                                       Bridge in Vermont                                                    28
                                                                                                                 Departments
                                                                                               24                Editorial                                                                2
                                                                                                                 Concrete Calendar                                                        4
                                                                                                                 Perspective—Diversity, Equity, and Inclusion                           10
                                                                                                                 Perspective—Perspectives on Structural
                                                                                                                 Behavior and Redundancy:
                                                                                                                 Load Path Redundancy                                                   12
                                                                                                                 Perspective—The Digital Twin Evolution                                 16
                                                                                                                 Aesthetics Commentary                                                  31
                                                                                                                 Creative Concrete Construction—
                                                                                                                 Threading a Needle                                                     32
                                                                                                                 Concrete Bridge Preservation—Preserving
Photo: VHB.                                                                                                      Our Infrastructure by Using Modified Silica Gel                        35
                                                                                                                 Concrete Bridge Technology—
                                                                                                                 Detailing Segmental Concrete
                                                                                               28                Box Girders for Constructability                                       38
                                                                                                                 Professor’s Perspective—The Role of
                                                                                                                 Analytical Tools in Innovation                                         40
                                                                                                                 Safety and Serviceability—Designing

                                                                                                                                                                                                 Photo: Flatiron Construction Co.
                                                                                                                 for Construction Loads on Concrete Bridges                             43
                                                                                                                 FHWA—Eliminating Bridge Joints
                                                                                                                 with Link Slabs                                                        46
                                                                                                                 Concrete Connections                                                   48
                                                                                                                 LRFD— Crack-Control Reinforcement:
                                                                                                                 Strength and Serviceability Implications                               49
                                                                                                                 Perspective—Ethics and Culture:
                                                                                                                 You Can’t Ride a Bike Without Wheels                                   51
Photo: HDR.

Advertisers’ Index
Alchemco. . . . . . . . . . . . . . . . . . . . . . . . .37   MAX USA CORP. . . . . . . . . . . . . . . . . . . . .3           Schwager Davis . . . . . . . Inside Front Cover
DYWIDAG . . . . . . . . . . . . . . . . .Back Cover           PCI . . . . . . . . . . . . . . . . . . . . . . . . 5, 19, 27    Stalite . . . . . . . . . . . . . . . . . . . . . . . . . . .27
HDR . . . . . . . . . . . . . . . . Inside Back Cover         Poseidon Barge Ltd . . . . . . . . . . . . . . . . .18

                                                                                                                                                               ASPIRE Summer 2021 | 1
Rockingham, Vermont Designing for Resilience and Durability on the Longest Spliced Precast Concrete Girder Bridge in Vermont
EDITORIAL

                                         Our Fundamental Principles:
                                                                                                                                    Editor-in-Chief
                                                                                                                                    William N. Nickas • wnickas@pci.org
                                                                                                                                    Managing Technical Editor

                           Photo: PCI.
                                         Ethics and Quality                                                                         Dr. Reid W. Castrodale
                                                                                                                                    Technical Editors
                                                                                                                                    Dr. Krista M. Brown, Angela Tremblay
                                         William N. Nickas, Editor-in-Chief
                                                                                                                                    Associate Editor
                                                                                                                                    Thomas L. Klemens • tklemens@pci.org
    T     he American Association of State Highway and
          Transportation Officials (AASHTO) has released
  a video profile of Victoria Sheehan, the 2020–2021
                                                                        records. Over the years, I’ve worked with colleagues who
                                                                        work to maintain transparency in every aspect of our
                                                                        projects, starting with our plans and records. Preserving
                                                                                                                                    Copy Editors
                                                                                                                                    Elizabeth Nishiura, Laura Vidale
  AASHTO president.1 She has been commissioner of                       these critical documents for years after projects are       Layout Design
  the New Hampshire Department of Transportation                        delivered is key. Without good record-keeping, we           Walter Furie
  (DOT) since 2015. Sheehan has a master’s degree in                    cannot trace the designs and calculations used in
  structural engineering and architecture, and started                  projects or understand how past decisions affect the        Editorial Advisory Board
  her career in the accelerated bridge construction                     future of our transportation infrastructure.                William N. Nickas, Precast/Prestressed
                                                                                                                                    Concrete Institute
  program at the Massachusetts DOT. It’s pretty neat                       How do we ensure that the programs we have in
                                                                                                                                    Dr. Reid W. Castrodale, Castrodale
  to see a structures professional in the top agency                    place live up to the demands of our profession? I           Engineering Consultants PC
  leadership role. Please take a moment to watch the                                                                                Gregg Freeby, American Segmental Bridge
  video and listen to Sheehan’s thoughts on diversity,                                                                              Institute
  technology, and other changes that will impact                                                                                    Pete Fosnough, Epoxy Interest Group of the
  core functions of the transportation industry. She                                                                                Concrete Reinforcing Steel Institute
  emphasizes the need to expand the skill sets of our                                                                               Alpa Swinger, Portland Cement Association
  workforce and to fund a stable program with a long-                                                                               Tony Johnson, Post-Tensioning Institute
  term horizon, showing leadership the benefits of
                                                                                                                                    Cover
  “predictability for longer-term planning.”                                                                                        The design-build team evaluated several
     Watching the AASHTO video got me to thinking                                                                                   alternative structure types for the new twin
  again about the fundamental principles of delivering                                                                              bridges on Interstate 91 near Rockingham, Vt.,
  well-designed, high-quality products and assets to our                                                                            ultimately selecting precast concrete spliced-
  customers/owners. In the Spring 2021 issue of ASPIRE®,                                                                            girder bridges that will exceed the 100-year
  Dr. Richard Miller authored a Professor’s Perspective                                                                             service life requirement. Photo: HDR.
  on ethics and judgment and how, as a university
  professor, he approaches the topic with his engineering                                                                           https://doi.org/10.15554/asp15.3
  students.2 In this issue on page 51, Dr. Anna Pridmore                suggest that we start with the “AISC/PCI White Paper        Ad Sales
  continues the discussion with a Perspective on the                    on Quality Systems in the Construction Industry”4 as        Jim Oestmann
  new American Society of Civil Engineers (ASCE)                        a primer. This collaborative report is an easy read,        Phone: (847) 924-5497
  Code of Ethics3 and what it takes to foster an ethical                provides a bit of background on the roles of technical      Fax: (847) 389-6781 • joestmann@arlpub.com
  culture and impact behavior. She reminds us of the                    institutes and certification programs, and outlines the
  importance of fostering a culture of empowerment                      12 elements of comprehensive quality systems for a          Reprints
                                                                                                                                    lisa scacco • lscacco@pci.org
  and communication that will impact behavior within                    technical institute’s plant certification program.
  companies and organizations. In her words, “Engineers                    A variety of models are available to help us             Publisher
  can drive culture shifts that empower us and others to                establish quality programs and systems in our               Precast/Prestressed Concrete Institute
  talk about potential and ongoing problems.”                           organizations. At their core, quality programs              Bob Risser, President
     Organizations can strengthen and support our                       demand attention to detail, standardized procedures/        Postmaster: Send address changes to ASPIRE, 8770 W. Bryn Mawr
                                                                                                                                    Ave., Suite 1150, Chicago, IL 60631. Standard postage paid at Chicago,
  individual professional ethics by sustaining a culture                work instructions, and an assurance that provided           IL, and additional mailing offices.
  of quality. A quality company culture starts with                     guidance is followed. This outlined approach provides       ASPIRE (Vol. 15, No. 3), ISSN 1935-2093 is published quarterly by the
                                                                                                                                    Precast/Prestressed Concrete Institute.
  leadership that sets and upholds solid policies, with                 the guidance for establishing the organizational            Copyright 2021 Precast/Prestressed Concrete Institute.
  clearly stated quality objectives and standard operating              stewardship (body of knowledge) to enhance                  If you have comments on an article or a suggestion for a project or
                                                                                                                                    topic to be considered for ASPIRE, please send an email to info@
  practices. A fundamental tenet is that all quality systems            established quality programs or aid in building a new       aspirebridge.org
  begin and end with complete and comprehensive                         program starting from ground zero.

      American Segmental Bridge Institute                                               Epoxy Interest Group                           Expanded Shale Clay and Slate Institute

           Portland Cement Association                                                                                                             Post-Tensioning Institute

2 | ASPIRE Summer 2021
Rockingham, Vermont Designing for Resilience and Durability on the Longest Spliced Precast Concrete Girder Bridge in Vermont
In Dr. Miller’s article on teaching ethics, he                       procedures, programs, and systems can save the day.
                                                                                                                                                         PCI Ultra-High-
explains how he uses the example of an expressway                       Organizations and companies must cultivate a dual
dividing a neighborhood to frame the discussion                         mindset of both rigorous adherence to standards and                          Performance Concrete
with his students of the societal, environmental,                       quality control/assurance procedures as well as being                      Workshop set for September
and economic ramifications of their work (both                          open to the spontaneous communication of ideas
locally and globally). His students must navigate                       and concerns. If your organization is contemplating                           PCI is hosting an Ultra-High-Performance
this engineering dilemma and consider the effects                       joining forces with an entity that doesn’t take open                       Concrete Workshop Tuesday, September 21,
and influence this solution could have on adjacent                      communication, ethics, quality management, quality                         2021. This one-day workshop will gather
established communities. They must take into                            assurance, and quality control seriously, consider                         experts from across the precast concrete
account the human aspects of their designs. This                        another collaborator.                                                      industry to discuss various research
example led me to wonder: Is it at this juncture where                                                                                             and development initiatives for the
engineering decisions shift from science to art?                        References                                                                 implementation of ultra-high-performance
   Now let’s talk through indirect impacts: what                        1. American Association of State Highway and
                                                                                                                                                   concrete (UHPC) in precast concrete
happens when a seemingly minor misstep becomes                             Transportation Officials. 2021. “AASHTO President
a global issue? On March 23, 2021, the Ever Given,                         Victoria Sheehan Profiled in New Video.”
                                                                                                                                                   components.
one of the largest cargo ships in the world, ran                           www.youtube.com/watch?v=L_c8RzuoEp8.                                       The workshop will cover design
aground, essentially shutting down global shipping                      2. Miller, R. 2021. “Ethics and Judgment Are About                         considerations for architectural and
through the Suez Canal until the ship was freed                            More Than Just Safety.” ASPIRE 15(2): 50–51.                            structural precast UHPC components, such as
on March 29. The inability to move cargo through                        3. American Society of Civil Engineers (ASCE). 2020.                       UHPC material selection for nonproprietary
the canal had the potential to cause significant                           “ASCE Code of Ethics.” https://www.asce.org/code                        mixture designs, characterization and
and costly delays for construction industry-based                          -of-ethics.                                                             quality control testing of UHPC, and
projects globally. Perhaps it delayed the delivery of                   4. American Institute of Steel Construction (AISC)                         production and fabrication of precast UHPC
construction material and heavy equipment to your                          and Precast/Prestressed Concrete Institute (PCI).                       components.
projects.                                                                  “AISC/PCI White Paper on Quality Systems in                                The workshop will be at Loews O’Hare in
   If your project is affected, will that cause an                         the Construction Industry.” Accessed May 6, 2021.
                                                                                                                                                   Rosemont, Ill. For more information, go to
out-of-sequence issue? Are you and your team                               https://www.pci.org/PCI_Docs/Certification/
prepared to adjust? During times of uncertainty, our                       AISC_PCI_Quality_Systems_White_Paper.pdf.
                                                                                                                                                   https://www.pci.org/events
ethics may be tested, and our reliance on quality

                                                                                                                                                            Scan To
                                                                                                                                                           Request
                                                                                                                                                          Rebar Tying
                                                                                                                                                          Tool Demo

                                                                                                                                            T Stand-Up
                                                                                                                                            The        p TWINTIER® RB401T-E is the world’s
                                                                                                                                            first
                                                                                                                                            fi and only battery powered stand-up tool for
                                                                                                                                            ty g #3 x #3 to #6 x #6 rebar combinations.
                                                                                                                                            tying

                                                                                                                                            T Stand-Up
                                                                                                                                            The        p TWINTIER® RB401T-E is the most
                                                                                                                                            ergonomic
                                                                                                                                            eg        solution
                                                                                                                                                         ution for backbreaking slab work.

     MAX developed the World’s First battery powered powere rebar
                                                               r      tying
                                                                       y g
     tool in 1993. Since then, MAX rebar tying tools have revolutionized
                                                          re           d
     rebar tying work on bridge decks and a variety of additional
                                                         d      l
     jobsites all around the world. MAX’s 200 R&D engineers
                                                  engine s have
                                                              e
     continued improving upon their proprietary technology,
                                                techno gy,
     which led to the development of the TWINTIER®.
                                               TWINTIER®
                                               TWINTIE ®.
     TWINTIER® technology allows MAX battery powered rebar  reb
     tying tools to form 4,000 ties per charge, while delivering
     just the right amount of wire for greater productivity and
     cost savings. Compared to hand tying, TWINTIER® tools
     can greatly reduce the risk of musculoskeletal injuries.

                     The MAX PPE Shield means that you can trust that our tools are engineered with your health and safety in mind.
                     MAX rebar tying tools are designed to alleviate the pain of manually tying rebar and reduce the risk of developing
                     musculoskeletal diseases. MAX R&D engineers, develop product solutions that keep you safe while you work. Work safe with
                     MAX tools. Prioritizing using proper equipment keeps you safe and healthy on the job site.

        MAX USA Corp. • 205 Express St., Plainview, NY 11803 • U.S.A, Phone: (800) 223-4293 • FAX: (516) 741-3272 • www.maxusacorp.com                     MAX USA CORP.

                                                                                                                                                                         ASPIRE Summer 2021 | 3
Rockingham, Vermont Designing for Resilience and Durability on the Longest Spliced Precast Concrete Girder Bridge in Vermont
CONCRETE CALENDAR FOR SUMMER 2021
                                                                    The events, dates, and locations listed were accurate at the time of publication
    CONTRIBUTING AUTHORS                                                    but may change as local guidelines for gatherings continue to evolve.
                                                                                         Please check the website of the sponsoring organization.
                            Raj Ailaney is a senior
                            bridge preservation            July 11–15, 2021                              November 15–20, 2021
                            engineer in the Federal          AASHTO Committee on Bridges                  PTI Certification Training:
                            Highway Administration           and Structures Annual Meeting                All Levels
                            (FHWA) Office of Bridges         Online                                       Austin, Tex.
                            and Structures, where he
                            develops guidance and          July 26–August 4, 2021                        December 8–10, 2021
                            policies for preservation of     AASHTO Committee on Materials                Accelerated Bridge
    bridges in support of FHWA’s performance-based           and Pavements Annual Meeting                 Construction Conference
    program to maintain bridges in a state of good           Online                                       Online
    repair. He also chairs the FHWA’s Bridge
    Preservation Expert Task Group.                        August 10, 2021                               January 9–13, 2022
                                                            2022 PCI Design Awards                         Transportation Research
                           Dr. Oguzhan Bayrak is a          Submission deadline                            Board Annual Meeting
                           professor at the University                                                     Walter E. Washington
                           of Texas at Austin and was      September 13–16, 2021                           Convention Center
                           inducted into the                 2021 Western Bridge                           Washington, D.C.
                           university’s Academy of           Engineers Seminar
                           Distinguished Teachers in         Online                                      January 19–21, 2022
                           2014.
                                                                                                           World of Concrete
                                                           September 13–18, 2021                           Las Vegas Convention Center
                                                             PTI Certification Training: All Levels        Las Vegas, Nev.
                           Drew G. Burns is the
                                                             Phoenix, Ariz.
                           executive director for the
                                                                                                         March 1–5, 2022
                           Slag Cement Association
                                                           September 20, 2021                             PCI Convention with
                           and Great Lakes Cement
                                                             ASBI Grouting Certification                  The Precast Show
                           Promotion Council in
                                                             Training                                     Kansas City Convention Center
                           Detroit, Mich.
                                                             Online                                       Kansas City, Mo.

                                                           September 22–25, 2021                         March 27–31, 2022
                           Frederick Gottemoeller is         PCI Committee Days and                       ACI Spring 2022 Conference
                           an engineer and architect         Technical Conference                         Caribe Royale Orlando
                           who specializes in the            Loews Chicago O’Hare Hotel                   Orlando, Fla.
                           aesthetic aspects of bridges      Rosemont, Ill.
                           and highways. He is the
                           author of Bridgescape.          September 26–30, 2021
                                                             AREMA 2021 Annual Conference
                                                             with Railway Interchange
                                                             Online
                                                                                                           A HELPFUL HINT
                           Dr. Anna Pridmore is the
                           vice president of Municipal     October 5–8, 2021                               For a complete list of search results in
                           and Nuclear Infrastructure       PTI Committee Days                             the online version of ASPIRE® users must
                           for Structural Technolo-         Hyatt Regency                                  search from within an issue.
                           gies. She volunteers in          Coconut Point
                                                                                                           Once an issue is open, click the search
                           leadership for the               Bonita Springs, Fla.
                                                                                                           button and type the search term. Then
                           American Society of Civil                                                       click the folder button to search all
                           Engineers and serves on         October 17–29, 2021
                                                                                                           archived issues.
    committees for several other industry organiza-         ACI Fall 2021 Convention
    tions to develop and improve the profession.            Hilton Atlanta Downtown                        This will return all results of the search
                                                            Atlanta, Ga.                                   from all past issues of ASPIRE.
                           Dr. John Stanton is the
                           Nielsen Professor of Civil      November 8–10, 2021
                           Engineering at the               ASBI 2021 Annual Convention and
                           University of Washington         Committee Meetings
                           in Seattle where he has          Westin La Paloma Resort and Spa
                           taught and conducted             Tucson, Ariz.
                           research,, much of which
                           concerns prestressed
    concrete bridges, for more than 40 years.

4 | ASPIRE Summer 2021
Rockingham, Vermont Designing for Resilience and Durability on the Longest Spliced Precast Concrete Girder Bridge in Vermont
Reduce Your Carbon
    Footprint With PLC
    The same durable, resilient concrete you
    depend on can now reduce your carbon
    footprint by 10%.*
    Portland-limestone cement is engineered with a higher limestone content. PLC gives specifiers,
    architects, engineers, producers, and designers a greener way to execute any bridge, paving,
    or geotech project with virtually no modifications to mix design or placing procedures.

    All without sacrificing the resilience and sustainability you’ve come to expect from
    portland cement concrete.

                                  Learn more about PLC and reducing your next
                                  project’s carbon footprint at greenercement.com

                                                                                                     *Typically, PLC can reduce your carbon footprint by 10%.

MARK YOUR CALENDAR
for the 2021 PCI Committee Days
on September 22-25, 2021.
Participate in the decisions driving our industry and                                 LOEWS O’HARE, ROSEMONT, IL
impacting your business and get to know our                                           Registration opens July 26, 2021
industry’s leaders and spend time with your peers.                                    VISIT PCI.ORG/COMMITTEEDAYS FOR MORE INFO.
Rockingham, Vermont Designing for Resilience and Durability on the Longest Spliced Precast Concrete Girder Bridge in Vermont
FOCUS

        Contractor’s Longevity
        Serves the Gulf Coast
        For more than 100 years, family-owned Boh Bros. Construction Co. has shaped the region surrounding
        its New Orleans home base through heavy civil and concrete bridge work that connects the region

        by Monica Schultes

    Boh Bros. Construction Co. has a 160-acre facility that includes 4200 ft of waterfront along the Gulf Intracoastal Waterway. On the
    Lake Pontchartrain Causeway project, this waterway access gave the company an advantage while constructing complete safety
    shoulder segments. The components were cast and assembled at the facility, and then loaded onto self-propelled modular transporters
    (SPMTs), which were rolled directly onto barges. The assemblies were erected from the barges using SPMTs and without impacting
    travelers on the causeway. All Photos: Boh Bros. Construction Co. LLC.

    T h e l o n g h i s t o r y o f B o h B ro s .   Plauche says, “We try to maintain         “steady as she goes” philosophy. “We are
    Construction Co. is rare in the                  our reputation of honorably               conservative in our thinking and believe in
    construction industry and is a testament         s erv i n g our c ommuni ti es .” That    doing the right thing. Our reputation for
    to their commitment to New Orleans               devotion to the local community           a high degree of integrity is paramount.”
    and southeaster n Louisiana. The                 was validated as Boh Bros. worked
    company’s longevity is also a reflection         to help restore New Orleans to its        That attitude has been perpetuated over
    of its management, according to                  former glory. The rapid response also     the years across a workforce whose
    Jeff Plauche, senior vice president of           foreshadowed their penchant for           members often stay with the company
    preconstruction and development. This            alternative project delivery methods.     for their entire careers. “Funding
    family-owned company has lasted from                                                       sources may change and the industries
    generation to generation thanks to a
    philosophy of service to the community,
                                                          “We try to                           we perform in may vary, but the way
                                                                                               we do business never changes,” says
    customers, and coworkers.                        maintain our reputation                   Plauche.

    In the wake of Hurricane Katrina in
                                                     of honorably serving our                  Although there is tremendous turnover
    2005, it was all hands on deck, 24               communities.”                             in the construction industry, that is not
    hours a day, to restore the Interstate                                                     the case here. Boh Bros. has always
    10 ( I- 10) t win s p a n s o v e r L a k e      Family Values                             been privately held and some years ago
    Pontchartrain that had been broken               Boh Bros. considers their employees       started an employee stock ownership
    into pieces by the storm surge. Boh              part of the family. “That is what makes   plan to recognize the people who
    Bros. employees worked on emergency              us unique,” says Plauche. More than a     are critically important to the success
    repairs to the bridge, despite their own         century ago, the Boh family started       of the company and to reward their
    personal losses.                                 a company based on integrity and a        loyalty.

6 | ASPIRE Summer 2021
Rockingham, Vermont Designing for Resilience and Durability on the Longest Spliced Precast Concrete Girder Bridge in Vermont
of the two contracts for construction
                                                                                           of the elevated I-10 twin spans that are
                                                                                           in use today (for details, see the article
                                                                                           in the Spring 2011 issue of ASPIRE®).
                                                                                           Recently, they were awarded another
                                                                                           major project: Working for the Greater
                                                                                           New Orleans Expressway Commission,
                                                                                           they completed a $55 million upgrade
                                                                                           to construct new safety shoulder
                                                                                           segments along the Lake Pontchartrain
                                                                                           Causeway, the longest bridge in the
                                                                                           United States.

                                                                                           CMAR Solutions
                                                                                           Boh Bros. served as the construction
                                                                                           manager at risk (CMAR) for the Lake

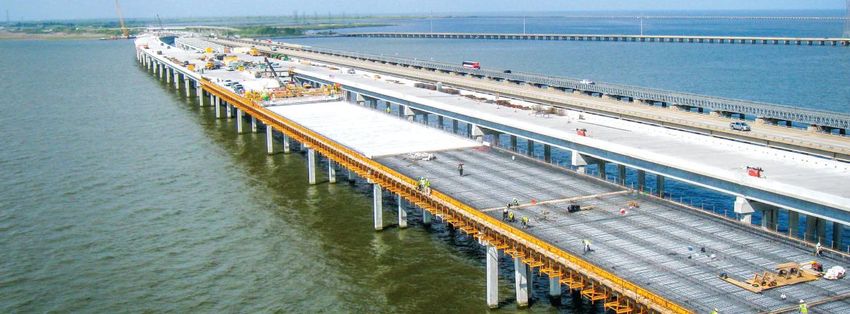

Aerial view of the marine deck span installation of the Lake Pontchartrain Causeway,
                                                                                           Pontchartrain Causeway project,
showing tugboats holding the barges in place while the self-propelled modular
                                                                                           which included constructing twelve
transporters complete the installation. The new designated breakdown areas address
                                                                                           1008-ft-long safety shoulders, or
both traffic and safety concerns and were a much-needed addition to the structure.
                                                                                           “safety bays,” along the existing bridge
When the bridge was first completed in 1956, the annual traffic count was 200,000; now
                                                                                           alignment.
the bridge carries 12 million vehicles per year.

Gulf Coast                                   The interstate highway program drove          The CMAR approach expedited the
With strong ties to the gulf region and      much of that expansion, as did the            design and planning stages and
their auspicious beginnings in New           development of the power industry.            allowed the project team to resolve
Orleans, Boh Bros. has performed             “As the entire industrialized world           key challenges and minimize project
thousands of projects in the area and        evolved, we did too,” explains Plauche.       risk. Throughout the process, Boh
continues to seek out opportunities          The area south of Baton Rouge, La.,           Bros. collaborated on constructability,
close to home. Staying local benefits        is considered a coastal environment           schedule, and budget to help guide the
employees, who can return to their           and is conducive to concrete bridge           design. In less than nine months, the
families after work. Building in the         construction. As concrete girder              project moved from preconstruction to
region also reinforces the company’s         technology has developed and longer           construction, a process that typically
areas of expertise. They have extensive      spans have become more common,                takes much longer.
knowledge about the intricacies of           concrete can be considered in more
working along the Gulf Coast. South          long-span project solutions.                  Traffic was a primary consideration. To
Louisiana soils are very tricky, and                                                       minimize traffic disruptions, the team
working along multiple waterways             The evolution of Boh Bros.’ expertise         opted for precast concrete piles, pile
presents challenges of variable water        came with experience in the many and          caps, and deck span modules that were
depths and weather conditions that can       varied concrete structures that cross the     manufactured off site. The monolithic
affect construction.                         Louisiana waterways. In all, Boh Bros.        deck span modules, or safety bay sections,
                                             has completed three projects on I-10          are composed of a concrete deck and
Boh Bros. has invested in their own          over Lake Pontchartrain. After their          traffic barrier cast onto AASHTO girders
equipment and typically self-performs        stellar performance in 2005 on the            at the Boh Bros. facility. With this strategy,
85% to 95% of their work. They have          emergency repairs, they completed one         lane closures were minimized, simplifying
the option of using their own casting
yard or partnering with local precasters      The Lake Pontchartrain Causeway piles and precast concrete pier caps awaiting
for bridge components. In addition            installation of the precast concrete shoulder assemblies. The safety shoulder segments
to Boh Bros.’ own precast concrete            were supported by one hundred ninety-two 54-in.-diameter precast concrete piles
fabrication shop, the New Orleans             ranging from 54 to 112 ft in length.
operations yard also contains a safety
training facility, carpentry shop, piling
and marine facilities, and equipment
and material storage, and has direct
barge access.

Now a major player in bridge
construction in the region, Boh Bros.’
expertise expanded from municipal
and road work to pile driving and
bridge work. Their portfolio evolved
as their in-house experience grew.

                                                                                                                  ASPIRE Summer 0 |7
                                                                                                                         Su e 2021
Rockingham, Vermont Designing for Resilience and Durability on the Longest Spliced Precast Concrete Girder Bridge in Vermont
In 2005, Hurricane Katrina tore apart sections of the Interstate 10 twin spans over Lake Pontchartrain. After resurrecting five miles
    of downed causeway pieces and making emergency repairs in less than 29 days to get one of the bridges reopened, Boh Bros. was
    awarded the contract for the new, more resilient trestle portion of the Interstate 10 twin bridges.

    construction sequencing and greatly            The safety shoulder modules were                creative project solution was recognized
    reducing inconvenience to the public.          constructed in an assembly-line process         by awards from the Associated General
    The completed safety bays provide a safe       at Boh Bros.’ waterfront construction           Contractors of America and PCI (PCI
    haven for stranded motorists to pull off       facility, increasing safety and quality.        2021 Best Rehabilitated Bridge Award).
    the causeway.                                  All deck span modules were assembled
                                                   off site, with precast concrete girders         “The causeway project is one of the
    Boh Bros. was a critical part of the           delivered to the yard and a composite           best stories we can tell in the CMAR
    preconstruction process and their              deck applied, before the completed units        environment,” says Plauche. “We
    engineering background enabled the             were barged to the bridge.                      listened to the commission staff, the
    team to provide sound constructability                                                         designer, Volkert, and the owner’s
    input. Plauche says, “We have a built-in       The CMAR team mentality was critical            representative, Huval & Associates, and
    appreciation for how changes impact            to the decision to do as much work              truly acted as one team. We met their
    design. That better enables us to suggest      as possible from the water instead of           expectations and exceeded their goals.
    construction solutions that work for both      from the bridge deck. Risk mitigation           I know it sounds cliché, but that is the
    the contractor and designer, maximizing        for the traveling public, cost risk, and        definition of building a project with the
    benefits to the owner.”                        safety risk were all addressed before           least disruption to all stakeholders.”
                                                   construction started.
          “We have a built-                                                                        Company of Builders
    in appreciation for how                        Waterside Construction                          Plauche sees the CMAR project
                                                   The most impactful decision for the             delivery method as the next step in the
    changes impact design.                         causeway project was to incorporate             company’s evolution. “In the future, we
    That better enables us                         accelerated bridge construction (ABC)
                                                   techniques and fabricate the bridge
                                                                                                   see Boh Bros. doing what we do best,
                                                                                                   employing more innovative methods.
    to suggest construction                        deck span modules off site, then                We are a company of builders. Many
    solutions that work for                        transport them by barge to the bridge
                                                   from the Boh Bros. facility. The ABC
                                                                                                   field supervisors have come up through
                                                                                                   the craft ranks, growing our technical
    both the contractor and                        approach enabled pile driving and               and construction expertise.”
    designer, maximizing                           precast concrete pile cap construction
                                                   to be performed concurrently and                Project delivery methods have been
    benefits to the owner.”                        facilitated construction exclusively using      slow to change in Louisiana. The
                                                   marine equipment. With the piles and            traditional design-bid-build approach is
    The team procured advance work                 caps in place, the crew barged the              a good fit for typical everyday projects,
    packages, expediting items that                completed deck units to the site.               but for those projects with high levels
    were approved for fabrication before                                                           of complexity, multiple stakeholders, or
    100% design completion. Before the             “In order to have as little impact on           potential funding issues, it makes sense
    construction contract was executed, a          the traveling public as possible, we            to move toward design-build, CMAR, or
    test pile program was initiated, as was        came up with the modular scheme to              construction manager/general contractor
    the production of precast, pretensioned        install sections coming up from the             project delivery methods.
    concrete girders and concrete cylinder         waterside,” explains Plauche. “Using
    piles. Boh Bros. was ultimately awarded        self-propelled modular transporters on          “We have always helped our clients
    the construction contract, and the             barges allowed us to set the completed          as a team member working for the
    company guaranteed the maximum                 deck sections with many motorists               good of the project, not adversarial
    price and schedule duration.                   unaware we were ever there.” The                or self-serving,” says Plauche. “These

8 | ASPIRE Summer 2021
collaborative procurement methods are
a natural fit for us and have allowed us
                                                      “Instead of                                Boh Bros. Construction Co.
to win more projects in the region since        the old roll of plans,
                                                                                                  Boh Bros. Construction Co. is a family-
their adoption.”
                                                everyone has up-to-date                           owned, third-generation construction
As a contractor that performs much of           information, just-in-                             company based in New Orleans,
their own work, Boh Bros. can apply                                                               La. Their work includes heavy civil
years of experience and lessons learned
                                                time, all the time.”                              construction, piling, marine, utilities,
to enhance the owner’s experience.                                                                paving, and site work. Since 1909, the
“This is how projects should be done.
                                                In-House Expertise                                company has had a lasting impact on
                                                With an in-house engineering and
We want to be a builder and integral                                                              the bridges and byways that connect
                                                constructability group comes the
project team member, not considered                                                               the Gulf Coast. They demonstrate that
just another bidder,” explains Plauche.         means to quickly solve shoring, rigging,          building infrastructure not only supports
                                                and other issues that can arise on                commerce and commuters but also is
Jobsite Technology                              site. While many of their competitors             the backbone of the community.
With fewer skilled workers to fill the          outsource this service, Boh Bros. has
                                                long maintained their own engineering             The family name is ubiquitous with
demand, construction companies have
                                                staff. “Our engineering team knows                construction in the New Orleans
to do more with less time, less money,
                                                our strengths and capabilities, and the           metropolitan area. Through the decades,
and fewer people. Boh Bros. has
                                                preferences of our field personnel. They          Boh Bros. has weathered the good
adopted innovative methods to mitigate
                                                can communicate quickly and work to               times and the bad, transforming the
the shortage of skilled laborers in the
                                                provide custom solutions. I don’t know            state’s bridge system, constructing the
overall workforce and on their jobsites.
                                                anyone else in the area who does it that          Ernest N. Morial Convention Center, and
In the past, they were able to overcome
                                                way,” says Plauche.                               completing numerous post-Hurricane
challenges with huge groups of skilled
                                                                                                  Katrina repairs, including rebuilding the
craftsmen. But with the current and future
limits of skilled labor, they have turned       Safety First                                      Interstate 10 twin spans. Through their
                                                Inside knowledge of preferred methods             commitment to quality work and public
to technology and finite level planning.
                                                also helps Boh Bros. with their safety            involvement, the company has earned
“While our workforce has decreased in
                                                record and minimizes their need                   the respect of its peers, clients, and
number, they have increased in technical
                                                to develop new techniques for every               community.
ability,” explains Plauche.
                                                project. “Everything we do starts with
“We have embraced technology,                   a focus on safety. By planning for safety       says Plauche. “Despite another layer
especially how we communicate among             first, the quality results, productivity, and   of safety planning, we were quick
ourselves and with our customers. We            efficiency follow,” says Plauche.               to adapt and keep workers safe and
are always looking for new ways to make                                                         healthy. The challenges posed by the
it easier for people in the field.” Using       “We prioritize the safety of the                pandemic helped combat complacency
technology for field collaboration, Boh         traveling public and our own people’s           and reinforced existing strategies.”
Bros. makes use of drones, rugged tablet        safety, and everything flows from
computers, and ProCore construction             that,” he adds. Statistically, 2020 was         Boh Bros. has worked for the past
management software. “Instead of the            the safest year in the company’s long           century to complete projects while
old roll of plans, everyone has up-to-          history. Civil construction was deemed          staying dedicated to the team
date information, just-in-time, all the         an essential industry, and Boh Bros.            environment. Plauche says, “While we
time,” emphasizes Plauche. Being able to        continued work unabated despite                 can share a thousand pictures of bridges
share daily logs, photos, comments, and         COVID-19 restrictions.                          throughout our rich history, we want to
requests for information, and providing                                                         emphasize our future moving forward
clients access to that information, makes       “During the pandemic, we were able              with innovative project delivery methods
all the difference.                             to keep all of our people working,”             and technology.”

 At 30 ft high, the deck
 for the new Interstate
 10 twin-span bridge is 21 ft
 higher than the original bridge.
 Lower-level connections between the
 super- and substructures are designed to
 resist uplift forces caused by waves. The new
 bridge was built with high-performance, high-
 strength concrete that is more resistant to saltwater
 corrosion than conventional concrete, and which is
 expected to provide a 100-year service life (for more details,
 see the article in the Spring 2011 issue of ASPIRE®.)
PERSPECTIVE

     Diversity, Equity, and Inclusion
     How recent social justice movements can have
     a positive effect on the construction industry
     by Drew G. Burns, Slag Cement Association

  Recent events in the United States           industry breakdowns show that more                term is meant to acknowledge that
  have prompted various social justice         than 30% of Hispanic/Latino workers               not all people of color face the same
  movements to address racial disparities      were employed in jobs associated with             levels of injustice.
  within our nation’s systems and              production, transportation, materials,
  institutions. These movements, regardless    natural resources, construction, and           A helpful analogy used many times is
  of personal opinions, are ushering in a      maintenance. In contrast, just 21.9%           that diversity is like being invited to the
  demand for more transparency from            of Black workers were employed in              party; inclusion is like being asked to
  those in power. The American Society of      these fields, a statistic that highlights an   dance. Inclusion focuses more on who is
  Association Executives’ ASAE Handbook        opportunity to expand hiring efforts in        respected, expected, and integrated into
  of Professional Practices1 includes a list   this community.                                a group, as opposed to just being there.
  of management trends to watch, which                                                        To maximize output, it is critical to pull
  includes the following: “The need for        Because diversity, equity, and inclusion       together different perspectives to find
  organizational transparency will generate    (DEI) is a tough and even controversial        the best way to get things done.
  growing demand for information on the        subject, many shy away from the topic.
  ethical implications of the organization’s   However, doing so does not help fix            Supporting DEI initiatives in our industry
  decision-making process.”                    the disparities marginalized groups            helps avoid discrimination for all
                                               face. As these conversations become            marginalized populations. Some types
  Although they may not seem directly          more common, and in turn easier, they          of discrimination include:
  related to construction, these recent        often help maximize the effectiveness          • disability,
  movements provide an opportunity to          of organizations and increase the              • race,
  consider how creating an inclusive work      engagement of team members.                    • sexual orientation,
  environment will help maximize our                                                          • gender,
  industry’s potential. As more members        Sharing a common terminology is                • age,
  of the Baby Boomer generation retire,        helpful when framing discussions of            • education level, and
  the industry is dealing with more jobs       ethics and social justice. Diversity Best      • income level.
  to fill and a shrinking talent pool. It is   Practices has published an extensive
  important now more than ever to              glossary of terms, 3 including the             Creating a DEI plan or incorporating an
  consider expanding the industry’s            following terms and definitions:               ethics policy should be a consideration
  diversity and inclusion initiatives—in       • Diversity: Psychological, physical,          for every organization. Fortunately,
  part, to help widen that talent pool.            and social differences that occur          the construction industry has many
  Beyond the bottom-line reasons for               among any and all individuals.             resources available, and initiatives have
  incorporating these types of programs,       • Equity: The guarantee of fair                already started. Many companies have
  regularly having conversations about             treatment, access, opportunity, and        incorporated aggressive DEI programs
  diversity and inclusion issues will help         advancement while at the same time         that can serve as great case studies.
  foster an environment of openness with           striving to identify and eliminate         Now is the time to start looking at
  team members, which has been shown               barriers that have prevented the full      these resources, implement what works
  to improve productivity and employee             participation of some groups.              for our communities, and share our
  retention.                                   • Inclusion: The act of creating               successes and failures.
                                                   environments in which any individual
  According to a 2020 report from the              or group can be and feel welcomed,         Industry associations are hubs for
  U.S. Department of Labor’s Bureau of             respected, supported, and valued to        relevant information and resources on
  Labor Statistics,2 the 2019 demographics         fully participate.                         these subjects and should be leaned
  of the labor force were white, 77%;          • Implicit bias: Negative associations         on regularly. Organizations like the
  Black, 13%; and Asian, 6%. The                   that people unknowingly hold about         ASAE4 and the Council of Engineering
  report also includes a breakdown by              a group of people or individual,           and Scientific Society Executives5 have
  ethnicity, noting that 18% of the labor          expressed automatically and without        plan and policy templates available to
  force were Hispanics/Latinos, who                conscious awareness. [We all have          download. In the last several years,
  may identify as one or more races; in            them; you are not without bias!]           communities of practice groups like
  this case, 89% of Hispanics/Latinos          • BIPOC: An acronym for Black,                 the Women in Concrete Alliance
  reported as white. Occupation and                Indigenous, and People of Color. The       and Associated General Contractors

10 | ASPIRE Summer 2021
EDITOR’S NOTE
This article on diversity and inclusion
as it relates to workforce development
is outside the range of topics usually          of America’s Diversity and Inclusion               Division of Information and Marketing
covered in ASPIRE®. However, we felt            Council have been working to provide               Services. December 2020. “BLS
that a perspective on this topic may            resources and further initiatives in               Reports: Labor Force characteristics
give value to our readers. Members of           their respective fields. Advancing                 by Race and Ethnicity, 2019.” https://
National Concrete Bridge Council (NCBC)         Organizational Excellence, a consulting            www.bls.gov/opub/reports/race-and-
work with the broader construction              firm with association and corporate                ethnicity/2019/home.htm
industry and bridge specifiers who              clients in our industry, offers a             3.   Diversity Best Practices. 2020.
are part of federal, state, and local           proprietary benchmarking tool as                   “Glossary of Diversity, Equity and
agencies. The Slag Cement Association,          well as training and plan resources                Inclusion Terms.” https://www.
the members of NCBC, and public and             specifically for the design and                    diversitybestpractices.com/sites/
private employers engaged in the bridge         construction marketplace.6                         diversitybestpractices.com/files/
community are getting more involved in                                                             attachments/2020/10/dei_glossary_
diversity, equity, and inclusion initiatives.   The construction industry is a unique              of_inclusive_terms_updated_
After reading this article, please look         sector where we combine science,                   for_2020_1.pdf
for resources and guidance in your local        design, natural resources, and                4.   American Society of Association
area and consider, as the author states,        community planning. While it may                   Executives (ASAE) Center for
“incorporating these types of programs          sometimes be uncomfortable, we would               Association Leadership. n.d.
[by] regularly having conversations             be doing ourselves a disservice by not             “Diversity + Inclusion.” Accessed
about diversity and inclusion issues            being a part of the conversation to                M a y 2 0 , 2 0 2 1 . h t t p s : / / w w w.
that will help foster an environment            understand how DEI issues impact our               asaecenter.org/about-us/diversity-
of openness with team members.” We              workforce. These social movements, and             and-inclusion
present this article as a call to action,       in turn how we collectively respond, will     5.   Council of Engineering and Scientific
to do the right thing by expanding              impact the people within our industry.             Society Executives (CESSE). 2020.
the industry’s diversity and inclusion                                                             “Diversity, Equity, & Inclusion
initiatives, and thus make our industry         References                                         Resources.” https://www.cesse.org/
more welcoming to a wider range of              1. Cox, J. B., and S. S. Radwan. 2015.             dei-resources
our population, providing opportunities            ASAE Handbook of Professional              6.   Advancing Organizational Excellence
to develop and use the talents of many             Practices in Association Management,            Diversity Equity and Inclusion
who may not have previously considered             3rd ed. San Francisco, CA: Jossey-              Practice Group website. Accessed
working in our bridge industry.                    Bass.                                           M a y 2 0 , 2 0 2 1 . h t t p s : / / w w w.
                                                2. U.S. Bureau of Labor Statistics,                aoeteamdei.com

                                                                                   technical
                                                                                   knowledge
                                                                                                    New in
                                                                                Guide Specification for Grouted Post-Tensioning

                                                                                                     2019
                                                                                Specification for Grouting of PT Structures

       certification

                                                                                                                   ASPIRE Summer 2021 | 11
PERSPECTIVE

     Perspectives on Structural
     Behavior and Redundancy:
     Load Path Redundancy
     by Dr. Oguzhan Bayrak, University of Texas at Austin

                                     EDITOR’S NOTE ON STRUCTURAL BEHAVIORS SERIES

  Robustness, redundancy, resiliency, and ductility of               criterion for acceptable bridge designs. For example,
  concrete bridges are being discussed by Dr. Bayrak in a            concrete breakout failure for embedded anchors is
  series of Perspective articles that began in the Summer            quite brittle, which is recognized in calibration of the
  2020 issue of ASPIRE®. This series is seen by ASPIRE as an         applicable equations in the AASHTO LRFD specifications.
  important discussion for the concrete bridge community             Furthermore, a more complete understanding of
  as it begins to consider new materials. These new                  the actual capacity of a bridge is provided when the
  materials have properties that differ significantly from           system-level robustness is considered. Different types of
  conventional materials, which may lead to different                redundancies are inherent in concrete bridges, such as
  element behavior. For example, some of the new                     load transfer between girders; these contribute to the
  materials exhibit ductile behavior, whereas others do              overall robustness of the bridge by providing multilayer
  not. These differences require new approaches to design,           protection against sudden failure. However, quantifying
  but the framework necessary for establishing these                 the contribution of these redundancies is not easy.
  new design approaches is not clearly defined by current            Current AASHTO LRFD specifications have simplified
  design specifications.                                             bridge design by considering only element behavior.
                                                                     Therefore, they do not consider overall system behavior
  It should be noted that not all potential failure modes            and the redundancies that contribute to it.
  considered in the American Association of State
  Highway and Transportation Officials’ AASHTO LRFD                  This article, which is the final article in this series, focuses
  Bridge Design Specifications are ductile failure modes,            on alternate load paths and structural behavior at all
  so ductility should not be considered as the only                  levels, from section- to system-level behavior.

  My article in the Summer 2020 issue          this two-cell, post-tensioned concrete       at the positive moment region in one
  of ASPIRE ® initiated a discussion           box-girder bridge. Although the              of the three spans. In the event of such
  on structural, load path, and internal       superstructure was designed to handle        extensive damage, this bridge would
  redundancies. My subsequent articles         a variety of different loads and load        benefit from the high torsional strength
  in the Winter 2021 and Spring 2021           combinations, an accidental vehicle          and stiffness that the undamaged
  issues focused on various aspects of         strike damaging one of the two cells         cell possesses. In the damaged span,
  redundancy, resiliency, and robustness of    was not explicitly considered in design.     one-half of the superstructure would
  concrete bridges. This article continues                                                  be supported as a cantilever from the
  the discussion by focusing on load-path      Let us assume an overheight vehicle          undamaged cell and use an alternate
  redundancy and structural response at        striking the bridge would damage all         load path that would aid in the transfer
  the section, member, and structure levels.   internal and external tendons of one cell    of the weight of the damaged portion,

  Load-Path Redundancy
  Load-path redundancy in bridges is the
  existence of multiple ways in which
  applied loads can be transferred to the
  supports. To facilitate a discussion of
  load-path redundancy, let us consider
  a couple of examples, beginning with         Figure 1. If one cell of a two-cell, three-span continuous post-tensioned concrete
  a scenario involving a three-span            box girder is extensively damaged, the bridge would benefit from the high torsional
  continuous post-tensioned bridge.            strength and stiffness of the undamaged cell and continuity in the longitudinal
  Figure 1 shows the cross section of          direction. Figure: Dr. Oguzhan Bayrak.

12 | ASPIRE Summer 2021
of the box-girder superstructure as well as
                                                          the concrete bridge rail served to mobilize
                                                          alternate load paths that prevented
                                                          structural collapse.

                                                          In the next example, let us consider a
                                                          precast and prestressed concrete
                                                          girder bridge with the deck supported
                                                          on four girder lines. The simply
 Figure 2. Severe damage to a two-cell,                                                                 Figure 3. Severe damage to a prestressed
                                                          supported span was damaged by
 post-tensioned concrete box-girder                                                                     concrete beam bridge caused by an
                                                          an overheight vehicle strike, severely
 bridge from an overheight vehicle strike.                                                              overheight vehicle strike. Load-path
                                                          damaging the bottom flange and
 The stiffness of the remaining box-girder                                                              redundancy within the multibeam
 superstructure prevented structural
                                                          web of the fascia girder (Fig. 3).            system prevented collapse. Photo: Mark
 collapse. Photo: Kansas Department of
                                                          The adjacent girder was damaged to a          Bloschock.
 Transportation.
                                                          lesser extent. Figure 4 illustrates two
                                                          alternate load paths that likely helped       The reinforcement details, use of partial-
 and any loads placed on it, into the                     the bridge survive the vehicle strike and     depth precast concrete panels, and
 supports. Although this bridge was                       associated damage that was not explicitly     the like, are all controlled by applicable
 not designed to accommodate such a                       considered in the original design.            service and strength limit states of the
 loading scenario, a vehicle strike would                                                               American Association of State Highway
 likely not result in collapse. The alternate             Alternate load path 1 (Fig. 4a) requires      and Transportation Officials’ AASHTO
 load path is facilitated by continuity in                the deck to work as a cantilever to pick      LRFD Bridge Design Specifications. 1
 the longitudinal direction, by the well-                 up the load (from the location marked         However, when called upon, the top and
 distributed post-tensioning layout, and                  as “a” in Fig. 4a) that was originally        bottom mat reinforcement in the deck
 by the torsional stiffness and strength of               supported by the fascia girder (beam          will serve to reinforce the cantilever to
 the undamaged cell.                                      1) and transfer it to beam 2 (along the       transfer the load. Second, bridge rails
                                                          path marked as “b” in Fig. 4a). Beam 2        are designed for vehicle impact, and
 Figure 2 shows an example similar to                     subsequently carries the load to bents 1      their design purpose is to keep vehicles
 that described in Fig. 1; in this example,               and 2 (using the paths marked as “c” in       on the bridge. To meet their intended
 the boom of an excavator that was being                  Fig. 4a). Alternate load path 2 (Fig. 4b)     design function, the rails are crash-
 transported by truck severed the great                   involves the overhang portion of the          tested to verify their design. Once again,
 majority of the longitudinal reinforcement               deck taking the load (from the location       when the need arises, as it does in this
 near a support. In this case, the stiffness              marked as “a” in Fig. 4b) that was            vehicle-strike scenario, the rails can serve
                                       1                  originally supported by the fascia girder     as a substitute for the fascia girder and
                                   t
                                Ben                       (beam 1) over to the bridge rail (along       provide an alternate load path, even
                            c                             the path marked as “b” in Fig. 4b). The       when the rails are jointed.
                    Bea
                        m   2                             bridge rail now works as the new fascia
                                           c              girder carrying the load to bents 1 and       In summary, a bridge’s actual behavior
                                                  t   2
Bea                         b                  Ben        2 (along the paths marked as “c” in Fig.      is dictated by the structural details
    m   1
                                                          4b, although the load may also go back        provided in that bridge. For example,
                a                                                                                       in the aforementioned case, deck
                                                          into the girder and into the supports
                                                          at undamaged locations). In reality, the      reinforcement that is primarily intended
                                                          load will be shared by a combination          to resist cracking caused by volume
                                                          of both of these alternate load paths.        changes due to temperature and
   (a) Alternate Load Path 1                                                                            shrinkage can readily serve as flexural
                                                          The member that displays the larger
                         t1                                                                             reinforcement in a cantilever. There is no
                      Ben                                 stiffness will attract a greater portion of
                                                          the load that was originally carried by       replacement for good structural details,
                    Bea                                   the fascia girder.                            robust reinforcement detailing, and
                        m   2
            c                                                                                           good conceptual designs.
   Rai                                                2
       l                                          t
Bea                     c                      Ben        Undoubtedly, the distribution of forces
    m   1
                b
                                                          is a function of material strengths           Section-, Component-, and
                a                                         as well as the bridge geometry—for            System-Level Responses
                                                                                                        Previous articles in this series focused
                                                          example, beam spacing, girder depth,
                                                                                                        on the relationship among the sectional
                                                          and bridge rail geometry. Depending
                                                                                                        response, the response of a potential
                                                          on the aforementioned factors, the rail
   (b) Alternate Load Path 2                                                                            plastic hinge, and the member-level
                                                          may play a more or less important role
                                                                                                        response. We also examined the
 Figure 4. As a result of redundancies, two               compared to the slab cantilevering to
                                                                                                        influence of structural redundancy
 alternative load paths are available after               pick up the load. Having acknowledged
                                                                                                        on overall response. The previously
 a fascia girder, represented in the figure               that subtlety, we must recognize two
                                                                                                        discussed overheight vehicle strike
 as beam 1, is heavily damaged near                       important points. First, bridge decks are
                                                                                                        cases provide the framework for our
 midspan. Figure: Dr. Oguzhan Bayrak.                     never designed for this type of loading.

                                                                                                                          ASPIRE Summer 2021 | 13
thinking regarding primary (intended)                     to making decisions on the safe side,                      Implementation of
  and secondary (alternate or backup)                       and understandably so. In many cases,                      System-Level Behavior
  load paths in cases where unexpected                      and especially within the context of                       The preceding discussion describes
  conditions challenge a bridge’s ability                   behavioral failure modes at the element                    how our design and load-rating
  to support permanent and applied                          level, this approach is easy to follow.                    specifications have recognized the
  loads. The presence of primary and                        If one decides to play on the safe side                    importance of structural, load-path, and
  secondary load paths results in a robust                  for every step of the evaluation moving                    internal redundancies for quite some
  structural response where a concrete                      from a cross section to a plastic hinge,                   time. Next, let us explore an example
  bridge can make use of a variety of                       then to a component, and finally to                        that demonstrates the implementation
  different load paths under different                      the system level, an accumulation of                       of these concepts in our specifications,
  loading or damage scenarios. Ultimately,                  conservative assumptions may introduce                     such as the load rating of segmental
  the system-level response is the most                     considerable statistical bias in estimating                bridges (See the Spring 2021 issue of
  important. With that said, there are a                    the system-level response.                                 ASPIRE for an article on load rating
  variety of ways to obtain an abundantly                                                                              segmental bridges.). Table 1 shows that
  redundant concrete bridge system                          Alternatively, and as was done in the                      the system factor ϕs, in this case for
  displaying a robust structural response.                  AASHTO Guide Manual for Condition                          post-tensioned segmental concrete box-
  The cases discussed previously provide                    Evaluation and Load and Resistance                         girder bridges, is a function of several
  good examples of robust structural                        Factor Rating (LRFR) of Highway                            variables, including the bridge type and
  response where local damage was                           Bridges,2 a more systematic approach                       construction method. In effect, the
  contained and did not progress into                       aimed at minimizing statistical bias                       system factor is intended to reflect the
  structural collapse.                                      and targeting appropriate levels of                        presence of alternate load paths and
                                                            reliability (as measured by reliability                    give credit to more-redundant structural
  The AASHTO LFRD specifications were                       index β) for the inventory (design) rating                 systems. The second column shows that
  calibrated using a reliability-based                      (β = 3.5) and operating (load rating)                      the determinacy (structural redundancy)
  methodology to ensure a reasonably                        rating (β = 2.5) can be used. Concepts                     influences the system factor, with the
  uniform level of component safety. For                    underpinning the philosophy adopted                        third column explicitly indicating the
  typical concrete bridge systems ranging                   in the AASHTO LRFR, and later in the                       reasoning. For example, a statically
  from simple to complex, there is a                        AASHTO Manual for Bridge Evaluation,3                      determinate span needs to form one
  relationship between the component-                       are discussed in many publications.                        hinge to establish a collapse mechanism;
  level and system-level responses. In a                    Weed 4 provides a concise discussion                       an end span of a continuous unit needs
  reliability-based framework, accurate                     of this topic. There are a number of                       to form two. (For details on plastic
  capacity estimations with minimal                         additional guidance documents                              hinges, see the article in this series
  statistical bias, both for load and                       that acknowledge and implement                             in the Winter 2021 issue of ASPIRE.)
  deformation capacities, will lead to                      a reliability-based framework to load                      With respect to internal redundancy, as
  better estimations at the system level.                   rate concrete bridges. For example, the                    seen in the last columns of the table,
                                                            Florida Department of Transportation                       as the number of tendons in each web
  The importance of minimizing statistical                  commissioned studies to establish                          increases, so does ϕs. Furthermore, the
  bias cannot be overemphasized.                            rational load-rating procedures for their                  impact of this redundancy on ϕs is quite
  Engineers are typically predisposed                       segmental and spliced girder bridges.5,6                   significant and is nonlinear, as can be
  Table 1. System factors for single-cell, post-tensioned segmental concrete box-girder bridges

                                                                                              Number of                          System factors (ϕs)
   Bridge type                                    Span type                                   hinges to                  Number of tendons per web
                                                                                               failure                 1       2         3         4
   Precast balanced-cantilever,                   Interior span                                      3               0.90           1.05           1.15     1.20
   Type A joints                                  End or hinge span                                  2               0.85           1.00           1.10     1.15
                                                  Statically determinate                             1                n/a           0.90           1.00     1.10
   Precast span-by-span,                          Interior span                                      3                n/a           1.00           1.10     1.20
   Type A joints                                  End or hinge span                                  2                n/a           0.95           1.05     1.15
                                                  Statically determinate                             1                n/a            n/a           1.00     1.10
   Precast span-by-span,                          Interior span                                      3                n/a           1.00           1.10     1.20
   Type B joints                                  End or hinge span                                  2                n/a           0.95           1.05     1.15
                                                  Statically determinate                             1                n/a            n/a           1.00     1.10
   Cast-in-place balanced-cantilever              Interior span                                      3               0.90           1.05           1.15     1.20
                                                  End or hinge span                                  2               0.85           1.00           1.10     1.15
                                                  Statically determinate                             1                n/a           0.90           1.00     1.10
  Note: For box-girder bridges with three or more webs, table values may be increased by 0.10. Adapted by Dr. Oguzhan Bayrak from references 2, 5, and 6.

14 | ASPIRE Summer 2021
