RESPONSE TO ABP OPINION - 16TH AUGUST 2019 HQ HORGANS QUAY RESIDENTIAL - HQ Horgan's Quay Cork
RESPONSE TO ABP OPINION
16TH AUGUST 2019

HQ HORGANS QUAY RESIDENTIAL
RESPONSE TO ABP OPINION - 16TH AUGUST 2019 HQ HORGANS QUAY RESIDENTIAL - HQ Horgan's Quay Cork
Project:      HQ Horgans Quay Residential                               Proj. No.:         1623C
Location:     Cork                                                      Proj. Lead:        CK
Client:       HQ Developments Ltd.                                      Created by:        AB
Doc. Title:   Response to ABP Opinion                                   Doc. Purpose:      S0
Doc. No.:     Hqdrq-omp-b0-xx-pp-a-9007                                 Revision:          2 (16-08-2019)

                                architecture | urban design             Dublin                          Cork
                                                                        The Chapel                      26 South Mall
                                email: info@omahonypike.com             Mount Saint Anne’s              Cork City
                                Tel: +353 1 202 7400                    Milltown, Dublin 6              Co. Cork
                                Fax: +353 1 283 0822                    D06 XN52 Ireland                T12 R2RV Ireland
                                www.omahonypike.com                     Tel: +353 1 202 7400            Tel: +353 21 427 2775

Directors: Michael Hussey Dip.Arch., B.Arch.Sc., MRIAI | Conor Kinsella B.Sc.Arch., B.Arch., MRIAI | Derbhile McDonagh Dip.Arch.,
B.Arch.Sc., MRIAI | Orlaith O’Callaghan Dip.Arch., B.Arch.Sc. | John O’Mahony Dip.Arch., FRIAI, RIBA | James Pike, Dip.Arch.,
FRIAI, RIBA | Tom Sweetman Dip.Arch., B.Arch.Sc., MRIAI | Alex Schoenmakers Dip.Arch.Tech., RIAI (Arch.Tech.)

O’Mahony Pike Architects Ltd. Registered in Ireland | Reg. No. 187129 VAT Reg. No. IE6587129J

                                                                                                                                    2|   Hq Horgans Quay Residential
RESPONSE TO ABP OPINION - 16TH AUGUST 2019 HQ HORGANS QUAY RESIDENTIAL - HQ Horgan's Quay Cork
01| INTRODUCTION

3|   Hq Horgans Quay Residential
RESPONSE TO ABP OPINION - 16TH AUGUST 2019 HQ HORGANS QUAY RESIDENTIAL - HQ Horgan's Quay Cork
4|   Hq Horgans Quay Residential
RESPONSE TO ABP OPINION - 16TH AUGUST 2019 HQ HORGANS QUAY RESIDENTIAL - HQ Horgan's Quay Cork
INTRODUCTION

The pre-application consultation opinion from An Board
Pleanála in relation to the subject development was received on
the 10th June 2019. The opinion stated:
‘...the prospective applicant is hereby notified that, in addition
to the requirements as specified in articles 297 and 298 of the
Planning and Development (Strategic Housing Development)
Regulations 2017, the following specific information should be
submitted with any application for permission’
This document deals with the following headings as listed in the
ABP opinion:

1. Building Height and Articulation

2. Relationship with Context

3. Materials and Finishes

8. Phasing Plan

Other items raised in the ABP opinion are dealt with under
separate cover in the application - refer to Response document
by HW Planning for more details.

                                                                     CGI view of Waterfront Square

                                                                                                     5|   Hq Horgans Quay Residential
RESPONSE TO ABP OPINION - 16TH AUGUST 2019 HQ HORGANS QUAY RESIDENTIAL - HQ Horgan's Quay Cork
6|   Hq Horgans Quay Residential
RESPONSE TO ABP OPINION - 16TH AUGUST 2019 HQ HORGANS QUAY RESIDENTIAL - HQ Horgan's Quay Cork
02|BUILDING HEIGHT &
 ARTICULATION

7|   Hq Horgans Quay Residential
RESPONSE TO ABP OPINION - 16TH AUGUST 2019 HQ HORGANS QUAY RESIDENTIAL - HQ Horgan's Quay Cork
8|   Hq Horgans Quay Residential
RESPONSE TO ABP OPINION - 16TH AUGUST 2019 HQ HORGANS QUAY RESIDENTIAL - HQ Horgan's Quay Cork
BUILDING HEIGHT & ARTICULATION

AN BORD PLEANÁLA ITEM NO. 1

The ABP opinion in relation to building height and
quantum of development was submitted as follows:

“Notwithstanding that the proposal constitutes a
reasonable basis for an application, the prospective
applicant should satisfy themselves that the
proposed building heights and articulation provide
the optimal architectural solution for this site and in
this regard, the proposed development shall be
accompanied by an architectural report and
accompanying drawings which outline the design
rationale for the proposed building heights and
massing having regard to inter alia, National policy
such as Urban Development and Building Heights
Guidelines for Planning Authorities’ - 2018 and
local planning objectives concerning building height,
the site’s riverside context and locational attributes .
The report should describe how the use of massing
and height achieves the required densities but with
sufficient variety of form to respond to the adjoining
emerging developments and creates visual interest
in the streetscape and riverside location. In this
regard, more detailed drawings that illustrate
particular design motifs, the junctions between
elements such as windows and balconies and how
the form of the overall block is broken up
should be prepared.”

                                                           9|   Hq Horgans Quay Residential
RESPONSE TO ABP OPINION - 16TH AUGUST 2019 HQ HORGANS QUAY RESIDENTIAL - HQ Horgan's Quay Cork
BUILDING HEIGHT & ARTICULATION

                                                                                                                                                           Protected Structures

                                                                                                                                                           2/3 storey

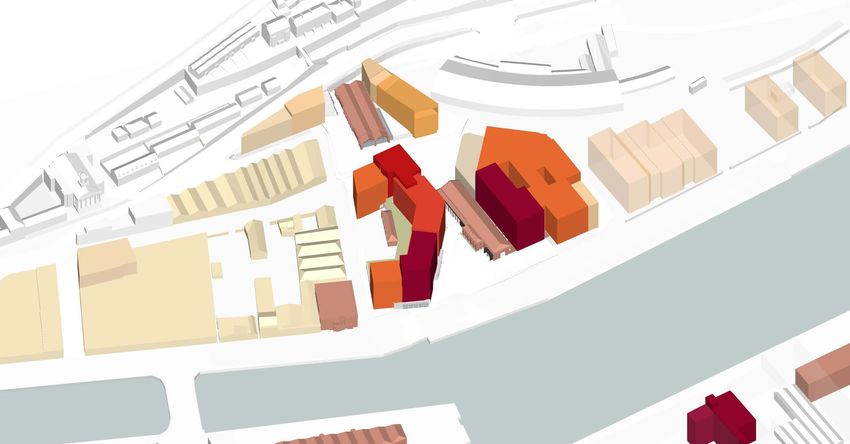

The subject proposals align with the height strategy
                                                                                                                                                           4 storey
of the permitted Horgan’s Quay development.
The proposed scheme forms part of a cluster of                                                                                                             5/6 storey

buildings of heights varying from 7 storeys to 11                                                                                                          7 storey
storeys, reflecting an emerging scale for the river
                                                                                                                                                           8 storey commercial
corridor of Cork Docklands. The taller elements of
                                                                                                                                                           9 storey
the proposed scheme are located on the Waterfront
and Railway Squares.                                                                                                                                       10 storey

                                                                                                                                                           11 storey resi/ 8 + roof level commercial
The 11 storey element on Horgans quay frames the          Proposed development and volume of permitted Penrose Quay office block
new waterfront square with Block 1 of the permitted
office development at Horgans Quay (under                                                                                                                              Horgan’s Quay Office Quarter
construction). The lower parts of the building sit on
Railway Street, responding to the protected structure
of Penrose Quay and emerging development to the
west,
                                                                                                                                                       Kent Station

                                      Kent Station
                                                                                                                                                 ion
                                                        taller elements on                                                                   Stat re
                                                                                                                                                 u a
                                                        Waterfront Square and                                                                 Sq
                             ion
                         Stat re                        Station Square
                              a
                          Squ                           (element on
                                                        Waterfront Square
                                                        1.8m lower than
                                                        permitted scheme)

                                                                                                                                                         n  t
                                                                                                                                                   erfro
                                                                                                                                                Wat re
                                                              outline of                                                                             a
                                      nt                                                                                                         Squ
                                                              permitted
                                erfro
                             Wat re                           Penrose Quay
                                  a
                              Squ                             office block
                                                                                                                              uay
                                                                                                                    Horgan’s Q

Heights of permitted development at Horgan’s                                    Heights of proposed development of Residential Quarter, with permitted development at Horgan’s Quay and Penrose
Quay                                                                            Wharf
                                                                                                 10 |                  Hq Horgans Quay Residential
BUILDING HEIGHT & ARTICULATION
MODULATION - HEIGHT

                                                                                                                             permitted
The Residential Quarter is designed as a terrace of                                                                          HQD hotel
buildings of varying height, responding to context
                                                                 Alfred
and adding visual interest to the roofscape of the                        Street

scheme.                                                                                                                       Station
Particular elements can be read at the scale of                                                                               Square
                                                                                     permitted
the city, such as the generous double height                                                                                                                          The height of the building at the junction of Alfred Street
                                                                                   Penrose Quay
“doorways” to the podium, vertical recesses                                         development                                                                       and Station Square is also raised slightly, answering the
between forms, the ground floor plinth and subtle                                                                                                                     height of the permitted hotel building (currently being
changes of rhythm at the upper floors, which                                                                                                                          built), and providing appropriate urban scale to the new
                                                                                                                                             permitted
highlight points of interest along the skyline of the                permitted
                                                                                                                                             office HQD               Station Square.
                                                                   Penrose Quay
scheme.                                                                                                                                      block
                                                                    development

The massing of the proposed scheme has been                                                                     Waterfront
                                                                                                                Square
carefully considered to respond to and enhance the
local context.                                                                               Horgan’s
Height is used to address the scale of the quays,                                            Quay

and signify changes in the urban landscape such as
opening onto a significant public open space.

                                                                                                                Waterfront

                                                             Penrose Quay permitted            proposed                                 permitted office
The tallest element is at the junction of Horgan’s                   scheme                residential block                                block
                                                        Horgan’s Quay elevation
Quay and the new Waterfront Square.
It is only marginally smaller than the new permitted
office block, and together they will frame the
square and highlight its presence on the quay.
The scale if this pair of buildings is appropriate
to the Quay’s context and the openness of the
waterside landscape in this location.

                                                                                                         11 |                           Hq Horgans Quay Residential
BUILDING HEIGHT & ARTICULATION
MODULATION - LOWERED SECTIONS

The roof line of the building is dropped along railway street,
creating two book ends to the open space either side of the
                                                                            Alfred
stationmaster’s building and framing the streetscape. The                            Street

lowered height responds to the relatively narrow street width
and creates a sympathetic setting for the Stationmasters’s
building - set within a west facing garden open to the street.
On Horgan’s Quay, this height is slightly lower than the level
of the permitted office block on Penrose Quay, and both                                                                                                     Officers Clerks

buildings work as a pair either side of the protected structure                                                                                             building                 The building is also visually lower

                                                                                                                      t
                                                                                                                 tree
of Penrose Quay.                                                                                                                                                                     opposite the Officers Clerks building,

                                                                                                               ay S
                                                                                                                        Stationmaster’s

                                                                                                                  w
                                                                                                                                                                                     where a pedestrian connection is

                                                                                                             Rail
                                                                                                                        building

                                                                                                                                                                                     proposed between Waterfront Square
                                                                        Pen
                                                                            rose Q
                                                                                                                                                                 Permitted HQD       and Station Square.
                                                                                     uay

       proposed    Stationmaster’s   proposed
                                                                                                               Horgan’s Quay
Railway Street elevation

                                                                                                   Railway                                Waterfront

                                                                                                   Street

                                                                   Penrose Quay        protected             proposed                                         permitted office
                                                                  Horgan’s     Quaystructure
                                                                   permitted scheme  elevation

                                                                                                                      12 |                             Hq Horgans Quay Residential
BUILDING HEIGHT & ARTICULATION
REFERENCE

The design of the building is a direct response to the docklands context and draws on the rigour of the architectural language of the buildings in Cork Docklands. These are
typically buildings of scale, with a rigorous architecture, expressed structure, robust materials, but also a quality of detail that endures.
The proposed scheme also draws on the Georgian terraces of cork with their vertical expression, subtle modulation (height), nuanced rhythm (window size and detail) and varied
use of brick. These influences generate an architecture that has a nuanced rigour and is very much of its place.
   The choice of brick as a cladding material, and the proposed
   detailing of the building is inspired by the proposed scheme’s
   location in the North Docklands and Cork’s industrial heritage.
   Simple volumes are animated with brick pilasters, concrete piers, and
   strong detailing at the crown and base of the buildings.

   Cork industrial heritage: Cork Kent Station                               R&H Hall                                                          R&H Hall                                 Odlum’s building
   In a Georgian terrace, the simple shape if each building is highlighted by subtle changes in details and brick or render colour. While the front of the building might be
   clad in brick or stone, the back is often render, a strategy employed in the proposed scheme.

   Cork North Mall                                                                             Dublin Belvedere Place                                             Cork SOuth Terrace front                 Cork South Terrace back

                                                                                                                                       13 |                           Hq Horgans Quay Residential
BUILDING HEIGHT & ARTICULATION

ENVELOPE

Terrace                                           Portals                                            Plinth                                           Grid and balconies

The Residential Quarter is a terraced             Double height portals identify the entrances       How the buildings meet the ground has been       A double height grid of brick pilasters and string
composition of forms of varying heights,          to the residential buildings and create both       carefully considered and responds directly to    courses defines the elevations and recalls the
which modulates the facade and thereby            physical and visual links from the public          the public realm. Pop out elements in stone      expressed structure of Kent train station and the
avoids a continuous, monotonous elevation.        realm to the landscaped podium at first floor      or precast concrete add a fine grain to the      Odlums building opposite. This grid adds depth
                                                  level.                                             elevations at street level and give prominence   and scale, but also expresses the vertical proportion
The breakdown of the scheme into a                These double height lobbies with grand                                                              of the fenestration
collection of forms allows for the introduction   staircases reflect the scale of the buildings                                                       Cantilevered Balconies add further depth and
of a variety of brick types and/or brick          and generosity of the public realm.                                                                 interest to the facades. The regular rhythm is
detailing.                                                                                                                                            interrupted at corners of upper levels to create a
                                                                                                                                                      varied overlay on the brick grid.

                                                                                                  14 |                 Hq Horgans Quay Residential
BUILDING HEIGHT & ARTICULATION
RAILWAY STREET

Street edge                                                     Station Master building and garden                                      Backdrop

Two strong gables frame the outer edges of the proposed         The Station Master Building is the focus point of the                   It is proposed that the elevation behind the Station Master’s
development.                                                    residents’ garden, which is organised over three levels -               Building be white coloured render, to provide visual variety
Between them, the site’s edge is visually permeable, with a     street, terrace and podium levels, linked with steps.                   and to maximise reflected light within the courtyard.
simple railing separating the street from the bicycle parking   The courtyard garden will provide visual space and                      Framed balconies will add depth and interest to this
and the garden within.                                                                                                                  elevation.

                                                                                           15 |                   Hq Horgans Quay Residential
16 |   Hq Horgans Quay Residential
03|RELATIONSHIP WITH
   CONTEXT

17 |   Hq Horgans Quay Residential
18 |   Hq Horgans Quay Residential
RELATIONSHIP WITH CONTEXT

AN BORD PLEANÁLA ITEM NO. 2

The ABP opinion in relation to building height and
quantum of development was submitted as follows:

“Detailed contextual elevations and cross sections
that show permitted development in the vicinity,
specifically but not confined to the following: the
relationship between the apartment block,
landscaped boundary and the entire width of the
Railway Street and footpaths, the relationship
between the apartment block and emerging
development to the east and the internal
relationships between the block and the station
master’s building and the landscaped amenity
spaces.”

                                                      19 |   Hq Horgans Quay Residential
RELATIONSHIP WITH CONTEXT
PERMITTED PENROSE DOCK AND RAILWAY STREET
                                                                                                          t
                                                                                                      tree
                                                                                                 edS
                                                                                            Alfr
                                                                                                                 16m
The permitted development Ref. 18/37909 is currently being built on Penrose
Quay. The development consists of a two storey protected structure and two                 Penrose Dock

                                                                                                                 Railway Street
large office blocks, 7 storey on the quay and 9 storey on Railway Street. The              development

office blocks will screen part of the subject development from the City Centre,
and together they will define the character or Railway Street.

The two developments will play against each other, with strong gables placed
in alternate positions either side of the street and the lower protected structures.                    42.5m
This will promote openness and good daylight ingress in the street. The
                                                                                                     protected
Stationmaster’s garden will soften the street and provide the office block with a                    structure
pleasant view.

The schemes are 16m apart at the north end of the street, but their staggered
location allows residential balconies a clear view down Alfred Street. To the
South of the street, residential balconies will benefit from the lower height of the   Diagram showing gables either side of Railway                      CGI of permitted Penrose Dock scheme
                                                                                       Street and the protected structures, and balconies
protected structure opposite.

At grade, car parking and drop off for the crèche have been carefully
considered on either side of the street, to be staggered and allow for safe
traffic. Please refer to landscape architects and traffic consultant reports for
details.

                                                                                                      20 |                        Hq Horgans Quay Residential
RELATIONSHIP WITH CONTEXT

                                                                       55m

                                                          33m

  Proposed adjoining development               Railway                               Protected   Proposed development    Waterfront       Proposed adjoining
         at Penrose Quay                        Road                                 building                             Square        commercial development
                                                                                                                                           at Horgans Quay

                                                42.5m

    Sections through Penrose Dock, railway street and the subject scheme

                                                                           14.8m

  Proposed adjoining development          Protected                        Railway                Proposed development                Waterfront
         at Penrose Quay                  building                          Road                                                       Square

                                                                                                               21 |      Hq Horgans Quay Residential
RELATIONSHIP WITH CONTEXT
PERMITTED HORGAN’S QUAY OFFICE QUARTER

                                                                                                                                 Station
                                                                                                                                 Square
The Horgan’s Quay Office development, part of permission Ref. 17/37563 is
                                                                                                                                28.5m
currently being built on Horgan’s Quay. The development consists of a three
blocks, 8 storey tall on Horgan’s Quay lowering to 4 storey on Station Square,
and two protected structures incorporated into the scheme, the Goods Shed            management                                              Permitted

                                                                                                          Street
and the Officers Clerks building.                                                       suite and                                           office block
                                                                                       residential

                                                                                                              y
The proposed residential building seeks to offer a suitable backdrop to the

                                                                                                       Railwa
                                                                                      amenities at
                                                                                     ground floor
public realm in between.                                                                     level
As per Railway Street, taller gables and elevations are positioned in an alternate
manner, adding rhythm to the skyline and signalling important public spaces.                                                 Waterfront
The angled geometry ensures that direct overlooking is avoided between the                                                    Square

blocks. At their closest point, above the protected structure, the buildings are
28.5m apart from each other.
The protected structure (in orange to the right) is only two storey tall and will
provide a buffer between the blocks. At ground floor level, residential amenity
and management suite offices will match the office use of the structure in the                       Diagram showing gables either side of Railway         CGI of permitted office quarter
                                                                                                     Street and the protected structures, and balconies
office blocks.

Please refer to Landscape Architect report for details of the public realm.

                                                                                             22 |                    Hq Horgans Quay Residential
RELATIONSHIP WITH CONTEXT

                   Proposed adjoining            Station          Proposed development
                 commercial development          Square
                    at Horgans Quay

        Proposed development              Waterfront                  Proposed adjoining
                                           Square                   commercial development
                                                                       at Horgans Quay

                                                           23 |      Hq Horgans Quay Residential
24 |   Hq Horgans Quay Residential
04|MATERIALS & FINISHES

25 |   Hq Horgans Quay Residential
26 |   Hq Horgans Quay Residential
MATERIALS & FINISHES

AN BORD PLEANÁLA ITEM NO. 4(A)

The ABP opinion in relation to building height and
quantum of development was submitted as follows:

“A report that specifically addresses the proposed
materials and finishes and the requirement to
provide high quality and sustainable finishes and
details Particular attention is required in the context
of the visibility of the site along Horgan’s Quay and
to the long-term management and maintenance of
the proposed development.”

                                                          27 |   Hq Horgans Quay Residential
MATERIALS & FINISHES

                                                                                             white render on courtyard elevation

The proposed materials reflect those used in the
existing buildings of the docklands and express the
robust character of the location. Brick, concrete,
stone and render anchor the scheme in its context,
                                                                                                        Station
and their use is carefully considered and detailed to                                                   Square
ensure a durable architecture.

The expression of the scheme as a terrace of
buildings allows for the introduction of a variety of
brick types, pointing and detailing.
The brick cladding will be treated differently for
each form, through a combination of different brick                  Street
colours and different mortar colour and pointing.                                                                                  View of scheme as a collection of forms form         View of scheme and white render as a
                                                                         y
                                                                  Railwa

                                                                                                                                   South East                                           backdrop to the Station Master building
It is proposed to introduce white render on the                                                   Waterfront
                                                                                                   Square
courtyard elevation, typical of the rear of Georgian                                                                                   modulated brick edge to public open
                                                                                                                                       space
facades. This will form a backdrop to the Station
Master building, provide visual variety and                                               y
                                                                              Horgan’s Qua
maximise reflected light within the courtyard.

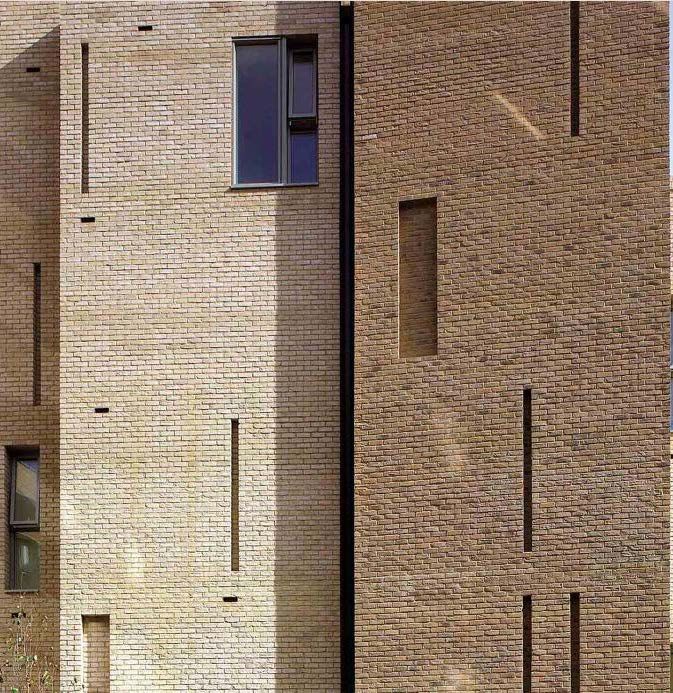

                                                           Terrace elements picked out with different cladding

                                                 Use of slightly different brick tones to differentiate forms               Reference: Panter Hudspith, Bear Lane            Use of white render or brick within residential courtyard
                                                 Reference: Panter Hudspith, West Grove South                                                                                Reference: PKA - Liberty House; HLM - Aberdeen Lane, Islington
                                                                                                                  28 |                        Hq Horgans Quay Residential
MATERIALS & FINISHES

The choice of brick as a cladding material, and the proposed detailing of the building is inspired by the proposed scheme’s location in the North Docklands
and Cork’s industrial heritage. Subtle details and variations are proposed, which will add interest and scale to the building while keeping it legible as a terrace.

PLINTH                                                                BREAKS IN FORM                                                             TOP LEVEL VARIATIONS

The building is designed to land in the landscape, with the           Breaks between terrace elements are recessed and clad in metal             Top levels are subtly altered to bring variety and interest, and
brick coming to ground at key junctions, and protruding stone         to blend with the glazing and visually recede further. Their depth         address the scale of the city beyond.
elements, treated like colonnades, adding interest and a more         and expression varies throughout the building, from fully recessed         Balconies might move around corners, and window positions
human scale.                                                          balconies to slightly recessed top floors.                                 might be altered. This animates the upper levels and addresses
The detailing of these elements is kept simple, in reference                                                                                     the urban scale of the quays and squares.
to industrial buildings, with large glazed sections under fine
louvres framed by a stone portico.

                                                                                                       29 |                   Hq Horgans Quay Residential
MATERIALS & FINISHES

PORTALS AND LOBBIES                                                       BALCONIES                                                           RAILINGS ON RAILWAY STREET

Two double height stepped portals link the podium garden with the         Balconies are generally simple cantilevered metal                   The junction with Railway Street is designed to active and
public realm - Waterfront Square and Station Square respectively.         elements, with metal balustrades running past the slab              transparent, consisting largely of railings protecting the
Each portal is paired with a double height residential lobby, the two     edge. The use of metal refers to the industrial history of          garden within. Decorative railings are proposed to add
combining to create a significant event in the elevations. They will      the area.                                                           playfulness and visual interest.
provide animation and visual openness to the public realm.                A frame is proposed on Station Square, and as a                     The edge of the podium on the street is occupied by
The stone of the retail pop out elements will wrap into the portals and   backdrop to the Stationmasters building. This will add              bicycle parking, which will also be fenced of using the
onto the steps to emphasize their urban scale and nature.                 layering and interest to these more intimate areas of the           same railing, ensuring visual continuity and transparency
                                                                          scheme.                                                             from street to scheme.

                                                                          Reference: Duggan Morris Architects-
                                                                          Brentford Lock West, London
                                                                                                30 |                    Hq Horgans Quay Residential
MATERIALS & FINISHES

 BRICK PILASTERS                                      BRICK SOLDIER COURSES                          BRICK AND MORTAR COLOUR                            CROWN
                                                      Horizontal soldier courses every two
 While the building shape is simple, the brick        levels will break the scale of the facades     The various elements of the terrace will be each   Decorative cladding panels above the top
 detailing adds scale and craftsmanship referencing   and express the vertical composition of        clad in a different combination of brick colour    floor windows add visual height to the level
 existing brick buildings locally, including Kent     the windows                                    and mortar colour and pointing.                    and lift the building’s roof line. This adds
 station.                                                                                            This will highlight the variations in height and   definition to the top of the building and
                                                                                                     scale, and emphasize the “collection of forms”     visually alters the scale of the top levels
                                                                                                     nature of the scheme, with each element            without interrupting the vertical lines of the
                                                                                                     responding to a specific context.                  fins.

                                                                                              31 |                  Hq Horgans Quay Residential
32 |   Hq Horgans Quay Residential
05|PHASING PLAN

33 |   Hq Horgans Quay Residential
34 |   Hq Horgans Quay Residential
BUILDING HEIGHT & ARTICULATION
PHASING                                                                                                                      ire R
                                                                                                                                  oad
                                                                                                                        lanm
                                                                                                                  e rG
                                                                                                              Low
                                                                                                                                  RESIDENTIAL

                                                                                                                                                                     HOTEL
The phasing diagram for the overall development reflects the sequence of delivery of both                     Railway Str
                                                                                                                          eet

the buildings and public realm at Horgans Quay, construction of which is already under
way. Indeed, the overlap of the different phases reflect a staggered start and finish of
the different buildings rather than a phasing plan, as the intention is to deliver the entire
scheme as quickly as possible. It should be noted that the internal road (Alfred Street
extension) separating the northern and southern parts of the site is complete, and does not                                                                                                               Ne
                                                                                                                                                                                                            w
                                                                                                                                                                                                                int
form part of the site.                                                                                                                                                                                             ern
                                                                                                                      Alfred Street                                                                                   al
                                                                                                                                                                                                                           ro
                                                                                                                                                                             STATION                                         ad
• Phase 1 (hotel and public realm in the northern quarter) is well underway and will be                                                                                      SQUARE                 OFFICE
                                                                                                                                                                                                   BLOCK 4
  complete by August of next year. This phase includes a significant portion of the public
  realm works in the northern quarter, including the new steps connecting to Lower
  Glanmire Road.

• Phase 2 (Block 1 of offices) is also under construction and due for completion March

                                                                                                                                     Street
                                                                                                                                                              RESIDENTIAL
  2021. This phase will include the works to the goods shed (protected structure), office

                                                                                                                                         y
                                                                                                                                  Railwa
  podium car park, and a significant portion of both public realm works, including                                                                                                       OFFICE BLOCK 1                      OFFICE
  Waterfront Square and Station Square (omitting space required to construct phase                                                                                                                                         BLOCK 2 & 3

  3+5). The public realm works associated with this phase will deliver the pedestrian
  connection from the train station through the site to Horgans Quay.
                                                                                                                                                                        WATERFRONT
                                                                                                                                                                          SQUARE
• Phase 3 (proposed residential – subject of this application). It is intended to commence
  this phase as soon as planning is achieved. This phase will include the public realm as
  outlined including works to pavements on Horgans Quay and Railway Street.                                                                                                            ay
                                                                                                                                                                            Horgans Qu

• Phase 4 (Block 2/3 of offices). This will commence in April 2020 and will include any
                                                                                                Phase 1 buildings                             Phase 1 public realm
  adjacent public realm works as outlined.
                                                                                                Phase 2 buildings                             Phase 2 public realm              podium car park as part of Phase 2

• Phase 5 (Block 4 of offices). It is intended to commence this building in March 2021,         Phase 3 buildings                             Phase 3 public realm

  and will included the remaining public realm works in the southern quarter as outlined.       Phase 4 buildings                             Phase 4 public realm

                                                                                                Phase 5 buildings                             Phase 5 public realm
• Phase 6 (small residential building adjacent to hotel). It is also intended to commence
                                                                                                Phase 6 buildings                             Phase 6 public realm
  this building in March 2021 and it will mark the completion of the overall development.

                                                                                                35 |                             Hq Horgans Quay Residential
You can also read
