OXFORDSAFETY.CO.UK PRODUCT CATALOGUE

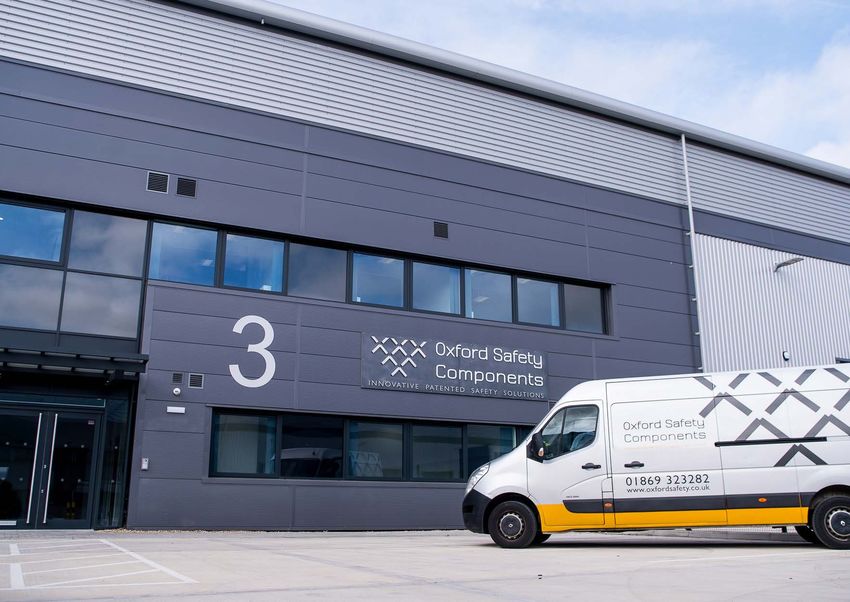

AT OXFORD SAFETY COMPONENTS WE’VE BEEN DEVELOPING
INNOVATIVE, LIFE SAVING, SAFETY SYSTEMS FOR OVER 20
YEARS, WITH OUR PASSION FOR HEALTH AND SAFETY
STEMMING FROM PERSONAL EXPERIENCE IN THE
CONSTRUCTION INDUSTRY.
Our founders, brothers John and David Black, ran a successful carpentry business with over 100
employees. They soon realised working at height comes with hazards and noticed there was
a lack of safety equipment available to staff when working with large contractors, so they
started designing safety systems that eliminated these hazards by providing a safe work
platform above voids to prevent falls.
The first product launched in 2001 was the CoverSafe mat (formerly STS) which
features the patented Trellis system, a system which remains a key aspect of
many of our products today. Over the years we’ve launched a multitude
of innovative products designed to meet all safety concerns and
regulations while working at height, allowing work to go ahead
safely and to schedule.
In 2019 we were acquired by the world renowned safety
solutions and products company - Kee Safety Group.
CONTENTS
ABOUT US 3
STAIRSPAN 4
PITPROTECT 6
AXAFORM 8
TREADLITE 10
COVERSAFE 12
COVERSAFE SPARK / MINI 14
COVERSAFE ACCESS 16
COVERSAFE TRENCH 18
2 OSC PRODUCT CATALOGUE +44 (0)1869 32 32 82 / OXFORDSAFETY.CO.UK 3
IMPROVE PRODUCTIVITY AND SAFETY BY CREATING A
SAFE PLATFORM TO WORK FROM
STAIRWELL PLATFORM SYSTEM CURRENTLY USED IN THESE SECTORS
KEY FEATURES & BENEFITS
Quick and easy to install in under 10 minutes with
just four components
Temporary work platform and fall prevention system
Allows easy access and movement in stairwells in
this dangerous and awkward area
The StairSpan stairwell protection system increases
productivity when working at height in stairwells by
providing a safe, sturdy platform to work from whilst
preventing falls. Built using lightweight aluminium makes
it easy to transport and its flexible design allows for SPECIFICATION
work to continue without blocking access to the stairs.
The mat can easily be slid back to allow access for Compact frame adjusts from 1.4m to 1.9m
operatives and materials. Weight 18kg
DESIGNED TO Consisting of just four components, it can be easily
Standard frame adjusts from 2.1m to 3m
PROVIDE A SAFE WORKING installed by a single operative and is quick to construct in
Weight 24kg
Maximum work load of both systems 225kg
PLATFORM THAT DOESN’T a matter of minutes. The telescopic frame can be adjusted
to many different lengths making it adaptable for even the Width of both frames 700mm
BLOCK ACCESS TO STAIRS, most complex of stairways.
WHILE ALSO ACTING AS A FALL Training and maintenance offered/required.
PREVENTION SYSTEM. STAIRSPAN CAN To show just how adaptable the StairSpan is, it can be
BE USED BY ALL TRADES WORKING
used when the staircase is not yet fitted, in stair voids
by removing the hinged legs from the frame. This can be
SEE IT IN ACTION
ON DOMESTIC STAIRS AND STAIRWELLS performed when the joists have just been fitted prior to Follow this QR code to see a brief
demo of StairSpan
the staircase being installed.
DURING CONSTRUCTION AND PROTECTS
WORKERS FROM FALLING INTO STAIRWELLS, The StairSpan system conforms to BS.8630:2019 safety
VOIDS, OR DOWN STAIRWAYS. standards and comes in two sizes, standard and a compact
version. Using additional accessories can solve special
stairway problems.
AVAILABLE TO HIRE AND PURCHASE
4 OSC PRODUCT CATALOGUE +44 (0)1869 32 32 82 / OXFORDSAFETY.CO.UK 5

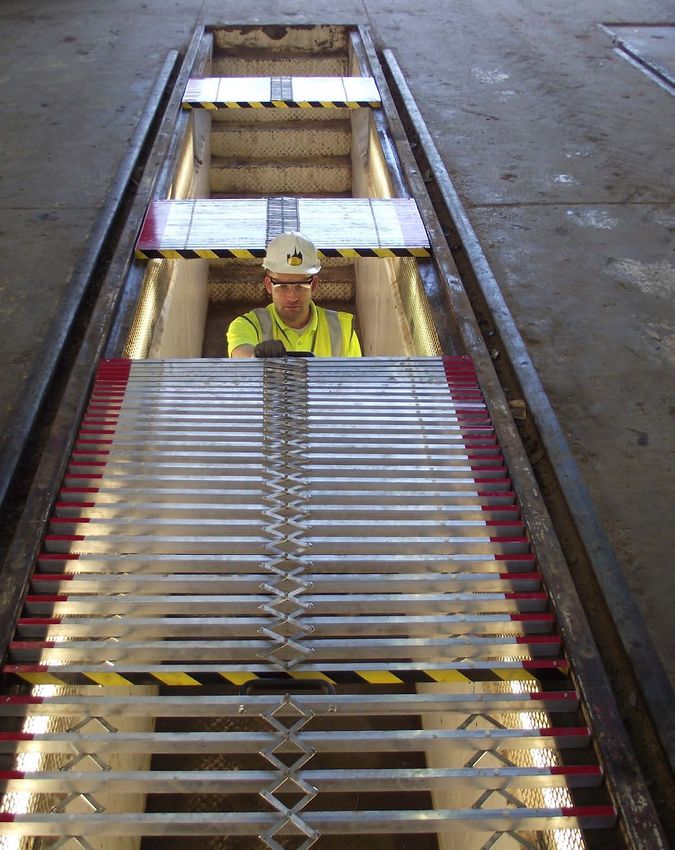

WORK SAFELY AND SECURELY WHEN SERVICING VEHICLES
INSPECTION PIT COVER SPECIFICATION
KEY FEATURES & BENEFITS SMALL COVER
Lightweight system formulated with aluminium Closed size 0.45m x 0.9m
Highly adaptable – adjusts in both width and length; a
Open size
perfect fit every time
2m long and has a width size of between 0.9m and 1.1m
Robust pit cover designed to hold operatives weight
Weight 20kg

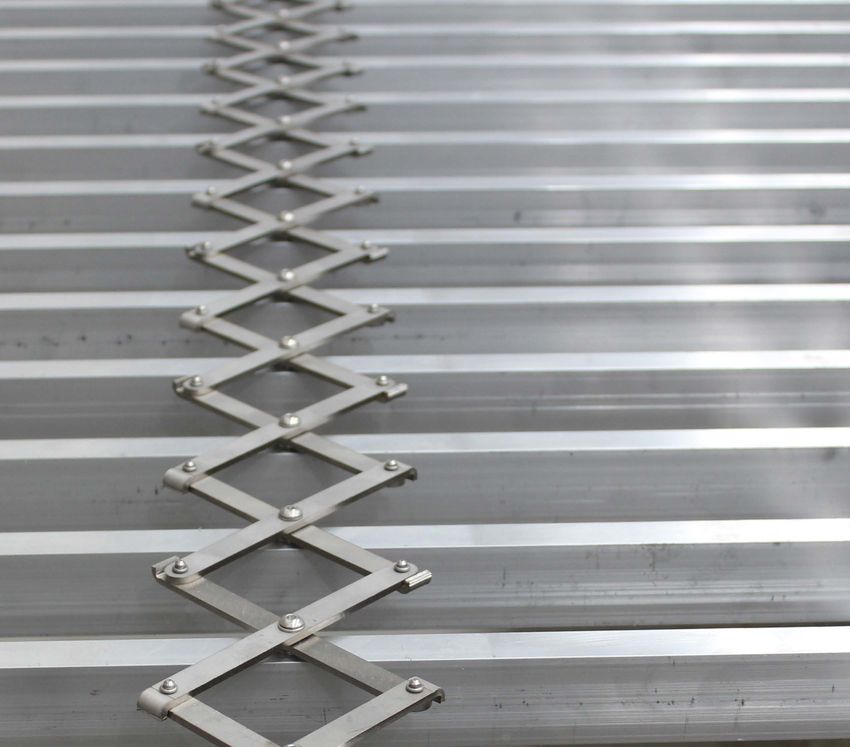

PitProtect has been designed to keep operatives safe by
preventing falls into inspection pits and voids when servicing LARGE COVER
vehicles. The cover is constructed from aluminium and Closed size 0.45m x 1.1m
has a concertina design, making it easy to open and close.
The system is lightweight, but strong enough to support Open size
operatives weight. The cover can be used as a working 2m long and has a width size of between 1.1m and 1.3m
platform as well as a fall prevention system. Weight 22kg
The system is ready to go with no training needed and Training and maintenance packages available.
has been designed to be fully adjustable in both length and
width. Each bar can be set at a different width so is suitable
for covering a pit that’s uneven in width, ensuring a perfect
SEE IT IN ACTION
fit for any job. Scan this QR code to see
PitProtect in action
The PitProtect system conforms to BS.8630:2019 safety
standards and comes in two sizes, small and large.
A FULLY ADJUSTABLE, LIGHTWEIGHT
FALL PREVENTION WORKING AVAILABLE TO PURCHASE ONLY
PLATFORM DESIGNED TO PREVENT
WORKERS FROM FALLING INTO CURRENTLY USED IN THESE SECTORS
INSPECTION PITS WHEN SERVICING
VEHICLES.
6 OSC PRODUCT CATALOGUE +44 (0)1869 32 32 82 / OXFORDSAFETY.CO.UK 7
WORK IN HARD TO REACH AREAS SAFELY ON A STRONG
PLATFORM
MAINTENANCE PODIUM SPECIFICATION
THAT CONVERTS INTO A Open size 2.2m x 0.66m
STAIRWELL PLATFORM Closed size 1.5m x 0.66m
KEY FEATURES & BENEFITS Weight 72kg (complete system)
Easy to use-no tools required Maximum working load 150kg
Adaptable system easily converts from a maintenance
podium to a stair podium Training and maintenance packages available.
Telescopic – opens out sidewards to work on wider
fronts
SEE IT IN ACTION
AxaForm has been designed as a multi-functional system to
Scan this QR code to see
help operatives safely perform general maintenance tasks in
AxaForm in action
hard to reach areas. Constructed from aluminium it offers
a strong working platform to keep operatives safe when
working on tasks at height.
It is telescopic and it allows you to work on a wider front
AN EASILY TRANSPORTABLE without interruption by opening it out sideways. It can be
closed up for awkward spaces and to move it or store
MULTI-FUNCTIONAL it. The system is easy to manoeuvre with its detachable
MAINTENANCE PODIUM THAT castors.
TRANSFORMS INTO A STAIR
To adapt the podium into a stairwell platform, two longer
PODIUM FOR PERFORMING legs need to be fitted. It can then be used over a stairway to
MAINTENANCE TASKS IN HARD TO reach the wall or ceiling above, it makes a perfect platform
REACH AREAS. DESIGNED FOR for decorating or working on electrics.
MULTI-TRADE USE THIS PODIUM IS QUICK
TO BUILD AND EASY TO MOVE AROUND AVAILABLE TO HIRE AND PURCHASE
WITH NO TOOLS REQUIRED.
CURRENTLY USED IN THESE SECTORS
8 OSC PRODUCT CATALOGUE +44 (0)1869 32 32 82 / OXFORDSAFETY.CO.UK 9

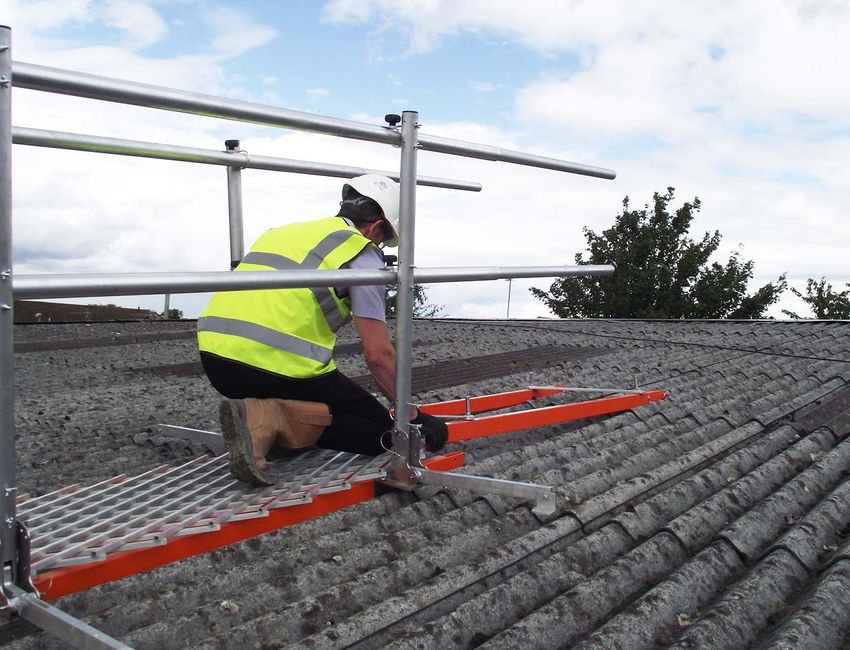

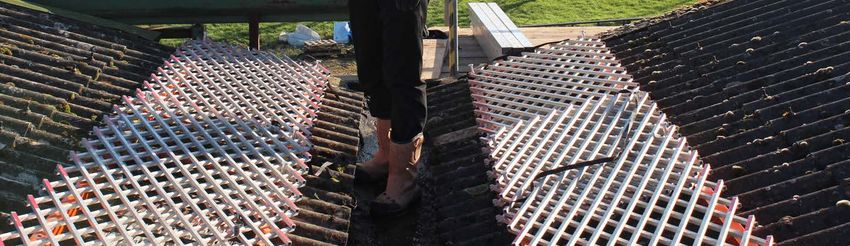

PREVENT FALLS WHEN WORKING AT HEIGHT ON FRAGILE
ROOFS WITH A TEMPORARY, ADJUSTABLE WORKING PLATFORM
FRAGILE ROOF SYSTEM The handrails have been designed to be set at different
angles to suit the roof profile, and can be removed from the
KEY FEATURES & BENEFITS base plate to allow easier installation.
Fall prevention system to remove hazards of working
Designed for reactive works/full coverage works and can be
on fragile roofs
used as edge protection.
No tools needed
Easy to use in under 10 minutes
AVAILABLE TO HIRE AND PURCHASE
TreadLite is a lightweight temporary working platform that’s
adaptable to your job with different elements of the system CURRENTLY USED IN THESE SECTORS
suitable for different tasks. The system includes barriers and
handrails which are deployed at the edges of the working
area and can be used to construct temporary walkways for
safe access to a particular point on the roof, for example to
repair a skylight or a chimney.
DESIGNED TO CREATE Designed around adaptability the system is constructed
TEMPORARY WALKWAYS
from aluminium and is lightweight so easy to move around
site but also easy to adjust in width to allow for different
SPECIFICATION
FOR SAFE ACCESS TO A profile sheetings. Each of the components can be used
ONE SYSTEM INCLUDING MAT AND FRAME
independently to suit a variety of fragile roof issues. The
PARTICULAR POINT ON A system is easy to use, with no tools required and set up is Open size 1.9m x 0.64m
FRAGILE ROOF SUCH AS CHIMNEYS quick in under 10 minutes. When working on a roof several
Closed size 2.44m x 90mm
OR SKYLIGHTS, THE TREADLITE SYSTEM frames and mats can be deployed to cover the work area
to keep operatives safe, this can then be disassembled and Weight 17.5kg
IS AN ADJUSTABLE LIGHTWEIGHT re-deployed for the next section of the roof. Maximum working load 150kg
TEMPORARY PLATFORM THAT PREVENTS
Modules of the TreadLite can be used to set up temporary
FALLS WHEN WORKING AT HEIGHT. barriers and handrails when required in many situations.
Training and maintenance offered/required.
DIFFERENT COMPONENTS OF THE SYSTEM The precision angular design of the vertical posts, the
CAN BE USED INDEPENDENTLY FOR MANY out-riggers for stability, and the telescopic handrails SEE IT IN ACTION
are extremely versatile to fit many site configuration
DIFFERENT FRAGILE ROOF ISSUES. requirements to protect edges of roofs, or edges of Scan this QR code to see
working areas. The system can build temporary walkways TreadLite in action
to suit your site requirements, and it will fit many different
styles and pitches of corrugated material. This system can
be very useful to make reactive roof work quick but safer.
10 OSC PRODUCT CATALOGUE +44 (0)1869 32 32 82 / OXFORDSAFETY.CO.UK 11

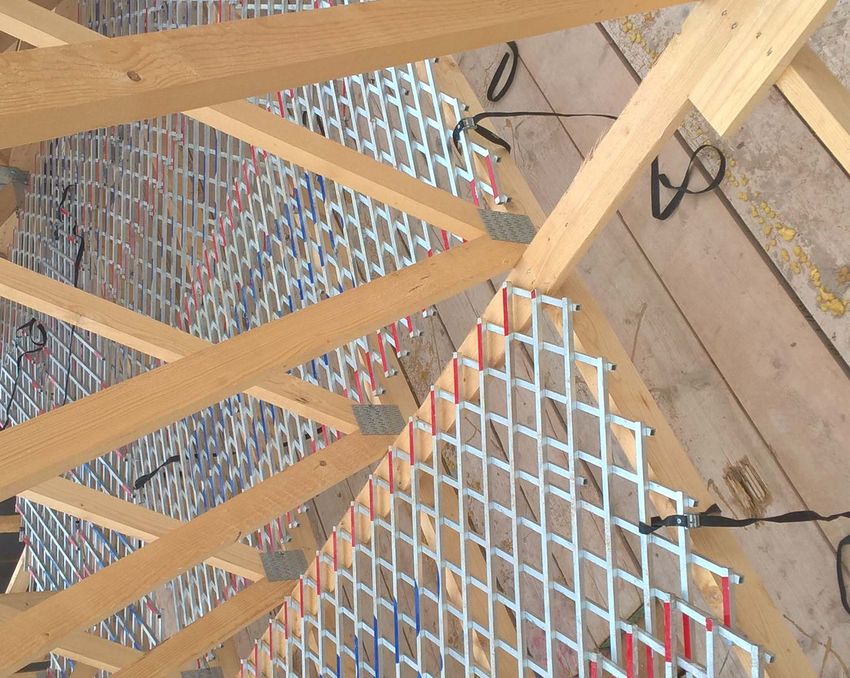

HAVE THE CONFIDENCE TO WORK SAFELY AT HEIGHTS ON
BUILDING AND CONSTRUCTION SITES
ROOF SAFETY MATTING SPECIFICATION
KEY FEATURES & BENEFITS Open size 3.6m x 0.7m, covers 2.52m2
Lightweight safety matting fall prevention system Closed size 0.75m x 0.98m
BS.8630:2019 Conformity
Allows easy movement of materials and people Maximum working load 150kg maximum
on site increasing productivity Weight 11.5kg
CoverSafe mats increase the safety and productivity of Open sizes are typical because each mat can be adjusted
operatives by providing a lightweight, stable, temporary to the best rectangular shape to give the optimum
work platform above ceiling members to prevent falls cover for each situation.
onto joists below.
Training and maintenance offered/required.
Designed with adaptability in mind our mats are
constructed from aluminium and are fully adjustable in
width and length thanks to our XSpan technology. Easy SEE IT IN ACTION
to insert and expand from the surrounding scaffolding, Scan this QR code to see
set up is quick in 20 minutes and can be done by a single CoverSafe in action
DESIGNED FOR WORKERS operative. They improve productivity when spreading
ERECTING TRUSS ROOFS, the trusses out, nailing wind bracing, inspecting work
and undertaking other remedial tasks. Once the work is
TILING ROOFS OR FITTING complete the mats are easy to fold up and remove.
FELT AND ROOF BRACINGS, OUR
Our CoverSafe mats conform to BS.8630:2019 safety
COVERSAFE MATS ARE LIGHTWEIGHT standards.
AND EASY TO MANOEUVRE.
CONSTRUCTED FROM ALUMINIUM THE AVAILABLE TO HIRE AND PURCHASE
SYSTEM CREATES A WORKING PLATFORM
THAT COVERS THE CEILING MEMBERS, CURRENTLY USED IN THESE SECTORS
IDEAL FOR USE IN TIMBER FRAME HOUSE
CONSTRUCTION.
12 OSC PRODUCT CATALOGUE +44 (0)1869 32 32 82 / OXFORDSAFETY.CO.UK 5
13

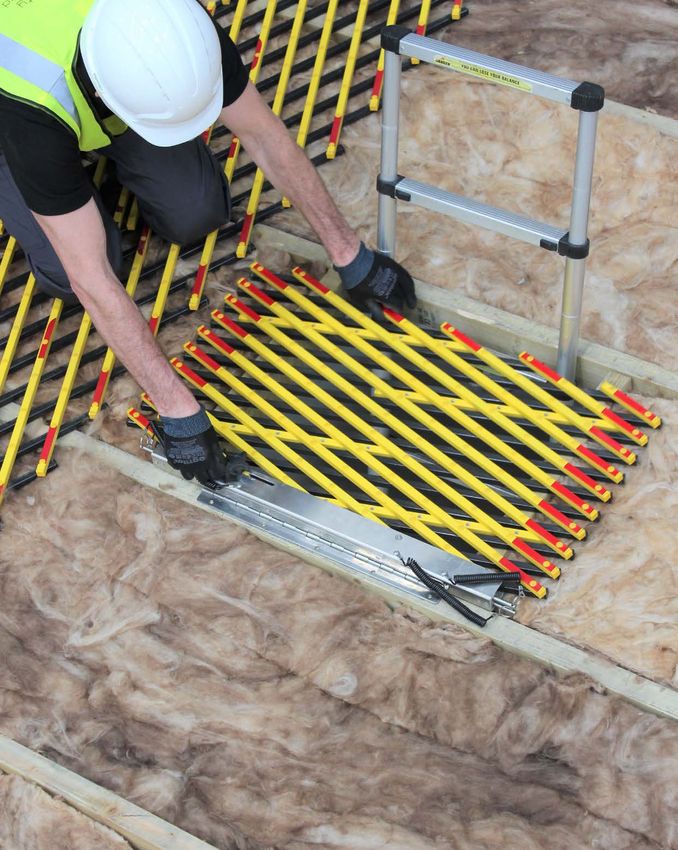

PROTECT AGAINST ELECTRICAL DANGERS WHEN
WORKING IN ATTICS OR IN ROOF AREAS
INSULATED SAFETY MATTING CURRENTLY USED IN THESE SECTORS
KEY FEATURES & BENEFITS
Prevents shocks from faulty or broken electrical fittings
or old wiring
Easy to install & adaptable - can be expanded to many sizes
Protects against falls through ceilings
The CoverSafe Spark mat is constructed with GRP meaning
it is insulated and will protect against any electrical dangers
- giving it the name ‘Spark’. When working in roof spaces
you’ll be protected from possible shocks from old or faulty
wiring, possibly hidden in the thermal insulation. GRP
material was developed for aerospace and Formula One
racing, and has been woven into the CoverSafe Spark’s SPECIFICATION
design to provide an innovative fall protection system that COVERSAFE SPARK
is lightweight but extremely durable.
Open size 2m x 0.8m, covers 1.6m2
The CoverSafe Spark mat is highly adaptable and can be
Closed size 1.15m x 0.48m
expanded to a variety of sizes depending on the need of
DESIGNED TO PROTECT the job. The closed-up mat is easy to transport and install, Weight 10kg
XSpan technology means it can even fit through small attic
AGAINST ANY ELECTRICAL hatches and aeroplane access points, then be expanded to
Maximum working load 150kg maximum
DANGERS, COVERSAFE SPARK suit the space being protected.
COVERSAFE SPARK MINI
IS A LIGHTWEIGHT WORKING Our CoverSafe Spark mats conform to BS.8630:2019
PLATFORM TO PREVENT OPERATIVES safety standards and is available in two sizes, standard Open size 0.7m x 1.20m, covers 0.8m2
FALLING THROUGH CEILINGS WHEN and mini. Closed size 0.9m x 0.32m
WORKING IN ROOF SPACES. IDEAL FOR AVAILABLE TO HIRE AND PURCHASE Weight 4.5kg
ALL ROOF AND ATTIC OPERATIONS, OPEN Maximum working load 150kg
JOISTS OR VOIDS UP TO 900MM. Open sizes are typical because each mat can be adjusted to
the best rectangular shape to give the optimum cover for
each situation. Training and maintenance packages available.
SEE IT IN ACTION
Scan this QR code to see CoverSafe
Spark and mini in action
14 OSC PRODUCT CATALOGUE +44 (0)1869 32 32 82 / OXFORDSAFETY.CO.UK 15
PREVENT FALLS DOWN ACCESS CHAMBERS / HATCHWAYS
WITH AN ADJUSTABLE HINGED COVER
EXPANDABLE ACCESS SPECIFICATION
COVER Open size 0.7m x 1.2m
KEY FEATURES & BENEFITS Closed size 0.9m x 0.37m
Hinged fall prevention system which can be adapted to Weight 6kg
many sizes
Lightweight access cover for manholes and hatchways Maximum working load 150kg
Formulated with GRP to prevent shocks from faulty or Training and maintenance packages available.
broken electrics
CoverSafe Access is a hinged cover to prevent falls down
manholes or hatchways. Its adjustable design means it can be
SEE IT IN ACTION
used to cover a range of sizes and it can be fixed into position Scan this QR code to see CoverSafe
to prevent it from slipping out of place.The hinged design Access in action
allows access for materials when working in small spaces.
Formulated with GRP material, it provides a robust, safe
working platform, allowing work to be carried out on and
around it. CoverSafe Access helps to improve efficiency on
DESIGNED TO PREVENT FALLS site and aids in meeting the HSE safety requirements acting
DOWN ACCESS CHAMBERS as a fall prevention system.
AND HATCHWAYS, COVERSAFE The CoverSafe Access is easy to install, locks in a safe
ACCESS IS A FALL PREVENTION position when used as a manhole cover and is easily fixed in
SYSTEM AND WORKING PLATFORM place when used as a hatch cover. The trellis slides open for
quick access and hinges to provide full access for materials
CONSTRUCTED WITH GRP. THE ACCESS when working in loft/attic spaces.
COVER CAN BE FIXED INTO POSITION TO
PREVENT IT FROM SLIPPING OUT OF PLACE, Our CoverSafe Access conforms to BS.8630:2019 safety
standards.
AND IS HINGED TO PROVIDE FULL ACCESS FOR
MATERIALS WHEN WORKING IN SMALL SPACES. AVAILABLE TO HIRE AND PURCHASE
CURRENTLY USED IN THESE SECTORS
16 OSC PRODUCT CATALOGUE +44 (0)1869 32 32 82 / OXFORDSAFETY.CO.UK 17
PREVENT FALLS INTO OPEN TRENCHES WITH A
PROTECTION SYSTEM DESIGNED WITH GRP
ADAPTABLE TRENCH COVER SPECIFICATION
KEY FEATURES & BENEFITS Open size 2m x 1.2m for 0.9m trench
Robust cover which is easy to use to prevent falls into 2.75m x 0.9m for 0.6m trench
trenches
Formulated with GRP to protect against electrical Closed size 1460mm long x 260mm wide
hazards Weight 6.5kg
Easy to use and lightweight
Maximum working load 180kg
(fall arrest system - not to be worked on)

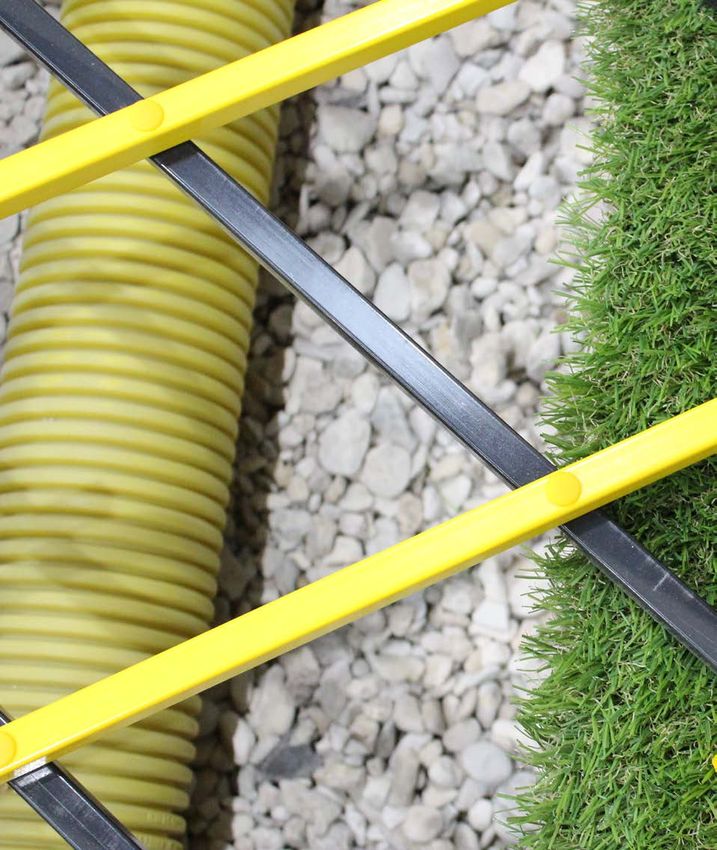

CoverSafe Trench is a fall-prevention system formulated
with GRP, and is used to prevent falls into open trenches.
Open sizes are typical because each mat can be adjusted
The GRP material allows the trench cover to be insulated,
to the best rectangular shape to give the optimum
providing full protection against electrical dangers - whilst
cover for each situation.
being lightweight and extremely durable.
Training and maintenance packages available.
The cover can be fixed down at each corner to ensure
extra stability, and the trellis system allows for easy
inspection of work without having to remove the mat. SEE IT IN ACTION
Scan this QR code to see CoverSafe
It is easy to install and lightweight so can easily be moved
Trench in action
around site by a single operative. It increases safety on site
by protecting against electrical hazards.
CoverSafe Trench conforms to BS.8630:2019 safety
DESIGNED TO ARREST A FALL standards and is suitable for use where there are open
trenches such as on construction sites and roads.
ALREADY IN MOTION, COVERSAFE
TRENCH IS A FALL-PROTECTION AVAILABLE TO HIRE AND PURCHASE
SYSTEM DESIGNED WITH GRP, IDEAL
FOR UTILITY, MAINTENANCE AND CURRENTLY USED IN THESE SECTORS
GROUNDWORK EXCAVATION COMPANIES.
18 OSC PRODUCT CATALOGUE +44 (0)1869 32 32 82 / OXFORDSAFETY.CO.UK 19OXFORDSAFETY.CO.UK T +44 (0) 1869 32 32 82 E sales@oxfordsafety.com OXFORD SAFETY COMPONENTS LTD 3 LONGLANDS ROAD BICESTER, OXFORDSHIRE, UK OX26 5AH © Oxford Safety Components 2010-2021 Doc ref: QMF85 Issue 1 04/05/2021 These concepts and designs are protected by patents and patent applications in the UK and other countries.
You can also read
