4 5
ABOUT US
SUSTAINABLY MADE IN THE USA
OUR PRODUCTS
Combining sustainability and regionally sourced materials has We provide premium, contemporary aluminum, glass, and dECOLuxe acrylic surfacing materials
always been at the core of what we do and the products we and components. Our custom products include cabinet doors, backpainted glass, markerboards,
make. Our manufacturing facility is located in Charlotte, NC sliding door systems, shelving and hardware solutions. Our unrivaled selection of finishes, colors,
and every product is hand built by our extremely talented and and exceptional standards in both production and customer care is what makes us one of the
skilled team of craftspeople. most sought after North American suppliers for residential and commercial spaces.
◄ back to table of contents
6 7
Aluminum
All aluminum products are manufactured using materials from regional suppliers in an effort to reduce our carbon
footprint. Our aluminum products are exceptionally durable, have an extremely long lifespan and are virtually
maintenance free.
Aluminum extrusion waste generated during manufacturing is taken to a local metal recycling facility here in Charlotte,
NC. Our aluminum materials and products are 100% recyclable.
SUSTAINABILITY We encourage the reusing and repurposing of all aluminum doors. This is easily done by replacing components within
and around existing aluminum doors and frames.
Glass
We live on a planet that has a limited
All of our glass material contains at least 20% post industrial recycled content. The architectural resin used for our 3FORM®
ecosystem and what we do has a large inserts also yields a high percentage of post industrial recycled material.
impact on our environment. This means that
Unusable glass generated during manufacturing is reused in asphalt production. Our glass materials and products are
having a sustainable business is imperative to 100% recyclable.
your survival as a company.
Acrylic
– Mike Uebersax, Element Designs is the exclusive fabricator of dECOLuxe Solid Acrylic for North America. It is made of 100% recycled
acrylic and is 100% recyclable, using PMMA (Polymethyl Methacrylate) which is the only plastic that can be recycled
President & CEO of Element Designs back to its original raw material: Monomer.
During manufacturing, dECOLuxe uses less water and generates less CO2 than standard cast acrylic sheets. It is also
VOC (Volatile Organic Compound) and HFC (Hydrofluorocarbon) free.
When defining what it means to be sustainable; the material, product, and/or Facility
process must have not only a low impact on the environment itself but it must possess None of our products contain VOC’s. Our backpainted glass process uses environmentally safe water based paint. Zero
chemicals or toxins are released from our products, there is zero effect on indoor air quality.
characteristics that by definition help prolong and sustain it’s lifecycle.
We offer full-service reclamation on all of our products. Instead of discarding them or throwing them away, we encourage
At Element Designs, sustainability has always been at the core of what we do and our customers to return products for complete and proper recycling at no charge.
the products we make. Some of the key materials we use, including aluminum and
glass are naturally and inherently sustainable. Other materials like our dECOLuxe Solid Our packaging materials are regionally sourced. To protect our products in transit we use corrugated edge wrapping
and honeycomb foam alternative, which are made from 100% recycled cardboard. For void fill we use biodegradable
Acrylic were sought out specifically because it is not only made from 100% recycled
plastic air fill. Within our production space and company office we recycle all cans, glass, plastic bottles and paper
acrylic, but it is also 100% recyclable.
products. We also actively promote the importance of environmental responsibility and are proud to sponsor a recycling
center for our industrial park.
In addition to the materials we use, the way in which we manufacture our products
has evolved to become much more sustainable and eco-conscious. This is something
we continuously strive to work towards and as the available resources grow, they are
giving us the ability to make a significant impact in the preservation of our planet. We
will continue to innovate the ways in which we produce our products and hope you
can join us on our mission to leave this world a better place than we found it.
◄ back to table of contents
8 INSPIRATION GALLERY 9

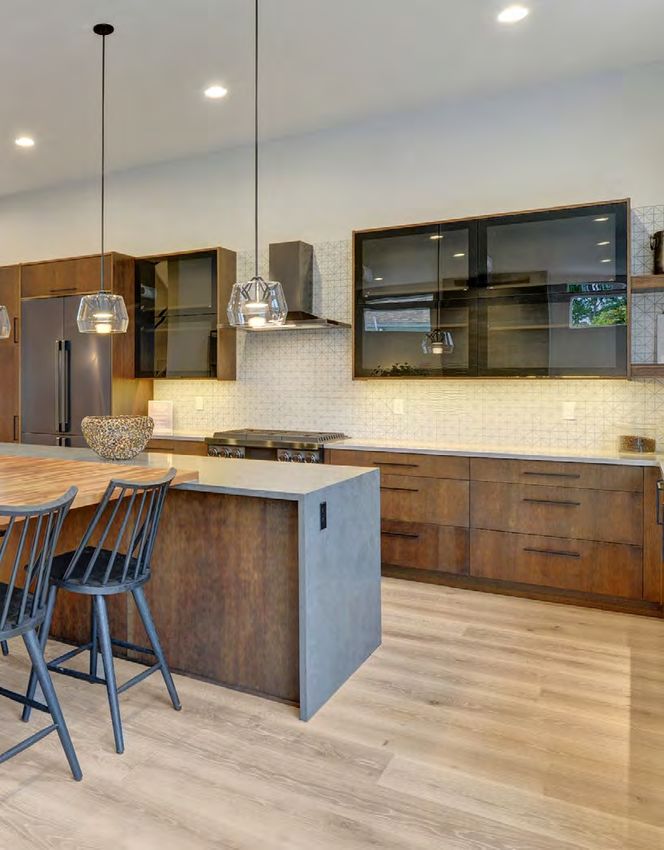

KITCHEN
Featured Products
Aluminum Frame Doors: AF003 Profile in Bronze Matte Finish with Bronze
Clear Glass Inserts
Shelving Systems: °eCubed Shelving Systems in Bronze Matte Finish
GOLA Aluminum Channels in Bronze Matte Finish
Base Systems: BS001 Profile and Cuff in Bronze Matte Finish
◄ back to table of contents
10 INSPIRATION GALLERY 11
KITCHEN
Featured Products
Aluminum Frame Doors: AF010 Profile in Onyx Finish
with Grey Clear Glass Inserts and Black Backpainted °elusion Borders
Images Courtesy of Bellmont Cabinet
Designed by Lydia Huffman ◄ back to table of contents
Built by Romar Homes
12 INSPIRATION GALLERY 13
KITCHEN
Featured Products
Aluminum Frame Doors: AF001 Profile in Onyx Finish
with Low Iron Satin Glass Inserts
Shelving Systems: °eCubed Shelving Systems in Onyx Finish
◄ back to table of contents Images Courtesy of Dura Supreme
14 INSPIRATION GALLERY 15
KITCHEN
Featured Products
Aluminum Frame Doors: AF001 Profile in Brushed Stainless Finish
with White Matte Backpainted Glass Inserts
Images Courtesy of Tiffany Braker ◄ back to table of contents
16 INSPIRATION GALLERY 17
CLOSET
Featured Products
Aluminum Frame Doors: AF012 Profile in Bronze Matte Finish
with Bronze Clear Glass Inserts
◄ back to table of contents Images Courtesy of Top Notch Cabinets
18 INSPIRATION GALLERY 19
CLOSET
Featured Products
Aluminum Frame Doors: AF004 Profile in Graphite Finish
with Low-Iron Clear Glass Inserts
Images Courtesy of California Closets Michigan ◄ back to table of contents
All Rights Reserved20 INSPIRATION GALLERY 21
CLOSET
Featured Products

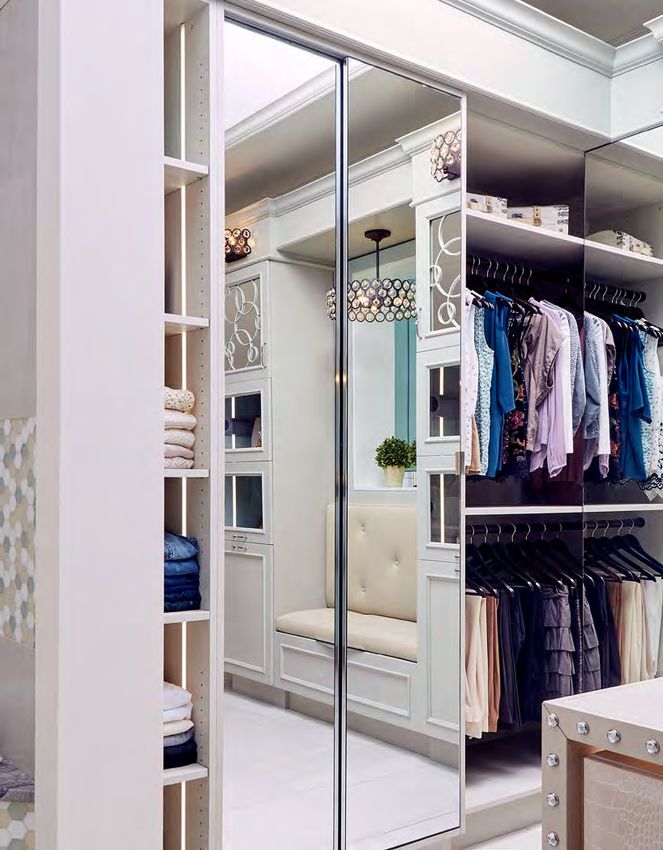

Aluminum Frame Doors: AF010 Profile in Chrome Finish
with Mirror Inserts (Left)
Aluminum Frame Doors: AF003 Profile in Chrome Finish
with Clear Glass Inserts (Right)
◄ back to table of contents Images Courtesy of Wellborn Cabinet22 INSPIRATION GALLERY 23

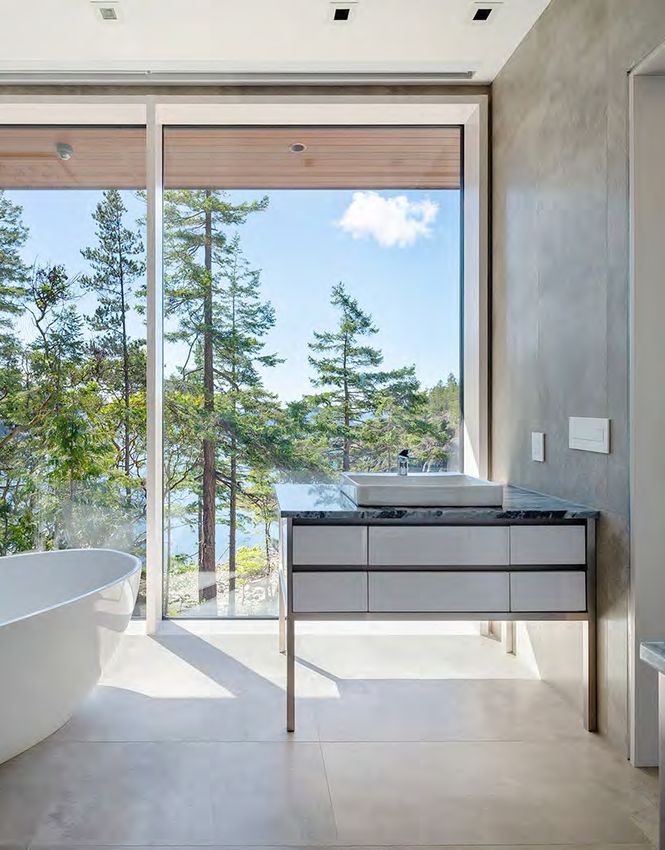

BATHROOM
Featured Products
Aluminum Frame Drawer Fronts: AF010 Profile in Natural Aluminum Finish
with Bronze Gloss Backpainted Glass Inserts
◄ back to table of contents
Images Courtesy of M Lahr Homes & Ted Maines Intereriors24 INSPIRATION GALLERY 25
BATHROOM
Featured Products
Base Systems: BS002 Profile in Brushed Stainless Finish
GOLA Aluminum Channels in Brushed Stainless Finish
◄ back to table of contents Images Courtesy of Van Arbour Design26 INSPIRATION GALLERY 27
RESIDENTIAL
Featured Products

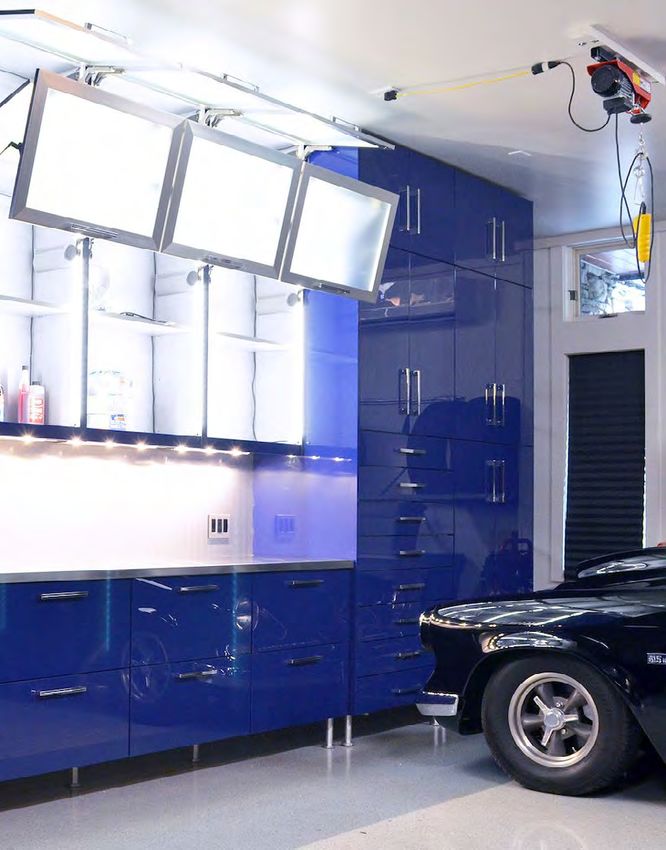

dECOLuxe Solid Acrylic Doors in Cobalt Blue
Aluminum Frame Doors: AF003 Profile in Brushed Stainless Finish
with Satin Glass Inserts
◄ back to table of contents
Images Courtesy of Norcia Fine Cabinetry28 INSPIRATION GALLERY 29
RESIDENTIAL
Featured Products
Aluminum Frame Doors: AF003 Profile in Onyx Finish
with Bronze Clear Glass Inserts
Backsplash: Black Matte Backpainted Glass
◄ back to table of contents Images Courtesy of DAP Designs & M Lahr Homes30 INSPIRATION GALLERY 31
RESIDENTIAL
Featured Products
10mm Clear Glass Tabletop with a Customer Provided Base with Specialty
Contract Coat in Gold (right)
Shelving Systems: °eCubed Shelving Ladder in Gold Finish
with Customer Supplied Shelves (left)
◄ back to table of contents
Images Courtesy of Element Designs32 INSPIRATION GALLERY 33
OFFICE
Featured Products
Aluminum Frame Doors: AF002 Profile in Natural Aluminum Finish
with White Gloss Backpainted Glass Inserts
◄ back to table of contents
Image Courtesy of OFS, an OFS Brands Company34 INSPIRATION GALLERY 35

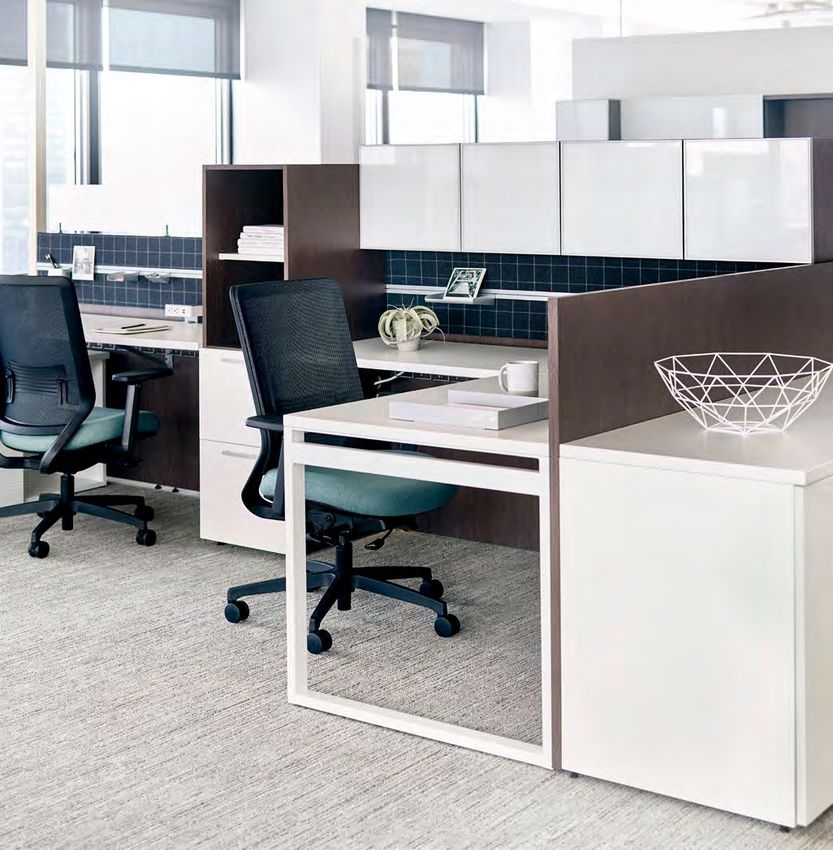

OFFICE
Featured Products
Base Systems: BS001 Profile in Chalk Finish with a Custom Color Backpainted Glass Top
Shelving Systems: °eCubed Shelving System in Onyx (Black Matte) Finish with Clear
Glass Shelves
◄ back to table of contents
Images Courtesy of Element Designs36 INSPIRATION GALLERY 37
RETAIL
Featured Products
Shelving Systems: °eCubed Shelving Systems
in Modern Brass Finish with Customer Supplied Shelving
◄ back to table of contents
Image Courtesy of West End Interiors38 ALUMINUM FRAME CABINET DOORS 39
Our custom created hand built aluminum frame
cabinet doors are a modern addition to residential
and commercial interiors. Whether kitchen cabinet
doors, office furniture doors, bathroom drawer fronts,
closet storage, or sliding door systems, our aluminum
frames are made to our customer’s specifications
and include all functional and decorative hardware
ALUMINUM FRAME
borings. Our aluminum frames come in an incredible
variety of finishes, which provide endless design options
when paired with our premium glass, mirror, and
CABINET DOORS other custom insert options. With no minimum order
quantities and quick lead times, our contemporary
aluminum frame doors and drawer fronts are ideal
for both remodeling and new construction projects.
We offer traditional European hinges which are easily
incorporated into any casework applications. We
also offer integrated hinges which utilize specially
engineered AIR technology to create a sleek look Image Courtesy of California Closets Boston
Designer: Joeiny Muttini
without any visible hardware.
AF004 Gold, Low-Iron Clear Glass
Image Courtesy of Top Notch Cabinets Image Courtesy of EuroCraft Cabinets
AF013 Bronze Matte, Bronze Clear Glass AF003 Brushed Stainless, Low-Iron Clear Glass
◄ back to table of contents40 ALUMINUM FRAME CABINET DOORS 41
ALUMINUM DOOR PROFILES
CLICK ANY DOOR TO LEARN
MORE ABOUT THAT PROFILE
AF001 AF002 AF003 AF004
AF005 AF006 AF007 AF009
FEATURES & BENEFITS
• 16 profile options in 14 finishes
AF010 AF011 AF012 AF013 • Over 50 insert options
• Custom manufactured to size (+/- 1mm)
• No minimum order quantities
• Quick lead time
• Expedited shipping available upon request
• Fully assembled and ready to install
• Limited lifetime warranty
• Tempered safety glass
• Sustainably made in the USA
AF014 AF015 AF016 AF210
◄ back to table of contents42 ALUMINUM FRAME CABINET DOORS 43
ALUMINUM FINISHES
ANODIZED FINISHES
Element Designs offers various options in
both anodized and coated finishes that are
available on any aluminum products.
natural aluminum (N) brushed stainless (S)
only available in AF003 and AF010 chrome (C)
Element Designs specialty coated finishes
COATED FINISHES give you unrivaled design possibilities. The
selections are timeless and trendsetting.
They are available on almost all of our
products from aluminum frame doors to
bronze matte (BZM) chalk (CK) decorative hardware, giving you the ability
to create a perfectly coordinated interior
space. All our coated paint finishes are
water based with zero effect to indoor air
quality. Our products are sustainably made
onyx (X) (black matte) black (B)
in the USA. For more information on our
sustainability initiatives, please visit us online
at element-designs.com.
arctic silver (AS) copper (CP)
COATED FINISHES
gold (GLD) graphite (GR) • Fingerprint & scratch resistant
• Sustainable water-based coating
• Consistent finish without orange peel effect
• Sustainably made in the USA
luxe bronze (LB) modern brass (MB)
◄ back to table of contents44 ALUMINUM FRAME CABINET DOORS 45
AF001 natural aluminum (N)
brushed stainless (S)
AF001 PROFILE bronze matte (BZM)
chalk (CK)
3/4”
(19mm)
onyx (X)
13/16” (20.5mm)
black (B)
DESIGN GUIDELINES
arctic silver (AS)
• Maximum width & height = 60” (1524mm)
• Minimum width & height = 5.5” (140mm)
• Maximum square footage = 10 sf
copper (CP)
• NOT recommended for drawer fronts
• Contact Element Designs for dimensions exceeding these guidelines
INSERT SPECIFICATIONS gold (GLD)
• 4mm (.157”) with seamed edge
• Handle hole can be drilled through the frame
graphite (GR)
HINGE INFORMATION
AF001 profile utilizes special narrow frame European hinges: luxe bronze (LB)
• Blum self close full 15mm overlay aluminum door hinge: H73T550A
• Blum self close full 17mm aluminum door hinge: H71T950A
• Blum Blumotion soft close full 15mm aluminum door hinge: H71B950A
modern brass (MB)
• Salice self close full 19mm aluminum door hinge: HC2Z6A99
• More options available - contact Element Designs for details
Pictured: AF001 in Onyx Finish with Low-Iron Satin Glass Inserts
◄ back to table of contents
Image Courtesy of Dura Supreme46 ALUMINUM FRAME CABINET DOORS 47
AF002 natural aluminum (N)
brushed stainless (S)
AF002 PROFILE 2 1/8”
(54mm)
bronze matte (BZM)
chalk (CK)
5/16”
(8mm)
onyx (X)
13/16” (20.5mm)
black (B)
DESIGN GUIDELINES
arctic silver (AS)
• Maximum width & height = 96” (2438.4mm)
• Minimum width & height = 5.5” (140mm)
• Maximum square footage = 24 sf
copper (CP)
• Contact Element Designs for dimensions exceeding these guidelines
INSERT SPECIFICATIONS
gold (GLD)
• 4mm (.157”) with seamed edge
• Handle hole locations must be specified at time of order if insert is
tempered glass graphite (GR)
HINGE INFORMATION
AF002 profile utilizes standard 35mm cup screw-on hinges: luxe bronze (LB)
• Blum 35mm cup hinge: H71T5550
• Blum Blumotion 35mm cup hinge: H71B3550
• Salice 35mm cup hinge: HC2P9A99 modern brass (MB)
• More options available - contact Element Designs for details
Pictured: AF002 in Natural Aluminum Finish with Low-Iron Satin Glass Inserts
◄ back to table of contents
Image Courtesy of MasterBrand Cabinets48 ALUMINUM FRAME CABINET DOORS 49
AF003 natural aluminum (N)
brushed stainless (S)
AF003 PROFILE 2 1/8”
chrome (C)
(54mm)
bronze matte (BZM)
chalk (CK)
13/16” (20.5mm)
onyx (X)
DESIGN GUIDELINES
black (B)
• Maximum width & height = 96” (2438.4mm)
• Minimum width & height = 5.5” (140mm)
• Maximum square footage = 24 sf
arctic silver (AS)
• Contact Element Designs for dimensions exceeding these guidelines
INSERT SPECIFICATIONS
copper (CP)
• 4mm (.157”) with seamed edge
• Handle hole can be drilled through the frame
HINGE INFORMATION
gold (GLD)
AF003 profile utilizes standard 35mm cup screw-on hinges:
• Blum 35mm cup hinge: H71T5550 graphite (GR)
• Blum Blumotion 35mm cup hinge: H71B3550
• Salice 35mm cup hinge: HC2P9A99
• More options available - contact Element Designs for details luxe bronze (LB)
Pictured: AF003 in Graphite Finish with Bronze Clear Glass Inserts
modern brass (MB)
◄ back to table of contents
Image Courtesy of Element Designs50 ALUMINUM FRAME CABINET DOORS 51
AF004 natural aluminum (N)
brushed stainless (S)
AF004 PROFILE 1 3/4”
(45mm)
bronze matte (BZM)
chalk (CK)
9/16”
(14mm)
onyx (X)
13/16” (20.5mm)
black (B)
DESIGN GUIDELINES
arctic silver (AS)
• Maximum width & height = 96” (2438.4mm)
• Minimum width & height = 5.5” (140mm)
• Maximum square footage = 24 sf
copper (CP)
• Contact Element Designs for dimensions exceeding these guidelines
INSERT SPECIFICATIONS
gold (GLD)
• 4mm (.157”) with seamed edge
• Handle hole locations must be specified at time of order if insert is
tempered glass graphite (GR)
HINGE INFORMATION
AF004 profile utilizes standard 35mm cup screw-on hinges: luxe bronze (LB)
• Blum 35mm cup hinge: H71T5550
• Blum Blumotion 35mm cup hinge: H71B3550
• Salice 35mm cup hinge: HC2P9A99 modern brass (MB)
• More options available - contact Element Designs for details
Pictured: AF004 in Natural Aluminum Finish with Low-Iron Clear Glass Inserts
Image Courtesy of California Closets ◄ back to table of contents
All Rights Reserved52 ALUMINUM FRAME CABINET DOORS 53
AF005 natural aluminum (N)
brushed stainless (S)
AF005 PROFILE bronze matte (BZM)
1 3/4”
(45mm) chalk (CK)
onyx (X)
13/16” (20.5mm)
black (B)
DESIGN GUIDELINES
arctic silver (AS)
• Maximum width & height = 96” (2438.4mm)
• Minimum width & height = 5.5” (140mm)
• Maximum square footage = 24 sf
copper (CP)
• Contact Element Designs for dimensions exceeding these guidelines
INSERT SPECIFICATIONS
gold (GLD)
• 4mm (.157”) with seamed edge
• Handle hole can be drilled through the frame
HINGE INFORMATION
graphite (GR)
AF005 profile utilizes standard 35mm cup screw-on hinges:
• Blum 35mm cup hinge: H71T5550 luxe bronze (LB)
• Blum Blumotion 35mm cup hinge: H71B3550
• Salice 35mm cup hinge: HC2P9A99
• More options available - contact Element Designs for details modern brass (MB)
Pictured: AF005 in Brushed Stainless Finish with Thatch 3Form® Inserts
◄ back to table of contents
Image Courtesy of Jim Bishop54 ALUMINUM FRAME CABINET DOORS 55
AF006 natural aluminum (N)
brushed stainless (S)
AF006 PROFILE 2 1/8”
bronze matte (BZM)
(54mm)
chalk (CK)
onyx (X)
13/16” (20.5mm)
black (B)
DESIGN GUIDELINES
arctic silver (AS)
• Maximum width & height = 96” (2438.4mm)
• Minimum width & height = 5.5” (140mm)
• Maximum square footage = 24 sf
copper (CP)
• Contact Element Designs for dimensions exceeding these guidelines
INSERT SPECIFICATIONS
gold (GLD)
• 4mm (.157”) with flat edge polish
• Only available with backpainted glass and mirror inserts
• Handle hole locations must be specified at time of order if insert is graphite (GR)
tempered glass
HINGE INFORMATION luxe bronze (LB)
AF006 profile utilizes standard 35mm cup screw-on hinges:
• Blum 35mm cup hinge: H71T5550
• Blum Blumotion 35mm cup hinge: H71B3550 modern brass (MB)
• Salice 35mm cup hinge: HC2P9A99
• More options available - contact Element Designs for details
Pictured: AF006 in Brushed Stainless Finish with Slate Gloss Backpainted Glass Inserts and
Low-Iron Satin Glass with Slate Backpainted Glass °elusion Border Inserts
◄ back to table of contents
Image Courtesy of Paramount Woodworking56 ALUMINUM FRAME CABINET DOORS 57
AF007 natural aluminum (N)
brushed stainless (S)
AF007 PROFILE 2 3/4”
(70mm)
bronze matte (BZM)
chalk (CK)
onyx (X)
13/16” (20.5mm)
black (B)
DESIGN GUIDELINES
arctic silver (AS)
• Maximum width & height = 96” (2438.4mm)
• Minimum width & height = 6.75” (172mm)
• Maximum square footage = 24 sf
copper (CP)
• Ideal for use with AVENTOS HF Hinges (no visible hinge plates through glass)
• Contact Element Designs for dimensions exceeding these guidelines
INSERT SPECIFICATIONS
gold (GLD)
• 4mm (.157”) with seamed edge
• Handle hole can be drilled through the frame graphite (GR)
HINGE INFORMATION
AF007 profile utilizes standard 35mm cup screw-on hinges: luxe bronze (LB)
• Blum 35mm cup hinge: H71T5550
• Blum Blumotion 35mm cup hinge: H71B3550
• Salice 35mm cup hinge: HC2P9A99 modern brass (MB)
• More options available - contact Element Designs for details
Pictured: AF007 in Brushed Stainless Finish with Satin Glass Inserts
◄ back to table of contents
Image Courtesy of Wellborn Cabinet58 ALUMINUM FRAME CABINET DOORS 59
AF008 natural aluminum (N)
brushed stainless (S)
AF008 PROFILE bronze matte (BZM)
chalk
chalk(CLK)
(CK)
3/4”
(19mm)
3/8”
(9.5mm) onyx (X)
13/16” (20.5mm)
black (B)
DESIGN GUIDELINES
arctic silver (AS)
• Maximum width & height = 96” (2438mm)
• Minimum width & height = 5.5” (140mm)
• Maximum square footage = 16 sf
copper (CP)
• NOT recommended for drawer fronts
• Contact Element Designs for dimensions exceeding these guidelines
INSERT SPECIFICATIONS gold (GLD)
• 4mm (.157”) with seamed edge
• Can fit 6mm (.236”) inserts with special gasket
graphite (GR)
• Handle hole locations must be specified at time of order if insert is
tempered glass
HINGE INFORMATION luxe bronze (LB)
AF008 profile utilizes special European hinges:
• Blum narrow frame aluminum door hinge: H73T550A
modern brass (MB)
• Blum narrow frame aluminum door hinge: H71T950A
• Blumotion narrow frame aluminum door hinge: H71B950A
• Salice narrow frame aluminum door hinge: HC2Z6A99
• More options available - contact Element Designs for details
Pictured: AF008 in Natural Aluminum Finish with Clear Glass Inserts
◄ back to table of contents
Image Courtesy of Mitchell Wall Architecture & Design60 ALUMINUM FRAME CABINET DOORS 61
AF009 natural aluminum (N)
brushed stainless (S)
AF009 PROFILE 2 1/2”
bronze matte (BZM)
(63.5mm)
chalk (CK)
onyx (X)
13/16” (20.5mm)
black (B)
DESIGN GUIDELINES
arctic silver (AS)
• Maximum width & height = 96” (2438.4mm)
• Minimum width & height = 6.25” (159mm)
• Maximum square footage = 32 sf
copper (CP)
• Contact Element Designs for dimensions exceeding these guidelines
INSERT SPECIFICATIONS
gold (GLD)
• 6mm (.236”) with seamed edge
• 4mm (.157”) available only with special gasket
• Handle hole can be drilled through the frame graphite (GR)
HINGE INFORMATION
AF009 profile utilizes standard 35mm cup screw-on hinges: luxe bronze (LB)
• Blum 35mm cup hinge: H71T5550
• Blum Blumotion 35mm cup hinge: H71B3550
• Salice 35mm cup hinge: HC2P9A99 modern brass (MB)
• More options available - contact Element Designs for details
Pictured: AF009 in Natural Aluminum Finish with Clear Glass Inserts & Custom Etching
◄ back to table of contents
Image Courtesy of Ducasse62 ALUMINUM FRAME CABINET DOORS 63
AF010 natural aluminum (N)
brushed stainless (S)
AF010 PROFILE 2 1/8”
chrome (C)
(54mm)
bronze matte (BZM)
chalk (CK)
13/16” (20.5mm)
onyx (X)
DESIGN GUIDELINES
black (B)
• Maximum width & height = 96” (2438.4mm)
• Minimum width & height = 5.5” (140mm)
• Maximum square footage = 24 sf
arctic silver (AS)
• Contact Element Designs for dimensions exceeding these guidelines
INSERT SPECIFICATIONS
copper (CP)
• 4mm (.157”) with flat edge polish
• Only available with backpainted glass and mirror inserts
• Handle hole locations must be specified at time of order if insert is gold (GLD)
tempered glass
HINGE INFORMATION graphite (GR)
AF010 profile utilizes standard 35mm cup screw-on hinges:
• Blum 35mm cup hinge: H71T5550
• Blum Blumotion 35mm cup hinge: H71B3550 luxe bronze (LB)
• Salice 35mm cup hinge: HC2P9A99
• More options available - contact Element Designs for details
modern brass (MB)
Pictured: AF010 in Chrome Finish with Custom Color Backpainted Glass Inserts
& Custom Color Glass Magnetic Markerboards
◄ back to table of contents
Image Courtesy of Woodmode64 ALUMINUM FRAME CABINET DOORS 65
AF011 natural aluminum (N)
brushed stainless (S)
AF011 PROFILE bronze matte (BZM)
2 1/4”
(57.2mm)
chalk (CK)
onyx (X)
3/4” (19.05mm)
black (B)
DESIGN GUIDELINES
arctic silver (AS)
• Maximum width & height = 96” (2438.4mm)
• Minimum width & height = 5.5” (140mm)
• Maximum square footage = 24 sf
copper (CP)
• Contact Element Designs for dimensions exceeding these guidelines
INSERT SPECIFICATIONS
gold (GLD)
• 4mm (.157”) with seamed edge
• Handle hole can be drilled through the frame
HINGE INFORMATION
graphite (GR)
AF011 profile utilizes standard 35mm cup screw-on hinges:
• Blum 35mm cup hinge: H71T5550 luxe bronze (LB)
• Blum Blumotion 35mm cup hinge: H71B3550
• Salice 35mm cup hinge: HC2P9A99
• More options available - contact Element Designs for details modern brass (MB)
Pictured: AF011 in Chalk Finish with Low-Iron Satin Glass Inserts
◄ back to table of contents
Image Courtesy of Masterbrand66 ALUMINUM FRAME CABINET DOORS 67
AF012 natural aluminum (N)
brushed stainless (S)
AF012 PROFILE bronze matte (BZM)
chalk (CK)
onyx (X)
black (B)
DESIGN GUIDELINES
• Fully concealed hinges located in upper and lower door corners arctic silver (AS)
• Door profile utilizes Salice AIR Hinges
• Ideal for clear glass doors where cabinet interior is visible
copper (CP)
• Maximum height = 84” (2134mm)
• Maximum width = 24” (610mm)
• Maximum door weight = 44 lbs (20 kg)
gold (GLD)
• Minimum width =5.5” (139.7mm)
• Minimum height = 5.5” (139.7mm)
• Maximum square footage = 14 sf
graphite (GR)
• NOT recommended for drawer fronts or lift up door applications
• IMPORTANT: Door thickness = 1” (26mm)
INSERT SPECIFICATIONS luxe bronze (LB)
• 4mm (.157”) with seamed edge
• Handle hole locations must be specified at time of order if insert is
modern brass (MB)
tempered glass.
HINGE INFORMATION
AF012 profile utilizes Salice AIR Hinges
Pictured: AF012 in Bronze Matte Finish with Bronze Clear Glass Inserts
◄ back to table of contents
Image Courtesy of Top Notch Cabinets68 ALUMINUM FRAME CABINET DOORS 69
AF013 natural aluminum (N)
brushed stainless (S)
AF013 PROFILE bronze matte (BZM)
chalk (CK)
onyx (X)
black (B)
DESIGN GUIDELINES
• Fully concealed hinges located in upper and lower door corners arctic silver (AS)
• Door profile utilizes Salice AIR Hinges
• Ideal for clear glass applications where cabinet interior is visible.
copper (CP)
• Not recommended for drawer fronts and lift up applications
• Maximum height = 84” (2134mm)
• Maximum width = 24” (610mm)
gold (GLD)
• Maximum door weight = 44 lbs (20 kg)
• Minimum width =5.5” (139.7mm)
• Minimum height = 5.5” (139.7mm)
graphite (GR)
• Maximum square footage = 14 sf
• Door thickness = 3/4” (18mm)
INSERT SPECIFICATIONS luxe bronze (LB)
• 4mm (.157”) with seamed edge
• Handle hole locations must be specified at time of
modern brass (MB)
order if insert is tempered glass.
HINGE INFORMATION
AF013 profile utilizes Salice AIR Hinges
Pictured: AF013 in Chalk Finish with Clear Glass Inserts
◄ back to table of contents
Image Courtesy of Battle Associates, Inc70 ALUMINUM FRAME CABINET DOORS 71
AF014 natural aluminum (N)
brushed stainless (S)
AF014 PROFILE bronze matte (BZM)
chalk
chalk(CLK)
(CK)
onyx (X)
black (B)
DESIGN GUIDELINES
arctic silver (AS)
• Maximum width & height = 96” (2438.4mm)
• Minimum width & height = 5.5” (140mm)
• Maximum square footage = 24 sf
copper (CP)
• Contact Element Designs for dimensions exceeding these guidelines
INSERT SPECIFICATIONS
gold (GLD)
• 4mm (.157”) with seamed edge
• Handle hole locations must be specified at time of order if insert is
tempered glass graphite (GR)
HINGE INFORMATION
AF014 profile utilizes standard 35mm cup screw-on hinges: luxe bronze (LB)
• Blum 35mm cup hinge: H71T5550
• Blum Blumotion 35mm cup hinge: H71B3550
• Salice 35mm cup hinge: HC2P9A99 modern brass (MB)
• More options available - contact Element Designs for details
Pictured: AF014 in Graphite Finish with Reeded (Horizontal) Glass Inserts
◄ back to table of contents
Image Courtesy of Element Designs72 ALUMINUM FRAME CABINET DOORS 73
AF015 natural aluminum (N)
brushed stainless (S)
AF015 PROFILE bronze matte (BZM)
chalk (CK)
onyx (X)
black (B)
DESIGN GUIDELINES
arctic silver (AS)
• Maximum width & height = 96” (2438.4mm)
• Minimum width & height = 5.5” (140mm)
• Maximum square footage = 24 sf
copper (CP)
• Contact Element Designs for dimensions exceeding these guidelines
INSERT SPECIFICATIONS
gold (GLD)
• 4mm (.157”) with seamed edge
• Handle hole can be drilled through the frame
HINGE INFORMATION
graphite (GR)
AF015 profile utilizes standard 35mm cup screw-on hinges:
• Blum 35mm cup hinge: H71T5550 luxe bronze (LB)
• Blum Blumotion 35mm cup hinge: H71B3550
• Salice 35mm cup hinge: HC2P9A99
• More options available - contact Element Designs for details modern brass (MB)
Pictured: AF015 in Gold Finish with Grey Satin Glass Inserts
◄ back to table of contents
Image Courtesy of Element Designs74 ALUMINUM FRAME CABINET DOORS 75
AF016 natural aluminum (N)
brushed stainless (S)
AF016 PROFILE bronze matte (BZM)
21 mm
(13/16”) chalk (CK)
9.5mm
(3/8”)
20.5 mm (13/16”)
onyx (X)
black (B)
DESIGN GUIDELINES
• Maximum width & height = 96” (2438mm)
arctic silver (AS)
• Minimum width & height = 5.5” (140mm)
• Maximum square footage = 24 sf
• NOT recommended for drawer fronts
copper (CP)
• Contact Element Designs for dimensions exceeding these guidelines
INSERT SPECIFICATIONS gold (GLD)
• 4mm (.157”) with seamed edge
• Handle hole locations must be specified at time of order if insert is
tempered glass graphite (GR)
HINGE INFORMATION
AF016 profile utilizes special narrow frame European hinges: luxe bronze (LB)
• Blum self close full 15mm overlay aluminum door hinge: H73T550A
• Blum self close full 17mm aluminum door hinge: H71T950A
• Blum blumotion soft-close full 15mm aluminum door hinge: H71B950A modern brass (MB)
• Salice self close full 19mm aluminum door hinge: HC2Z6A99
• More options available - contact Element Designs for details
Pictured: AF016 in Brushed Stainless Finish with White Matte Backpainted Glass Inserts
Image Courtesy of Garcia Cabinet Makers ◄ back to table of contents76 ALUMINUM FRAME CABINET DOORS 77
AF210 natural aluminum (N)
bronze matte (BZM)
AF210 PROFILE chalk (CK)
onyx (X)
black (B)
front back
arctic silver (AS)
DESIGN GUIDELINES
copper (CP)
• Maximum width & height = 96” (2438.4mm)
• Minimum width & height = 5.5” (140mm)
• Maximum square footage = 16 sf
gold (GLD)
• Contact Element Designs for dimensions exceeding these guidelines
INSERT SPECIFICATIONS
graphite (GR)
• 4mm (.157”) with flat edge polish
• Only available with backpainted glass and mirror inserts on door front
• Handle hole locations must be specified at time of order if insert is luxe bronze (LB)
tempered glass
HINGE INFORMATION
modern brass (MB)
AF210 profile utilizes standard 35mm cup screw-on hinges:
• Blum 35mm cup hinge: H71T5550
• Blum blumotion 35mm cup hinge: H71B3550
• Salice 35mm cup hinge: HC2P9A99
• More options available - contact Element Designs for details
AF210 doors will need additional hinges due to door weight. Please
use our door weight calculator to determine hinge requirements.
Aluminum Frame Doors: AF210 Profile in Chrome Finish
Image Courtesy of Amadas Coach78 ALUMINUM FRAME CABINET DOORS 79
DIVIDER RAILS - CABINET DOORS natural aluminum (N)
brushed stainless (S)
ALUMINUM FRAME bronze matte (BZM)
DIVIDER RAILS chalk (CK)
onyx (X)
DESIGN GUIDELINES black (B)
• Divider rails provide an additional design option for cabinet
doors to create the appearance of multiple panes
• Rails can run either horizontally or vertically arctic silver (AS)
• Multiple inserts may be used per door with divider rails
• Rail measures 3/4” (19mm) wide
copper (CP)
COMPATIBLE WITH THE FOLLOWING PROFILES:
• AF001
gold (GLD)
• AF003
• AF005
• AF007 graphite (GR)
• AF009
• AF011
luxe bronze (LB)
• AF013
modern brass (MB)
Pictured: AF013 in Onyx Finish with Onyx Finish Divider Rails & Clear Glass Inserts
◄ back to table of contents
Image Courtesy of The Cabinet Design Studio80 ALUMINUM FRAME CABINET DOORS 81
STANDARD & PREMIUM
GLASS & MIRROR INSERTS
DESIGN GUIDELINES
• Glass inserts are 5/32” (4mm) thick
• Etched and patterned side of glass faces in
• Glass is tempered safety glass without tempered logo which is available upon request
• Mirror inserts are not tempered but include safety backer
• Listral d has a maximum height of 84” (2133mm)
• Reeded (vertical) has a maximum height of 84” (2133mm)
• Reeded (horizontal) has a maximum height of 60” (1524mm)
STANDARD GLASS & MIRROR
low-iron clear low-iron satin mirror clear satin reeded
grey clear bronze clear listral d
PREMIUM GLASS & MIRROR
bronze satin bronze obscure low-iron obscure grey satin grey obscure low-iron mirror
mirror mirror mirror
◄ back to table of contents82 ALUMINUM FRAME CABINET DOORS 83
BACKPAINTED GLASS INSERTS 3FORM INSERTS ®
STANDARD BACKPAINTED GLASS 3FORM® ARCHITECTURAL RESIN
Our backpainted glass comes in 10 standard colors which are offered in both matte and gloss 3FORM® is the award-winning manufacturer of one-of-a-kind textiles with timeless textures
finishes. We also offer 178 non standard colors, and can color match or create any custom color. made of eco-friendly materials for the architecture + design industry. Their resins are adaptable,
durable, sustainable, and modern.
aqua gloss aqua matte black gloss black matte blush gloss blush matte starcrossed swept gold swept silver mari seamless kathali gray ensign
shadow
bronze gloss bronze matte cream gloss cream matte mist gloss mist matte strand iron weld silver struck pure glint gold fossil leaf linea ivory
navy gloss navy matte sand gloss sand matte slate gloss slate matte quattro carbon thatch wisp silver
DESIGN GUIDELINES DESIGN GUIDELINES
• High quality water based paint on low-iron glass • Inserts are 5/32” (4mm) thick
• All glass is tempered safety glass without a tempered logo • Sandstone finish on front and back
which is available upon request • Resin inserts contain organic materials and
white gloss white matte
• 178 non-standard and custom colors available may vary in color and density due to natural
• High end furniture quality finish with complete opacity conditions
• All backpainted glass comes with light grey protective
painted backer
◄ back to table of contents84 ALUMINUM FRAME CABINET DOORS 85
ELUSION
GLASS INSERTS
Image Courtesy of Simmons & Co
DESIGN GUIDELINES
• Opaque backpainted border around perimeter of glass
• Ideal for aluminum frame profiles AF006 and AF010
• Ideal for low-iron clear, low-iron satin, bronze clear, bronze satin, grey clear, and grey satin
glass options
• Some glass options may affect border color, recommended to order sample
• Standard border width = 2 1/4" (57mm)
• Custom border sizes also available
• 10 standard and 178 non-standard colors
• Custom color matching available
• High end furniture quality paint finish with light grey protective painted backer border
• Matte side faces in when using satin glass unless otherwise specified
• Glass inserts are 5/32" (4mm) thick
PROFILE & FINISH EXAMPLES
AF006 profile in brushed stainless finish AF010 profile in onyx finish with low-iron satin
with clear glass insert & black °elusion border glass insert & black °elusion border
Pictured Left: AF010 Onyx Profile with Grey Clear Glass & a Black °elusion Border
Pictured Top of Page: AF010 Bronze Matte Profile with Low-Iron Clear Glass & a Custom Sized Bronze °elusion Border
◄ back to table of contents
Image Courtesy of Burl & Flitch Woodworks86 SLIDING DOOR SYSTEMS 87
Our sliding door systems are the perfect addition
to closets, pantries, offices, cabinets and furniture
designs. Sliding doors are custom manufactured
to size (+/- 1mm) and arrive with hardware pre-
installed (if applicable). Sliding door systems can
SLIDING
be fully customized with your choice of aluminum
frame profile, finish and insert options including
glass, mirror, and dECOLuxe. These systems can also
DOOR SYSTEMS
be built with divider rails to create a multiple pane
appearance using the same insert type or you may
combine different insert options for a truly custom
design. No minimum order quantities, quick lead
times. Sustainably made in the USA.
AF007 Natural Aluminum, White Backpainted Glass
AF003 Natural Aluminum, Clear Glass AF003 Natural Aluminum, Satin Glass, Divider Rails
Pictured: AF010 Profile in Chrome Finish with Mirror Inserts
◄ back to table of contents
Image Courtesy of Wellborn Cabinet88 SLIDING DOOR SYSTEMS 89
DESIGN GUIDELINES natural aluminum (N)
• Large Floor Sliding System, top guide and bottom track
LARGE SLIDING DOORS
• Floor-to-ceiling and inset casework applications
brushed stainless (S)
• Multiple planes of motion
• Inset or surface mount track
• Door weight capacity: 110 lbs
bronze matte (BZM)
• Soft close mechanisms available
• Max door height 96"
• Contact Element Designs for dimensions exceeding these guidelines
chalk (CK)
• Compatible with all insert options
AVAILABLE PROFILE OPTIONS: onyx (X)
black (B)
arctic silver (AS)
AF002 AF003 AF004 AF005
copper (CP)
gold (GLD)
AF006 AF007 AF009 AF010
graphite (GR)
luxe bronze (LB)
AF011 AF014 AF015 AF210
modern brass (MB)
Pictured: AF004 Profile in Natural Aluminum Finish with Low-Iron Satin Glass Inserts
Image Courtesy of California Closets Tampa ◄ back to table of contents
All Rights Reserved90 SLIDING DOOR SYSTEMS 91
DESIGN GUIDELINES natural aluminum (N)
• Small Sliding System, top and bottom track
SMALL SLIDING DOORS
• Single or by-pass sliding doors use surface mount or inset track.
brushed stainless (S)
• Door weight capacity: 66 lbs
• Max door height 77"
• Compatible with all insert options
bronze matte (BZM)
AVAILABLE PROFILE OPTIONS:
chalk (CK)
onyx (X)
AF001 AF002 AF003 AF004
black (B)
arctic silver (AS)
AF005 AF006 AF007 AF008
copper (CP)
gold (GLD)
AF009 AF010 AF011 AF014
graphite (GR)
luxe bronze (LB)
AF015 AF016 AF210
modern brass (MB)
Pictured: AF004 Profile in Brushed Stainless Finish with Satin Glass Inserts
Image Courtesy of California Closets ◄ back to table of contents
All Rights Reserved92 SLIDING DOOR SYSTEMS 93
DIVIDER RAILS- SLIDING DOORS
natural aluminum (N)
DIVIDER RAILS
brushed stainless (S)
bronze matte (BZM)
chalk (CK)
onyx (X)
black (B)
DESIGN GUIDELINES
arctic silver (AS)
• Divider Rails can be used with sliding doors to provide additional design
options.
• Rails can run either horizontally or vertically
copper (CP)
• Multiple inserts may be used per door with divider rail
• Divider rails measure 25/32” (20mm) wide
• Contact Element Designs for panel height and width
gold (GLD)
limitations with divider rails
COMPATIBLE WITH THE FOLLOWING PROFILES: graphite (GR)
• AF001
• AF003
• AF005 luxe bronze (LB)
• AF007
• AF009
• AF011 modern brass (MB)
• AF013
Pictured: AF003 in Natural Aluminum Finish with Satin Glass Inserts
& Cobalt Blue dECOLuxe Solid Acrylic Inserts
Image Courtesy of California Closets Madison ◄ back to table of contents
All Rights Reserved94 DECOLUXE SOLID ACRYLIC 95
dECOLuxe Solid Acrylic combines luxury and
decor with eco-friendly materials. Made from 100%
recycled acrylic and is 100% recyclable. dECOLuxe
is available in 8 beautiful colors in both 4mm and
18mm thickness. Colors options include alpine
white, anthracite, black, cobalt blue, light grey,
stone grey, turquoise, and white. dECOLuxe is
dECOLuxe
waterproof and UV resistant. It works beautifully as
both cabinet doors and drawer fronts. Ideal spaces
include kitchens, both indoor and outdoor, garages,
SOLID ACRYLIC and more.
Alpine White dECOLuxe
Alpine White dECOLuxe Stone Grey dECOLuxe, Integrated Pulls
◄ back to table of contents96 DECOLUXE SOLID ACRYLIC 97
ACRYLIC DOORS
COLOR OPTIONS
&DRAWER FRONTS
alpine white anthracite black cobalt blue
light grey stone grey turquoise white
FEATURES & BENEFITS
• dECOLuxe solid acrylic sheet size is 39.37" x 118.11" (1m x 3m)
• Available in 4mm and 18mm thickness
• 8 color options
• High gloss, reflective finish
• Waterproof and UV fade resistant
• Optional integrated finger pulls
• Doors and drawer fronts are custom manufactured to size (+/- 1mm)
• Quick lead time
• No minimum order quantities
• Made out of 100% recycled acrylic
• 100% recyclable
Pictured: AF003 Profile in Natural Aluminum Finish with Satin Glass Inserts & Turquoise dECOLuxe
◄ back to table of contents
Image Courtesy of Kabi98 DECOLUXE SOLID ACRYLIC 99
DESIGN GUIDELINES
• Available in 4mm and 18mm thickness
• Acrylic size sheet is 1m x 3m (39.37” x 118.11”)
• High gloss finish on all surfaces
• Matching edge banding is available in all colors
EDGE FINISH OPTIONS
straight edge 1mm 2mm 3mm
18 mm 18 mm 18 mm 18 mm
INTEGRATED PULL OPTION
3 mm 3 mm
m
m
15
=
R
18 mm 18 mm
straight curved
Pictured: Stone Grey dECOLuxe
◄ back to table of contents100 FRAMELESS GLASS DOORS 101
FRAMELESS GLASS DOORS
FRAMELESS
GLASS DOORS
Frameless glass doors add modern transparent style to a variety of residential and
commercial spaces. These doors are available in six glass options which seamlessly
highlight retail spaces, office interiors, kitchens, closets, and more. They can be custom
manufactured to accent any design, from traditional to contemporary. Frameless glass
doors include pre-mounted glass door plates for CRISTALLO Hinges by Blum. Doors can
be easily fabricated for use with your choice of decorative hardware.
DESIGN GUIDELINES
• Maximum width & height = 84" (1219mm)
• Minimum width & height = 5.5" (102mm)
• Maximum square footage = 14 sf
• Thickness is 6mm (1/4")
• Glass is always flat edge polished
• NOT recommended as drawer fronts
• Standard glass options available include: low-iron clear, low-iron satin, clear, satin,
grey clear, and bronze clear
• Contact Element Designs for dimensions exceeding recommended maximums
HINGE TYPE - CRISTALLO with Blumotion
Element Designs is the EXCLUSIVE supplier of the
Blum CRISTALLO Hinge in the United States.
Pictured Left: Frameless Glass Doors in Low-Iron Clear Glass
◄ back to table of contents
Image Courtesy of Phil Kean102 FRAMELESS GLASS DOORS 103
FRAMELESS GLASS DOORS
GLASS OPTIONS
Standard Glass
low-iron low-iron clear satin grey clear bronze
clear satin clear
Image Courtesy of California Closets Portland
Designer: William Sedlar
Pictured (Left & Above): Frameless Glass Doors in Low-Iron Clear Glass
◄ back to table of contents104 DECORATIVE HARDWARE 105
Element Designs’ decorative hardware is a beautiful
modern collection of pulls and knobs that have
been hand selected to coordinate with almost any
contemporary casework application. Our decorative
hardware is available in all twelve aluminum finish
options including both anodized and coated. This
makes them the perfect accent to match any of our
DECORATIVE HARDWARE
other aluminum products.
Knobs
Finger Pulls
Recessed Pull
Bar Pulls Beveled Pull
◄ back to table of contents106 DECORATIVE HARDWARE 107
natural aluminum (N)
brushed stainless (S)
FINGER PULLS chrome (C)
bronze matte (BZM)
chalk (CK)
DESIGN GUIDELINES
• Sleek wrap around finger pull design onyx (X)
• Mounts to back of cabinet door or drawer front
• Width: 9⁄16" (15mm) Height: 1 ¹¹⁄16" (42mm)
black (B)
• Length = 3" (76.2mm)
.197 [5.00]
arctic silver (AS)
.354 [9.00]
1.654
[15.00] copper (CP)
3/16” (5mm)
3/8” (9mm) gold (GLD)
.591 [15.00]
graphite (GR)
Flush mount door fabrication
luxe bronze (LB)
available upon request.
(not available with AF010 profile)
modern brass (MB)
◄ back to table of contents108 DECORATIVE HARDWARE 109
natural aluminum (N)
brushed stainless (S)
HANDLES bronze matte (BZM)
& BAR PULLS chalk (CK)
onyx (X)
LENGTH OPTIONS
The following sizes are available in every finish except stainless: black (B)
• P1-127 Length: 7 3/8” (5” c. to c.)
• P1-190 Length: 9 13/16” (7 1/2” c. to c.)
arctic silver (AS)
• P1-250 Length: 12 13/16” (9 13/16” c. to c.)
• P1-380 Length: 17 5/16” (14 15/16” c. to c.)
• P1-640 Length: 27 9/16” (25 3/16” c. to c.)
copper (CP)
• P1-880 Length: 37” (34 5/8” c. to c.)
Brushed stainless is only available in the folllowing sizes:
gold (GLD)
• P1-76S Length: 5 5/16” (3” c. to c.)
• P1-192S Length: 9 15/16” (7 9/16” c. to c.)
• P1-320S Length: 15” (12 9/16” c. to c.)
graphite (GR)
luxe bronze (LB)
modern brass (MB)
◄ back to table of contents110 DECORATIVE HARDWARE 111
natural aluminum (N)
bronze matte (BZM)
KNOBS chalk (CK)
onyx (X)
K001 K005
black (B)
arctic silver (AS)
w = 16mm (5/8”) w: 14mm (9/16”)
copper (CP)
h = 21mm (13/16”) h: 23mm (7/8”)
K006 K007
gold (GLD)
graphite (GR)
luxe bronze (LB)
w = 16mm (5/8”) w: 14mm (9/16”)
h = 21mm (13/16”) h: 23mm (7/8”)
K008 K009 modern brass (MB)
w = 16mm (5/8”) w: 14mm (9/16”)
h = 21mm (13/16”) h: 23mm (7/8”)
◄ back to table of contents112 DECORATIVE HARDWARE 113
R1-96 R1-160 natural aluminum (N)
brushed stainless (S)
RECESSED PULLS chrome (C)
bronze matte (BZM)
DESIGN GUIDELINES: R1-96 chalk (CK)
• R1-96 Recessed Pull - Flush mounted into aluminum frames or other
door materials
onyx (X)
• 105.5mm (4.15”) overall length, 96mm c.to c.
• 2 screws included
• For use with AF003, AF007. AF009 and AF011 profiles
black (B)
DESIGN GUIDELINES: R1-160
• R1-160 Recessed Pull - Flush mounted into aluminum frames or other arctic silver (AS)
door materials
• 170mm (6.69”) overall length, 160mm c.to c.
• 2 screws included copper (CP)
• For use with AF003, AF007. AF009 and AF011 profiles
gold (GLD)
graphite (GR)
luxe bronze (LB)
modern brass (MB)
◄ back to table of contents114 DECORATIVE HARDWARE 115
natural aluminum (N)
brushed stainless (S)
BEVELED PULLS bronze matte (BZM)
chalk (CK)
onyx (X)
DESIGN GUIDELINES
• Used to create an integrated handle on wood doors
black (B)
• Adds subtle design detail with anodized or coated finishes
• Length options: in 120” (3048mm), 90” (2286mm)
• Custom lengths available upon request
arctic silver (AS)
• Machining available for custom lengths
• Available in all anodized and coated finishes
• Not for use with aluminum frame doors copper (CP)
gold (GLD)
graphite (GR)
luxe bronze (LB)
modern brass (MB)
◄ back to table of contents116 FUNCTIONAL HARDWARE 117
Element Designs’ decorative hardware is a
beautiful modern collection of pulls and knobs
that have been hand selected to coordinate with
almost any contemporary casework application.
Our decorative hardware is available in all twelve
aluminum finish options including both anodized
and coated. This makes them the perfect accent
FUNCTIONAL
to match any of our other aluminum products.
HARDWARE
Concealed Hinge
AVENTOS HF Lift System AIR Hinge
◄ back to table of contents118 FUNCTIONAL HARDWARE 119
BLUM HARDWARE
BLUM AVENTOS LIFT HARDWARE BLUM HINGES
Blum AVENTOS lift hardware offers a wide variety of door opening options to suit many design We are proud to offer an extensive selection of Blum concealed European hinges to
needs. We offer the following lift hardware: HF - Bi-Fold, HL - Lift Up, HS - Up and Over, plus HK- meet your functional hardware needs. Visit our website to see the entire collection of
Top, HK-XS, and HK-S Stay Lift systems. hinges and plates.
AVENTOS HF - Bi-Fold AVENTOS HL - Lift Up AVENTOS HS - Up and Over BLUMOTION Blum® Narrow Frame Hinge
two part door front that folds in single door front that lifts up single door front that swings over Blum® Narrow Frame Hinge straight arm, 120°, 15mm
the center when opening parallel to the cabinet the top of the cabinet straight arm, 95°, 15mm overlay, soft overlay, self close
close with deactivation switch
AVENTOS HK-Top - Stay Lift AVENTOS HK-XS - Stay Lift AVENTOS HK-S - Stay Lift
single door front that lifts upward; single door front that lifts upward; single door front that lifts smaller BLUMOTION Blum® 35mm Cup Hinge
uses easy install cabinet side lift uses hinges and cabinet side lift doors upward; uses cabinet side Blum® 35mm Cup Hinge straight arm, 120°, self close
mechanism mechanism lift mechanism straight arm, 110°, soft close with
deactivation switch
Online support for ordering AVENTOS hardware is available through the AVENTOS Wizard within our For additional Blum hardware options visit element-designs.com
online ordering portal, elementONLINE. For more information on how to use the AVENTOS Wizard and
other features within elementONLINE please visit our website.
◄ back to table of contents120 FUNCTIONAL HARDWARE 121
SALICE HARDWARE
SALICE HINGES SALICE AIR HINGES
We are proud to offer an extensive selection of Salice concealed, European hinges to The Salice AIR Hinge is installed directly into the top and bottom of the cabinet, making it
meet your functional hardware needs. Visit our website to see the entire collection of virtually invisible and ideal for glass cabinet doors. Salice AIR Hinges are available only on
hinges and plates. aluminum door profiles AF012 and AF013.
Salice Silentia Narrow Frame Hinges Salice Push-to-Open Salice AIR Hinge Salice AIR Hinge
soft close, free-swing Narrow Frame Hinges push-to-open, free-swing soft-close
Nickel (Shown) or Titanium Finish push-to-open Nickel (Shown) or Titanium Finish Nickel or Titanium (Shown) Finish
Nickel (Shown) or Titanium Finish
*Magnetic push hardware also
*Magnetic push hardware also available available for push-to-open hinges
for push-to-open hinges
Salice Silentia Wide Frame Hinges Salice Push-to-Open
soft close, free-swing Wide Frame Hinges
Nickel (Shown) or Titanium Finish push-to-open
Nickel (Shown) or Titanium Finish
*Magnetic push hardware also available
for push-to-open hinges
◄ back to table of contents122 GOLA CHANNELS 123
GOLA aluminum channels are a simple way to achieve
hardware-free cabinetry not only with their sleek
design, but without additional fabrication required
during the manufacturing of both cabinet doors
and drawer fronts. GOLA profiles are easily installed
into cabinets with concealed brackets. The spacer
channels provide ample room for fingertips so that the
GOLA CHANNELS
doors and drawer fronts themself can be used to open
and close instead of exposed handles and pulls.
J-Channel & C-Channel, Stainless Nickel Finish
Aluminum Spacer Single & Double, Stainless Nickel Finish C-Channel, Gold Finish
Pictured: GOLA J-Channel & C-Channel in Gold
◄ back to table of contents
Image Courtesy of Essence Cabinets124 GOLA CHANNELS 125
GOLA ALUMINUM J-CHANNEL (GC-8006) natural aluminum (N)
stainless nickel (SN)
J-CHANNEL bronze matte (BZM)
chalk (CK)
onyx (X)
black (B)
Mounts inside of cabinet, under countertop to provide space
for fingers to reach the back of cabinet door or drawer front.
DESIGN GUIDELINES
arctic silver (AS)
• Length options: 90” (2286), 120” (3048)
• Custom cut-to-size lengths available upon request copper (CP)
• For necessary mounting components, including open and closed
end caps, see the GOLA technical manual which can be found
on our website gold (GLD)
graphite (GR)
luxe bronze (LB)
modern brass (MB)
Pictured: GOLA J-Channel & C-Channel in Stainless Nickel Finish
◄ back to table of contents
Image Courtesy of Van Arbour Design126 GOLA CHANNELS 127
GOLA ALUMINUM C-CHANNEL (GC-8007) natural aluminum (N)
stainless nickel (SN)
C-CHANNEL bronze matte (BZM)
chalk (CK)
onyx (X)
black (B)
Mounts inside of cabinet, between drawer fronts or doors to provide
space for fingers to reach the back of cabinet door or drawer front.
arctic silver (AS)
DESIGN GUIDELINES
• Length options: 90” (2286), 120” (3048)
copper (CP)
• Custom cut-to-size lengths available upon request
• For necessary mounting components, including open and
closed end caps, see the GOLA technical manual which can
gold (GLD)
be found on our website
graphite (GR)
luxe bronze (LB)
modern brass (MB)
Pictured: GOLA C-Channel in Gold Finish
◄ back to table of contents128 GOLA CHANNELS 129
GOLA DOUBLE VERTICAL CHANNEL (GC-8074) natural aluminum (N)
stainless nickel (SN)
VERTICAL & bronze matte (BZM)
UPPER CABINET CHANNEL GOLA SINGLE VERTICAL CHANNEL (GC-8059)
chalk (CK)
onyx (X)
black (B)
Vertical Channels mount vertically in the center between two cabinet
doors to provide space for fingers to reach behind doors for easy opening.
arctic silver (AS)
DESIGN GUIDELINES
• Length options: 90” (2286), 105” (2667)
• Custom cut-to-size lengths available upon request copper (CP)
• For necessary mounting components, see the GOLA technical
manual which can be found on our website
gold (GLD)
GOLA UPPER CABINET CHANNEL (GC-1730) graphite (GR)
luxe bronze (LB)
modern brass (MB)
Pictured: GOLA Single Vertical Channel & Double Vertical Channel in Stainless Nickel Finish
◄ back to table of contents130 SHELVING SYSTEMS 131
Element Designs’ shelving systems provide fully
integrated and complete storage solutions for
residential and commercial spaces. Our modern
shelving designs combine contemporary style and
exceptional materials into elegant easy-to-install
S H E LV I N G
units. Our °eCubed Shelving Systems can be built
around existing wood shelving along with a variety
of our glass shelving options, including standard,
SYSTEMS
backpainted, custom color backpainted, °elusion
and more.
°eCubed Shelving System, Onyx
°eCubed Shelving Ladder, Onyx °eCubed Shelving System, Brushed Stainless
◄ back to table of contentsYou can also read
