PRODUCT CATALOG 2021 RMD Articulated Lamps PRODUCTS 1. LED SPECIAL LINE VARIO S 48 W 2. LED PREMIUM LINE 32 W 3. LED BLACK LINE 4. LED PRO LINE 12 & 24 W 5. LED STANDARD LINE 12 & 24 W 6. LED BASIC LINE
Special Line vario S 48W

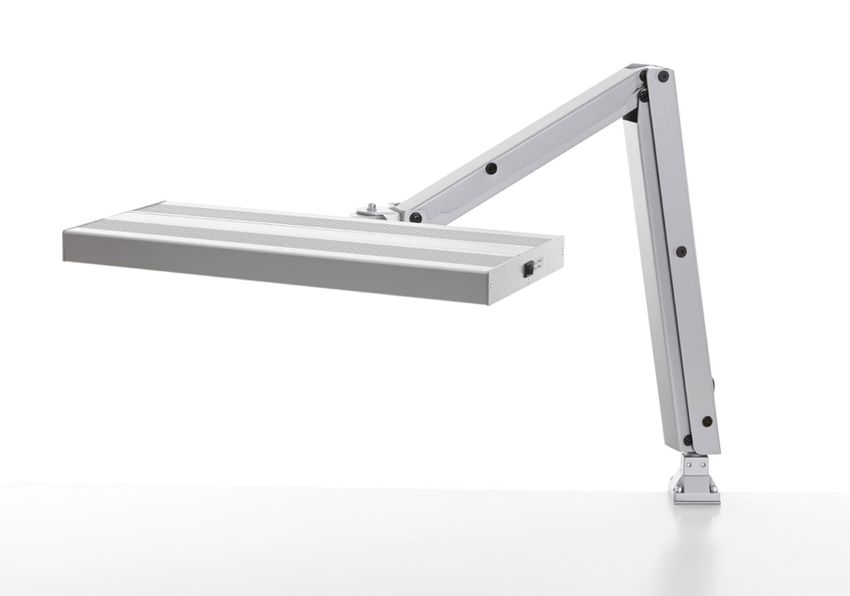

Movement display using the example of the RMD vario S 55/2
Technical data
Light distribution wide – symmetric high-lustre anodized reflectors, direct lighting
Control gear electronic LED-driver, dimming range 1 – 100%
Mains lead approx. 3m cable H03VV-F3G0,75 with Schuko-plug, 220-240V~/50-60Hz
LED-cover microprism screen + bi-functional diffusor foil (turnable for 2 different degrees of
diffusion)
Switch multi-functional push button switch in the lateral lighting head
Power 48W
LED-lifetime up to 50.000 hrs.
Protection class IP20
Joint arm gas pressure springs integrated in the upper and lower articulated arms
Weight approx. 6,6 kg
Profile
! Innovative articulated arm with two gas springs.
! Easily and continuously adjustable thanks to integral gas pressure springs without the need for opening
any screw or wing nut.
! The luminaire head stays always parallel to the table (parallelogram arm) and is mechanically adjustable
in slope.
www.rmd-leuchten.de
! Arm-variations:
! lower arm alternatively 15cm shortened for mounting on high boards
! alternatively, lower arm fixed, 17° forward inclined
! Well-shaped, flat lighting body made of extruded aluminum profile with laser-cut end caps.
! Dimensions: luminaire head 586 x 215 x 35,5 mm
! Colour: Luminaire head natural anodized, other parts silver-grey painting RAL 9006
Light properties
Illuminance at the working area:
Measuring distance Lux
50cm up to 7000
45cm up to 7800
CRI: Colour rendering index
40cm >9000
CCT: correlated colour temperature
! Very powerful light at the working area provided by two rows of LED-modules.
! 96 daylight white „full-spectrum “MidPower LEDs, colour temperature approx. 5700K
! Highest colour rendition - CRI > 95 (typ.97)
! Dimmable integral state-of-the-art LED-driver – no disturbing separate power supply.
! Continuously dimmable and flicker-free with memory function
! Good glare protection provided by a microprismatic screen plus additional high-tech diffusor foil - smooth,
glare-free and shadow-free light.
! No shift of the light colour when dimming the LEDs
! No UV- and infrared-light emission (e.g. preventing untimely hardening of synthetic materials)
! No heat emission in direction of the light – working area remains cool – the lighting head remains lukewarm
Dimming function:
Continuously dimmable from 1 - 100%, controlled by a multi-functional push-button on the lateral side of the
lamp head
! Switching and dimming of the light via the multifunction push-button in the light housing
! Quick key press (0.5s) to dim up/down, each key press changes the dimming direction
www.rmd-leuchten.de
! Operating modes for dimming converter
o MODE 1: The switch-on value is always the last dimming value before switch-off (or e.g. after
power failure) - This is the factory default setting
o MODE 2: The switch-on value is the value saved by double-clicking the button (with the lamp
switched on) (press twice within 0.4s).
o This reference value can be manually changed at any time by long key press. Deleting the
reference value by double-clicking the pushbutton with the lamp switched off, returns to
MODE 1.
o

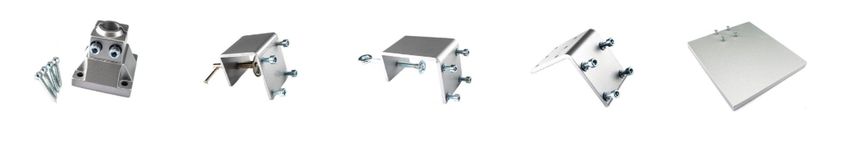

Mounting brackets
! Picture 1: screwdown flange 60 x 60 mm (incl.)
! Picture 2/3: table clamps with a span of 0-44mm or 15-85mm
! Picture 4: wall angle
! Picture 5: table base vario
!
picture 1 picture 2 picture 3 picture 4 picture 5
! Picture 6: Recommended mounting for dental workstation
picture 6
www.rmd-leuchten.de
www.rmd-leuchten.de
Premium Line 32W
Technical data
Light distribution mid beam – symmetric high-lustre anodized reflectors, direct lightning
Control gear electronic LED-driver, dimming range 100 – 1%
Mains lead approx. 3m 3-pole cable H03VV-F3G0,75 with Schuko-plug (German/French earth line
as standard), 220-240V~/50-60Hz
LED-cover microprism screen + bi-functional diffusor foil (turnable for 2 different degrees of
diffusion)
Switch multifunctional all push button switch in the lighting head (ON/OFF/DIM)
Power 32W
LED-lifetime up to 50.000 hrs.
Protection class IP20
Joint arm parallelogram-arm with 2 integral gas pressure springs
Weight approx. 4,1 kg
Profile
! 3-D-joint at the lighting head with wide adjustment range, lockable by a wing nut
! Joint arm with parallel motion, easily and continuously adjustable thanks to integral gas pressure springs
without the need for opening any screw or wing nut, no accidental sagging by inadvertent maloperation
! Arm length: upper arm 300 mm, lower arm alternatively 300 or 400mm for mounting on boards
www.rmd-leuchten.de
! Elegant, slim and flat lighting head
! Dimensions: 585 x 111 x 35,5mm
! Colour: silver-gray painting RAL 9006
Light properties
Illuminance at the working area:
Measuring distance Lux
40cm up to 7300
CRI: Colour rendering index
CCT: correlated colour temperature
! Very powerful light at the working area provided by two rows of LED-modules – up to 7300lx illuminance
! 96 daylight white midpower-LEDs, 5700K
! Very high colour rendition - CRI > 95 (typ. 97)
! High-efficient dimmable integral state-of-art LED-driver – no disturbing separate power supply
! Continuously and flicker-free dimmable as standard, with memory function
! Good glare protection provided by a microprismatic screen plus additional high-tech diffusor foil –
alternatively with frosted polyshield for applications with glossy parts
! No shift of the light colour when dimming the LEDs
! No UV- and infrared-light emission (e.g. preventing untimely hardening of synthetic materials)
! No heat emission in direction of the light – working area remains cool – the lighting head remains lukewarm

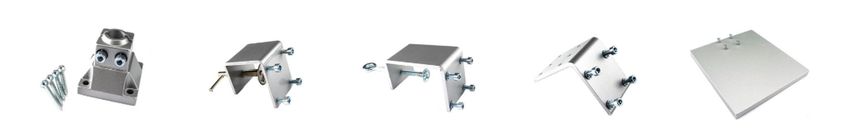

Mounting brackets
! Picture 1: screwdown flange 60 x 60 mm (incl.)
! Picture 2/3: table clamps with a span of 0-44mm or 15-85mm
! Picture 4: wall angle
! Picture 5: table base 10,5kg, 240 x 265 mm
picture 1 picture 2 picture 3 picture 4 picture 5
www.rmd-leuchten.de
Black Line 32W
Technical data
Light distribution mid beam – symmetric high-lustre anodized reflectors, direct lightning
Control gear electronic LED-driver, dimming range 100 – 1%
Mains lead approx. 3m 3-pole cable H03VV-F3G0,75 with Schuko-plug (German/French earth line
as standard), 220-240V~/50-60Hz
LED-cover microprism screen + bi-functional diffusor foil (turnable for 2 different degrees of
diffusion)
Switch multifunctional all push button switch in the lighting head (ON/OFF/DIM)
Power 32W
LED-lifetime up to 50.000 hrs.
Protection class IP20
Joint arm parallelogram-arm with 2 integral gas pressure springs
Weight approx. 4,1 kg
Profile
! 3-D-joint at the lighting head with wide adjustment range, lockable by a wing nut
! Joint arm with parallel motion, easily and continuously adjustable thanks to integral gas pressure springs
without the need for opening any screw or wing nut, no accidental sagging by inadvertent maloperation
! Arm length: upper arm 300 mm, lower arm alternatively 300 or 400mm for mounting on boards
www.rmd-leuchten.de
! Elegant, slim and flat lighting head
! Dimensions: 585 x 111 x 35,5mm
! Colour: black
Light properties
Illuminance at the working area:
Measuring distance Lux
40cm up to 7300
CRI: Colour rendering index
CCT: correlated colour temperature
! Very powerful light at the working area provided by two rows of LED-modules – up to 7300lx illuminance
! 96 daylight white midpower-LEDs, 5700K
! Very high colour rendition - CRI > 95 (typ. 97)
! High-efficient dimmable integral state-of-art LED-driver – no disturbing separate power supply
! Continuously and flicker-free dimmable as standard, with memory function
! Good glare protection provided by a microprismatic screen plus additional high-tech diffusor foil –
alternatively with frosted polyshield for applications with glossy parts
! No shift of the light colour when dimming the LEDs
! No UV- and infrared-light emission (e.g. preventing untimely hardening of synthetic materials)
! No heat emission in direction of the light – working area remains cool – the lighting head remains lukewarm

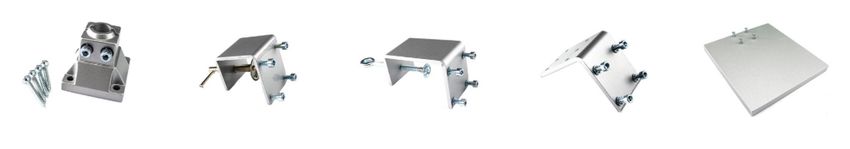

Mounting brackets
! Picture 1: screwdown flange 60 x 60 mm (incl.)
! Picture 2/3: table clamps with a span of 0-44mm or 15-85mm
! Picture 4: wall angle
! Picture 5: table base 10,5kg, 240 x 265 mm
Note: All fixings are also available in black
picture 1 picture 2 picture 3 picture 4 picture 5
www.rmd-leuchten.de
Pro Line
Technical data
Light distribution wide – symmetric high-lustre anodized reflectors, direct lighting
Control gear electronic LED-driver, no disturbing separate power supply
Mains lead approx. 3m cable H03VV-F3G0,75 with Schuko-plug, 220-240V~/50-60Hz
LED-cover microprism screen + bi-functional diffusor foil (turnable for 2 different degrees of
diffusion)
Switch Multifunctional push-button in articulated arm (ON/OFF/DIMMEN)
Power optional 12W or 24W
LED-lifetime up to 50.000 hrs.
Protection class IP20
Joint arm friction based-swivel arm made of aluminum special section tube, spring-supported
center and base joints
Weight 3,1 kg / 3,5 kg
Profile
! Compact and robust lighting body with spring-supported center and base joints
! 3-D-joint at the lighting head with wide adjustment range
! Elegant, slim and flat lighting head
www.rmd-leuchten.de
! Dimensions:
o 12W Variation: 350 x 99 x 35,5 mm
o 24W Variation: 586 x 99 x 35,5 mm
! Colour: silver-gray painting RAL 9006
Light properties Illuminance at the working area
(24W-Variation):
Measuring distance Lux
40cm up to 4700
Illuminance at the working area:
(12W-Variation):
Measuring distance Lux
CRI: Colour rendering index
CCT: correlated colour temperature
40cm up to 3500
! Homogeneous, large-area light by one row of LED-modules
! 24 (12W) or 48 (24W) daylight white MidPower-LED’s, colour temperature approx. 5700K
! Very high colour rendition - CRI > 95 (typ. 97)
! Integral state-of-art LED-driver – no disturbing separate power supply
! Dimmable as standard
! Good glare protection provided by a microprismatic screen plus additional high-tech diffusor foil - smooth,
glare-free and shadow-free light.
! No UV- and infrared-light emission (e.g. preventing untimely hardening of synthetic materials)
! No heat emission in direction of the light – working area remains cool – the lighting head remains lukewarm
!

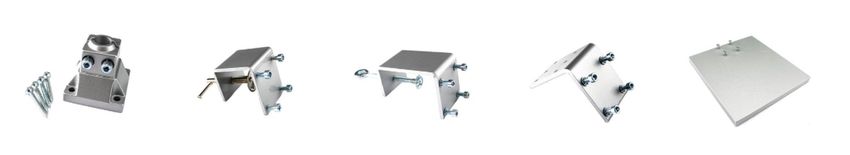

Mounting brackets
! Picture 1: screwdown flange 60 x 60 mm (incl.)
! Picture 2/3: table clamps with a span of 0-44mm or 15-85mm
! Picture 4: table base 10,5kg, 240 x 265mm
! Picture 5: wall angle
picture 1 picture 2 picture 3 picture 4 picture 5
www.rmd-leuchten.deStandard Line
Technical data
Light distribution wide – symmetric high-lustre anodized reflectors, direct lighting
Control gear electronic LED-driver, no disturbing separate power supply
Mains lead approx. 2m cable H03VV-F3G0,75 with Schuko-plug, 220-240V~/50-60Hz
LED-cover microprism screen + bi-functional diffusor foil (turnable for 2 different degrees of
diffusion)
Switch Switch in articulated arm (ON/OFF), alternatively dimmable
Power optional 12W or 24W
LED-lifetime up to 60.000 hrs.
Protection class IP20
Joint arm friction based-swivel arm made of aluminum special section tube, spring-supported
center and base joints
Weight 3,1 kg / 3,5 kg
Profile
• Compact and robust lighting body with spring-supported center and base joints
• 3-D-joint at the lighting head with wide adjustment range
• Elegant, slim and flat lighting head
www.rmd-leuchten.de• Dimensions:
o 12W Variation: 350 x 99 x 35,5 mm
o 24W Variation: 586 x 99 x 35,5 mm
• Colour: silver-gray painting RAL 9006
Light properties
Illuminance at the working area: Illuminance at the working area
(12W-Variation): (24W-Variation):
Measuring distance Lux Measuring distance Lux
40cm up to 3700 40cm up to 5900
• Homogeneous, large-area light by one row of LED-modules
• 24 (12W) bzw. 44 (24W) daylight white MidPower-LED’s, colour temperature approx. 5000K
• High colour rendition - CRI > 80 (typ.83)
• Integral state-of-art LED-driver – no disturbing separate power supply
• Optional dimmable
• Good glare protection provided by a microprismatic screen plus additional high-tech diffusor foil - smooth,
glare-free and shadow-free light.
• No UV- and infrared-light emission (e.g. preventing untimely hardening of synthetic materials)
• No heat emission in direction of the light – working area remains cool – the lighting head remains lukewarm
•

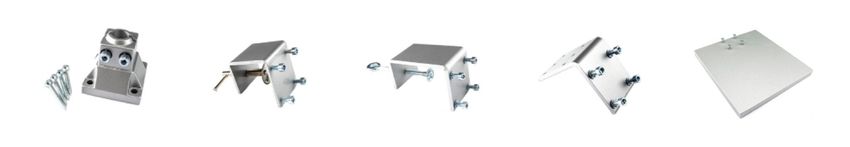

Mounting brackets
• Picture 1: screwdown flange 60 x 60 mm (incl.)
• Picture 2: table clamps with a span of 0-44mm or 15-85mm
• Picture 3: wall angle
• Picture 4: table base 10,5kg, 240 x 265mm
picture 1 picture 2 picture 2 picture 3 picture 4

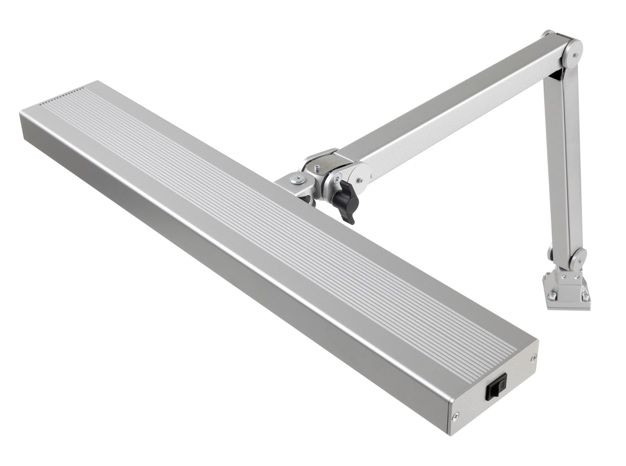

www.rmd-leuchten.deBasic Line 12W
Technical data
Light distribution wide – symmetric high-lustre anodized reflectors, direct lighting
Control gear electronic LED-driver, no dimming
Mains lead approx. 2m cable H03VV-F3G0,75 with Schuko-plug, 220-240V~/50-60Hz
LED-cover microprism screen + bi-functional diffusor foil (turnable for 2 different degrees of
diffusion)
Switch switch in joint arm (ON/OFF)
Power LED-power approx. 11,3W, system power approx.14W
LED-lifetime up to 60.000 hrs.
Protection class IP20
Joint arm ball joint, freely positionable
Weight approx. 2,8 kg
Profile
! Well-shaped, flat lighting body made of extruded aluminum profile with laser-cut end caps.
! Ball joint, freely positionable sleek reflector head
! Dimensions: Light head 355 x 98 x 50 mm, upper arm 375mm, lower arm 415mm
! Colour: silver-gray painting RAL 9006
www.rmd-leuchten.deLight properties
Illuminance at the working area:
Measuring distance Lux
40cm up to 3800
50cm up to 2550
! Bright large-area illumination
! 22 highly efficient HiPower-LED’s, 5000K
! High colour rendition - CRI > 80 (typ. 84)
! Integral state-of-the-art LED-driver – no disturbing separate power supply.
! Good glare protection provided by microprismatic screens plus additional diffusor foils.
!
Mounting brackets
! Picture 1: screwdown flange 60 x 60 mm (incl.)
! Picture 2/3: table clamps with a span of 0-44mm or 15-85mm
! Picture 4: Wall angle
! Picture 5: table base 10,5kg, 240 x 265mm
Picture 1 Picture 2 Picture 3 Picture 4 Picture 5
www.rmd-leuchten.deYou can also read
