Parallel Kinematics: Ready for Mass Production
Parallel Kinematics:
  Ready for Mass Production
                                           Frank Dürschmied

INA reprint from “Werkstatt und Betrieb”
No 9, September 2001
Carl Hanser Verlag, Munich
Parallel Kinematics: Ready for Mass Production
Parallel Kinematics: Ready for Mass Production
Frank Dürschmied

It’s not easy for new technologies.              the EMO trade show. Just two                   Big – Strong – Fast
First there is a great deal of                   years later, 16 different exhibits
                                                                                                EADS, previously known as DASA, is one
enthusiasm: engineers are involved               from this area were displayed, and             of the precursors in PKM implementation.
from the very beginning, look                    an article submitted by INA about a            In March 2000, “Ecospeed”, the first
forward to good sales and some-                  product line specially developed for           Tripod, manufactured by DS-Technolo-
how hope to eliminate problems,                  PKM appeared in the special EMO                gie, was put into operation at the EADS
most of which they’ve already                    issue of the German trade maga-                plant in Augsburg. EADS requirements
thought about. After this though,                zine Werkstatt und Betrieb. What               with regard to dynamics, 5-axis machin-
a stagnation phase sets in.                      was missing though was the “real”              ing with spindle pivot angles up to +/–40°
                                                 mass-produced machines –                       as well as a significant increase in total
This was probably no different in                machine tools with big benefits for            productivity reached their limits using
the case of parallel kinematics                  end customers and in high volumes              conventional designs. DS-Technologie’s
machines (PKMs). The idea was                    that make PKMs more interesting                solution was a tripod that is used as a
promising, and designers got ready               from an economic standpoint.                   modular component of a complete
to quickly sift through 100 years of                                                            manufacturing cell and combined with
                                                 That will all change at this year’s            conventional technology. A special effort
conventional machine-tool history.               EMO, because the first production-             is made to utilize the advantages of PKM
The first prototypes were completed              ready machine tools will be on                 technology and, at the same time, work
as early as 1997 and exhibited at                exhibit.                                       around disadvantages inherent to the
                                                                                                design.
                                                                                                The tripod concept is based on a design
                                                                                                incorporating constant-length “struts”
                                                                                                and driven “end points” that are traversed
                                                                                                using conventional technology, i.e. ball
                                                                                                screw drives. In the selection of PKM
                                                                                                components such as joints and pivot joint
                                                                                                bearings, INA is DS-Technologie’s
                                                                                                engineering partner. For instance,
                                                                                                U-joints with a stiffness of 500 N/mm play
                                                                                                a decisive role for the design of the work
                                                                                                platform. The joints used are special
                                                                                                solutions for DS-Technologie that are
                                                                                                based on standard component designs.

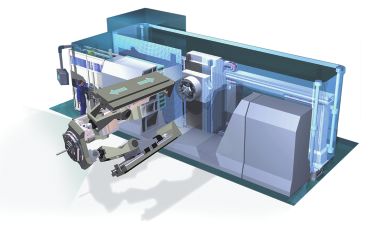

Figure 1 Tripod parallel kinematic Ecospeed supplied by DS-Technologie, machine tools for the
         aviation industry

2
Parallel Kinematics: Ready for Mass Production

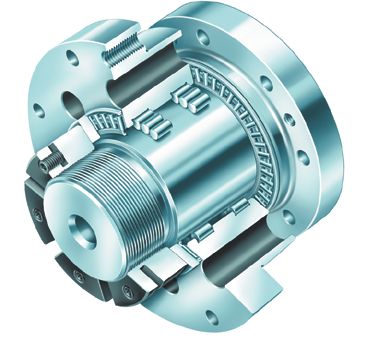

Figure 2 High dynamic feed unit for PKMs

A common view about PKMs holds that            pure PKMs. The machining head used             nor the constant-length struts with linear
only tension and compression forces are        by DS-Technologie also fills the gap           modules were used, but rather axis
transmitted, but bending stresses are          found with conventional machines for this      modules with driven nut & bearing support
also present in the rod end for this kind of   application. Ecospeed ensures reliable         and direct drive. The idea was to place the
tripod kinematics. The U-joints were           manufacturing for honeycomb structures         entire weight of the powertrain about the
optimized accordingly to handle these          with wall thicknesses less than one            pivoting axis of the cardan suspension.
stresses . DS-Technologie also relies on       millimeter.                                    The inertial torque around the suspension
INA’s precision components for conven-                                                        axis is greatly minimized for this configura-
tional feed axes such as guides and ball       Blazing New Trails                             tion, which allows high jerk values without
screw support bearings.                        Who is not familiar with the dynamic work      disturbing transverse vibration. This is also
The result was that the new design             centers supplied by Heckert Werkzeug-          promoted by the high natural frequency of
allowed a significant increase in              maschinen, especially the CWK 400D,            the ball screw, which has a significantly
performance to be achieved. The tripod         which is regarded as one of the fastest in     larger diameter than telescopic struts for
allows feed speeds of up to 50 m/min.          its class? And now they want to take this      instance due to the driven nut and bearing
and accelerations up to 1 g in the linear      one step further: the “end of mass             support. In contrast to many PKM
axes. Up to 7,000 cm3 of aluminum can          movement” has been announced for the           prototypes, the SKM 400 can thus
be cut per minute, which corresponds to        SKM 400 tripod. The goal is to achieve         exhaust all potential in terms of dynamics
approx. 20 kg of aluminum. At the same         similar accuracy and more dynamics for         and can reach maximum acceleration
time, manufacturing times are reduced          the same machining space, all at               values very quickly. In addition, the ball
by 30 – 50 %. [1]                              significantly reduced costs.                   screw and the motor are cooled to
As mentioned above, the “Ecospeed” is          The concept is a tripod with axis modules      minimize thermal effects.
a type of hybrid kinematics. The tripod        spaced 120° apart as well as a double          An important aspect here is that INA
module is not the only component               coupling link. A rotary table was added        supplied Heckert a complete system for
responsible for motion along the axes in       for 5-axis machining, making the machine       the SKM 400, i.e. no time and effort are
space. To reach a larger work area,            very flexible for the applications involved.   required for mounting drives, measuring
i.e. for milling frames, the tripod head is    Regardless whether 5-axis machining is         systems, etc. The design also means that
added to two conventional axes.                to be used for mold making, pallet             the time-consuming work needed to
Because of this arrangement, the tripod        changing or to be included in a manu-          prepare guide raceways and to align
can be moved toward the machining              facturing line as a 3-axis machine, the        guides is eliminated. This allows mount-
area. This configuration represents a          SKM 400 is equipped to do the job. [2]         ing times for machines used in volume
significant improvement on the ratio of        Heckert blazed new trails with INA in          production to be decreased significantly.
machine size with respect to work area,        working out a concept for the drive.           An approximate cost savings of 10 % is
which is often unfavorable in the case of      Neither the almost classic telescopic struts   planned for the long term. [2]

                                                                                                                                         3
Parallel Kinematics: Ready for Mass Production

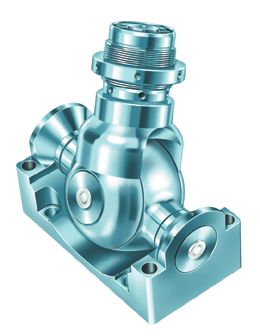

Figure 3 Swivel bearing support for PKM                                                        Figure 4 Disturbing factors that interact with
         Ecospeed                                                                                       calibration

There are currently several users who are       Precision Tops the List                        One important factor for PKM accuracy is
interested in a pilot version of this                                                          calibration, in other words the adjustment
machine, and they intend to use the             The topic of accuracy plays a key role in      of the mathematical model to the
SKM 400. In the start-up phase, volumes         current PKM developments. With regard to       machine geometry. Just as important are
are of course still low, which is not easy      speeds for rapid motion, acceleration and      the influencing factors in operation that
for the supplier cost-wise. On the other        jerk, there are already quite a few things     change machine geometry. Such factors
hand, the idea of being accepted as a           that speak for PKMs. The critics though like   here include thermal effects, deforma-
system supplier is very important to INA.       to compare the accuracy of a PKM with          tions, vibration, etc. Finally, accuracy will
                                                that of conventional machining centers.        also depend on whether a tripod or a
                                                                                               hexapod is used. In general, for
                                                                                               hexapods, machine manufacturing
                                                                                               accuracy does not represent an influenc-
                                                                                               ing factor with respect to the machining
                                                                                               accuracy to be achieved. The only thing
                                                                                               that is decisive here is the determination
                                                                                               of the actual geometry by means of
                                                                                               calibration. In the case of tripods,
                                                                                               however, machine manufacturing
                                                                                               accuracy plays a decisive role due to
                                                                                               the different system.
                                                                                               The topic of calibration is also an
                                                                                               important issue in the “Innovative
                                                                                               Machine-Tool with Parallel Kinematics”
                                                                                               project, which is sponsored by the
                                                                                               Baden-Württemberg Ministry of Trade
                                                                                               and Commerce and includes participants
                                                                                               from the machine-tool and supplier
                                                                                               industry.
                                                                                               For the first time, the calibration
                                                                                               procedure developed at the Zentrum
                                                                                               für Fertigungstechnik Stuttgart
                                                                                               (ZFS = Stuttgart Manufacturing Techno-
                                                                                               logy Center) allows a decisive increase
                                                                                               in hexapod accuracy by calibration only.
                                                                                               What must be emphasized here is that
                                                                                               this accuracy refers to a real-life work
                                                                                               area. Researchers have been able to
                                                                                               reach the defined accuracy target of less

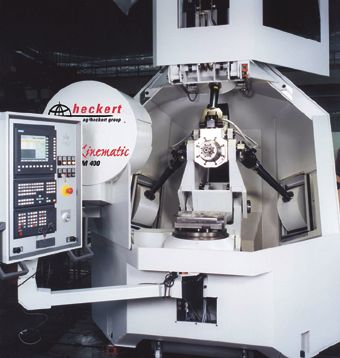

Figure 5 SKM 400 dynamic machining center in parallel kinematics for machining housing-
         shaped workpieces made from light metal and steel
         Photo: courtesy of Heckert Werkzeugmaschinen

4
Bild 6   Circular interpolation test (Source: ZSF)
                                                       a    before calibration                       b after calibration

than 10 µm on a 300-mm circle and             Future Prospects                                     References:
demonstrate that in terms of accuracy                                                              [1] Lilla A. (DS-Technologie)
and calibration, this kind of kinematics is   Besides the Heckert SKM 400D and
                                              DS-Technologie’s Ecospeed, there are                     Volles Tempo in der Black Box
suitable for practical applications. [3]                                                               maschine + werkzeug 06/2000
                                              surely other machine designs (e.g. the
The best way to record the effects of         Index V100) that look promising. Many                [2] Schoppe E. (Heckert WZM)
disturbing factors such as deformation        design studies such as the mobile repair                 Bearbeitungszentrum der
and temperature would be to perform a         unit developed at the University of                      besonderen Art.
direct measurement on the tool center         Hanover, have potential for industrial
point (TCP). However, there is still no                                                            [3] Heisel U. / Hestermann J.O. /
                                              application. These examples demonstrate                  Böhler H. / Pliesch N.
measuring system or measuring strategy
                                              that there is a turn away from the                       Verfahren der Positionsmessung und
for this application. As a manufacturer of
                                              research object and that more emphasis                   Kalibrierung bei PKM
precision components, INA decided to
                                              is being placed on the product. Mainly                   Conference documentation FTK
develop an integrated measuring system
                                              key industrial customers and automobile                  09/2000
for telescopic struts that can be used to
                                              manufacturers see benefits in this
determine the distance between the
                                              technology.
swiveling axes between the frame and
the platform during operation. In this way,   INA will be involved in the development of
geometric changes due to thermal effects      other PKMs ready for mass production,
and deformations can be obtained,             and these will be on exhibit at the 2001
which leads to a significant increase in      EMO trade show. New components for
accuracy. In principle, this idea is not      these applications will also be presented.
new. Measuring via the strut axis was         The trend is definitely heading toward
implemented for some prototypes,              hybrid kinematics – be it tripod configura-
e.g. via laser measurement. However,          tions or plane PKMs – in conjunction with
INA wanted to find a practical solution       conventional axes. In my view, this will
using conventional length-measurement         have a positive influence on the relation-
systems. Initial studies performed in         ship between machine volume and the
cooperation with Heidenhain will be           work area, which is certainly an important
introduced at the 2001 EMO trade show.        aspect for mass-production users.
Together with the RWTH-Aachen                 This concept is obviously more accept-
(Aachen Polytechnic), a trial run will be     able for customers than the still rather
held within the scope of the European         “exotic” hexapod. It’s this customer
Union’s Mach 21 project with the aim to       acceptance that will be decisive for
market a mass-produced product by the         further developments and above all allow
beginning of 2002.                            parallel kinematics to spread.

                                                                                                   The Autor:
                                                                                                   Frank Dürschmied is an application
                                                                                                   engineer in the Manufacturing
                                                                                                   Machines and Systems Division
                                                                                                   at INA Wälzlager Schaeffler oHG
                                                                                                   in Herzogenaurach (Germany).
