Nursing Care Catalogue
2018
Introduction to the “Nursing Care” side of Caremed
Running a busy nursing care establishment is challenging and high
pressure with the needs of so many stakeholders to meet:
- Relatives and patients
- Staff
- Regulatory bodies
Our goal is to assist in protecting you and your organisation from
the pain associated with equipment selection and delivery by
providing beds, pressure care, seating and manual handling
devices that:
- Protect your staff from injury and risks
- Protect your patients and residents from discomfort, harm and
indignity
- Protect your organisation from compliance issues
For 2018-19, we are instigating a programme of continuous
catalogue updates and have introduced an issue number to this
publication. If you’d like to check that you are looking at the latest
version of our catalogue, you can check this at www.care-med.
co.uk/catalogue - compare issue numbers and if necessary,
download the latest version.
We are a true 24/7 organisation, just like the customers we serve -
our office number 01926 889677 is manned round the clock and in
particular, our air mattress delivery service is one example of how
we can support you regardless of the time of day or night.
Looking forward to speaking to you soon.
With best regards
Nathan Thompson Ian Thompson Robert Thompson
2
Contents Page
Introduction to beds Page 4
Profiling Bed Range Page 5
Profiling Bed Range Page 6
Profiling Bed Range Page 7
Introduction to mattresses Page 8
Air Mattress Range Page 9
Air Mattress Range Page 10
Air Mattress Range Page 11
Foam Mattress Range Page 12
Foam Mattress Range Page 13
Pressure Care Cushion Range Page 14
Pressure Care for Heels Page 15
Pressure Care Selection Guide Page 16
Introduction to Ramblegard Page 17
Ramblegard Product Range Page 18
Ramblegard Product Range Page 19
Ramblegard Product Range Page 20
Introduction to manual handling Page 21
Manual Handling Range Page 22
Manual Handling Range Page 23
Manual Handling Range Page 24
Manual Handling Range Page 25
Manual Handling Range Page 26
Manual Handling Range Page 27
Manual Handling Range Page 28

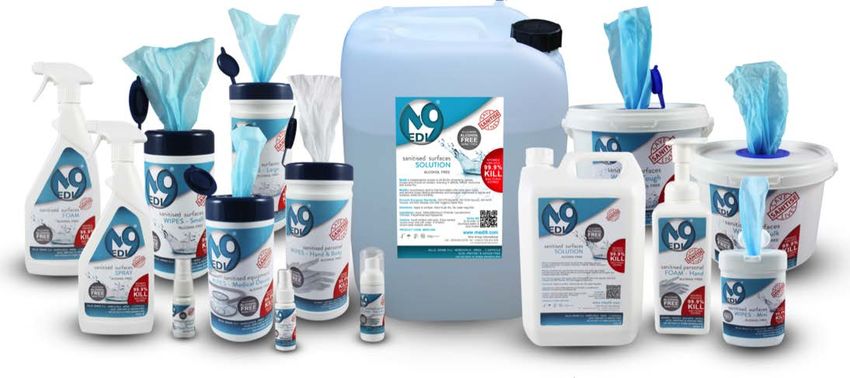

Introduction to Medi9 Page 29
Medi9 Range Page 30
Medi9 Range Page 31
Profiling Bed Accessories – Invacare Page 32
Profiling Bed Accessories – Harvest Page 33
Profiling Bed Accessories – Days/ Casa Page 34
Soft Protection Page 35

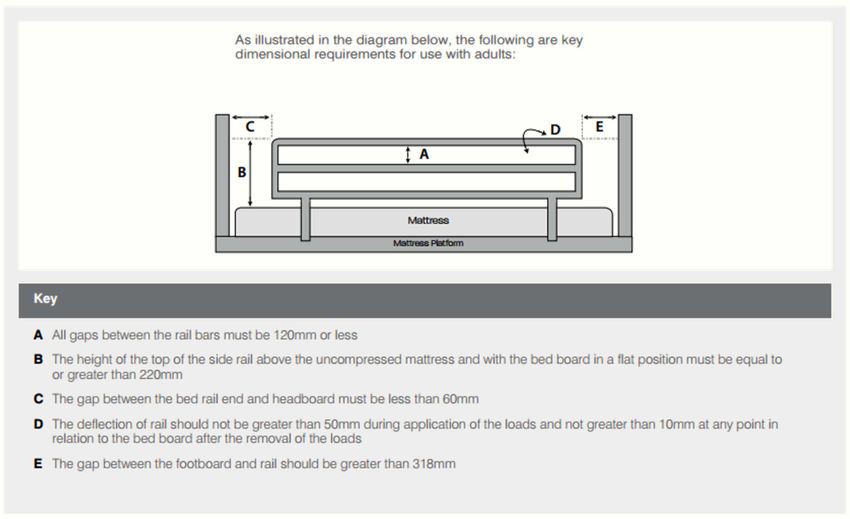

Bed Rail Compliance Page 36
Mattress Decontamination Page 37
Equipment Servicing & Maintenance – The Regulations Page 38
Equipment Servicing & Maintenance – Keeping Compliant Page 39
3

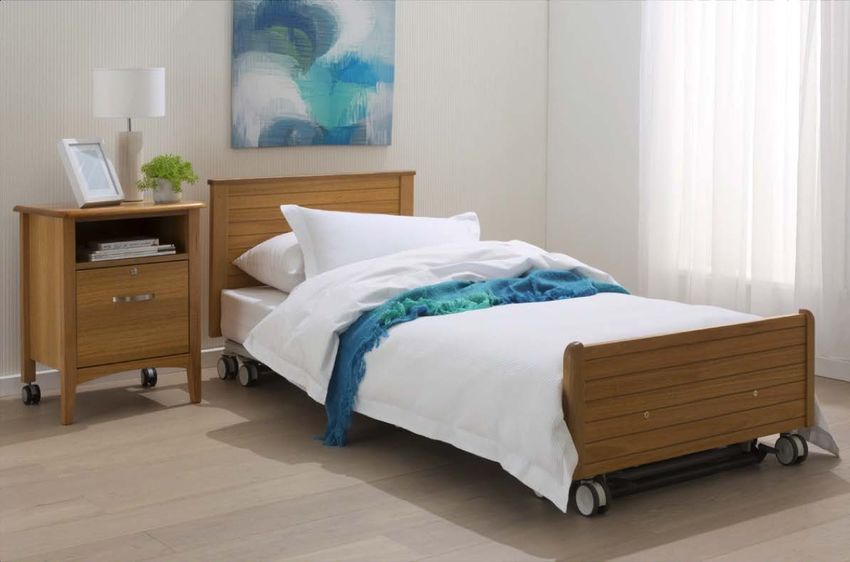

Introduction to beds
Caremed provides a core range of dependable and
innovative care beds; some models, like the EN9000
series, are manufactured exclusively within our own
facilities.
Others, are sourced within the UK and Europe and built
to our exacting standards, ready for a life of service in
your facility.
For guidance on compliance and safety, be sure to
look at page 36
Questions about technical or aftersales service
matters?
Email aftersales@caremed.healthcare
Call 01926 889677
Don’t forget that we offer support to care
establishments via WhatsApp, Zoom & Skype - in
many cases, aftersales issues and troubleshooting
can be resolved using video technology, negating the
need for a site visit.
4
Profiling Bed Range
CM4000 Standard Bed
Max Patient Weight 145 Kg
Profiling Beds
Safe Working Load 180 Kg
Overall Length 2240 mm
Overall Width 1020 mm
Adjustable Height 400mm to 800mm
Angle of Backrest 0 - 70˚
Angle of Knee Rest 0 – 24˚
Total Bed Weight 64 Kg
CM2000 Low Bed
Max Patient Weight 145 Kg
Safe Working Load 180 Kg
Overall Length 2240 mm
Overall Width 1020 mm
Adjustable Height 210mm to 610mm
Angle of Backrest 0 - 70˚
Angle of Knee Rest 0 – 24˚
Total Bed Weight 64 Kg
5
Profiling Bed Range
CM9000 Floor Level Bed
Max Patient Weight 175 Kg
Profiling Beds
Safe Working Load 185 Kg
Overall Length 2130 mm
Overall Width 900 mm
Adjustable Height 67mm to 640mm
Angle of Backrest 0 - 70˚
Angle of Knee Rest 0 – 30˚
Total Bed Weight 81 Kg
CM5000 Bariatric Bed
Max Patient Weight 286 Kg
Safe Working Load 317 Kg
Overall Length 2000 mm
Overall Width 1200 mm
Adjustable Height 240mm to 640mm
Angle of Backrest -
Angle of Knee Rest -
Total Bed Weight 94 Kg
6
Profiling Bed Range
EN9000 Bed
Max Patient Weight 200 Kg or 300 Kg
Safe Working Load 185 Kg
Profiling Beds
Overall Length 2100 mm
Overall Width 900 mm, 1070 mm
or 1370 mm
100 mm to 725mm
Adjustable Height (900mm Width)
150 mm to 725 mm (1070/
1370mm Width)
Total Bed Weight 97.5 Kg
7
Introduction to mattresses
Caremed Total Pressure Care range of mattresses and
surfaces for care are used internationally to alleviate
discomfort and pressure care injuries.
Working with leading manufacturers to create our
own clinically proven range of static, hybrid and
dynamic pressure care surfaces, our goal is to give
you swift access to a range of products that can suit
a wide spectrum of needs in your organisation.
The Combi-Air system remains our most popular
option as a total system for step-up, step-down care,
minimising swapping of mattress surfaces, freeing up
storage space and maximising patient comfort and
pressure therapy.
Did you realise that certain mattress models are
available through our Pressure Care 24/7 service and
can be ordered and delivered any time of day or
night?
8

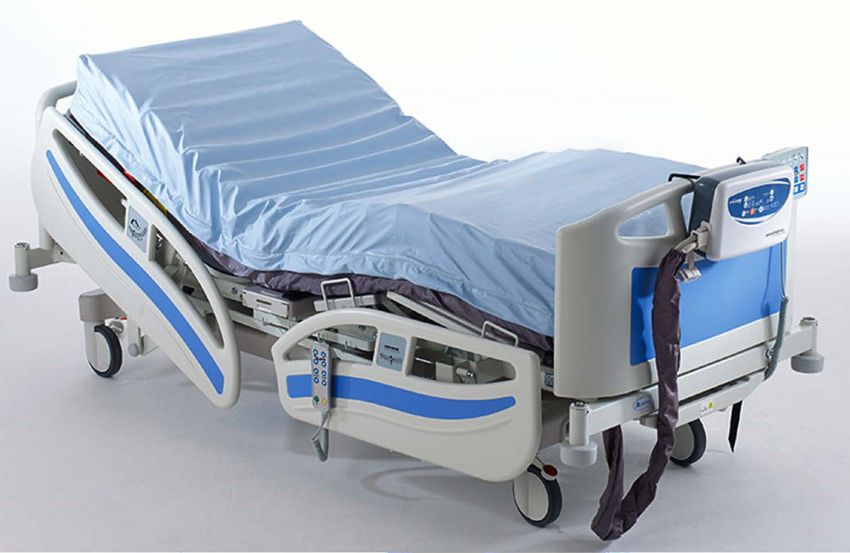

Air Mattress Range
Air Overlay Mattress
Air Mattress Range
Code: CM-M-OL
Dimensions: 2000mm x 900mm x 127mm
Description:
Designed to deliver a cost-effective
solution for the prevention and
management of pressure ulcers in a
nursing home or home care environment.
Medium to High Risk category
Max Patient Weight 180 Kg
Air Overlay Mattress with Base
Code: CM-M-OLB
Dimensions: 2000mm x 900mm x 200mm
Description:
Designed to deliver a cost-effective
solution for the prevention and
management of pressure ulcers in a
nursing home or home care environment.
Medium to High Risk category
Max Patient Weight 180 Kg
9
Air Mattress Range
Combi-Air Hybrid Mattress
Code: CM-CMBR
Air Mattress
Air
Dimensions: 2000mm x 880mm x 152mm
Mattress Range
Description:
A static/ active hybrid mattress. The
Combi-Air is supported by extensive
clinical data, evaluated in a wide variety
Range
of clinical environments.
Very High Risk Category
Very High Risk Max Patient Weight 247 Kg
Clinically proven hybrid technology
The Combi-Air hybrid mattress
replacement system delivers optimal
therapy at the touch of a button.
The clinically proven interface of the
foam mattress combined with active
alternating air cells beneath, provides
both prevention and treatment of
severe pressure ulcers.
The comfortable patient interface
ensures that therapy is delivered without
compromise and a step-up of support
surface is provided without disturbance.
A quiet, unobtrusive power unit can be
activated to provide alternating therapy
to a high specification static foam
support surface without the need for
patient transfer
Excellent for residents who cannot tolerate
“traditional” air mattresses
Use with or without the pump
Very high-risk therapy
***Matching cushion (purchase separately) Auto-set pump detects patient weight
utilises the same pump
Use as static or active
Matching chair cushion* can use the same
pump as mattress
Low in height (same thickness as a standard
foam mattress)
Welded seams and Strikethrough Resistant
Cover
10Air Mattress Range
D900 Auto Full Replacement
Code: D900
Air Mattress Range
Dimensions: 2000mm x 900mm x 200mm
Description:
A high specification full air replacement
system with Very High-Risk therapy.
Very High Risk Category
Max Patient Weight 200 Kg
Very High Risk
The D900 Auto system combines automatic self-adjustment of cell pressure, optional Heel
Relief and Constant Low-Pressure therapy to provide one of the most advanced dynamic
mattresses to the UK healthcare market.
The system is intended for the delivery of high quality care to vulnerable patients and
residents, whilst remaining easy-to-use.
The D900 Auto also offers innovative features such as seat inflation and max firm, with a
lock out feature and both audible and visual alarms to reduce the risk of human error.
Suitable for all risk
categories including
your most vulnerable
residents
Very high-risk therapy
Auto-set pump
detects patient
Welded seams
Heel isolation facility
(deflate heel cell)
11Foam Mattress Range
Underlay Mattress
Foam Mattress Range
Code: CM-ULM
Dimensions: 2000mm x 900mm x 50mm
Description:
50mm foam underlay with a vapour
permeable cover. Designed to fit onto the
bed platform and used underneath an
overlay mattress.
Community Foam Mattress
Code: TPC1
Dimensions: 1980mm x 880mm x 125mm
Medium Risk
Description:
An entry level mattress suitable
for residents with a Medium Risk of
developing pressure ulcers. Mattress is
shaped to allow for easy profiling and
enables “turning”.
Suitable for residents up to 21 Stone/ 133
Kg. Comes with a Vapour Permeable
Cover.
Medium Risk Category
Max Patient Weight 133 Kg
12Foam Mattress Range

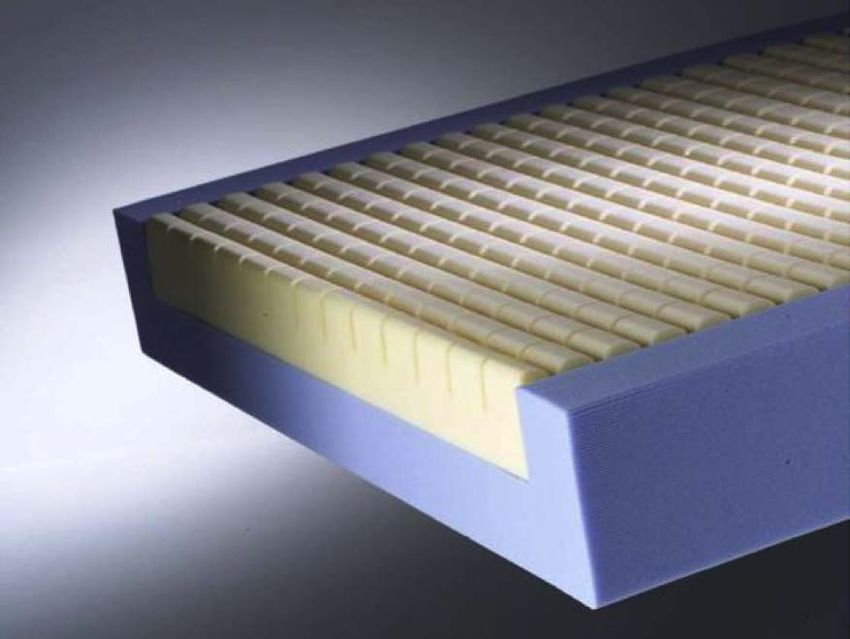

High Risk Foam Mattress
Foam Mattress Range
Code: TPC8
Dimensions: 2000mm x 880mm x 152mm
High Risk
Description:
High Risk, high specification foam mattress
with welded seams, reinforced sidewalls
and a comfortable castellated foam
surface.
High Risk Category
Max Patient Weight 247 Kg
Bariatric Foam Mattress
Code: TPC18
Dimensions: 2000mm x 1200mm x 160mm
Description:
A high risk bariatric mattress built with
three layers of foam. Suitable for residents
up to 46 Stone/ 294 Kg. Is fitted with a
hard-wearing closure cover.
High Risk Category
Max Patient Weight 294 Kg
High Risk
13Pressure Care Cushion Range
Duoform Cushion
Code: TPCDFC
Dimensions: 420mm x 420mm x 80mm
High resilience foam
Cushion Range
Description: surmounted by a two part
visco-elastic gel.
Medium to High Risk 110kg
Viscoflex Plus Cushion
Code: TPCVFPC
Dimensions: 420mm x 420mm x 80mm
Moulded, viscoelastic foam
Description: with an ergonomic foam
insert.
High to Very High Risk 40 – 100 kg

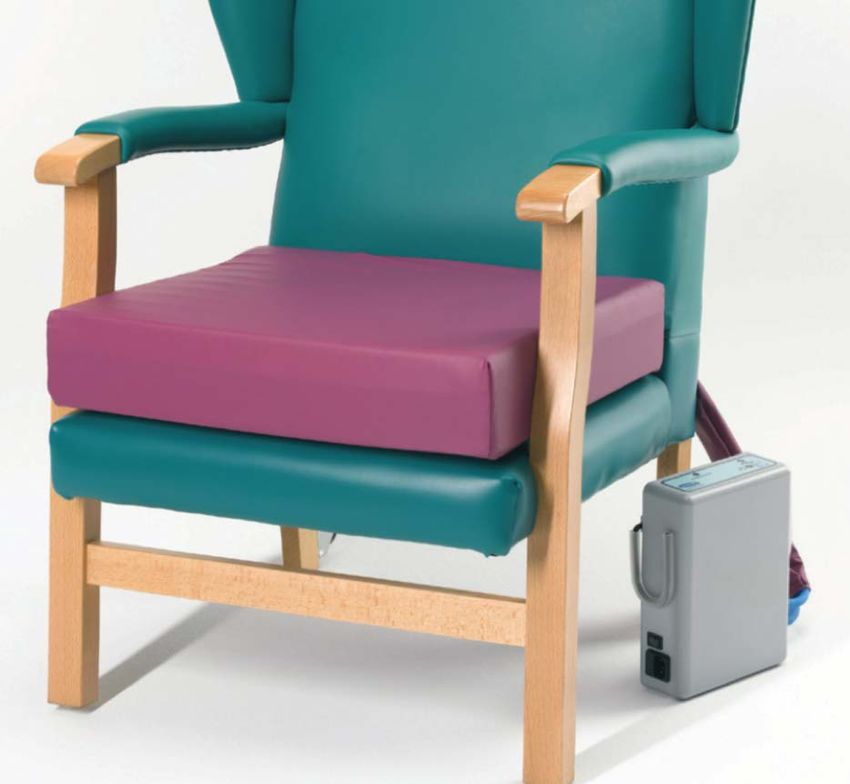

Combi-Air Hybrid Cushion
Code: TPCCAHC
Dimensions: 460mm x 510mm x 152mm
A very high risk alternating air seat
cushion, supplied complete with
Description: pressure adjustable pump. Can be
used without pump.
Very High Risk – 108 Kg
Active Air Cushion
Code: TPCAC
Dimensions: 450 x 450 x 90mm
A high risk alternating air seat cushion,
Description: supplied complete with pressure
adjustable pump.
High Risk – 98 Kg
14Pressure Care For Heels
Heelpad
Code: CM-HP-S (Single)
CM-HP-D (Double)
Pressure Care For Heels
The Heelpad is designed to reduce pressure on
the vulnerable heel area. The controlled volume of
gel in the sacs allows pressure displacement and
even weight distribution. Pressure on a patient’s
heels are kept to a minimum when the heels are in
contact with the gel sac.
Odstock Wedge
Code: CM-OSW
Clinical research has effectively demonstrated that
the degree of knee flexion necessary to achieve
substantial levels of pressure relief is relatively
small. The Invacare Odstock Wedge was designed by
clinicians to reduce pressure on the heels through re-
positioning the hip and elevating the knee.
Heel Boot
Code: CM-HBT-SM (Small) < 38 cm < 15 in
CM-HBT-ST (Standard) 38-43 cm 15-17 in
CM-HBT-XL (Large) ≥ 43 cm ≥ 14 in
The Heel Boot provides excellent comfort and
pressure reduction for patients with a ’high risk’1
of developing pressure ulcers to the vulnerable
heel area. For patients with pressure damage, the
Maxxcare Pro Heel Boot can be an effective solution
for wound healing, as its unique design allows for heel
offloading.
Leg Trough
Code: CM-LGTH-MLT/S (Small)
CM-LGTH- MLT/M (Medium)
CM-LGTH-MLT/L (Large)
The Leg Trough has been designed in consultation
with clinicians to provide maximum support for the
whole leg. The Leg Trough elevates the heels and
allows them to be suspended over the edge of the
trough. This provides maximum pressure relief for the
vulnerable heel area.
15Low Risk Selection Guide
Comfort
Community Foam Mattress
Medium Risk
Waterlow 10+
Air Overlay Mattress Duoform Cushion
High Risk Foam Mattress
Waterlow 15+
High Risk
Bariatric Foam Mattress
Active Air Cushion
Viscoflex Plus Cushion
Very High Risk
Waterlow 20+
Combi-Air Mattress
D900 Auto Full Air Mattress
Combi-Air Hybrid Cushion
16Introduction to Ramblegard
The Ramblegard system of wireless resident falls prevention and
movement monitoring relieves the inconvenience, unreliability and
limitations that are usually experienced when using “traditional”
floor mats or similar in the care home.
Monitoring to prevent falls and to detect wandering is a sensitive
issue and the safety needs of residents have to be balanced
without compromising dignity or independence - not always easy
using archaic sensor pad solutions.
How does Ramblegard differ?
Based around four core sensors, Floorgard, Seatgard, Bedgard and
Motiongard, Ramblegard is:
- Wireless* (no more trailing cables or limitations such as call point
socket positioning)
- Discreet (in many cases, sensor pads can be placed out of sight
and away from risk of tampering
- Flexible and foil-free (look at this link - https://care-med.co.uk/
products-overview/wireless-falls-sensors/ to see how the use of foil
sensors limits durability and flexibility)
- Accurate (highly sensitive and directional Motiongard is so much
more accurate and useful than a PIR that detects any movement in
the room)
- Behaviour based detection (watch our short video here: https://
care-med.co.uk/products-overview/wireless-falls-sensors/ to see
how sensors can be placed differently to detect different falls and
wandering scenarios)
* We offer two wired floor mats as budget options
17Ramblegard Product Range
Floorgard Basic - Wired
Code: R01-0011
Ramblegard Product Range
Dimensions: 710mm x 570mm
Description:
Black plastic water resistant Nurse-Call
floormat with 3 metre break-away lead.
Comes with appropriate adaptor for
connection directly into call system.
Floorgard Deluxe - Wired
Code: R01-0203A
Dimensions: 900mm x 600mm
Description:
Black plastic water resistant Nurse-Call
floormat with 3 metre break-away lead.
Comes with appropriate adaptor for
connection directly into call system.
Floorgard Deluxe – Wireless
Code: R13-00011A
Dimensions: 900mm x 600mm
Description:
Heavy duty non-slip floormat with soft
rubber backing. Comes with a wireless
jack for a cordless connection into
existing call system.
18Ramblegard
Ramblegard Product
Product Range
Range
Seatgard - Wireless
Code: R13-0003A
Ramblegard Product Range
Dimensions: 380mm x 250mm
Description:
The seatgard is a lightweight, durable and
flexible seat exit monitoring solution. Its design
allows far more flexibility with pad placement
than traditional rubber / wired pads. It is
unobtrusive, easy to use and effective - use on
the seat or the backrest to anticipate chair exit
- be sure to visit our demo video to learn more
about its application.
Bedgard – Wireless
Code: R13-0002A
Dimensions: 760mm x 510mm
Description:
The bedgard is a lightweight, durable and
flexible bed exit monitoring solution. Its design
allows far more flexibility with pad placement
than traditional rubber / wired pads. It is
unobtrusive, easy to use and effective - use on
the shoulder / torso or foot end of the mattress
to anticipate bed exit - be sure to visit our demo
video to learn more about its application.
Motiongard – Wireless
Code: R16-0004A
Description:
Intelligently detects patient movement
within a defined area. Contact free
wireless solution can be placed by bed
or doorway, alerts when body movement
is detected within line of vision. When
triggered it send a wireless alarm to a
remote monitor / pager or call system.
19Ramblegard Product Range
Breakaway Lead – 3 metre
Ramblegard Product Ranges
Code: R09-0035
Dimensions: 3m
Suits Wired Mats.
Breakaway Lead – 8 metre
Code: R09-00351
Dimensions: 8m
Suits Wired Mats.
Wireless Jack
Code: R09-0023W
Dimensions: -
Suits Wireless Systems.
Wireless Transmitter
Code: R09-00211
Dimensions: -
Suits Wireless Mats.
Call Lead
Code: CM-NC/NP2
Dimensions: 2m
Comes with right angled jack and clip.
20Introduction to manual handling
Safe patient handling is vital to prevent injury to
both resident and carer. We provide a core range of
reliable, easy to use and clinically effective manual
handling solutions.
We supply simple standing and turning devices, a
comprehensive range of hoists and surfaces for patient
care such as shower trolleys.
21Manual Handling
Rotastand
Code: CM-ROTA
Manual Handling
The Rota Stand has been developed to
allow an assisted transfer from one seated
position to another. The frame, shin pad
and turn table combine to give optimum
safety to both carer and patient during
the transfer. Allows a safe, smooth and
controlled swivel transfer.
SWL: 160 Kg
Orbital Transfer Platform
Code: 800
Designed to assist a person who is weight
bearing and has good upper body
strength to transfer from one seated
position to another.
Pivots between sitting surfaces.
Not to be used for transporting user.
Reduces physical strains upon carers,
providing a correct working position.
SWL: 222 Kg
22Manual Handling
HST200 Patient Hoist
Code: HST200
Manual Handling
Overall Length of Base 1340mm
Outside Width – Legs Closed 690mm
Outside Width – Legs Open 1050mm
Lifting Range 540 – 1920mm
Height of Legs 120mm
Maximum User Weight 200 Kg
SA200 Patient Stand Assist
Code: SA200
Overall Length of Base 1110 mm
Outside Width – Legs Closed 660 mm
Outside Width – Legs Open 1050 mm
Lifting Range 940 – 1610 mm
Height of Legs 120 mm
Maximum User Weight 200 Kg
23Manual Handling
HST400 Patient Hoist
Code: HST400
Manual Handling
Overall Length of Base 1150 mm
Outside Width – Legs Closed 700 mm
Outside Width – Legs Open 1130 mm
Lifting Range 610 – 1060 mm
Under Bed Clearance 130 mm
Maximum User Weight 200 Kg
HST800 Bariatric Patient Hoist
Code: HST800
Overall Length of Base 1420 mm
Outside Width – Legs Closed 715 mm
Outside Width – Legs Open 1205 mm
Lifting Range 810 mm
Under Bed Clearance 126 mm
Maximum User Weight 320 Kg
24Manual Handling
ST7700 Manual Shower Trolley
Code: ST7700
Manual Handling
Width 740 mm
Length 1950 mm
Height Range 410 – 940 mm
Maximum User Weight 240 Kg
Height of Legs 120 mm
Maximum User Weight 200 Kg
Central locking and steering castors
Hydraulic height adjustment via a foot pedal
ST7800 Electric Shower Trolley
Code: ST7800
Width 740 mm
Length 1950 mm
Height Range 410 – 940 mm
Maximum User Weight 240 Kg
Central locking and steering castors
Electric height adjustment via a hand switch
Supplied with spare battery and charger unit
25Manual Handling
Floorgard
TransitDeluxe
Wheelchair
– Wireless
Code: HMA200B
Seat Width 450 mm
Manual Handling
Seat Depth 400 mm
Seat Height 500 mm
Maximum User Weight 110 Kg
CMD100
FloorgardBasic
Deluxe
Commode
– Wireless
Code: CMD100
Seat Width 450 mm
Seat Depth 450 mm
Seat Height 480 mm
Maximum User Weight 160 Kg
Swing-away armrests and swing-away
(removable) footrests
Commode seat with integrated toilet pan
FloorgardDeluxe
CMD200 DeluxeCommode
– Wireless
Code: CMD200
Seat Width 460 mm
Seat Depth 430 mm
Seat Height 480 - 530 mm
Maximum User Weight 159 Kg
Swing-away armrests and swing-away
(removable) footrests
Commode seat with integrated toilet pan
Height Adjustable
26Manual Handling
Motiongard
Manual–Shower
Wireless
Commode
Code: CMD400
Seat Width 500 mm
Manual Handling
Seat Depth 450 mm
Seat Height 510 – 610 mm
Tilt Angle – Seat 0 - 35˚
Maximum User Weight 150 Kg
The CMD400 is a shower commode which offers
a stainless steel frame. The seat tilt can be
individually adjusted (tilt angle 0-35 Degrees), also
with a stainless steel gas spring. The CMD400 is
designed to be extremely stable even at maximum
tilt angle. Headrest for maximum comfort included
as standard. The modularity of the shower chairs
makes them an ideal alternative to prescription
based showers chairs and a suitable solution
for clients with rehabilitative or degenerative
neurological conditions.
Electric Hi-Lo Shower Commode
Code: CMD800
Code: HMA2008
Seat Width 500 mm
Seat Width 450 mm
Seat Depth 450 mm
Seat Depth 400 mm
Seat Height 500 – 1050 mm
Seat Height 500 mm
Tilt Angle – Seat 0 - 35˚
Maximum User Weight 110 Kg
Maximum User Weight 150 Kg
With its full powered adjustment, the CMD800
shower chair commode allows carers to carry out
personal care in safety and comfort; minimising
risk of injury. Adjustment of the height and tilt
is done at the push of a button, ensuring an
effortless working environment. The modularity
of the CMD800 shower chair makes it an ideal
alternative to prescription based showers chairs
and a suitable solution for clients with rehabilitative
or degenerative neurological conditions.
27Manual Handling
Shell Seat
Code: SHELLINT
Manual
ManualHandling
Seat Width 390 mm 450 mm 510 mm
Seat Depth 410 mm 440 mm 470 mm
Seat Height 450 mm 490 mm 530 mm
Handlig
Seat Tilt -3˚ to 27˚
Maximum User Weight 120 Kg

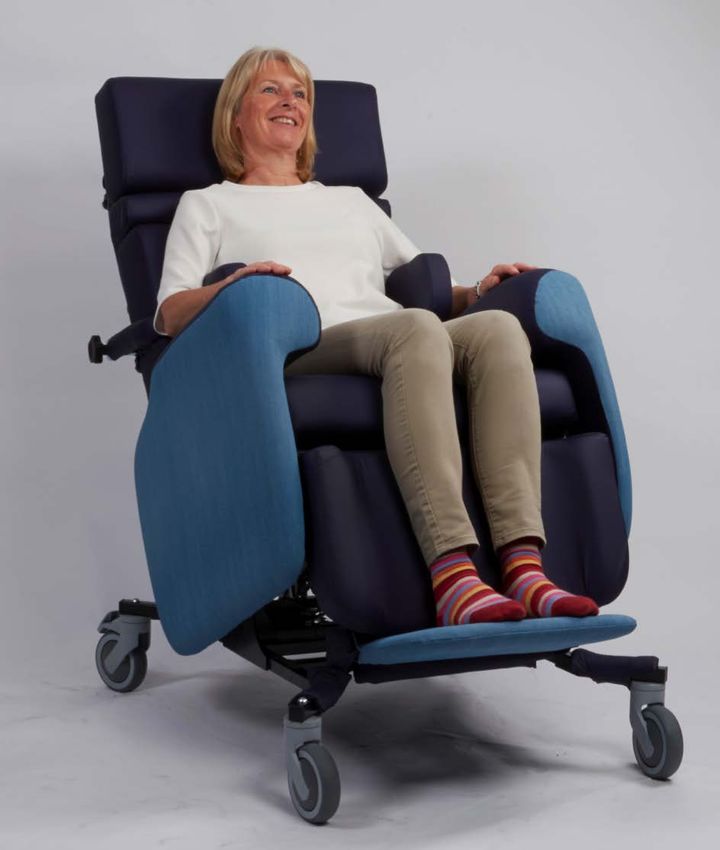

Tilt-In-Space Care Chair
Code: TX30
Seat Width 16 to 21 “
Seat Depth 18 to 22 “
Waterfall
Backrest
Lateral
Type
Flat
Visco/ Gel Seat
Thoracic Supports
Options
Electric Operated or Manual Operated
Fixed or Removable Arms
35˚
Seat Tilt
Maximum User Weight 158 Kg
28Introduction to Medi9
Medi9 is a modern solution to age-old infection control
problems.
Many terminal cleaning products are blighted by
compromise, especially if they are a bleach or acid
based solution:
- they can cause respiratory problems
- they can be highly corrosive to equipment
- they can offer limited success against today’s
infection control risks
Medi9 is safe for skin and respiration, non-corrosive to
equipment surfaces (including mattresses) and yet is
highly effective at combatting:
- Bacteria
- Spores
- Viruses
- Germs
- Fungi
Medi9 won’t damage carpets, curtains or soft-
furnishings and is available in a wide variety of
applications:
- foam
- vapour fogging systems
- wipes
- spray
29Medi9 Sanitised Environments
Medi9 Surface Wipes - Tough
Code: ME902010 TUB QUANTITY: 1000
Medi9 Sanitised Environments
CASE QUANITY: 1
Medi9 Bulk Sanitising Wipes offer an ultra-high level of
sanitisation at a very economical price. Each tub provides up
to 1000 applications of long lasting germ protection to any
surface leaving it biologically clean and sanitised in seconds.
Medi9 Surface Wipes - Large
Code: ME902006 TUB QUANTITY: 200
CASE QUANITY: 12 TUBS
Medi9 Large Surface Wipes provide up to 200 applications of
long lasting germ protection to surfaces. The ready to use no
water formulation provides easy, instant germ protection to
surfaces any time, any place, anywhere.
Medi9 Surface Spray
Code: SPRAY : ME901002 BOTTLE VOLUME: 650ml
FOAM : ME901003 CASE QUANITY: 6
Medi9 Surface Sanitising Spray and Foam are designed for
every day use. The ready to use formulation provides easy
instant germ protection in any environment in seconds.
Medi9 Hand Foam
Code: ME904008 BOTTLE VOLUME: 600ml
CASE QUANITY: 24
Medi9 alcohol and chlorine free Hand Sanitising Foam
provides rapid, long-lasting disinfection and biological
cleanliness to all hard working hands and is also kind on the
skin. The high performance formulation coats the skin with a
monomolecular layer that continues to provide protection
long after the initial application. Regular use ensures sustained
broad spectrum pathogen protection.
Medi9 Hand Foam Mini
Code: ME904004 BOTTLE VOLUME: 50ml
CASE QUANITY: 24
Medi9 alcohol and chlorine free Mini Hand Foam provides
rapid, long lasting disinfection and biological cleanliness to
busy hands on the move. The Mini Hand Foam is ideally sized
for pockets, briefcases, handbags, gloveboxes, backpacks
and office drawers.
30Medi9 Sanitised Environments
Medi9 Handheld Fogger
Code: ME908008
Medi9 Sanitised Environments
The Medi9 Handheld Sanitiser Unit has been designed
to be carried from room to room or to be used in larger
environments. This portable unit can be used in a huge
variety of areas from small rooms to large or even
outdoor spaces.
It can be applied in wet rooms, lavatories, bathrooms
and shower
rooms, in between uses to ensure that the environment
is completely sanitised after every use. Ideally suited for
lifts, stairwells, communal areas, vehicles and equipment
stores.
Medi9 Fogging Solution
Code: ME901012 BOTTLE VOLUME: 4 L
CASE QUANITY: 2 BOTTLES
Medi9 Room Sanitising Solution is designed for use in the
fogging systems.
With regular and effective use, you can relax, safe in the
knowledge that the areas you have operated in have
been
completely sanitised and that a safe environment has
been created.
31Bed Accessories
Platform Extension – Invacare Bed
Code: 1560077-7042
Dimensions: Extension kit for increasing
Bed Accessories
the length of the bed by
150mm.
Extended Rails – Invacare Bed
Code: 1560446-0101
Dimensions: Wooden extended side
rails to support a 150mm
extension kit.
Grab Handle – Invacare Bed
Code: 1417511-0152
Dimensions: Support Handle – 40cm x
30cm
Lifting Pole – Invacare Bed
Code: MEDERG-LP
Dimensions: Can be adjusted in
both height and depth
(optional).
32Bed Accessories
Platform Extension – Harvest Bed
Code: CM-HLDW113
Dimensions: The Bed Length Extension
Bed Accessories
Platform, is available to
extend your profiling bed
by an additional 200mm
Extended Rails – Harvest Bed
Code: CM-HLDW111
Dimensions: Community Bed Rails
extended + 200mm
Grab Handle – Harvest Bed
Code: CM-HLB685
Dimensions: Height (from top of
mattress): 610mm
Lifting Pole – Harvest Bed
Code: CM-HLDW582
Dimensions: SWL: 80kg
33Bed Accessories
Platform Extension
Days/ Casa Bed
Code: 21804BE
Bed Accessories
Dimensions: The Bed Length Extension
Platform, is available to
extend your profiling bed
by an additional 200mm
Extended Rails
Days/ Casa Bed
Code: 41622BE
Dimensions: Metal length adjustable
rails.
Grab Handle
Days/ Casa Bed
Code: 9CGRBE
Dimensions: Width 15cm (6”)
Length 48cm (19”)
Lifting Pole
Days/ Casa Bed
Code: 21873BE
Dimensions: Width 80cm (32”)
Depth 61cm (24”)
Height 191cm (75”)
34Soft Protection
Folding Cotside Bumpers
Code: CMFLCSB
Dimensions: 1980 x 380 x 76mm
Description: Folding bumpers with
Soft Protection
Velcro fastening.
Safety Wedge Set
Code: CM-HCS095
Dimensions: 900mm
Description: The Safety Wedge Set 900mm,
provides a safe, firm, sloping
barrier to keep the user
comfortably positioned.
Fold Out Crash Mat
Code: TPC35F
Dimensions: 193 x 60 x 5cm
Description: Heavy duty dense foam crash
mat. Folds easily for storing.
Cover is non slip wipe clean
material.
Mattress Infill Bolster
Code: CX66BE
Dimensions: 900mm x 200mm x 150mm
Description: Ideal for use with existing
mattresses, the piece will add
a further 200mm and close any
gaps between the mattress and
bed frame.
35Bed Rail Compliance
While bed rails can potentially prevent many falls, if fitted
incorrectly they can cause death by asphyxiation through
entrapment.
A risk assessment that incorporates the bed occupant, proposed
equipment, the bed and the mattress is essential to ensure safe
use. If any of these circumstances or equipment combinations
change, the risk assessment must be carried out again.
MHRA (Medicines and Healthcare products Regulatory Agency
(MHRA) investigations have also shown that many serious and
fatal incidents with bed rails have been caused by lack of
maintenance.
Bed rails must be inspected on a regular basis to ensure they are
in good condition and that the distances comply with current
regulations.
The guidance below was correct at the time of printing (October
’18) but we recommend checking for the latest guidance here:
https://www.gov.uk/government/publications/bed-rails-
management-and-safe-use
36Mattress Decontamination
Do you know what lies beneath the surfaces of your mattresses?
Let Care-Med assist in keeping your home compliant by utilising
our on-site Mattress Audit and Decontamination Service.
Using our unique portable fogging system and following the MHRA
Audit Recommendations, this service is cost effective and provides
proactive reassurance and a thorough paper trail, freeing up time
for nursing and care staff.
Decontamination includes a deep clean of not only the mattress,
but the bedframe too, far more comprehensive than achievable
by laundering or manual cleaning. The Medi9 fogger penetrates
deep inside alternating mattress cores, between the cells and
pipework, ensuring the deepest recesses are clean and hygienic.
Once a cover is breached and significant staining has occurred,
the mattress is hazardous and even if cleaned, the likelihood is that
staining will reoccur. Stained foam mattress cores are particularly
hazardous, harbouring a myriad of germs and bacteria.
Call us on 01926 889677 to discuss mattress decontamination.
Further resources and the current regulatory guidance can be
seen here:
https://www.gov.uk/government/publications/mattress-
decontamination-poster
37Equipment Servicing & Maintenance
The Regulations
Health and Social Care Act 2008 (Regulated Activities) Regulations 2014
Regulation 15
Section (1) (e)
Section (1)(e) of Regulation 15 states that “premises and equipment” should be
“properly maintained”
• There should be suitable arrangements for the purchase, service,
maintenance, renewal and replacement of premises (including grounds)
and equipment. These arrangements must make sure that they meet the
requirements of current legislation and guidance, manufacturers’ instructions
and the provider’s policies or procedures.
• Providers must have operational policies and procedures and maintenance
budgets to maintain their equipment, buildings and mechanical engineering
and electrical systems so that they are sound, operationally safe and
exhibiting only minor deterioration.
• All equipment must be used, stored and maintained in line with
manufacturers’ instructions. It should only be used for its intended purpose
and by the person for whom is it provided.
PUWER : Maintenance of work equipment
PUWER requires that: all work equipment be maintained in an efficient state, in
efficient order and in good repair; where any machinery has a maintenance
log, the log is kept up to date; and that maintenance operations on work
equipment can be carried out safely.
38Equipment Servicing & Maintenance
Keeping compliant – How can we help you?
Profiling Bed Service
Planned Preventative Maintenance – a proven method of reducing your equipment
downtime. This may mean a 6 monthly check or an annual check for your beds where a
fully trained technician carries out a thorough service and safety test – recommending
parts to be replaced or adjusted.
Typically carried out alongside the Air Mattress/ Pump service and Mattress Audit to
minimise disruption in your home.
Air Mattress/ Pump Service
Air Mattress/ Pump Service
Air Mattress Repairs & Servicing Pump Repairs & Servicing
Air Mattress PIT (Pressure Integrity Testing) Pump PAT Testing
Air Mattress Audits, Decontamination &
Laundering
Mattress Audit
Caremed technicians are trained in mattress auditing to the MHRA standard and this is a
service we provide to many of our customers. Mattresses that look good on the surface,
may be hiding hidden dangers if integrity is breached. Even minor abrasions or damage
to the mattress surface may allow urine or faecal matter to penetrate the cover or foam
beneath; this is hazardous and unpleasant:
- Hidden staining
- Foul odours
- Infection control risks with the presence of bacteria, fungi or spores
As well as an examination of the mattress from a hygiene standpoint, our audit also includes
a simple test to ascertain the foam resilience - this is to protect your residents from pressure
damage and discomfort from aging foam cores that may have lost their resilience over time
Our On Site Team
Caremed is committed to quality and assurance and we take our obligations to customers
seriously.
All of our technicians are DBS checked and we hold:
Safecontractor Accreditation
ISO9001:2015 Accreditation to the UKAS standard. Certificate number 9158
Manufacturers training is provided to all technicians and they are equipped with modern
systems to provide end-to-end traceability and accuracy.
39Edition 1, Nov 2018
UK Office Bericote Park, Leamington Spa, CV32 6QP
VICTORIA Office 35 Temple Drive, Thomastown VIC 3074
NSW Office 104 Loughnan Street, Lake Cargelligo NSW 2672
Phone (AUS): 1800 282 001
Phone (UK): 01926 889677
Fax: 1300 648 604
www.caremed.healthcareYou can also read
