NMDC Community Review Panel
Introduction
1
Policy Context
“If we are going to create new homes
they need to be in beautiful and
popular places. We should demand
nothing less.”
Nicholas Boys Smith - Chairman of the board advising the
Government’s Office for Place
Building Better, Building Beautiful
Commission
• Ask for beauty
• Refuse ugliness
• Promote stewardship
2
Weyside Urban
One of Guildford’s
Village Hybrid
Planning Application
Boundary
4 Strategic Sites
Stringers SANG
Common
Slyfield Industrial
Estate
Woking Road
Weyfield
neighbourhood
Weyfield
Primary Riverside
Academy Nature
Reserve
3
Bellfields Road
A
River Wey
Guildford Spectrum
A25
Guildford
3

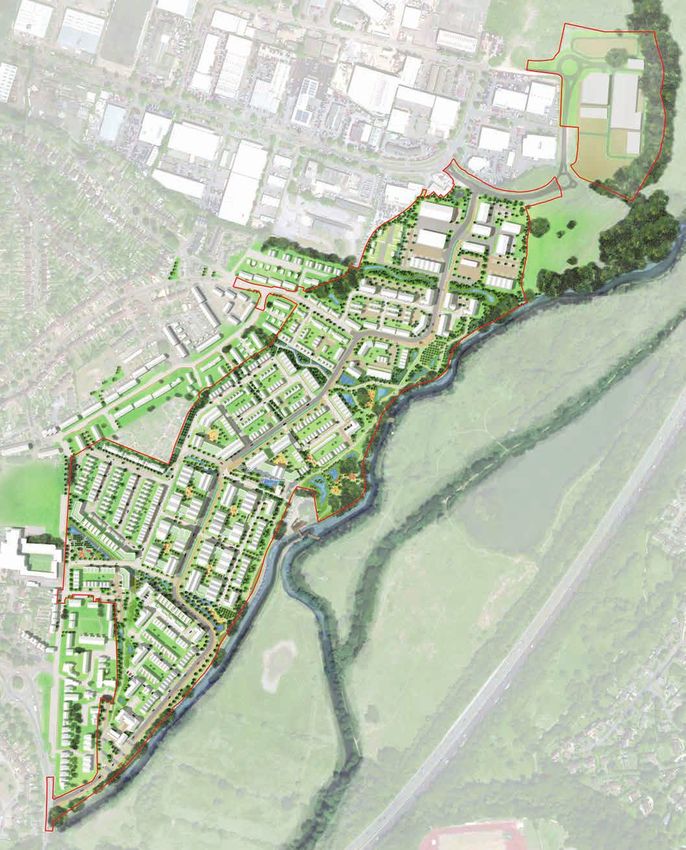

Illustrative
Masterplan
Showing Phase 1
4
Community Review Panel Programme
ESTIMATED Training
ESTIMATED Interim
ESTIMATED Follow-
Walkabout Review PLANNING
up Review
COMPLETION COMPLETION
Session COMPLETION SUBMISSION
Workshop Workshop
JTP Team
Working
Fri 16 July Tue 20 July Thu 22 July Tue 7 Sep
2021 2021 2021 2021 tbc
5
Walkabout - Friday 16 July
6
NMDC Community Review Panel
1. What is a Design Code?
7
What is a Design Code?
“A set of simple, concise, illustrated
design requirements that...provide
specific, detailed parameters for
the physical development of a site or
area.”
National Model Design Code
“Effective design codes are:
• Simple, concise and specific and;
• Rely on visual and numerical
information rather than detailed
policy wording”
National Model Design Code
8
What is the Purpose of a Design Code?
To inform development proposals The level of detail and degree of
by: prescription should be tailored to
• Providing maximum clarity about the circumstances and scale of
design expectations at an early change in each place and allow a
stage. ‘suitable degree of variety’ where
justified.
• Reflecting local character and
preferences.
• Providing a framework for
creating high quality places, with
a consistent and high-quality
standard of design.
9
Bridge from Outline to Detailed Design
Parameter Plans Design Coding
• Land use The next level of detail with which
• Density future proposals must comply:
• Max building heights • Building types
• Access and movement • Architectural detailing/materials
• Public realm detailing
• Landscape and planting
• Technical standards
10Who Creates the Design Code?
• Local authorities, in collaboration
with developers and landowners,
particularly in relation to specific
sites.
• Developers and landowners as
part of a planning application.
• Neighbourhood planning groups
may choose to produce their own
design codes or guides as part of
the process.
The NPPF says that design policies
should be developed with local
communities so that they reflect local
aspirations.
11NMDC Community Review Panel
2. The National Model Design Code
12Introduction
The National Model Design Code
(NMDC) is not a design code – it is
instead a guide to producing a design
code.
Its purpose is “…to provide detailed
guidance on the production of design
codes, guides and policies to promote
successful design.”
Two parts:
1. National Model Design Code
Summarises the process
2. Guidance Notes for Design Codes
Provides greater detail on the
possible content of a design code
13Introduction
The NMDC expands on the ten
characteristics of good design
set out in the National Design
Guide, (October 2019).
14Purpose and Objectives
The National Model Design Code is
a toolkit to: “...to help local authorities and
• Guide local planning authorities communities decide what good
on the design parameters and quality design looks like in their
issues that need to be considered area, based on local aspirations
when producing design codes for how their area will develop,
and guides. following appropriate local
• Provide guidance on methods consultation.”
to capture and reflect the views
of the local community from the “…quality design does not look the
outset and at each stage in the same across different areas of the
process. country…local vernacular differs,
and design priorities differ for scale
NMDC sets a baseline standard and type of development.”
of quality and practice which local
planning authorities are expected
to take into account.
15Application
The area covered by the design
code and the level of detail is to
be determined locally.
16Coding Process
171. Analysis
1A. Scoping 1B. Baseline
• Agree geographical coverage. • Context study.
• Agree content.
• Agree consultation strategy.
Street hierarchy Transport accessibility
Open space provision Land use pattern
182. Vision
2A. Design Vision
• A clear articulation of what
an area should be like in the
future, developed with the local
community.
• Identify Area Types
Example area type worksheet
5 of the 10 example area types 192. Vision
2B. Coding Plan 2C. Masterplanning
• Area to be covered by the code,
divided into area types.
green
lanes
community
mews riverside
wharf
heritage
quarter
203. Code
3A. Guidance for Individual Area Types
3B. Code Wide Guidance (all topics)
Guidance Notes for Design Codes sets
out potential content of a design code -
providing both a framework and sample
content.
Modelled on the 10 characteristics of well
designed places set out in the National
Design Guide.
21Possible Code Content
Context: Movement:
• How the scheme relates to the • Connected network for all modes
site and its local and wider of transport.
context. • Promoting Active Travel.
• The value of the environment, • Well-considered parking,
heritage, history and culture. servicing and utilities
infrastructure.
22Possible Code Content
Nature: Built Form:
• Green Infrastructure. • Compact form of development.
• Water and drainage. • Built form (Blocks/Building line/
• Biodiversity. Height).
23Possible Code Content
Identity: Public Space:
• A sense of place. • Defining a street hierarchy.
• The identity of buildings. • Fostering social interaction
(public spaces and squares).
• Security and public space.
24Possible Code Content
Use: Homes and Buildings:
• Promoting variety and activity. • Housing quality.
• Housing mix. • Health and wellbeing.
• Community facilities and
services.
25Possible Code Content
Resources: Lifespan:
• Energy efficiency. • Management plan for public
• Sustainable construction. spaces.
• Community participation in
design.
• Community management.
26NMDC Community Review Panel
