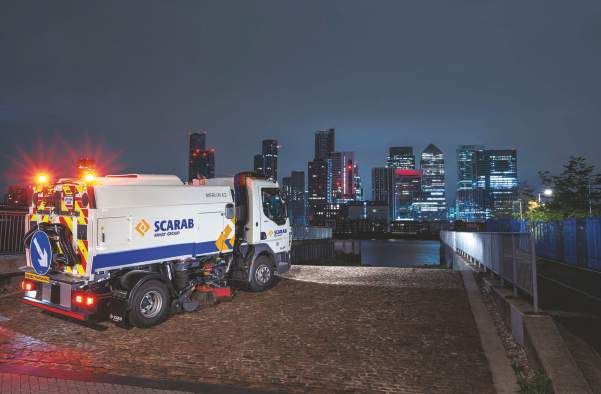

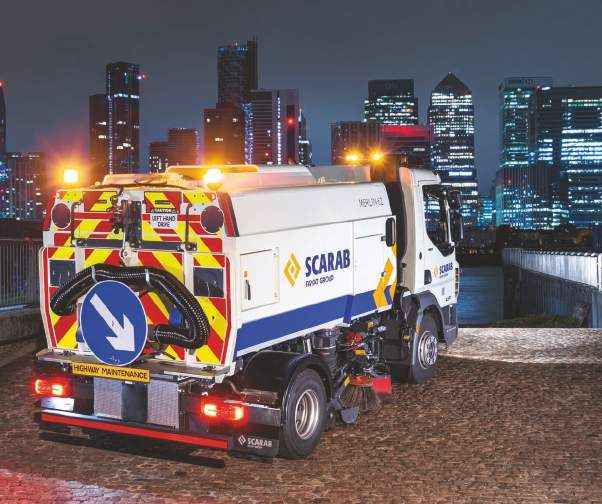

MERLIN 62
Designed for mounting on a truck chassis in the 10-16 tonne
GVW range, the Merlin 62 is capable of delivering an unrivalled
payload in its class.
POWERFUL & VERSATILE
COMPETENT IN ALL APPLICATIONS
MERLIN 62 REDUCED FUEL LESS
CONSUMPTION WEIGHT
DECREASED GREATER
NOISE AND PAYLOAD
Powerful and versatile,
REDUCED ENGINE
POLLUTION
capable in every setting:
MAINTENANCE
SIZE: 10–15 tonne GVW
SWEEPER SPEED: 0–20mph/0.32kph
HOPPER CAPACITY: 6.2 cubic metres
WATER TANK: 1250–1800 litres
ENGINE: Single Engine Hydrostatic
TYPICAL PAYLOAD: 5000–6000kg
Powerful, versatile, and available on a
SWEEP WIDTH: 2075mm single/3200mm dual
range of chassis weights – the Merlin 62 is
competent in every application.
Standard specification
The Merlin 62 is equally at home in municipal and
• Stainless steel hopper
contractor environments. Designed for mounting on a
• S
carab CANbus control panel incorporating
truck chassis in the 10-16 tonne GVW range, the Merlin
operational information, data logging
62 is capable of delivering an unrivalled payload in its
and self diagnosis
class (up to 7800kg).
• 1 250-1800 litre corrosion resistant
Our innovative single-engine hydrostatic system water tank Shot blasting the stainless steel hopper
combines with our intuitive CANbus control system to
offer users unrivaled control of their sweeper operation STRONG, ROBUST HOPPER
– the sweeper allows the operator to control a constant The hopper is completely manufactured from strong,
sweeping speed from zero up to 20mph whilst the corrosion and abrasion-resistant 4003 stainless steel,
chassis engine runs at an optimal 1200rpm. This solution which is shot blasted before a two-pack epoxy primer is
allows the Merlin 62 to deliver low fuel consumption and applied followed by a hard-wearing topcoat.
low emissions whilst still supplying powerful and reliable
suction performance. Particulate screening via a hinged stainless steel mesh
filter – swings down for ease of cleaning and access to
the stainless steel inlet cone.
POWERFUL & VERSATILE COMPETENT IN ALL APPLICATIONS
www.scarab-sweepers.com Tel: +44 (0)1622 831006 www.scarab-sweepers.com Tel: +44 (0)1622 831006
POWER & CONTROL A choice of power solutions
HYDROSTATIC SYSTEM
SINGLE ENGINE, SINGLE EMISSION, The Scarab designed hydrostatic gearbox is
CNG Alternative NO COMPROMISE installed in the chassis driveline and allows
Scarab is the pioneer of the environmentally friendly the sweeping components to be powered
The single-engine Merlin 62 mounted onto a single-engine truck-mounted sweeper and continue directly from the chassis engine. As well
CNG chassis satisfies the need to have a street to lead the market in this field. As a result of the single bringing a range of benefits such as reduced
cleansing machine that operates solely on engine system, the Merlin 62 benefits from reduced fuel weight, increased payload, reduced fuel
alternative fuel, whilst also giving the benefits consumption, decreased noise and engine pollution, less consumption and lower emissions, it also
of reduced fuel costs combined with lower weight, greater payload and reduced maintenance. offers a range of operator benefits with
servicing and chassis maintenance costs. The its simple joystick control for forward and
Merlin 62 CNG constitutes an economic, up- reverse, allowing single-pedal control which
to-date and dependable alternative to diesel reduces fatigue and enables the driver to
vehicles, improving both acoustic and gaseous fully concentrate on sweeping.
emissions simultaneously.
The hybridisation of Scarab’s single-engine
design and CNG power arguably creates the
cleanest combustion engine truck mount
sweeper available on the road today.
CANBUS CONTROL SYSTEM UNIDRIVE SOLUTION
EXTENSIVE SWEEPING PERFORMANCE
Scarab’s CANbus control system revolutionised the way Our Unidrive solution uses a Power Take-Off
The Merlin 62 is available in both single and optional
sweepers are operated and maintained. It continues to (PTO) fitted to the truck engine to power
dual sweep configuration. When the suction nozzle, side
evolve today to offer market leading sweeper control. sweeping functions. The Merlin 62 control
brush and widesweep functions are in operation the
system manages engine speed to ensure
Merlin 62 can sweep up to 2365mm width. However, the
Our latest CANbus control system offers colour coded optimum sweeping performance.
brushes can reach an impressive 3200mm span when
door-pod and pedestal controls with key sweeping
simultaneously dual sweeping.
functions visible at a glance, and comfortably within
reach. The large graphical display clearly indicates
With variable brush speeds, optional down pressure and sweeping configuration and provides the user with AFTER SALES
swivelling widesweep, the Merlin 62 is proficient in any regular updates on the vehicle, including warnings and
sweeping application. service reminders. What’s more, with real-time data-
SUPPORT
Roof mounted impellor logging built into the system, you can monitor your
Our dedicated After Sales team are front-line
POWERFUL & RELIABLE SUCTION PERFORMANCE performance and keep your sweeper functioning at its
very best. Scarab’s CANbus includes universal connectors ambassadors of Scarab Sweepers and it’s
A stainless steel centrifugal roof mounted impeller is
for fitment of Global Positioning System (GPS) and the their aim to provide you with the highest level
positioned to produce an efficient airflow path for high
option of real-time data availability via telematics. of support for the lifetime of your vehicle,
suction performance and reduced power consumption.
delivered through:
The fan chamber is easily accessed for cleaning.
• Industry renowned after sales care
“Scarab are at the cutting edge of
Particulate screening via a hinged, stainless steel mesh • A range of extended warranty options
filter, pleated to give maximum surface area and reduce
developing innovative solutions to be
• A
choice of ‘Service’, or ‘Repair and
blocking – it also swings down for ease of cleaning. more efficient with dust collection, Maintenance’ solutions to suit your needs.
reducing noise pollution and lowering
carbon footprints.”
www.scarab-sweepers.com Tel: +44 (0)1622 831006 www.scarab-sweepers.com Tel: +44 (0)1622 831006
STANDARD FEATURES UPGRADES/ENHANCEMENTS
SWEEPING WIDTHS (based on a typical 15 tonne GVW chassis) OPTIONS (other options and operator specific requirements are available upon request)
A Suction Nozzle Only 740mm
B Nozzle & Side Brush 1135mm
C N
ozzle, Side Brush & 2075mm
Widesweep
D S
imultaneous Dual 3200mm
Sweep
Slight variations to the foregoing dimensions
can occur according to individual chassis
specifications.
*Some options listed are chassis dependent
WATER • Hydrant standpipe, key and 3 metres SUCTION
of 50 mm lay-flat hose for on-task
WEIGHTS AND DIMENSIONS • High-pressure/high volume pump with
replenishment of water
• Door-mounted swing-out wander hose
hand lance and self-retracting hose
• Door-mounted swing-out wander boom
reel • Simultaneous wash and sweep facility
• Overhead-mounted wander boom
TYPICAL PAYLOAD POTENTIAL TYPICAL DIMENSIONAL DATA CAPACITIES • Overhead mounted high-pressure
Standard Specification Length overall 5640–6000mm Hoppers* Gross volume 6.2m3 water boom BRUSHES
MISCELLANEOUS
10 tonne – 5000kg Net/Payload volume 5.5m3 • Additional dust suppression for suction • Dual sweep (a second channel brush
Wheelbase 3300mm
15 tonne – 6000kg nozzles (a 4-jet water-boost bar in on opposite side of the sweeper + • Reduction gearbox in driveline for
Width overall 2220mm Water tank** 1250–1800 litres Unidrive variants
front of the nozzle) swivelling widesweep)
* Calculated in accordance with European
Overall height • Additional dust suppression for suction • Simultaneous dual sweep (both • CCTV camera to offside brush and/or
Standard EN15429
hopper lowered 2970mm ** Subject to chassis selected tubes (four additional jets at the top of channel brushes and widesweep rear of vehicle
hopper raised 4500mm operate together) • Centralised lubrication system (either
the suction tube)
• Larger water tanks • Auxiliary channel brush fitted ahead manual or automatic)
of standard brush on an extending/ • Alternative or additional beacons
• Detergent injection kit for use with
swing-out mount • Fire extinguisher
the hand lance on difficult cleaning
operations • Adjustable pressure control for
MADE IN BRITAIN, TRUSTED WORLDWIDE channel brushes and widesweep
The Merlin 62 is just one of Scarab’s
expertly engineered truck-mounted
road sweeping solutions. Because of its
flexibility, the Merlin 62 can be fitted to
a wide choice of chassis including those
from DAF, Iveco, MAN, Mercedes, Volvo,
Renault, Hino and more. For details on
suitable chassis specifications, please
contact your local distributor.
www.scarab-sweepers.com Tel: +44 (0)1622 831006 www.scarab-sweepers.com Tel: +44 (0)1622 831006
MERLIN 62
www.scarab-sweepers.com
Dealership
SCARAB SWEEPERS LTD
Pattenden Lane, Marden,
Tonbridge, Kent,
United Kingdom TN12 9QD
TEL +44 (0)1622 831006
www.scarab-sweepers.com
