Marco Polo ACTIVITY.
2
3 Contents. Engines & Transmission 06 Drivetrain 07 Safety 08 Standard Equipment 10 Optional Equipment 12 Upholstery & Trim 14 Paintwork 15 Genuine Accessories 16 Wheels 17 Dimensions 18 Technical Data 19
4
Goodbye ordinary.
A functional camper or a spacious recreational vehicle, the Marco Polo ACTIVITY is a delight on every trip.
Say goodbye to the everyday and rediscover your sense of adventure with this spacious van offering a host
of functional features. The interior can be transformed into a pleasant bedroom and living room for up to
5 people in next to no time. So what are you waiting for? Get set for your voyage of discovery right now.
5
6 Marco Polo ACTIVITY Euro 6c | Engine & Transmission
Engine & Transmission.
The Marco Polo ACTIVITY is available with an THE ENGINE VARIANTS BlueEFFICIENCY package
economical but powerful 120kW 4-cylinder diesel Marco Polo ACTIVITY 220 CDI with output of 120 kW (163 hp) and maximum The ECO start/stop function switches the engine off temporarily when the
engine. Coupled with a very well balanced comfort torque of 380 Nm, Euro 6c vehicle is at a standstill, thus reducing fuel consumption particularly in urban
suspension, rear-wheel drive and the smooth-shifting and stop-and-go traffic.
automatic transmission 7G-TRONIC PLUS, the Marco Underbody panelling optimises the aerodynamics thanks to aerodynamically
efficient air ducting beneath the vehicle.
Polo ACTIVITY is an attractive proposition for the
Fuel efficiency generator with enhanced efficiency rate relieves engine workload.
family road trip.
Marco Polo ACTIVITY 220 Euro 6c
The Marco Polo ACTIVITY 220 Euro 6c produces maximum torque
of 380 Nm in the range between 1400 and 2400 rpm.
Torque curves:
Nm Rated torque
450
400
350 380 Nm
300
250
200
150
100
800 1600 2400 3200 4000 4800
Engine speed rpm

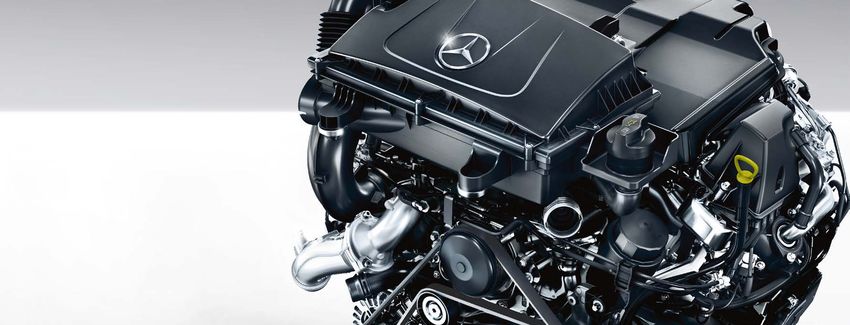

OM 651 DE22LA diesel engine 120 kW (163 hp)
Marco Polo ACTIVITY Euro 6c | Drivetrain 7 Drivetrain. The drivetrain of the Marco Polo ACTIVITY lends itself exceptionally well to configuration in line with your specific requirements. The combination of the rear wheel drive and the automatic transmission 7G-TRONIC PLUS provides for a smooth and comfortable ride.
8 Marco Polo ACTIVITY Euro 6c | Safety
Safety first.

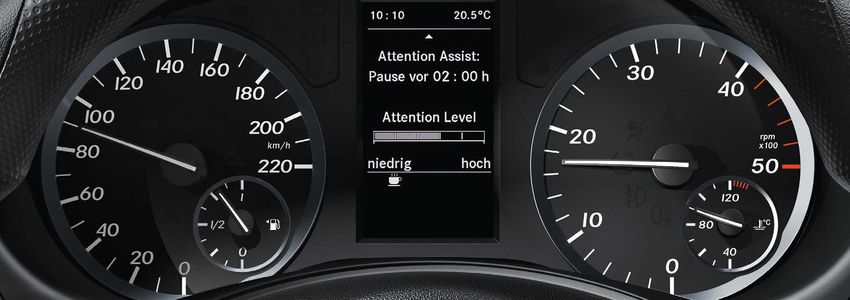

It’s good to have attentive helpers along on every trip. In the Marco Polo ACTIVITY, support is available from a wide SAFETY ABOUNDS
range of exemplary safety and assistance systems. The optional COLLISION PREVENTION ASSIST1 proximity warning ATTENTION ASSIST is able to detect the typical signs of fatigue based
function helps to maintain a minimum distance from the vehicle ahead and outputs a visual warning when the distance on numerous parameters and warns the driver accordingly.
drops below this minimum limit. If there is the risk of a collision, an audible warning is also emitted. Valuable support, Seat belt reminder for driver and front passenger.

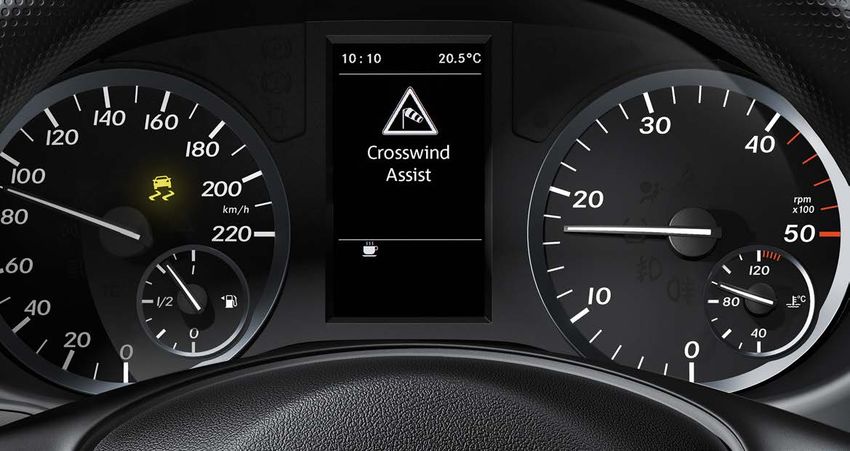

especially on long journeys. A standard feature on board is Crosswind Assist, which helps to prevent lateral drift in Lane Keeping Assist1 can help to avoid accidents caused by an unintentional
strong crosswinds. In addition, comprehensive airbag protection is also fitted as standard. With airbags for driver and departure from your lane.
front passenger, thorax/pelvis sidebags and windowbags in the front, the Marco Polo ACTIVITY has a 5-star ANCAP Blind Spot Assist1 can help to avoid accidents when changing lanes.
safety rating ensuring your passengers are protected. Windowbags can protect against head injuries in the event of a side impact.
1
Also part of the optional Driving Assistance package.
Overseas model shown.
Marco Polo ACTIVITY Euro 6c | Safety 9
10 Marco Polo ACTIVITY Euro 6c | Standard Equipment
All set for adventure.
The standard equipment of
the Marco Polo ACTIVITY.
The Marco Polo ACTIVITY offers many features for a spontaneous
overnight stay on board and a pleasant home-from-home environment
as standard. You will come to value its functional details, such as the
extensive interior and ambient lighting with reading lights both en
route to your destinations and when you arrive.
HIGHLIGHTS – EXTERIOR
Reflection-type halogen headlamps

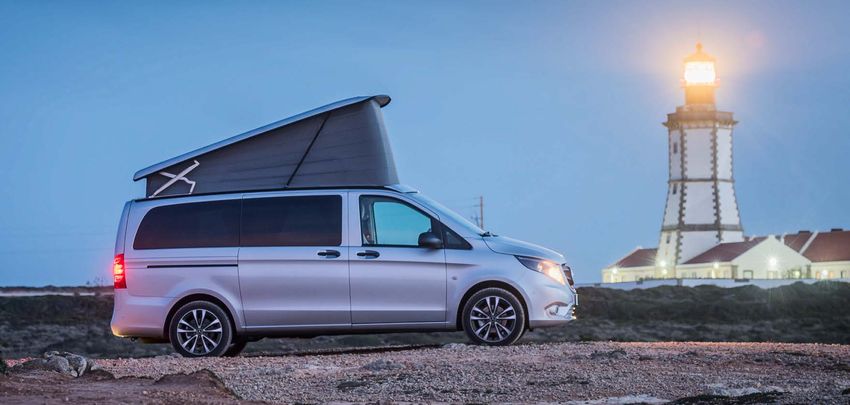

Mechanical pop-up roof with roof bed
Heat-insulating glass all-round
16" alloy wheelsMarco Polo ACTIVITY Euro 6c | Standard Equipment 11 HIGHLIGHTS – INTERIOR Table package, incl. 12 V socket at rear and cup holder Luxury swivelling seats for driver and front passenger Plastic flooring with seat rail system and quick-release attachment system Opaque curtains in rear and cockpit 3-seater bench as comfort berth with bed extension and two drawers Santiago fabric in black Airbags, thorax/pelvis sidebags and windowbags for driver and front passenger
12 Marco Polo ACTIVITY Euro 6c | Optional Equipment
Optional & Standard Equipment.
INTERIOR
TEMPMATIC front and rear air-conditioning with semi-automatic Front and rear 12V/15A plug sockets Chrome appointments and remote central locking
temperature control
Lockable glovebox 5 seat configuration (driver, front passenger seats and 3-seat
Auxiliary hot-air heater with heat exchange rear vents bench as luxury bunk (2nd row))
Comfort overhead control panel with map reading lights
High comfort swivelling driver and front passenger seats with and eyewear holder Santiago Black fabric seat trim
lumbar support
Audio 15 sound system (high res 5.8 inch TFT colour screen, AM/FM Table package, including folding table
Leather-covered multifunction steering wheel with height and tuner, AUX input, USB 2.0, SD card slot, Bluetooth® audio streaming,
Luxury interior side and roof trim
reach adjustment no CD player, file format support: ACC, MP3, WMA and WAV). Two way
speakers front and rear TPO flooring in passenger compartment
Power windows (driver and front passenger and rear vent window
in passenger compartment). Middle panel windows (left and right) Becker® MAP Pilot Pop top with bed
are fixed
Detachable cupholders (rear) Black Lugano leather upholstery
Interior curtains (rear)
Automatically dimming interior mirror 7 seats (2 armchairs in the 1st row, rear)
Bluetooth® hands-free system with phonebook support (behind driver and front passenger seats)Marco Polo ACTIVITY Euro 6c | Optional Equipment 13
EXTERIOR SAFETY
Tailgate (manual) 5 Star ANCAP Safety Rating
Chrome radiator grille Adaptive Electronic Stability Program (ESP®)
Colour coded bumpers Driver and front passenger front airbags
Exterior mirrors – heated and automatically folding Driver and front passenger thorax-pelvis airbags
16” alloy wheels (1 steel spare) Driver and front passenger curtain airbags
Tinted windows (rear) Crosswind Assist
Fixed middle panel windows and electric rear vent windows ATTENTION ASSIST
Non-metallic paint Adaptive Brake lights
Overseas model shown
Metallic paint Reversing camera
5-spoke 17" light-alloy wheels, with 225/55 R17 Light and rain sensor
5-spoke 18" light-alloy wheels, with 245/45 R18, in tremolite grey Active Park Assist with front and rear park sensors
10-spoke 18" light-alloy wheels, black, polished, with 245/45 R18 Cruise control with speed limiter

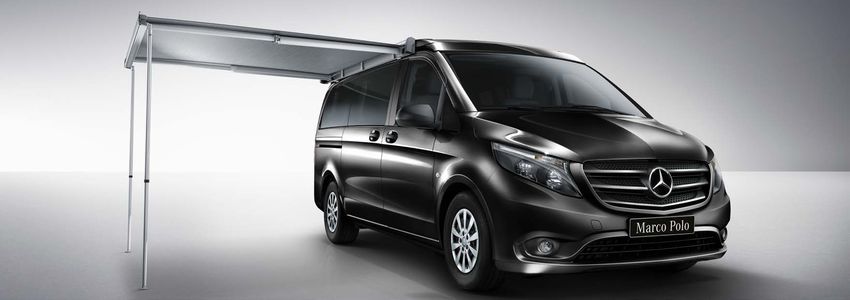

Side-mounted awning, silver or anthracite
Dual electric sliding doors Driving Assistance Package
(not available with Lane Tracking Package)
LED Intelligent Light System (not available with Fog lamps halogen)
• COLLISION PREVENTION ASSIST
Fog lamps halogen (not available with LED Intelligent Light system)
•B lind Spot Assist
• L ane Keeping Assist
TECHNOLOGY Lane Tracking Package
(not available with Driving Assistance Package)
2 x AGM 12V 92Ah batteries with cut-off relay feature
• Blind Spot Assist
PTC (positive temperature coefficient) auxiliary heater for quick • L ane Keeping Assist
defrost of the windscreen
Terminal strip for electrical connection (body builder function)
Parameterisable Special Module
Standard Optional
Overseas model shown14 Marco Polo ACTIVITY Euro 6c | Upholstery & Trim
Upholstery & Trim -
Marco Polo ACTIVITY.
VY4
HIGHLIGHTS – EXTERIOR
VY4 Santiago fabric, black
VX7 Lugano leather
VX7
Standard OptionalMarco Polo ACTIVITY Euro 6c | Paint Finishes 15
Paintwork -
Non-Metallic Paints Metallic Paint Finishes
Marco Polo ACTIVITY.
NON-METALLIC PAINTS
3589 jupiter red1
5610 navy blue1 3589 7701 5890 9134
6580 granite green 1
7701 pebble grey1
9147 arctic white (standard)
METALLIC PAINTS FINISHES
5890 cavansite blue2
5610 9147 9197 9744
9134 rock crystal white2
9197 obsidian black2
9744 brilliant silver2
The colours depicted here are as close as the printing process allows us.
Please contact your authorised Mercedes-Benz Vans Dealer for colour samples.
Standard van colour is arctic white.
Non-metallic colour paint finishes available as options at no extra cost.
1
Metalic colour paint finishes available as options at extra cost.
216 Marco Polo ACTIVITY Euro 6c | Genuine Accessories
Genuine accessories.
Mercedes-Benz accessories allow you to further individualise your
Marco Polo ACTIVITY to fulfil your exact needs. Mercedes-Benz
Genuine Accessories are optimised to suit your vehicle, and they
meet stringent requirements in terms of quality and safety.
01 02
01 elour floor mats
V
Velour mats, set of 2, with classic cut pile.
Embroidered Mercedes-Benz label on driver and co-driver mats.
(A4476804100)
Rep floor mats
02
Rep mats, set of 2. Broad rib design.
Embroidered Mercedes-Benz label on driver and co-driver mats.
(A4476808300)
All-season floor mats
03
All-season mats, set of 2. Hardwearing, with raised edge.
With distinctive Mercedes star logo.
(A4476809502)
Coolbox
04
This box in hygienic, easy-to-clean plastic incorporates a 12 V power
connection to ensure constant and reliable cooling even on long journeys.
The box can be firmly secured in the load compartment with the aid of the
special strap system. It is also easy to carry, using the handy carry straps.
The coolbox has a capacity of 16.5 litres.
03 04
(B66560300)
05 06
Side window wind deflector Kit, Tinted
05
Protects against wind and water when window is slightly open.
(A4477662500)
Rim locks, silver
06
Helps protect your valuable light-alloy wheels from theft.
Set consists of a coded key and one lock per wheel.
(A0019902907)
Towbar (2.5t Capacity) | Not pictured
07
*Requires additional wiring harness & control unit.
(Part Number on Application)
Standard OptionalMarco Polo ACTIVITY Euro 6c | Wheels 17
Wheels.
Stand out from the crowd and personalise your Marco Polo ACTIVITY
with a set of light-alloy wheels.
RL5 RL8
R10 R1P
RL5 10-spoke 16" light-alloy wheels, painted in vandium silver,
with 205/65 R16 tyres
(A4474010301 7X45)
RL8 5-spoke 17" light-alloy wheels, with 225/55 R17 tyres
(A4474012200 7X45)
R1O 5-twin spoke 18" light-alloy wheels in black high-shine,
with 245/45 R18 tyres
(A4474015400 7X44)
R1P 5-spoke 18" light-alloy wheels in black high-sheen,
with 245/45 R18 tyres
(A4474015500 7X23)
Standard Optional18 Marco Polo ACTIVITY Euro 6c | Dimensions
Dimensions – Marco Polo ACTIVITY.
Front Rear Side view with raised pop-up roof
2839
1195
12781
1980
1220
901
H
H up to approx. 521
1928 3200 895
2244 5140
(2060 with exterior mirrors folded in)
Bench in seat position Bench in berth position Roof bed in the pop-up roof
7493
1130
1350
15524
1930 2050
2678Marco Polo ACTIVITY Euro 6c | Technical Data 19 Technical data – Marco Polo ACTIVITY. Technical data Marco Polo ACTIVITY 220D Euro 6c Engine configuration In-line Engine Capacity (cc) 2143 Power 120kW (163hp) @3800rpm Torque 380Nm Transmission 7G-TRONIC PLUS Auto Drive RWD Cylinders 4 cylinders Fuel Diesel AdBlue Required Yes Gross Vehicle Mass (kg) 3100 Unladen weight1 (kg) 2380 GCM (kg) 5600 Towing Capacity Braked (kg) 2500 Towing Capacity Unbraked (kg) 750 Standard tyres 205/65 R16 Turning Circle (m) 11.8 Maximum roof load (kg) 50 Batteries 2 x AGM 12V 92Ah batteries with cut-off relay feature Fuel Consumption Combined (L/100km) | C02 Emissions (g/km) 6.9 | 182 Fuel Consumption Urban (L/100km) | C02 Emissions (g/km) 7.6 | 202 Fuel Consumption Extra- Urban (L/100km) | C02 Emissions (g/km) 6.4 | 170 1 With 100% fuel. Addition or removal of options can affect the unladen weight.
20 Marco Polo ACTIVITY Euro 6c | Technical Data
Mercedes-Benz quality – in every area.
Servicing and repairs. Your Marco Polo ACTIVITY Vans ServiceCare Offers.
is covered.
The Mercedes-Benz Marco Polo ACTIVITY has a Our flexible ‘Pay as go’ and ‘Pay Upfront’ servicing
25,000km or 1 year (whichever comes first) service options are designed to provide real peace of mind
Warranty. Our comprehensive Mercedes-Benz Vans
interval. All Mercedes-Benz authorised workshops are to protect your vehicle and your business from
Warranty means peace of mind for five years or
staffed and equipped for excellence and will assist in unexpected service and maintenance costs.
until the vehicle has travelled up to 250,000km.
keeping your Marco Polo ACTIVITY operating as
You’re covered for parts and labour charges incurred
intended. Our Mercedes-Benz technicians complete Vans ServiceCare Promise. This ‘Pay as you go’
whilst rectifying a manufacturing defect relating to
training every year to ensure they are up-to-date with servicing offer provides transparent servicing costs
materials or workmanship.
current technology. Mercedes-Benz Genuine Parts and peace of mind with a maximum price promise on
undergo rigorous material and functional testing and basic routine scheduled servicing. (*Available from
Roadside Assist. In the unlikely event of needing
are engineered to fit your vehicle perfectly and remain April 2018 at participating Dealers only)
assistance, all you have to do is call. Mercedes-Benz
available for 15 years after the end of series production.
Vans Road Care is designed to provide you with
All Mercedes-Benz Genuine Parts have a 2 year Vans ServiceCare Plans. This ‘Pay Up-front’ option
assistance in case of a breakdown anywhere in
parts warranty. provides excellent value and the ability to tailor your
Australia – 24 hours a day, 365 days a year. Standard
service and maintenance requirements based on
cover comes at no extra cost on your Marco Polo
your mileage and term. The Mercedes-Benz
ACTIVITY during the manufacturer warranty period and
authorised dealer network carries out maintenance
is designed to provide real peace of mind motoring.
and repairs according to an agreed schedule and
pre-determined costs.
For further information please see the Vans Road
Care brochure for terms and conditions or visit
www.mercedes-benz.com.au/vans
1
Please note, some vehicles are excluded from the Road Care programme, please see the Road Care brochure for full terms and conditions. Upgrades to the standard Road Care package are available at additional cost.Marco Polo ACTIVITY Euro 6c | Notes 21 Notes.
22 Marco Polo ACTIVITY Euro 6c | Notes Notes.
Marco Polo ACTIVITY Euro 6c | Notes 23 Notes.
IMPORTANT! This brochure has been compiled by Mercedes-Benz Australia/Pacific Pty Ltd to provide a general indication of the model available in Australia. In addition, features, optional extras and/or colours may only be available in combination with others. Some equipment depicted either on vehicle illustrations or separately may be non standard or options and may, where applicable, be available at an additional cost. For current information on the availability, design features and prices of the Marco Polo ACTIVITY, features, optional extras and/or colours available, you should contact your authorised Mercedes-Benz Vans Dealer at www.mercedes-benz.com.au/dealers or go to www.mercedes-benz.com.au/vans All of the information contained in this brochure was correct as at April 2020. However, the manufacturer reserves the right to discontinue, make changes to design and specifications to vehicles or optional equipment without notice. The and the words Mercedes-Benz are registered trademarks of Daimler AG, Stuttgart, Germany. Mercedes-Benz Australia/Pacific Pty Ltd, ABN 23 004 411 410. Lexia Place, Mulgrave, Victoria 3170. Telephone: (03) 9566 9266. LMCT 6776. MBA5091.
You can also read
