ISO 9001: 2015 Certied Company Magnetic Particle Testing (MPT) & Liquid Penetrant Testing (LPT) Products & Accessories

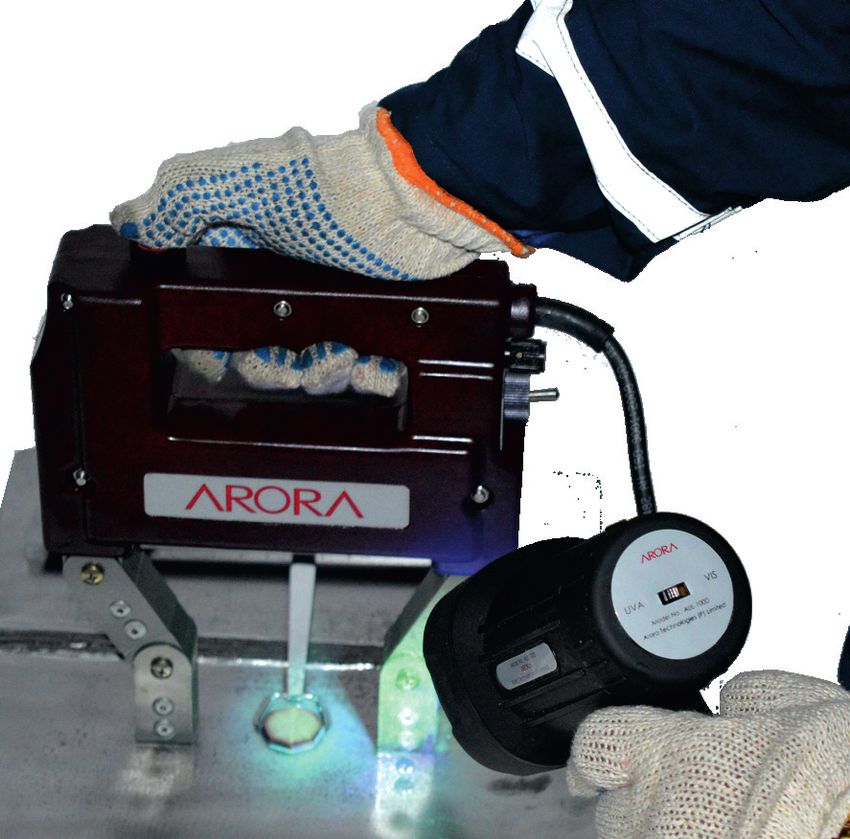

Electromagnetic Yokes
We offer full range of magnetic yokes like permanent magnets, AC/DC, Battery Operated etc. All these yokes are
designed to meet the highest standards (ASTM E1444) & operating conditions in the eld. All these yokes are portable,
light-weight & water resistant.
Salient Features of Yoke
• DC led Intensity potentiometer
• Articulated legs with span of 300mm AC Electromagnetic Yoke
• Can be used for AC demagnetization
• Input single phase 110-250 VAC 50/60 Hz
• No risk of sparking or “hot spots” on the job
Permanent Magnetic Yoke
Technical Specications
Weight : 2.1 kg
Leg Span : 0–11 in / 0–28 cm
Technical Specications Cord Length : 10 ft. / 3 m
Weight : 2.2 Kgs Duty Cycle : 50%, max on time is 90 sec
Poles Adjustment : 0 – 200 mm Electrical Requirements : 230V – 50/60 Hz: 2.6 A
110V – 60 Hz: 1.2 A
Full Force : Approx. 19 Kgs max. at
150mm pole spacing. Lifting Capacity : 4.5 Kg
AC/DC Electromagnetic Yoke Battery Operated Yoke
Technical Specications
Technical Specications
Weight : 3.5 kg
Leg Span : 0–11 in / 0–30 cm Yoke /Battery weight : 4 kg / 2.5 kg
Cord Length : 10 ft. / 3 m Leg Span : 0–11 in / 0–30 cm
Duty Cycle : 23% (3sec On followed by Full Force : Approx. 27 Kg max at
10sec Off) 100mm pole spacing
Electrical Requirements : 220V, 50Hz, 1 Phase Duty Cycle : 2 min “ON” and 4 min
2.2 Amps “OFF” at max output
Lifting Capacity : AC mode : 4.5 Kg Electrical Requirements : 12V DC, 2.0A at max load
DC mode : 18.1 Kg in DC, 2.2 Amps in AC
Power Packs
We offer full range of mobile power packs or commonly known as prod type machine which are ideal for inspecting
large or heavy parts, in-service equipments or job-site weld testing with magnetic particle inspection.
The APP Series of mobile power packs are convenient and economical inspection units to meet a variety of magnetic
particle inspection needs. These units feature AC or Half Wave DC output.
Salient Features of APP Series Mobile Power Packs:
• Output: AC or Half Wave DC
• Input single phase 220 VAC 50 Hz
• Duty Cycle: 2-min ON/ 2-min OFF (50%)
• Inbuilt demagnetization function
• Find surface defects with AC current; switch
cable connection to half wave DC (HWDC) for
near-surface aws
• Locate defects in any direction using prods,
central conductor, coil (wrap part with 3-5 turns
of cable).
• Available in 1000, 1500, 2000, 3000, 4000 & 5000
& 6000 Amps
• Complied with ASTM standards

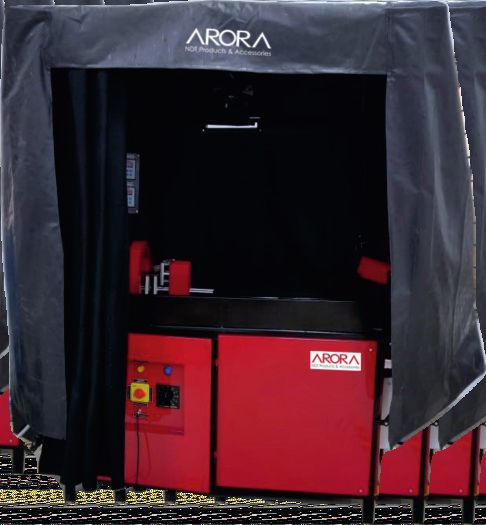

MPI Bench Machine
We offer full range of magnetic particle inspection (MPI) benches which are designed for fast and reliable inspection
needs.
The ABM Series of MPI Benches can be sized for specic test parts and to accommodate almost any size part. These
benches are suitable for detecting surface as well as subsurface cracks in Longitudinal/ Horizontal direction.
Salient Features of ABM Series MPI Benches:
• Output: AC or Half Wave DC
• Input three phase 440 VAC 50 Hz
• Pneumatically operated head & manual operated
tail stock
• Thyristorised step less power control
• Main unit powder coated, SS tank & grill
• Hood frame and black cloth with exhaust fan
• Available in 2000, 3000, 4000, 5000 & 6000 Amps
• Versatile and durable for industrial environments
• LED Flood Lamps (optional)
• Complied with ASTM standards
LED UV Lamps
Salient Features
• Ergonomically Designed Robust Housing
• Wavelength(peak): 365 nm ±5 nm
• Mechanical Cooling System
• Rechargeable Li-Po Battery
• As per ASTM E 3022-18
• Constant Intensity
AUF-350
AUL-100D AUT-70 AUB-150 AUL-150
Technical Specications
AUT-70 AUL-100 AUL-100D AUL-150 AUL-150D AUB-150 AUF-350
Light Source 1 UV-A LED 1 UV-A LED 2 UV-A & 1 4 UV-A LED 4 UV-A LED & 3 UV-A LED 10 UV-A LED
White LED 1 White LED
UV-A 365 Intensity ≥2,000 ≥3,000 ≥4,500 ≥8,000 ≥8,000 ≥6,000 ≥6,000
at a distance of
15"(µw/cm²)
AUT-70 AUL-150B AUL-150
White Light Emission ≤10 ≤10 ≤10 ≤ 10 ≤ 10 ≤ 10 ≤ 10
[Lux (0.92 fc)]
Technical Specications
Beam Coverage ≥ Ø80 mm ≥ Ø100 mm ≥ Ø150 mm ≥ Ø200 mm ≥ Ø200 mm ≥ Ø150 mm ≥ 300 mm x
Area 200 mm
Power Requirement Battery 90-270VAC/ 90-270VAC/ 90-270VAC/ 90-270VAC/ AC Mains AC Mains 90V -
operated battery battery battery battery 100V - 264V, 270V, 50-60 Hz
operated operated operated operated 50-60 Hz
Run Time 2 - 3 Hours 2 - 3 Hours 4 - 5 Hours 3 - 4 Hours 3 - 4 Hours Continuous Continuous
Charge Time 1 Hour 1 Hour 2 Hours 2 Hours 2 Hours NA NA
Housing Material Anodized Anodized Anodized Anodized Anodized ABS Plastic Anodized
Aluminium Aluminium Aluminium Aluminium Aluminium Aluminium
Housing 132mm x 220 x Ø110 220 x Ø110 220 x Ø110 220 x Ø110 140 x Ø120 300 x 150 x 65
Dimensions (mm) Ø32mm (LxD) (LxD) (LxD) (LxD) (LxD) (LxWxD)
Weight 0.28lb 1.76lb 1.76lb 2.2lb 2.2lb 0.94lb 6.61lb
(0.13Kg) (0.8Kg) (0.8Kg) (1Kg) (1Kg) (0.43Kg) (3Kg)

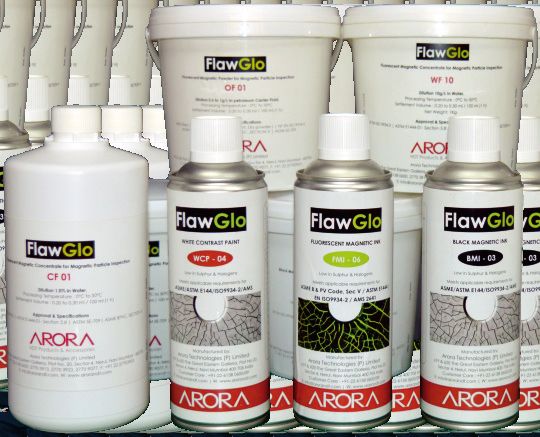

FlawGlo
Range of MPI Chemicals
Salient Features
• Highly Sensitive Fluorescent as well as Visual
• Low in Sulphur & Halogens
• Superior Flaw Resolution
• Oil as well as Water Suspendable
0
• Temperature range 0 to 50 C
• Wet particles: In the form of Powder & Liquid
Concentrate
Technical Data:
Model Description Dilution Approval & Specications: Standard
Packing
ARDP-07/ABDP-01/ Red/Black/Grey Dry NA NF EN ISO 9934-2, ASME BPVC, Section V, 1/5/20/
AGDP-08 Powder ASTM SE-709, ASTM E1444, AMS 3040 50 Kgs
FlawGlo WF 10 Water Fluorescent 10gm/litre NF EN ISO 9934-2, ASME BPVC, Section V, 1/5/20/
Powder ASTM SE-709, ASTM E1444 - Section 5.8 50/200 Kgs
FlawGlo CF 01 Concentrate 1% NF EN ISO 9934-2, ASME BPVC, Section V, 1/5/20/
Fluorescent Liquid ASTM SE-709, ASTM E1444 - Section 5.8 50 Ltrs.
FlawGlo OF 01 Oil Fluorescent Powder 1gm/litre NF EN ISO 9934-2, ASME BPVC, Section V, 1/5/20 Kgs
ASTM SE-709, ASTM E1444 - Section 5.8
AMS 3044 Code RCC-M Tome III
FlawGlo WV 20 Water Visible Powder 20gm/litre NF EN ISO 9934-2, ASME BPVC, Section V, 1/5/20/
ASTM SE-709, ASTM E1444 - Section 5.8 50 Kgs
AMS 3042
FlawGlo OV 08 Oil Visible Powder 8gm/litre NF EN ISO 9934-2, ASME BPVC, Section V, 1/5/20/
ASTM SE-709, ASTM E1444 - Section 5.8 50 Kgs
AMS 3041
WCP - 04 White Contrast Paint NA ASTM E-1444, ASME BPVC, Sec V, AMS 2641, 420 ml
(Aerosol Can) AMS 3041, EN ISO 9934-2
BMI - 03 Black Magnetic Ink NA ASTM E-1444, ASME BPVC, Sec V, AMS 2641, 420 ml
(Aerosol Can) AMS 3041, EN ISO 9934-2
FMI - 06 Fluorescent Magnetic NA ASTM E-1444, ASME BPVC, Sec V, AMS 2641, 420 ml
Ink (Aerosol Can) AMS 3041, EN ISO 9934-2
Magnetic Particle Testing Accessories
Ketos Ring Pie Gauge Gauss Meter - Analogue
Gauss Meter - Digital Centrifugal Tube with Stand Rubber Blower
Burmah Castrol Strips White/UV Light Meter MTU Test Block
Lifting Blocks Quantitative Quality Indicators Copper Braided Pads
FlawGlo
Range of LPT Chemicals
Salient Features
• Vivid, high contrast colour
• Low in Sulphur & Halogens
• Superior Flaw Resolution
• Water washable & Solvent
type penetrant
• Excellent Reliability
• Temperature range 10 to
500C

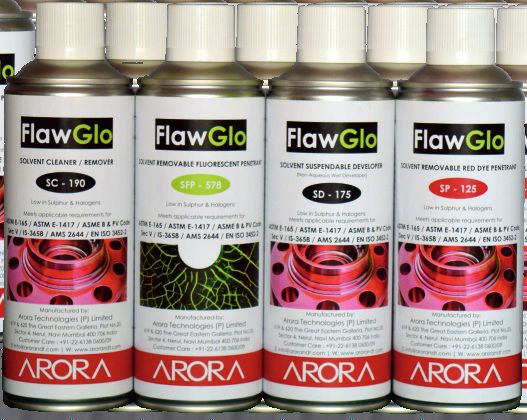

Technical Data:
Model Description Approval & Specications: Standard
Packing
SC - 190 Solvent Cleaner ASTM E-165, ASTM E-1417, ASME BPVC, 420 ml
(Aerosol Can) Sec V, IS-3658, AMS 2644, EN ISO 3452-2
SP - 125 Solvent Penetrant ASTM E-165, ASTM E-1417, ASME BPVC, 420 ml
(Aerosol Can) Sec V, IS-3658, AMS 2644, EN ISO 3452-2
SD - 175 Solvent Suspendable ASTM E-165, ASTM E-1417, ASME BPVC, 420 ml
Developer (Aerosol Can) Sec V, IS-3658, AMS 2644, EN ISO 3452-2
SFP - 578 Solvent Fluorescent ASTM E-165, ASTM E-1417, ASME BPVC, 420 ml
Penetrant (Aerosol Can) Sec V, IS-3658, AMS 2644, EN ISO 3452-2
WP - 125 Water Washable Penetrant ASTM E-165, ASTM E-1417, ASME BPVC, 420 ml
(Aerosol Can) Sec V, IS-3658, AMS 2644, EN ISO 3452-2
WFP - 578 Water Washable Fluorescent ASTM E-165, ASTM E-1417, ASME BPVC,
420 ml
Penetrant (Aerosol Can) Sec V, IS-3658, AMS 2644, EN ISO 3452-2
Liquid Penetrent Testing Accessories
TAM/KDS Twin Test Panel Aluminium Comparator Block Ni-Cr Test Block Reference Block Type 2
About Us
Keeping the vision of “Make in India”, M/s Arora Technologies (P) Limited (ATPL) is focussing on Manufacturing and
Distribution of NDT Products & Accessories.
We are committed to build long-term relationship with our customers by offering reliable products & accessories. We
pursue our business through innovation, latest technology & unrelenting quest for excellence.
Specications are subjected to change without notice
ATPL Brochure MPT/LPT 2019/04 Rev. 00
ISO 9001: 2015 Certied Company
Arora Technologies (P) Limited
619 & 620 The Great Eastern Galleria, Plot No. 20, Sector 4, Nerul, Navi Mumbai 400 706, Maharashtra, India
T: +91-22 6138 0600, 2770 3913, 2770 3923 | F: +91-22 2770 3903 | E: info@arorandt.com | W: www.arorandt.com
