SIMPLY CLEVER ŠKODA Fabia Monte Carlo
The best clothes to dress adrenaline in. The ŠKODA Fabia Monte Carlo. Imagine a sun-flooded coastline or soiled
mudguards and thundering engines.
A peaceful rest in the shade of a majestic
cathedral or an adrenaline-filled spectacle.
A stroll through ancient streets or a drive
on icy asphalt throbbing with the quick
pulse of racers. Welcome to Monte Carlo.
Where azure skies as well as wide black
racing tyres define the legendary Monte
Carlo, where the battle for one of the
oldest and most famous rallies is fought.
The ŠKODA Fabia Monte Carlo leaves
no doubt, which hue of Monte Carlo it is
painted in. The car confidently parades
its sporty style and love for racing
contests. But just like the city, there is
another side to it. Its untamed expression
is complemented by excellent driving
characteristics, which together with
the economical TSI and TDI engines
bring you immense driving pleasure.
Add some glamour to the road.
Fashion just found a new designer. Rally.
The roof with a spoiler is always in
black, no matter which body paint
colour you decide to go for. Other
specific features of the Fabia Monte
Carlo model include black plastic
guards with a glossy finish, lining
the lower part of the vehicle, and
sports chassis. To further enhance
the overall impression as well as
the passengers’ comfort, the car
is equipped with other parts with
a black tint, such as the tinted
windows and SunSet (windows with
a higher density of tint in the rear).
The front door sill strips, with
Monte Carlo inscription, have both
decorative and protective functions.
The distinct “Monte Carlo” style is underlined by alloy wheels in a black
design: the 6.5J x 16" Comet with a glossy peripheral line or the 7.0J x 17"
Trinity.
The original design of the ŠKODA Fabia Monte Carlo is based on a simple yet distinct solution. Some exterior details are in an innovative black design,
which gives the car a unique style and a ferocious expression. The main headlamps as well as the front fog lamps with daytime running lights,
the vertical ribs of the front grille, including the frame, and the external rear-view mirrors have a black tint.
The 3-spoke steering wheel
in black perforated leather
is decorated with red stitching.
The knob and sleeve
of the manual transmission
gear stick come in black
leather with red stitching
as standard.
The handbrake handle
is another leather element
featuring the characteristic
red stitching.

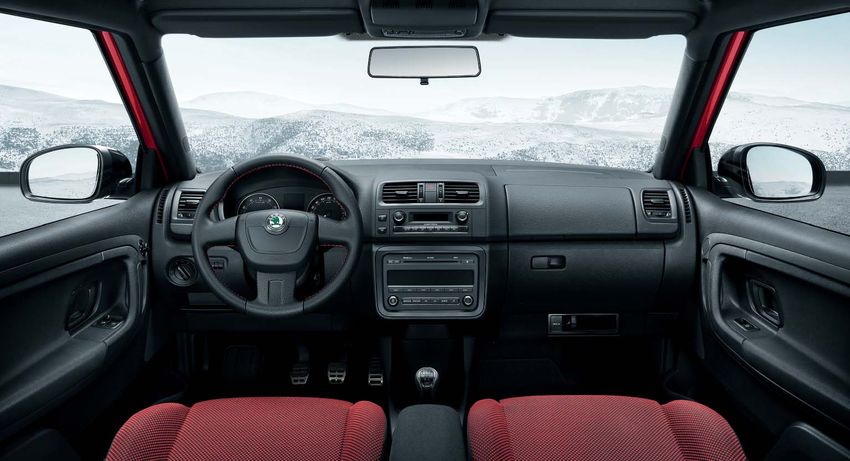

The Onyx/Onyx dashboard corresponds to the Ambiente equipment
level. The instrument panel is equipped with a multifunctional
indicator.
The stylish sports-elegant interior is
You can choose between two colour designs of the interior. If you complemented by noble steel foot pedal covers.
decide for the red interior, the upholstery of the front sports seats
will be in red in combination with black backrest sides. The black
interior, which comes as standard, features front sports seats in
grey/black combination. The ceiling, columns, floor lining and door
panelling are always in black for both interior versions.
Candy White uni Sprint Yellow special* Corrida Red uni Brilliant Silver metallic Cappuccino Beige metallic* Anthracite Grey metallic Black Magic pearl effect * Available during 2011.
Technical specifications
Engine 1.2 HTP/44 kW 1.2 HTP/51 kW 1.4 MPI/63 kW 1.2 TSI/63 kW 1.2 TSI/77 kW 1.2 TDI CR DPF/55 kW 1.6 TDI CR DPF/55 kW 1.6 TDI CR DPF/66 kW 1.6 TDI CR DPF/77 kW
Petrol engine Petrol engine Petrol engine Turbocharged petrol engine, high-pressure direct Turbocharged petrol engine, high-pressure direct Turbocharged diesel engine, high-pressure direct injection Turbocharged diesel engine, high-pressure direct injection Turbocharged diesel engine, high-pressure direct injection Turbocharged diesel engine, high-pressure direct injection
injection system injection system common rail system common rail system common rail system common rail system
Cylinders 3 3 4 4 4 3 4 4 4
Cubic capacity (cc) 1,198 1,198 1,390 1,197 1,197 1,199 1,598 1,598 1,598
Max. performance/Revs (kW/min-1) 44/5,200 51/5,400 63/5,000 63/4,800 77/5,000 55/4,200 55/4,000 66/4,200 77/4,400
Max. torque/Revs (Nm/min-1) 108/3,000 112/3,000 132/3,800 160/1,500–3,500 175/1,550–4,100 180/2,000 195/1,500–2,000 230/1,500–2,500 250/1,500–2,500
Air pollution regulation EU5 EU5 EU5 EU5 EU5 EU5 EU5 EU5 EU5
Fuel Unleaded petrol, RON 95/91* Unleaded petrol, RON 95/91* Unleaded petrol, RON 95/91* Unleaded petrol, RON 95/91* Unleaded petrol, RON 95/91* Diesel Diesel Diesel Diesel
Performance
Maximum speed (km/h) 155 163 175 177 191 166 166 176 188
Acceleration 0–100 km/h (s) 16.5 14.9 12.2 11.7 10.1 14.2 14.1 12.6 10.9
Fuel consumption 99/100
– urban (l/100 km) 7.5 7.3 8.0 6.6 6.8 4.8 5.1 5.1 5.1
– extra-urban ( l/100 km) 4.7 4.5 4.7 4.4 4.5 3.3 3.6 3.6 3.6
– combined (l/100 km) 5.7 5.5 5.9 5.2 5.3 3.8 4.2 4.2 4.2
CO2 emissions (g/km) 132 128 139 121 124 99 109 109 109
Turning circle diameter (m) 10.0 10.0 10.0 10.0 10.0 10.0 10.0 10.0 10.0
Power transmission
Type Front-wheel drive Front-wheel drive Front-wheel drive Front-wheel drive Front-wheel drive Front-wheel drive Front-wheel drive Front-wheel drive Front-wheel drive
Clutch Hydraulic single dry clutch disc Hydraulic single dry clutch disc Hydraulic single dry clutch disc Hydraulic single dry clutch disc Hydraulic single dry clutch disc Hydraulic single dry clutch disc Hydraulic single dry clutch disc Hydraulic single dry clutch disc Hydraulic single dry clutch disc
Transmission Manual 5-speed Manual 5-speed Manual 5-speed Manual 5-speed Manual 5-speed Manual 5-speed Manual 5-speed Manual 5-speed Manual 5-speed
Weight
Kerb weight – in standard version with a 75kg driver (kg) 1,090 1,095 1,104 1,116 1,130 1,189 1,204 1,204 1,219
Payload – incl. a driver and extra equipment (kg) 530 530 530 530 530 530 530 530 530
Total weight (kg) 1,545 1,550 1,559 1,571 1,585 1,644 1,659 1,659 1,674
Trailer load without brakes (max. kg) 500 500 500 500 500 500 500 500 500
Trailer load with brakes – 12% (max. kg) 800 800 1,000 1,100 1,200 1,000 1,000 1,200 1,200
Body 5-seater, 5-door, 2-compartment 5-seater, 5-door, 2-compartment
Drag coefficient Cw 0.32 0.32 0.33 0.33 0.33 0.32 0.32 0.32 0.33
Chassis
Front axle McPherson suspension with lower triangular links and torsion stabiliser McPherson suspension with lower triangular links and torsion stabiliser
Rear axle Compound link crank-axle Compound link crank-axle
Braking system Hydraulic dual-diagonal circuit braking system vacuum assisted Hydraulic dual-diagonal circuit braking system vacuum assisted
– front brakes Disc brakes with inner cooling and with single-piston floating calliper Disc brakes with inner cooling and with single-piston floating calliper
– rear brakes Drum brakes; alternatively disc brakes depending on the engine version Drum brakes; alternatively disc brakes depending on the engine version
Steering Direct rack-and-pinion steering with electro-hydraulic power steering Direct rack-and-pinion steering with electro-hydraulic power steering
Wheels 6.5J x 16" 6.5J x 16"
Tyres 205/45 R16 205/45 R16
Liquids
Tank capacity (l) 45 45 45 45 45 45 45 45 45
* Using low-octane fuel may affect engine performance.
989
994
1,493
1,224
1,384
1,380
958
315 l
703
19.1°
12.3°
1,423 1,415 872 2,464 677
1,651 1,886 4,013
One of the most important goals of ŠKODA Auto is the development and production of products that are as environmentally friendly as possible throughout their life cycle phases, placing
principal emphasis on the selection of recyclable materials. Our ŠKODA cars are manufactured using progressive types of technology in modern production facilities that meet the strictest
criteria. Anticorrosive protection of the cars’ painted parts is based exclusively on lead-free cataphoresis (KTL) and water-soluable paints.
Our company strategy includes limiting fuel consumption and emissions. As a result, the engines we offer meet the current emission regulations. All products made by ŠKODA Auto adhere
to the laws and regulations concerning the protection of soil and water. As a result of these activities, ŠKODA cars meet technical, safety, quality and environmental requirements. ŠKODA
Auto contributes to the preservation of a clean environment and provides mobility and comfort to its customers.
The environmental logo expresses ŠKODA Auto’s awareness of, responsibility for and attempts
at the sustainable development of the company and a friendly approach to life and nature.
Some models in this catalogue are shown fitted with optional or extra equipment not necessarily included in the standard equipment. Your ŠKODA partner:
FA18020 05/11
All details of technical specifications, design, equipment, materials, guarantees and appearance were accurate at the time of going
to print. However, the manufacturer reserves the right to make any changes without prior notice. The information included in this
catalogue is for guidance only. Due to printing technology limitations, the colours of paints or other materials shown in this catalogue
may differ from reality. For up-to-date information and further details on standard and optional equipment, current prices and delivery
terms and conditions contact your authorised ŠKODA partner. This catalogue was printed on cellulose paper which was bleached without
using chlorine. The paper is 100% recyclable.
