STEP #1 – PLAN
❖ Establish a time frame for your project. A Wisebuys sales
representative can advise you about our lead times.
❖ Try to create the “work triangle” principle (see below). The
closer to an equilateral triangle, the more efficient your kitchen.
DW DW DW
DW
DW
L-Shape Kitchen Galley Kitchen U-Shape Kitchen Straight Kitchen With an Island
❖ Before designing your kitchen, make sure you know the size of
your appliances and the amount of breathing/ventilation room
they require.
❖ Cabinet heights vary (see below) to provide a variety of design
and storage solutions. Always check your ceiling height.
96” PANTRY 42” UPPER
84” PANTRY 30” UPPER 24” UPPER 18” UPPER 15” UPPER 12” UPPER 90” PANTRY 36” UPPER
12”
15”
18” 36” 42”
24”
30”
84”
96”
90”
84”
1 ½” Standard
countertop
34 ½” 34 ½” 34 ½” 34 ½” 34 ½” 34 ½” 34 ½”
STEP #2 – DESIGN 4 ½” High
Toe Kick
Put all of the following information on the grid sheet provided, using the
example below. The grid sheet is in 3” x 3” increments.
1. Start measuring from the corner shown.
2. Measure the total length of all walls corner to corner.
3. Indicate window and door locations and sizes. Show individual corner to window/door trim
dimensions.
4. Indicate door swings and location of electrical pugs and centre line of sink. Include
waterline, floor drain locations and locations of drop ceilings and bulk heads.
5. Indicate appliance locations and sizes on chart below.
6. Double check all dimensions – individuals and totals.
7. Draw in cabinets and remember to allow breathing room for appliances.
144”
24” 84”
Window
Wall Plug
24”
Start Water
Drain
Measure Lines
Here
Mark direction of
Measure from the door swing and
centre of your sink to ensure it will not
hit any cabinets
96” the nearest corner
Gas line
or Range
Plug 36”
Wall Plug
Opening to Dining Room
24” 78”
APPLIANCE CHART APPLIANCE WIDTH APPLIANCE DEPTH APPLIANCE HEIGHT
Refrigerator
Range
Dishwasher
Sink
Microwave
Other:STEP #2 – GRAPH Use the above graph to draw out your kitchen design. Please Note: The above grid is in 3” x 3” increments which is the same as our kitchen cabinets.

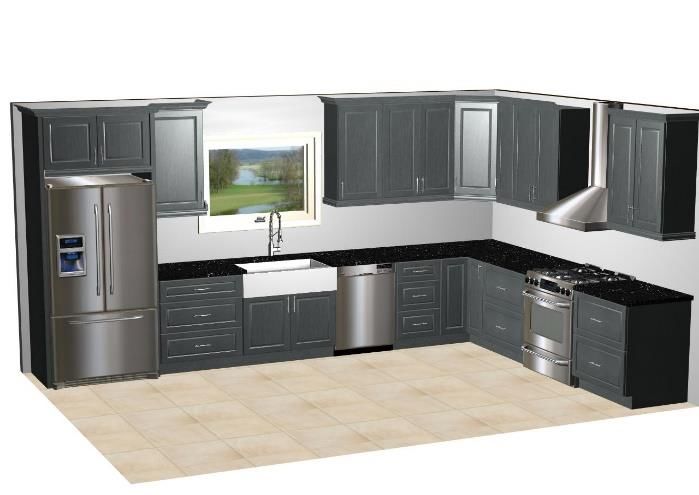

STEP #3 – ORDER ❖ Decide on the kitchen cabinet style you like. ❖ Using the information you have provided to our sales staff, we can create a top view line drawing and a quote based on the cabinet style of your choice. ❖ If we are installing your kitchen for you, we will schedule a time with you for an on-site measurement to verify the cabinets you have ordered will correctly fit. ❖ Once you have received your cabinets, make sure you have the tools and materials required to install your kitchen. ❖ Always keep a copy of your design plan with you while installing your cabinets. It helps if you draw the location of each cabinet on the walls and/or floor.
