INSTALLATION AND MAINTENANCE MANUAL ALBORAN CS - SOLID LINES - Frost-trol
INSTALLATION AND MAINTENANCE MANUAL

                                                               ALBORAN CS
                                                                 SOLID LINES

           PRECAUCIÓN: Leer las instrucciones antes de usar el aparato.

TRANSLATION OF THE              For additional copies visit:              D004007
ORIGINAL DOCUMENT                  www.frost‐trol.com                     Versión:4
INSTALLATION AND MAINTENANCE MANUAL ALBORAN CS - SOLID LINES - Frost-trol
INSTALLATION AND MAINTENANCE MANUAL

     Index
     EEC DECLARATION OF CONFORMITY ............................................................... 2
     SAFETY ADVICE............................................................................................ 3
     1.          GENERAL INFORMATION .................................................................. 5
     1.1.        DESCRIPTION OF DISPLAY CABINET ................................................. 6
     1.2.        GENERAL CHARACTERISTICS ............................................................ 7
     1.3.        RECEIPT OF CABINET ...................................................................... 8
     1.4.        DAMAGE SUSTAINED IN TRANSIT ...................................................... 9
     1.5.        TECHNICAL ASSISTANCE .................................................................. 9
     1.6.        STORAGE ....................................................................................... 9
     2.          INTALLATION OF DISPLAY CABINET .................................................. 9
     2.1.        CABINET LOCATION ......................................................................... 9
     2.2.        UPACKING .................................................................................... 11
     2.3.        LEVELLING ................................................................................... 11
     2.4.        ELECTRICAL CONNECTION .............................................................. 11
     2.5.        CLEANING .................................................................................... 13
     3.          OPERATION .................................................................................. 14
     3.1.        INITIAL START-UP ......................................................................... 14
     3.2.        PRODUCT LOADING ....................................................................... 15
     4.          MAINTENANCE AND CLEANING ........................................................ 15
     4.1.        CLEANING ROUTINE ...................................................................... 16
     4.2.        GLASS CERAMIC HOB CLEANING ..................................................... 17
     4.3.        REPLACING THE QUARTZ INFRARED HALOGEN LAMPS ........................ 18
     5.          SPARE PARTS REQUEST ................................................................. 19
     6.          FAULTS AND REPAIRS .................................................................... 20
     6.1.        MALFUNCTIONS ............................................................................ 20
     6.1.1.      THE UNIT DOESN’T START UP OR IT STOPS: ..................................... 20
     6.1.2.      THE UNIT DOES NOT WARM UP: ...................................................... 20
     6.1.3.      CERAMIC HOB IS BROKEN: ............................................................. 20
     6.2.        FINAL SHUTDOWN ......................................................................... 21
     6.3.        DISMANTLING THE CABINET ........................................................... 22
     6.4.        DECLARTION OF ROHS CONFORMITY ............................................... 22

                                                                                       ALBORAN CS
TRANSLATION OF THE
                                             For additional copies visit:                               SOLID LINES
ORIGINAL DOCUMENT
                                                www.frost‐trol.com
Versión: 4                                                                                                           -1-
INSTALLATION AND MAINTENANCE MANUAL

                                        SAFETY ADVICE

                 Handling operations and installation of the cabinet are reserved for
                 skilled person.

                 During cabinet operation, some parts of the cabinet can reach high
                 temperatures. Please, before its handling, make sure these surfaces
                 are already cooled or take precautions.

                 The cabinet must not be installed in places where explosive gases are
                       present. Do not expose the equipment to atmospheric agents.

                 Packaging materials (plastic bags, nails, screws, polystyrene, etc.)
                 should not be left within reach of children as they pose potential
                 sources of danger.

                 Do not expose the equipment to atmospheric agents.

                 Do not drill the surface of the vitroceramic hob.

                 The cabinet doors should be closed as long as possible. In this way,
                 excessive energy consumptions will be avoided.

                 Do not store explosive substances such as aerosol cans with a
                 flammable propellant in the refrigerated cabinet.

                 Keeping pharmaceuticals, glass bottles or flasks in the cabinet is
                 strictly forbidden.

                 Only qualified personnel can remove panels or guards, and specially
                 the electric board cover, when this requires the use of tools.

                 Before obtaining access to terminals, all supply circuits must be
                 disconnected.

                                                                      ALBORAN CS
TRANSLATION OF THE
                                    For additional copies visit:                   SOLID LINES
ORIGINAL DOCUMENT
                                       www.frost‐trol.com
Versión: 4                                                                                  -3-
INSTALLATION AND MAINTENANCE MANUAL

                 Unplug the cabinet before performing any form on internal servicing of
                 the unit.

                 The power cords must be properly spread out, safe from shocks and
                 far from liquids, water and heat sources, and in perfect condition. The
                 use of adaptor plugs is forbidden.

                 If the power cord is damaged, it must be replaced by the
                 manufacturer in order to avoid a hazard.

                 Earthing is mandatory according to current legislation, as is providing
                 protection against power surges, short circuits and indirect contacts.

                 Ensure that the power supply voltage meets the details on the rating
                 plate of the cabinet. The cabinet must be properly connected to the
                 earthing system.

                 Interior cleaning and disinfection could never be done in presence of
                 food.

                 Looking at the lamp during operation may result in damage in to the
                 eye.

                 Do not use direct or indirect water jets on the cabinet. Do not touch
                 the equipment with damp or wet hands or feet; do not use it while
                 barefoot.

                 If you wish to stick adhesive signs onto the cabinet, only use thin foil.
                 Do not lay thick insulating layers on the external walls of the
                 equipment as this could compromise cabinet performance.

                 In order to reduce flammability-related risks, this cabinet may only be
                 installed by suitably qualified personnel.

                 Any other use not explicitly mentioned in this handbook must be
                 considered as hazardous. The manufacturer disclaims all liability for
                 damage resulting from improper, incorrect or unreasonable use.

                                                                      ALBORAN CS
TRANSLATION OF THE
                                    For additional copies visit:                   SOLID LINES
ORIGINAL DOCUMENT
                                       www.frost‐trol.com
Versión: 4                                                                                   -4-
INSTALLATION AND MAINTENANCE MANUAL

     1. GENERAL INFORMATION

     Welcome to the Alboran CS series of dry heat display cabinet modules from Frost-
     Trol for the sale of pre-cooked products. We are delighted by your decision to
     choose us.

      This assembly and maintenance manual has been especially designed with a view
     to assist maintenance staff by facilitating the installation of these cabinets, thus
     making their task more pleasant, as well as to gain optimal productivity from these
     units and also so that the Marketing Director is able to gain the maximum
     commercial return possible.

     Read this manual carefully and store it with the unit. Pay particular attention to the
     sections that emphasize your safety. Follow these instructions to ensure that the
     unit will run smoothly and its life span may be long and productive.

     We are open to any suggestions that you may have concerning the design of this
     manual. Please write to the following address or call us on the telephone number
     given below:

                                      Frost-trol, S.A.
                                   Technical Department

                                  Avda. del Castell Vell, 176
                                  12004 Castellón (Spain).
                                   Tel.: 0034 964 34 27 40
                                   Fax: 0034 964 21 51 48
                               e-mail: frost-trol@frost-trol.com
                                     www.frost-trol.com

     The A-weighted emission sound pressure level is below 70dB(A).

                                                                      ALBORAN CS
TRANSLATION OF THE
                                     For additional copies visit:                  SOLID LINES
ORIGINAL DOCUMENT
                                        www.frost‐trol.com
Versión: 4                                                                                    -5-
INSTALLATION AND MAINTENANCE MANUAL

             1.1.    DESCRIPTION OF DISPLAY CABINET

     The dry heat cabinets referred to in this manual belong to Alboran CS Solid Lines
     product series from from Frost-Trol.
     These cabinets are designed for the sale of pre-cooked products keeping products
     warm through a glass ceramic hob halogen lamps located in the upper part.

     Este aparato esta destinados a ser utilizados para aplicaciones comerciales, por
     ejemplo, en cocinas de restaurantes, comedores, hospitales y en empresas
     comerciales como panaderías, carnicerías, etc., pero no para la producción
     continua de alimentos en masa.

     Different versions, depending on the type of glass complete the Alboran series:
     curved (TR) or straight (CU).

     The cabinet has a wide range of optional accessories. If you need details about its
     assemblage, please contact with Frost-trol, S.A.

     El peso máximo del mueble vacío es de 240kg.

                                                                    ALBORAN CS
TRANSLATION OF THE
                                    For additional copies visit:                 SOLID LINES
ORIGINAL DOCUMENT
                                       www.frost‐trol.com
Versión: 4                                                                                 -6-
INSTALLATION AND MAINTENANCE MANUAL

                 1.2.                                                  GENERAL CHARACTERISTICS

                                                       HVTR009125CS0017                                                                                                                                                                                             HVCU009125CS0017

                                                                                                                                                                       97°

                                                                                                                                                                                                                                                                                                                                                                                                                              16
                                                                                                                                                                                                                                                                                                                                                                                                                              5°
                                                             200 [7 7/8"]                                                                                                                                                                                                                                          350 [13 3/4"]

                                                                                                                                                                                                                                                                                                       "]
                                                  230 [9"]                                                                                                                                                                                                     230 [9"]                            1 /4

                                                                                                                                                                                                                                                                                                                                                                                                                                                1780 [70"]
                                                                      338 [13 3/8"]

                                                                                                                                                                                                                                                                                                                                                                                                      1181 [46 1/2"]
                                                                                                                                                                                                                                                                                        24
                                                                                                                                                                                                                                                                                      7[
                                                                                                                                                                                                                                                                                    61
                                                                                                                                                                                                           1777 [70"]
                 1203 [47 3/8"]

                                                                                                                                                                                          1198 [47 1/8"]

                                                                                                                                                                                                                           1187 [46 3/4"]
                                                                            707 [27 7/8"]
                                                                                                                                                                                                                                                                                 707 [27 7/8"]
                                  878 [34 5/8"]

                                                                                                                                                                                                                                               878 [34 5/8"]
                                                                                                                                                       531 [20 7/8"]

                                                                                                                                                                                                                                                                                                                                                                     531 [20 7/8"]
                                                                                                                                       443 [17 1/2"]

                                                                                                                                                                                                                                                                                                                                                     443 [17 1/2"]
        81 [3 1/4"]                                                   754 [29 3/4"]                   345 [13 5/8"]                                                                                                     81 [3 1/4"]                                        754 [29 3/4"]                            345 [13 5/8"]

                                                                               1205 [47 1/2"]                                         302 [11 7/8"]                                                                                                                                 1205 [47 1/2"]                                                                                         645 [25 3/8"]

                                                                                              MÓDULO                                                                                                                                                                                                        MÓDULO
                                                                                               1250                                                                                                                                                                                                          1250

                                                       HVTR008325CS0017                                                                                                                                                                                             HVCU008325CS0017
                                                                                                                                                        97°

                                                                                                                                                                                                                                                                                                                                                                                                                       16
                                                                                                                                                                                                                                                                                                                                                                                                                         5°

                                                      200 [7 7/8"]                                                                                                                                                                                                                                            350 [13 3/4"]

                                                  230 [9"]           302 [11 7/8"]                                                                                                                                                                             230 [9"]                             "]
                                                                                                                                                                                                                                                                                                 5/8
                                                                                                                                                                                                                                                                                                                                                                                                                                   1780 [70"]
                                                                                                                                                                                                                                                                                                                                                                                     1181 [46 1/2"]

                                                                                                                                                                                                                                                                                         21
                                                                                                                                                                                                                                                                                       8[
                                                                                                                                                                                                                                                                                  54
                                                                                                                                                                                          1777 [70"]
           1203 [47 3/8"]

                                                                                                                                                                         1198 [47 1/8"]

                                                                                                                                                                                                                              1187 [46 3/4"]

                                                                                                                                                                                                                                                                                 707 [27 7/8"]
                                                                             707 [27 7/8"]
                                  878 [34 5/8"]

                                                                                                                                                                                                                                               878 [34 5/8"]
                                                                                                                                      531 [20 7/8"]

                                                                                                                                                                                                                                                                                                                                                    531 [20 7/8"]
                                                                                                                      443 [17 1/2"]

                                                                                                                                                                                                                                                                                                                                    443 [17 1/2"]

                                                                                                                                                                                                                                                                                          1 :1

        81 [3 1/8"]                                                  674 [26 1/2"]               351 [13 3/4"]                                                                                                          81 [3 1/8"]                                       674 [26 1/2"]                        351 [13 3/4"]

                                                                             1130 [44 1/2"]                           302 [11 7/8"]                                                                                                                                               1130 [44 1/2"]                                                                     643 [25 3/8"]

                                                                                              MÓDULO                                                                                                                                                                                                        MÓDULO
                                                                                               1250                                                                                                                                                                                                          1250

                                                                                                                                                                                                                                                                                                            ALBORAN CS
TRANSLATION OF THE
                                                                                                                                          For additional copies visit:                                                                                                                                                                                                        SOLID LINES
ORIGINAL DOCUMENT
                                                                                                                                             www.frost‐trol.com
Versión: 4                                                                                                                                                                                                                                                                                                                                                                                                                                       -7-
INSTALLATION AND MAINTENANCE MANUAL

      81 [3 1/4"]                                     754 [29 5/8"]                               345 [13 5/8"]                               81 [3 1/4"]                                      674 [26 1/2"]                            350 [13 3/4"]

                                                 51 [2"]                                                                                                                                74 [2 7/8"]

                                                                                                                                                                                                                                              ALBORAN CS SOLID-LINES
                                                                                                                                                                                                                                                 HV--128325CS0017
                                                                                                     ALBORAN CS SOLID-LINES
                              1126 [44 1/4"]
           1250 [49 1/4"]

                                                                                                                                                   1250 [49 1/4"]

                                                                                                                                                                    1103 [43 3/8"]
                                                                                                        HV--129125CS0017
                                                      906 [35 5/8"]

         74 [2 7/8"]                           628 [24 3/4"]                                                                                     74 [2 7/8"]                          628 [24 3/4"]
                                                                1180 [46 1/2"]                                                                                                                        1105 [43 1/2"]

                                                                  1222 [48 1/8"]                                                                                                                        1147 [45 1/8"]

                                                                                                                                                                                                                                                                       32 [1 1/4"]
                                                                 1205 [47 1/2"]                                                                                                                        1130 [44 1/2"]

                                                                       PARAGOLPES                                                                                                           LATERAL V2 HV--128325CS0017 CON PARAGOLPES

                                                                LATERAL V2 HV--129125CS0017

      32 [1 1/4"]                                LATERAL V2 HV--129125CS0017                                                  74 [2 7/8"]
                                                                                                                                            74 [2 7/8"]                              LATERAL V2 HV--128325CS0017
                                                      CON PARAGOLPES                                                                                                                      CON PARAGOLPES

                                                             1205 [47 1/2"]                                                                                                                        1130 [44 1/2"]

                                                     LATERAL V1 HV--129125CS0017 SIN PARAGOLPES                                                                                           LATERAL V1 HV--128325CS0017 SIN PARAGOLPES

        26 [1"]                                  LATERAL V1 HV--129125CS0017                                                                    26 [1"]                              LATERAL V1HV--128325CS0017
                                                       SIN PARAGOLPES                                                                                                                     SIN PARAGOLPES

                            18122019

                                                     CONEXIÓN FRÍO                                               COLD CONEXION                  RACCORDEMENT FROID                                                       KÄLTEANSCHLUSS

                                                           INFERIOR                                                           ON BOTTOM                             INFÉRIEUR                                                     UNTEN

                                                           DESAGÜE                                                              DRAIN                           ECOULEMENT                                              ABFLUSSANSCHLUSS

                                                                                                                                            Ø25mm
                                                  CONEXIÓN ELÉCTRICA                                 ELECTRICAL CONEXIÓN                      ACCORDEMENT ÉLÉCTRIQUE                                                   ELEKTROANSCHLUSS

                                                           INFERIOR                                                           ON BOTTOM                             INFÉRIEUR                                                     UNTEN

                                                              PATAS                                                           SUPPORTS                                PATTES                                                           FUSS

                                                    PARTE DELANTERA                                 FRONT SIDE (CUSTOMERS)                         PARTIE DE DEVANT                                                          KUNDENSEITE

                   1.3.                           OPERATING CONDITIONS

     Exhibitor's performance will depend on the conditions of the environment in which
     it is installed, the amount and distribution of food exposed and the number of
     openings of the rear doors.

                   1.4.                           RECEIPT OF CABINET

     Check the unit carefully to make sure that it is not damaged and no part or
     accessory is missing. For information about missing parts or accessories please
     contact the Frost-Trol Commercial Department or our official representative for
     your country.
                                                                                                                                                                                                 ALBORAN CS
TRANSLATION OF THE
                                                                                                             For additional copies visit:                                                                                                        SOLID LINES
ORIGINAL DOCUMENT
                                                                                                                www.frost‐trol.com
Versión: 4                                                                                                                                                                                                                                                                -8-
INSTALLATION AND MAINTENANCE MANUAL

     This dry heat display cabinet has been thoroughly inspected to ensure the highest
     level of quality. Any order for components should be made to Frost-Trol or our
     official representative for your country within 48 hours of receipt of the cabinet.

             1.5.    DAMAGE SUSTAINED IN TRANSIT

     If the cabinet has sustained any damage in transit, then you must make a claim
     with the Shipping Company immediately, by stating the damage on the delivery
     note and having this signed by the carrier.

             1.6.    TECHNICAL ASSISTANCE

     Should you have any technical queries concerning the installation of the display
     cabinet, please contact our Technical Department.
     If you need to get in contact with Frost-Trol with regard to a specific element,
     please make sure that you are able to quote the model and serial number. This
     information can be found on the nameplate, which is located inside the display
     cabinet.

             1.7.    STORAGE

     Do not storage the cabinet outdoors; do not expose to climatic conditions or to
     direct sunlight.

     The cabinet with plastic cover may reach temperatures above 80° C in the sun,
     which might result in the deformation of plastic parts.

     Check the good condition of the packaging before storing the cabinet.

     2. INTALLATION OF DISPLAY CABINET

             2.1.    CABINET LOCATION

     Handling operations and installation of the cabinet are reserved for skilled
     person.

     Consult the Construction Manager or the person responsible for the installation of
     unit. Ask them to inform you of its installation location or if there are any changes
     to where it is to be installed.

                                                                      ALBORAN CS
TRANSLATION OF THE
                                    For additional copies visit:                   SOLID LINES
ORIGINAL DOCUMENT
                                       www.frost‐trol.com
Versión: 4                                                                                   -9-
INSTALLATION AND MAINTENANCE MANUAL

     Check that the installation location chosen is suitable.

                 The display cabinet must not be installed in places where explosive
                 gases are present. Do not expose the equipment to atmospheric
                 agents.

     If the chosen location is not suitable for the installation of the cabinet, inform the
     Construction Manager or the person responsible for the supermarket accordingly,
     so that they can either specify another location or make the necessary
     modifications that would make the original location suitable (closure of air vents,
     removal of ventilators, closure of doors, etc.).

                                                                      ALBORAN CS
TRANSLATION OF THE
                                     For additional copies visit:                  SOLID LINES
ORIGINAL DOCUMENT
                                        www.frost‐trol.com
Versión: 4                                                                                    -10-
INSTALLATION AND MAINTENANCE MANUAL

     During the installation (or while carrying out maintenance) you must always wear
     proper safety equipment to preserve your security.

             2.2.     UPACKING

     Unpacking is reserved for skilled personnel.

     The cabinet is protected by plastic wrapping. Remove this and take out the
     accessories which can be found inside the cabinet:
     Using a fork-lift truck or pallet-lift, lift the cabinet, remove the wooden or plastic
     supports and replace them with the plastics bases that can be found inside the
     cabinet with the other accessories.

                    Packaging materials (plastic bags, nails, screws, polystyrene, etc.)
                    should not be left within reach of children as they pose potential
                    sources of danger.

             2.3.     LEVELLING

     Use the adjustable bases to level the unit.

                                         IMPORTANT!
     The surfaces that the lines are to be placed on may not be perfectly horizontal.
     Therefore it would be best to first take the section of line that is to be placed onto
     the highest part of the surface and screw its adjustable bases to their smallest
     possible heights whilst allowing the section to remain horizontal. This will ensure
     that the bases on the end sections do not need to be excessively extended.

             2.4.     ELECTRICAL CONNECTION

     The assembly, installation and connection of these cabinets must be
     carried out by a certified technician.

     Consult the circuit diagrams that are supplied with each cabinet when carrying out
     the electrical connections and observe all of your country’s safety regulations in
     full.

     Before plugging into the mains, check that the supply voltage is the same as the
     voltage indicated on the nameplate. The electricity supply should be adequate for
     maximum consumption.

                     The power cords must be properly spread out, safe from shocks and
                     far from liquids, water and heat sources, and in perfect condition. The
                     use of adaptor plugs is forbidden.

                                                                       ALBORAN CS
TRANSLATION OF THE
                                       For additional copies visit:                 SOLID LINES
ORIGINAL DOCUMENT
                                          www.frost‐trol.com
Versión: 4                                                                                     -11-
INSTALLATION AND MAINTENANCE MANUAL

                  If the power cord is damaged, it must be replaced by the
                  manufacturer in order to avoid a hazard.

     Technical cabinet data are showed in the nameplate (see Chapter 5).
     Electric diagrams are in the electric box inside a plastic package.

                Earthing is mandatory according to current legislation, as is providing
                protection against power surges, short circuits and indirect contacts.

     This cabinet is provided with quartz infrared halogen lamps. For its installation and/
     or handling, follow the recommendations described in Chapter 4.

     El montaje, instalación y conexionado de este mueble frigorífico debe ser
     realizada por un técnico certificado.

                 Antes de acceder a los terminales eléctricos del mueble, todos los
                 cables de alimentación deben ser desconectados.

     Las conexiones eléctricas deben realizarse siguiendo el esquema eléctrico que se
     facilita en cada mueble y estar realizadas conforme a los reglamentos         de
     seguridad en vigor.

                  Para la conexión eléctrica es preciso incorporar un interruptor
                  seccionador de acuerdo con las reglamentaciones de instalación. Dicho
                  interruptor debe estar directamente conectado a los bornes de
                  alimentación y debe tener una separación de contactos en todos los
                  polos que suministre desconexión bajo condiciones de sobretensión de
                  categoría III.
                  Los medios para la desconexión deben incorporarse en el cableado fijo
                  de acuerdo con las reglas de cableado del país y la normativa vigente.
                  Durante la instalación respetar las normas de instalaciones eléctricas
                  vigentes del país de uso.

     Antes de conectar a la red eléctrica, compruebe que la tensión de alimentación
     corresponde a la indicada en la placa de identificación del mueble. La toma de
     corriente debe ser la adecuada para el consumo máximo.

                  Los cables de alimentación tienen que estar correctamente extendidos,
                  a salvo de golpes y alejados de líquidos, agua y fuentes de calor y en
                  perfectas condiciones. No está permitido el uso de enchufes múltiples.

                  Con el fin de evitar riesgos, si el cable o cables de alimentación
                  resultan dañados, deben ser reemplazados por el fabricante, por su
                  servicio postventa o por personal cualificado con el fin de evitar un

                                                                      ALBORAN CS
TRANSLATION OF THE
                                     For additional copies visit:                  SOLID LINES
ORIGINAL DOCUMENT
                                        www.frost‐trol.com
Versión: 4                                                                                    -12-
INSTALLATION AND MAINTENANCE MANUAL

                     peligro.

     Los datos técnicos del mueble están indicados en la placa de características del
     mismo (ver Capítulo 5).
     El esquema eléctrico está disponible en el sobre plástico de documentación
     contenido en el interior de la caja eléctrica.

                    Es indispensable la puesta a tierra, así como las protecciones contra
                    sobre intensidades, cortocircuitos y contactos indirectos de acuerdo con
                    las normas vigentes.

             1.1.     CONEXIÓN EQUIPOTENCIAL

     Es obligatorio conectar el aparato al sistema equipotencial del usuario a través del
     punto de conexión identificado con el símbolo IEC60417-5021.

                                     Símbolo IEC60417-5021

     Utilizar un conductor con una sección de área nominal de hasta 10mm2.

             1.2.     MANIPULACIÓN DE LAS LÁMPARAS HALÓGENAS

     Este expositor está provisto de lámparas halógenas de cuarzo por infrarojos. Para
     su instalación y/o manipulación, siga las recomendaciones descritas en el Capítulo
     4.

             1.3.     CLEANING

     Before the first use, it’s mandatory to clean the unit thoroughly, both inside and
     out, with non-abrasive detergents and rinse well with water. Dry the inside with a
     cloth so that no water remains inside the unit (see Chapter 4).

                                                                        ALBORAN CS
TRANSLATION OF THE
                                       For additional copies visit:                  SOLID LINES
ORIGINAL DOCUMENT
                                          www.frost‐trol.com
Versión: 4                                                                                     -13-
INSTALLATION AND MAINTENANCE MANUAL

     2. OPERATION

             2.1.       INITIAL START-UP

     Connect the cabinet to the mains and then turn the switches on the ON position.
     Allow few minutes until the cabinet reaches the desired temperature.

     Operating temperature can be regulated via thermostat. The LED lighting will show
     you when the glass ceramic hob is working.

     Moreover, the quartz infrared halogen lamps can be enabled or disabled depending
     on the required conditions.

     Proceda a dar tensión al mueble. A continuación, active los interruptores de
     calentamiento de la cuba y el de las lámparas infrarrojas. Espere unos minutos
     hasta que el expositor haya conseguido la temperatura deseada.
     Puede regular la temperatura de funcionamiento a través del termostato. El piloto
     iluminado le indicará el funcionamiento o no de la placa vitrocerámica.

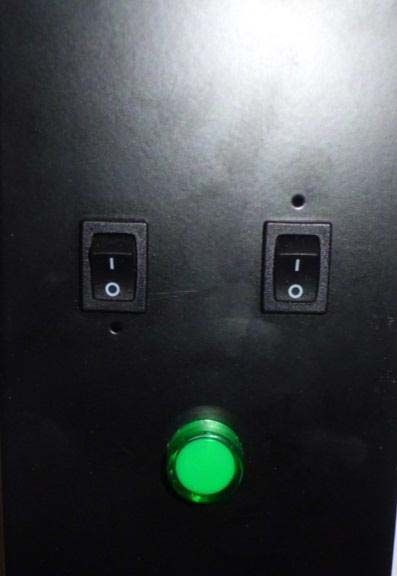

                                                                       LIGHTING
                                                                        SWITCH

                    VITROCERAMIC
                     HOB SWITCH

     The control components may              only     be    operated    by   the   technician
     responsible for the installation.

     The functions available to users are shutdown, start-up of the unit from the circuit
     board and the start-up of the lighting from its corresponding switches.

             2.2.       SUPERFICIES CALIENTES

     Algunas partes de la vitrina pueden alcanzar altas temperaturas durante su
     funcionamiento. Por ello, antes de su manipulación, asegúrese de que éstas ya se
     han enfriado o tome las precauciones necesarias. Estas superficies están marcadas
     con el símbolo IEC 60417-5041 (202-10)

                                                                         ALBORAN CS
TRANSLATION OF THE
                                    For additional copies visit:                      SOLID LINES
ORIGINAL DOCUMENT
                                       www.frost‐trol.com
Versión: 4                                                                                      -14-
INSTALLATION AND MAINTENANCE MANUAL

                                 símbolo IEC 60417-5041 (202-10)

             2.3.       PRODUCT LOADING

     Always check the working temperature before loading products inside.

                    During cabinet operation, some parts of the cabinet may can reach high
                    temperatures. Please, before its handling, make sure these surfaces are
                    already cooled or take precautions.

     Please note the following points when loading the cabinet:

                    ‐   To ensure the temperature maintenance, rotate food from front to
                        back of the glass ceramic hob.
                    ‐   Never lay out product directly onto the glass ceramic hob. Always
                        use thermally stable containers.
                    ‐   If exposed food is prepackaged, make sure that product package
                        supports temperature.
                    ‐   Rear doors only must be opened when necessary.

                    The cabinet doors should be closed as long as possible. In this way,
                    excessive energy consumptions will be avoided.

     3. MAINTENANCE AND CLEANING

                    Antes de proceder a cualquier tipo de manipulación interna del mueble,
                    desconéctelo previamente de la red eléctrica.

                    Superficies calientes. Algunas partes de la vitrina pueden alcanzar altas
                    temperaturas durante su funcionamiento.
                    Antes de proceder a su manipulación, asegúrese de que éstas ya se han
                    enfriado o tome las precauciones necesarias.

     Los productos perecederos son sensibles a la proliferación de bacterias y microbios.
     Por ello, la limpieza de los muebles expositores deberá realizarse teniendo en
     cuenta las siguientes reglas generales.

                                                                         ALBORAN CS
TRANSLATION OF THE
                                        For additional copies visit:                  SOLID LINES
ORIGINAL DOCUMENT
                                           www.frost‐trol.com
Versión: 4                                                                                      -15-
INSTALLATION AND MAINTENANCE MANUAL

                    Los componentes del circuito de eléctrico sólo podrán ser manipulados
                    y/o reparados por personal autorizado.

             3.1.      CLEANING ROUTINE

     Establish a routine cleaning schedule to ensure an adequate level of hygiene of
     your cabinet.
     In this way you will ensure an optimal performance of the cabinet and a longer
     service life.

                        TIPO                     ZONA                 PERIODICIDAD
                      LIMPIEZA                 EXTERIOR                  SEMANAL
                      LIMPIEZA                 INTERIOR                   DIARIA
                      LIMPIEZA                 GENERAL                CADA 2-3 MESES

     Clean your glass ceramic hob regulary, preferably every time you use it. The other
     cabinet components should be cleaned at least once a week.

     When cleaning the glass ceramic hob, avoid using abrasive sponges or scouring
     agents. Harsh chemical cleaners like oven sprays or stain reovers are also
     unsuitable, as are bath room or household cleaners.

                    During cabinet operation, some parts of the cabinet can reach high
                    temperatures. Please, before its handling, make sure these surfaces are
                    already cooled or take precautions.

     Clean the rest of the cabinet with non-abrasive detergents. Never use products
     which contain alcohol, solvents, acetone or chlorine. Avoid the use of metallic
     brushes.

     IMPORTANT:
     If any plastic, tin foil, sugar or sugary food have fallen on to the hot glass ceramic
     hob, please scrape it off the hot surface as quickly as possible.

                    No proyecte directamente chorros de agua ni productos de limpieza
                    sobre los componentes eléctricos del expositor.
                    Si esto ocurre, debe asegurarse del secado de estos antes de volver a
                    ponerlos en marcha.

                    El mueble no puede ser limpiado con chorros de agua o con un
                    limpiador a vapor.

     En el caso de que el mueble vaya a estar un tiempo parado, retire los alimentos
     que se encuentren en su interior, desconéctelo, límpielo siguiendo el procedimiento
     descrito a continuación y deje las puertas entreabiertas para evitar la generación
     de malos olores

                                                                          ALBORAN CS
TRANSLATION OF THE
                                       For additional copies visit:                    SOLID LINES
ORIGINAL DOCUMENT
                                          www.frost‐trol.com
Versión: 4                                                                                     -16-
INSTALLATION AND MAINTENANCE MANUAL

     GENERIC CLEANING ROUTINE

     Clean the cabinet with non-abrasive detergents. Cleaning products have to be
     suitable for use with foodstuffs. Ensure a good rinse to remove all detergent
     remnants. After the cabinet cleaning, rinse and dry it with a nonabrasive dry cloth
     until no water remains.

     Never use products which contain alcohol, solvents, acetone or chlorine. Avoid the
     use of metallic brushes.

     For glass surfaces cleaning, use specific products for it. Water use, will carry on
     calcareous deposits. For cleaning the fixed glass, pleas follow the procedure
     described in the next section.

     XXINTERNAL CLEANING PROCEDURE

     To ensure an adequate level of hygiene of your cabinet you must clean and
     disinfect the inner parts of the cabinet almost every 30 days. To do so :

             -   Remove the cabinet products and put i tonto an adequate cold storage.
             -   Apply a defrost.
             -   Wait until the inner cabinet parts reach ambient temperature and no frost
                 rests remain.

                    Don’t use metallic or cutting objects to accelerate the process. It may
                    scratch or damage inner surfaces.

             -   Clean inner parts with warm water and neutral soap.
             -   Dry the surface with a soft cloth.
             -   Ensures all the surface are well dried.
             -   Close the cabinet doors and switch on the cabinet.
             -   Wait until cabinet temperature is correct before loading product inside.

     Cleaning procedures never must be made in the presence of products.

                    Gloves should be worn to protect hands when cleaning inside the
                    evaporator and the condenser. This will protect hands against possible
                    cuts or scratches from the unit’s internal elements.

                    Make sure that the drainage holes are not obstructed by any remaining
                    merchandise, as this could impede the drainage of excess water
                    resulting from defrosting.

             3.2.
             3.3.       GLASS CERAMIC HOB CLEANING

                                                                          ALBORAN CS
TRANSLATION OF THE
                                         For additional copies visit:                  SOLID LINES
ORIGINAL DOCUMENT
                                            www.frost‐trol.com
Versión: 4                                                                                     -17-
INSTALLATION AND MAINTENANCE MANUAL

                       Interior cleaning and disinfection could never be done in presence of
                       food.

     To thoroughly clean your glass ceramic hob, please follow next steps:

             1.   Unplug the cabinet from the mains and let it cool.
             2.   Remove rear doors and lift up the frontal glass.
             3.   Remove the food containers and clean them.
             4.   Remove dirt and food with a scraper or special sponge for glass ceramic
                  hob.
             5.   Once the glass ceramic hob has cooled, put a few drops of a suitable
                  cleaner on it and rub it on with a paper towel, a clean cloth or the rough
                  side of an approved cleaning sponge.
             6.   Then wipe the glass ceramic hob with a damp cloth and dry it with a clean
                  cloth or the smooth side of an approved cleaning sponge.
             7.   Clean the glass and/or cabinet mirrors with an adecuated glass cleaner.
             8.   Finally, to avoid bad odours, leave doors half open until the new use.

                       Do not use direct or indirect water jets on the cabinet. Do not touch
                       the equipment with damp or wet hands or feet; do not use it while
                       barefoot.

             3.4.  REPLACING THE QUARTZ INFRARED HALOGEN
                LAMPS

     To ensure maximum safety, the following precautions should be observed:

                 Disconnect installation from power supply before removing or installing a
                  lamp.
                 Preferably do not touch quartz with bare hands. If grease or chemical
                  compound have been deposited on quartz, simply clean before lighting with
                  cloth moistened with alcohol.
                 Prolonged looking at the lamp during operation may result in damage in to
                  the eye.
                 Take care not to exceed permissible pinch temperature as indicated in
                  technical notice.
                 Respect burning position of the lamp as indicated in the technical
                  documentation.
                 Avoid over-voltage, as this can adversely affect lifetime of the lamp.
                 Integrate lamp in equipment specifically designed for the type and rating of
                  the lamp.
                 Protect the lamp against shocks and vibrations even when it is cold.

                                                                          ALBORAN CS
TRANSLATION OF THE
                                          For additional copies visit:                 SOLID LINES
ORIGINAL DOCUMENT
                                             www.frost‐trol.com
Versión: 4                                                                                       -18-
INSTALLATION AND MAINTENANCE MANUAL

     4. SPARE PARTS REQUEST

     Before contacting the Spare Parts Department, kindly compile the following
     information:

     Model *:
     Cabinet series number *:
     Manufacture year *:
     Part number according to spare parts cross-section **:
     Length of the part (if applicable):
     Colour of the part (if painted):
     Left of right (if necessary)***:
     Quantity:

     *The series number is indicated inside the cabinet, on the characteristics plate.
     ** Taking the customer’s standing position as a reference.
     *** You may request to Frost-trol the spare parts cross-section.

                                                  Frost-trol, S.A.
                                             Spare Parts Department
                                              Av. del Castell Vell, 176
                                             12004 Castellón (Spain).
                                              Tel: 0034 964 34 27 40
                                              Fax: 0034 964 34 13 40
                                          E-Mail: frost-trol@frost-trol.com
                                                www.frost-trol.com

                                              Tabla 1. Name plate

                                                                                         ALBORAN CS
TRANSLATION OF THE
                                            For additional copies visit:                              SOLID LINES
ORIGINAL DOCUMENT
                                               www.frost‐trol.com
Versión: 4                                                                                                    -19-
INSTALLATION AND MAINTENANCE MANUAL

     5. FAULTS AND REPAIRS

             5.1.       MALFUNCTIONS

                    In the event of malfunction, the operator should take all necessary
                    measures to prevent the products from deteriorating.

                 5.1.1.        THE UNIT DOESN’T START UP OR IT STOPS:

             ‐   Check that the electricity supply is sufficient;
             ‐   Check the status of electrical protection systems.

     If the malfunction is not due to any of the above causes, call immediately
     to the after-sales department and store the foods in cold rooms to ensure
     the preservation of the product temperature.

                 5.1.2.        THE UNIT DOES NOT WARM UP:

             ‐   Check thermostat position.

                 5.1.3.        CERAMIC HOB IS BROKEN:

             ‐   Do not continue using the glass ceramic hob. You must contact with the
                 Spare Parts Department.

     If the malfunction is not due to any of the above causes, call immediately
     to the after-sales department and store the foods in cold rooms to ensure
     the preservation of the product temperature.

     In case of malfunctioning, the following information is completely necessary to find
     the reasons of the trouble and suggest the solution for it:

                                                                         ALBORAN CS
TRANSLATION OF THE
                                          For additional copies visit:                SOLID LINES
ORIGINAL DOCUMENT
                                             www.frost‐trol.com
Versión: 4                                                                                    -20-
INSTALLATION AND MAINTENANCE MANUAL

     Cabinet model, serial number and manufacturing date (in the case name plate):

     Store conditions (RH in %, room temperature):

     If there are any air draughts affecting the cabinet (doors, air conditioners, other
     plug in cabinets near, etc.) (a handmade drawing or photos could be
     appreciated):

     Thermostat setting:

     Other details, or photos, that could help will redound to find a quicker solution.

             5.2.      FINAL SHUTDOWN

     We, Frost-trol SA, declare this product is covered by Directive 2002/96/CE (Waste
     Electrical and Electronic Equipment) designed to halt the increase of this type of
     waste and promote recycling as well as decreasing disposal.

     The symbol of the crossed-out waste bin that appears on the Nameplate declares:

             ‐   that the product was put in circulation after 13th
                 August 2005;
             ‐   that the product is subject to separate collection
                 and must not be treated like normal domestic
                 waste or sent to dumps for disposal.

     This cabinet contains polyurethane foam, oil, plastic and metallic, electric and
     electronic elements. Therefore its destruction or recovery should be carried out in
     accordance with current legislation at an authorised waste dumping ground.

     Therefore, when the cabinet has reached the end of its working life and thus needs
     to be removed, the user is required to deliver the product for disposal to the
     collection centre specified by the local authorities for recovery and recycling of
     professional WEEE.

                                                                       ALBORAN CS
TRANSLATION OF THE
                                        For additional copies visit:                SOLID LINES
ORIGINAL DOCUMENT
                                           www.frost‐trol.com
Versión: 4                                                                                  -21-
INSTALLATION AND MAINTENANCE MANUAL

     In the case of trade-in of the old product for a new one, the user can ask the seller
     to take delivery of the old one, no matter what the brand.

     The manufacturer is responsible for making recovery, disposal and treatment of its
     products feasible at the end of their useful life, either directly or via a collective
     system.
     Violations of the regulation call for specific sanctions, to be established
     autonomously by each EU member country with its own legislation, binding equally
     on all those subject to its laws.

             5.3.    DISMANTLING THE CABINET

     In accordance with the waste disposal regulations in each country and in respect of
     the environment, please differentiate the parts of the cabinet so as to be able to
     dispose of them separately or recycle them adequately.
     None of the parts that make up the cabinet can be disposed of together with urban
     solid waste, except for the metallic components which, in any case, are not
     classified as special waste in most European countries.

             5.4.    DECLARTION OF ROHS CONFORMITY

     We, Frost-trol, S.A. declare under our sole responsibility that the cabinet complies
     with the provisions of Directive 2002/96/EEC (RoHS). In all the homogeneous
     materials used for its production, any content of lead, mercury, hexavalent
     chrome, polybrominated biphenyl (PBB), and polybrominated diphenil ether (PBDE)
     does not exceed, in weight 0.1%; that of cadmium does not exceed, in weight
     0.01%. This declaration is based on declaration of our raw materials suppliers.

                                                                      ALBORAN CS
TRANSLATION OF THE
                                     For additional copies visit:                  SOLID LINES
ORIGINAL DOCUMENT
                                        www.frost‐trol.com
Versión: 4                                                                                    -22-
Frost-trol, S.A.
    Technical Department

   Avda. del Castell Vell, 176
   12004 Castellón (Spain).
  Phone.: 0034 964 34 27 40
    Fax: 0034 964 21 51 48
e-mail: frost-trol@frost-trol.com
       www.frost-trol.com
You can also read
