RENOLIT ALKORGEO RENO LIT Geomembranes in Tenerife and La Palma lslands- (Canary lslands) ABSTRACT: The Canary lslands are situated offshore from Morocco southern coast and close to the tropic. They include seven main volcanic islands. Climate is dry for the eastern islands and rather wet for western islands. The soil in each island is very permeable and therefore the run-off is very low. lt is then necessary to use artificial waterproofing to store water. The construction of large reservoirs waterproofed by geomembrane reduces significantly the cost of storing water, compared to traditional concrete or masonry reservoirs. The paper presents sorne information on the general approach from an economical and hydrologic point of view. Moreover, those works brought a considerable experience with a large number of reservoirs (24) and different kind of geomembranes, exposed to the sun in tropical conditions for a long time (up to 20 years). The paper gives sorne details on the design and the long term behaviour concerning mainly 3 works: Montana del Taco, built 22 years ago in 1983 on the top of a volcano, with 0.9 mm thick reinforced PVC- P (coated fabric); it was protected with another membrane in 1994, which has been recently renewed. Barlovento, closed by small dam, built in 1976 also in a volcano crater, and waterproofed in 1991 with 250 000 m2 of 1.5 mm thick reinforced PVC-P still performing well. Adeyahamen and Bedestia: two reservoirs closed by high dams (40 m high), waterproofed by reinforced PVC-P geomembrane and with specific drainage system and anchoring system.The paper gives also sorne information on design for the anchoring against wind effect (for Barlovento, Adeyahamen and Bedestia). This anchoring contributes significantly to the lifetime of unprotected geomembranes. 1. GENERAL OVERVIEW The Canary lslands are situated offshore from the southern Morocco coast and close to the tropic. They include seven main volcanic islands. The climate is dry for the eastern islands and rather wet for western islands. The soil of each island is very permeable and therefore the run-off is very low. In Tenerife and La Palma lslands, banana is the principal agricultura! production. This production requires substantial irrigation. Therefore, 45% of water distributed in Tenerife and 92% of water distributed in La Palma is used for irrigation, and 86 % of this water is used for banana irrigation. The combination of important water requirement for irrigation and very high soil permeability necessitates the construction of numerous reservoirs with artificial waterproofing. The traditional arrangement consisted of private owned concrete reservoirs, with a capacity generally less than 1000 m3. At the end of the nineteen seventies it appeared necessary to develop a public scheme, with very large reservoirs, to increase appreciably the stored capacity, to decrease the cost of water and to reduce the loss by evaporation. For instance, in La Palma lsland, the price of a stored cubic meter of water is 2 or 3 times cheaper in a large geomembrane waterproofed reservoir, than in a traditional small concrete reservoir. Those reservoirs are combined with canal networks, to optimize the water resource.
RENOLIT ALKORGEO RENO LIT A "Consejo Insular De Aguas" (lsland water Council) manages water in each of the islands, regrouping public and private interests. Therefore, each island has developed its own hydraulic development scheme. Particularly in Tenerife and La Palma, they have developed, since the beginning of the eighties, a strategy of large water reservoirs, waterproofed by geomembranes (15 in Tenerife, 9 in La Palma). This constitutes an outstanding base of experience about long term behaviour of not protected geomembranes in tropical climatic conditions. 2. TENERIFE ISLAND 2.1. Water resources The average pluviometry is 425 mm/year. The total rainwater for the island is 865 Mm3/year. Evapotranspiration is about 70% of the pluviometry and the run-off very low. Therefore, the supply is mainly (80%) extracted underground, through 1047 draining galleries, with a totallength of 1621 km, and 437 wells with an average depth of 120 m. 2.2. Water storage works. The water management is administered by BALTEN (Balsas de Tenerife). This institution manages 17 reservoirs with a total capacity of 4.1 Mm3. 15 reservoirs are waterproofed with geomembranes with a total area of 380,000 m2. These reservoirs were constructed starting in 1983 and all kinds of geomembranes were used, but PVC-P represents more than 80% of the installed area. (See table 1) Table 1· Geomembrane repartition-Tenerife lsland Type of Number of Total area (m2) % geomembrane reservoirs PVC-P 9 310,000 (2 ponds > 80.000) 81.6 HDPE 5 60,000 15.8 EPDM 1 10,000 2.6 Total 15 380,000 100 2.3. Typical work The most emblematic pond in Tenerife is Montaña Del Taco reservoir. This is build at the top of a volcanic cone, in its crater (fig. 1 and 2). lt was build between April 1983 and October 1985. lts capacity is 821,700 m3 with a maximal water depth of 13.70m.

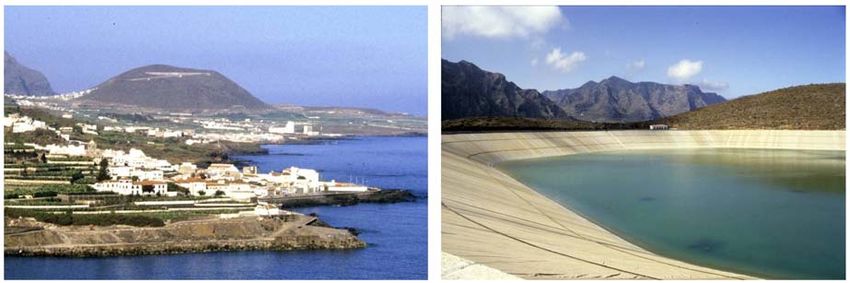

RENOLIT ALKORGEO RENO LIT Figure 1: General view of Montaña Del Taco reservoir. Fig2: The Montaña Del Taco reservoir The pond is the light colored part on top of the volcano. Two waterproofing systems are used: • On slopes, 31,700 m2 of reinforced PVC-P geomembrane (0.9 mm thick PVC-P coated polyester woven fabric) laid on a polypropylene geotextile and on a porous concrete layer. • On the bottom 47,000 m2 of 1.5 m thick compacted clay. Although the geomembrane is thinner than those installed recently, it was effective until now. In 1994, the most exposed north upper quarter showed a loss of plasticizer of 46%. Due to the reinforcement, mechanical characteristics were moderately affected. To stabilize the aging process, this part was covered by a 1 mm thick PVC-P geomembrane. This membrane was only to protect the waterproofing layer and had no watertightness purpose. After 22 years, in 2005 the initial geomembrane has been completely replaced by new 1.5 mm thick reinforced PVC-P, even if the lower part, protected by water against UV was not too much affected and didn't need an immediate replacement. The new geomembrane is identical to that installed on Barlovento reservoir. 3. LA PALMA ISLAND 3.1. Water resource The average pluviometry is 740 mm/year. The hydrological balance is estimated, according to "Plan Hidrologico Insular" as follow: total rainwater for the island 518 Mm3/year.- Evapotranspiration: 238 Mm3/year.- Run-off 15 Mm3/year and infiltration is about 260 Mm3/year. In this island too, the supply is also coming from underground water, through 264 km of draining galleries and 5 km of wells, completed by 11 km of draining galleries at the well toe (totallength). 92 % of the water collected in La Palma lsland is dedicated to agricultura! use. There are problems for run-off collection in the northeastern part of the island, due to the topography, heavy erosion in riverbeds and very quick rise in the water level. At this time, the water supply for the main
RENOLIT ALKORGEO RENO LIT reservoir of the island (Barlovento reservoir), localized in this area, is insufficient. New works are studied to salve this problem. 3.2. Water storage works. The irrigation development began also with construction of small private concrete or masonry reservoirs, with an average depth of 4.5 m. They are more than 5900 of them, but only 2000 have a capacity over 1000 m3. The recent works starting in 1990 are much larger and waterproofed with geomembranes. This reduces the cost of stored water from 18 €/m3 (for traditional works) toa range between 6 and 9 €/m3 for the large works waterproofed by geomembrane. 9 reseNoirs are owned by the local government ("Cabildo la Palma") and managed by the "Consejo Insular de Aguas de La Palma", with a total capacity of 4.43 Mm3. 5 private reservoirs store 0.23 Mm3. Table 2 summarizes the characteristics of the public reseNoirs Table 2 Reservo1rs of La Pa1ma managed bJy 1oca1 ad m1.n1. strat1on Name City Capacity (m) Nature of Building GMB date Laguna de Barlovento Barlovento 3 120 000 PVC-P-P 1991 Dos Pinos Los Llanos de 384 000 EPDM Arid. 1999 Adeyahamen San Andrés y 326 000 PVC-P-P Sauces 1994 Bedestia San Andrés y 170 000 PVC-P-P Sauces 2004 Balsa de Puntagorda Puntagorda 109 440 PVC-P-P 1990 Cuatro Caminos Los Llanos de 108 000 HDPE Arid. 1990 Montaña del Arco Puntagorda 107 200 PVC-P-P 2004 Las Lomadas San Andrés y 96 960 PVC-P-P Sauces 1995 Aduares Breña Alta 13 440 PVC-P-P Total public 4 435 040 ponds RENOLIT Ibérica S.A. Ctra. Del Montnegre, s/n E- 08470 Sant Celoni (Barcelona) Tel.: +34.93.8484000 Fax+3493.867.5517 www.alkorgeo.com * *
RENOLIT ALKORGEO RENO LIT 3.3. Typical works 3.3.1. Barlovento reservoir (figure 3) The public reservoir of Barlovento stores 67% of the total of the large ponds. Build in 1991 and 1992, its main characteristics are: • Surface: 250,000 m2 (bottom: 80,000 m2; slopes: 170,000 m2). • Maximal depth: 27m • Slopes: 2.75 horizontal 1 1 vertical • Depth of slopes: 20m • Length of slopes: 60 m • Geomembrane: PVC-P Alkorplan 1.5 mm thick, not reinforced on the bottom and reinforced on the slopes. • 4 anchoring trenches on slopes, geomembrane is cut and welded on it. • Supporting layer: 2 granular layers and 3 geotextiles on bottom; Porous concrete and geotextile on slopes. This work is described more accurately in references (Fayoux 2004). • Due to the problems of water supply, it never was completely filled and the upper third of slopes is always exposed to sun and UV. Despite this very severe conditions and the UV exposure, the geomembrane remains flexible and workable after 14 years (Blanco 2000). Figure 3: Barlovento reservoir in 2004, 13 years old Diameter 600m, 250.000 m2, PVC-P exposed geomembrane. The geomembrane is anchored on the top, the toe, and in 3 anchoring trenches on the slopes. The distances between anchoring trenches increase from top to toe and are respectively: 14.1O m, 15.20 m, and 18.80 m. A band of geomembrane is put inside the trench, which is then filled with porous concrete. The geomembrane on slope is cut at the level of each anchoring trench and welded to the band buried into the trench. Each anchoring trench includes a draining pipe and has a longitudinal slope to evacuate drained water. Storms with wind speed of about 160 km/h, on the mostly empty reservoir, have had no effect on horizontal welding of anchoring, on anchoring itself or on the geomembrane. 3.3.2. Adeyahamen and Bedestia reservoirs Those reservoirs are built to keep and store for irrigation purpose, the water coming from a hydroelectric plant. the altitude The location of reservoirs must be between altitude of the plant and the level of the agricultura! area. The local topographic conditions are absolutely unfavourable to such work: slopes very steep, and gullies very narrow. To store 500,000 m3, it was necessary to built 2 ponds, each closed by a dam about 40 m high, with an important draining system in the dam between the two ponds. Each pond is buried in the rack. The upper reservoir, Adeyahamen (fig. 4), was built in 1994. lt is 26 m deep and its RENOLIT Ibérica S.A. Ctra. Del Montnegre, s/n E- 08470 Sant Celoni (Barcelona) Tel.: +34.93.8484000 Fax+3493.867.5517 www.alkorgeo.com * *

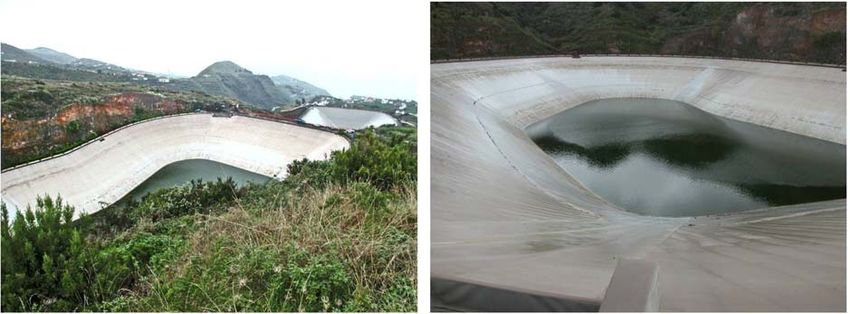

RENOLIT ALKORGEO RENO LIT lopes are 1.5 h 1 1v. The length of slopes is 47 m. The geomembrane is a 1.5 mm thick PVC-P, homogeneous on the bottom and reinforced by polyester grid on slopes. The geomembrane is laid on a geotextile and a porous concrete 1O cm thick, reinforced by a welded mesh. They are 2 horizontal anchor lines on the slopes. They are made of reinforced concrete beams buried and anchored in the rock. The geomembrane is mechanically secured by a steel bar bolted on the beam; the anchoring area is waterproofed by a cover strip welded on the geomembrane. In 2005, the geomembrane has been completely replaced by new 1.5 mm thick reinforced PVC-P, identical to that installed on Barlovento reservoir. Fig 4: View of Adeyahamen and Bedestia reservoirs, Fig 5: Adeyahamen reservoir, partially empty. One notices buried in the rack. the first anchoring on slope RENOLIT Ibérica S.A. Ctra. Del Montnegre, s/n E- 08470 Sant Celoni (Barcelona) Tel.: +34.93.8484000 Fax+3493.867.5517 www.alkorgeo.com * *

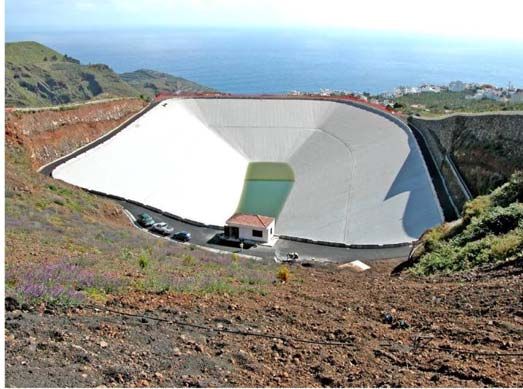

RENOLIT ALKORGEO RENO LIT The lower reservoir, Bedestia (fig. 4, 5), was built in 2004. lt is 21m deep and its slopes are 1.5 h 1 1v. The length of the slopes is 38 m. The geomembrane is a 1.5 mm thick PVC-P, reinforced by polyester grid on slopes, and it is the same than the one used for Barlovento. The structure is similar to Adeyahamen, but with only one anchoring line on slopes. Fig. 6: Bedestia reservoir. View of the upstream side. The upper part of the dam between Adeyahamen and Bedestia is at the far end of the picture. Both ponds are localized just above the small city of San Andrés Y Sauces and it was necessary to avoid any risk. Therefore, the downstream slope of the dam closing Adeyahamen, and closing the upstream side of the Bedestia reservoir, has been reinforced with a complementary earth fill at the toe of the slope. Although a general draining layer is installed below the geomembrane of the upper pond, a vertical draining screen in the dam between both reservoirs has been installed and specific drainage was included at the toe of the dam. (Soler Liceras 2004) 4. CONCLUSIONS The Canary lslands have a very rich and long-term experience with all kind of geomembranes, exposed to tropical climatic conditions. Their experience demonstrate that well formulated PVC-P geomembranes have a long life time adapted to these needs and are very well adapted to hydraulic works, even with complicated or very large geometry. RENOLIT Ibérica S.A. Ctra. Del Montnegre, s/n E- 08470 Sant Celoni (Barcelona) Tel.: +34.93.8484000 Fax+3493.867.5517 www.alkorgeo.com * *
RENOLIT ALKORGEO RENO LIT Figure 7: Bedestia reservoir. View from the crest of the Adeyahamen dam. The road is the top of reinforcement fill enforcing the downstream slope of the dam. On the right side, the vertical surface is reinforced by a cyclopic wall. On left side, the subvertical slope is directly buried in the rock. RENOLIT Ibérica S.A. Ctra. Del Montnegre, s/n E- 08470 Sant Celoni (Barcelona) Tel.: +34.93.8484000 Fax+3493.867.5517 www.alkorgeo.com * *
RENOLIT ALKORGEO RENO LIT REFERENCES • Blanco, Manuel; Aguiar, Escolástico. "Aspectos más relevantes del comportamiento en obra de los materiales sintéticos utilizados como geomembranas impermeabilizantes en embalses ubicados en la Comunidad Autónoma de Canarias". Ingeniería Civil, 117/2000, pp. 25-35. • Fayoux, D. and Van der Sype, D. "Durability of PVC-P-P geomembranes. Assessment after very long UV exposure". Proceedings of 2nd European Geosynthetics Conference, Vol. 2, pp. 651 - 656. • Fayoux, D. "La impermeabilización del embalse de la laguna de Barlovento" Jornadas sobre impermeabilización con materiales sintéticos" Isla de la Palma, 2004 CEDEX 1 Consejo Insular de Aguas de La Palma • Soler Liceras, C. "Los embalses de Adeyahamen y Bedestia" Jornadas sobre impermeabilización con materiales sintéticos" Isla de la Palma, 2004 CEDEX
