FULL COLLECTION CATALOG VOLUME XXII
welcome
The warm welcome of a wood door is
a timeless everyday luxury. No other
material can compare to the natural
touch and appearance of wood.
For centuries, homeowners have
invested in wood doors for their
capability and dependability. Properly
maintained, beautiful solid wood doors
are cherished for many generations.
For over 40 years, our team at DSA
Doors has worked tirelessly to produce
superior wood doors. We take pride in
our work, so you can take pride in your
home.
DSA is committed to enduring quality,
excellent service and sustainable
innovation. Our teams of skilled artisans
hand-assemble each DSA door to the
highest quality standards.
Choose from our 30+ collections of
traditional and modern exterior wood
doors, or collaborate with our Custom
Design Team to create your own
statement.
table of contents HOW TO ORDER 1 OUR COLLECTIONS 3 CUSTOM CAPABILITIES 5 IMPACT RATINGS 6 THE DSA DIFFERENCE 7 SIGNATURE DOORS 9 • ABERDEEN 11 • PINEHURST 23 • ALEXANDRIA 13 • TRINITY 24 • BREEZEPORT 19 • TIFFANY 25 • KEOWEE 23 • TUSCANY 29 • OCONEE 22 • WAKEFIELD 31 TRADITIONAL DOORS 33 • BELLE MEADE 35 • LAKEWOOD 43 • BRENTWOOD 36 • LINVILLE 44 • BRIARCLIFF 37 • LOUISBURG 44 • COLONIAL 38 • MADISON 45 • DECATUR HENDERSONVILLE 39 • DUTCH 40 • MEADOWLANDS 45 • HAMPSHIRE 41 • PORTHOLE 46 • KENMURE 42 • SEVILLE 46 MODERN DOORS 47 • CARLO 50 • LUCA 52 • FLORES 51 • MILAN 53 WYNSTELLAR DOORS 55 • BIFOLD 57 • MODENA 59 • FRENCH 58 • URBAN 61 STANDARD & CUSTOM OPTIONS 63 • HARDWARE & ACCESSORIES 64 • TIMBER & FINISHES 65 • GLASS 66 • BRICKMOULD & CASING 67 • INTERIOR ACCENT DOORS 68 • LOCKS & HANDLESETS 69 • SMART LOCK 72 • CUSTOM DESIGN GALLERY 74 CARE INSTRUCTIONS 75 WARRANTY 75 DP & IMPACT RATING DISCLOSURES 76
it's easy to order your DSA door
measure your entry
Standard DSA doors are 6’8” and 8’0” tall. Our Custom Design Specialists
can create a Custom Door to fit your new or existing entry.
choose your design
Browse our 30+ collections to find the perfect door to complement
your home.
choose your wood type
Our Standard doors are constructed with premium, highly-sustainable
Mahogany, Knotty Alder and Acetylated Accoya timber.
select your glass & accessories
Add privacy or personalization to your door with DSA's variety of
customizable options.
find your DSA dealer
We work exclusively with a network of dealers to ensure professional
results. Find your DSA dealer at www.DSADoors.com/Dealer.
1
unlock more online
Visit www.DSADoors.com to experience our full
portfolio of innovative master-crafted doors, get a
behind-the-scenes look at our process, and learn more
about the options we have available.
If you’re still in the planning stage, dreaming about
a new entryway, follow us on Facebook, Instagram
SCAN TO VISIT
and Pinterest for new design ideas, innovations and DSADOORS.COM
inspirations every week. We are @DSADoors, and
we’re looking forward to connecting with you!
INSPIRATION GALLERY
2

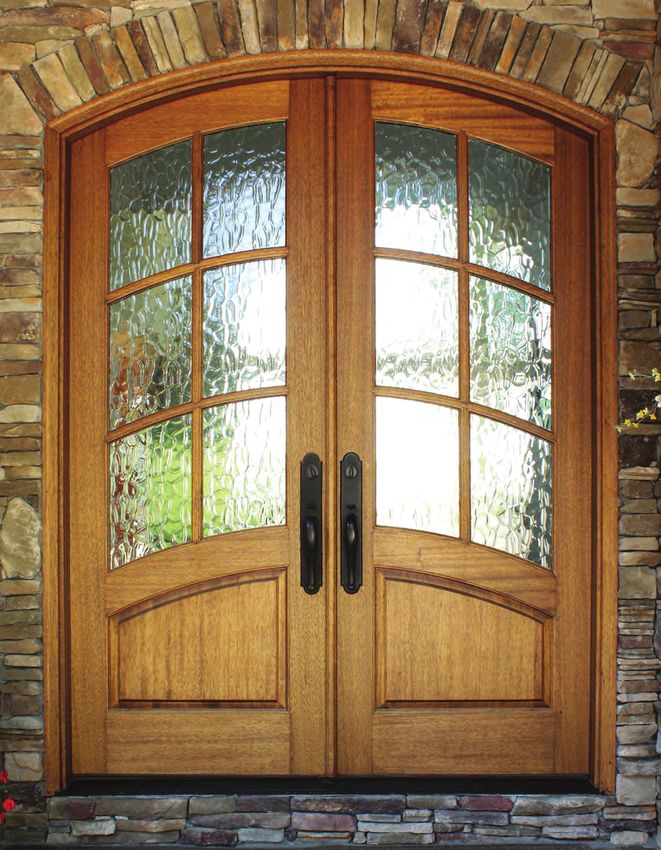

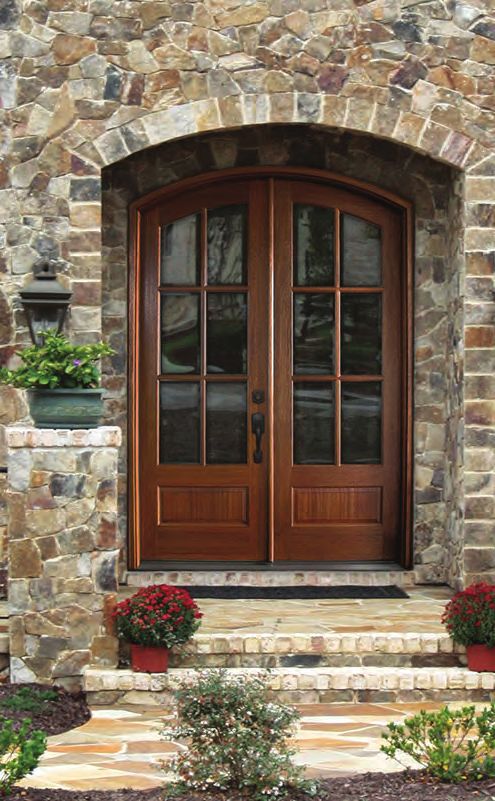

signature doors
Our Signature Doors feature
stylish homeowner favorites from
the past two decades, with 10 of
our most-beloved door styles.
Signature doors boast historic
inspiration, impressive ironwork,
screened panels and more, with
a variety of configurations to suit
any home and decor.

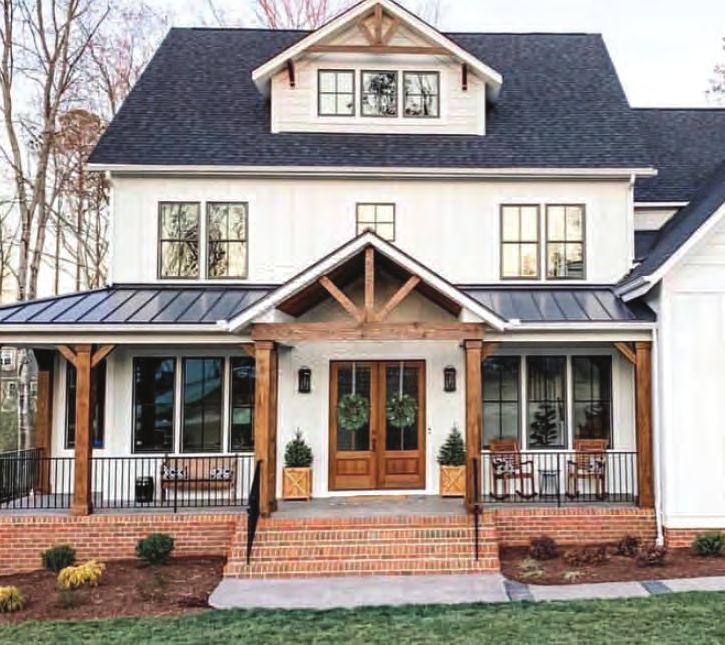

traditional doors
Invest in a timeless and enduring
entry with our Traditional Doors.
For the homeowner with an
eye for classic style and design,
our Traditional Doors feature
graceful iron and elegant design
aesthetics, with diverse options
to suit many different homes.
3

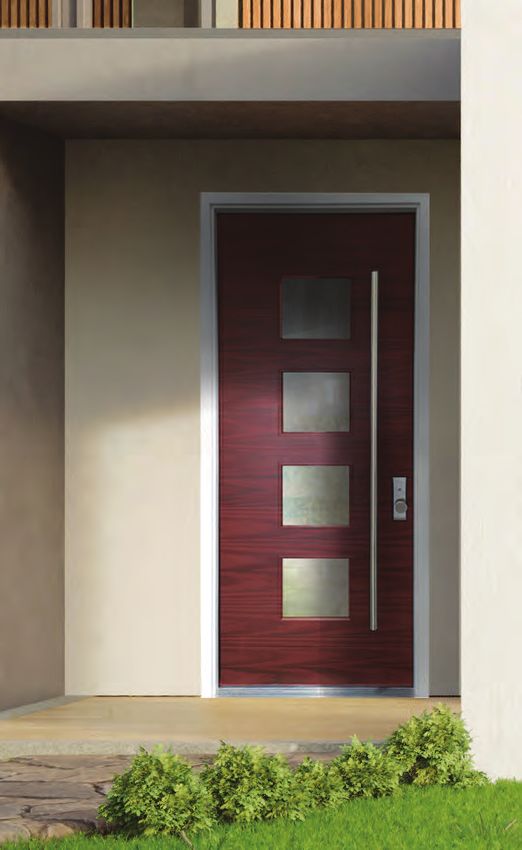

modern doors
For bold styles featuring
distinctive quality and durability,
we present our Modern Doors.
We’re delivering clean lines,
uncluttered looks and distinctive
styles, without sacrificing the
warmth and durability of a
master-crafted DSA door.
wynstellar doors
Our high-performance
Wynstellar Doors combine
modern designs with industry-
leading technologies to provide
impressive durability. Ideal for
challenging environments and
covered by a 5 year warranty,
Wynstellar Doors do not require
an overhang.
4

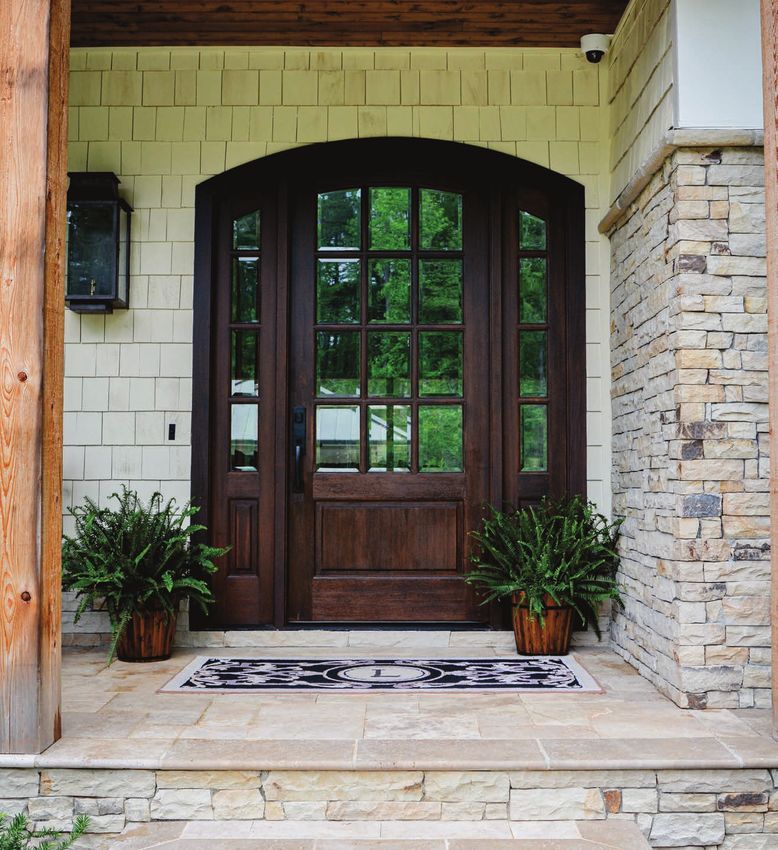

custom DSA doors
Bring your inspiration to life with DSA’s Custom Design team! Work with our
experienced team of designers, engineers, and local artisans. Our Custom Design
capabilities include:
Custom Timber: In addition to our standard Mahogany, Knotty Alder and Accoya, DSA
offers American Walnut and White Oak, as well as primed white Mahogany or Accoya.
Custom Glass: Clear, Clear Beveled, Flemish, Fluted, Glue Chip, Sandblasted, White
Laminated, Rain, Seedy, Seedy Baroque and Baroque.
Custom Sizes & Configurations: Designs to fit any existing opening, neighborhood
requirement, architectural drawing or other specification.
Custom Design Elements: Decorative wrought iron designs for slabs, transoms, or
side lites, custom moulding and brickmould, unique panel and slab designs, as well as
custom leaded and decorative glass.
Pictured: Custom Accoya unit with operable side lite in Cinnamon Bark.

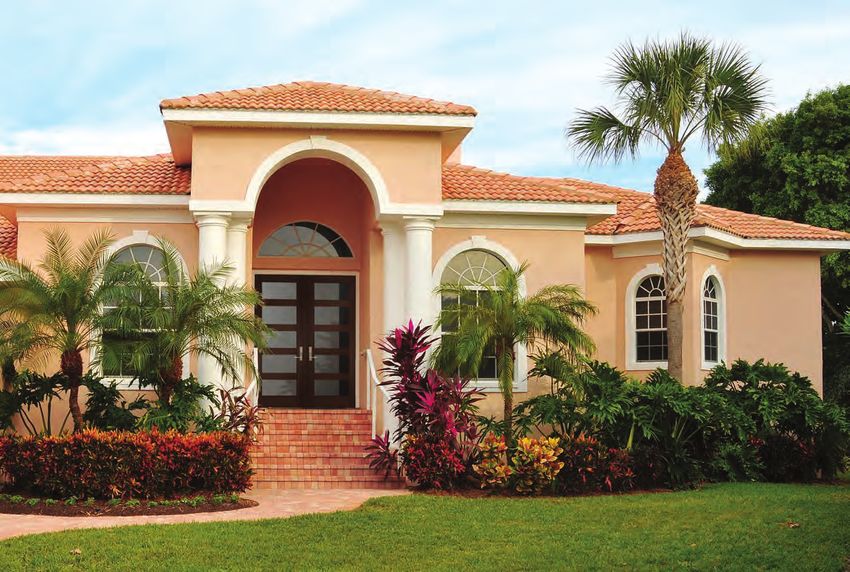

5coastal rated doors
Don’t sacrifice style when choosing a door for your coastal
home. Most DSA Doors are available DP-50 Rated. We also
have a large selection of Impact Rated and HVHZ doors
available. For more information, scan the QR code or go to
www.DSADoors.com/ImpactRated.
6From our global sustainability focus to our master-artisans in Raleigh
North Carolina, the DSA Difference shines through everywhere you
look. Working alongside our network of professional dealers, architects,
designers, and builders, the DSA team provides a dynamic experience for
discerning homeowners. The DSA Difference extends to our dedicated
dealer support, customer service, and valuable warranties that protect
every door we create.
premium timber
DSA Doors are constructed with premium timber,
sourced exclusively from our partner company’s
forest concession. Our Standard Collections feature
Meranti Mahogany, Knotty Alder, and Acetylated
Accoya timber. Each DSA Door is constructed
with one wood species throughout, for increased
performance, featuring vertically grained panels
for a high-end aesthetic.
superior construction
We construct our doors using a proprietary 11-ply
floating panel core and finger joint laminated rails,
to increase durability for years to come. Master-
artisans expertly assemble, finish and stain our
doors by hand in Raleigh, NC.
7sustainability focused
DSA exclusively uses sustainably-sourced
timber, which is managed in an environmentally,
socially and economically beneficial manner.
Sustainably sourced timber is one of the most
environmentally-friendly materials currently
available, because it is a truly renewable
natural carbon sink. DSA doors are assembled
domestically at our solar-powered production
facility in Raleigh, North Carolina.
energy-efficient
In addition to our sustainability practices,
our features and innovations to increase your
home's energy efficiency. Select units feature
CLPF construction, which utilizes an energy-
efficient foam core for the highest thermal
performance. We also feature complimentary
Low-E (low-emissivity) glass, which minimizes
the amount of heat and UV light that passes
through the glass, without minimizing the
visible light entering your home.
industry experts
The DSA Team features master-artisans,
manufacturing professionals, research & design
engineers, custom designers, dedicated service
representatives, and so many more amazing
individuals. Our Team works together to provide
excellent service to our homeowners, benefit
our dealer network, innovate our technologies,
and consistently improve our doors.
8Signature
Doors
Including 10 of our most-beloved door
styles, our Signature Doors include many of
our bestselling collections. Our Signature
doors boast historic inspiration, impressive
ironwork, screened panels, and more, with
a huge variety of configurations to suit
any entry. These featured doors have many
styling choices, accessory options, and sizing
capabilities included, so you can select a
custom look for your home.
Pictured: Breezeport E-17, Pinehurst E-17, Tiffany 4LT
E-17 (top to bottom), Aberdeen 6LT E-17 (page 10)
VIEW OUR
SIGNATURE
DOORS AT
DSADOORS.
COM
9our signature collections
• Aberdeen • Alexandria
• Breezeport • Keowee
• Oconee • Pinehurst
• Tiffany • Trinity
• Tuscany • Wakefield
10Aberdeen
Collection
Solid Panel 6LT TDL Leaded 6LT Iron
Wood: Mahogany Wood: Mahogany and Wood: Mahogany Wood: Mahogany
Single Door: Knotty Alder Glass: Clear Beveled IG Iron Options:
3’0” x 8’0” x 13/4” Glass: Clear Beveled or Low E with Satin Nickel Redwood or Burlwood
Double Door: Flemish IG Low E Caming Glass: Clear or Flemish
5’0”, 5’4”, 6’0” x 8’0” x Single Door: Double Door: IG Low E
13/4” 3’0” x 8’0” x 13/4” 5’0”, 5’4”, 6’0” x 8’0” x Single Door:
Double Door: 13/4” 3’0” x 8’0” x 13/4”
5’0”, 5’4”, 6’0” x 8’0” x Double Door:
13/4” 5’0”, 5’4”, 6’0” x 6’8”, 8’0”
Transom Height: 24” x 13/4”
Transom Height: 24”
11Aberdeen Solid Panel
E-01 E-01B E-04 E-17
Aberdeen 6LT TDL
E-01 E-01B E-04 E-17 E-19 E-19B
Aberdeen Leaded 6LT
E-04 E-17
Aberdeen Iron*
E-01 E-01B E-04 E-17 E-19
Burlwood Redwood
*6’8” available in Burlwood E-04 and E-17 only 12Alexandria Collection
Our Alexandria Collection is a customer favorite for good reason! With many
different configurations, it's easy to find the perfect option for your home. Our
premium Low E Glass allows natural light into your home, while still providing
industry-leading energy and thermal efficiency.
3LT TDL 4LT TDL 6LT TDL 8LT TDL 9LT TDL
Wood: Mahogany
Side Lites: 10", 12", 14"
Transom Options: Rectangular
2LT or 5LT, Segment Arch 5LT, Half
Round (View online: DSADoors.
com/AlexandriaTransoms)
13Alexandria 3LT TDL
E-01 E-03 E-04 E-04 + T
E-07 E-09 E-14 E-12
Glass: Clear Beveled IG Low E
Single Door: 2’0”, 2’6”, 2’8”, 3’0” x 8’0” x 13/4”
Double Door: 4’0”, 5’0”, 5’4”, 6’0” x 8’0” x 13/4”
Rectangular Transom: Heights: 10”, 12”
Widths: 3’0” 5’0”, 5'4", 6’0” with 10”, 12", 14” side lites
Segment Arch Transom Height: 21”
Widths: 3’0” 5’0”, 5'4", 6’0” with 10”, 12", 14” side lites
Half Round Transom Heights: 32” & 34"
Widths: 3’0” 5’0”, 5'4", 6’0” with 10”, 12", 14” side lites
14Alexandria 4LT TDL
E-01 6'8" E-01 8'0" E-03 E-04 E-04 + T
E-07 E-09 E-14 E-12*
Glass: Clear Beveled or Flemish IG Low E
6'8" Single Door: 2’6”, 2’8”, 3’0” x 13/4”
8'0" Single Door: 2’6”, 2’8”, 3’0” x 13/4”
6'8" Double Door: 5’0”, 5’4”, 6’0” x 13/4”
8'0" Double Door: 5’0”, 5’4”, 6’0” x 13/4”
Rectangular Transom: Heights: 10”, 12”
Widths: 3’0” 5’0”, 5'4", 6’0” with 10”, 12", 14” side lites
Segment Arch Transom Height: 21”
Widths: 3’0” 5’0”, 5'4", 6’0” with 10”, 12", 14” side lites
Half Round Transom* Heights: 32” & 34"
Widths: 3’0” 5’0”, 5'4", 6’0” with 10”, 12", 14” side lites
* E-12 only available in Clear Beveled IG Low E glass
15Alexandria 6LT TDL
E-01 6'8" E-01 8'0" E-03 E-04 E-04 + T
E-07 E-09 E-14 E-12*
Glass: Clear Beveled or Flemish IG Low E
6'8" Single Door: 2’6”, 2’8”, 3’0” x 13/4”
8'0" Single Door: 2’6”, 2’8”, 3’0” x 13/4”
6'8" Double Door: 5’0”, 5’4”, 6’0” x 13/4”
8'0" Double Door: 5’0”, 5’4”, 6’0” x 13/4”
Rectangular Transom: Heights: 10”, 12”
Widths: 3’0” 5’0”, 5'4", 6’0” with 10”, 12", 14” side lites
Segment Arch Transom Height: 21”
Widths: 3’0” 5’0”, 5'4", 6’0” with 10”, 12", 14” side lites
Half Round Transom* Heights: 32” & 34"
Widths: 3’0” 5’0”, 5'4", 6’0” with 10”, 12", 14” side lites
* E-12 only available in Clear Beveled IG Low E glass
16Alexandria 8LT TDL
E-01+ E-03+ E-04 E-04 + T
E-07 E-09 E-14 E-12*
Glass: Clear Beveled or Flemish IG Low E
Single Door: 2’6”, 2’8”, 3’0”, 3'6"+ x 8’0” x 13/4”
Double Door: 5’0”, 5’4”, 6’0” x 8’0” x 13/4”
Rectangular Transom: Heights: 10”, 12”
Widths: 3’0” 5’0”, 5'4", 6’0” with 10”, 12", 14” side lites
Segment Arch Transom Height: 21”
Widths: 3’0” 5’0”, 5'4", 6’0” with 10”, 12", 14” side lites
Half Round Transom* Heights: 32” & 34"
Widths: 3’0” 5’0”, 5'4", 6’0” with 10”, 12", 14” side lites
* E-12 only available in Clear Beveled IG Low E glass
+
3'6" width available in E-01 and E-03 only
17Alexandria 9LT TDL
E-01 E-03 E-04 E-09
Glass: Clear Beveled IG Low E
Single Door: 2’6”, 2’8”, 3’0” x 8’0” x 13/4”
Double Door: 5’0”, 5’4”, 6’0” x 8’0” x 13/4”
Transom Height: 12”
Transom Widths: 3’0” with 12” & 14”
side lites
18Breezeport Collection
Let the breeze inside and keep the bugs outside, with our unique screened Breezeport
collection, featuring operable windows with concealed hinges.
Wood: Mahogany
Glass: Clear, Flemish, Seedy Baroque or Rain IG Low E
4LT TDL 6LT TDL
Single Door: Single Door: HOPPE Side Lite
2’8”, 3’0” x 6’8” x 21/4” 2’8”, 3’0” x 8’0” x 21/4” Multipoint Lock
Double Door: Double Door:
5’4”, 6’0” x 6’8” x 21/4” 5’4”, 6’0” x 8’0” x 21/4”
Configurations: Configurations:
E-01, E-04 E-01, E-04, E-17
Bettervue® Screen
with black mesh
19Breezeport 4LT 6’8”
E-01 E-04
Breezeport 6LT 8’0”
E-01 E-04 E-17
20Keowee Collection
E-01 E-01A E-17 E-19
Wood: Knotty Alder
Lites: 6LT TDL
Glass: Clear Beveled
IG Low E
Single Door: 3’6” x 8’0” x 21/4”
Double Door: 5’0”, 5’4”, 6’0” x 8’0” x 21/4”
Transom Height: 24”
21Oconee Collection
UPDATED DESIGN
E-01 6'8" E-01 8'0" E-03 E-04 E-09
Wood: Knotty Alder
Lites: 6LT TDL
Glass: Clear Beveled IG Low
E or Flemish IG Low E
Single Door: 2'6", 2'8", 3’0” x 6’8” x 13/4”
2'6", 2'8", 3’0” x 8’0” x 13/4”
Double Door: 5'0", 5'4", 6’0” x 6’8” x 13/4”
5'0", 5'4", 6’0” x 8’0” x 13/4”
Side Lites: 12”, 14”
Transom: 12”, 14” (with 3'0" door only)
Available
with optional
smooth panel
22Pinehurst Collection
E-01C E-17B E-17B
8LT TDL Solid Panel
Wood: Mahogany Type: Half Round Wood: Mahogany
Glass: Clear Beveled or Flemish IG Low E Type: Half Round
Speakeasy Glass: Clear IG Low E
Single Door: 3’0” x 8’0” x 13/4”
Double Door: 5’4”, 6’0” x 8’0” x 13/4”
Double Door: 5’4”, 6’0” x 8’0” x 13/4” Pictured below with non-operable
speakeasy and straight grilles
23Trinity Collection
2 Panel Tessera 1LT
E-01B E-18* E-01B E-18
2LT TDL 9LT TDL
E-01B E-18 E-01B E-18
12LT TDL
Wood: Mahogany
Side Lites: 14”
Single Door: 3’6” x 8’0” x 21/4”
Glass: Clear Beveled IG Low E or Tessera Glass
with Satin Nickel Caming
* Trinity 2 Panel and 12LT also available with
Flemish IG Low E Glass
E-01B* E-18*
24Tiffany Collection
The Tiffany Collection of beautiful arched doors incorporates a variety
of options with solid panel, diamond, and rectangular lite configurations.
With so many options, the patterns of light that can cover your home are endless.
Solid Panel 4LT TDL 6LT TDL Diamond 7LT TDL
8LT TDL 9LT TDL
Wood: Mahogany
Type: Square (E-01 only) or Arch top
Glass Options: Varies by door style
25Tiffany Solid Panel Tiffany Solid
Single Door: 3’0” x 8’0” x 13/4” Panel with
Double Door: 5’0”, 5’4”, 6’0” x 8’0” x 13/4” Speakeasy
Available with decorative speakeasy
E-17
E-01 E-01B E-17 Double Door: 5’0”, 5’4”, 6’0” x
8’0” x 13/4”
Speakeasy Glass: Clear IG
Low E
Tiffany 4LT TDL
Glass Options: Clear Beveled or Flemish IG Low E
Transom Height: 24" Double Door: 5’0”, 5’4”, 6’0” x 8’0” x 13/4”
E-17 E-19 E-19B
Pictured with scroll speakeasy grilles, corner straps, t-straps, and
round clavos.
26Tiffany 6LT TDL 8'0"
E-01 E-01A E-01B E-17
E-18 E-19 E-19B
Wood: Mahogany or
Knotty Alder*
Tiffany 6LT TDL 6'8"
Glass Options: Clear
Beveled or Flemish IG Low E*
Transom: 24” Side Lites: 12”
Single Door: 3’0” x 8’0” x 13/4”
Double Door: 5’0”, 5’4”, 6’0” x 8’0” x 13/4”
*Knotty Alder and Flemish IG Low E E-04 E-17
available for 8'0" sizes only Double Door: 5’0”, 5’4”, 6’0” x 6’8” x 13/4”
27Tiffany 7LT TDL
Wood: Mahogany
Glass: Clear Beveled IG Low E
Single Door: 3’0” x 8’0” x 13/4”
Double Door: 5’0”, 5’4”, 6’0” x 8’0” x 13/4”
E-01B E-17
Tiffany 8LT TDL
Wood: Mahogany
Glass Options: Clear
Beveled or Flemish IG
Low E
Double Door:
5’0”, 5’4”, 6’0” x 8’0” x
13/4”
E-17
Tiffany 9LT TDL
Wood: Mahogany
Glass: Clear Beveled IG Low E
Single Door: 3’0” x 8’0” x 13/4”
Double Door: 5’0”, 5’4”, 6’0” x 8’0” x 13/4”
E-01B E-17
28Tuscany Collection
Wood: Mahogany
Glass: Clear Beveled IG Low E
Side Lites: 12”, 14”
Transom: 12”, 14”, 16”
Available without optional dentil shelf
3LT TDL 6LT TDL Glencoe 6LT TDL
Single Door: Single Door: Single Door:
3’0” x 6’8” x 13/4” 3’0” x 6’8” x 13/4” 3’0” x 8’0” x 13/4”
3’0” x 8’0” x 13/4” 3’0”, 3’6” x 8’0” x 13/4”
29Tuscany 3LT TDL
E-01 E-03 E-08
Tuscany 6LT TDL
E-01 E-03 E-08
Tuscany Glencoe 6LT TDL
E-01 E-03 E-08
30Wakefield Collection
1LT
E-01 E-03 E-04*
1LT with Burlwood Iron
E-01 E-03 E-04*
E-04R
311LT with Tessera Glass
E-01 E-03 E-04*
Wood: Mahogany
Glass: Clear IG Low E, Flemish
IG Low E or Tessera Glass with
Satin Nickel Caming
Single Door: 3’0” x 8’0” x 13/4”
Double Door: 6’0” x 8’0” x 13/4”
Side Lites: 12”, 14"
* Wakefield Tessera E-03 door (left)
shown with optional raised moulding.
32Traditional
Doors
For the homeowner with an eye for timeless
design, our Traditional Doors feature classic iron
and elegant design aesthetics. From cottages
to bungalows, and historic renovations to new
builds, the diverse options of our Traditional
Doors span decades. These collections are
available in Mahogany or Knotty Alder, single
or double doors, and include a variety of
accessory options.
Pictured (top left to bottom): Madison E-01, Louisburg
E-01, Porthole E-01C, Hampshire E-17
Pictured (right): Decatur Hendersonville E-03
33our traditional collections
• Belle Meade • Brentwood
• Briarcliff • Colonial
• Decatur • Dutch
Hendersonville • Hampshire
• Kenmure • Lakewood
VIEW ONLINE
• Linville • Louisburg
• Madison • Meadowlands
• Porthole • Seville
34Belle Meade Collection
E-01 E-01B E-03 E-09
Wood: Mahogany
Glass: Clear Beveled
IG Low E
Single Door:
3’0” x 6’8” x 13/4”
Side Lites: 10”, 12”, 14”
Transom: 10”, 12”
35Brentwood Collection
E-01 E-01B E-03 E-09
Wood: Mahogany Lites: 4LT TDL
Glass: Clear Beveled IG Low E
Single Door: 3’0” x 6’8” x 13/4”
Side Lites: 10”, 12”, 14”
Transom: 10”, 12”
36Briarcliff Collection
Wood: Mahogany or Knotty
Alder
Speakeasy Glass: Clear IG
Low E
Single Door:
3’0” x 8’0” x 13/4”
Recommended
Accessories: Round clavos,
straight or scroll grille
E-01 E-01B
Knotty Alder E-01 shown with
hinge straps, straight grille and
round clavos
37Colonial Collection
E-01 E-03 E-09 E-14
Wood: Mahogany
Glass: Clear Beveled IG Low E
Single Door:
3’0” x 6’8” x 13/4”
3’0” x 8’0” x 13/4”
Side Lites: 10”, 12”, 14”
Rectangular Transom Height: 10”, 12”
Segment Arch Transom Height: 21”
38Decatur Hendersonville
Collection
E-01 E-01B E-03 E-09
Wood: Mahogany
with Burlwood Iron Single Door:
3’0” x 6’8” x 13/4”
Side Lites: 10”, 12”, 14”
Transom: 10", 12”
Available with non-operable
speakeasy with Clear IG Low E Glass
E-03B E-09B
Wood: Mahogany Glass: Clear IG Low E
Single Door: 3’0” x 6’8” x 13/4”
Side Lites: 12”, 14” Transom: 12”
39Dutch Collection
Our Dutch Doors are divided in the center, allowing the top or bottom panels to
open independently. This classic and functional design dates back to the 17th
century.
Dutch 4LT & 6LT TDL
E-01 E-01B E-03 E-09
Wood: Mahogany Glass: Clear Beveled IG Low E
Single Door: 3’0” x 6’8” x 13/4” (4LT), 3’0” x 8’0” x 13/4” (6LT)
Side Lites: 10”, 12”, 14” Transom: 10”, 12”
Top Panel Options: Square or Arched Glass
Bottom Panel Options:
1 Panel 2 Panel - Horizontal 2 Panel - Vertical
Inside
Latch
Bolt Optional Dentil Shelf
40Hampshire Collection
E-01 with Iron E-01 with Tessera Glass
Wood: Mahogany
Glass: Flemish IG Low E or Tessera
Glass with Satin Nickel Caming
Double Door: 6’0” x 8’0” x 13/4”
41Kenmure Collection
E-01 E-01B E-18 E-18B
Wood: Knotty Alder
Glass: Clear Beveled IG Low E
Single Door: 3’6” x 8’0” x 21/4”
Side Lites: 16” Transom: 24”
Available with decorative speakeasy
with Clear IG Low E glass
42Lakewood Collection
E-01 E-01B E-18 E-18B
Wood: Mahogany
Lites: 4LT TDL
Glass: Clear Beveled IG Low E
Single Door: 3’0” x 6’8” x 13/4”
Side Lites: 10”, 12”, 14”
Transom: 10”, 12”
Available without optional dentil shelf
43Linville Collection
Wood: Mahogany
Lites: 6LT TDL
Glass: Clear IG Low E
Single Door:
3’6” x 8’0” x 13/4”
Double Door:
5’4”, 6’0” x 8’0” x 13/4”
Available without
optional dentil shelf
E-01 E-01B E-17
Louisburg Collection
E-01 E-03 E-09 E-14
Wood: Mahogany Lites: 4LT TDL Glass: Clear Beveled IG Low E
Single Door: 3’0” x 6’8” x 13/4” Side Lites: 10”, 12”, 14”
Rectangular Transom Height: 10”, 12” Segment Arch Transom Height: 21”
44Madison Collection
E-01 E-03 E-09*
Wood: Mahogany Lites: 9LT TDL Single Door: 3’0” x 6’8” x 13/4” Transom Height: 12”
Side Lites: 10”, 12”, 14” Glass: Clear Beveled IG Low E * E-09 available with 12" or 14" side lites
Meadowlands Collection
Wood: Knotty Alder
Lites: 6LT TDL
Configuration: E-01C
Glass: Clear or Flemish IG Low E
Single Door: 3’6” x 8’0” x 21/4”
* DP-50 Rated E-01C units must be double
bored
45Porthole Collection
Wood: Mahogany
Lites: 9LT TDL
Configuration: E-01C
Glass: Clear Beveled IG Low E
Single Door: 3’6” x 8’0” x 13/4”
* DP-50 Rated E-01C units must be double
bored
Seville Collection
UPDATED DESIGN
Wood: Mahogany
Lites: 7LT TDL
Glass: Clear Beveled IG
Low E
Single Door:
2’8”, 3’0” x 8’0” x 13/4”
Double Door:
5’4”, 6’0” x 8’0” x 13/4”
E-01 E-04 E-07*
Transom: 36” center
* E-07 not available DP-50 Rated
46Modern
Doors
Our Modern Doors are ideal for homes with
Contemporary and Modern architecture,
delivering clean lines, uncluttered looks, and
distinctive styles, all with the quality and
craftsmanship you expect from DSA’s master-
crafted doors. This collection allows the
homeowner to embrace the bold architectural
features of modernism, without sacrificing the
warmth and durability of a high-quality wood
entryway.
Pictured (top left to bottom right): Milan Solid Panel E-04,
Pictured (page 48): Milan Solid Panel E-01
47our modern collections
• Carlo • Flores
• Luca • Milan
VIEW ONLINE
48Direct Set Configurations
Our Milan Doors feature contemporary direct set configurations. Glass is glazed directly in the
jambs/frame without traditional stile and rail sashes. Side lites are only available in 8'0" height .
Side Lites: 12" Transom: 12" Glass: Clear IG Low E only
8'0" CONFIGURATIONS
E-01 E-01 + SL E-03 E-04
E-01 + T E-01 + SL + T E-09 E-04 + T
6'8" CONFIGURATIONS
E-01 E-04 E-01 + T E-04 + T
49Carlo Collection
Our new ultra-modern Carlo collection offers a fresh look for your contemporary entryway, in
our premium solid Mahogany. Featuring eight configurations and three different door styles,
there are many different ways to showcase our Carlo collection.
6LT 6'8"
Square 7LT 8'0" Horizontal 8LT 8'0" 7LT 6'8"
Wood: Mahogany Glass: Clear IG Low E Tri LT
Side Lites & Transom: 12" Wood: Mahogany
Single Door: 3’0” x 6'8", 8’0” x 13/4” Glass: Sandblasted
Double Door: 6’0” x 6'8", 8’0” x 13/4” or Clear IG Low E
Side Lites &
Transom: 12"
Single Door: 3’0”,
3'6" x 8’0” x 13/4”
Double Door: 6’0”,
7'0" x 8’0” x 13/4”
50Flores Collection
Our Flores Collection is a versatile and contemporary collection for modern homes. Like
the Milan Collection, our Flores collection is available in 8 direct-set side lite and transom
configurations and features energy-efficient CLPF construction.
Diagonal 3LT V1 & V2 Vertical 3LT Diamond 3LT*
Mix 4LT Square 4LT*
Wood: Mahogany Glass: Sandblasted IG Low E Side Lites & Transom: 12"+
Single Door: 3’0” x 8’0” x 13/4” Double Door: 6’0” x 8’0” x 13/4”
* Diamond 3LT and Square 4LT available with Sandblasted or Clear IG Low E glass
+
Side lites and transom available with Clear IG Low E glass only
51Luca Collection
Available in eight direct-set side lite and transom configurations, our new Luca Collection is
perfect for modern and contemporary homes. This collection features energy-efficient CLPF
construction with our premium Mahogany timber.
Square 3LT 3LT Top Horizontal 3LT Horizontal 4LT
Wood: Mahogany
6'8" Luca Doors Glass: Sandblasted or Clear IG
Low E
Side Lites & Transom: 12"+
Single Door:
3’0” x 6'8", 8’0” x 13/4”
Double Door:
6’0” x 6'8", 8’0” x 13/4”
+
Side lites and transom available
with Clear IG Low E glass only
52Milan Collection
DSA's Milan Collection features our premium Mahogany, with innovative modern design
and direct set lite configurations. Utilizing our proprietary Cross Laminated Ply Foam (CLPF)
construction, Milan Doors feature an energy-efficient foam core, providing industry-leading
thermal performance.
Solid Panel
E-01 6'8" E-01 8'0" E-04 (6'8" & 8'0")
Thin Lite
E-01 6'8" E-01 8'0" E-01 8'0" E-01 8'0" E-04 (6'8" & 8'0")
LEFT CENTER RIGHT
53Wide Lite
Wood: Mahogany
Glass: Sandblasted
IG Low E
Side Lites: 12"
Transom: 12"
Single Door:
3’0” x 6’8”, 8’0” x 13/4”
Double Door:
E-01 6'8" E-01 8'0" E-01 8'0" E-01 8'0" 6’0” x 6’8”, 8’0” x 13/4”
LEFT CENTER RIGHT
Wide Lite (with San Donato Iron)
E-01 6'8" E-01 8'0" E-01 8'0" E-01 8'0" E-04 (6'8" & 8'0")
LEFT CENTER RIGHT
Our San Donato Iron is sandwiched
between Clear IG Low E glass, with
a single layer of Sandblasted glass
in the center, for a modern overall
appearance. Mirrored pattern on
double doors only available custom.
54Wynstellar
Doors
OurWynstellar Doors combine modern designs
with acetylated Accoya technology and are
specially designed to outlast challenging
environments with contemporary modern
styling.
Our high-performance Wynstellar Collection
has no required overhang or paint color
restrictions due to its impressive durability,
and features a five-year limited warranty.
With our patented CLPF construction,
Wynstellar Doors are among the most energy-
efficient available to date.
The acetylation process can result in a
discoloration on the surface of the wood,
which fades with UV exposure or is easily
covered by opaque paints and darker stains.
Pictured (top to bottom): Urban Twin E-01, Urban
4LT E-04, French Door. Pictured (right) Modena
5LT E-01.
VIEW MORE
WYNSTELLAR
DOORS & INFO
ONLINE
55our
wynstellar
collections
• Bifold
• French
• Modena
• Urban
• 5-year limited
warranty
• No overhang
required
56Bifold Doors
Wood: Accoya
Glass: Clear IG Low E
W-9 Door Size: 9’0” x 8’0” x 21/4”
W-12 Door Size: 12’0” x 8’0” x 21/4”
W-16 Door Size: 16’0” x 8’0” x 21/4”
Outswing only
W-9 W-12
W-16
57French Doors
Wood: Accoya
Glass: Clear IG Low E
Double Door: 6’0” x 8’0” x 13/4”
SDL Grid Designs: (optional)
E-04 Design 1 Design 2
Design 3 Design 4
Full-Frame Series Locking System
Our GU Ferco® Multipoint
Locking System is included
with Wynstellar Bifold and
French Doors. Available in
Black or Satin Nickel.
58Modena Collection
Wood: Accoya
Glass Options: Clear or
Sandblasted IG Low E
Single Door: 3’0” x 8’0” x 13/4”
Double Door: 6’0” x 8’0” x
13/4”
Side Lites: 12”
Transom: 12”
Side Lites and Transom only
available with Clear IG Low E glass
4LT SDL 5LT SDL
59Modena 4LT SDL
E-01 E-01 + SL E-01 + T E-01 + SL + T E-03
E-04 E-04 + T E-09
Modena 5LT SDL
E-01 E-01 + SL E-01 + T E-01 + SL + T E-03
E-04 E-04 + T E-09
60Urban Collection
1LT SDL Twin SDL 2LT SDL 3LT SDL 4LT SDL
6LT SDL 7LT SDL 8LT SDL 9LT SDL
Wood: Accoya Glass Options: Clear or Flemish IG Low E
Single Door: 3’0” x 8’0” x 13/4” Double Door: 6’0” x 8’0” x 13/4”
Side Lites: 12” Transom: 12” Side Lites & Transom only available with Clear IG Low E glass
61Urban Configurations
E-01 E-01 + SL E-01 + T E-01 + SL + T
E-03 E-04
E-04 + T E-09
62Pictured: Briarcliff with Straight Grill and Round Clavos
At DSA, we believe the entry should be unique to your home.
That's where our Custom Design Team steps in, to offer countless
customization options. Don't know what to choose? Your DSA Dealer
can guide you through the selection process with ease.
In addition to our premium Mahogany and Knotty Alder, DSA offers
many additional timbers and finishes. Browse our standard and custom
glass options to customize the light shining into your home, and add
the finishing touch with authentic wrought-iron accents and grilles.
63hardware & accessories
Square & Round Clavos
Add rustic flair to your home with our square
and round wrought-iron clavos. Our Briarcliff,
Pinehurst, Tiffany Solid Panel, and other grooved
panel doors look great with clavos.
Hinge & Corner Straps
Need a finishing touch? This decorative hardware
may be just the thing! Available in 110o, 90o, 86o
and straight formations, as well as 14" long hinge
straps.
Pictured on doors below and on pages 26 and 37
Tall & Short Grilles
We offer stylish and protective grilles for our
decorative speakeasy. Pair a Tall Straight Grille
with our Kenmure door, or choose a Straight
or Scroll Short Grille for our Briarcliff, Decatur
Hendersonville, Pinehurst, Tiffany and Trinity doors.
4x4 Ball Bearing Hinges
Choose from Oil Rubbed Bronze, Satin
Nickel or optional Black or Stainless Steel
Hinges. Wynstellar and Impact-Rated units
feature Stainless Steel hinges.
Pictured: custom Mahogany door with tall
straight grilles, round clavos and hinge straps
64timber & finishes
Mahogany Knotty Alder Encapsulated
(unfinished) (unfinished) Accoya (unfinished)
Chestnut Russet Coco Cinnamon Bark
(Mahogany) (Mahogany) (Mahogany) (Mahogany)
Chestnut Russet Coco Cinnamon Bark
(Knotty Alder) (Knotty Alder) (Knotty Alder) (Knotty Alder)
Distressed Chestnut Distressed Russet Cinnamon Bark
Ebony (Accoya)
(Mahogany / Knotty Alder) (Mahogany / Knotty Alder) (Accoya)
65glass options
Clear/Clear Beveled Flemish Fluted * Gluechip *
Privacy Rating: 1 Privacy Rating: 5 Privacy Rating: 7 Privacy Rating: 7
Sandblasted * White Laminated * Rain * Seedy *
Privacy Rating: 9 Privacy Rating: 9 Privacy Rating: 8 Privacy Rating: 3
Seedy Baroque * Baroque * Grain *
Privacy Rating: 5 Privacy Rating: 4 Privacy Rating: 8
VIEW MORE
FINISHING
Our Low E (low-emissivity) glass minimizes the amount of heat and UV light
that passes through your glass without minimizing the visible light entering OPTIONS &
your home. PHOTOS
* Available exclusively on Custom Doors ONLINE
* Available on select Modern Doors
* Available on Breezeport Collection
66brickmould & casing
180 and S4S brickmould are standard on our pre-hung Mahogany and Knotty Alder doors
180 (11/4 x 2”) S4S (11/8 x 31/2”) Williamsburg (11/4 x 31/4”) RB3(11/4 x 31/2”)
445 (3/4 x 31/2”) 470 (1 x 35/8”) Lafayette (15/8 x 45/8”)
Endura
FrameSaver®
Available exclusively on our Urban,
French and Modena doors, our
Endura FrameSaver® door frames
complement our acetylated Accoya,
with a patented composite bottom
which won't absorb water, warp, crack or
rot; primed and ready to paint.
67interior accent doors
DSA Doors aren't just for your exterior entryway. Whether you're designing a formal
dining room, grand wine room, impressive home office, or other interior entryway, DSA
Doors are the perfect touch. Dutch doors are one of our personal favorites for an interior
door. Any door can be ordered for interior use by ordering without a sill, weatherstripping
and door sweep. We recommend doors that are 13/4" thick for interior applications.
Pictured from left to right: Dutch 6LT E-01, Milan Thin Lite E-04, Colonial Solid Panel E-01, Alexandria 8LT E-04.
Photo: Aberdeen Burlwood E-04
68lock & handleset options
Multipoint Multipoint locks are recommended for doors 8'0" and
taller, to provide additional stability to your door and
Locks additional security to your home.
Lever Multipoints
GU® and Ashland® Lock Systems are compatible with
EMTEK Configuration #4 lever handles
GU® 3-Point Ashland® Multi EMTEK® Lever
Lock System Lock System Handlesets
Arched Square Contemporary
Our GU® Multipoint Lock Our Ashland® 3-Point
System utilizes three Multipoint Lock System has Available with GU® and Ashland®
horizontal deadbolts with two vertical shootbolts and Multipoint Lock Systems. Both
an active lock only. GU a 1" deadbolt. This Lock available with Active & Dummy
Multipoints are not available System is available for Active Levers. Ashland® available with
for Rated doors. & Inactive Doors and rated Active & Passive Levers.
doors (DP-50 and Impact).
GU® Thumblatch Lock System Thumblatch
Handlesets
Our GU® Multipoint Thumblatch Lock System
utilizes horizontal deadbolts with exterior
thumblatch and interior lever. GU® Multipoints
are not available for rated doors. Available for
E-01C configurations.
Dummy
Lever & thumblatch handlesets handlesets not
available in Black & Satin Nickel available
69Non-Multipoint Locks
EMTEK® Mortised-Pocket Lock
Mortised lockset with interior and exterior knob.
Exterior knob utilizes Stop & Release buttons for
automatic locking.
Available for DP-50 Rated doors.
Dummy handle available only by special request.
Choose from Black or Satin Nickel finishes.
EMTEK® Thumblatch
Handlesets
Standard double-bore thumblatch entrysets
with interior and exterior options.
Select Matte Black or Satin Nickel, Square
Exterior Entry Handle or Full Plate Exterior
Entry Handle, and Interior Round Knob or
Interior Square Lever.
Dummy handlesets not available.
70choose a smart lock
Enjoy stylish design and keyless capabilities
with our EMTEK® Smart Lock.
Instead of fumbling for your keys,
conveniently use the Yale Access App
on your phone. Set your door to unlock
automatically as you approach and lock
behind you as you depart.
You can manage access from anywhere,
receive an activity feed, and integrate your
home automation devices easily.
Keyed Digital Full Available in Black
Plate or Satin Nickel
LEARN MORE
Interior
Handles
71modern hardware options
Choose a modern look with pull bars
and a locking mechanism. Pull bars
are not available for all standard Modern doors.
Available in 71" or 32" lengths with Black or Satin Nickel finish
Roller Catch
Rely on a heavy-duty EMTEK® Roller
Catch to hold your door shut while
unlocked.
Smart Lock
with Digital Available with Single Bore prep,
or Square Deadbolt EMTEK® Square Deadbolt, or Smart
Lock options in Black or Satin Nickel.
EMTEK Mortised- European Profile
Pocket Lock Cylinder
Compact mortised lockset GU® Multipoint locking system
with interior and exterior available in Satin Nickel.
knobs. Available in Black or Automatic latch requires key for
Satin Nickel. Available for exterior entry. Not available for
DP-50 Rated doors. DP-50 Rated doors.
Concealed
Hinges
Upgrade your
Modern door with
sleek concealed
hinges.
Not available for DP-
50 Rated doors.
72custom design
gallery
Replacing your front door and customizing your entry is a breeze with the
Custom Design Team at DSA Doors. We can accommodate almost any request or
idea, from custom configurations and glass designs, to fitting uncommon sizes
and everything in between. Browse our Custom Door Gallery for extra inspiration.
Custom Glass Design Custom Leaded Glass
Custom Iron Custom Transom
73Custom Timber
In addition to our
standard Mahogany,
Mahogany Knotty Alder Accoya
Knotty Alder and
Accoya, DSA offers
American Walnut
and White Oak, as
well as primed white
Mahogany or Accoya.
White Oak American Walnut Primed
Custom Glass (view on page 66)
Custom Sizes & Configurations
Designs to fit any existing opening,
neighborhood requirement,
architectural drawing or other
specification.
Custom Design Elements
Decorative wrought iron designs for
slabs, transoms, or side lites, custom
moulding and brickmould, unique panel
and slab designs, as well as custom
leaded and decorative glass. Operable Side Lite
74How to Care for your Door
Protect your door by Shield your door from Clean and maintain your
applying a clear finish at direct sunlight with a door regularly to preserve
least once per year. suitable overhang. it for years to come.
For increased security and Ensure any modifications Contact your DSA Dealer
stability, select a multipoint are performed by DSA or an or DSA Doors with any
lock system. authorized representative. questions or concerns.
Your Warranty
DSA Doors has been manufacturing artisan-crafted wood
doors for over twenty years. When you choose a DSA Door,
we want to go above and beyond your expectations and
assist you in maintaining your door for years to come.
Our most updated warranties are available at DSADoors.com/Resources.
Please contact us at Warranty@DSADoors.com with any questions.
75DP Rating Disclosures
In order to be approved to meet a Design Pressure (DP)
rating of 50, each door or window is subjected to extreme
testing conditions that simulate hurricane-force winds
up to 173 mph. DP testing requires that all variations of
door and window units be tested, or engineer approved,
by calculations based on previous test data.
At DSA, we emphasize the importance of purchasing
products that are legitimately tested and approved to
meet DP ratings. Manufacturers may refrain from completing DP testing while
still representing their product as safe and reliable. DSA's DP-Rated Doors are
the best choice for ensuring a safe and secure entrance to your home. View our
DP-Testing and Impact Rating materials online for more information.
Free Gift Card
Already have a DSA Door? Submit a photo at
DSADoors.com today. If we feature your home,
you'll receive a gift card!
Completing a renovation?
We love checking out your
"before and after"! Go to
DSADoors.com/Photos for
updated information and to
submit your photos.
76inside front
inside 1st page
DSA Master Crafted Doors 10681 World Trade Blvd Raleigh, NC 27617 www.DSADoors.com (919) 781-3200
You can also read
