General Hardware
We take the worry out of
protecting what’s valuable to you.
Lockwood: no worries
®
www.lockweb.com.au
We take the worry out of
protecting what’s valuable to you.
Lockwood: no worries®
Contents
Braille Signage Hooks and Brackets Hinges Door Chain Locks
page 4 page 8 page 12 page 19
Door Stops Security Door Bolts and Latches Flush Pulls
Viewer
page 21 page 28 page 29 page 35
Cupboard Handles Window Accessories
page 39 page 42
Lockwood Product Catalogue General Hardware
1300 LOCK UP (1300 562 587) lockweb.com.au
Braille Signage
Lockwood Braille Signage is designed Style and Variety
in Australia to meet requirements for Product Details
The Lockwood range of Braille and
Braille and tactile signage applications. tactile signs are available in seven The Lockwood Braille Signage is 220mm x 170mm
Braille Signage designs to suit a range of applications. making them the ideal complement to Lockwood 200
Available designs are: Dimensions Series and 202 Series Artefact Furniture. Sign corners
Each plate consists of embossed
and all embossed elements incorporate rounded
tactile design, English text and braille • Male corners to ensure a positive tactile experience.
lettering. The embossed components • Female Lockwood Braille Signage is supplied with white tactile
use standard imagery and fonts to
• Unisex Finish elements on a blue background allowing for luminous
ensure vision impaired non-braille
• Unisex Disabled Access Left contrast.
readers can decipher the sign.
Hand Transfer Lockwood Braille Signage is made from robust
The standard braille locator symbol is and durable ABS plastic enabling for single piece
• Unisex Disabled Access Right
on the left hand side of the plate in line construction to resist picking and/or adhesive failure.
Hand Transfer Materials
with the braille elements. This also provides a continuous, bleach resistant sign
• Female Ambulant surface for ease of cleaning and subsequent improved
Braille elements are embossed, hygiene.
• Male Ambulant
not engraved, glued on or made of
Fixing Lockwood Braille Signage couldn’t be easier
individual components which can be
as each plate is supplied with a single piece adhesive
separated from the sign surface.
backing enabling simple “peel-off and stick” mounting.
Signs should not be located on the door itself but rather
Mounting
on the wall adjacent to the door on the latch side, a
minimum of 50mm from the frame. The tactile and
Braille components of the signs should be positioned
between 1200mm and 1600mm from the floor.
4 Lockwood Product Catalogue General Hardware
1300 LOCK UP (1300 562 587) lockweb.com.au
Braille Signage
Braille Signage Male
Dimensions Part Number
220mm x 170mm BRS1700
Braille Signage Female
Dimensions Part Number
220mm x 170mm BRS1701

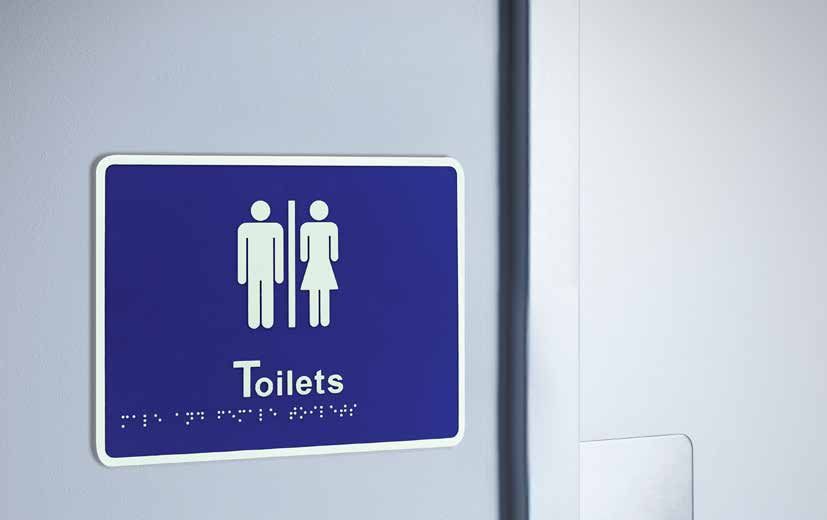

Braille Signage Unisex
Dimensions Part Number
220mm x 170mm BRS1703
Braille Signage Unisex Disabled
Access Left Hand Transfer
Dimensions Part Number
220mm x 170mm BRS1706L
Lockwood Product Catalogue General Hardware
1300 LOCK UP (1300 562 587) lockweb.com.au 5
Braille Signage
Braille Signage Unisex Disabled
Access Right Hand Transfer
Dimensions Part Number
220mm x 170mm BRS1706R

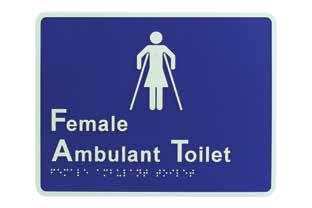

Braille Signage Female
Ambulant
Dimensions Part Number
220mm x 170mm BRS1707F
Braille Signage Male Ambulant
Dimensions Part Number
220mm x 170mm BRS1707M
6 Lockwood Product Catalogue General Hardware
1300 LOCK UP (1300 562 587) lockweb.com.au
Braille Signage
Ordering Procedure Handing Guide for BRS1706 – Wheelchair
Sample part number BRS1700 is made up of two Transfers
sections. Choose your product by selecting an
option from each section.
Right Hand Transfer Left Hand Transfer
Product Design
Code
BRS17 00
Product Code
Braille Signage BRS17
Design
Male 00
Female 01
Unisex 03
Unisex Disabled Access Left Hand Transfer 06L
Unisex Disabled Access Right Hand Transfer 06R
Female Ambulant 07F
Male Ambulant 07M
Lockwood Product Catalogue General Hardware
1300 LOCK UP (1300 562 587) lockweb.com.au 7
Hooks and Brackets
The Lockwood range of Hooks
and Brackets provide solutions for Product Details Standards and Compliance
numerous applications including
Cast brass hook and eye, three lengths, These products have been
storage of coats, hats and robes, Cabin Hooks
fixing screws included. successfully tested in accordance
securing doors and supporting with AS 2331-3.1: 2001. Neutral
handrails Hat and Coat Cast zinc and stainless steel, 6 styles,
Salt Spray Test (NSS TEST).
Hooks fixing screws included.
Applications Robe Hooks Cast Zinc, fixing screws included.
The Lockwood range of Hooks and Handrail Bracket Cast Zinc, fixing screws included.
Brackets are typically installed on
Chrome (CP)
timber substrates as wood screws are
Finishes Satin (SP)
supplied as standard. Satin Stainless Steel (SSS)
Zinc
Materials Brass
Stainless Steel
8 Lockwood Product Catalogue General Hardware
1300 LOCK UP (1300 562 587) lockweb.com.au
Hooks and Brackets
Cabin Hook
Length Finish Packaging Part Number
75mm Chrome Plate Display L829-75MCPDP
100mm Chrome Plate Display L829-100MCPDP
150mm Chrome Plate Display L829-150MCPDP
Features and Specifications
• Cast brass hook and eye
• Available in three lengths
• Individually display packed
• Complete with fixing screws
L45 Hat and Coat Hook
Finish Packaging Part Number
Chrome Plate Display L45CPDP
Satin Chrome Pearl Display L45SPDP
Features and Specifications
• Zinc alloy castings
• Individually display packed
• Complete with fixing screws
L432 Door Bumper and Hook
Finish Packaging Part Number
Chrome Plate Display L432CPDP
Satin Chrome Pearl Display L432SPDP
Features and Specifications
• Zinc alloy castings with nylon cushion tip
• Individually display packed
• Complete with fixing screws
L1310 Combined Hat and Coat Hook
Finish Packaging Part Number
Chrome Plate Display L1310CPDP
Satin Chrome Pearl Display L1310SPDP
Features and Specifications
• Zinc alloy castings
• Individually display packed
• Complete with fixing screws
Lockwood Product Catalogue General Hardware
1300 LOCK UP (1300 562 587) lockweb.com.au 9
Hooks and Brackets
L1320 Combined Hat and Coat Hook
Finish Packaging Part Number
Chrome Plate Display L1320CPDP
Satin Chrome Pearl Display L1320SPDP
Features and Specifications
• Zinc alloy castings
• Individually display packed
• Complete with fixing screws
296 Hat and Coat Hook
Finish Packaging Part Number
Satin Stainless Steel Trade 296SSS
Features and Specifications
• Stainless steel
• Individually display packed
• Complete with fixing screws
297 Bumper and Hook
Finish Packaging Part Number
Satin Stainless Steel Trade 297SSS
Features and Specifications
• Stainless steel
• Individually display packed
• Complete with fixing screws
10 Lockwood Product Catalogue General Hardware
1300 LOCK UP (1300 562 587) lockweb.com.auHooks and Brackets
L94 Robe Hook
Finish Packaging Part Number
Chrome Plate Display L94CPDP
Satin Chrome Pearl Display L94SPDP
Features and Specifications
• Zinc alloy castings
• Individually display packed
• Complete with fixing screws
Handrail Bracket
Finish Packaging Part Number
Satin Chrome Pearl Display L832SPDP
Features and Specifications
• Zinc alloy castings
• Individually display packed
• Complete with fixing screws
Lockwood Product Catalogue General Hardware

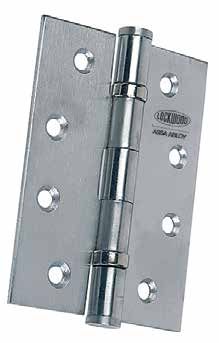

1300 LOCK UP (1300 562 587) lockweb.com.au 11Hinges
General Information Hinge Maintenance Number of Hinges Per Door
The 100 Series Architectural Hinges are designed The maintenance free hinges in the Lockwood For doors up to 2,100mm high, at least 3 hinges
to provide an effective solution to hanging doors 100 Series Architectural Hinge range are the should be used if the Adjusted Door Weight is
where there is a need for high grade, architectural Severe Duty Butt Hinges with the phosphorous over 20kg. If the Adjusted Door Weight is 20kg
quality hinges. These hinges are suitable for use bronze bushes (Part numbers LW10000SDSSS or less, 2 hinges can be used. For doors over
on aluminium or steel glazed doors and solid core and LW10075SDSSS). These Severe Duty Butt 2,100mm high, at least 4 hinges should be used.
timber doors. Many of them can also be used on Hinges are self-lubricating. The method for establishing the Adjusted Door
fire doors. Weight is given on Page 13.
The remainder of the Lockwood 100 Series
Lockwood Warranty Architectural Hinge range are greased hinges Fire Rated
Selection of the appropriate hinge for the which are fit for purpose in many applications. Please refer to the Hinge Selection Table on page
application is critical to ensure the longevity The grease is fundamental to the durability of the 13 for hinge fire rating information.
of the hinge and customer satisfaction. The product. However, with use it is possible for some
Door Stops
Lockwood warranty is only applicable for grease to seep out onto the surface of the hinge
It is recommended a door stop be installed to
hinges that are installed in accordance with the and if left unchecked can lead to door, frame, wall
ensure that the door has a positive backstop at
recommendations of the hinge selection table on or floor staining in extreme cases.
the degree of opening selected. It is essential
page 15.
To prevent this from happening, greased hinges to use a door stop where design factors of the
Hinge Height and Width should be monitored and cleaned externally building necessitate opening out of external
When reading dimensions, the first figure always during their life. doors and no windbreak is provided.
indicates the hinge height and the second
In environments where hygiene is critical Hinge Selection
indicates the width, eg. 100 mm x 75 mm. The
such as hospitals and food facilities or where Prior to selecting a suitable hinge, the Adjusted
door thickness and door jamb width (also trim
hinge maintenance is not a priority, the Door Weight needs to be calculated. The Adjusted
size if applicable) determine the width of the
Lockwood Severe Duty Butt Hinges are highly Door Weight takes into account the extra stresses
hinge required. The width is measured across the
recommended. that door closers and wider doors place on the
leaves when the hinge is fully opened as shown in
hinges and is used to select the appropriate hinge
Diagram 1. Finishes from the table below. Please refer to Page 15 for
Satin Stainless Steel SSS
Security calculation of the Adjusted Door Weight.
Polished Stainless Steel PSS
Fixed pin hinges should be used on exterior doors
Satin Chrome SC
or doors opening out. Also, doors made of particle
Matte Black MBK (limited range only)
should have a capped tongue edge strip framing
the door, so that hinges can be screwed into solid
material.
12 Lockwood Product Catalogue General Hardware
1300 LOCK UP (1300 562 587) lockweb.com.auHinges
Calculating the Adjusted Door Weight. For door width over 950mm:
Establish the weight of door including all door furniture, 951mm to 1050mm, add 10% to door weight.
metal plates and windows. If you have a door closer, add 20% 1051mm to 1150mm, add 20% to door weight.
to the door weight. 1151mm to 1250mm, add 30% to door weight.
If the door closer has back-check, add 75% to the door Therefore, Adjusted Door Weight = (total weight of the
weight, instead of the 20% above. door) + (% for door closer/back-check) + (% for any width
over 950mm) Please refer to lockweb.com.au/hinge-calc
for the online Hinge Adjusted Weight Calculator.
Hinge Selection Table
This Hinge Selection Table has been developed to assist (eg apartment entry doors) the maximum adjusted door
in hinge selection for doors in commercial applications weight becomes less relevant and as such the complete
where frequent use is anticipated (eg hospitals, schools, range of Lockwood hinges can be relied on to provide
universities, offices and public buildings). In applications trouble free service.
where it is reasonable to anticipate less frequent use
Maximum
Hinge Part Number Hinge Size (mm) Description *Finish Type *Material Adjusted Door Fire Rating
Weight (kg)
LW10075RLSSS Right Hand Lift Off
SSS
LW10075LLSSS Left Hand Lift Off
100x75x2.5 Lift Off Hinge SS 50 None
LW10075RLMBK Right Hand Lift Off
MBK
LW10075LLMBK Left Hand Lift Off
LW10000BBPSS 100x100x2.5 Ball Bearing PSS
LW10000BBSSS 100x100x2.5 Ball Bearing SSS
LW10000BBMBK 100x100x2.5 Ball Bearing MBK
LW10075BBPSS 100x75x2.5 Ball Bearing PSS
LW10075BBSSS 100x75x2.5 Ball Bearing SSS
LW10075BBMBK 100x75x2.5 Ball Bearing MBK
These Lockwood hinges have
LW10000FPPSS 100x100x2.5 Fixed Pin PSS been successfully tested up
to four hours (depending on
LW10000FPSSS 100x100x2.5 Fixed Pin SSS type of doorset) on fire door
Butt Hinge SS 60
assemblies in accordance
LW10075FPPSS 100x75x2.5 Fixed Pin PSS with Australian Standard
AS 1905.1-2005, Part 1: Fire
LW10075FPSSS 100x75x2.5 Fixed Pin SSS Resistant Doorsets.
LW10000LPPSS 100x100x2.5 Loose Pin PSS
LW10000LPSSS 100x100x2.5 Loose Pin SSS
LW10075LPPSS 100x75x2.5 Loose Pin PSS
LW10075LPSSS 100x75x2.5 Loose Pin SSS
LW10075LPMBK 100x75x2.5 Loose Pin MBK
LW10000BBSC 100x100x2.5 Ball Bearing These Lockwood hinges have
been successfully tested up
LW10075BBSC 100x75x2.5 Ball Bearing
to four hours (depending on
type of doorset) on fire door
LW10000FPSC 100x100x2.5 Fixed Pin SC Butt Hinge MS 60
assemblies in accordance
with Australian Standard
LW10000LPSC 100x100x2.5 Loose Pin
AS 1905.1-2005, Part 1: Fire
LW10075LPSC 100x75x2.5 Loose Pin Resistant Doorsets.
Heavy Duty Butt
LW10000BBHDSS 100x100x3.0 Heavy Duty SSS SS 70
Hinge
LW10000SDSSS 100x100x3.0 These Lockwood hinges have
been successfully tested up
to four hours (depending on
Severe Duty Butt type of doorset) on fire door
Severe Duty SSS SS 120
Hinge assemblies in accordance
LW10075SDSSS 100x75x3.0
with Australian Standard
AS 1905.1-2005, Part 1: Fire
Resistant Doorsets.
*Legend:
SS=Stainless Steel MS=Mild Steel SSS=Satin Stainless Steel finish PSS=Polished Stainless Steel finish SC=Satin Chrome finish MBK = Matte Black
Lockwood Product Catalogue General Hardware
1300 LOCK UP (1300 562 587) lockweb.com.au 13Hinges
Typical Applications
Typical internal doors Typical external or Typical heavy doors
high usage doors
Hinge Throw Selection Diagram 1
Hinge Width
Available Using a
Throw of Hinge 100 x 75 x 2.5 mm
Hinge
Frame SS304/99
Hinge Height
Architrave
SS304/99
or
Do
Using a
100 x 100 x 2.5 mm
Hinge
Frame
Architrave
180
Door
14 Lockwood Product Catalogue General Hardware
1300 LOCK UP (1300 562 587) lockweb.com.auHinges
Stain Steel Ball bearing Hinge
Stainless Steel Ball Bearing
Hinges
75 LW10075BBPSS
Satin Stainless Steel/Polished 18 10
Stainless Steel/Button Tipped Hinge 12.5
Suitable for interior/exterior doors
SS304/99
where a durable, architectural ball
bearing hinge is required, or when 100
being used in conjunction with a
door closer. 37.5
• Two ball bearings
• Manufactured from 304
100
stainless steel 18 10
LW10000BBSSS
• Available fixed pin only 12.5
• Metric sizes SS304/99
• Standard metric hole pattern
100
Sizes: 100 x 75 x 2.5 mm,
100 x 100 x 2.5 mm 37.5
and 100 x 100 x 3.0mm
Thickness: 2.5 mm and 3.0mm
Screws: S tainless Steel Screws
supplied with each hinge 10
Gauge x 30mm Wood Screws LW10075BB & LW10000BB now available in
x 8 M5 12mm Metal Thread Matte Black
Screws x 4
Pack Size: 30 (and 18 for the 3.0mm
Stainless steel butt hinge
thick hinge)
Stainless Steel Hinges 75
LW10075LPSSS
18 10
Satin Stainless Steel/Polished 12.5
Stainless Steel/Button Tipped Hinge
Suitable for interior/exterior doors SS304/99
where a durable, architectural hinge
100
is required.
• Manufactured from 304 37.5
stainless steel
• Available fixed and loose pin
• Metric sizes
100
LW10000FPPSS
18 10
• Standard metric hole pattern 12.5
Sizes: 100 x 75 x 2.5 mm
SS304/99
and 100 x 100 x 2.5 mm
Thickness: 2.5 mm 100
Screws: S tainless Steel Screws
37.5
supplied with each hinge
10 Gauge x 30mm Wood
Screws x 8 M5 x 12mm Metal
Thread Screws x 4
Pack Size: 30
LW10075LP now available in Matte Black
Lockwood Product Catalogue General Hardware
1300 LOCK UP (1300 562 587) lockweb.com.au 15Hinges
Steel Ball Bearing Butt Hinge
Mild Steel Ball Bearing Hinges
Suitable for general purpose interior/ 75
exterior doors where a standard ball 18 10
bearing hinge is required or when 12.5
being used in conjunction with a door 99
closer.
LW10000BBSC
• Manufactured from high grade steel 100
• Available fixed pin only
37.5
• Metric sizes
• Standard metric hole pattern
100
Sizes: 100 x 75 x 2.5 mm 18 10
and 100 x 100 x 2.5 mm 12.5
Thickness: 2.5 mm 99
Screws: Zinc Plated Mild Steel Screws
100
supplied with each hinge
10 Gauge x 30mm Wood 37.5
Screws x 8 M5 x 12mm Metal
Thread Screws x 4
Pack Size: 30
Finish: Satin Chrome
Steel Butt Hinge
Mild Steel Hinges
Suitable for general purpose interior/ 75
exterior doors where a standard hinge 18 10 LW10000LPSC
is required. 12.5
99
• Manufactured from high grade steel
• Available fixed and loose pin 100
• Metric sizes
37.5
• Standard metric hole pattern
Sizes: 100 x 75 x 2.5 mm
and 100 x 100 x 2.5 mm 100
18 10
Thickness: 2.5 mm
12.5
Screws: Z
inc Plated Mild Steel Screws
99
supplied with each hinge
10 Gauge x 30mm Wood 100
Screws x 8 M5 x 12mm Metal
Thread Screws x 4 37.5
Pack Size: 30
Finish: Satin Chrome
16 Lockwood Product Catalogue General Hardware
1300 LOCK UP (1300 562 587) lockweb.com.auHinges
Stain Steel Ball bearing Hinge
Stainless Steel Bushed Bearing
Hinges (Severe Duty) 18
75
10
12.5
High performance bushed bearing LW10075SDSSS
butt hinges suitable for severe duty SS304/99
applications.
100
• Manufactured from 304 stainless steel
• Available in fixed pin only 37.5
• Metric sizes
Sizes: 100 x 100 x 3.0mm
100
and 100 x 75 x 3.0mm
18 10
Screws: Stainless Steel Screws supplied 12.5
with each hinge.10 Gauge x
30mm Wood Screws x 8 SS304/99
M5 x 14mm Metal Thread
100
Screws x 4
Pack Size: 36
37.5
Finishes: Satin Stainless Steel
Matte Black
Lift Off Stainless Steel Hinges Stainless steel butt hinge
Suitable for where a door may need LW10075LLSSS
to be lifted off after installation
75
• Available in left and right 18 10
hand versions 12.5
• Manufactured from 304 stainless steel SS304/99
• Metric sizes
100
Sizes: 100 x 75 x 2.5mm
Screws: S tainless Steel Screws supplied 37.5
with each hinge. 10 Gauge x
30mm Wood Screws x 8 M5 x
12mm Metal Thread Screws x 4 100
Pack Size: 30 18 10
12.5
Finishes: Satin Stainless Steel
Matte Black SS304/99
LW10075LR/LL now available in Matte Black
100
37.5
Lockwood Product Catalogue General Hardware
1300 LOCK UP (1300 562 587) lockweb.com.au 17Hinges
Fast Fix Stainless Steel Ball
Bearing Hinge 70
28.5
70
14 12
LW10070BBFFSSS
Ideal for general purpose interior/ 28.5 14 12
exterior use where aluminium frames/ SS304/99
SS304/99
doors are used.
• Two ball bearings
100 52
• Manufactured from 304 100 19 52
19
stainless steel
• Available fixed pin only
9.5
• Metric sizes 9.5 6.5
6.5
Sizes: 100 x 70 x 2.5 mm
2.5
Thickness: 2.5 mm 2.5
2.5
2.5 42 28
Screws: Stainless Steel Screws 42 28
supplied with each hinge
10 Gauge x 30mm Wood
Screws x 6 M5 x 12mm Metal
Thread Screws x 6
Pack Size: 30
Fast Fix Stainless Steel Ball
Bearing Hinge
70
Ideal for general purpose interior/ 70 LW10070BBFFSSA
24 12 8
exterior use where timber frames/ 24 12 8
doors are used. SS30413
SS30413
• Two ball bearings
• Manufactured from 304
100 54
stainless steel 100 19 54
19
• Available fixed pin only
• Metric sizes 8.5
8.5
Sizes: 100 x 70 x 2.5 mm
Thickness: 2.5 mm 2.5
2.5
Screws: Stainless Steel Screws 2.5
2.5 42 28
supplied with each hinge 42 28
10 Gauge x 32mm Wood
Screws x 7 M5 x 12mm Metal
Thread Screws x 7
Pack Size: 30
18 Lockwood Product Catalogue General Hardware
1300 LOCK UP (1300 562 587) lockweb.com.auHinges
AH130 Fast Fix Aluminium Hinge Overall dimensions
The Lockwood AH130 is a heavy duty 40
50
fast fix hinge with face fix flanges to AH130CAN
suit aluminium commercial door
30
applications.
Heavy duty, bi-directional face fix
locator flanges allows for faster
130
65
installation.
Installation Guide
30
• Minimum door thickness 40mm
• Up to 2100 high x 900 x 100kg 26
inner leaf
– 3 hinges width
3
• Up to 2400 high x 900 x 100kg
16
– 4 hinges
39
Fixing
• Heavy duty bi-directional fixing
• Face fix locator flange allows for faster
installation Screw hole fixing dimensions
• Supplied with 11 of 10G x 12mm,
26 6
304SS undercut countersunk self
tapping (AB) Phillip drive screws
Technical Specification
• Hinge: 6063-T6 alloy
100
110
45
90
35
• Hinge Pin: 6mm 304 grade Stainless
Steel
• Nylon bushes
• Squareline heavy duty knuckles
10 28 16
• Interference pressed fit aluminium
end caps
AH130 Fast Fix Aluminium Hinge
Finish Packaging Part Number
Clear Anodised Trade AH130CAN
Black Powdercoat Trade AH130BLK
White Powdercoat Trade AH130WH
Silver Powdercoat Trade AH130SIL
Lockwood Product Catalogue General Hardware
1300 LOCK UP (1300 562 587) lockweb.com.au 19Door Chains and Locks
The Lockwood range of Door
Chains and Locks are an easily fitted Product Details Standards and Compliance
security device used for added home
Door Thickness Any These products have been
protection. The Lockwood Door Chains
successfully tested in accordance
and Locks can only be used on the Finishes Chrome Plate (CP)
with AS 2331-3.1: 2001. Neutral
inside of the door. The Lockwood Door Cast Zinc Salt Spray Test (NSS TEST).
Materials
Chains and Locks are not accessible Hardened Steel
from the outside. Fixing Fixing screws included
Applications
The Lockwood range of Door Chains
and Locks are typically installed on the
internal side timber doors as wood
screws are supplied as standard.
20 Lockwood Product Catalogue General Hardware
1300 LOCK UP (1300 562 587) lockweb.com.auDoor Chains and Locks
140 Door Chain Lock - Key Operated
Finish Packaging Part Number
Chrome Plate Display 140CPDP
Provides the security of a door chain plus the convenience of entry from
outside by key.
Features and Specifications
Housing and Slide
Diecast zinc
Chain
Hardened steel
Mechanism
5 disc tumbler
Keying
Individually keyed
Packaging
Individually display packed, complete with fixing screws.
Lockwood Product Catalogue General Hardware
1300 LOCK UP (1300 562 587) lockweb.com.au 21Door Stops
The range of Lockwood Door Stops
provide numerous solutions for Product Details Standards and Compliance
ensuring that door travel is contained
Chrome Plate (CP) These products have been
within the required specification. Walls
Satin Chrome (SC) successfully tested in accordance
are protected from furniture impacts Satin Pearl (SP) with AS 2331-3.1: 2001. Neutral
and doors can be held open at any Finishes
Polished Stainless (PS) Salt Spray Test (NSS TEST).
desired position. Satin Stainless (SS)
Matte Black (MBK)
Applications
Stainless Steel
The range of Lockwood Door Stops Zinc
are able to be mounted on numerous Materials
Brass
situations in many positions including Rubber
floors and walls.
New Matte Black range of Door Stops now available.
22 Lockwood Product Catalogue General Hardware
1300 LOCK UP (1300 562 587) lockweb.com.auDoor Stops
A250 Door Stop
Finish Packaging Part Number
Chrome Plate Trade A250CP
Satin Chrome Trade A250SC
Matte Black Trade A250MBK
The 250 is a floor mounted door stop of quality design, finish and
appearance. The resilient rubber buffer provides excellent protection for
door finishes.
Features and Specifications Now available in Matte Black
Dimensions
50 mm high with a triangular base 50 mm wide and 60 mm deep.
Materials
Body - Stainless Steel
Buffer - Rubber
Fixing
Mounting screws included
35
A280 Round Door Stop 30
Finish Packaging Part Number
15
40
Satin Stainless Trade A280SS
Polished Stainless Trade A280PS
Matte Black Trade A280MBK
This general purpose door stop is floor mounted and prevents doors and
handles damaging walls and fixtures. The black rubber buffer provides
further protection for door finishes.
Features and Specifications
Now available in Matte Black
Dimensions
35 mm diameter.
Materials
Body - Stainless Steel
Buffer - Rubber
Fixing
Mounting screw included
Lockwood Product Catalogue General Hardware
1300 LOCK UP (1300 562 587) lockweb.com.au 23Door Stops
43
A290 Half Moon Door Stop
Finish Packaging Part Number 26
Satin Chrome Brushed Trade A290SC
22
Matte Black Trade A290MBK
5
Designed to be floor mounted, the door stop prevents doors and handles
damaging walls and fixtures. The black rubber buffer gives further
protection for door finishes.
Features and Specifications
Dimensions
43 mm diameter. Now available in Matte Black
Materials
Body - Zinc
Buffer - Rubber
Fixing
Mounting screw included
43
A292 Half Moon Door Stop Packer
Finish Packaging Part Number
10
Satin Chrome Brushed Trade A292SC
10mm packer to suit A290 half moon door stop.
Features and Specifications
Dimensions
43 mm diameter.
10mm thick packer
Materials
Body - Zinc
24 Lockwood Product Catalogue General Hardware
1300 LOCK UP (1300 562 587) lockweb.com.auDoor Stops
A300 Door Stop
Finish Packaging Part Number
19
Satin Stainless Steel Trade A300SS
Polished Stainless Steel Trade A300PS
Matte Black Trade A300MBK
Designed to be wall mounted, the door stop prevents doors and handles
damaging walls and fixtures. The 300 Series door stops feature concealed
fixing behind the rubber buffer.
Now available in Matte Black
Features and Specifications
Dimensions
75mm projection
19mm diameter
Materials
Body - Stainless Steel
Buffer - Rubber
Fixing
Mounting screw included
A310 Magnetic Door Stop
70
Finish Packaging Part Number
10
Satin Chrome Brushed Trade A310SC
24 50
Designed to be wall or floor mounted, this door stop incorporates a
magnetic catch to hold the door in the open position.
Features and Specifications
Materials
Body - Zinc
Fixing
Mounting screws included
Lockwood Product Catalogue General Hardware
1300 LOCK UP (1300 562 587) lockweb.com.au 25Door Stops
75
A320 Door Stop 2,5
Ø38
Finish Packaging Part Number
Satin Chrome Trade A320SC
Polished Chrome Trade A320CP
Designed to be wall mounted, the door stop prevents doors and handles
damaging walls and fixtures. The black rubber buffer gives further
protection for door finishes.
Features and Specifications
Dimensions
38mm diameter base.
75mm projection.
Materials
Body - Zinc
Buffer - Rubber
Fixing
Mounting screws included
A330 Door Stop 80
19 10
Finish Packaging Part Number
19
Satin Stainless Steel Trade A330SS
Polished Stainless Steel Trade A330PS
Designed to be wall mounted, the door stop prevents doors and
handles damaging walls and fixtures. The black rubber buffer
gives further protection for door finishes.
Features and Specifications
Dimensions
80mm projection.
19mm width.
Materials
Body - Stainless Steel
Buffer - Rubber
Fixing
Mounting screw included
26 Lockwood Product Catalogue General Hardware
1300 LOCK UP (1300 562 587) lockweb.com.auDoor Stops
A350 Door Stop
Finish Packaging Part Number
Chrome Plate Trade A350CP
Satin Chrome Trade A350SC
Matte Black Trade A350MBK
Designed to be wall mounted, the door stop prevents doors and handles
damaging walls and fixtures. The 350 Series door stops feature concealed
fixing behind the rubber buffer.
Now available in Matte Black
Features and Specifications
Dimensions
75mm projection
35mm diameter
Materials
Body - Zinc
Buffer - Rubber
Fixing
Mounting screw supplied
857 Door Stop
Finish Packaging Part Number
Satin Chrome Pearl Trade 857SP
A coil spring and ball ensure the arm indexes at “out of way” position.
Designed for use as a bottom rail door stop.
Features and Specifications
Materials
Body and arm – cast brass
Buffer – rubber
Fixing
Mounting screw supplied
Lockwood Product Catalogue General Hardware
1300 LOCK UP (1300 562 587) lockweb.com.au 27Door Stops
2307 Door Stop
Finish Packaging Part Number
Black Trade 2307BLK
Specify Colour Trade 2307PPC
This doorstop is designed to cushion the high impact of
sliding doors and windows. With a secure durable design,
it will prevent collision damage.
Features and Specifications
Materials
Body - Zinc
Buffer - Rubber
Fixing
Mounting screws not included
2308 Door Stop with Cover
Finish Packaging Part Number
Satin Pearl Trade 2308SP
Specify Colour Trade 2308PPC
This doorstop is designed to cushion the high impact of
sliding doors and windows. With a secure durable design,
it will prevent collision damage.
Features and Specifications
Materials
Body - Zinc
Buffer - Rubber
Fixing
Mounting screws not included
28 Lockwood Product Catalogue General Hardware
1300 LOCK UP (1300 562 587) lockweb.com.auSecurity Door Viewer
The Lockwood Security Door Viewer
is constructed from solid brass and
Security Door Viewer - Glass Lens
comes plated in two finishes. It Part Door
features an optical glass lens providing Finish Packaging Body
Number Thickness
a clear 160° angle of view. It is suited to
33 to
door thicknesses of 33mm to 50mm. Chrome Display 160CPDP Brass
50mm
Polished 33 to
Display 160PBDP Brass
Brass 50mm
Fire Rated
The 160 Security Door Viewer has a glass lens and has been
tested up to 4 hours on fire door assemblies in accordance with
Australian Standard AS 1905.1: Fire Resistant Doorsets.
Lockwood Product Catalogue General Hardware
1300 LOCK UP (1300 562 587) lockweb.com.au 29Bolts and Latches
The range of Lockwood Bolts and
Latches offer a comprehensive range of Product Details Standards and Compliance
quality products that compliment the
Door Thickness Any These products have been
range of existing Lockwood furniture.
successfully tested in accordance
Chrome Plate (CP)
Application with AS 2331-3.1: 2001. Neutral
Satin Chrome (SC)
Salt Spray Test (NSS TEST).
The range of Lockwood Bolts and Satin Chrome Pearl (SP)
Finishes
Latches are suitable for a wide range Polished Stainless Steel (PSS)
Satin Stainless Steel (SSS)
of applications for both internal and
Polished Brass (PB)
external doors with pull handles,
through fix door furniture, disabled
and emergency turns.
30 Lockwood Product Catalogue General Hardware
1300 LOCK UP (1300 562 587) lockweb.com.auBolts and Latches 22 8 41
76 13 28 32
13 10 10
22 8 41
7580 Roller Bolt
29
Finish Packaging Part Number 22 8 41
39 70
Satin Chrome face 76 13 28 32
Trade 7580SC
plate and T strike
76 13 28 32
Designed for both internal and external doors, the
30
Lockwood Roller Bolt is suited to a wide range of
applications and perfectly complements the Paradigm 13 10 10
deadbolt range and Lockwood Entrance handles The roller 13 10 10
bolt functions to “snap” in and out of the strike which will
keep the door closed when it isn’t locked. This means a
29
lever / knob is not required to open the door. 29 29
Features and Specifications
Features
39 70
Adjustable bolt projection with locknut to prevent loosening. 39 39 70 70
Handing
Non-handed
90
Supplied
Fixing screws 30
Both 30mm and 90mm strikes supplied as standard 30
29
6260 Privacy Bolt 29
Finish Packaging Part Number 39 70
Polished Brass Trade 6260PB
Polished Stainless Steel Trade 6260PSS 39 70
Satin Stainless Steel Trade 6260SSS
90
Suitable for through fixing of disabled turns
and emergency indicating turns
Features and Specifications
90
Features
Tubular privacy bolt
60 mm backset
Strike
Spindle
Fixing screws.
Handing
Non-handed
Supplied
Fixing screws
Strike
Latch
Lockwood Product Catalogue General Hardware
1300 LOCK UP (1300 562 587) lockweb.com.au 31Bolts and Latches
5260 Tubular Latch
Commercial Spindle
Description Part Number Function
/ Residential Supplied
60MM PASSAGE LATCH SQUARE
END FACE PLATE & T STRIKE- 5260/1SFTCP Commercial Passage Yes
CHROME PLATE
60MM PASSAGE LATCH SQUARE
END FACE PLATE & T STRIKE- 5260/1SFTPB Commercial Passage Yes
POLISHED BRASS
60MM PASSAGE LATCH SQUARE
END FACE PLATE & T STRIKE- 5260/1SFTSC Commercial Passage Yes
BRUSHED SC
60MM PASSAGE LATCH SQUARE
END FACE PLATE & T STRIKE- 5260/1SFTSP Commercial Passage Yes
SATIN CHROME PEARL
60MM PASSAGE LATCH DRIVE
5260/1DIRCP Residential Passage No
IN WITH ROUND STRIKE
60MM PASSAGE LATCH SQUARE
5260/1SFDCP Residential Passage No
END FACE PLATE AND D STRIKE
60MM PASSAGE LATCH SQUARE
5260/1SFDSC Residential Passage No
END FACE PLATE AND D STRIKE
60MM PASSAGE LATCH SQUARE
5260/1SFDSP Residential Passage No
END FACE PLATE AND D STRIKE
60MM PRIVACY LATCH DRIVE
5260/2DIRCP Residential Privacy No
IN WITH ROUND STRIKE
60MM PRIVACY LATCH SQUARE
5260/2SFDCP Residential Privacy No
END FACE PLATE AND D STRIKE
60MM PRIVACY LATCH SQUARE
5260/2SFDSC Residential Privacy No
END FACE PLATE AND D STRIKE
60MM PRIVACY LATCH SQUARE
5260/2SFDSP Residential Privacy No
END FACE PLATE AND D STRIKE
Tubular latch designed for use with
horizontal through fixing door furniture.
Features and Specifications
Features
2 Hour Fire Rating
60mm Backset
Handing
Non-handed
Supplied
Fixing screws
Strike
Latch
Fire Rated
Lockwood 5260 Series latches has been
successfully tested up to two hours (depending
on type of doorset) on fire door assemblies in
accordance with Australian standard As 1905.
1- 2005, Part 1: Fire Resistant Doorsets
32 Lockwood Product Catalogue General Hardware
1300 LOCK UP (1300 562 587) lockweb.com.auBolts and Latches
5260 Tubular Latch Accessories
Spindle
Description Part Number Commercial / Residential Function
Supplied
5200 D STRIKE CHROME PLATE 5200/STRIKEDCP Residential Strike No
5200 D STRIKE SATIN CHROME 5200/STRIKEDSC Residential Strike No
5200 D STRIKE SATIN PEARL 5200/STRIKEDSP Residential Strike No
5200 ROUND STRIKE CHROME PLATE 5200/STRIKERCP Residential Strike No
5200 T STRIKE CHROME PLATE 5200/STRIKETCP Commercial Strike No
5200 T STRIKE POLISHED BRASS 5200/STRIKETPB Commercial Strike No
5200 T STRIKE BRUSHED SATIN CHROME PLATE 5200/STRIKETSC Commercial Strike No
5200 T STRIKE SATIN PEARL 5200/STRIKETSP Commercial Strike No
8530 Special Latch
Description Finish Packaging Part Number
Double bevel latch Satin Chrome Trade 8530-305SC
Satin Stainless
Top latch adaptor plate Trade SP8530-114SSS
Steel
A special purpose latch featuring a double bevel aluminium bronze
bolt to be used in specialist applications. A comprehensive range of
accessories are available for use with the 8530-305SC latch.
Features and Specifications
Features
Double bevel aluminium bronze bolt
4hr fire rated
60mm backset 60 15
Supplied with fixing screws
Suitability
Single push and pull doors
Double push and pull doors. 20 22 57
25.5 25.5
60 15
Fire Rated 85
The Lockwood 8530 latch has been successfully 8530-353
tested to 4 hours on fire door assemblies in 20 22 57 41.5 x2 45 57.5
accordance with Australian Standards As 1905.1-
2005, Part 1: Fire Resistant Doorsets
8530-305SC
x2
8530 Single bevel
ACTIVE LE
8530-353
x2
Lockwood Product Catalogue General Hardware
1300 LOCK UP (1300 562 587) lockweb.com.au 33Velocity
Bolts ®
and 63mm
LatchesSeries Rose Door Handles
8530 Special Latch Strikes
45.5
Description Finish Packaging Part Number
Single angle strike Satin Chrome Trade SP8530-353SC
Double angle strike Satin Chrome Trade SP8530-253SC 41 57
Satin Stainless
T strike Trade SP8530-5053SSS
Steel
A range of strikes to be used with the 8530 Double Bevel latch in
25.5 22
specialist applications. 53.5
60/70 15
Features and Specifications 8530 SPECIAL LATCH ASSY 60mm
Features
SP8530-353SC and SP8530-253SC supplied with fixing screws.
22 57 41.5 45 51.5 41 57
17
8530 Single bevel
8530-353
x2
70 54 38
8530-305SC 8530-5
x2
ACTIVE LEAF ACTIVE LEAF INACTIVE LEAF ACTIVE LEAF
8530-353
Standard
29 Lockset
8530-203SC
Auto Flush Bolt
sh and pull door 8530 Double swing 8530 Double locking doors
push and pull doors 25.5 25.5
8530 Special Latch Turn Knob 53.5
60 15
Description Finish Packaging Part Number
Turn Knob Satin Chrome Trade SP8530-57SC
20 22 57 41.5 45 57.5 41 57
Spindle PK=20 Satin Chrome Trade SP8530-27
A solid brass turn knob to be used with the 8530 Double Bevel latch in
specialist applications.
Features and Specifications
Features 8530 Single bevel
Solid brass 25.5 22
8530-353 51.5
Spindle included x2
0/127 15
Supplied with fixing screws
22 57 41.5 8530-305SC 45 51.5 8530-5 41 57
x2
ACTIVE LEAF ACTIVE LEAF INACTIVE LEAF ACTIVE LEAF
8530-353
34 Lockwood Product Catalogue General Hardware Standard
Lockset
1300 LOCK UP (1300 562 587) lockweb.com.au
8530-353
Strike
8530-203SCVelocity
Bolts ®
and 63mm
LatchesSeries Rose Door Handles
Non Electric Strike
Finish Packaging Part Number
Satin Stainless
Trade 107501-090
Steel
The Lockwood Non-Electric Strike is used with the 8530-305SC Double
Bevel latch on E Core fire doors that require a push/pull function.
The profile of the Lockwood Non-Electric Strike has the same dimensions
as a universal strike plate (70mm height x 29mm width and 55mm
between centers of fixing holes). This allows the Lockwood Non-Electric
Strike to be installed directly into a universal strike preparation with
minor depth adjustment to the doorframe.
70
The body (depth 28mm) is cast stainless steel with the faceplate Satin
55
Stainless in finish. The stainless steel keeper is held within the body by
A 28
a single bronze pin and has a spring to return the keeper. A U-shaped
rubber buffer is fitted to minimize impact shock and noise of the keeper.
Features 29
Features
Fire tested up to 4 hours 8
Australian design and manufactured SECTION A-A
Full stainless steel keeper and body A
35
Corrosion resistant 43
Easily installed
Low maintenance
Fire Rated
The Lockwood Non- Electric strike has been
successfully tested to 4 hours on an E Core fire
door at the CSIRO to Australian Standards AS
1530.4
Lockwood Product Catalogue General Hardware
1300 LOCK UP (1300 562 587) lockweb.com.au 35Flush Pulls
The range of Lockwood Flush Pulls
offer multiple solutions for flush Product Details Standards and Compliance
mount door furniture.
Satin Stainless Steel (SS) These products have been
Application Polished Stainless Steel (PS) successfully tested in accordance
Finishes Chrome Plate (CP) with AS 2331-3.1: 2001. Neutral
The range of Lockwood Flush Pulls are
Satin Chrome Pearl (SP) Salt Spray Test (NSS TEST).
suited to numerous applications which Polished Brass Plate (PBP)
require the door furniture to be flush
Zinc
with the surface of the door. Materials
Stainless Steel
36 Lockwood Product Catalogue General Hardware
1300 LOCK UP (1300 562 587) lockweb.com.auFlush Pulls
35 1
30 11
L609
115
Dimensions Finish Packaging Part Number
85
85 x 30mm Chrome Plate Display L609CPDP
Polished Brass Plate Display L609PBPDP
Satin Chrome Pearl Display L609SPDP
Features and Specifications
Flush
• Zinc alloy cast flush pull
• Display packed, complete with fixing screws
40
L611 35 11
Dimensions Finish Packaging
30 Part Number
11
115 x 35mm Chrome Plate Display L611CPDP
145
Polished Brass Plate Display L611PBPDP 115
Satin Chrome Pearl Display 85 L611SPDP
Features and Specifications
• Zinc alloy cast flush pull
• Display packed, complete with fixing screws
Flush pull
40 12
35 11
L610
11
Dimensions Finish Packaging Part Number
145 x 40mm Chrome Plate Display L610CPDP 145
Satin Chrome Pearl Display 115 L610SPDP
85
Features and Specifications
• Zinc alloy cast flush pull
• Display packed, complete with fixing screws
Flush pull
Lockwood Product Catalogue General Hardware
1300 LOCK UP (1300 562 587) lockweb.com.au 37Flush Pulls
50
15
FP1-120 1,5 22
Dimensions Finish Packaging Part Number
120 x 50mm Satin Stainless Steel Trade FP1-120SS
Polished Stainless
Trade FP1-120PS
Steel
120
75
Features and Specifications
• Stainless steel flush pull
• Trade packed, complete with fixing screws
FP1-150 15
1,5
50
22
Dimensions Finish Packaging Part Number
150 x 50mm Satin Stainless Steel Trade FP1-150SS
Polished Stainless
Trade FP1-150PS
Steel
105
150
Note: Fixing screws included.
Features and Specifications
• Stainless steel flush pull
• Trade packed, complete with fixing screws
38 Lockwood Product Catalogue General Hardware
1300 LOCK UP (1300 562 587) lockweb.com.auFlush Pulls
15 50
FP2-120 1,5 22
Dimensions Finish Packaging Part Number
120 x 50mm Satin Stainless Steel Trade FP2-120SS
Polished Stainless
Trade FP2-120PS
Steel
Matte Black Trade FP2-120MBK
120
75
Features and Specifications
• Stainless steel flush pull
• Trade packed, complete with fixing screws
15 50
FP2-150 1,5 22
Dimensions Finish Packaging Part Number
150 x 50mm Satin Stainless Steel Trade FP2-150SS
Polished Stainless
Trade FP2-150PS
Steel
Matte Black Trade FP2-150MBK
Features and Specifications
105
150
• Stainless steel flush pull
• Trade packed, complete with fixing screws
Lockwood Product Catalogue General Hardware
1300 LOCK UP (1300 562 587) lockweb.com.au 39Cupboard Handles
The range of Lockwood Cupboard
Handles will bring a stylish finish to Product Details Standards and Compliance
your cupboards. There are several
Door Thickness Up to 19mm These products have been
styles in different finishes to ensure
successfully tested in accordance
the right handle is available for Satin Stainless Steel (SS)
with AS 2331-3.1: 2001. Neutral
Finishes Polished Stainless Steel (PS)
your application. Salt Spray Test (NSS TEST).
Satin Chrome Pearl (SP)
Application Stainless Steel
Materials
The range of Lockwood Cupboard Brass
Handles are suitable for all Fixing Fixing screws included.
cupboard doors.
40 Lockwood Product Catalogue General Hardware
1300 LOCK UP (1300 562 587) lockweb.com.auCupboard Handles
35
CH1-224
Dimensions Finish Packaging Part Number
12x12x224(C-C)
Satin Stainless Steel Trade CH1-224SS
x35(H)mm
Polished Stainless
Trade CH1-224PS
236
Steel
Note: Fixing screws included.
Features and Specifications
• Stainless steel cupboard handles
• Available in two finishes
• Trade packed, complete with fixing screws
CH2-224
Dimensions Finish Packaging Part Number
Dia12x224(C-C)
X288(L)X34(H) Satin Stainless Steel Trade CH2-224SS
mm
288
Polished Stainless
Trade CH2-224PS
Steel
Ø12
Note: Fixing screws included.
Features and Specifications
Ø10
• Stainless steel cupboard handles
• Available in two finishes
34
• Trade packed, complete with fixing screws
35
CH3-224
Dimensions Finish Packaging Part Number
Dia10x224(C-C)
Satin Stainless Steel Trade CH3-224SS
x35(H)mm
Polished Stainless
Trade CH3-224PS
Steel
259
Note: Fixing screws included.
Features and Specifications
• Stainless steel cupboard handles
• Available in two finishes
• Trade packed, complete with fixing screws
Lockwood Product Catalogue General Hardware
1300 LOCK UP (1300 562 587) lockweb.com.au 41Cupboard Handles
L70
Product Length Finishes Packaging Part Number
Satin Chrome
L70 100mm Display L70SPDP
Pearl
Features and Specifications
• Extruded brass handle, concealed fixing
• Display packed, complete with fixing screws
CK1-25 30
Dimensions Finish Packaging Part Number
Dia25x30mm Satin Stainless Steel Trade CK1-25SS
25
Polished Stainless
Trade CK1-25PS
Steel
Note: Fixing screws included.
Features and Specifications
• Stainless steel cupboard knob
• Available in two finishes
• Trade packed, complete with fixing screw
42 Lockwood Product Catalogue General Hardware
1300 LOCK UP (1300 562 587) lockweb.com.auWindow Lock Accessories
The range of Lockwood Window
Lock Accessories provide numerous Product Details Standards and Compliance
solutions for ensuring that windows
Chrome Plate (CP) These products have been
can be operated and secured safely Satin Chrome Pearl (SP) successfully tested in accordance
with minimal fuss. Finishes
Polished Brass Plate (PB) with AS 2331-3.1: 2001. Neutral
Florentine Bronze (FB) Salt Spray Test (NSS TEST).
Application
The Lockwood range of Window Lock Zinc
Materials
Brass
Accessories are suitable to be installed
on Double Hung and Casement
windows. Wood screws are supplied
as standard.
Lockwood Product Catalogue General Hardware
1300 LOCK UP (1300 562 587) lockweb.com.au 43Window Lock Accessories
Sash Fastener 69.4 69.4
32.5
Finish Packaging Part Number 17.5
42.2
Chrome Plate Display L822CPDP
22 25.5
Satin Chrome Pearl Display L822SPDP
Florentine Bronze Display L822FBDP
Sash fastener
Polished Brass Plate Display L822PBPDP
Features and Specifications
• Designed for double hung windows
• Zinc alloy casting
• Individually display packed
• Complete with fixing screws
Window Type
Double Hung.
Casement Fastener
118
Finish Packaging Part Number 17.3 28.7
118
Chrome Plate Display L27CPDP 47.5
17.3 28.7
17
41.6
Features and Specifications 16.6
47.5
17
17
• Designed for casement windows Casement fastener
41.6
16.6 17
• Zinc alloy casting
• Individually display packed Casement fastener
• Complete with fixing screw
Window Type
Casement.
44 Lockwood Product Catalogue General Hardware
1300 LOCK UP (1300 562 587) lockweb.com.auWindow Lock Accessories
Telescopic Stay
Finish Packaging Part Number
Chrome Plate Display L723CPDP
44.4 44.6
Features and Specifications 18.6 13 19.8
• Designed for casement windows
242
• Maximum opening length of 225mm
24.6
• Zinc alloy castings
• Individually display packed 44.5 14.6
• Complete with fixing screws
Window Type Telescopic stays
Casement.
Sash Lift
Finish Packaging Part Number
Chrome Plate Display L384-45CPDP
Polished Brass Display L384-45PBDP
Satin Chrome Pearl Display L384-45SPDP
44.7 18.5 44.7 18.5
Features and Specifications 8.8 8.8
22.4 22.4
• Designed for double hung windows
• Extruded brass
• 2 sash lifts per display pack Sash lifts
Sash lifts
• Complete with fixing screws
Window Type
Double Hung.
Lockwood Product Catalogue General Hardware
1300 LOCK UP (1300 562 587) lockweb.com.au 45Lockwood is the leading brand in the Australian
locking industry. With an established reputation for
high quality products, this iconic brand provides a
wide range of locking solutions to residential housing,
commercial, semi-commercial, building and industrial
application markets. Lockwood is supported by an
extensive distribution and after‑sales support network.
Our customers include retailers, architects, trade and
industrial personnel, locksmiths and security dealers.
ASSA ABLOY is the global leader in door opening
solutions, dedicated to satisfying end-user needs for
security, safety and convenience.
ASSA ABLOY is represented in all major regions, in both
mature and emerging markets, with leading positions in
Australia, Europe and North America.
The Lockwood 25 Year Mechanical Warranty
Our belief that we manufacture the finest premium
products available in today’s market place is backed by
the Lockwood 25 Year Mechanical Warranty, ensuring
that Lockwood continues to keep Australians safe by
delivering security and peace of mind.
For warranty terms and conditions, please visit
www.lockweb.com.au or call 1300WARRANTY
ASSA ABLOY Australia Pty Ltd
235 Huntingdale Road
Oakleigh, Victoria, 3166
Australia
1300 LOCK UP (1300 562 587)
lockweb.com.au
ASSA ABLOY New Zealand Ltd
6 Armstrong Road
Albany, Auckland, 0632
New Zealand
info.nz@assaabloy.com
Telephone +64 9415 7111
assaabloy.co.nz
Disclaimer
Whilst every effort has been made to ensure that the information (including product images and drawings) contained in this brochure is accurate at the time of publication,
MC11231
ASSA ABLOY Australia Pty Limited (“ASSA ABLOY”) recommends that you consult ASSA ABLOY or its agents prior to placing an order to ascertain current information on specific products,
as ASSA ABLOY reserves the right to make changes without notice. ASSA ABLOY will not be liable for any injury, loss or damage whatsoever, arising from any errors or omissions in the
information contained in the brochure or arising from the use or application of the information contained herein. © 2020 copyright by ASSA ABLOY All rights reserved
ASSA ABLOY Australia Pty Limited ABN 90 086 451 907 ©2020_03You can also read
