FRANKE COMMERCIAL DIVISION 10 PRODUCTS WASHROOM ACCESSORIES
ii
FRANKE DIVISION 10 ACCESSORIES
EXOS washroom accessories 2
Rodan washroom accessories 13
Aqua-Foam soap dispensers 20
Other accessories 22
Hands-free washroom accessories overview 24
Accessories||62010
Franke Division 10 Accessories 62010 1
ACCESSORIES: EXOS SERIES
EXOS: Open up new horizons. One
consistent design language, clear-cut
shapes, a high quality standard, modular
options for customized solutions.
EXOS by Franke.
One line. One design.
Functionality in perfect harmony.

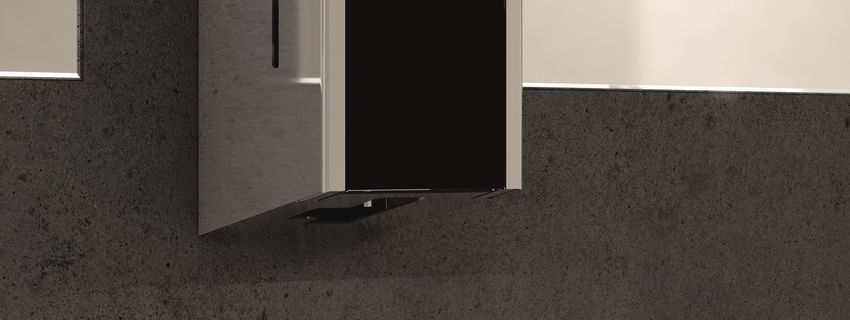

2 left top: EXOS600B EXOS Paper towel dispenser with black glass front
left bottom: EXOS605B EXOS Waste bin with black glass front
right: EXOS625W EXOS Electronic soap dispenser with white glass front
EXOS ACCESSORIES
EXOS accessories by Franke are beautifully designed and
can be incorporated individually in any architectural
setting. Clear-cut lines. Sophisticated shapes, high
quality, modular, easy to clean and hygienic. The timeless
combination of stainless steel and glass makes for
harmonious proportions.
EXOS accessories by Franke.
Features and design in harmony.
EXOS accessories Stainless steel
With EXOS accessories, Franke is setting a new direction: The use of stainless steel as a basic material for equipment
Clear-cut design, modular systems and high quality materials. in public and semi-public washrooms is standard, for good
reason. This well established material combines a stylish
By the use of black or white toughened glass and gleaming appearance with functionality and durability.
stainless steel, different room ambiences can be created. It can be perfectly combined and can be harmoniously
supplemented with materials such as glass and ceramics.
Toughened safety glass Because of its material properties, stainless steel can take
Single glazed toughened safety glass is a material which, like on and reflect the colours of its environment. Stainless steel
stainless steel, is distinguished by its timeless character and products can easily be integrated into almost any room.
its ability to be combined with other materials. Glass and This material sets standards.
stainless steel represent high quality and timeless elegance.
You can no longer imagine modern room design without these
two materials. Therefore, the deliberate combination of the two Stainless steel with InoxPlus refinement
materials is particularly attractive. With Franke's InoxPlus surface coating the already easy to
clean stainless steel has been approved once more. And
In accordance with safety requirements in washrooms Franke so, annoying finger prints which previously often adhered
only uses toughened safety glass. stubbornly to stainless steel now belong practically in the past.
This is a technology where nano particles interlock with the
molecules on the metal surface and thus nestle closely against
microscopic imperfections. The results are deep finished,
easy to clean, fingerprint-resistant surfaces.
Franke Division 10 Accessories | 62010 3
EXOS627X Electronic sanitizer dispenser
with stainless steel front
EXOS625W Electronic soap dispenser
with white glass front
EXOS625B Electronic soap dispenser
with black glass front
4
Washroom Accessories EXOS
VIEW TYPE / MODEL SAP NUMBER
EXOS Paper towel dispenser
Paper towel dispenser for wall mounting, stainless steel with satin finish, material
thickness 1.2 mm, inspection window on side, capacity 300 - 400 pcs for Z-folded
paper, includes mounting materials.
300 x 325 x 120 mm (W x H x D)
11-13/16 x 12-13/16 x 4-3/4"
InoxPlus-coated main housing, black toughened safety glass
front panel
EXOS600B 2030022934
InoxPlus-coated main housing, white toughened safety glass
front panel
EXOS600W 2030025229
EXOS Paper towel roll dispenser
Manual paper towel roll dispenser for wall mounting, stainless steel with satin
finish, material thickness 1.2 mm, max. roll width 205 mm, max. roll diameter 200
mm, paper perforation length 260 mm, adjustable paper roll holder for optimized
paper dispensing, includes mounting materials.
300 x 425 x 210 mm (W x H x D)
11-13/16 x 16-3/4 x 8-1/4"
InoxPlus-coated main housing, black toughened safety glass
front panel
EXOS637B 2030022951
InoxPlus-coated main housing, white toughened safety glass
front panel
EXOS637W 2030025233
EXOS Recessed paper towel dispenser and waste bin
Paper towel dispenser and waste bin combination for recessed mounting,
stainless steel with satin finished, available in black or white safety glass front
panel, casing with InoxPlus surface refinement for the reduction of finger
marks and better cleaning characteristics (easy to clean), material thickness
1.2 mm, capacity paper towel dispenser 300 - 400 pieces of Z-folded paper
depending on thickness, waste bin with approx. 30 litre (8 gallon) capacity,
integrated bag holder, includes mounting bracket and mounting materials.
304 x 1166 x 251 mm (W x H x D)
12 x 45-15/16 x 10"
InoxPlus-coated main housing, black toughened safety glass
front panels
EXOS602EB 2030034627
InoxPlus-coated main housing, white toughened safety glass
front panels
EXOS602EW 2030034663
Surface treatment for the optimisation of cleaning characteristics (easy to
Franke Division 10 Accessories | 62010 clean) and water drainage as well as the reduction of finger marks. 5
Washroom Accessories EXOS
VIEW TYPE / MODEL SAP NUMBER
EXOS Automatic soap dispenser
Automatic soap dispenser for wall mounting, stainless steel with satin finish, mate-
rial thickness 1.2 mm, inspection window on side, infrared sensor activity for
non-touch operation, LED display for low battery status, requires four 1.5 V AA
batteries, suitable for liquid soap and lotions, includes 800 ml (27 oz) refill tank,
dispenses 0.6 - 1.1 ml depending on soap, includes mounting materials.
120 x 325 x 120 mm (W x H x D)
4-3/4 x 12-13/16 x 4-3/4"
InoxPlus-coated main housing, black toughened safety glass
front panel
EXOS625B 2030022943
InoxPlus-coated main housing, white toughened safety glass
front panel
EXOS625W 2030025231
EXOS Soap dispenser
Soap dispenser for wall mounting, stainless steel with satin finish, material
thickness 1.2 mm, inspection window on side, suitable for liquid soap and lotions,
800 ml (27 oz) refill tank, with stainless steel push lever, easy to refill with soap
tank on front panel, includes mounting materials.
120 x 345 x 120 mm (W x H x D)
4-3/4 x 13-9/16 x 4-3/4"
InoxPlus-coated main housing, black toughened safety glass
front panel
EXOS618B 2030022940
InoxPlus-coated main housing, white toughened safety glass
front panel
EXOS618W 2030025230
EXOS Foam soap dispenser
Foam soap dispenser for wall mounting, stainless steel with satin finish, material
thickness 1.2 mm, inspection window on side, suitable for foam soap, 800 ml
(27 oz) refill tank, with stainless steel pull lever, includes mounting materials.
120 x 357 x 120 mm (W x H x D)
4-3/4 x 14 x 4-3/4"
InoxPlus-coated main housing, black toughened safety glass
front panel
EXOS616B 2030022946
InoxPlus-coated main housing, white toughened safety glass
front panel
EXOS616W 2030025232
Surface treatment for the optimisation of cleaning characteristics (easy to
6 clean) and water drainage as well as the reduction of finger marks.
Washroom Accessories EXOS
VIEW TYPE / MODEL SAP NUMBER
EXOS Automatic hand sanitizer dispenser
Automatic EXOS hand sanitizer dispenser, touch free, for wall mounting, stainless
steel with satin finish, 18 gauge (1.2 mm) material thickness, inspection window
on the side, front cover with operating instructions, infrared sensor activity for
non-touch operation, LED display shows battery status, requires 4 x AA batteries.
Suitable for disinfectant and lotions, includes 800 ml (27 oz) refill tank. Mounting
height at least 12" (300 mm) above wash basin or table top, includes mounting
materials.
120 x 325 x 120 mm (W x H x D)
4 3/4 x 12 3/4 x 4 3/4"
InoxPlus-coated main housing, stainless steel with
satin finish front panel
EXOS627X 2030062512
EXOS Waste bin
Waste bin for wall mounting, stainless steel with satin finish, material thickness
1.2 mm, capacity approx. 30 litres, integrated bag holder, includes mounting
bracket and mounting materials.
300 x 572 x 250 mm (W x H x D)
11-13/16 x 22-1/2 x 9-13/16"
InoxPlus-coated main housing, black toughened safety glass
front panel
EXOS605B 2030022929
InoxPlus-coated main housing, white toughened safety glass
front panel
EXOS605W 2030025228
EXOS Double toilet roll holder
Double toilet roll holder with spindle system for recessed mounting, stainless
steel with satin finish, available in white or black safety glass front panel and
casing with InoxPlus surface refinement for the reduction of finger marks and
better cleaning characteristics, material thickness 18 gauge (1.2 mm), closed
casing for two rolls with a maximum diameter of 120 mm, (4 3/4") when the
first roll is used up, the hidden spare roll is released by sliding the bottom
cover on the opposite side, includes mounting materials.
280 x 193 x 147 mm (W x H x D)
11 x 7-5/16 x 5-3/4"
InoxPlus-coated main housing, black toughened safety glass
front panel
EXOS676B 2030034645
InoxPlus-coated main housing, white toughened safety glass
front panel
EXOS676W 2030037640
Surface treatment for the optimisation of cleaning characteristics (easy to
Franke Division 10 Accessories | 62010 clean) and water drainage as well as the reduction of finger marks. 7
HAND SANITIZERS & SANITIZER STANDS
Touchless, Safe Hand Hygiene
Stainless steel hand sanitizer dispensers and sanitizer stands. The ultimate in flexibility, place them in
entrances, hallways, and common areas. Franke sanitizer stands bring durability and hand hygiene
together.
EXOS627X RODX627H
EXOS Electronic Disinfectant Dispenser Rodan Electronic Disinfectant Dispenser
— Wall mount assembly, can be used with Franke — Wall mount assembly, can be used with Franke
floor stands stands
— Type 304 stainless steel, with an easy to clean — Type 304, 22 gauge stainless steel with satin finish
INOX finish — Touch-free, infrared sensor activation
— Touch-free, infrared sensor activation — 800 ml (27 oz) capacity refill tank with discrete
— 800 ml (27 oz) capacity tank with inspection inspection window on the side
window on the side — Front lock with Franke standard key
— Dispenses 0.6 to 1.1 ml of sanitizer per pump — Battery operated
— LED display shows battery status
Free-standing sanitizer stand and slim station. A small footprint and elegant design, perfectly paired
with EXOS and Rodan touch-free disinfectant dispensers. Integral anti-spill drip tray keeps the area
clean.
RODX627H-STD36 Sanitizer stand with Rodan hand
sanitizer dispenser
RODX627H-STD37 Sanitizer slim station with Rodan
hand sanitizer dispenser
EXOS627X-STD36 Sanitizer stand with Exos hand
sanitizer dispenser
EXOS627X-STD37 Sanitizer slim station with Exos hand
sanitizer dispenser
STD36 STD37
Sanitizer Stand Sanitizer Slim Stand
8Shown: Wall mount paper towel dispenser and waste bin (RODX602), hand wash basin (WHB5222-7), and manual pump soap dispenser (SD80V).
FRANKE ACCESSORIES: RODAN SERIES
STAINLESS STEEL FOR A LIFETIME OF SERVICE
The use of stainless steel as the material of first choice for in public and semi-public
washrooms has become today's standard for good reason. This material is robust and easy
to maintain, making it durable for the lifetime of the building. Washroom fixtures that inhibit
vandalism and are easy to clean help building operators to keep service and maintenance
costs to a minimum.
"Stainless steels contain at least 10.5% chromium
(Cr) and no more than 1.2% carbon (C). They form a
self-regenerating surface layer (passive layer) that
gives the material its resistance to corrosion,
thereby ensuring significantly improved
characteristics compared to unalloyed steels.
Franke uses steels with a higher chromium content
and nickel as an additional alloy component for its
sanitary fixtures. This combination further increases
resistance to corrosion."
Source: Yasar Renkci, dipl. engineer metallurgy TU, Franke
Franke Washroom Accessories | 62010 13RECESSED OR WALL MOUNTING? WITH THE RODAN SERIES, THE CHOICE IS YOURS With wall-mount and recess-mount models, Franke RODAN accessories give great flexibility in washroom fixtures. Prevention of vandalism, cleaning efficiency and sustainability are increasingly discussed and requested for new sanitary rooms or for retrofit in public, semi-public and commercial spaces. Recessed mount models: Flush mounting offers a reduced surface for wilful destruction and provides a space-saving solution in tight wash station areas and restrooms. Recessed mounting also minimizes cleaning time. An integrated mounting frame simplifies installation within drywall or solid construction frames. Wall mount models: Special wall mounting brackets enable the installer to complete the installation quickly and securely. The RODAN line's universal hole patterns ensure great installation flexibility, especially when retrofitting the products. 14
RODAN Washroom Accessories
VIEW TYPE / MODEL
RODAN Paper towel dispenser — touch free
for wall mounting, stainless steel, surface satin finished, 22 gauge material
thickness, flat cover with cylinder lock and standard Franke key, infrared
sensor for non-touch operation, integrated tear-off edge, needs 4 standard
D batteries, maintenance-free mechanism and easy paper roll change
mechanism, for rolls with max. width 205 mm (8 1/16") and max. diameter
200 mm (7 7/8"), paper length adjustable to 200, 250 and 300 mm (7 7/8",
9 13/16", 11 13/16"), including stainless steel screws and dowels.
290 x 390 x 226 mm (W x H x D)
11 7/16 x 15 3/8 x 8 7/8"
RODX630
RODAN Paper towel dispenser — touch free - recessed mount
for recessed wall mounting, stainless steel, surface satin finished, 22
gauge thickness, flat cover with cylinder lock and standard Franke key, IR
sensor for non-touch operation, integrated tear-off edge, needs 4 standard
D batteries, maintenance-free mechanism and easy paper roll change
mechanism, for rolls with max. width 205 mm (8 1/16") and max. diameter
200 mm (7 7/8"), paper length adjustable to 200, 250 and 300 mm (7 7/8",
9 13/16", 11 13/16"), including stainless steel screws and dowels.
341 x 441 x 226 mm (W x H x D)
13 7/16 x 17 3/8 x 8 7/8"
RODX630E
RODAN Paper towel dispenser
for wall mounting, stainless steel, surface satin finished, 22 gauge material
thickness, flat front cover, cylinder lock with Franke standard key,
inspection windows on sides, loading capacity 500 - 800 paper towels
depending on brand and folding, including stainless steel screws and
dowels.
275 x 355 x 112 mm (W x H x D)
10 13/16 x 14 x 4 7/16"
RODX600
RODAN Paper towel dispenser— recessed mount
for recessed mounting, stainless steel, surface satin finished, 22 gauge
material thickness, flat front cover, cylinder lock with Franke standard key,
loading capacity 500 - 800 paper towels depending on brand and folding,
including stainless steel screws and dowels.
324 x 513 x 112 mm (W x H x D)
12 3/4 x 20 3/16 x 4 7/16"
RODX600E
Franke Washroom Accessories | 62010 15RODAN Washroom Accessories
VIEW TYPE / MODEL
RODAN Paper towel dispenser — hidden mount
for hidden mounting behind wall and mirror, stainless steel, surface satin
finished, 22 gauge material thickness, capacity for 600 C-fold or 800
multifold paper towels, filling from bottom, including stainless steel screws
and dowels.
342 x 464 x 113 mm (W x H x D)
13 7/16 x 18 1/14 x 4 7/16"
RODX600ME
RODAN Paper towel dispenser and waste bin combination
for wall mounting, stainless steel, surface satin finished, 22 gauge material
thickness, flat front cover, cylinder lock with Franke standard key, loading
capacity 500 - 800 paper towels depending on brand and folding, waste bin
with approximately 23 litre capacity, including stainless steel screws and
dowels.
411 x 1148 x 171 mm (W x H x D)
16 3/16 x 45 3/16 x 6 3/4"
RODX602
RODAN Paper towel dispenser and waste bin combination
for recessed mounting, stainless steel, surface satin finished, 22 gauge
material thickness, flat front cover, cylinder lock with Franke standard key,
loading capacity 500 - 800 paper towels depending on brand and folding,
waste bin with approximately 23 litre capacity, including stainless steel
screws and dowels.
408 x 1145 x 169 mm (W x H x D)
16 1/16 x 45 1/16 x 6 5/8"
RODX602E
RODAN Waste bin, recessed mount
for recessed mounting, stainless steel, surface satin finished, 22 gauge
material thickness, rounded edges, cylinder lock with Franke standard key,
mounting with in-wall frame, including stainless steel screws and dowels.
Capacity: approx. 23 liters
408 x 690 x 169 mm (W x H x D)
16 1/16 x 27 3/16 x 6 5/8"
RODX605E
16RODAN Washroom Accessories
VIEW TYPE / MODEL
RODAN Sanitary towel and disposal bin
for wall mounting, stainless steel, surface satin finished, 22 gauge material
thickness, flat front cover, approximately 3.7 litre capacity, removable
plastic container inside, including stainless steel screws and dowels.
200 x 295 x 165 mm (W x H x D)
7 7/8 x 11 5/8 x 6 1/2"
RODX611
RODAN Waste bin
for wall mounting, stainless steel, surface satin finished, 22 gauge material
thickness, rounded edges, mounting either with mounting bracket or
directly onto the wall, including stainless steel screws and dowels.
Capacity: approx. 23 liters
355 x 460 x 168 mm (W x H x D)
14 x 18 1/16 x 6 5/8"
RODX605
RODAN Toilet roll holder with spindle system — surface mount
for wall mounting, stainless steel, surface satin finished, 22 gauge material
thickness, flat front cover, cylinder lock with Franke standard key, for 2 rolls
with max. Ø 120 mm, second roll will be released after consumption of first
roll, reserve roll not visible, including stainless steel screws and dowels.
144 x 301 x 138 mm (W x H x D)
5 11/16 x 11 7/8 x 5 7/16"
RODX672
RODAN Toilet roll holder with spindle system — recessed
for recessed mounting, stainless steel, surface satin finished, 22 gauge
material thickness, flat front cover, cylinder lock with Franke standard key,
for 2 rolls with max. Ø 120 mm, second roll will be released after consump-
tion of first roll, reserve roll not visible, including stainless steel screws and
dowels.
184 x 341 x 138 mm (W x H x D)
7 1/4 x 13 7/16 x 5 7/16"
RODX672E
Franke Washroom Accessories | 62010 17RODAN Washroom Accessories
VIEW TYPE / MODEL
RODAN Sanitizer dispenser — electronic activation, wall mount
touch-free, for wall mounting, stainless steel with satin finish, 22 gauge
material thickness, folded front cover, cylinder lock with Franke
standard key, inspection window on side, front cover with operating
instructions, infrared sensor activity. Red light shows battery status,
requires 6 x AA batteries. Suitable for disinfectant and lotions, includes
800 ml (27 oz) refill tank. Mounting height at least 12" (300 mm) above
wash basin or table top, includes mounting materials.
154 x 463 x 143 mm (W x H x D)
6 1/16 x 18 1/4 x 5 5/8"
RODX627H
RODAN Soap dispenser — electronic activation, wall mount
for wall mounting, stainless steel, surface satin finished, 22 gauge material
thickness, flat front cover, cylinder lock with Franke standard key, infrared
sensor for non-touch operation, LED indicates low-battery status, uses 6 x
AA alkaline batteries, suitable for liquid soaps, lotions, antiseptic soaps,
800ml (27 oz) soap tank, dispenses 0.6 to 1.1 ml depending on soap,
including stainless steel screws and dowels.
120 x 296 x 107 mm (W x H x D)
4 3/4 x 11 5/8 x 4 3/16"
RODX625
RODAN Soap dispenser — lever activation, wall mount
for wall mounting, stainless steel, surface satin finished, 22 gauge material
thickness, flat front cover, cylinder lock with Franke standard key, suitable
for liquid soaps and lotions, 800ml (27 oz) soap tank, plastic dispensing
handle, including stainless steel screws and dowels, and pull lever to
activate.
116 x 321 x 143 mm (W x H x D)
4 9/16 x 12 5/8 x 5 5/8"
RODX618
RODAN Soap dispenser — lever activation, recessed mount
for recessed mounting, stainless steel, surface satin finished, 22 gauge
material thickness, folded front cover, cylinder lock with Franke standard
key, suitable for liquid soaps and lotions, 800ml (27 oz) soap tank, lever to
pull, including stainless steel screws and dowels.
154 x 463 x 143 mm (W x H x D)
6 1/16 x 18 1/4 x 5 5/8"
RODX616
18RODAN Washroom Accessories
VIEW TYPE / MODEL
RODAN Soap dispenser — push activation, wall mount
for wall mounting, stainless steel, surface satin finished, 22 gauge material
thickness, flat front cover, cylinder lock with Franke standard key, suitable
for liquid soaps and lotions, 1 litre (33 oz) soap tank, push button on front,
including stainless steel screws and dowels.
200 x 140 x 132 mm (W x H x D)
7 7/8 x 5 1/2 x 5 3/16"
RODX619
RODAN Soap dispenser — push activation, recessed mount
for recessed mounting, stainless steel, surface satin finished, 22 gauge
material thickness, folded front cover, cylinder lock with Franke standard
key, suitable for liquid soaps and lotions, 1 liter (33 oz) soap tank, push
button on front, including stainless steel screws and dowels.
241 x 296 x 132 mm (W x H x D)
9 7/16 x 11 5/8 x 5 3/16"
RODX619E
Franke Washroom Accessories | 62010 19Aqua Foam Soap Dispensers
VIEW TYPE / MODEL
4-15/16"
[125 mm]
AQUA-FOAM Foam soap dispenser — electronic activation, wall
1"
[Ø25.4 mm] mount
1-9/16"
[40 mm] hands free operation, spout is T304 stainless steel. AC powered with
indicator light to alert of events such as low soap tank, wrong type of soap
4 5/8" [117.4 mm] 5" [129.2 mm]
used or motor blockage/failure. 48 hour auto-dispense cycle to prevent
clogging. For foam soaps with viscosity of 1-50 cP(mPa-s).
25.4 x 125 mm (W x H)
1 x 4 15/16"
12 1/4" [311.4 mm]
SD01-001CFL POLISHED FINISH
SD01-001SFL SATIN FINISH
1 1/2" 5 3/8"
[Ø38.1 mm] [136.1 mm]
AQUA-FOAM Foam soap dispenser — electronic activation,
counter mount
3 13/16"
[97.1 mm] hands free operation, spout is T304 stainless steel. AC or DC powered.
48 hour auto-dispense cycle to prevent clogging. For foam soaps with
viscosity of 1-50 cP(mPa-s).
4 5/8" [117.4 mm] 5" [129.2 mm]
241 x 296 x 132 mm (W x H x D)
9 7/16 x 11 5/8 x 5 3/16"
SD01-002CFL POLISHED FINISH
12 1/4" [311.4 mm]
SD01-002SFL SATIN FINISH
5 9/16" [140.6 mm] 1"
[Ø25.4 mm] AQUA-FOAM Foam soap dispenser — electronic activation,
counter mount
1"
[Ø25.4 mm]
6 5/8"
[167.7 mm]
hands free operation, spout is T304 stainless steel. AC powered with
indicator light to alert of events such as low soap tank, wrong type of soap
1 5/8"
[Ø40 mm] used or motor blockage/failure. 48 hour auto-dispense cycle to prevent
clogging. For foam soaps with viscosity of 1-50 cP(mPa-s).
7
4 5/8" [117.4 mm] 5" [129.2 mm]
25.4 x 140.6 mm (W x H)
1 x 6 5/8"
SD01-003CFL POLISHED FINISH
12 1/4" [311.4 mm]
SD01-003SFL SATIN FINISH
20Aqua Foam Soap Dispensers - MULTI FEED
VIEW TYPE / MODEL
4-15/16" AQUA-FOAM Foam soap dispenser — electronic activation, wall
[125 mm]
mount
1"
[Ø25.4 mm] hands free operation, spout is T304 stainless steel. AC powered with indi-
cator light to alert of events such as low soap tank, wrong type of soap
1-9/16" used or motor blockage/failure. 48 hour auto-dispense cycle to prevent
[40 mm]
clogging. For foam soaps with viscosity of 1-50 cP(mPa-s). Up to 6 dispen-
4 5/8" [117.4 mm] 5" [129.2 mm] sers can be fed from 1 multi-feed tank (SD01-MFT sold separately).
25.4 x 125 mm (W x H)
1 x 4 15/16"
SD01-001CFL-MF POLISHED FINISH
12 1/4" [311.4 mm]
SD01-001SFL-MF SATIN FINISH
1 1/2" 5 3/8" AQUA-FOAM Foam soap dispenser — electronic activation,
[Ø38.1 mm] [136.1 mm] counter mount
hands free operation, spout is T304 stainless steel. AC or DC powered. 48
hour auto-dispense cycle to prevent clogging. For foam soaps with viscosity
3 13/16" of 1-50 cP(mPa-s). Up to 6 dispensers can be fed from 1 multi-feed tank
[97.1 mm] (SD01-MFT sold separately).
241 x 296 x 132 mm (W x H x D)
9 7/16 x 11 5/8 x 5 3/16"
4 5/8" [117.4 mm] 5" [129.2 mm]
SD01-002CFL-MF POLISHED FINISH
SD01-002SFL-MF SATIN FINISH
12 1/4" [311.4 mm]
5 9/16" [140.6 mm] 1" AQUA-FOAM Foam soap dispenser — electronic activation,
[Ø25.4 mm]
counter mount
1" hands free operation, spout is T304 stainless steel. AC powered with
[Ø25.4 mm]
6 5/8" indicator light to alert of events such as low soap tank, wrong type of soap
[167.7 mm]
used or motor blockage/failure. 48 hour auto-dispense cycle to prevent
1 5/8" clogging. For foam soaps with viscosity of 1-50 cP(mPa-s). Up to 6
[Ø40 mm]
dispensers can be fed from 1 multi-feed tank (SD01-MFT sold separately).
7
25.4 x 140.6 mm (W x H)
4 5/8" [117.4 mm] 5" [129.2 mm] 1 x 6 5/8"
SD01-003CFL-MF POLISHED FINISH
SD01-003SFL-MF SATIN FINISH
12 1/4" [311.4 mm]
7 1/4 [185 mm] AQUA-FOAM Foam multi-feed soap dispenser tank, 6L
6 7/16 [163 mm] 5 7/8 [150 mm]
3 1/8 [80 mm] 3 15/16 [100 mm]
2 1/8 [55 mm] Franke wall mounted hands-free commercial multi-fed foam soap dispenser
tank SD01-MFT can supply up to 6 dispensers. 6VDC plug in transformer
supplied per tank. LED light ring on fill cap to indicate low soap conditions.
During filling an audible melody will play to alert staff when filling is
13 7/8 [352 mm]
10 7/8 [276 mm]
complete. 6 liter (1.59 gallon) capacity.
188 x 185 x 352 mm Overall (FB x LR x H)
7 3/8" x 7 1/4" x 13 7/8" Overall (FB x LR x H)
SD01-MFT
7 3/8 [188 mm]
5 7/8 [150 mm]
5 7/8 [150 mm]
7 3/8 [188 mm]
Franke Washroom Accessories | 62010 21STRATOS & Other Washroom Accessories
VIEW TYPE / MODEL
STRATOS Double garment hook
for wall mounting, stainless steel, surface satin finished, 18 mm pipe
diameter, drilled hole on bottom for fixation, incl. stainless steel screws and
dowels.
69 x 18 x 60 mm (W x H x D)
2 11/16 x 11/16 x 2 3/8"
STRX694
STRATOS Single cloth hook
for wall mounting, stainless steel, surface satin finished, 18 mm pipe
diameter, drilled hole on bottom for fixation, incl. stainless steel screws and
dowels.
18 x 38 x 60 mm (W x H x D)
11/16 x 1 1/2 x 2 3/8"
STRX692
Curtain Rod
Stainless steel tubing, 1 1/4" (32mm) diameter. Exposed surfaces finished
to a #4 satin finish. Polished chrome flanges and mounting hardware
included.
60" (1525mm) length
CR-60
72" (1830mm) length
CR-72
Straight Grab Bar
18 gauge (1.2mm) type 304 (CNS 18/10) stainless steel tubing. Exposed
surfaces finished to a #4 satin with peened texture finish in grab
locations. Concealed snap flanges and mounting hardware
included. Provide adequate backing in wall for support and comply to local
codes for barrier free requirements.
1 1/4" (32mm) diameter.
Straight grab bar, 24" (610mm) length
QC-1W-24P
22Other Washroom Accessories
VIEW TYPE / MODEL
Back Rest for Wall Mount Toilet
Stainless steel bar with #4 satin finish. Includes flanges and covers, with
antique white solid core plastic laminate panel back. Concealed snap
flanges and mounting hardware included. Provide adequate backing in wall
for support and comply to local codes for barrier free requirements.
Overall size of left to right is measured centre to centre.
Overall front to back: 8 5/8" (219 mm)
CM-16104
Overall size of left to right is measured centre to centre.
Overall front to back: 5 3/8" (136.5 mm)
CM-16104-WM
Chrome soap dispenser manufactured from chromium plated brass. In-
corporates a replaceable 1 litre (33 oz) polyethylene container for use with
liquid soap.
Overall front to back: 5 1/2" (140 mm)
Overall left to right: 1 3/4" (44 mm)
Overall height: 15 7/16" (392 mm)
SD80V
Sizes as above but with extension for "Murro" basin (or equivalent)
SD80V-EXT
Refillable polyethylene 1 litre (33 oz) replacement tank for liquid soap.
Overall dimensions: 3 1/8 x 12 3/16" (79 x 310 mm)
ESD80BOTTLE1
Franke Washroom Accessories | 62010 23Hands-free accessories overview
Aqua Foam soap dispenser Aqua Foam soap dispenser Aqua Foam soap dispenser Aqua Foam soap dispensers also
High polish stainless (SD01-001CFL) High polish stainless (SD01-002CFL) High polish stainless (SD01-003CFL) available in multi-feed
Aqua Foam soap dispenser Aqua Foam soap dispenser Aqua Foam soap dispenser Aqua Foam soap dispensers also
Satin stainless (SD01-001SFL) Satin stainless (SD01-002SFL) Satin stainless (SD01-003SFL) available in multi-feed
EXOS electronic soap dispenser EXOS electronic sanitizer dispenser EXOS electronic sanitizer dispenser EXOS electronic sanitizer dispenser
Black or White Stainless steel with station with slim station
(EXOS625B, EXOS625W) (EXOS627H) (EXOS627H-STD36) (EXOS627H-STD37)
Rodan 22 gauge Rodan 22 gauge electronic Rodan electronic sanitizer Rodan electronic sanitizer
soap or lotion dispenser sanitizer dispenser dispenser with station dispenser with slim station
(RODX618) (RODX627X) (RODX627X-STD36) (RODX627X-STD37)
Rodan electronic paper towel Rodan electronic paper towel
dispenser - surface mount dispenser - recessed
(RODX630) (RODX630E)

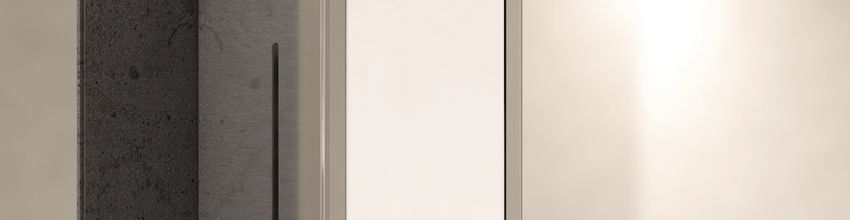

24Sample washroom:
equipped with RODAN
recess-mounted products,
MIRANIT wash
basins and urinals by
Franke!
25Franke Kindred Canada Limited We reserve the right to make 2021 | 62010
1000 Franke Kindred Road changes in dimensions,
Midland, ON L4R 4K9 Canada construction and models as
required relevant to ongoing
www.franke-commercial.com product development.
In Canada:
Phone 1-855-446-5663
Fax 1-866-227-3050
commercial-info.ca@franke.com
In USA:
Phone 1-855-526-0503
Fax 1-866-440-2250
commercial-info.us@franke.com
26You can also read
