“Networking development
  project for SMEs: Ecoplastos
              INNET”

      Francesco Ciardelli,
        Macromolecular Science Group
            coordinator - University
    of Pisa - Department of Chemistry and
          Industrial Chemistry (Italy)

“Experience of technology
        transfer”
"Experience of technology transfer" - INNET" "Networking development project for SMEs: Ecoplastos - Inter-cluster initiative to ...
Ideal mechanism for radical functionalization of polyolefins

                                        Generally a PEROXIDE (ROOR)
        Polyolefin (PO)

                               RO
                                                          + RH
                               M
                                        M
      RO = primary radicals

      M = functional monomer
                                      A monomer able to graft, generally an unsaturated
                                       polar monomer (i.e., maleic anhydride and its
                                       derivatives)
"Experience of technology transfer" - INNET" "Networking development project for SMEs: Ecoplastos - Inter-cluster initiative to ...
NOT compatibilized                       b      Compatibilized

Thin interface                                Large interface
High interfacial tension                      Low interfacial tension
High diameter of dispersed phase              Low diameter of dispersed phase

                                        fPO
                          f* f     f*

                          Ny       Ny
"Experience of technology transfer" - INNET" "Networking development project for SMEs: Ecoplastos - Inter-cluster initiative to ...
Dipartimento di Chimica e Chimica Industriale
              Università di Pisa

Responsabile scientifico: Prof. Mauro Aglietto
"Experience of technology transfer" - INNET" "Networking development project for SMEs: Ecoplastos - Inter-cluster initiative to ...
Una azione per essere sostenibile deve interessare le
  tre dimensioni

By Wikipedia

                                                        5
                      RETENUMA-2 –
               PONTEDERA, 26 settembre 2008
"Experience of technology transfer" - INNET" "Networking development project for SMEs: Ecoplastos - Inter-cluster initiative to ...
Then:

Upgrading the Processability and
Properties of Postconsumer PET
   by Reactive Blending with
   Functionalized Polyolefins

       appeared possible
"Experience of technology transfer" - INNET" "Networking development project for SMEs: Ecoplastos - Inter-cluster initiative to ...
CATALYSED TRANSESTERIFICATION IN ESTER MODIFIED POLY(ETHYLENE)/ PET BLENDS

           Functionalized polyethylene
                     ...                                               ...
                             O                                               O
                                 OR                                              O    CO O H
                                      +   HO     CO O H                                        + ROH
                                 OR                                              OR
               ...           O                                   ...         O
                     PE-g-DAS                  PET        Cat.
                      POgDAS

           O
                OR         Dialkyl maleates are easily grafted on polyethylene and are
                           sustainable for environment
                OR
           O

                                    Ti and Zn derivatives
         were chosen by considering both transesterification efficiency (as reported
        in literature works) and environmental impact
"Experience of technology transfer" - INNET" "Networking development project for SMEs: Ecoplastos - Inter-cluster initiative to ...
*Efficiency = number of grafted DEM units/moles of DCP

               16

                        EPR + DEM
               14

               12

                                                          SEBS + MAH
                                     LLDPE + DEM
               10
  Efficiency

               8

               6                            SEBS + DEM

               4
                                                              PP + DEM

               2

                    5    10         15         20        25         30   35

                           Monomer/DCP mol/mol
"Experience of technology transfer" - INNET" "Networking development project for SMEs: Ecoplastos - Inter-cluster initiative to ...
Reactive blending approach

                                                                 Mixing chamber

Ester                  functionalized
polyethylene/PET     blends     were
prepared by melt blending into a
mixer (torque measurements) at
250°C for 10 minutes
                                                                       rotors
     Selective extractions                        Melt polymer

Determination of the grafting yield by weighting or by an infrared method

                                       grafted PET weight
             PET grafting yield =                            ⋅ 100
                                      PET weight in the feed

       Viscosimetric measurements  molecular weight of PET

                             Grafting points number
                                   (moles/µg)
"Experience of technology transfer" - INNET" "Networking development project for SMEs: Ecoplastos - Inter-cluster initiative to ...
As a SPIN OFF company of the University of Pisa with a strong
industrial partnership, SPIN-PET produces innovation in
materials based on synthetic and bio-based polymers.

With a focus on post-industrial and post-consumer recycled
plastics sources, as well as renewable feedstocks, the core
activities are aimed at the development of sustainable
processes and technical materials, with customized structural
and functional properties for different applications.

Innovation is targeted at supporting industrial partners and
customers in product and process development as well as
technology transfer.
COLLABORATIONS

Dipartimento di Chimica e Chimica Industriale
dell’Università di Pisa (DCCI)

CNR-INFM-PolyLab- Laboratorio regionale per le
Applicazioni Industriali dei Polimeri

Scuola Superiore di Studi     e   Perfezionamento
Sant’Anna (SSSA) di Pisa

Dipartimento di Meccanica e Tecnologie Industriali
dell’Università di Firenze (DMTI)
COLLABORATIONS

                                               Barcellona, Spagna

                                                    Oyonnax, Francia

 « Pôle Plasturgie Rhône-Alpes et Franche-Comté »

                                                Rivalta Scrivia - (Tortona - AL)- Italia
Polo di innovazione per i materiali plastici
AUSERPOLIMERI- Pian Di Coreglia (LU) – produzione di compatibilizzanti
e antiurtizzanti.

STEP snc - Roccastrada (GR): stampaggio componentistica in PC e ABS.

EVERY HELMETS srl - Grosseto: realizzazione di caschi per sci, bicicletta,
roccia.

VEMAR HELMETS srl - Grosseto: realizzazione di caschi per moto.

ADACTA srl - Sesto Fiorentino (FI): gestione dati (information &
communication technology, ICT) e progettazione e realizzazione di
software.

FAP srl - Firenze: stampaggio.

MPT srl - Calcinaia (PI): costruzione di stampi.

TOSCOPLAST srl - Calcinaia (PI): stampaggio componentistica in PP

HAPPYPLAST srl - Bientina (PI): stampaggio ad iniezione
Contacts

Web site:      http://www.dcci.unipi.it/spinpet/

     President: Prof. Francesco Ciardelli
            E-mail: fciard@dcci.unipi.it
            Tel. +390502219229
UNIPI professors (3)
                                  young researchers (3)
                                  freelance entrepreneurs (3)
                                  AUSERPOLIMERI company

20% of the company belongs to University of Pisa
THE ACTIVITY
Opportunities for innovation and strategies for developing technical materials with
added value are pursued based on preliminary investigations on the physical and
chemical features of post-consumer or renewable plastics as the main feedstock

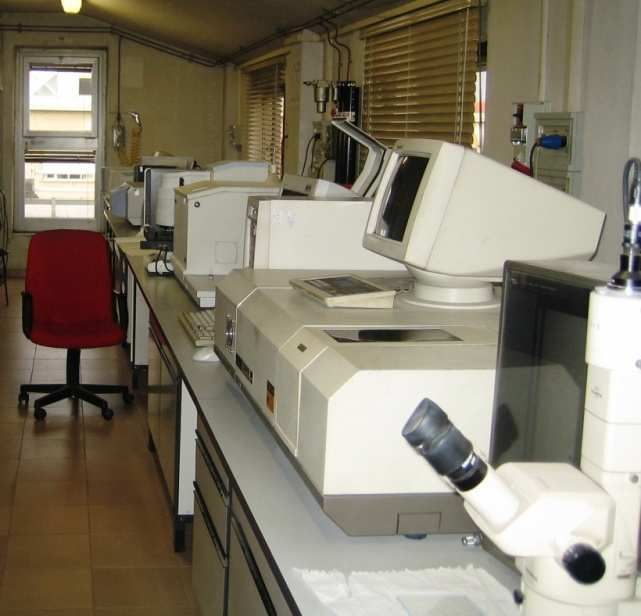

         1. Physical and chemical analysis of materials

  Thermal analysis (DSC and TGA)
                                                       Infrared laboratory
2. Lab-scale Polymer Processing and Optimizaton

                                                  Compression
                                                    molding

Laboratory mixers

                                                     Injection
                       Melt flow rate                molding
3. Evaluation of properties and targeting application

                                                                     Tensile                                    Impact

                           12
                                                                           110
                                                                                 Increase of elongation (% )
elongation at break (% )

                           10
                                                                           90
                           8
                                                                           70
                           6
                                                                           50
                           4                                               30
                           2                                               10

                           0
                                POFPET   ZnAc2   ZnO   Ti(OBu)4   TiOAc2
                                                                           -10                                   Flame
                                                                                                               resistance
4. Analysis of costs

5. Tailoring of formulations and processing

                                                                                         MAIN
                                                                                        HOPPER

                                   NORMALLY
                                    VENTED

                       185   200     200      200   200   200   200   200   200   180
PE / SEBS-g-DEM / PET ternary system

SEBS-g-DEM was used in place of PE-g-DEM to
minimize the interfacial tension in the immiscible
system and tailor in the ternary system the phase
morphology reported in the picture.

The control of phase morphology developed during the blending allowed to reach
a good yield in copolymer formation by avoiding the           cross-linking of
compatibilizer.

            PE/PE-g-DEM/PET                  PE/SEBS-g-DEM/PET
                40/40/20             10 mm        40/40/20
                + Ti(OBu)4                        + Ti(OBu)4
In the Ti(OBu)4 catalysed system the use of SEBS-g-DEM resulted effective for
avoiding the crosslinking side reaction

A suitable phase distribution was obtained and effective formation of SEBS-g-PET
copolymer was revealed

                                Coltelli et al., Polym. Degr. Stab., 90, 211-223 (2005)
Application of compatibilization:toughened blends

PET/PO
 blend

     d         T         d          The general condition for toughening is that the
                                    inter-particle distance must be smaller than the
                                    critical interpartical distance (Tc).
                                              S. Wu, Pol. Eng. and Sci., 30, 753 (1990)

 Use of PET for high impact properties blends                      CH3
                                                     ( CH2 CH2 ) (CCH 2 )y       O
 In PET/ ethylene-propylene rubber (EPM) blends,               x
 by using a compatibilizer (ethylene-glycidyl                      COO
 methacrylate copolymer [E-GMA]) Tc is                   E-GMA
 established experimentally at 0.1 µm              W. Loyens , Polymer, 44, 4929 (2002)
Our approach:

Toughened materials from post-consumer LDPE/ post-consumer PET blends by
adding a reactive rubber as compatibilizer precursor.

                                                   ...
    ...                                                                    ...
                         ...   HO   PET COOH

                                                         O             O
          O          O
               O                                             O    OH
                                                             PET COOH

         The reaction
ULDPE modified        between
               by grafting       maleic
                           different    anhydride
                                     percentage of modified polyethylene
                                                   maleic anhydride
      and PET was evidenced by preparing binary blends in a laboratory
         mixer and by characterizing them by selective extractions and
                                  FT-IR analysis.
        In PET matrix blends more than 30% of fed PET resulted to be
                     grafted on the functionalized polyolefin
Preparation of modified ULDPE

               O                 Modified PE having different content of maleic
           O       O
                                 anhydride were prepared in a twin screw extruder
   .....                         (Auserpolimeri).
                       .....

                                     FD                     A commercial
    MAH                             % by
functionalized                     weight                   compatibilizer was used for
      PE
                                                            comparison                O
                                                        O        O                  O           O
                                                                     Me
     POF0,3                          0.3                    CH       C H2 C H2 C H2         C      C H2
                                                   FD                     x             y   C H3          z

     POF0,6                          0.6
                                                                          Lotader
     POFD1                           1

   POFD1,5                           1.5
Preparation of blends
                                                             20
      70
                                   10

                                   O
                               O        O

                       .....
                                            .....

                               Modified
PET flakes                     ULDPE                LDPE pellets

                  Twin screw extruder

                    Blends in pellets

             Injection moulded specimens
Phase morphology characterization

                       PET-LDPE      The blends contain 10% by weight
                                     of modified ULDPE or Lotader
                         70 / 30

ref                                PET-LD-POF0,3
                                      70/20/10
                                                PET-LD-Lotader

             FD=0.3
                                                PET- LD-POF1
                                                   70/20/10
                                                  Lot
             FD
                        FD=1
 compatibility                                           PET- LD-POF1.5
                                                            70/20/10

                                    FD=1.
                                    5
The values of dispersed phase diameter were used to calculate the
interpartical distance by the following equation:

                                                                                        T
                                                                      d =                    1/3
                                                                               π       
                                                                                               −1
                                                                                6φr     
                                                                                        Wu, S., J. Pol. Sci.: Pol. Phis. Edn. 21, 699 (1983)

blends                                 LDPE [%                  POF ( MAH                                d (µm)     T(µm)
                                20
                                1,0
                                18
                                       by weight]             content in POF)
                                16                             [% by weight]
                diameter (µm)

                                0,8
                                14
                                ref
                                 12
                                              30                          -                              12 ± 6      1.0
                                0,6
                                10
            T (µm)
Dispersed phase

                                                                                                        3.8 ± 2.7
   8
FD=0.3
  0,4                                         20                     10 (0.3)                                       0.33
                                 6

                                 4
                                0,2

      FD=1
        2
                                              20                     10 (1.0)                           0.9 ± 0.5   0.08
                                 0
                                0,0

                                -2
                                                                                                                              < 0.1
    -0,2
FD=1.5
   -0,2  0,0
         0,0                            0,2
                                        0,2   0,4
                                              20
                                              0,4
                                               FD of
                                               FD
                                                     0,6
                                                    0,6
                                                  of m
                                                             0,8
                                                            0,8
                                                      modified
                                                                   1,0
                                                                   1,0
                                                                 ULDPE
                                                        odified ULDPE
                                                                       10
                                                                        1,2
                                                                            (1.5)
                                                                              1,4 1,6
                                                                                                        0.7 ± 0.4   0.06

                                      For the last two blends T
30/70 recycled LDPE / recycled PET blends

                                            Izod Impact Strength (J/m)

                    160                                          T
Blends of post-consumer PET and
modified ULDE were prepared. The        Injection moulding
90/10 blend showed was used in
injection moulding tests.

Some parts of household appliances
were prepared to study the effects of
injection moulding parameters on the
final properties of pieces

                 CABLE COVER
6. Collaborations, partnerships and consultancy for the design, the
  development and the production of single parts and prototypes

7. Design and Modeling
t-- con sum er plastics
Pos t
                   ing
    from packag

                A VALUABLE MATERIAL:
  toughened thermoplastics based on post-consumer PET

  Main features :
  - Polymeric materials for structural applications in automotive,
    household appliances, home automation, sport accessories, etc.

  -   Price in the range between virgin ABS and reinforced (filled) PP

  -   Different grades suitable for processing by injection molding, extrusion
      and thermoforming
Injection-Molding Grades
          PET-based compound developed by SPIN-PET : properties
                        (reinforced 90/5/5 blend with 10% talc)
                                              Compound PET
                         Unità di misura                          Modalità di prova
     properties                                 10% talco

Melt flow index (MFI)
                            g/10 min.              18                 ISO 1133
   @260°, 2,16 kg

  Maximum tensile
                             N/mm2                 41              UNI EN ISO 527
      stress

   Strain at break             %                   15              UNI EN ISO 527

  Tensile Modulus
                             N/mm2                2050             UNI EN ISO 527
      (23°C)
  Flexural Modulus
                             N/mm2                2100             UNI EN ISO 178
       (23°C)
    IZOD impact
                               J/m                 77                ASTM D256
  toughness (23°C)
   Heat deflection
 temperature (HDT)             °C                  71              UNI EN ISO 75
      1,8 MPa
Injection-Molding Grades

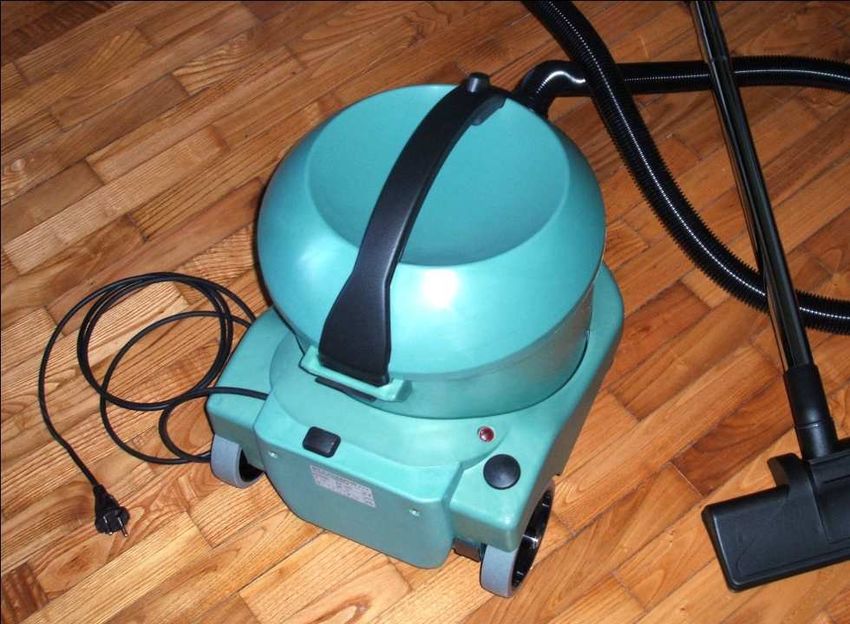

                           Vacuum cleaner – protopype of
                           injection molded body parts

      ing. Cosimo Bruni              Elaborazione grafica: ing. Giovan Gualberto Pineider
Injection-Molding Grades

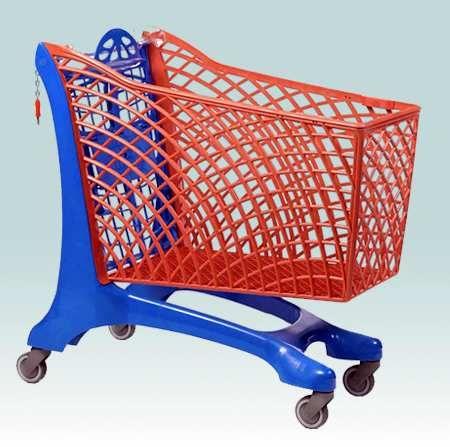

PLASTIMARK® shopping cart
Injection molded structure
Material: glass fiber reinforced PA (Nylon)

                                              elaborato a cura di MPT-Plastica s.r.l
Injection-Molding Grades

Scuola Superiore Sant’Anna
“Dustbot” – prototypes of urban
hygiene & floor cleaning robots

Within the RIGEPLAST Project, co-
funded by Tuscany Region, injection
molded body parts will be designed
and produced using the plastic material
developed by SPIN-PET
Sheet Extrusion and Thermoforming Grades
        Main features of the r-PET based sheet-extrusion grade compound
                         developed by SPIN-PET (PET 80/15/5)
Property                      Performance   Reference materials & performances

Toughness                         ++        Notched IZOD ≥ 100 J/m    (compares with PP)

Elastic Modulus                   +         ~ 1200 MPa (compares with PP)

Elongation                        ++        ~ 12%       (compares with PP)

Fluidity
                                 +++        MFR = 10    (suitable for sheet extrusion)
(MFR @ 260°C, 2.16 Kg)
HDT (Heat Deflection Temp.)                 Comparable with PET-G (60°C) and
                                  +/-
@ 1,8 MPa                                   Lower than in PP

                                            Exposure to organics (HC fuel) under different
Chemical Resistance               ++        enironmental conditions (T, R.H., etc.) does NOT
                                            affect significantly the structural properties
Sheet Extrusion and Thermoforming Grades

Profiles for automotive applications, road signalling, ….

Excellent impact resistance of the r-PET
SE-grade.

• Market opportunities as replacement of
road signals made of PVC and PP.
• Processing & recycling of the r-PET
compound poses less challenges than
PVC.
•poor impact resistance of PP at T
t-- con sum er plastics
Pos t
                   ing
    from packag

          PET based films/sheets from a post-industrial stream

                                                             Extrusion
                                         PET based
                                         compounds           Injection molding
                                         suitable for
                                                             Thermoforming
ost-
     t- co n su m er end life
P
    ic  le s (EL V) plastics
veh

          Injection moldable reinforced PP compound based on
                           r-PP from bumpers

                                Stabilizers and fillers

  Grinded polypropylene from                                 Injection mouldable material with
           bumpers                                        properties similar to virgin PP filled with
                                                                       barium sulfate

                                                    Injection moulding of parts of
                                                    vehicles or household appliances
er W EE E p lastics
   t-consum
Post-

                        Injection moldable PC/WEEE blends

                     separation                 fine grinding
                        and
                      grinding
                                                                    analysis

    Three main plastic components present in the WEEE plastics.
    Two different perspectives have been investigated

    • increasing the ductility through addition of compatibilizers
    • blending with polycarbonate to match grade requirements for injection molding
Two flame retardant phosphorous based masterbatches (PEP and PAP) were
then investigated. They resulted in:
                       test (s)   Ttot(s)c                       Autoextinction
             FR wt%                                                class (UL-94)
                                                                    vertical tests

     IPA3     3%         ∞        139.5                               HB

    IPA20     20%       4.8        14.8                               V0

     PEP5     2.5%     14.9        24.9                               V1
     PAP6     2.5%      9.1         9.1                               V0
    PEP2.5   1.25%     120.2      130.2                               HB

     PAP3    1.25%       10         20                                V1

                                                                                                           2200
                                                           120
                                                                                                           2000

                                                                                                                  Young Modulus (MPa)
                                                           100                                             1800

                                     Strain at break (%)                                                   1600
                                                           80                                              1400
 ..and the tensile                                                                                         1200
                                                           60
 properties were not                                                                                       1000
                                                                                                           800
 worsened….                                                40
                                                                                                           600

                                                           20                                              400
                                                                                                           200
                                                             0                                             0
                                                                     IPA10 IPA20 PEP5 PEP2.5 PAP6   PAP3
stics
bio-based pla

Renewable plastic based materials

                              PLA pellets

       Applications in packaging,
       household appliances,
       domotics, sports, fashion and         composites and blends suitable
       agricultural sector                  for thermoforming, film extrusion
                                                  and injection moulding
Melt-processing                                                         PBS films

         PBS + BBS

                            200°C                    milling
                            50 rpm
                            10 min
     Brabender-type mixer
                                                                        200°C
                                                         melt-process
                                                                        5 min

                                Slow cooling to rt
                                   (~5°C/min)
      80-100 µm
   0.02-0.5 wt.%
                                Rapid quenching
                                     at 0°C
Excimers as probes for film deformation                           Polypropylene Films

                                                                                  50%

                                                                                  700%
               λexc. = 277 nm

               PP/BBS-0.5
        PP/BBS-0.5: uniaxially drawn at
               different strain                                             λexc = 366 nm

          Suppression of the excimer band
          Emission from green to blue: from excimer to “monomer” fluorescence
Stilbene derivative/polypropylene: Fluorescence

Emission sensitive to drawing                     Taken under irradiation of a long-
                                                  range source (366 nm)

      Stilbene derivative as stress-strain sensors for PP matrix: potential
   application for intelligent and smart polymer object in packaging materials
BBS as thermal sensors in PBS
  PBSBBS-0.05 q. film: 65 °C
Poly(lactic acid)/poly(butylene succinate) blends as smart biodegradable and responsive
                                                  materials for packaging applications

              Emission spectra of PLA/PBS blend                                                         Emission spectra of PLA/PBS blend
          for rigid packaging: effect of thermal stress                                         for flexible packaging: effect of mechanical stress

Pucci A., Di Cuia F., Signori F., Ruggeri G., Journal of Materials Chemistry 17, 783–790 (2007)
Ciardelli F., Pucci A., Signori F., Ruggeri G., Bronco S. Italian Patent 2009, TO2009A000044.
Possible European Project on :

new polymer recycled-PET based blends
       and composite materials

             Thermoformable extruded sheet,
                   Recycling industries,
         Manufactured polymer materials value chain
                    Low Flammability
                       Traceability
You can also read
