elements of OUTDOOR STYLE
featuring: Enhance Naturals in Foggy Wharf and Transcend Railing 2
STYL E
P E R M E ATES
E V E RY
H O M E.
And at Trex, we believe yours is meant to extend beyond
its threshold. That's why we offer a variety of decking
and railing collections, furniture and features, so that
every family and every budget can experience the warm
feeling of belonging. Find that in the pages ahead and
then make the Trex® decision that's right for you™.
3
SECTION I: DECKING . . . . . . . . . . . . . . . . . 0 6
Embrace color with durable, eco-friendly
collections of decking.
TA B L E
SECTION II: RAILING . . . . . . . . . . . . . . . . . 2 6
Frame your view with long-lasting
of railing for all tastes and budgets.
SECTION III: EXTRAS . . . . . . . . . . . . . . . . . 3 6
C O N T E N T S Mind the particulars of relaxing
and entertaining.
SECTION IV: PRODUCT LISTINGS . . .4 8
4
5
SECTION I: DECKING
embrace
C O L O R
What goes with a backyard of a
thousand pines? The very thing
that does right by snowcaps and
sand, too: durable composite
boards that allow you to take in
nature's every shade of awe.
featuring: Transcend Tropicals in Havana Gold and Signature Rod Rail

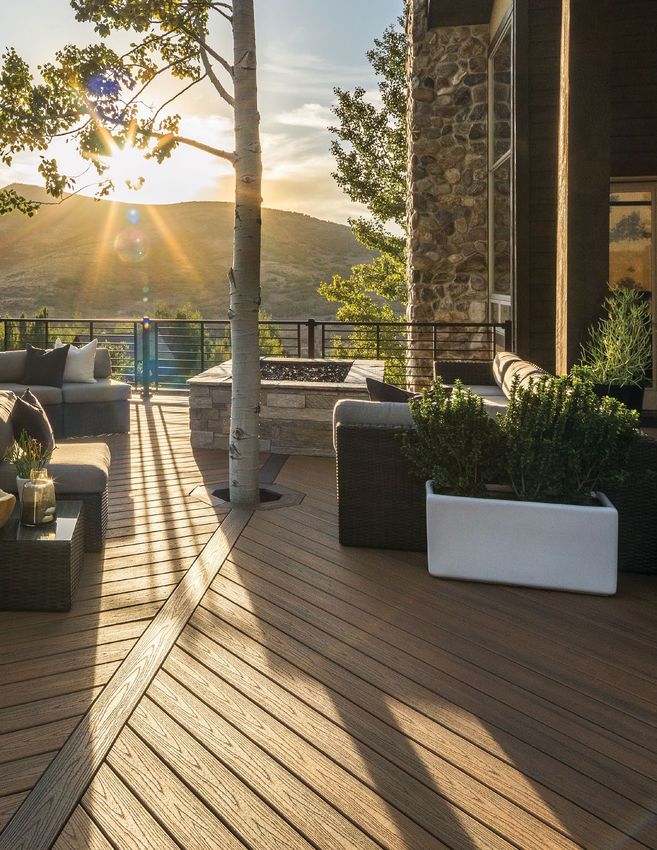

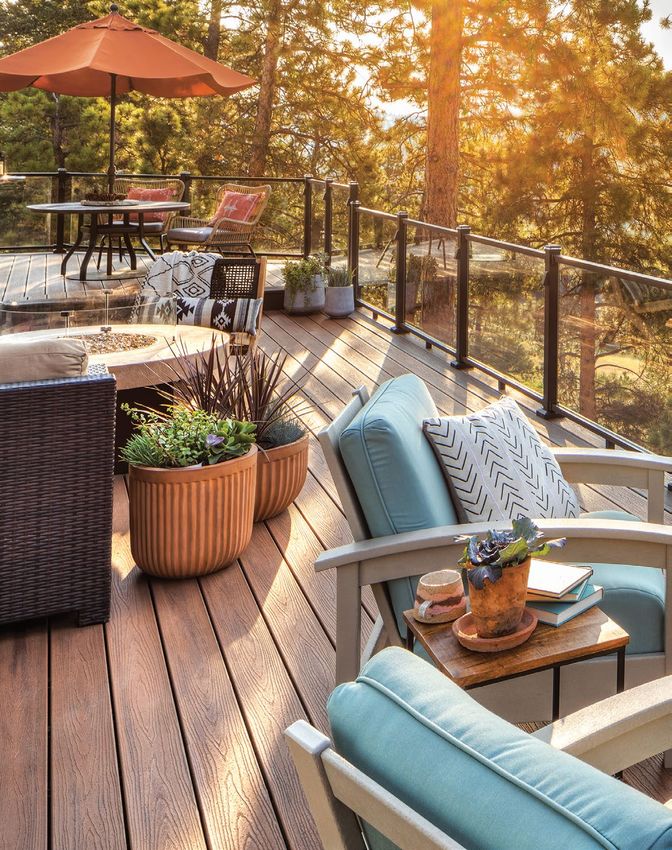

RARIFIED AIR

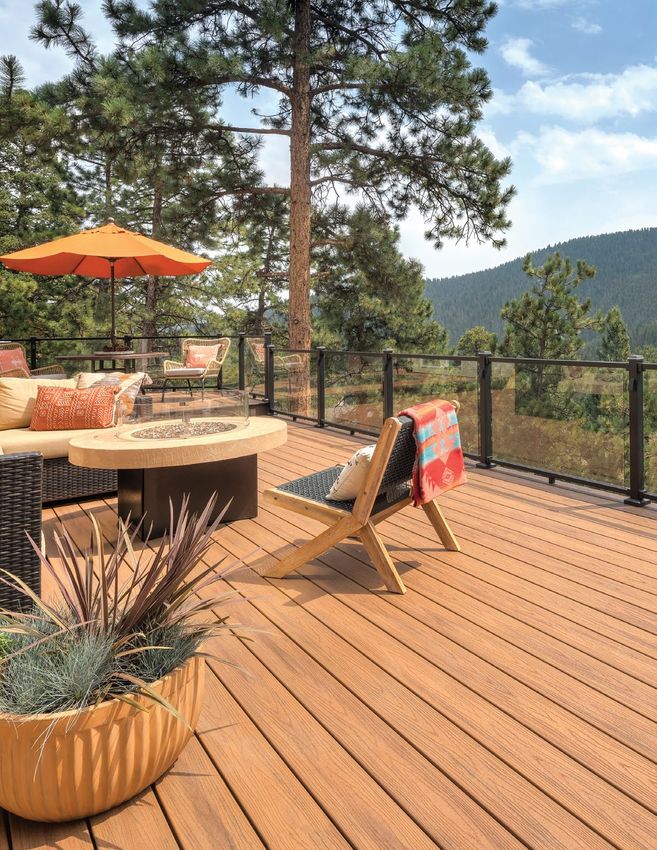

When choosing a deck color, look
to your natural surroundings.
Here Tiki Torch plays off the red
rocks and golden high-noons that
frame this Colorado home.
featuring: Transcend Tropicals in Tiki Torch and Signature Glass Railing
T R O P I C A L S
E L E VAT E D A E S T H E T I C S PA I R E D W I T H
THE HIGHEST LEVEL OF PERFORMANCE
Big, bold notions of outdoor living come to life with
Trex Transcend® Tropicals. Our premium line combines
second-to-none performance and hassle-free maintenance
with the beauty of exotic wood. The result? Naturally
streaked hues that make a vibrant statement.

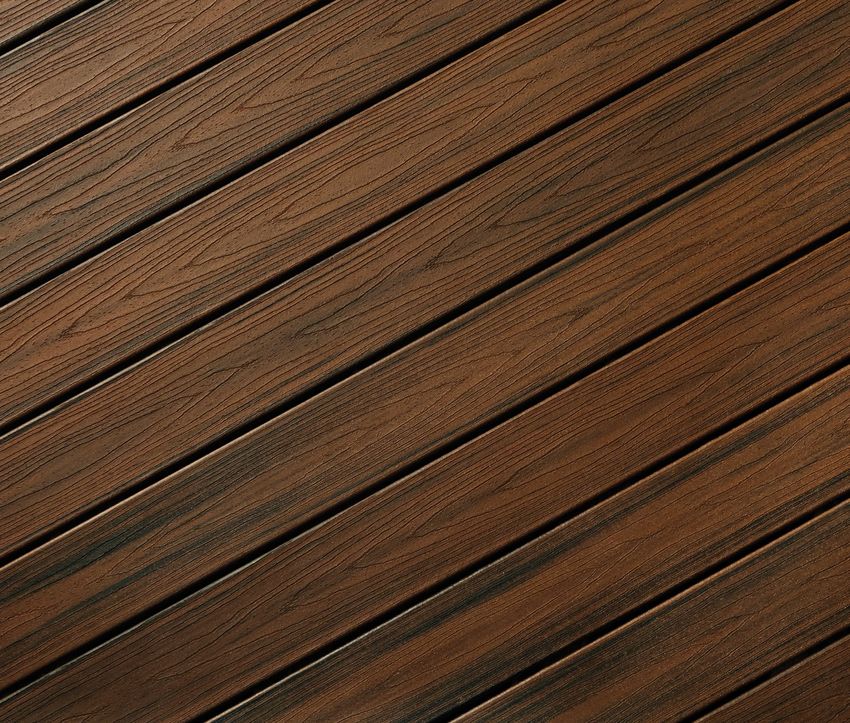

S H OW N I N T I K I TO R C H
Rich,
A luxurious multi-tonal
look that lasts colors
B OA R D P R O F I L E S
S Q UA R E
EDGE
Curveable boards
for endless design
G R O OV E D possibilities
EDGE
Use Trex Hideaway® Hidden
Fastening System for a clean,
fastener-free appearance
Island Mist Tiki Torch Havana Gold Spiced Rum Lava Rock
9
In her
E L E M E N T
UNWIND
G AT H E R
DINE
tastemaker
E VE T T E RI OS
10E
njoying the languid pace of Which Trex decking product
home is not something that life- did you use?
style expert, writer, designer and TV I chose Trex Transcend in Island Mist.
I love it because it has a silvery aged look
personality Evette Rios takes lightly.
that works well with the old barn wood
So when it came to expanding the
around our property. We also used Trex
Pocono Mountains retreat that she Signature® railing with glass panels, which
shares with her husband, Stephen, allowed us to have an uninterrupted view
and her two sons, Yago and Rex, the of the trees and visiting birds.
Jane-of-all-trades knew she wanted
Did anything about Trex
an outdoor room that not only
surprise you?
reflected her colorful personality, but I was unsure if it would look like real wood,
required little of her time when it but Transcend decking looks entirely
came to maintenance. Here the style realistic with its streaks and color variations.
guru shares the ins and outs of her
How are you using your
recent Trex deck build. outdoor space?
We eat our meals out there, we play out
COOK
How did you come to choose there, and we cook out there, too. Plus,
Trex for your project? there’s a hot tub and a fireplace, so we are
I try to use sustainable and environmentally spending a lot of time on our Trex deck.
friendly products for my home whenever

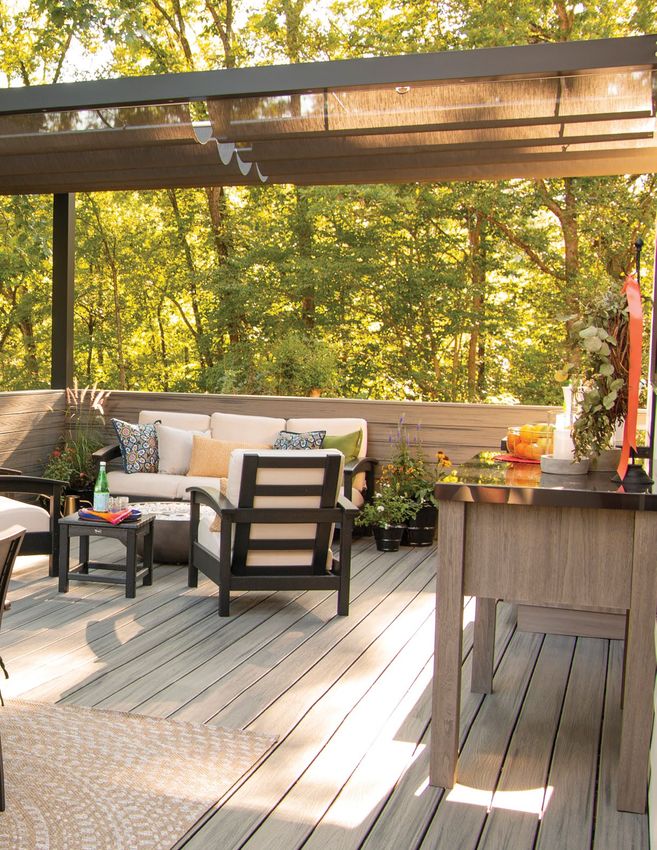

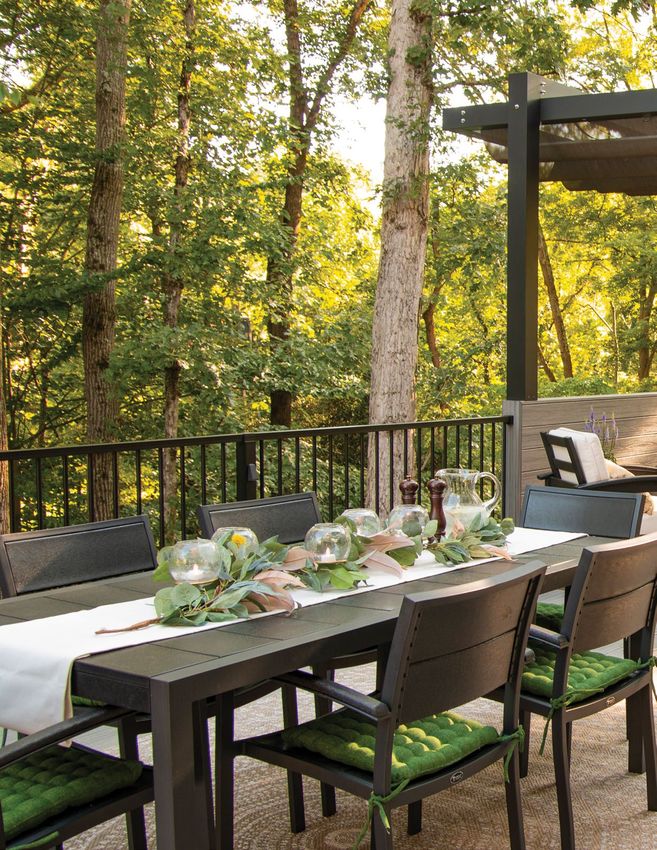

possible. Trex decking was the ideal Featured in photos
solution because it is extremely durable Transcend Tropicals in Island Mist
and almost completely made of recycled Signature Glass & Aluminum Railing
content. Trex® Outdoor Kitchens™
To read the full interview with Evette, visit evette.trex.com 11TREX ®
CLADDING™
A new side to Transcend.
Learn about the architects’
choice in elegant, worry-free
residential armor at
cladding.trex.com

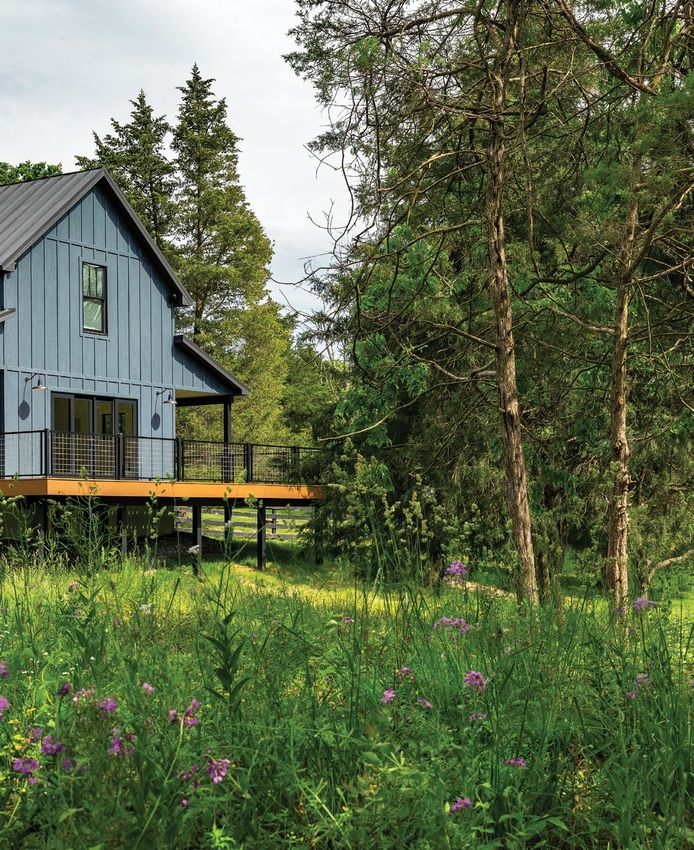

featuring: Transcend Earth Tones in Vintage Lantern and Signature Rod Rail
Photos © 2018 Discovery or its subsidiaries and affiliates. All rights reserved.E A R T H T O N E S
A C L ASS I C LO O K FO R
UNCOMPROMISING HOMES
Like its tropical counterpart, Trex Transcend® Earth
Tones gives homeowners the freedom and confidence to
design to every curve of the imagination. These premium
composite boards stand apart with a monochromatic
color palette as timeless as its inspiration: nature itself.
S H OW N I N V I N TAG E L A N T E R N
A luxurious Consistent
look that lasts monochromatic
color, end to end
B OA R D P R O F I L E S
S Q UA R E
EDGE
Curveable boards
for endless design
G R O OV E D possibilities
EDGE
Use Trex Hideaway® Hidden
Fastening System for a clean,
fastener-free appearance
Gravel Path Rope Swing Vintage Lantern
13SERENITY NOW
From walls to cabinets, grey has found
its way into today's homes, thanks
to its ability to blend and calm. Here
Pebble Grey compels a four-legged
friend to not only sit, but stay.
featuring: Select Earth Tones in Pebble Grey and Outdoor FurnitureE A R T H T O N E S
T H E P E R F E C T PA I R I N G O F P R I C E
AND MINIMAL MAINTENANCE
Durable and inviting, Trex Select® brings consistent
performance to your home—and peace of mind.
Skip the stain aisle and instead live life outdoors with
the simple choice in composite decking.
S H OW N I N P E B B L E G R E Y
Built for living,
not maintaining
Wide range
of traditional,
complementary
colors
B OA R D P R O F I L E S
Square board
S Q UA R E also usable as a
EDGE cocktail railing
surface
G R O OV E D
EDGE
Use Trex Hideaway® Hidden
Fastening System for a clean,
fastener-free appearance
Winchester Woodland
Pebble Grey Grey Saddle Brown Madeira
15GOLDEN HOUR
Sampling a board color is the best way to grasp
its finer details. A contemporary neutral like
Rocky Harbor has pleasing depth, complete
with slate streaks and sandy undertones.
featuring: Enhance Naturals in Rocky Harbor and Select RailingN AT U R A L S
T H E B E AU T Y O F WO O D W I T H
THE EASE OF COMPOSITE
With its authentic wood-grain appearance, Trex Enhance®
Naturals offers all the charm and none of the trouble of
pressure-treated lumber. Imagine enjoying the very same
multi-tonal streaking now and 25 years from now without
costly, continual upkeep.
S H OW N I N R O C KY H A R B O R
Easy
maintenance
Inspired by
nature
B OA R D P R O F I L E S
S Q UA R E
EDGE
Lightweight,
easy-to-handle
G R O OV E D
scalloped boards
EDGE
Use Trex Hideaway® Hidden
Fastening System for a clean,
fastener-free appearance
Foggy Wharf Rocky Harbor Toasted Sand Coastal Bluff

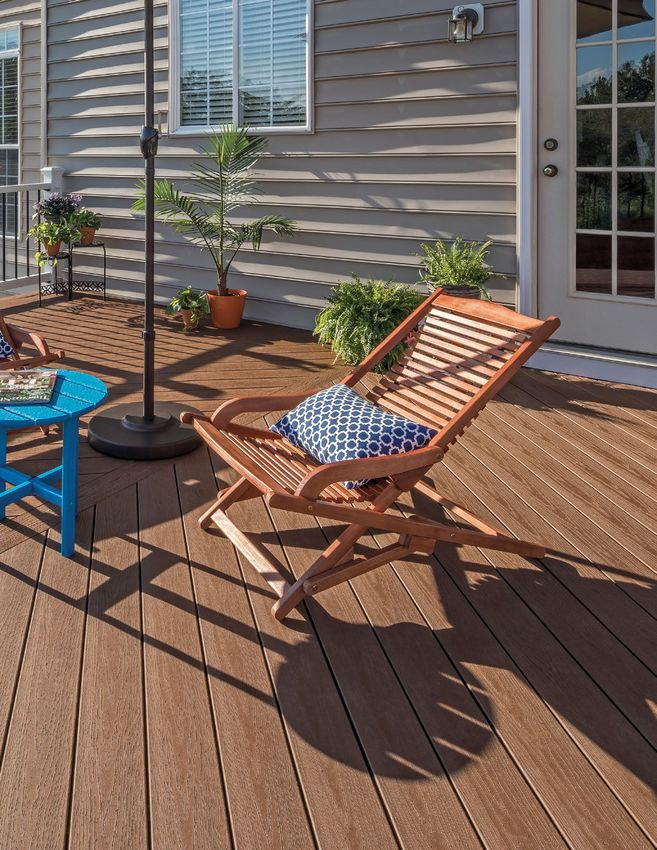

17NEW DEPTHS
There’s nothing monotonous about
monochromatic color. This perch in
Saddle showcases the universal appeal
of earthy brown.
featuring: Enhance Basics in Saddle and Select RailingB A S I C S
P R I C E D TO P U T T H E P R E SS U R E
O N T R E AT E D L U M B E R
Trex has engineered cost out of the equation with our
latest collection of easy-to-build, easy-to-maintain
decking. Trex Enhance® Basics melds the durability of
composite with the affordability of wood, resulting in
long-lasting, worry-free decking.
S H OW N I N SA D D L E
Perfect for DIYers:
no specialty
tools required
No sanding,
no sealing...ever
B OA R D P R O F I L E S
S Q UA R E
EDGE
Lightweight,
easy-to-handle
G R O OV E D
scalloped boards
EDGE
Use Trex Hideaway® Hidden
Fastening System for a clean,
fastener-free appearance
Clam Shell Beach Dune Saddle
19Photos © 2019 Discovery or its subsidiaries and affiliates. All rights reserved.
BEST BEST
T R O P I C A L S E A R T H T O N E S
Elevated aesthetics paired with A classic look for
the highest level of performance. uncompromising homes.
Island Mist Gravel Path
Tiki Torch Rope Swing
Havana Gold Vintage Lantern
Spiced Rum
Lava Rock
20 PRICE: B OA R D P R O F I L E S : SOLID S C A L LO P E DBETTER BETTER GOOD
E A R T H T O N E S N AT U R A L S B A S I C S
The perfect pairing of price The beauty of wood with Priced to put the pressure
and minimal maintenance. the ease of composite. on treated lumber.
Pebble Grey Foggy Wharf Clam Shell
Winchester Grey Rocky Harbor Beach Dune
Saddle Toasted Sand Saddle
Woodland Brown Coastal Bluff Sample any and
every color at
order.trex.com
Madeira
L I M I T E D R E S I D E N T I A L A N D FA D E & S TA I N WA R R A N T I E S : 25 YR S C R ATC H R E S I S TA N C E : 21W hy W O O D Y O U ? Trading up from wood to Trex means ditching hours of annual upkeep that costs way more than you bargain for. Compare the qualities of our high-performance, Made-in-America boards to lumber and ask yourself: can you afford not to choose Trex?
TREX WILL TREX WON'T
Withstand sun, snow & sleet Rot, warp or splinter
HIGH-PERFORMANCE TECHNOLOGY UNLIKE WOOD
Clean easily with soap & water Need seasonal sealing or staining
LOW-MAINTENANCE SHELL UNLIKE WOOD
Let forestfuls of trees grow and grow Become food for termites
M A D E O F 9 5 % R E C YC L E D UNLIKE WOOD
M AT E R I A L S I N T H E U S A
Make good on its promises Fade or stain
25-Y EA R L I M I T ED R ESI D EN T I A L UNLIKE WOOD
AND FA D E & STA I N WA R R A N T I ES
Which Trex and why?
See how our collections stack up
to wood at compare.trex.com
23G R E ATE R
G R E E N,
G R E ATE R
G O O D.
It’s a good feeling to be able to take in the
view from your deck and know you did
your part to protect the world around you.
Trex homeowners experience that sense
of contentment over and over again,
having chosen eco-friendly composite
boards made with clean technology.
95%
recycled content
We repurpose 400,000 tons of plastic film
and reclaimed sawdust annually
400 MILLION
pounds of plastic
Diverting this from landfills each year has
made Trex one of largest recyclers of plastic
film in North America
22,000
trees planted
Each sale of Trex Outdoor Furniture has led
to this tally, thanks to our partnership with
Trees for the Future
2425
SECTION II: RAILING
frame your
V I E W
With fresh air comes much-needed
perspective. Be it tree lines or stars,
the great beyond has a way of
unravelling the near and now. So
why obstruct what inspires? Behold
railing that allows you to eagerly—
and beautifully—lean in.featuring: Enhance Naturals in Toasted Sand and Signature Aluminum Railing
R A I L I N G
E F F O R T L E S S S T Y L E , E XC E P T I O N A L S T R E N G T H
Incredibly sleek and remarkably strong, Trex Signature® celebrates
the refined beauty of negative space. Choose from four infill
options to complement powder-coated aluminum rails and posts.
T RE X S IG NAT U RE ®
ALU MINU M RAILING
Traditional balusters pair stunning
lines with guaranteed durability.
Classic Charcoal
White Bronze Black
T RE X S IG NAT U RE ®
RO D RAIL
Horizontal infill rods deliver high-end
design to any outdoor space.
Bronze Charcoal Charcoal
Black Black
Charcoal
Platinum Platinum Black
28 Behold every curve at signature.trex.comT RE X S IG NAT U RE ®
ME S H RAILING
Stainless-steel crosshatching
lends a modern, industrial edge.
Stainless
Charcoal Steel
Bronze Black (mesh infill)
T RE X S IG NAT U RE ®
G LASS RAILING
The ultimate in clean and contemporary:
tempered glass (and sweeping views).
Classic Charcoal Glass
White Black (infill)
@ T R E XCO M PA N Y
SHOW US
YO U R V I E W
Tag your photos with #trexrailing
to be featured on our Instagram feed.
29featuring: Crown top rail in Vintage Lantern
with round aluminum balusters in Bronze
featuring: Rails in Tree House with square
Photos © 2020 Discovery or its subsidiaries and affiliates. All rights reserved. composite balusters in Vintage Lantern
featuring: Rails in Classic White with round
aluminum balusters in Charcoal BlackR A I L I N G
T I M E L E S S D E S I G N Y O U C A N T R U S T—
A N D TA I L O R
When you want the freedom to mix and match
balusters, rails and posts, you want Trex Transcend®.
As strong and sturdy as its namesake decking, Transcend
puts every color combination within reach. Style your
own or eliminate the guesswork with pre-designed kits.
COMP OS I T E : TOP & B OT TOM RAI L S , S QUARE B ALU ST E RS
Classic Charcoal Gravel Rope Tree Vintage
White Black Path Swing House Lantern
ALU MI NU M: ROU ND B ALU ST E RS
Classic Charcoal
White Bronze Black
31featuring: Standard rails in Classic White with round aluminum balusters in Charcoal Black
R A I L I N G
T H E S I M P L E C H O I C E F O R Y O U R B A C K YA R D
Why overthink what works? Crisp, safe and effective,
Trex Select® railing streamlines the design process by
combining composite rails in Classic White and round
aluminum balusters in Charcoal Black.
COMPOSITE TOP ROU ND ALU MI NU M
& BOTTOM R AI L S B ALU ST E RS
Classic Charcoal
White Black
32T h e an at o my o f R A I L I N G
There are several key components of a railing section.
Refer to the diagram to get a sense of what’s what.
Coc k t ail Ra i l
(O p t ional )
Deck board on a
Transcend universal top
Rail s rail or Signature rail to
Top and bottom bars create a flat surface.
designed to keep railing Available in all Transcend
straight and beautiful. and Select decking colors.
Posts
Vertical poles
that can be
outfitted with
caps and skirts.
Balu st e r s or Ac c e ssor y
I n f il l P an e l I n f il l K it
Individual columns Hardware matched
or full expanses to your infill style
that maintain and rail color.
space and safety.
TrexPro® contractors know custom railing. If you prefer a look that's truly unique, find a professional at pros.trex.com 33Transcend Rail & Round Aluminum Baluster Kit
Select Rail & Round Aluminum Baluster Kit
Perplexed by railing? Try a style shortcut.
Rail Kits
O F F-THE -SH ELF EASE
Perfect for DIYers, this one-box solution includes top and bottom
rails, your preferred infill and all necessary hardware for a single
section of railing. Available in our most popular colors, kits cut down
on the number of steps in your selection and ordering processes.
Post sleeve, cap and skirt sold separately.
Signature Aluminum Rail & Sqaure Baluster Kit
34Decking & Railing Duos
COLOR-MI N D ED PA I RI N G S
Know which decking color you're building with? Then start here.
Each of our decking colors has been paired with three distinct
rail-and-baluster looks. Choose from 60 unique ensembles, each
accompanied with a thorough list of materials and tagged with
an alphanumeric code, all online at duos.trex.com
SR-1
SR-2
Spiced Rum
(SR)
SR-3
Locate your nearest Trex retailer at find.trex.com 35SECTION III: EXTRAS
mind the
PA RT I C U L A R S
One homeowner's entertainment area
is another's escape. Which is to say, a
deck has no single purpose. For some,
it's a place to gather; for others, it's a
place to decompress. The difference lies
in the details.37 featuring: Transcend Tropicals in Island Mist, Signature Aluminum Railing, Outdoor Furniture and Pergola
SMOOTH, PREMIUM FINISH
Your means to a screw-free, evenly spaced deck
surface. These self-gapping glass-filled nylon
hidden fasteners are used in tandem with our
grooved-edge boards.
QUICK AND EASY
Begin your install with securing your first
board with start clips, made from stainless steel
for superior durability.
38BEAUTY FROM EVERY ANGLE
With Trex® Fascia, your outdoor space stands out,
side on. Engineered to retain its rich color just as
long as your deck surface, our fascia adds wonderful
depth and dimension to your design.
GIVE YOUR DECK AN EDGE
Try Universal White Fascia for a crisp, clean finish.
More edging ideas at fascia.trex.com
Available in all decking colors
Universal
White Fascia
39IMAGINE W H AT LIGHTING COULD
BRING TO THE PARTY
With the right light, an outdoor space goes from invisible
to inviting. That’s why Trex has expanded our soft white
lighting to cover more ground—from post cap lights and
recessed deck lights to stair risers and more.
DECK LIGHTING
Ours seamlessly integrates into rails, risers, treads and posts
for easy, elegant wayfinding. Shop lighting.trex.com
40 For the terms of warranties on Trex® Outdoor Lighting™, see page 54 or visit trex.com. Cree® is a registered trademark of Cree, Inc.OUTWIT THE ELEMENTS
The unique Trex® RainEscape® under-deck drainage system keeps rain, spills and
snow melt from dripping through the decking boards above, creating a dry room below.
Now available in black and tan. See all options at rainescape.trex.com
T R E X® P R O T E C T™ G O E S THE EXTRA MILE
Shield the vulnerable components of your deck from moisture with Trex Protect,
a non-skid, self-adhesive deck flashing tape.
Trex® RainEscape® products are manufactured and sold by IBP, LLC under a Trademark License Agreement with Trex Company, Inc. RainEscape®
is a federally registered trademark of IBP, LLC. A 20-year Limited Warranty is provided by the manufacturer. 41Photos © 2017 Discovery or its subsidiaries and affiliates. All rights reserved.
ABOVE AND BEYOND
Trex® Pergola™ keeps outdoor living from feeling so…outdoors.
Add a customizable pergola to your sun-soaked space and get
a shady, sturdy retreat that’s virtually upkeep-free.
COOLER BY A MILE
Add a ShadeTree® Canopy System for a pop of color and smart
sun protection. Retractable canopies available in AirFlow Mesh or
Sunbrella® outdoor fabric at pergola.trex.com
Trex® Pergola™ products are manufactured and sold by Home & Leisure, Inc., d/b/a/ Structureworks, under a Trademark License Agreement with Trex Company, Inc. A 25-Year Limited Residential Warranty
42 and a 10-Year Limited Commercial Warranty provided by the manufacturer. Sunbrella® is a registered trademark of Glen Raven, Inc. ShadeTree® Canopy is a registered trademark of Shade Tree Inc.HIDE AND CHIC
Mix the comforts of your indoor space with the natural beauty
of your outdoor space with Trex® Outdoor Kitchens™. Color-rich
cabinetry brings both style and utility to your yard.
STYLE MEETS DURABILITY
Protect your cabinetry from even the harshest elements
with a powder-coated finish. Choose from a range of unique
colors and designs at outdoorkitchens.trex.com
Trex® Outdoor Kitchens™ is manufactured and sold by CT Acquisitions LLC., under a Trademark Agreement with Trex Company, Inc. A Limited Warranty is provided by the manufacturer. 43D E E P - S E AT E D BEAUTY
Each of our comfortable, durable and sustainable
pieces feature an ergonomic design, superbly crafted
with a splinter-free finish.
WELL ROOTED
Trex—in partnership with Trees for the Future—
plants a tree with each piece of furniture ordered.
Learn more at furniture.trex.com
44 Trex® Outdoor Furniture™ products are manufactured and sold by POLYWOOD. under a Trademark License Agreement with Trex Company, Inc. A 20-Year Limited Warranty is provided by the manufacturer.Outdoor Fire & Water
I N N OVAT E YOUR SPACE
Welcome the beauty of the natural elements into your
outdoor living space with fire and water features that
push the limits of design and engineering.
AN E L E M E N TA L OA S I S
Turn up the heat when entertaining with fire
pits, tables and pots. Or, give your yard a touch of
luxury with elegant water features. Learn more at
fireandwater.trex.com
Trex® Outdoor Fire & Water™ products are manufactured and sold by Custom Molded Products, LLC., under a Trademark License Agreement with Trex Company, Inc. Warranty provided by the manufacturer. 45GO FROM SPACE-POOR TO SPACE-PROUD
Trex® Spiral Stairs™ offer all of the space-saving
advantages of traditional spiral staircases but with
Trex style, strength and simplicity.
STEP UP AND STA N D OUT
Each step tread can be capped with Trex composite decking
to match—or contrast—your deck color. Settled on spiral?
Download a blueprint at spiralstairs.trex.com
46 Trex® Spiral Stairs™ are manufactured and sold by M. Cohen and Sons, Inc., d/b/a The Iron Shop, under a Trademark License Agreement with Trex Company, Inc. A 25-year Limited Residential Warranty is provided by the manufacturer.P L AY F O R K E E P S
Regulation-sized and surfaced,
our durable cornhole set comes
with eight resin-filled bags that
withstand the elements, too. Learn
more at cornhole.trex.com
Photos © 2020 Discovery or its subsidiaries and affiliates. All rights reserved.
ADDED COVERAGE
FOR CURB APPEAL
Choose from a range of decorative
and durable patterns to add
privacy, utility and dimension
deckside. Learn more at
lattice.trex.com
Trex® Cornhole™ is manufactured and sold by IPG Global Marketing under a Trademark License Agreement with Trex Company, Inc. A 1-year Limited Warranty is provided by the manufacturer for the boards,
and a 30-day Limited Warranty provided by the manufacturer for the bags.
Trex® LatticeWorks™ is manufactured and sold by Home & Leisure, Inc., d/b/a/ Structureworks, under a Trademark License Agreement with Trex Company, Inc. A 12-year Limited Warranty is provided by the manufacturer. 47Trex Decking & Fascia
PROFILE DESCRIPTION ITEM NUMBER COLORS
1 x 6 x 12' Transcend Tropicals XX010612TS01
IM, TT, HG, SR, LR
1 x 6 x 16' Transcend Tropicals XX010616TS01
1 x 6 x 20' Transcend Tropicals XX010620TS01
1 x 6 x 12' Transcend Earth Tones XX010612T2S01 GP, RS, VL
1" Square-Edge Board 1 x 6 x 16' Transcend Earth Tones XX010616T2S01
1 x 6 x 20' Transcend Earth Tones XX010620T2S01
Actual dimensions:
Transcend & Enhance: .94 in x 5.5 in x 12 ft / 16 ft / 20 ft 1 x 6 x 12' Enhance Basics XX010612E2S01 CS, BD, SD
(24 mm x 140 mm x 365 cm / 487 cm / 609 cm) 1 x 6 x 16' Enhance Basics XX010616E2S01
Select: .82 in x 5.5 in x 12 ft / 16 ft / 20 ft 1 x 6 x 20' Enhance Basics XX010620E2S01
(20 mm x 140 mm x 365 cm / 487 cm / 609 cm)
1 x 6 x 12' Enhance Naturals XX010612E2S01 FW, RH, TS, CB
1 x 6 x 16' Enhance Naturals XX010616E2S01
1 x 6 x 20' Enhance Naturals XX010620E2S01
7/8 x 6 x 12' Select XX010612SS01 PG, WG, SD, WB, MB
7/8 x 6 x 16' Select XX010616SS01
7/8 x 6 x 20' Select XX010620SS01
1 x 6 x 12' Transcend Tropicals XX010612TG01
1 x 6 x 16' Transcend Tropicals XX010616TG01 IM, TT, HG, SR, LR
1 x 6 x 20' Transcend Tropicals XX010620TG01
1 x 6 x 12' Transcend Earth Tones XX010612T2G01
1" Grooved-Edge Board 1 x 6 x 16' Transcend Earth Tones XX010616T2G01 GP, RS, VL
1 x 6 x 20' Transcend Earth Tones XX010620T2G01
Actual dimensions:
Transcend & Enhance: .94 in x 5.5 in x 12 ft / 16 ft / 20 ft 1 x 6 x 12' Enhance Basics XX010612E2G01
(24 mm x 140 mm x 365 cm / 487 cm / 609 cm) 1 x 6 x 16' Enhance Basics XX010616E2G01 CS, BD, SD
Select: .82 in x 5.5 in x 12 ft / 16 ft / 20 ft 1 x 6 x 20' Enhance Basics XX010620E2G01
(20 mm x 140 mm x 365 cm / 487 cm / 609 cm)
1 x 6 x 12' Enhance Naturals XX010612E2G01
1 x 6 x 16' Enhance Naturals XX010616E2G01 FW, RH, TS, CB
1 x 6 x 20' Enhance Naturals XX010620E2G01
7/8 x 6 x 12' Select XX010612SG01
7/8 x 6 x 16' Select XX010616SG01 PG, WG, SD, WB, MB
7/8 x 6 x 20' Select XX010620SG01
1 x 8 x 12' Transcend Tropicals XX010812TS01 IM, TT, HG, SR, LR
1" x 8" Fascia 1 x 8 x 12' Transcend Earth Tones XX010812T2S01 GP, RS, VL
Actual dimensions: 1 x 8 x 12' Enhance Basics XX010812E2S01 CS, BD, SD
Transcend, Enhance, Select, Universal White: 1 x 8 x 12' Enhance Naturals XX010812E2S01 FW, RH, TS, CB
.56 in x 7.25 in x 12 ft (14 mm x 184 mm x 365 cm)
1 x 8 x 12' Select XX010812SS01 PG, WG, SD, WB, MB
1 x 8 x 12' Universal White WW010812ES01 WW
1 x 12 x 12' Transcend Tropicals XX011212TS01 IM, TT, HG, SR, LR
1" x 12" Fascia 1 x 12 x 12' Transcend Earth Tones XX011212T2S01 GP, RS, VL
Actual dimensions: 1 x 12 x 12' Enhance Basics XX011212E2S01 CS, BD, SD
Transcend, Enhance, Select, Universal White: 1 x 12 x 12' Enhance Naturals XX011212E2S01 FW, RH, TS, CB
.56 in x 11.375 in x 12 ft (14 mm x 288 mm x 365 cm)
1 x 12 x 12' Select XX011212SS01 PG, WG, SD, WB, MB
1 x 12 x 12' Universal White WW011212ES01 WW
2 x 4 x 16' Transcend Tropicals XX020416TS01 IM, TT, HG, SR, LR
2" Square-Edge Board
2 x 6 x 12' Transcend Tropicals XX020612TS01
Actual dimensions: IM, TT, HG, SR, LR
Transcend 2x4: 1.3 in x 3.4 in x 16 ft
2 x 6 x 16' Transcend Tropicals XX020616TS01
(33 mm x 86 mm x 487 cm) 2 x 6 x 20' Transcend Tropicals XX020620TS01
Transcend & Select 2x6: 1.3 in x 5.5 in x 12 ft / 16 ft / 20 ft 2 x 6 x 12' Select XX020612SS01
(33 mm x 140 mm x 365 cm / 487 cm / 609 cm) 2 x 6 x 16' Select XX020616SS01 PG, SD, WB, MB
2 x 6 x 20' Select XX020620SS01
XX = COLOR PREFIX
IM Island Mist GP Gravel Path PG Pebble Grey FW Foggy Wharf CS Clam Shell
TT Tiki Torch RS Rope Swing WG Winchester Grey RH Rocky Harbor BD Beach Dune
HG Havana Gold VL Vintage Lantern SD Saddle TS Toasted Sand SD Saddle
SR Spiced Rum WB Woodland Brown CB Coastal Bluff WW Wood Grain White
48 LR Lava Rock MB Madeira2a
3a
RAILING—
a lot easier than it looks
4
Selecting the right railing is pretty easy, but
each Trex® railing line is a little different. 1 4 1+2
Please read the system descriptions at
the top of each product section so you can
choose exactly which railing components you
need to complete your design. For additional
guidance, the chart to the right depicts each 2b 3b 5
railing system's components.
3 3 3
TREX POST COMPONENTS TREX SIGNATURE® RAILING TREX TRANSCEND® RAILING TREX SELECT® RAILING
Trex Post Sleeves, Caps & Skirts
These components can be used as steps 1 & 2 for all Trex railing lines.
STEP COMPONENT DESCRIPTION ITEM NUMBER
4" x 4" x 39" Post Sleeve XX040439APS
[4.45 in x 4.45 in x 40 in (113 mm x 113 mm x 101 cm) external dimensions]
Post Sleeve
4" x 4" x 108" Post Sleeve
1 Each 4x4 and 6x6 post sleeve fits [4.45 in x 4.45 in x 108 in (113 mm x 113 mm x 274 cm) external dimensions]
XX0404108APS
over a 4x4 pressure treated post or
equivalent post mount. 6" x 6" x 39" Post Sleeve
[5.5 in x 5.5 in x 39 in (139 mm x 139 mm x 990 mm) external dimensions]
WT060639APS
6" x 6" x 108" Post Sleeve
[5.5 in x 5.5 in x 108 in (139 mm x 139 mm x 274 cm) external dimensions] WT0606108APS
Flat 4" x 4" Post Sleeve Cap
PXXSQCAP4X4
Post Sleeve Cap [4.55 in x 4.55 in (115 mm x 115 mm) internal dimensions]
2a
Also available with LED lighting. See page 54. Flat 6" x 6" Post Sleeve Cap
[5.55 in x 5.55 in (140 mm x 140 mm) internal dimensions]
PWTSQCAP6X6
4" x 4" Post Sleeve Skirt
PXXSKIRT4X4
[4.55 in x 4.55 in (115 mm x 115 mm) internal dimensions]
2b Post Sleeve Skirt
6" x 6" Post Sleeve Skirt
[5.55 in x 5.55 in (140 mm x 140 mm) internal dimensions]
PWTSKIRT6X6
ACCESSORY
Aluminum Surface Mount Post for 36" (914 mm) Rail Height (1/box) ALPOSTMOUNT36
Actual external dimensions of insert: 3.75 in x 3.75 in x 7 in (95 mm x 95 mm x 177 mm)
Surface Mount Post
Aluminum Surface Mount Post for 42" (1066 mm) Rail Height (1/box) ALPOSTMOUNT42
For use with 4x4 composite post sleeve
Actual external dimensions of insert: 3.75 in x 3.75 in x 7 in (95 mm x 95 mm x 177 mm)
Surface Mount Post Hardware—Wood (10 kits/box) ALPOSTHWDECK
Joist Mount Post Aluminum Joist Mount Post for use with all Trex railing heights (1/box)
CPJMNTPOST63
Actual external dimensions of insert: 3.75 in x 3.75 in x 7 in (95 mm x 95 mm x 177 mm)
For use with 4x4 composite post sleeve
XX = COLOR PREFIX
WT Classic White GP Gravel Path TH Tree House
BK Charcoal Black RS Rope Swing VL Vintage Lantern 49Trex Signature® Railing Choose either aluminum posts or composite post sleeves, caps and skirts for steps 1 & 2.
Pair with a rail kit (step 3) and infill panel (step 4) if needed.
STEP DESCRIPTION ITEM NUMBER DESCRIPTION ITEM NUMBER
Aluminum Posts
1+2 Can only be used within the Trex Signature line. Trex Signature aluminum posts fulfill steps 1 & 2.
IRC Aluminum Mounting Plate & Hardware ALPOSTHWDECK
If using composite post sleeves, refer to page 49. For use with all Trex 2.5" Surface Mount Aluminum Posts
Concrete Post Mount Kit ALPOSTHWCONC
2.5" x 2.5" x 37" Aluminum Post—Horizontal XXAL252537RCAP
2.5" x 2.5" x 43" Aluminum Post—Horizontal XXAL252543RCAP
XXAL252553RCAP 2.5" x 2.5" x 63" Aluminum Joist Mount Post XXJMNTPOST63
2.5" x 2.5" x 53" Aluminum Post—Stair
Comes with cap and skirt.
Comes with cap and skirt.
2.5" x 2.5" x 36" Crossover Post—Horizontal XXAL252536RCCP Trex Signature Fascia Mount Kit - wood framing
XXAL252542RCCP XXFMNTWOOD
2.5" x 2.5" x 42" Crossover Post—Horizontal For use with Joist Mount Trex Signature Railing Post only.
Comes with skirt.
2.5" x 2.5" x 37" Line Post with Premounted Brackets BKAL252537RCAPLINE
Dimensions above are nominals. See below for actuals and metrics.
2.5" x 2.5" x 37" End Post with Premounted Brackets BKAL252537RCAPEND
[2.5 in x 2.5 in x 36 in (63 mm x 63 mm x 914 mm) actual dimensions]
2.5" x 2.5" x 37" Corner Post with Premounted Brackets BKAL252537RCAPCNR [2.5 in x 2.5 in x 37 in (63 mm x 63 mm x 939 mm) actual dimensions]
2.5" x 2.5" x 43" Line Post with Premounted Brackets BKAL252543RCAPLINE [2.5 in x 2.5 in x 42 in (63 mm x 63 mm x 106 cm) actual dimensions]
[2.5 in x 2.5 in x 43 in (63 mm x 63 mm x 109 cm) actual dimensions]
2.5" x 2.5" x 43" End Post with Premounted Brackets BKAL252543RCAPEND [2.5 in x 2.5 in x 53 in (63 mm x 63 mm x 134 cm) actual dimensions]
2.5" x 2.5" x 43" Corner Post with Premounted Brackets BKAL252543RCAPCNR [2.5 in x 2.5 in x 63 in (63 mm x 63 mm x 160 cm) actual dimensions]
Comes with cap and skirt.
STEP DESCRIPTION ITEM NUMBER DESCRIPTION ITEM NUMBER
Rail & Baluster Kit 6' x 36" Rail Kit w. Square Balusters—Horizontal XXAS0636HRK
3 (includes top rail, bottom rail, balusters and mounting and support hardware) 6' x 36" Rail Kit w. Square Balusters—Stair XXAS0636SRK
Available in WT, BZ, and BK. 8' x 36" Rail Kit w. Square Balusters—Horizontal XXAS0836HRK
8' x 36" Rail Kit w. Square Balusters—Stair XXAS0836SRK
6' x 36" Rail Kit w. Round Balusters—Horizontal BKAR0636HRK
6' x 36" Rail Kit w. Round Balusters—Stair BKAR0636SRK 6' x 42" Rail Kit w. Square Balusters—Horizontal XXAS0642HRK
8' x 36" Rail Kit w. Round Balusters—Horizontal BKAR0836HRK 6' x 42" Rail Kit w. Square Balusters—Stair XXAS0642SRK
8' x 36" Rail Kit w. Round Balusters—Stair BKAR0836SRK 8' x 42" Rail Kit w. Square Balusters—Horizontal XXAS0842HRK
8' x 42" Rail Kit w. Square Balusters—Stair XXAS0842SRK
6' x 42" Rail Kit w. Round Balusters—Horizontal BKAR0642HRK
6' x 42" Rail Kit w. Round Balusters—Stair BKAR0642SRK 4' x 36" Assembled Panel (Square)—Horizontal BKAS0436HRPNL
8' x 42" Rail Kit w. Round Balusters—Horizontal BKAR0842HRK 6' x 36" Assembled Panel (Square)—Horizontal BKAS0636HRPNL
8' x 42" Rail Kit w. Round Balusters—Stair BKAR0842SRK 8' x 36" Assembled Panel (Square)—Horizontal BKAS0836HRPNL
4' x 42" Assembled Panel (Square)—Horizontal BKAS0442HRPNL
Dimensions above are nominals. See below for actuals and metrics. 6' x 42" Assembled Panel (Square)—Horizontal BKAS0642HRPNL
[4' x 36": 48 in x 36 in (122 cm x 914 mm) actual dimensions]
[6' x 36": 72 in x 36 in (182 cm x 914 mm) actual dimensions]
8' x 42" Assembled Panel (Square)—Horizontal BKAS0842HRPNL
[8' x 36": 96 in x 36 in (243 cm x 914 mm) actual dimensions] Does not include hardware.
[4' x 42": 48 in x 42 in (122 cm x 106cm) actual dimensions]
[6' x 42": 72 in x 42 in (182 cm x 106 cm) actual dimensions]
[8' x 42": 96 in x 42 in (243 cm x 106 cm) actual dimensions]
STEP DESCRIPTION ITEM NUMBER DESCRIPTION ITEM NUMBER
3 Rail & Rod Kit (includes top rail, bottom rail, rods and mounting and support hardware)
6' x 36" Black Rails & Platinum Rods Kit—Horizontal BKPLROD0636HRK 6' x 42" Black Rails & Black Rods Kit—Horizontal BKBKROD0642HRK
6' x 36" Black Rails & Platinum Rods Kit—Stair BKPLROD0636SRK 6' x 42" Black Rails & Black Rods Kit—Stair BKBKROD0642SRK
8' x 36" Black Rails & Platinum Rods Kit—Horizontal BKPLROD0836HRK 8' x 42" Black Rails & Black Rods Kit—Horizontal BKBKROD0842HRK
8' x 36" Black Rails & Platinum Rods Kit—Stair BKPLROD0836SRK 8' x 42" Black Rails & Black Rods Kit—Stair BKBKROD0842SRK
6' x 36" Bronze Rails & Platinum Rods Kit—Horizontal BZPLROD0636HRK
36" Rod Rail Vertical Kit—Horizontal XX36RODHVERTK
6' x 36" Bronze Rails & Platinum Rods Kit—Stair BZPLROD0636SRK
36" Rod Rail Vertical Kit—Stair XX36RODSVERTK
8' x 36" Bronze Rails & Platinum Rods Kit—Horizontal BZPLROD0836HRK
42" Rod Rail Vertical Kit—Horizontal XX42RODHVERTK
8' x 36" Bronze Rails & Platinum Rods Kit—Stair BZPLROD0836SRK
42" Rod Rail Vertical Kit—Stair XX42RODSVERTK
6' x 36" Black Rails & Black Rods Kit—Horizontal BKBKROD0636HRK Use as an accessory for cut rod rail sections.
Available in BK and PL.
6' x 36" Black Rails & Black Rods Kit—Stair BKBKROD0636SRK
8' x 36" Black Rails & Black Rods Kit—Horizontal BKBKROD0836HRK Dimensions above are nominals. See below for actuals and metrics.
8' x 36" Black Rails & Black Rods Kit—Stair BKBKROD0836SRK [6' x 36": 72 in x 36 in (182 cm x 914 mm) actual dimensions]
[8' x 36": 96 in x 36 in (243 cm x 914 mm) actual dimensions]
6' x 42" Black Rails & Platinum Rods Kit—Horizontal BKPLROD0642HRK [6' x 42": 72 in x 42 in (182 cm x 106 cm) actual dimensions]
[8' x 42": 96 in x 42 in (243 cm x 106 cm) actual dimensions]
6' x 42" Black Rails & Platinum Rods Kit—Stair BKPLROD0642SRK
8' x 42" Black Rails & Platinum Rods Kit—Horizontal BKPLROD0842HRK
8' x 42" Black Rails & Platinum Rods Kit—Stair BKPLROD0842SRK
6' x 42" Bronze Rails & Platinum Rods Kit—Horizontal BZPLROD0642HRK
6' x 42" Bronze Rails & Platinum Rods Kit—Stair BZPLROD0642SRK
8' x 42" Bronze Rails & Platinum Rods Kit—Horizontal BZPLROD0842HRK
8' x 42" Bronze Rails & Platinum Rods Kit—Stair BZPLROD0842SRK
XX = COLOR PREFIX
50 WT Classic White BZ Bronze BK Charcoal Black PL PlatinumTrex Signature® Railing Choose either aluminum posts or composite post sleeves, caps and skirts for steps 1 & 2.
Pair with a rail kit (step 3) and infill panel (step 4) if needed.
STEP COMPONENT DESCRIPTION ITEM NUMBER
Mesh Rail Kit 6' x 36" Mesh Railing Kit—Horizontal XXA0636PNLHRK
3 (includes top rail, bottom rail, foot block, verticals, anti-rattle gaskets, 6' x 36" Mesh Railing Kit—Stair XXA0636PNLSRK
hardware and bracket pack) 8' x 36" Mesh Railing Kit—Horizontal XXA0836PNLHRK
8' x 36" Mesh Railing Kit—Stair XXA0836PNLSRK
6' x 42" Mesh Railing Kit—Horizontal XXA0642PNLHRK
6' x 42" Mesh Railing Kit—Stair XXA0642PNLSRK
8' x 42" Mesh Railing Kit—Horizontal XXA0842PNLHRK
8' x 42" Mesh Railing Kit—Stair XXA0842PNLSRK
36" Mesh Railing Vertical Kit—Horizontal XX36MSHHVERTK
36" Mesh Railing Vertical Kit—Stair XX36MSHSVERTK
42" Mesh Railing Vertical Kit—Horizontal XX42MSHHVERTK
42" Mesh Railing Vertical Kit—Stair XX42MSHSVERTK
Use as an accessory for cut mesh railing sections.
Available in BK and BZ. Mesh infill sold separately.
Dimensions above are nominals. See below for actuals and metrics.
[6' x 36": 72 in x 36 in (182 cm x 914 mm) actual dimensions]
[8' x 36": 96 in x 36 in (243 cm x 914 mm) actual dimensions]
[6' x 42": 72 in x 42 in (182 cm x 106 cm) actual dimensions]
[8' x 42": 96 in x 42 in (243 cm x 106 cm) actual dimensions]
Glass Rail Kit 6' Glass Railing Kit—Horizontal XXA06HGLRK
(includes top rail, bottom rail, foot block, verticals, hardware and bracket pack)
Available in BK and WT.
Glass infill not included. Utilizes readily available 1⁄4" tempered glass.
lass can be sourced by contacting your local glazier or call
G
1-800 BUY-TREX for more information.
Dimension above is nominal. See below for actual and metric.
[6': 72 in (182 cm) actual dimension]
4 Mesh Panel 6' x 36" Stainless Steel Mesh Panel—Horizontal SSMESH0636HZ
(includes stainless steel mesh panel) 8' x 36" Stainless Steel Mesh Panel—Horizontal SSMESH0836HZ
For use with Trex Signature Mesh Kit. 8' x 42" Stainless Steel Mesh Panel—Horizontal SSMESH0842HZ
Universal 316 Stainless Steel Mesh Panel—Stair SSMESHUNIVST
Dimensions above are nominals. See below for actuals and metrics.
[6' x 36": 64 in x 32.375 in (162 cm x 822 mm) actual dimensions]
[8' x 36": 88 in x 32.375 in (223 cm x 822 mm) actual dimensions]
[8' x 42": 88 in x 38.375 in (223 cm x 974 mm) actual dimensions]
[Universal 316: 108.1875 in x 36.1875 in (274 cm x 919 mm) actual dimensions]
DESCRIPTION ITEM NUMBER DESCRIPTION ITEM NUMBER
ACCESSORY Cocktail Rail Bracket (10/pack) XXCTBKTAL10PK
Fixed Bracket—Horizontal (4/pack) XXFHBKTAL
Fixed Bracket—Stair (4/pack) XXFSBKTAL
Trex Signature Bracket Templates Tabless Fixed Bracket—Horizontal (4/pack) XXFHBKTALPNL
Bracket Template—Horizontal Swivel Bracket—Horizontal (2/pack–1 top, 1 bottom) XXSWHBKTAL
SIGTEMP4X4SLEEVE
(36" and 42") - Composite Sleeve Swivel Bracket—Stair (2/pack–1 top, 1 bottom) XXSWSBKTAL
Bracket Template—Horizontal SIGTEMPIRCPOST 2.5" Crossover Bracket—Horizontal (1/pack) XX25FHCBKTAL
(36" and 42") - 2.5" Aluminum Post
2.5" Swivel Crossover Bracket—Stair (1/pack) XX25RCSWSCBKTAL
Compound Swivel Bracket (2/pack–1 top, 1 bottom) XXCPDSWBKTAL
Aluminum Foot Block XXALFTBLK
Touch-up Pen XXTOUCHUPPEN
XX = COLOR PREFIX
WT Classic White BZ Bronze BK Charcoal Black SS Stainless Steel 51Trex Transcend® Railing
Transcend is either a 3-step or 5-step process. Choose Trex post sleeves, caps and skirts (steps 1 & 2), then choose a rail kit (step 3).
OR choose each component individually for a custom design (steps 3a, 3b, 4 & 5).
STEP COMPONENT DESCRIPTION ITEM NUMBER COLOR
6' x 36" Rail & Baluster Kit—Horizontal XX0636HRK WT, BK, VL
3 Rail & Square Composite 6' x 36" Rail & Baluster Kit—Stair WT0636SRK WT
Baluster Kit 8' x 36" Rail & Baluster Kit—Horizontal XX0836HRK WT, BK, VL
8' x 36" Rail & Baluster Kit—Stair XX0836SRK WT, BK, VL
(includes Crown top rail, Universal bottom rail,
square composite balusters, baluster spacers, 6' x 42" Rail & Baluster Kit—Horizontal XX0642HRK WT, BK, VL
adjustable foot block and mounting hardware) 8' x 42" Rail & Baluster Kit—Horizontal XX0842HRK WT, BK, VL
8' x 42" Rail & Baluster Kit—Stair XX0842SRK WT, BK, VL
Color option indicates rails and balusters.
Rail & Round Aluminum 6' x 36" Rail & Baluster Kit—Horizontal XXRD0636HRK WT, BK, VL
8' x 36" Rail & Baluster Kit—Horizontal XXRD0836HRK WT, BK, VL
Baluster Kit 8' x 36" Rail & Baluster Kit—Stair XXRD0836SRK WT, BK, VL
(includes Crown top rail, Universal bottom
rail, round aluminum balusters, baluster
6' x 42" Rail & Baluster Kit—Horizontal XXRD0642HRK WT, BK, VL
spacers, adjustable foot block and 8' x 42" Rail & Baluster Kit—Horizontal XXRD0842HRK WT, BK, VL
mounting hardware) 8' x 42" Rail & Baluster Kit—Stair XXRD0842SRK WT, BK, VL
Color option indicates rails. Round
aluminum balusters come in BK .
Cocktail Rail & Round 6' x 36" Cocktail Rail & Baluster Kit—Horizontal WTRD0636HRKCKTL WT
Aluminum Baluster Kit 8' x 36" Cocktail Rail & Baluster Kit—Horizontal WTRD0836HRKCKTL WT
(includes Universal top/bottom rails, round 8' x 36" Cocktail Rail & Baluster Kit—Stair WTRD0836SRKCKTL WT
aluminum balusters, baluster spacers,
adjustable foot block and mounting hardware)
Dimensions above are nominals. See below for actuals and metrics.
Round aluminum balusters come in BK . 6' x 36": 67.5 in x 36 in (171 cm x 914 mm) 8' x 36": 91.5 in x 36 in (232 cm x 914 mm)
Only Trex Transcend and Select deck boards 6' x 42": 67.5 in x 42 in (171 cm x 106 cm) 8' x 42": 91.5 in x 42 in (232 cm x 106 cm)
can be used for cocktail rail application.
OR choose each component individually for a custom design (steps 3a, 3b, 4 & 5).
STEP COMPONENT DESCRIPTION ITEM NUMBER
3a Top Rail 6' Crown Top Rail XXCROWNTR06
8' Crown Top Rail XXCROWNTR08
Universal top rail is used for
cocktail rail applications.
6' Universal Top/Bottom Rail XXUNIVTBR06
8' Universal Top/Bottom Rail XXUNIVTBR08
3b Bottom Rail 6' Universal Top/Bottom Rail XXUNIVTBR06
8' Universal Top/Bottom Rail XXUNIVTBR08
[6' Rail: 67.5 in (171 cm) actual length; 8' Rail: 91.5 in (232 cm) actual length]
4 Balusters Square Composite Balusters for 36" Rail Height (16/pack) XX020230SBK
Square Composite Balusters for 42" Rail Height (16/pack) XX020236SBK
See chart below for number of balusters needed
to complete each railing section.
Round Aluminum Balusters for 36" Rail Height (20/pack) XXTA30RBK
Round Aluminum Balusters for 42" Rail Height (20/pack) XXTA36RBK
BALUSTER ORIENTATION 6' SECTION 8' SECTION
Square Horizontal 13 18
composite Dimensions above are nominals. See below for actuals and metrics.
Stair 11 15 6' Rail: 67.5 in (171 cm)
Horizontal 15 20 8'Rail: 91.5 in (232 cm)
Round Composite 36" Baluster: 1.418 in x 1.418 in x 30.375 in (36 mm x 36 mm x 771 mm)
aluminum Stair 12 16 Composite 42" Baluster: 1.418 in x 1.418 in x 36.375 in (36 mm x 36 mm x 923 mm)
Aluminum 36" Baluster: .75 in x 30.25 in (19 mm x 768 mm)
Aluminum 42" Baluster: .75 in x 36.25 in (19 mm x 920 mm)
Aluminum balusters are only available in BK, WT, BZ.
XX = COLOR PREFIX
Composite Colors Aluminum Colors
WT Classic White GP Gravel Path TH Tree House WT Classic White BK Charcoal Black
52 BK Charcoal Black RS Rope Swing VL Vintage Lantern BZ BronzeTrex Transcend® Railing
STEP COMPONENT DESCRIPTION ITEM NUMBER
5 Accessory Infill Kit 6' Accessory Infill Kit for Square Composite Balusters—Horizontal XXSQHIK06
(includes, baluster spacers, adjustable foot block and mounting hardware)
6' Accessory Infill Kit for Square Composite Balusters—Stair XXSQSIK06
8' Accessory Infill Kit for Square Composite Balusters—Horizontal XXSQHIK08
8' Accessory Infill Kit for Square Composite Balusters—Stair XXSQSIK08
6' Accessory Infill Kit for Round Aluminum Balusters—Horizontal XXRDHIK06
6' Accessory Infill Kit for Round Aluminum Balusters—Stair XXRDSIK06
8' Accessory Infill Kit for Round Aluminum Balusters—Horizontal XXRDHIK08
8' Accessory Infill Kit for Round Aluminum Balusters—Stair XXRDSIK08
6' Glass Panel Accessory Infill Kit XXGLIK06
Dimensions above are nominals. See below for actuals and metrics.
6': 67.5 in (171 cm)
8' : 91.5 in (232 cm)
DESCRIPTION ITEM NUMBER DESCRIPTION ITEM NUMBER
ACCESSORY
Mounting Hardware for Cut Rails—Horizontal XXHZACCYKIT
Mounting Hardware for Cut Rails—Stair XXSTACCYKIT
Transcend RSB Bracket Pack—Horizontal (24/box) TSHBRACKET
Trex Transcend Bracket Template Transcend RSB Bracket Pack—Stair (24/box) TSSBRACKET
Bracket Template—Horizontal TSCTEMP4X4SLEEVE
(36" and 42") - Composite Sleeve 0 Degree Rail Gasket Pack—Horizontal XX00HGASK
0 Degree Rail Gasket Pack—Stair XX00SGASK
22.5 Degree Gasket Pack XX22HGASK
45 Degree Birdsmouth Gasket Pack (for 4x4) XX45RSBADAPK
Foot Block XXFTBLKPC
45 Degree Gasket Pack (for 6x6) WT45HGASK
Trex Select® Railing Trex Select is a 3-step process. Choose Trex post sleeves, caps
and skirts (steps 1 & 2) and a rail kit (step 3).
STEP COMPONENT DESCRIPTION ITEM NUMBER
Rail & Round Aluminum 6' x 36" Rail & Baluster Kit—Horizontal WTRD0636HSELK
3 Baluster Kit
6' x 36" Rail & Baluster Kit—Stair WTRD0636SSELK
8' x 36" Rail & Baluster Kit—Horizontal WTRD0836HSELK
(includes top rail, bottom rail, round
aluminum balusters, adjustable foot
8' x 36" Rail & Baluster Kit—Stair WTRD0836SSELK
block and hardware pack) 6' x 42" Rail & Baluster Kit—Horizontal WTRD0642HSELK
8' x 42" Rail & Baluster Kit—Horizontal
Available in WT rails with WTRD0842HSELK
8' x 42" Rail & Baluster Kit—Stair
aluminum balusters in BK. WTRD0842SSELK
Dimensions above are nominals. See below for actuals and metrics.
6' x 36": 67.5 in x 36 in (171 cm x 914 mm)
6' x 42": 67.5 in x 42 in (171 cm x 106 cm)
8' x 36": 91.5 in x 36 in (232 cm x 914 mm)
8' x 42": 91.5 in x 42 in (232 cm x 106 cm)
ACCESSORY Mounting Hardware for Cut Rails—Horizontal (10 kits/box) BKENHZBKT
Mounting Hardware for Cut Rails—Stair (10 kits/box) BKENSTBKT
Trex Select 8' Aluminum Rail Stiffener SELALRAILSTIFFENER
XX = COLOR PREFIX
Composite Colors Aluminum Colors
WT Classic White GP Gravel Path TH Tree House WT Classic White BK Charcoal Black
BK Charcoal Black RS Rope Swing VL Vintage Lantern BZ Bronze 53Trex® Outdoor Lighting™
COMPONENT & DESCRIPTION ITEM NUMBER
Flat Post Cap Light BKSQLEDCAP4X4C
WTSQLEDCAP4X4C
» 4" x 4" LED Post Cap Light
[4.55 in x 4.55 in (115 mm x 115 mm) actual internal dimensions]
THSQLEDCAP4X4C
Use with Trex 4 in Composite Railing Posts VLSQLEDCAP4X4C
GPSQLEDCAP4X4C
» 5.5 ft (1.67 m) Male LightHub® Lead
RSSQLEDCAP4X4C
Aluminum Post Cap Light
» 2.5" x 2.5" LED Aluminum Post Cap Light BKALCAPLED25
[2.6 in x 2.6 in (66 mm x 66 mm) actual internal dimensions] BZALCAPLED25
Use with Trex 2.5 in Aluminum Railing Posts
WTALCAPLED25
» 5.5 ft (1.67 m) Male LightHub Lead
Aluminum Deck Rail Light
» LED Deck Rail Light BKLAMPLEDC
[2.75 in (69 mm) OD] BZLAMPLEDC
» 5.5 ft (1.67 m) Male LightHub Lead WTLAMPLEDC
Aluminum Wedge Deck Rail Light
» LED Wedge Deck Rail Light BKALPOSTLAMPLED
[1.875 in wide x 3 in high (47 mm x 76 mm) actual dimensions] BZALPOSTLAMPLED
Compatible with all Trex Railing Posts
WTALPOSTLAMPLED
» 5.5 ft (1.67 m) Male LightHub Lead
Aluminum Stair Riser Light
BKRISERLED4PKC
» 4 LED Riser Lights BZRISERLED4PKC
[1.25 in (31 mm) OD]
WTRISERLED4PKC
» 5.5 ft (1.67 m) Male LightHub Lead
Recessed Deck Light
» 4 LED Recessed Lights
RECESSLED4PKC
[1 in (25 mm) OD]
» 5.5 ft (1.67 m) Male LightHub Lead
ACCESSORIES
Transformer with Timer 8.3A, 100W: DIMMABLE 83DLTRANSFORMERCC
2.5A, 30W: 25DLTRANSFORMER
» Output Voltage: 12VDC
» Output Power: 100W or 30W
» Output Current: 8.3A or 2.5A
» Photo-Activated Timer
» 20 ft (6.09 m) LightHub Wire Extension Cable
DL5TFSPLIT1PK
Multi-zone Transformer Adapter
Dimmer
DLDIMMER
» Single Channel with Remote
Forstner Bit
DLBIT6PK
» Pack of 6
» 1 in (25 mm)
LightHub Accessories
» 3-Way Splitter DL3SPLIT6PK
» 6-Way Splitter DL6SPLIT4PK
» 5 ft (1.52 m) Wire Extension Cable DL5FTWR4PK
» 10 ft (3.04 m) Wire Extension Cable DL10FTWR4PK
» 20 ft (6.09 m) Wire Extension Cable
DL20FTWR4PK
» 40 ft (12.19 m) Wire Extension Cable
DL40FTWR2PK
» 60 ft (18.28 m) Wire Extension Cable
DL60FTWR1PK
» Female to Female Adapter
DLFADAP6PK
54Trex Aluminum ADA Compliant Handrail
COMPONENT ITEM NUMBER
1.375 in x 8 ft (34 mm x 243 cm) Hand Rail XXALADARAIL8
Wall Return 90° XXALADA90WR2G
Wall Mount XXALADAWMNT2G 3
Corner Mount XXALADAICORNER2G
Post Return ("Candy Cane") 4
XXALADA180CCANE
5° Elbow XXALADA05ELB
31° Elbow XXALADA31ELB
34° Elbow XXALADA34ELB 1
36° Elbow XXALADA36ELB
90° Inside/Outside Elbow 2
XXALADA90ELB2G
Adjustable ADA Elbow XXALADAADJELB 5
Straight 4 in (101 mm) Internal Connector XXALINTCONN
Inline Rail Termination Adapter XXALADAINLINE
Rail End Cap XXALADACAP
Aluminum Collar XXALADACLR
All Trex ADA handrail components are made of powder-coated aluminum. 1 36° Elbow 4 Wall Return 90°
For detailed installation instructions, visit trex.com/2021
2 Wall Mount 5 Hand Rail
3 Aluminum Collar
Trex Aluminum Gates
COMPONENT DESCRIPTION ITEM NUMBER
36" Rail Height, Square Balusters, Adjustable up to 48" wide opening XX36SQADJGATE
Gate Rail Kit 36" Rail Height, Round Balusters, Adjustable up to 48" wide opening XX36RDADJGATE
Available in all aluminum colors 42" Rail Height, Square Balusters, Adjustable up to 48" wide opening
(Charcoal Black, Bronze and Classic
XX42SQADJGATE
42" Rail Height, Round Balusters, Adjustable up to 48" wide opening
White). When ordering, refer to prefix
[Actual height 36" Rail: 36 in (914 mm); 42" Rail: 42 in (106 cm)
XX42RDADJGATE
codes at the bottom of this page.
Actual width is 47.5 in (120 cm) but can be cut to fit any width.]
Hardware Pack 2 Adjustable Self-Closing Hinges BKGATEHW
1 Locking Hasp With Keys
Hardware for attachment to wood post with
composite sleeve or aluminum posts
Trex Hideaway® Hidden Fastening System
COMPONENT DESCRIPTION ITEM NUMBER
Universal Fastener 50 sq. ft (4.6 sq. m) box UNIVCONCLIP
(glass-filled nylon) 500 sq. ft (46.5 sq. m) bucket DA00002
Universal Starter Clip 400 sq. ft (37 sq. m) bag UNIVSTARTCLIP
Router Bit Router Bit ROUTBIT
XX = COLOR PREFIX
WT Classic White BZ Bronze BK Charcoal Black 55TREX® LIMITED WARRANTY
Trex Company, Inc. (hereinafter “Trex”) warrants to the original purchaser which the Product was originally installed. With respect to a commercial
(“Purchaser”) that, for the period of time set forth in the following sentence, application, this warranty is freely transferable to subsequent buyers of the
under normal use and service conditions, Trex product (the “Product”) shall
®
property upon which the Product was originally installed.
be free from material defects in workmanship and materials, and shall not
To make a claim under this limited warranty, Purchaser, or the transferee,
split, splinter, rot or suffer structural damage from termites or fungal decay.
shall send to Trex, within the warranty period referred to above, a description
The term of such warranty shall be twenty-five (25) years from the date of
of the claimed defect and proof of purchase, to the following address:
original purchase for a residential application, and ten (10) years from the
date of original purchase for a commercial application. If a defect occurs Trex Company, Inc.
within the warranty period, Purchaser shall notify Trex in writing and, upon Customer Relations
confirmation by an authorized Trex representative of the defect, Trex’s sole 160 Exeter Drive
responsibility shall be, at its option, to either replace the defective Product or Winchester, VA 22603-8605
refund the portion of the purchase price paid by Purchaser for such defective
Trex does not warrant against and is not responsible for any condition
Product (not including the cost of its initial installation).
attributable to: (1) improper installation of Product and/or failure to abide
For purposes of this warranty, a “residential application” shall refer to an by Trex’s installation guidelines, including but not limited to improper
installation of the Product on an individual residence, and a “commercial gapping; (2) use of Product beyond normal use and service conditions, or
application” shall refer to any installation of the Product other than on an in an application not recommended by Trex’s guidelines and local building
individual residence. codes; (3) movement, distortion, collapse or settling of the ground or the
supporting structure on which Product is installed; (4) any act of God (such
Notwithstanding the foregoing, (a), the term of the warranty for the
as flooding, hurricane, earthquake, lightning, etc.), environmental condition
LED lights and housing for Trex DeckLightingTM shall be seven (7)
(such as air pollution, mold, mildew, etc.), staining from foreign substances
years, the term of the warranty for the LED lights and housing for Trex
(such as dirt, grease, oil, etc.), or normal weathering (defined as exposure to
LandscapeLightingTM shall be five (5) years, the term of the warranty
sunlight, weather and atmosphere which will cause any colored surface to
for the dimmer, timer and transformer for both shall be three (3)
gradually fade, chalk, or accumulate dirt or stains); (5) variations or changes
years, and the term of the warranty for the motion controller for both
in color of Product; (6) improper handling, storage, abuse or neglect of
shall be one (1) year, in each case provided that a Trex transformer is
Product by Purchaser, the transferee or third parties; or (7) ordinary wear
used (with no warranty on any components if a Trex transformer is
and tear.
not used), and any other parts or accessories shall not be warranted;
(b) with respect to hardware for the Trex Surroundings® gate (gate No person or entity is authorized by Trex to make and Trex shall not be
frame, hinges and screws), the term of the warranty shall be five (5) bound by any statement or representation as to the quality or performance
years, (c) with respect to Trex Decorative Balusters, the term of the of Product other than as contained in this warranty. This warranty may not
warranty covering the paint coating shall be ten (10) years, and shall be altered or amended except in a written instrument signed by Trex and
be prorated in the following manner: 100% replacement for the first Purchaser.
five (5) years; and 50% replacement for the next five (5) years, (d) the
TO THE FULLEST EXTENT PERMITTED UNDER THE LAW, UNDER
term of the warranty for Transcend Product used as outdoor cladding
NO CIRCUMSTANCES WILL TREX BE LIABLE FOR INCIDENTAL OR
shall be twenty-five (25) years for both a residential application and a
CONSEQUENTIAL DAMAGES, WHETHER SUCH DAMAGES ARE
commercial application, and (e) this warranty shall not apply to Trex
SOUGHT IN CONTRACT, IN TORT (INCLUDING BUT NOT LIMITED TO
Elevations® steel deck framing, Trex Signature® aluminum railing and
NEGLIGENCE AND STRICT LIABILITY) OR OTHERWISE, AND TREX’S
TrexTrimTM (which each have separate warranties).
LIABILITY FOR NON-PERSONAL INJURY CLAIMS WITH RESPECT
TO THE FULLEST EXTENT PERMITTED UNDER THE LAW, THIS TO DEFECTIVE PRODUCT SHALL IN NO EVENT EXCEED THE
WARRANTY SHALL NOT COVER AND TREX SHALL NOT BE REPLACEMENT OF SUCH PRODUCT OR REFUND OF THE PURCHASE
RESPONSIBLE FOR COSTS AND EXPENSES INCURRED WITH PRICE, AS DESCRIBED ABOVE.
RESPECT TO THE REMOVAL OF DEFECTIVE PRODUCT OR THE
Some States or Provinces do not allow the exclusion or limitation of incidental
INSTALLATION OF REPLACEMENT MATERIALS, INCLUDING BUT
or consequential damages, so the above limitation or exclusion may not
NOT LIMITED TO LABOR AND FREIGHT.
apply to you. This warranty gives you specific legal rights, and you may also
With respect to a residential application, this warranty may be transferred have other rights that vary from State to State or Province to Province.
one (1) time, within the five (5) year period beginning from the date of original
Copyright © 2019 Trex Company, Inc.
purchase by the Purchaser, to a subsequent buyer of the property upon
56You can also read
