WELCOME TO THE PREMIER GLASSWOOL, POLYESTER INSULATION ARCHITECTURAL & SPECIFICATION CATALOGUE www.premierinsulation.co.nz
WHY CHOOSE PREMIER? Premier Insulation Ltd has been providing a range of quality insulation products and services to the building industry since 1996. We are very familiar with all types of work having significant experience with commercial and residential as well as the government EECA healthy homes programmes. Premier Insulation has an extensive range of thermal and acoustic products to meet your requirements at cost effective pricing. Premier Glasswool and Premier Polyester products are sourced directly from local and overseas manufacturing plants. This allows Premier Insulation to be flexible in order to provide solutions to meet the clients requirements. It is our focus on service and customer satisfaction that differentiates Premier Insulation from its competitors. With our approved franchises and distributor network we can offer nationwide coverage for supply or a supply and install package. With the increasing density in commercial and residential developments we have seen a developing trend for high density acoustic insulation for quieter spaces which requires a solutions approach at a specification level, let our architectural and specifications team assist you in selecting the right product for the application. PREMIER GLASSWOOL PREMIER POLYESTER It’s manufactured from recycled glass Is made from a unique mix of premium which originally derived from natural quality polyester fibres (PET). mineral such as sand. Moisture resistant – should the product Glass Wool insulation is non-combustible get wet it will dry out and thermal which means even when exposed to a perfomance is restored. continuous flame, it wont catch fire. Non-toxic and odour less – low VOC’s. Grade Glass Wool insulation is bio-soluble Our polyester carries a warranty for and has been installed in homes worldwide for well over 50 years. It 50 years – as long as the insulation is has been independently researched as installed correctly and remais adequately being safe and BRANZ appraised for all protected, Premier Polyester carries a residential and commercial buildings. 50 year Installation and Product Warranty when installed by an accredited installer. PREMIER OFFER A WIDE RANGE OF INSULATION PRODUCTS – SOLUTIONS AND INSTALLATION IN WALLS AND CEILINGS IN RESIDENTIAL AND COMMERCIAL CONSTRUCTION 0800 467 855 w w w. p r e m i e r i n s u l a t i o n . c o . n z
CASE STUDIES NORTHWEST – WESTGATE Shopping Centre & Office Building ARCHITECTS Woodhams Meikle Zhan Architects BUILDER Fletcher Construction Company (Fletchers) THE ORANGE Multi-use Residential Building ARCHITECTS Crosson Clarke Carnachan Architects in association with Tonkin Zulaikha Greer Architects BUILDER Dominion Constructors THE GARDENS SCHOOL ARCHITECTS MOAA Architects BUILDER Arrow International AUCKLAND AIRPORT – AIAL – Phase Three ARCHITECTS Designed by American architects, Gensler, in partnership with New Zealand architects Jasmax BUILDER Fletcher Construction Company (Fletchers) 0800 467 855 w w w. p r e m i e r i n s u l a t i o n . c o . n z Premier Insulation 2018 Catalogue Case Studies.indd 1 1/10/18 12:12 PM
CASE STUDIES NUFFIELD RESIDENTIAL APARTMENTS ARCHITECTS Neville Price & Associates Ltd BUILDER Waide Construction LIFE CHURCH ARCHITECTS Stryde Construction BUILDER Stryde Construction BETHESDA VILLAGE ARCHITECTS Klein Architects BUILDER Watts & Hughes Construction RAMADA – SUITES ALBANY ARCHITECTS Safari Group BUILDER Safari Group 0800 467 855 w w w. p r e m i e r i n s u l a t i o n . c o . n z Premier Insulation 2018 Catalogue Case Studies.indd 2 1/10/18 12:12 PM
NORTHWEST – WESTGATE SHOPPING CENTRE & OFFICE BUILDING ARCHITECTS Woodhams Meikle Zhan Architects BUILDER Fletcher Construction Company (Fletchers) BACKGROUND This mixed-use office and retail development completes the Westgate Town Centre on Auckland’s northwestern fringe. The key challenge was providing a varied composition of forms and façades to break down the extensive massing of a long street frontage, while also integrating tenant fit-outs with existing landscaping and adjacent tenancies. The development is set out as a traditional strip extending along ‘Main Street,’ and punctuated with a public square that includes landscape design prepared by others on behalf of Auckland City Council. The buildings comprise a ground floor retail and first floor office units, with building fronts facing the street and footpath and canopies along the full frontage. CHALLENGES The ceiling sits twelve meters off the ground with the access restricted due to the platforms the install teams could safely work from at this height. Our Premier install partner (Goldtex) proved their worth when Glasswool was chosen for the ceiling with a foil face to provide both ascetics and a thermal layer. The foil was attached to the Glasswool offsite using a special adhesive, then transported to site for installation of the sizeable 8,000mtrs required. While K10 was originally in the specification, due to the size of the project and its required volumes coupled with the installation time frames K10 could only be used in part of the build. In stepped Premier Insulation with the help of local manufacturing to produce a custom polyester insulation product that fitted both the thermal and acoustic specification within the time frame. A total of 17,000mtrs polyester + 4,000mtrs of K10. SOLUTIONS CEILINGS GLASSWOOL with a foil face R1.8 90mm BIB WALLS POLYESTER Custom product R2.0 75mm Panels 0800 467 855 w w w. p r e m i e r i n s u l a t i o n . c o . n z Premier Insulation 2018 Catalogue Case Studies Information.indd 1 2/10/18 8:12 AM

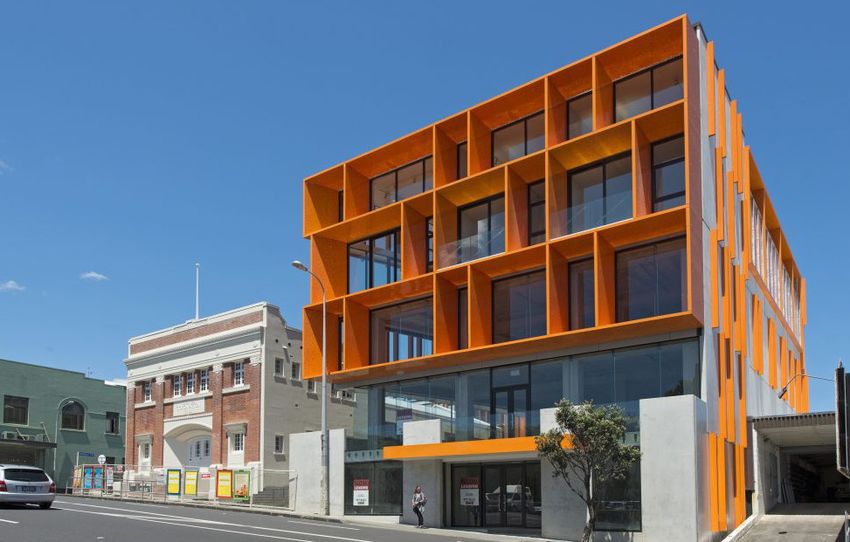

THE ORANGE MULTI-USE RESIDENTIAL BUILDING ARCHITECTS Crosson Clarke Carnachan Architects in association with Tonkin Zulaikha Greer Architects BUILDER Dominion Constructors BACKGROUND The Orange, a multi-level, historic events and entertainment centre, situated at 147 Newton Road, Eden Terrace. The iconic building was once the city’s number one party spot and was immortalised in the 1958 Peter Cape song Down the Hall on Saturday Night. In its heyday in the 1940’s, the dance hall was packed, with queues stretching down Newton Road. An elegant and historical reprieve from the hustle and bustle of the city, The Orange is just minutes from the CBD. With two event spaces that can be combined and configured to your needs, there’s no end to the possibilities for this exciting building. CHALLENGES Being an old building meant that a number of the walls weren’t what we would call, STRAIGHT. In saying that this piece of history screamed out for an upgrade and both the architects and construction company didn’t fall short winning the Top Heritage Award at the 2016 Auckland Architecture Awards. Premier Glasswool was used for the ceilings with limited space, R-Value was required and the Premier Glasswool was the solution with its high density and thermal ratings. Premier Novatherm Polyester was to be introduced to the masonry to provide the additional assistance to the old block wall, and new ones for that matter. In total around 5,500 mtrs of Premier Glasswool and Polyester was successfully installed. SOLUTIONS CEILINGS Premier Glasswool WALLS Premier Polyester 0800 467 855 w w w. p r e m i e r i n s u l a t i o n . c o . n z Premier Insulation 2018 Catalogue Case Studies Information.indd 2 2/10/18 8:12 AM

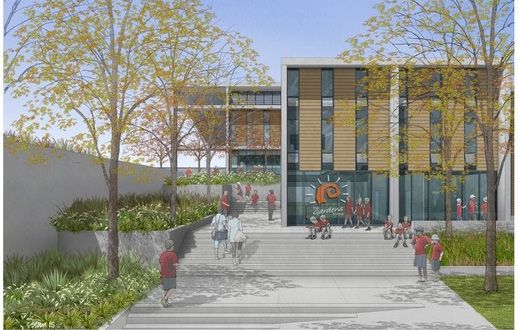

THE GARDENS SCHOOL ARCHITECTS MOAA Architects BUILDER Arrow International BACKGROUND The original school buildings have undergone demolition and rebuild due to mostly leaky building syndrome. The demolition of the original school occurred in August 2015 and the rebuild on the amazing new school commenced in June 2016 and the kids moved in just before Christmas 2017. In early 2018 the final stage will be completed, which includes the demolition of the Poutama building (which is also affected by weather-tightness issues), the removal of all the temporary classrooms currently on the school field and the reinstatement of playgrounds. CHALLENGES Steel beams requiring polystyrene to reduce the thermal breaks, additionally due to the school requiring a high acoustic performance special attention was paid to the wall and baffle barriers. Being involved from concept to completion reduces the risk of under stating the role insulation has to play in the buildings value to its clients. SOLUTIONS CEILINGS R3.6 High Density and R2.9 over the top for the thermal break WALLS R2.6 Glasswool due to the high Acoustic values required 0800 467 855 w w w. p r e m i e r i n s u l a t i o n . c o . n z Premier Insulation 2018 Catalogue Case Studies Information.indd 3 2/10/18 8:12 AM
AUCKLAND AIRPORT – AIAL – PHASE THREE ARCHITECTS Designed by American architects, Gensler, in partnership with New Zealand architects Jasmax BUILDER Fletcher Construction Company (Fletchers) BACKGROUND Design of the new international departure area at Auckland airport. The new area is designed to be intuitive and user-friendly to provide a better passenger experience. The design incorporates a whole new range of seating zones, a kids play zone, natural light and airfield views. The expanded area will comprise a reconfigured landside farewell area, a new passenger lounge, retail hub and an expanded security screening and processing area. The landside farewell area will be reconfigured with dedicated space for departing passengers. An expanded security screening and processing area will be equipped with the latest technology with support from the government’s border agencies. The expansion will reduce the passenger processing time and increase efficiency of the processing area. CHALLENGES The substantial security required for such a high profile site, coupled with the fluid build meant a lot of reinstatement was required partly due to the high number of penetrations and large numbers of contractors on site. Health & Safety was at another level to that of most commercial sites with spotters required for height related access installations of which there was plenty. With the fluidness of the project and due to nature of the project our commercial install arm, Goldtex found that they had to revisit completed stages to reinstate insulation due to other services having not completed changes to the original build program or additional alterations that were required. SOLUTIONS CEILINGS R3.4 Polyester with Intello wrap as a breathable vapour membrane with mesh support WALLS R2.2 Polyester Insulation 0800 467 855 w w w. p r e m i e r i n s u l a t i o n . c o . n z Premier Insulation 2018 Catalogue Case Studies Information.indd 4 2/10/18 8:12 AM
NUFFIELD – RESIDENTIAL APARTMENTS ARCHITECTS Neville Price & Associates Ltd BUILDER Waide Construction BACKGROUND Boutique development of 16 upmarket, double Grammar-zoned apartments designed by architect Neville Price. Architect Neville Price is known for the sculptural quality of his body of work, which has spanned 50 years and includes substantial work in both California and New Zealand. “This building will have attributes often not associated with apartment living, such as individuality, landscaping, privacy and a big focus on indoor-outdoor living”. “It will have a particularly sculptured building form created by large, extended balconies and tree planters, softened by trees and landscaping”, says Neville Price. CHALLENGES Like any multi-story complex being built in Auckland City, space and access is always a premium. With eleven levels and a very tight specification it left little room for our team to increase the acoustics or thermal R-Value. This project has fitted the clients brief. SOLUTIONS CEILINGS R3.2 Glasswool – Thermal Range WALLS R2.2 Glasswool – Thermal and Acoustic Range 0800 467 855 w w w. p r e m i e r i n s u l a t i o n . c o . n z Premier Insulation 2018 Catalogue Case Studies Information.indd 5 2/10/18 8:12 AM
LIFE CHURCH – CHURCH COMPLEX ARCHITECTS Stryde Construction BUILDER Stryde Construction BACKGROUND At their new home in Mt Eden, The Life Church helps Aucklanders by providing a positive environment where they can build great relationships, grow personally and have a positive impact in the wider community. The main auditorium is around 16 meters in height and constructed mainly out of steel. - 1750 seat auditorium with tiered seating - 300 seat conference room - Indoor multi-purpose room with the potential for use as an indoor basketball court - Kitchen and café with ability to operate as a commercial kitchen or café - Foyer spaces - Multiple new toilet blocks - On site car parks - Purpose built children and youth areas - The project is to be completed by December 2018 CHALLENGES The design changed five times within two weeks of being on site, with the client requiring high level acoustic supported by a thermal wrap. Thus helping to ensure noise levels are kept to a minimum while keeping everyone comfortable at the same time. SOLUTIONS CEILINGS R2.6 Premier Thermal & Acoustic Glasswool – supporting the “durra” panel system WALLS R2.2 Premier Polyester – Thermal and Acoustic Range MASONRY Polyester – 35/75 Acoustic ACOUSTIC WALLS Polyester - 48/100 Acoustic Walls AND SERVICES (Polyester R2.9 Acoustic Gutters) 0800 467 855 w w w. p r e m i e r i n s u l a t i o n . c o . n z Premier Insulation 2018 Catalogue Case Studies Information.indd 6 2/10/18 8:12 AM
BETHESDA VILLAGE – RETIREMENT VILLAGE ARCHITECTS Klein Architects BUILDER Watts & Hughes Construction BACKGROUND Independent living at Bethesda Village has a number of Independent Villas, however the new addition to the family is the three-story complex under construction and due to finish towards the middle of 2018. The Bethesda Village complex with its modern décor and close proximity with easy walking distance to Westfield Manukau’s Shopping Centre where you will find supermarkets, Farmers and many other handy stores. Manukau City is a transport hub for all major bus and train services in Auckland. CHALLENGES Delayed starts meant the pressure was on from start to finish, the budget was challenging. This involved a review to specification, in order to find a solution that met the insulation requirements and the budget. Premier’s R3.3 Glasswool in the ceiling provided a step above the market standard of R3.2, supporting this was the Premier R2.2 Thermal and Acoustic range to assist the noise levels throughout the building. SOLUTIONS CEILINGS R3.3 Premier Glasswool – Thermal Range WALLS R2.2 Premier Glasswool – Thermal and Acoustic Range MASONRY R1.3 Premier Glasswool – Masonry Range MID FLOOR R1.8 Premier Glasswool – Thermal Range 0800 467 855 w w w. p r e m i e r i n s u l a t i o n . c o . n z Premier Insulation 2018 Catalogue Case Studies Information.indd 7 2/10/18 8:12 AM
RAMADA – SUITES ALBANY ARCHITECTS Safari Group BUILDER Safari Group BACKGROUND Newly opened in April 2017, Ramada Suites Albany offers stylish accommodation neighbouring some of Auckland’s key attractions including Westfield Albany, QBE North Harbour Stadium and Massey University. It offers a mix of studio, one and two-bedroom short stay apartments as well as residential apartments and car parking. All rooms are self-contained and feature cooking and laundry facilities. An on-site cafe, The Coffee Club, gym and other restaurants and retail stores are conveniently located. CHALLENGES Due to the nature of the building, acoustics played a big part in the design with Premiers architectural and specifications team, being involved in the design and specification of the insulation from the start. This multi-story complex with a mixture of light commercial and residential build incurred very little issues. Being involved from concept to completion reduces the risk of under stating the role insulation has to play in the buildings value to its clients. SOLUTIONS CEILINGS R3.3 Premier Glasswool – Thermal Range WALLS R2.4 Premier Glasswool – Thermal and Acoustic Range 0800 467 855 w w w. p r e m i e r i n s u l a t i o n . c o . n z Premier Insulation 2018 Catalogue Case Studies Information.indd 8 2/10/18 8:12 AM
GLASSWOOL
GLASSWOOL INSULATION CEILING & SEGMENTS Premier Glasswool Ceiling Insulation is a resin bonded spun fibrous thermal insulating material made from up to 80 per cent recycled glass for use in framed walls to reduce sound transmission. Premier Insulation is available in blanket form and segments, is lightweight, soft to touch and is cost effective saving you energy and meets the requirements of the New Zealand Building Code NZBC HI. FEATURES AND BENEFITS Manufactured using up to 80% recycled glass and meets NZBC requirements Easy to cut and install using a standard knife, soft to touch and flexible GLASSWOOL INSULATION Non-combustible – will not burn in the event of a fire Vermin resistant CEILING & SEGMENTS Will create a healthier building environment 100% bio-soluble posing no risk to health Will not settle over time Thickness PRODUCT R-VALUE Size (mm) (mm) M2 Appraisal No.509 [2014] Premier Glasswool Ceiling Blanket R2.7 1200 x 10m 120mm 12.0 Premier Glasswool Ceiling Blanket R2.9 1200 x 10m 125mm 12.0 Premier Glasswool Ceiling Blanket R3.3 1200 x 8.5m 145mm 10.2 Premier Glasswool Ceiling Blanket R3.6 1200 x 8m 155mm 9.6 Premier Glasswool Ceiling Blanket R4.0 1200 x 7m 175mm 8.4 Premier Glasswool Ceiling Segments R3.6 1200 x 430mm 175mm 9.3 Premier Glasswool Ceiling Segments R3.6 1200 x 580mm 175mm 12.5 Premier Glasswool Ceiling Segments R4.0 1200 x 430mm 195mm 7.7 Premier Glasswool Ceiling Segments R4.0 1200 x 580mm 195mm 10.4 Premier Glasswool Ceiling Segments R5.0 1200 x 430mm 210mm 5.2 Premier Glasswool Insulation has been appraised by BRANZ a thermal insulating material for framed or part framed walls in domestic and commercial buildings and when installed correctly will perform for 50 years. It is estimated that 35 per cent of heat loss is through the roof Premier Glasswool ceiling insulation will reduce heat loss and is to fit into standard and non-standard ceiling construction. When installing insulation it is important to make sure you friction fit our products so heat cannot escape, use any off cuts to fill any gaps and holes. When installed in accordance with the manufacturers instructions it will satisfy the 50 year durability clause NZBC B2.3.1 (a). Premier Insulation is an acceptable solution for reducing noise in terms of the New Zealand Building Code compliance. Premier Insulation thermal resistance (R-Values) has been determined by testing to AS/NZS 4859.1 which is an acceptable method so can be specified with confidence. ENVIRONMENTAL CHOICE Initiated and endorsed by the New Zealand Government, Environmental Choice recognises the genuine moves made by manufacturers to reduce the environmental impacts of their products. Further information regarding acoustic testing, BRANZ appraisals material safety data – refer MDS section of catalogue. 2517147 projects@premierinsulation.co.nz Premier offers a full installation service nationwide 0800 467 855 w w w. p r e m i e r i n s u l a t i o n . c o . n z Premier Insulation 2018 Catalogue Data Sheet Glass Wool Insulation Ceiling & Segments.indd 1 1/10/18 12:04 PM
PREMIER GLASSWOOL FIRE RATING PROPERTIES RESULT TEST RESULTS Combustibility Non-Combustible Flammability Non-Flammable NA/AS 1530.3 Ignitability (Range 0-20) =0 Spread of Flame Index (Range 0-10) =0 Heat Evolved Index (Range 0-10) =0 Smoke Developed Index (Range 0-10) =1 Corrosion Resistance N/A Moisture Resistance N/A Maximum Service Temperature 350°C PRODUCT 1.1 Premier Glasswool Insulation is a resin bonded fibrous glass wool thermal insulating material for use in framed walls, ceilings and roofs of buildings. Premier Insulation is available in blanket and segment form. SCOPE 2.1 Premier Glasswool has been developed to comply with the New Zealand Building Codes for thermal and acoustic applications in commercial and residential construction. BUILDING REGULATIONS NEW ZEALAND BUILDING CODE (NZBC) 3.1 In the opinion of BRANZ, Premier Insulation, is designed, used, installed and maintained in accordance with the statements and conditions of its appraisal, will meet or contribute to meeting the following provisions of the NZBC. Appraisal No. 509 (2014). CLAUSE B2 DURABILITY Performance B2.3.1 (a) not less than 50 years and B2.3.1 (b) 15 years. Premier Insulation will meet this requirement. See Paragraph 8.1. CLAUSE E3 INTERNAL MOISTURE Performance E3.3.1 Premier Insulation will contribute to meeting this requirement. See Paragraphs 13.1 and 13.2. CLAUSE F2 HAZARDOUS BUILDING MATERIALS Performance E2.3.1 Premier Insulation meets this requirement and will not present a health hazard to people. CLAUSE HI ENERGY EFFICIENCY Performance HI3.1 (a) and HI3.2 E Premier Insulation will continue to meeting these requirements. See Paragraphs 19.1 and 19.2. 3.2 This is an appraisal of an acceptable solution in terms of New Zealand Building Code compliance. Premier Insulation thermal resistance (R-value) has been determined by testing to AS/NZS 9859.1 which is an acceptable method. PREMIER INSULATION Appraisal No. 509 (2014) This appraisal replaces BRANZ Appraisal No. 509 (2013) Amended 29 March 2016 PREMIER INSULATION LIMITED BRANZ Appraisals projects@premierinsulation.co.nz Technical assessments of products for building and construction www.premierinsulation.co.nz Premier Insulation 2018 Catalogue Data Sheet Back Print Glass Wool with Fire Rating.indd 1 5/10/18 5:46 AM
GLASSWOOL INSULATION SKILLION ROOF / RAKE SEGMENTS Premier Glasswool Wall Insulation is a resin bonded spun fibrous thermal insulating material made from up to 80% recycled glass for use in framed walls. Premier Insulation is available in blanket form and segments, are lightweight, soft to touch and cost effective saving you energy and meets the requirements of the New Zealand Building Codes. FEATURES AND BENEFITS SKILLION ROOF / RAKE SEGMENTS GLASSWOOL INSULATION Manufactured using up to 80% recycled glass and meets NZBC requirements Easy to cut and install using a standard knife, soft to touch and flexible Non-combustible – will not burn in the event of a fire Vermin resistant Will create a healthier building environment 100% bio-soluble posing no risk to health Will not settle over time Thickness PRODUCT R-VALUE Size (mm) (mm) M2 Appraisal No.509 [2014] Premier Glasswool Ceiling Segments R3.2 1200 x 430mm 115mm 5.7 Premier Glasswool Ceiling Blanket R3.6 1200 x 1.2m 140mm 7.8 Premier Glasswool Ceiling Segments R4.0 1200 x 580mm 140mm 5.6 Premier Glasswool Insulation has been appraised by BRANZ as a thermal insulating material for framed or part framed walls in domestic and commercial buildings. Appraisal No. 590 (2014). Premier Insulation Skillion Glasswool Blanket and Segments have been manufactured to fit skillion ceilings with limited or no ceiling access in accordance with NZBC H1 E and G6 Acoustics. It is recommended to leave a 25mm air gap between the building underlay and the insulation. The insulation can only be installed as the roof is being constructed so the only way to reinsulate is by uplifting the roofing membrane. When installing insulation it is important to make sure you friction fit our products so heat cannot escape, use any offcuts to fill any caps and holes. ENVIRONMENTAL CHOICE Initiated and endorsed by the New Zealand Government, Environmental Choice recognises the genuine moves made by manufacturers to reduce the environmental impacts of their products. Further information regarding acoustic testing, BRANZ appraisals material safety data – refer MDS section of catalogue. 2517147 projects@premierinsulation.co.nz Premier offers a full installation service nationwide 0800 467 855 w w w. p r e m i e r i n s u l a t i o n . c o . n z Premier Insulation 2018 Catalogue Data Sheet Glass Wool Insulation Skillion Segments.indd 1 1/10/18 12:05 PM
PREMIER GLASSWOOL FIRE RATING PROPERTIES RESULT TEST RESULTS Combustibility Non-Combustible Flammability Non-Flammable NA/AS 1530.3 Ignitability (Range 0-20) =0 Spread of Flame Index (Range 0-10) =0 Heat Evolved Index (Range 0-10) =0 Smoke Developed Index (Range 0-10) =1 Corrosion Resistance N/A Moisture Resistance N/A Maximum Service Temperature 350°C PRODUCT 1.1 Premier Glasswool Insulation is a resin bonded fibrous glass wool thermal insulating material for use in framed walls, ceilings and roofs of buildings. Premier Insulation is available in blanket and segment form. SCOPE 2.1 Premier Glasswool has been developed to comply with the New Zealand Building Codes for thermal and acoustic applications in commercial and residential construction. BUILDING REGULATIONS NEW ZEALAND BUILDING CODE (NZBC) 3.1 In the opinion of BRANZ, Premier Insulation, is designed, used, installed and maintained in accordance with the statements and conditions of its appraisal, will meet or contribute to meeting the following provisions of the NZBC. Appraisal No. 509 (2014). CLAUSE B2 DURABILITY Performance B2.3.1 (a) not less than 50 years and B2.3.1 (b) 15 years. Premier Insulation will meet this requirement. See Paragraph 8.1. CLAUSE E3 INTERNAL MOISTURE Performance E3.3.1 Premier Insulation will contribute to meeting this requirement. See Paragraphs 13.1 and 13.2. CLAUSE F2 HAZARDOUS BUILDING MATERIALS Performance E2.3.1 Premier Insulation meets this requirement and will not present a health hazard to people. CLAUSE HI ENERGY EFFICIENCY Performance HI3.1 (a) and HI3.2 E Premier Insulation will continue to meeting these requirements. See Paragraphs 19.1 and 19.2. 3.2 This is an appraisal of an acceptable solution in terms of New Zealand Building Code compliance. Premier Insulation thermal resistance (R-value) has been determined by testing to AS/NZS 9859.1 which is an acceptable method. PREMIER INSULATION Appraisal No. 509 (2014) This appraisal replaces BRANZ Appraisal No. 509 (2013) Amended 29 March 2016 PREMIER INSULATION LIMITED BRANZ Appraisals projects@premierinsulation.co.nz Technical assessments of products for building and construction www.premierinsulation.co.nz Premier Insulation 2018 Catalogue Data Sheet Back Print Glass Wool with Fire Rating.indd 1 5/10/18 5:46 AM
GLASSWOOL INSULATION WALL BLANKET Premier Glasswool Acoustic Insulation is a resin bonded spun fibrous thermal insulating material made from up to 80 per cent recycled glass for use in framed walls in domestic and commercial. Premier Insulation is available in blanket form and segments, is lightweight, soft to touch and is cost effective saving you energy and meets the requirements of the New Zealand Building Code NZBC HI. FEATURES AND BENEFITS Manufactured using up to 80% recycled glass and meets NZBC requirements GLASSWOOL INSULATION Easy to cut and install using a standard knife, soft to touch and flexible Non-combustible – will not burn in the event of a fire Vermin resistant Will create a healthier building environment WALL BLANKET 100% bio-soluble posing no risk to health Will not settle over time Thickness PRODUCT R-VALUE Size (mm) (mm) M2 Appraisal No.509 [2014] Premier Glasswool Wall Blanket R1.8 1200 x 15m 75mm 18.0 Premier Glasswool Wall Blanket R2.2 1200 x 13m 90mm 15.6 Premier Glasswool Wall Blanket R2.4 1200 x 10m 90mm 12.0 Premier Glasswool Wall Blanket R2.6 1200 x 7m 90mm 8.4 Premier Glasswool Wall Blanket R2.8 1200 x 5m 90mm 6.0 Premier Glasswool Wall Segments R2.6 1200 x 580mm 90mm 9.7 Premier Glasswool Wall Segments R2.8 1200 x 580mm 90mm 7.0 Premier Glasswool Insulation has been appraised by BRANZ a thermal insulating material for framed or part framed walls in domestic and commercial building and when installed correctly will perform for 50 years. You only get one chance to insulate your walls and that’s when you build a new home or renovate, 25% of heat is lost through uninsulated walls. Don’t just insulate external walls, include walls between bedrooms, bathrooms and kitchens as our product range will not only perform thermally but also reduce unwanted sound. When installing insulation it is important to make sure you friction fit our products so heat cannot escape, use any offcuts to fill any caps and holes. When installed in accordance with the manufacturers instructions it will satisfy the 50 year durability clause NZBC B2.3.1 (a). Premier Insulation is an acceptable solution in terms of the New Zealand Building Code compliance. Premier Insulation thermal resistance (R-Values) has been determined by testing to AS/NZS 4859.1 which is an acceptable method so can be specified with confidence. ENVIRONMENTAL CHOICE Initiated and endorsed by the New Zealand Government, Environmental Choice recognises the genuine moves made by manufacturers to reduce the environmental impacts of their products. Further information regarding acoustic testing, BRANZ appraisals material safety data – refer MDS section of catalogue. 2517147 projects@premierinsulation.co.nz Premier offers a full installation service nationwide 0800 467 855 w w w. p r e m i e r i n s u l a t i o n . c o . n z
PREMIER GLASSWOOL FIRE RATING PROPERTIES RESULT TEST RESULTS Combustibility Non-Combustible Flammability Non-Flammable NA/AS 1530.3 Ignitability (Range 0-20) =0 Spread of Flame Index (Range 0-10) =0 Heat Evolved Index (Range 0-10) =0 Smoke Developed Index (Range 0-10) =1 Corrosion Resistance N/A Moisture Resistance N/A Maximum Service Temperature 350°C PRODUCT 1.1 Premier Glasswool Insulation is a resin bonded fibrous glass wool thermal insulating material for use in framed walls, ceilings and roofs of buildings. Premier Insulation is available in blanket and segment form. SCOPE 2.1 Premier Glasswool has been developed to comply with the New Zealand Building Codes for thermal and acoustic applications in commercial and residential construction. BUILDING REGULATIONS NEW ZEALAND BUILDING CODE (NZBC) 3.1 In the opinion of BRANZ, Premier Insulation, is designed, used, installed and maintained in accordance with the statements and conditions of its appraisal, will meet or contribute to meeting the following provisions of the NZBC. Appraisal No. 509 (2014). CLAUSE B2 DURABILITY Performance B2.3.1 (a) not less than 50 years and B2.3.1 (b) 15 years. Premier Insulation will meet this requirement. See Paragraph 8.1. CLAUSE E3 INTERNAL MOISTURE Performance E3.3.1 Premier Insulation will contribute to meeting this requirement. See Paragraphs 13.1 and 13.2. CLAUSE F2 HAZARDOUS BUILDING MATERIALS Performance E2.3.1 Premier Insulation meets this requirement and will not present a health hazard to people. CLAUSE HI ENERGY EFFICIENCY Performance HI3.1 (a) and HI3.2 E Premier Insulation will continue to meeting these requirements. See Paragraphs 19.1 and 19.2. 3.2 This is an appraisal of an acceptable solution in terms of New Zealand Building Code compliance. Premier Insulation thermal resistance (R-value) has been determined by testing to AS/NZS 9859.1 which is an acceptable method. PREMIER INSULATION Appraisal No. 509 (2014) This appraisal replaces BRANZ Appraisal No. 509 (2013) Amended 29 March 2016 PREMIER INSULATION LIMITED BRANZ Appraisals projects@premierinsulation.co.nz Technical assessments of products for building and construction www.premierinsulation.co.nz Premier Insulation 2018 Catalogue Data Sheet Back Print Glass Wool with Fire Rating.indd 1 5/10/18 5:46 AM
GLASSWOOL INSULATION MASONRY BLANKET Premier Glasswool Wall Insulation is a resin bonded spun fibrous thermal insulating material made from up to 80% recycled glass for use in framed walls. Premier Insulation is available in blanket form and segments, are lightweight, soft to touch and cost effective saving you energy and meets the requirements of the New Zealand Building Code NZBC H1. FEATURES AND BENEFITS GLASSWOOL INSULATION anufactured using up to 80% recycled glass and meets NZBC requirements M Easy to cut and install using a standard knife, soft to touch and flexible MASONRY BLANKET Non-combustible – will not burn in the event of a fire Vermin resistant Will create a healthier building environment 100% bio-soluble posing no risk to health Will not settle over time Thickness PRODUCT R-VALUE Size (mm) (mm) M2 Appraisal No.509 [2014] Premier Glasswool Masonry Blanket R1.0 1200 x 30m 40mm 36.0 Premier Glasswool Masonry Blanket R1.3 1200 x 15m 50mm 18.0 Premier Glasswool Insulation has been appraised by BRANZ a thermal insulating material for framed or part framed walls in domestic and commercial buildings. Appraisal No. 590 (2014). Premier Glasswool Masonry Blanket is designed to fit between strapping of masonry walls. When installing insulation it is important to make sure you friction fit our products so heat cannot escape, use any offcuts to fill any caps and holes. When installed in accordance with the manufacturers instructions it will satisfy the 50 year durability clause NZBC B2.3.1 (a). Premier Insulation is an acceptable solution in terms of the New Zealand Building Code compliance. Premier Insulation thermal resistance (R-Values) has been determined by testing to AS/NZS 4859.1 which is an acceptable method so can be specified with confidence. ENVIRONMENTAL CHOICE Initiated and endorsed by the New Zealand Government, Environmental Choice recognises the genuine moves made by manufacturers to reduce the environmental impacts of their products. Further information regarding acoustic testing, BRANZ appraisals material safety data – refer MDS section of catalogue. 2517147 projects@premierinsulation.co.nz Premier offers a full installation service nationwide 0800 467 855 w w w. p r e m i e r i n s u l a t i o n . c o . n z Premier Insulation 2018 Catalogue Data Sheet Glass Wool Masonry Blanket.indd 1 1/10/18 12:06 PM
PREMIER GLASSWOOL FIRE RATING PROPERTIES RESULT TEST RESULTS Combustibility Non-Combustible Flammability Non-Flammable NA/AS 1530.3 Ignitability (Range 0-20) =0 Spread of Flame Index (Range 0-10) =0 Heat Evolved Index (Range 0-10) =0 Smoke Developed Index (Range 0-10) =1 Corrosion Resistance N/A Moisture Resistance N/A Maximum Service Temperature 350°C PRODUCT 1.1 Premier Glasswool Insulation is a resin bonded fibrous glass wool thermal insulating material for use in framed walls, ceilings and roofs of buildings. Premier Insulation is available in blanket and segment form. SCOPE 2.1 Premier Glasswool has been developed to comply with the New Zealand Building Codes for thermal and acoustic applications in commercial and residential construction. BUILDING REGULATIONS NEW ZEALAND BUILDING CODE (NZBC) 3.1 In the opinion of BRANZ, Premier Insulation, is designed, used, installed and maintained in accordance with the statements and conditions of its appraisal, will meet or contribute to meeting the following provisions of the NZBC. Appraisal No. 509 (2014). CLAUSE B2 DURABILITY Performance B2.3.1 (a) not less than 50 years and B2.3.1 (b) 15 years. Premier Insulation will meet this requirement. See Paragraph 8.1. CLAUSE E3 INTERNAL MOISTURE Performance E3.3.1 Premier Insulation will contribute to meeting this requirement. See Paragraphs 13.1 and 13.2. CLAUSE F2 HAZARDOUS BUILDING MATERIALS Performance E2.3.1 Premier Insulation meets this requirement and will not present a health hazard to people. CLAUSE HI ENERGY EFFICIENCY Performance HI3.1 (a) and HI3.2 E Premier Insulation will continue to meeting these requirements. See Paragraphs 19.1 and 19.2. 3.2 This is an appraisal of an acceptable solution in terms of New Zealand Building Code compliance. Premier Insulation thermal resistance (R-value) has been determined by testing to AS/NZS 9859.1 which is an acceptable method. PREMIER INSULATION Appraisal No. 509 (2014) This appraisal replaces BRANZ Appraisal No. 509 (2013) Amended 29 March 2016 PREMIER INSULATION LIMITED BRANZ Appraisals projects@premierinsulation.co.nz Technical assessments of products for building and construction www.premierinsulation.co.nz Premier Insulation 2018 Catalogue Data Sheet Back Print Glass Wool with Fire Rating.indd 1 5/10/18 5:46 AM
POLYESTER
POLYESTER INSULATION CEILING BLANKET Premier Polyester is proud to be 100% NZ made from lofted thermally bonded polyester fibres. The polyester is bonded using a low melt polyester providing excellent loft and durability. The Premier Polyester is available in both blanket and segment form, additionally made to order in various widths or R-Values depending on the clients requirements of the New Zealand Building Code. FEATURES AND BENEFITS Manufactured using 100% polyester fibre made from plastic bottles Will not cause irritation, soft to touch and can be torn across the width Will create a healthier building environment and wont slump over time Vermin resistant Non-combustible and does not absorb moisture Will absorb noise to create a quieter environment 50 year durability warranty Thickness PRODUCT R-VALUE Size (mm) (mm) M2 Appraisal No.620 [2008] Premier Polyester Ceiling Blanket R1.8 870 x 11495 115mm 20.0 POLYESTER INSULATION Premier Polyester Ceiling Blanket R2.9 870 x 8620 185mm 15.0 Premier Polyester Ceiling Blanket R3.2 870 x 8620 200mm 15.0 CEILING BLANKET Premier Polyester Ceiling Blanket R3.6 870 x 7470 225mm 13.0 Premier Polyester Ceiling Blanket R4.0 870 x 5750 240mm 10.0 Premier Insulation has been appraised by BRANZ a thermal insulating material for framed or part framed walls in domestic and commercial buildings and when installed correctly will perform for 50 years. It is estimated that 35 per cent of heat loss is through the roof Premier ceiling insulation will reduce heat loss and is to fit into standard and non-standard ceiling construction. When installing insulation it is important to make sure you friction fit our products so heat cannot escape, use any off cuts to fill any gaps and holes. When installed in accordance with the manufacturers instructions it will satisfy the 50 year durability clause NZBC B2.3.1 (a). Premier Insulation is an acceptable solution for reducing noise in terms of the New Zealand Building Code compliance. Premier Insulation thermal resistance (R-Values) has been determined by testing to AS/NZS 4859.1 which is an acceptable method so can be specified with confidence. ENVIRONMENTAL CHOICE Initiated and endorsed by the New Zealand Government, Environmental Choice recognises the genuine moves made by manufacturers to reduce the environmental impacts of their products. Further information regarding acoustic testing, BRANZ appraisals material safety data – refer MDS section of catalogue. 2517147 projects@premierinsulation.co.nz Premier offers a full installation service nationwide 0800 467 855 w w w. p r e m i e r i n s u l a t i o n . c o . n z Premier Insulation 2018 Catalogue Data Sheet Polyester Insulation Ceiling Blanket.indd 1 1/10/18 12:07 PM
PREMIER POLYESTER FIRE RATING PROPERTIES RESULT TEST RESULTS Combustibility Non-Combustible Flammability Non-Flammable NA/AS 1530.3 Ignitability (Range 0-20) =0 Spread of Flame Index (Range 0-10) =0 Heat Evolved Index (Range 0-10) =0 Smoke Developed Index (Range 0-10) =3 Corrosion Resistance N/A Moisture Resistance N/A Maximum Service Temperature 350°C PRODUCT 1.1 Premier Polyester Insulation is manufactured using 100% recycled polyester fibres as a thermal and acoustic insulating material for use in framed walls, ceilings, underfloors and roofs. SCOPE 2.1 Premier Polyester has been developed to comply with the New Zealand Building Codes for thermal and acoustic applications in commercial and residential construction. BUILDING REGULATIONS NEW ZEALAND BUILDING CODE (NZBC) 3.1 In the opinion of BRANZ, Premier Insulation, is designed, used, installed and maintained in accordance with the statements and conditions of its appraisal, will meet or contribute to meeting the following provisions of the NZBC. CLAUSE B2 DURABILITY Performance B2.3.1 (a) not less than 50 years and B2.3.1 (b) 15 years. Premier Insulation will meet this requirement. See Paragraph 8.1. CLAUSE E3 INTERNAL MOISTURE Performance E3.3.1 Premier Insulation will contribute to meeting this requirement. See Paragraphs 13.1 and 13.2. CLAUSE F2 HAZARDOUS BUILDING MATERIALS Performance E2.3.1 Premier Insulation meets this requirement and will not present a health hazard to people. CLAUSE HI ENERGY EFFICIENCY Performance HI3.1 (a) and HI3.2 E Premier Insulation will continue to meeting these requirements. See Paragraphs 19.1 and 19.2. 3.2 This is an appraisal of an acceptable solution in terms of New Zealand Building Code compliance. Premier Insulation thermal resistance (R-value) has been determined by testing to AS/NZS 9859.1 which is an acceptable method. PREMIER INSULATION Appraisal No. 509 (2014) This appraisal replaces BRANZ Appraisal No. 509 (2013) Amended 29 March 2016 PREMIER INSULATION LIMITED BRANZ Appraisals projects@premierinsulation.co.nz Technical assessments of products for building and construction www.premierinsulation.co.nz Premier Insulation 2018 Catalogue Data Sheet Back Print Polyester with Fire Rating.indd 1 5/10/18 5:47 AM
POLYESTER INSULATION SKILLION BLANKET Premier Polyester is proud to be 100% NZ made from lofted thermally bonded polyester fibres. The polyester is bonded using a low melt polyester providing excellent loft and durability. The Premier Polyester is available in both blanket and segment form, additionally made to order in various widths or R-Values depending on the clients requirements of the New Zealand Building Code. FEATURES AND BENEFITS anufactured using 100% polyester fibre made including fibres from recycled plastic bottles M Will not cause irritation, soft to touch and can be torn across the width Will create a healthier building environment and wont slump over time Vermin resistant Non-combustible and does not absorb moisture Will absorb noise to create a quieter environment 50 year durability warranty Thickness PRODUCT R-VALUE Size (mm) (mm) M2 Appraisal No.620 [2008] POLYESTER INSTALLATION Premier Polyester Skillion Roof Sections R2.9 1200 x 560mm 115mm 2.02 Premier Polyester Skillion Roof Sections R2.9 1200 x 860mm 115mm 5.16 Premier Polyester Skillion Roof Sections R3.2 1200 x 570mm 165mm 3.42 SKILLION BLANKET Premier Polyester Skillion Roof Sections R3.2 1200 x 870mm 165mm 4.18 Premier Insulation has been appraised by BRANZ a thermal insulating material for framed or part framed walls in domestic and commercial building and when installed correctly will perform for 50 years. It’s estimated that 35% of heat loss is through the roof, Premier Ceiling Insulation will reduce heat loss and is to fit into standard and non-standard ceiling construction. When installing insulation it is important to make sure you friction fit our products so heat cannot escape, use any offcuts to fill any caps and holes. When installed in accordance with the manufacturers instructions it will satisfy the 50 year durability clause NZBC B2.3.1 (a). Premier Insulation is an acceptable solution in terms of the New Zealand Building Code compliance. Premier Insulation thermal resistance (R-Values) has been determined by testing to AS/NZS 4859.1 which is an acceptable method so can be specified with confidence. ENVIRONMENTAL CHOICE Initiated and endorsed by the New Zealand Government, Environmental Choice recognises the genuine moves made by manufacturers to reduce the environmental impacts of their products. Further information regarding acoustic testing, BRANZ appraisals material safety data – refer MDS section of catalogue. 2517147 projects@premierinsulation.co.nz Premier offers a full installation service nationwide 0800 467 855 w w w. p r e m i e r i n s u l a t i o n . c o . n z Premier Insulation 2018 Catalogue Data Sheet Polyester Insulation Skillion Blanket.indd 1 1/10/18 12:08 PM
PREMIER POLYESTER FIRE RATING PROPERTIES RESULT TEST RESULTS Combustibility Non-Combustible Flammability Non-Flammable NA/AS 1530.3 Ignitability (Range 0-20) =0 Spread of Flame Index (Range 0-10) =0 Heat Evolved Index (Range 0-10) =0 Smoke Developed Index (Range 0-10) =3 Corrosion Resistance N/A Moisture Resistance N/A Maximum Service Temperature 350°C PRODUCT 1.1 Premier Polyester Insulation is manufactured using 100% recycled polyester fibres as a thermal and acoustic insulating material for use in framed walls, ceilings, underfloors and roofs. SCOPE 2.1 Premier Polyester has been developed to comply with the New Zealand Building Codes for thermal and acoustic applications in commercial and residential construction. BUILDING REGULATIONS NEW ZEALAND BUILDING CODE (NZBC) 3.1 In the opinion of BRANZ, Premier Insulation, is designed, used, installed and maintained in accordance with the statements and conditions of its appraisal, will meet or contribute to meeting the following provisions of the NZBC. CLAUSE B2 DURABILITY Performance B2.3.1 (a) not less than 50 years and B2.3.1 (b) 15 years. Premier Insulation will meet this requirement. See Paragraph 8.1. CLAUSE E3 INTERNAL MOISTURE Performance E3.3.1 Premier Insulation will contribute to meeting this requirement. See Paragraphs 13.1 and 13.2. CLAUSE F2 HAZARDOUS BUILDING MATERIALS Performance E2.3.1 Premier Insulation meets this requirement and will not present a health hazard to people. CLAUSE HI ENERGY EFFICIENCY Performance HI3.1 (a) and HI3.2 E Premier Insulation will continue to meeting these requirements. See Paragraphs 19.1 and 19.2. 3.2 This is an appraisal of an acceptable solution in terms of New Zealand Building Code compliance. Premier Insulation thermal resistance (R-value) has been determined by testing to AS/NZS 9859.1 which is an acceptable method. PREMIER INSULATION Appraisal No. 509 (2014) This appraisal replaces BRANZ Appraisal No. 509 (2013) Amended 29 March 2016 PREMIER INSULATION LIMITED BRANZ Appraisals projects@premierinsulation.co.nz Technical assessments of products for building and construction www.premierinsulation.co.nz Premier Insulation 2018 Catalogue Data Sheet Back Print Polyester with Fire Rating.indd 1 5/10/18 5:47 AM
POLYESTER INSULATION WALL BLANKET & SEGMENT Premier Polyester is proud to be 100% NZ made from lofted thermally bonded polyester fibres. The polyester is bonded using a low melt polyester providing excellent loft and durability. The Premier Polyester is available in both blanket and segment form, additionally made to order in various widths or R-Values depending on the clients requirements of the New Zealand Building Code. FEATURES AND BENEFITS Manufactured using 100% polyester fibre made including fibres from recycled plastic bottles Will not cause irritation, soft to touch and can be torn across the width Will create a healthier building environment and wont slump over time Vermin resistant Non-combustible and does not absorb moisture Will absorb noise to create a quieter environment 50 year durability warranty Thickness PRODUCT R-VALUE BLANKET Size (mm) (mm) M2 Appraisal No.620 [2008] Premier Polyester Wall Blanket R2.2 360 x 9870 90mm 7.11 Premier Polyester Wall Blanket R2.2 560 x 10800 90mm 6.05 WALL BLANKET & SEGMENT Premier Polyester Wall Blanket R2.6 380 x 8550 140mm 13.00 Premier Polyester Wall Blanket R2.6 580 x 7470 140mm 13.00 POLYESTER INSULATION Thickness PRODUCT R-VALUE Size (mm) (mm) M2 Appraisal No.620 [2008] Premier Polyester Wall Sections R2.0 360 x 760 90mm 2.46 Premier Polyester Wall Sections R2.0 560 x 760 90mm 2.55 Premier Polyester Wall Sections R2.2 360 x 760 90mm 2.46 Premier Polyester Wall Sections R2.2 560 x 760 90mm 2.55 Premier Polyester Wall Sections R2.5 360 x 760 90mm 2.46 Premier Polyester Wall Sections R2.5 560 x 760 90mm 2.55 Premier Polyester Wall Sections R2.8 360 x 760 140mm 4.92 Premier Polyester Wall Sections R2.8 560 x 760 140mm 5.10 Premier Insulation has been appraised by BRANZ a thermal insulating material for framed or part framed walls in domestic and commercial building and when installed correctly will perform for 50 years. When installing insulation it is important to make sure you friction fit our products so heat cannot escape, use any offcuts to fill any caps and holes. When installed in accordance with the manufacturers instructions it will satisfy the 50 year durability clause NZBC B2.3.1 (a). Premier Insulation is an acceptable solution in terms of the New Zealand Building Code compliance. Premier Insulation thermal resistance (R-Values) has been determined by testing to AS/NZS 4859.1 which is an acceptable method so can be specified with confidence. ENVIRONMENTAL CHOICE Initiated and endorsed by the New Zealand Government, Environmental Choice recognises the genuine moves made by manufacturers to reduce the environmental impacts of their products. Further information regarding acoustic testing, BRANZ appraisals material safety data – refer MDS section of catalogue. 2517147 projects@premierinsulation.co.nz Premier offers a full installation service nationwide 0800 467 855 w w w. p r e m i e r i n s u l a t i o n . c o . n z Premier Insulation 2018 Catalogue Data Sheet Polyester Insulation Wall Blanket & Segment.indd 1 1/10/18 12:09 PM
PREMIER POLYESTER FIRE RATING PROPERTIES RESULT TEST RESULTS Combustibility Non-Combustible Flammability Non-Flammable NA/AS 1530.3 Ignitability (Range 0-20) =0 Spread of Flame Index (Range 0-10) =0 Heat Evolved Index (Range 0-10) =0 Smoke Developed Index (Range 0-10) =3 Corrosion Resistance N/A Moisture Resistance N/A Maximum Service Temperature 350°C PRODUCT 1.1 Premier Polyester Insulation is manufactured using 100% recycled polyester fibres as a thermal and acoustic insulating material for use in framed walls, ceilings, underfloors and roofs. SCOPE 2.1 Premier Polyester has been developed to comply with the New Zealand Building Codes for thermal and acoustic applications in commercial and residential construction. BUILDING REGULATIONS NEW ZEALAND BUILDING CODE (NZBC) 3.1 In the opinion of BRANZ, Premier Insulation, is designed, used, installed and maintained in accordance with the statements and conditions of its appraisal, will meet or contribute to meeting the following provisions of the NZBC. CLAUSE B2 DURABILITY Performance B2.3.1 (a) not less than 50 years and B2.3.1 (b) 15 years. Premier Insulation will meet this requirement. See Paragraph 8.1. CLAUSE E3 INTERNAL MOISTURE Performance E3.3.1 Premier Insulation will contribute to meeting this requirement. See Paragraphs 13.1 and 13.2. CLAUSE F2 HAZARDOUS BUILDING MATERIALS Performance E2.3.1 Premier Insulation meets this requirement and will not present a health hazard to people. CLAUSE HI ENERGY EFFICIENCY Performance HI3.1 (a) and HI3.2 E Premier Insulation will continue to meeting these requirements. See Paragraphs 19.1 and 19.2. 3.2 This is an appraisal of an acceptable solution in terms of New Zealand Building Code compliance. Premier Insulation thermal resistance (R-value) has been determined by testing to AS/NZS 9859.1 which is an acceptable method. PREMIER INSULATION Appraisal No. 509 (2014) This appraisal replaces BRANZ Appraisal No. 509 (2013) Amended 29 March 2016 PREMIER INSULATION LIMITED BRANZ Appraisals projects@premierinsulation.co.nz Technical assessments of products for building and construction www.premierinsulation.co.nz Premier Insulation 2018 Catalogue Data Sheet Back Print Polyester with Fire Rating.indd 1 5/10/18 5:47 AM
POLYESTER INSULATION MASONRY BLANKET Premier Polyester is proud to be 100% NZ made from lofted thermally bonded polyester fibres. The polyester is bonded using a low melt polyester providing excellent loft and durability. The Premier Polyester is available in both blanket and segment form, additionally made to order in various widths or R-Values depending on the clients requirements of the New Zealand Building Code. FEATURES AND BENEFITS Manufactured using 100% polyester fibre made including fibres from recycled plastic bottles Will not cause irritation, soft to touch and can be torn across the width Will create a healthier building environment and wont slump over time Vermin resistant Non-combustible and does not absorb moisture Will absorb noise to create a quieter environment 50 year durability warranty Thickness PRODUCT R-VALUE Size (mm) M2 POLYESTER INSULATION (mm) Appraisal No.620 [2008] Premier Polyester Masonry Wall Blanket R1.0 580 x 12930 45mm 15.0 MASONRY BLANKET Premier Polyester Masonry Wall Blanket R1.3 360 x 2400 45mm 7.78 Premier Polyester Masonry Wall Blanket R1.3 560 x 2400 45mm 8.06 Premier Insulation has been appraised by BRANZ a thermal insulating material for framed or part framed walls in domestic and commercial buildings. Appraisal No. 590 (2014). Premier Masonry Blanket is designed to fit between strapping of masonry walls. When installing insulation it is important to make sure you friction fit our products so heat cannot escape, use any offcuts to fill any caps and holes. When installed in accordance with the manufacturers instructions it will satisfy the 50 year durability clause NZBC B2.3.1 (a). Premier Insulation is an acceptable solution in terms of the New Zealand Building Code compliance. Premier Insulation thermal resistance (R-Values) has been determined by testing to AS/NZS 4859.1 which is an acceptable method so can be specified with confidence. ENVIRONMENTAL CHOICE Initiated and endorsed by the New Zealand Government, Environmental Choice recognises the genuine moves made by manufacturers to reduce the environmental impacts of their products. Further information regarding acoustic testing, BRANZ appraisals material safety data – refer MDS section of catalogue. 2517147 projects@premierinsulation.co.nz Premier offers a full installation service nationwide 0800 467 855 w w w. p r e m i e r i n s u l a t i o n . c o . n z Premier Insulation 2018 Catalogue Data Sheet Polyester Insulation Masonry Blanket.indd 1 1/10/18 12:07 PM
PREMIER POLYESTER FIRE RATING PROPERTIES RESULT TEST RESULTS Combustibility Non-Combustible Flammability Non-Flammable NA/AS 1530.3 Ignitability (Range 0-20) =0 Spread of Flame Index (Range 0-10) =0 Heat Evolved Index (Range 0-10) =0 Smoke Developed Index (Range 0-10) =3 Corrosion Resistance N/A Moisture Resistance N/A Maximum Service Temperature 350°C PRODUCT 1.1 Premier Polyester Insulation is manufactured using 100% recycled polyester fibres as a thermal and acoustic insulating material for use in framed walls, ceilings, underfloors and roofs. SCOPE 2.1 Premier Polyester has been developed to comply with the New Zealand Building Codes for thermal and acoustic applications in commercial and residential construction. BUILDING REGULATIONS NEW ZEALAND BUILDING CODE (NZBC) 3.1 In the opinion of BRANZ, Premier Insulation, is designed, used, installed and maintained in accordance with the statements and conditions of its appraisal, will meet or contribute to meeting the following provisions of the NZBC. CLAUSE B2 DURABILITY Performance B2.3.1 (a) not less than 50 years and B2.3.1 (b) 15 years. Premier Insulation will meet this requirement. See Paragraph 8.1. CLAUSE E3 INTERNAL MOISTURE Performance E3.3.1 Premier Insulation will contribute to meeting this requirement. See Paragraphs 13.1 and 13.2. CLAUSE F2 HAZARDOUS BUILDING MATERIALS Performance E2.3.1 Premier Insulation meets this requirement and will not present a health hazard to people. CLAUSE HI ENERGY EFFICIENCY Performance HI3.1 (a) and HI3.2 E Premier Insulation will continue to meeting these requirements. See Paragraphs 19.1 and 19.2. 3.2 This is an appraisal of an acceptable solution in terms of New Zealand Building Code compliance. Premier Insulation thermal resistance (R-value) has been determined by testing to AS/NZS 9859.1 which is an acceptable method. PREMIER INSULATION Appraisal No. 509 (2014) This appraisal replaces BRANZ Appraisal No. 509 (2013) Amended 29 March 2016 PREMIER INSULATION LIMITED BRANZ Appraisals projects@premierinsulation.co.nz Technical assessments of products for building and construction www.premierinsulation.co.nz Premier Insulation 2018 Catalogue Data Sheet Back Print Polyester with Fire Rating.indd 1 5/10/18 5:47 AM
