Electric Windshield Adjustment
ready
for BMW R1200/1250GS 2013‐2022
An easy solu on for raising and lowering the windshield.
This product replaces the original manual adjustment knob with an electric servo motor, and allows adjustments to be made,
even while riding. The motor unit is controlled by an illuminated switch which also features a center AUX bu on that can be
used for controling auxilliary lights, horn, heated seats, or other features.
The height of the windscreen is easily adjustable. This allows for op mal wind, rain, and insect protec on,
be er aerodynamics, and the ability to adjust windflow to personal preference.
The product is rela vely easy to install with the help of our installa on procedure, and is also shown in our video. Some level
of mechanical experience is required.
The installa on kit is suppleid with the gearbox with long M6 TORX Screw, Safety Red Pin, Universal Switch with 3
illuminated bu ons, with an addi onal clip for moun ng the switches directly on the handlebar, and a Y ‐ cable set .
Made from recycled material with a 3D technology -Ecological.
Installa on instruc ons

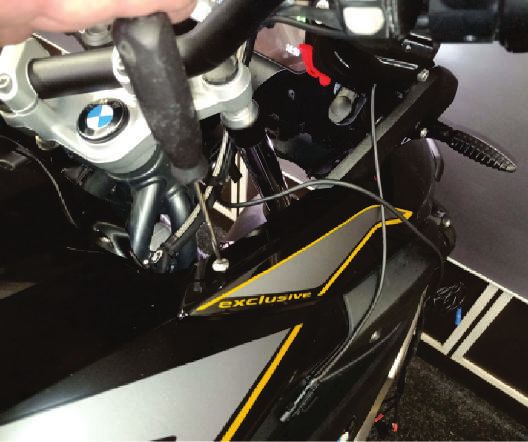

1. Unscrew the 4 screws from the plas c protec on panel located between the headlight and the windshield.
1a 1b
1c
1d
4 screws
www.old mers.si 04/2021 | page 1/9
2. Unscrew the lower M6 Allen screw at the windshield li mechanism
2a
2b

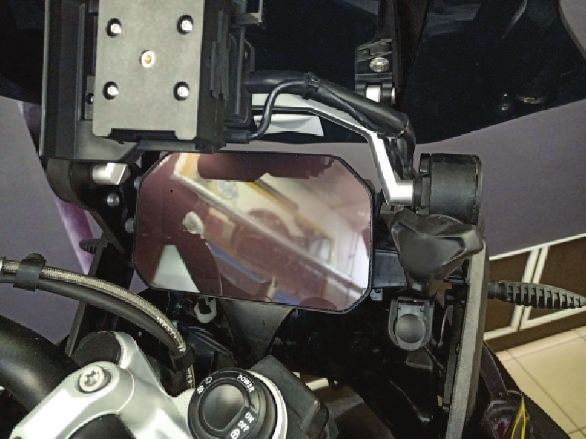

3. Turn the windshield adjustment knob to lower the windscreen all the way,
and the knob should be posi oned as shown in images 3a and 3b.
--------
3a --------
------
3b
4. Motor is supplied with a red pin installed to determine the posi on.
Now you can a ach the GearBox to the triangular knob to raise and
Lower the windshield as follows:
It's important that you not remove the red pin at this point
4a M6 long screw
**DO NOT REMOVE THE RED PIN!**
www.old mers.si 04/2021 | page 2/9

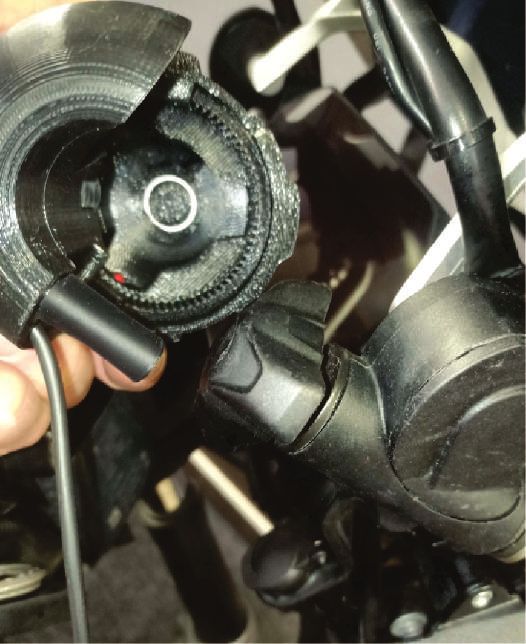

5. Check the gear posi on, the red pin must be engaged to block the gears,
then gently a ach the GearBox on triangular knob.
5a 5b
7. Screw the lower Allen M6 screw at the windshield

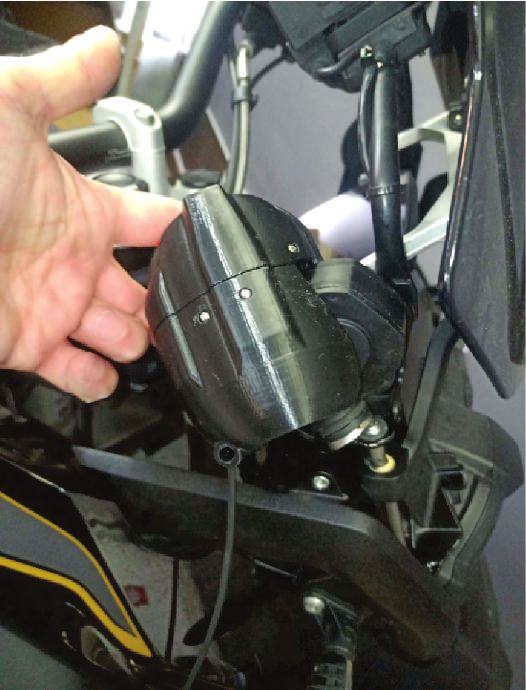

6. Slowly push un l it fits li mechanism to secure the GearBox
7a
6a
www.old mers.si 04/2021 | page 3/9

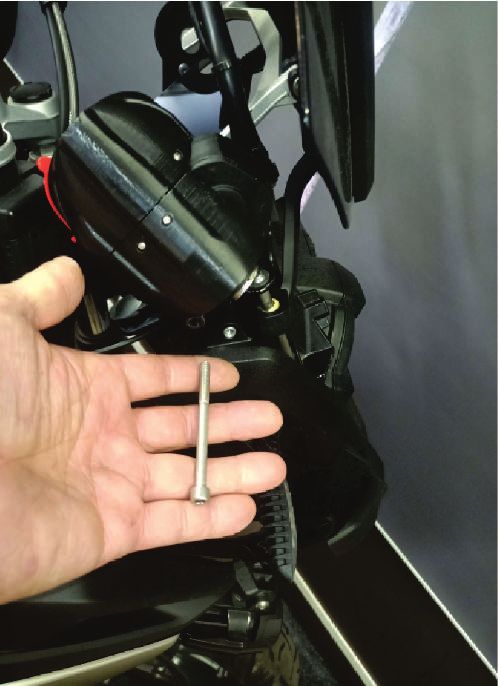

8.M6 long screw 9. Screw on and ghten the M6 nut
9a
8a

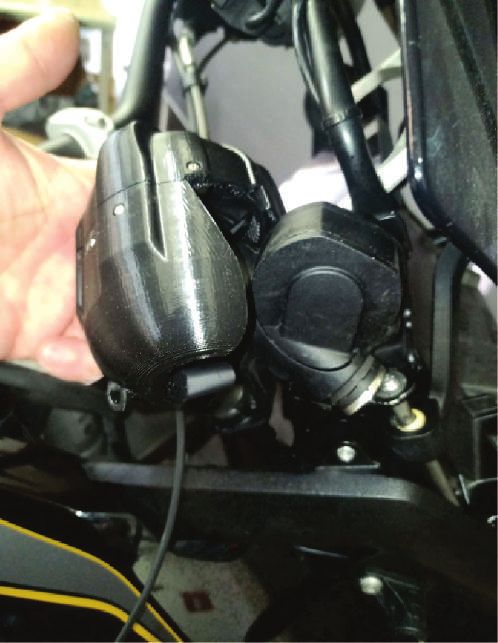

10. GearBox is in final posi on Note: There are a few ways to install the switch depending on
how your bike is equipped and your personal preferences. Please review the next few steps before proceeding.
EBScrew on and tighten the M6 nut
10a
10a 10b
11. Unscrew and remove the mirror
11c
11a
11b
12. Install the Switch Bu on over the mirror perch
12a 12b 12c
www.old mers.si 04/2021 | page 4/9
12d 12e 12f
13. Reinstall the mirror 14. The switch can also be installed on the
le mirror perch if desired.
13a 13b 14a
15. If your bike has the auxiliary light switch on the le mirror perch, AND you want to install the switch on the le side,
then the switch can also be installed directly to the handlebar using the supplied » S‐Clamp «you can install the
Switch Bu ons direct to the handlebar using the supplied S‐clamp
15a
S-clamp 15b 15c
15d 15e 15f 15g
15i
15h
www.old mers.si 04/2021 | page 5/9
17. If your bike has the SOS switch on the right mirror perch, AND you want to install the switch
on the right side, then the switch can also be installed directly to the handlebar using the
supplied S‐Clamp
cut the top edge at the S‐clamp
CUT 17b
17a
-----
S-Clamp
17c
17d 17e
17h
17f 17g
www.old mers.si 04/2021 | page 6/9
18. Route the switch wiring alongside the exis ng wires and secure with the exis ng rubber clamps and addi onal
cable es if desired.
18a 18b

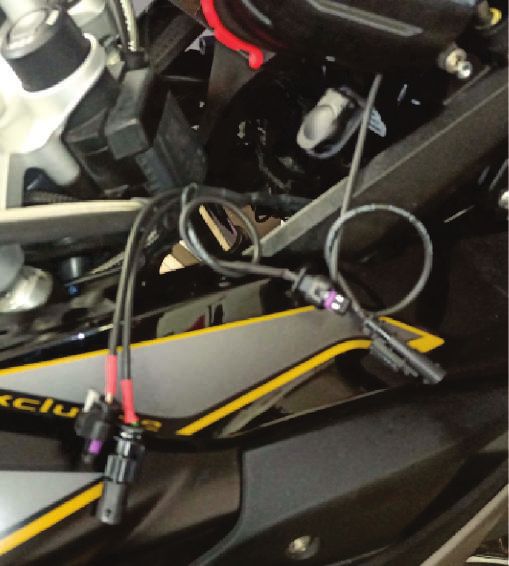

19. Installa on of the electrical wiring and of the Power Y‐ connector:
Unplug the connector from the auxilliary power socket and install the Power Y‐Connector in between
19b
19a
Unplug the connector from the auxilliary power socket and install the Power Y‐Connector inbetween
19d
19c
www.old mers.si 04/2021 | page 7/9

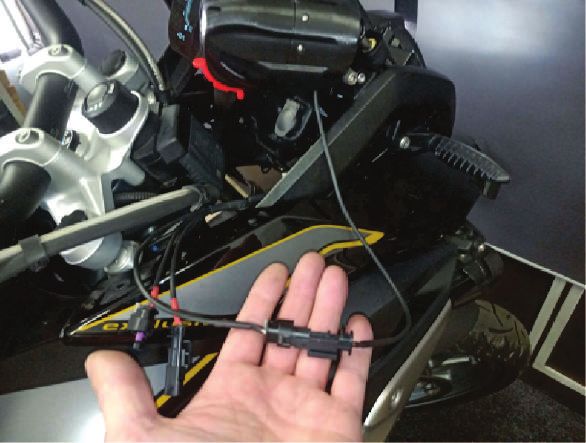

20. Fasten the electrical wiring of GearBox and connect the Remove this screw for easier installa on
Black Connector of the GearBox
20a
20b
21. Remove the red pin to release the blocked gears in the GearBox
21b
21a
22. The engine can now be started and the windshield can be Middle Bu on AUX (see next page)
adjusted using the top and bo om bu ons allowing bu on to control
for up and down adjustments. spot lights, horn, seat hea ng and other func ons.
22a 22b 22c
Warning :
‐ To reset the windshield electric drive system, turn off the engine for 40 sec
‐ The fuse is the same as for the power socket
‐ To access the max posi on of GearBox, press the up or down bu on for 3 seconds.
‐ We recommend that the installa on be performed by a technician or experienced hobby mechanic.
‐ We recommend use at low Safe speeds max 70 km / h
www.old mers.si 04/2021 | page 8/9
23. Middle Bu on AUX op onally controls auxilliary lights, horn, seat hea ng or other func ons as desired.
A : Press the middle bu on to turn on / off
B : Hold 3 seconds the middle bu on to ac vate Warning Flash or SOS ..etc
the Black wire with Blue connec on on wiring harness
is the NEGATIVE OUTPUT
23a
Seat Heating
fuse
spot LED
horn
