Constructability: A guide to reducing temporary works Published – October 2020 This TWF Guidance is available as a free download from www.twforum.org.uk Document: TWf2020: 02 NOTE: If you need to print this document, be aware that the pages are prepared with alternate (even) pages offset for your duplex (double sided) printing.
Temporary Works forum Constructability: A guide to reducing temporary works – TWf2020: 02 Members of the Working Party This guidance has been prepared by Working Group 25: Convenor Jim Tod Tony Gee and Partners LLP Secretary David Thomas Temporary Works Forum (TWf) Chris Bennion Chris Bennion Consultancy Ltd Paul Boddy Interserve Construction Tim Bowes Atkins Godfrey Bowring Retired Nick Boyle Balfour Beatty Civil Engineering Ltd Andrew Finch Jacobs UK Ltd Tim Lohmann Wentworth House Partnership Chris Maher Highways England Doug Potter Arcadis Consulting (UK) Ltd Jim Richings Vinci Construction UK Malachy Ryan Alan White Design Ltd Mike Webster MPW R&R Ltd Aleksander Widernik Lendlease Construction (Europe) Ltd Rob Williams Murphy Group Steve Williams Network Rail John Winson Atkins Contributors also included: James Appleby Network Rail Natalie Cropp Tony Gee and Partners LLP Ray Filip RKF Consult Jon Hodgins Galliford Try Mathew Howells Tony Gee and Partners LLP Andrew Jarman Network Rail Sinead Lawlor Network Rail Andy Marshall Tony Gee and Partners LLP Kirsten Morris Hewson Consulting Neil Robinson Galliford Try Mike Southall Galliford Try Andrew Stotesbury Lendlease The Temporary Works Forum gratefully acknowledges the contribution made by the working group and contributors in the preparation of this guidance. Acknowledgement or type of project, from conception to decommissioning. Some of the information (e.g. tables, etc.) was supplied by The guide also contains suggested further reading - and is the copyright of - Tony Gee and Partners LLP and and examples where the principles have been applied may appear elsewhere. successfully. Editorial note Disclaimer The information provided in Chapters 6 to 8 is available Although the Temporary Works Forum (TWf) does its in ‘Word’ format on the Temporary Works Forum (TWf) best to ensure that any advice, recommendations website (www.twforum.org.uk . . . select . . . Resources/ or information it may give either in this publication or Library Folders/TWfGuidance). These lists do not set elsewhere is accurate, no liability or responsibility of any out to be prescriptive and should be amended to suit kind (including liability for negligence) howsoever and from individual company operations and preferences. They whatsoever cause arising, is accepted in this respect by may be updated from time-to-time (and the Secretary the Forum, its servants or agents. invites contributions to them (secretary@twforum.org.uk). Readers should note that the documents referenced in Synopsis this TWf Guide are subject to revision from time to time and should therefore ensure that they are in possession of This guide provides a definition of what is meant by the latest version. “constructability”; guidance on the legal requirements on clients and designers; and suggests aspects of constructability that should be considered throughout the project lifecycle. The principles can be applied to any size 2 Return to the contents
Constructability: A guide to reducing temporary works – TWf2020: 02 Temporary Works forum Contents To navigate to page - hover over an item below and ‘click’. Return to contents by clicking on the ‘Return to the contents’ at the bottom of every page. Section Page Section Page 1.0 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 8.4.1 Actions to be complete before holding constructability review . . . . . . 19 2.0 Statutory legal aspects . . . . . . . . . . . . . . . . . . . 4 8.4.2 Aim of the constructability review: . . . . 19 3.0 Construction process . . . . . . . . . . . . . . . . . . . . 5 8.4.3 Actions to be carried out after 4.0 Background . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 constructability review . . . . . . . . . . . . 20 5.0 Procurement models (UK) . . . . . . . . . . . . . . . . . 6 9.0 Summary and concluding remarks . . . . . . . . . 20 6.0 Constructability principles . . . . . . . . . . . . . . . . 8 References . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 6.1 Lean construction . . . . . . . . . . . . . . . . . . . . . . 8 Further reading . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 6.2 Low carbon design . . . . . . . . . . . . . . . . . . . . . 9 Bibliography . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 6.3 Off-site fabrication – aspects of construction Appendix 1: Other definitions and terms . . . . . . . . 24 that can influence the design . . . . . . . . . . . . 10 Appendix 2: Projects that benefited from early 6.4 Reasons to consider off-site construction . . . 10 contractor involvement . . . . . . . . . . . . . . . . . . . . . . . 25 6.5 How the components get to and 1. Bar Hill bridge deck . . . . . . . . . . . . . . . . . . . 25 across site . . . . . . . . . . . . . . . . . . . . . . . . . . 10 2. Installation of bridge deck (A14) . . . . . . . . . . 25 6.6 The design of fabricated elements 3. Pre-cast slabs form viaduct deck . . . . . . . . . 25 required to be lifted or moved . . . . . . . . . . . . 11 4. Dover Western Docks Revival – 6.7 The handling and installation of New Marina Pier . . . . . . . . . . . . . . . . . . . . . . 26 pre-fabricated elements on site . . . . . . . . . . . 13 5. Dover Western Docks Revival – 7.0 When to consider constructability . . . . . . . . . 13 Wellington Dock Navigational Access . . . . . . 26 7.1 Notes on the practical aspects of 6. Blackfriars Thameslink Project . . . . . . . . . . . 27 carrying out constructability reviews . . . . . . . 15 7. Landmark, Manchester . . . . . . . . . . . . . . . . . 27 7.2 Who should undertake reviews . . . . . . . . . . . 15 Appendix 3: Good practice in BIM . . . . . . . . . . . . . . 29 7.3 Information . . . . . . . . . . . . . . . . . . . . . . . . . . 15 Example 1 - Manchester Victoria Station . . . . . . 29 8.0 A methodological approach to Example 2 - Birmingham New Street constructability reviews . . . . . . . . . . . . . . . . . . 15 Station . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29 8.1 Constructability at project initiation, Appendix 4: Construction issues resulting option development and selection . . . . . . . . 16 from aspects of the design . . . . . . . . . . . . . . . . . . . . 30 8.1.1 Constructability at project initiation . . . 16 8.1.2 Constructability at option A4.1 Stability of reinforcement . . . . . . . . . . . . . . 30 development and selection . . . . . . . . . 16 A4.2 Temporary piers . . . . . . . . . . . . . . . . . . . . 30 8.1.3 The importance of constructability at A4.3 Stability of precast element . . . . . . . . . . . . 30 project initiation, option development A4.4 Precast concrete ceiling planks and selection . . . . . . . . . . . . . . . . . . . 16 in a school . . . . . . . . . . . . . . . . . . . . . . . . . 31 8.1.4 Actions to be complete before holding constructability review . . . . . . 16 A4.5 Insitu cast earth retaining wall – 8.1.5 Aim of the constructability review . . . . 17 concrete finish . . . . . . . . . . . . . . . . . . . . . . 31 8.1.6 Actions to be carried out after A4.6 Suspended ground floor slabs . . . . . . . . . . 32 constructability review . . . . . . . . . . . . 17 A4.7 Nearby buildings and party wall issues . . . 32 8.2 Constructability at preliminary and A4.8 Composite decking . . . . . . . . . . . . . . . . . . 32 detailed design . . . . . . . . . . . . . . . . . . . . . . . 17 A4.9 Reinforced concrete slab design/back 8.2.1 Actions to be complete before propping . . . . . . . . . . . . . . . . . . . . . . . . . . 32 holding constructability review . . . . . . 17 8.2.2 Aim of the constructability review: . . . . 17 A4.10 Limited soil investigations . . . . . . . . . . . . . 33 8.2.3 Actions to be carried out after A4.11 Limited investigation of existing constructability review . . . . . . . . . . . . 18 structures . . . . . . . . . . . . . . . . . . . . . . . . . 33 8.3 Constructability at pre-construction cost A4.12 Integrating permanent and temporary estimate build up (‘tender’) . . . . . . . . . . . . . . 18 works design: needling and propping . . . . 33 8.3.1 Actions to be complete before holding A4.13 Integrating permanent and temporary constructability review . . . . . . . . . . . . 18 works design: basements . . . . . . . . . . . . . 33 8.3.2 Aim of the constructability review: . . . . 19 Appendix 5: Construction issues resulting 8.3.3 Actions to be carried out after from aspects of the site work . . . . . . . . . . . . . . . . . 34 constructability review . . . . . . . . . . . . 19 A5.1 Stability of reinforcement . . . . . . . . . . . . . . 34 8.4 Constructability at pre-construction stage (‘site work’) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 A5.2 Precast concrete bridge fascia panels . . . . 34 Return to the contents 3
Temporary Works forum Constructability: A guide to reducing temporary works – TWf2020: 02 1.0 Introduction Regulation 4 - Client duties in relation to This document aims to provide guidance to all managing projects those in project teams on the consideration of 4.—(1) A client must make suitable arrangements constructability. for managing a project, including the allocation of 1.1 The constructability of a project results from sufficient time and other resources. decisions made by the client, architect, (2) Arrangements are suitable if they ensure designer(s) and contractor(s) at the pre-project, that— options, development, construction and (a) the construction work can be carried out, so decommissioning/ demolition phases on aspects far as is reasonably practicable, without risks to such as location, land-take, form, programme the health or safety of any person affected by the and cost. project; …. 1.2 For the purpose of this guidance the following 2.2 In relation to designers: definition is adopted1: Regulation 8 - General duties Constructability 8. - (1) A designer (including a principal designer) “the extent to which the design of a building or contractor (including a principal contractor) or construction project and its environment appointed to work on a project must have the facilitates ease of construction, subject to skills, knowledge and experience, and, if they the overall requirements of the building or are an organisation, the organisational capability, construction project and its environment.” necessary to fulfil the role that they are appointed Source: Network Rail Safe by Design, Guidance to undertake, in a manner that secures the health Note – Early Focus on Constructability and safety of any person affected by the project. and Temporary Works (2019) [1.] Regulation 9 Duties of designers 1.3 This guidance makes recommendations for 9. - (2) When preparing or modifying a design the stages when it is sensible to consider the the designer must take into account the general constructability of the project. It also identifies principles of prevention and any pre-construction some of the factors that affect constructability information to eliminate, so far as is reasonably and which are common to many sites. Finally, it practicable, foreseeable risks to the health or gives examples of projects where constructability safety of any person …. has been considered early in the project development and incorporated into the design; 2.3 The role of the designer is recognised in HSE and other projects where details of the design Guidance: have left room for improvement. “A designer has a strong influence during the 1.4 The practical result of considering constructability concept and feasibility stage of a project. The during the development and design stages is that earliest decisions can fundamentally affect the projects will be easier to build. health and safety of those who will construct, maintain, repair, clean, refurbish and eventually NOTE: A peer review may include some aspects demolish a building …” of a constructability review. Source: HSE, L153, Para 75 [3.] 2.0 Statutory legal aspects 2.4 CIRIA has published Construction work 2.1 Constructability should be considered by the sector guidance for designers (C755) [4.]. client, the designer(s) and the contractor(s). The The document has been produced to assist legal aspects of constructability are many and designers in complying with CDM2015, varied. The following extracts highlight key issues Regulations 8, 9 and 10. It provides a description in the Construction (Design and Management) of the risks typically associated with various Regulations 2015 (CDM2015) [2.]2 with which construction methods and how the designer can the reader should be familiar: consider overcoming them. 1 ‘Constructability’ isn’t new and other definitions and terms have been in use for many years. See Appendix 1. 2 CDM came effect first on 31st March 1995 as the Construction (Design and Management) Regulations 1994, following the introduction of European Directive 92/57/EEC on the minimum safety and health standards for temporary or mobile construction sites. The Regulations were, and still are, aimed at improving the overall management and co-ordination of health, safety and welfare throughout all stages of a construction project. They place duties on all those who can contribute to the health and safety of a construction project: clients, designers and contractors. 4 Return to the contents
Constructability: A guide to reducing temporary works – TWf2020: 02 Temporary Works forum 2.5 C755 states: f) replace the dangerous by the non-dangerous “Designers have to weigh many factors as they or the less dangerous prepare their designs. H&S considerations have g) develop a coherent overall prevention policy to be weighed alongside other considerations, which covers technology, organisation of including cost, fitness for purpose, aesthetics, work, working conditions, social relationships buildability, maintainability and environmental and the influence of factors relating to the impact. …” working environment and provides a discourse3 on the issues that h) give collective protective measures priority should be taken into account. over individual protective measures 2.6 It repeats the definition in L153 of what is meant i) give appropriate instructions to employees by the term reasonably practicable4 and contains 2.9 In summary6, the legal context to the need to some salutary advice 9 [emphasis added]: consider constructability has been around for “There is a feeling that after an accident, many years. The concept is not new. in retrospect, it is always obvious what 3.0 Construction process more could have been done to prevent it occurring. Any decision in which cost 3.1 The construction process is the delivery of the plays a major part will be likely to be (in whole permanent works. The permanent works retrospect) particularly criticised.” are usually an assembly of component parts. There is an interdependent relationship between 2.7 BS 5975: 2019 [5.], states: the choice of component and method of 8.1.2 Designers should address the buildability assembly. of permanent works, temporary works, 3.2 Components are defined by their material, their interfaces, their proposed methods size, shape, weight and structural properties. of construction and any related design These may be dependent on the manufacturing assumptions. process, any post-processing assembly, the 8.3.1 Permanent works designers should weight that can be lifted, the position that they address the buildability of the permanent can be supported in during the temporary works and identify, and make provision stage(s), the stability of the component(s) under for, any temporary works and temporary their own self weight and environmental loads conditions required by their design and and the way in which they are incorporated into their assumed method of construction … the other permanent works. 2.8 The Management of Health and Safety at Work 3.3 These are in turn affected by the availability of Regulations 1999 [6.] were the first to set out the raw materials, skilled workforce, manufacturing requirements for ‘risk assessment’ (Reg. 3) and facilities, transport, the type and size of plant introduced the ‘general principles of prevention’ and any limitations on access and egress (Reg. 4). The latter are summarised in CDM2015 arrangements. Where transport is problematic [3.] as an hierarchy5: the smallest transported components are - for a) avoid risks example - clay bricks, bagged cement, steel reinforcing bars, locally won sand and aggregate, b) evaluate the risks which cannot be avoided locally sourced timber. It may also be feasible c) combat the risks at source to set up on site pre-assembly manufacturing facilities (e.g. from concrete batching plants d) adapt the work to the individual, especially to production lines for match-cast segmental regarding the design of workplaces, the concrete bridges). choice of work equipment and the choice of working and production methods, with a view, 3.4 Constructability exists on a varying scale in particular, to alleviating monotonous work, and every structure (or building) has overall work at a predetermined work rate and to requirements which may necessitate some reducing their effect on health degree of compromise. e) adapt to technical progress C755, Section 1.4.6 3 4 The term ‘reasonably practicable’ has been defined as: “balancing the level of risk against the measures needed to control the real risk in terms of money, time and trouble. However, you do not need to take action if it would be grossly disproportionate to the level of risk. (See www.gov.uk/risk/faq.htm for the most up to date explanation of what ‘reasonably practicable’ means)” (Source: Glossary of acronyms and terms, L153 (HSE, 2015) [3.]) This hierarchy is often referred to as ‘ERIC’ – Eliminate, Reduce, Inform and Control 5 There may be commercial and/or contractual aspects in the delivery of a project, not considered here 6 Return to the contents 5
Temporary Works forum Constructability: A guide to reducing temporary works – TWf2020: 02 3.5 In some instances, a design which increases to input ideas at an earlier stage, enabling the material content of the permanent works more effective communication, improving but reduces the need for temporary works may design empathy for production and simplifying be safer, less disruptive, more cost-effective, construction techniques. In some cases the more carbon-efficient and cheaper. For example, Client enters into a contract with a single the overall combination of factors should be administrative party who then delivers the whole aggregated and where a more substantial project. In theory, the designer and constructor permanent works solution might significantly are an integrated team with the function of reduce the temporary works required then delivering the project (CIRIA C534 [9.]). this should be given due consideration as the 4.3 There remain some challenges in the UK of the preferred solution, particularly where it results in resulting arrangements, which do not appear reduced construction time and risk exposure on to have delivered all the improvements sought8, site. but in respect of the consideration of temporary 3.6 Decisions made about the design of the works these forms of procurements have permanent works have a fundamental impact on advantages. the materials available, even at early stages. 5.0 Procurement models (UK) 3.7 The plant and techniques which are available to 5.1 There are now several programme management the constructor evolve constantly. For instance, in models within the UK construction industry which the 25 years since the drafting of CIRIA R155 [7.] define the progress of the project through the and CIRIA C543 [8.] there has been an increase stages from initial briefing to final completion, in the capacity of cranage, allowing larger parts including: of the construction to be prefabricated/pre- assembled and lifted into position (so minimising • Network Rail ‘Governance for Railway the need for insitu falsework and formwork and Investment Projects (GRIP)’ (2018) [10.] reducing the impact on the site) as well as self- • Highways England ‘Project Controls propelled modular transporters (SPMTs). Framework’ v4 (2018) [11.] 4.0 Background • Royal Institute of British Architects (RIBA) ‘Plan Constructability; temporary works; safety; of Work’ (2013) [12.] construction methodology • Office of Government Commerce ‘Gateway 4.1 For many years the typical form of procurement Review Process’ (2011) [13.] was for a Client to have separate contracts with • Institution of Structural Engineers ‘The the Engineer and Contractor. The Contractor built Structural Plan of Work’ (2020) [14.] what the Engineer specified and there was little 5.2 All the procurement methods follow a similar opportunity to suggest improvements in design pattern (see Figure 1): which would increase buildability and reduce cost, risk and project duration. This contract • pre-project arrangement was also thought to lead to poor • options phase project delivery, quality of finished construction, • development phase delays, cost overruns and claims7. • construction phase (to ‘completion’ or 4.2 These issues led to a general change in the ‘hand back’) typical forms of procurement to the Early Contractor Involvement (ECI) and Design and • use phase (including operation and Build (D&B) contracts common today. The maintenance) intention is that the constructor is allowed • decommissioning / demolition phase 7 UK: Emerson 1962; Banwell 1964; EDC 1967; Wood 1975; CIRIA 1983; CIRIA 1989; Latham 1994; Egan 1998; USA: ASCE 1974; CII 1986; CII 1987; Australia: Gyles 1992 8 NAO 2001; RCTF 2001; SFC 2002; NAO 2005; Wolstenholme 2009; Laidlaw 2012; May 2013; CO 2013; HMSO 2013; Public Accounts 2016 6 Return to the contents
End of Construction Pre-project/ Initiation Options phase Development phase Use/operation use and phase demolition Return to the contents Decision point: HE Project 0 6 1 2 3 4 5 Control Strategy Construct, 7 Option Option Preliminary Statutory Construction Framework shaping and commission Closeout identification selection design procedures preparation (PCF) 2008 prioritisation and handover and powers 6 7 1 3 4 5 8 Network Rail 2 Construct, Scheme Output Option Single option Detailed Project GRIP Feasibility test and hand definition selection development design closeout commission back 6 0 1 2 3 4 Constructability: A guide to reducing temporary works – TWf2020: 02 RIBA Plan of 5 Handover 7 Strategic Preparation Concept Developed Technical Work 2013 Construction and In use Figure 1 - Summary of some programme management models (UK) definition and brief design design design closeout Stage 5 Stage 6 Construction Stage 3 Stage 4 (Manufacture, Stage 1 Stage 2 (Handover Stage 7 Industry (Design (Production installation and (Preparation) (Concept) and (In use) Council (CIC) development) information) construction closeout) information) model for this stage (from pre-project to implementation) End of use, decommissioning and demolition may have such significant The Structural 5 0 2 3 4 4.5 Plan of Manufacturing 6 7 Strategic Concept Spacial Technical Production consequences that it is appropriate to use the full project/ programme management Work 2020 and Handover In use definition design coordination design information (IStructE) construction 7 Temporary Works forum
Temporary Works forum Constructability: A guide to reducing temporary works – TWf2020: 02 5.3 The consequences of the end of use, i.e. the management; quality assurance; operational decommissioning and demolition phases, may research; and lean manufacturing. in themselves be significant enough that it would 6.1 Lean construction be appropriate to consider all these stages in this approach, e.g. from pre-project through to use 6.1.1 ‘Lean’ in its simplest form means eliminating (including operation and maintenance). waste from everything we do. 5.4 Irrespective of the management model adopted, 6.1.2 Essentially, ‘lean’ is a collection of ‘Work Study constructability reviews should be undertaken. and Operational Research’ techniques some of which have been used for decades. These 6.0 Constructability principles techniques have been used by contractors There have been many works published recently to gain a competitive edge. It has now been on the subject of “Lean Construction”. However, re-branded and is covered by a suite of CIRIA the application of science to manufacturing is not guides11. One of most valuable concepts is the new. To help achieve a sense of perspective, the definition of waste in CIRIA C730 [15.] (see following are offered: Figure 2): Charles Babbage (1791-1871)9 6.1.3 Applied simply to construction: Charles Babbage was credited as the inventor of Value adding (VA) = permanent works the digital (mechanical) computer and his ideas Essential non-value = temporary works helped shape the “Industrial Revolution” as well adding (enVA) as the Victorian expansion in manufacturing. Waste = waste and inefficiency Fredrick Taylor (1856-1915)10 Fredrick Taylor was one of the first Management Consultants. His legacy to us is: knowledge Any work activity will comprise all three elements of work. It adding (VA) content will be a lot less than other elements. Operator time When improving the way work is carried out: Step 1: aim to eliminate waste Waste EN VA VA Step 2: improve the way ENVA is carried out E liminate Reduce of VA Lean improvement reduces Increased capacity the time taken to carry out to do more work a particular task, releasing more capacity: ‘more for the same’ or ‘more for less’. Figure 1.1 Eliminating waste Figure 2 – Defining waste Source: CIRIA C730, Lean tools and techniques – an introduction 9 Babbage wrote, “On the Economics of Machinery and Manufactures” (1832). This book described differentiating task with skills, bonus systems, “piece work” and profit sharing. His ideas are said to have influenced Marx. Taylor wrote the very influential book, “The Principles of Scientific Management” (1911). It is reported that his principles have been 10 adopted by everyone from Henry Ford to Lenin, Trotsky and Stalin. CIRIA: Implementing Lean in Construction (RP978); Build Lean (C696); Lean construction and BIM (C725); Lean and the sustainability 11 agenda (C726); Lean benefits realisation management (C727); A Lean guide for client organisations (C728); Selecting and working with a Lean consultant (C729); Lean tools and techniques – an introduction (C730); Health and Safety Synergies of Lean (C769) 8 Return to the contents
Constructability: A guide to reducing temporary works – TWf2020: 02 Temporary Works forum 6.2 Low carbon design 6.2.4 The permanent works designer (PWD) needs 6.2.1 The term embodied carbon is used to describe to engage with the temporary works designer the greenhouse gas (GHG) emissions associated (TWD) to ensure greater consideration of with the production of materials or products constructability, e.g. through constructability to the factory gate. Carbon dioxide equivalent reviews. (CO2e) is used as a proxy for the impact of different greenhouse gases included in carbon assessments. In line with PAS 2080: 2016, Carbon management in infrastructure [16.], carbon assessments should consider the whole life of the asset from manufacture of materials, VA enVA through construction, operation and end of life. To this end the trade-offs between more carbon intensive stages can be made with other lower • Lowest VA – Design driven by lowest material carbon stages. However, often the scope is cost: low material cost, but may have high limited to embodied carbon assessments that are construction cost carried out without consideration of construction techniques or temporary works. VA enVA 6.2.2 Cost is also subject to the some of the same drivers as carbon (In general terms more embodied carbon equals more cost [17.]). This • Lowest enVA - Design driven by lowest can lead to designs which at first sight appear construction cost: material costs may be higher, efficient because they have low “Value Adding” but the construction costs are lower (VA) content but require more temporary works - • The overall cost of the project is a combination “essential non-Value Adding” (enVA) - content to of material and construction costs. A project with greater material content may be construct them. sufficiently lower in construction cost for this to be the most economic solution 6.2.3 It may be cheaper overall - and therefore produce less embodied carbon - to construct permanent works with a higher material content and which Figure 3 – Consequences of different requires less temporary works, i.e. is easier to approaches to constructability build (see Figure 3 and Figure 4). In this instance the designer aimed to make savings by reducing the thickness of the abutment wall below the level of the bearing shelf. While reducing the concrete content of the PROFILE FINISH wall the complexity of the reinforcement detailing and the formwork costs were increased. A straight wall would have resulted in simpler and cheaper reinforcement, reduced formwork costs, exposure to less risk and faster construction. Figure 4 – Example of a design driven by material reduction rather than constructability Return to the contents 9

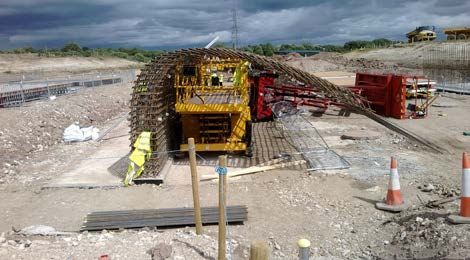

Temporary Works forum Constructability: A guide to reducing temporary works – TWf2020: 02 6.3 Off-site fabrication - aspects of construction • Presence of obstructions, e.g. something that can influence the design already on site, especially if an existing 6.3.1 The plant available for construction is constantly structure is being replaced. evolving. • Potential for an improvement in programme 6.3.2 Developments in fabrication facilities, delivery, e.g. working on several different parts transportation and means of placing (e.g. of the project concurrently. larger cranes, SPMTs) allow structures to be • Protection from the environment during constructed from components of greater size. fabrication. This can reduce the need for in-situ falsework • Potential reduction production costs. and formwork and so reduce the work on the site. • Improved quality control, e.g. concrete finishes, welding, etc. 6.3.3 Sections 6.4 to 6.7 list some of the aspects of the construction process that can influence the 6.5 How the components get to and across site design for off-site fabrication: 6.5.1 There are many issues to be considered when • Reasons to consider off-site construction (see assessing any access route(s), i.e. how the 6.4) components get to and across site: • How the components get to and across site • Components and/or plant being delivered to (see 6.5) and across site: • The design of fabricated elements required to • weight be lifted or moved (see 6.6) • dimensions including protrusions • The handling and installation of pre-fabricated • number of vehicles elements on site (see 6.7) • Restrictions on the existing route: 6.3.4 Similarly, some of the design choices will affect • width; height restrictions under, through the construction. They should be adapted by the bridges and/or tunnels; between buildings reader to suit their own project-specific needs. • length restrictions, e.g. tight bends, street 6.3.5 Designers should be aware of the problems furniture the Contractor will face. However, to obtain the best solution dialogue with the contractor • gradient of road route (a construction method specialist) should be • weight restrictions, e.g. bridges, roads arranged. • availability of railway (viz. route availability 6.4 Reasons to consider off-site construction (RA) rating) 6.4.1 There are many reasons to consider off-site • whether permits are required to use the construction: route (and how long they will take to obtain) • Enhance safety - e.g. to avoid building at • can bollards, etc. be removed temporarily height or over water; avoid live transport to assist the movement of Abnormal routes. Indivisible Loads, by agreement with the • Less interfaces to manage on site. relevant highway authority • Potential reduction in the amount of temporary • Is the route affected by tides? works required on site (and the associated • This will affect the timing of operations reduction in risk exposure for site workers) • Is the route in the inter-tidal zone? • Absence of foundations and working space • This significantly restricts the access by available beneath the structure, e.g. in rivers, both land based and floating plant over valleys, on poor ground, or above roads, railways, sewers and tunnels. • How exposed is the route to weather (and will it flood or become blocked by snow)? • Potential disruption to adjacent sites, e.g. when working near or over railways and/or • Resilience of the route roads. • Will it deteriorate rapidly under adverse • Absence of or unsuitable working space weather? Will it take the traffic? adjacent to (or above) the structure, e.g. in • Speed a congested city centre site, near airports, • Can the route accommodate the number of under overhead lines. vehicles in the required duration? • Limited period of access to the site, e.g. rail or road possession, tidal working. 10 Return to the contents
Constructability: A guide to reducing temporary works – TWf2020: 02 Temporary Works forum • Do precast concrete elements have Example 1 – Bringing in material by rail protruding reinforcement? The Birmingham New Street Gateway • Does the load have to be tilted? programme was a £650m refurbishment of the old railway station into an iconic • Can the element be transported in its permanent orientation such that it does passenger Hub; completed whilst keeping the not have to be adjusted when lifted into operational railway working at all times in a position (e.g. a bridge beam for placing very congested city centre site. on abutments at different levels can be In order to maximise project efficiency and transported on temporary supports that minimise the effects on the neighbourhood have the same level difference as the an early decision was made to deliver most permanent supports)? materials/small plant - and remove most • What is the structural and material form of the waste products - by train. Only one of 12 load to be moved? platforms could be closed at any time, so • What is its strength and rigidity? the closed platform was utilised to receive materials at the start of each shift and remove • If considering prefabricating or lifting waste at the end. reinforcement cages, remember that reinforcement ties are poor structural Materials and plant were delivered to and connections stored at the Bordesley sidings, just outside the city centre, minimising disruption • If the element is made from concrete, throughout the project. what strength should have been achieved before handling? This was a good example of thinking • How is it supported before moving? strategically at an early stage in order to facilitate efficient construction, whilst • Where are the attachment points? minimising the impact on others. • What is the maximum reaction at each attachment point? • The proximity of being able to bring in material • Is relative movement between supports by rail (see Example 1) (temporary and permanent) important? • The need for haul roads and/or temporary • Will load be transmitted through two, three or bridges four points? • The impact on residents in the urban • Can it rock on just two supports (e.g. when environment considering 4 lifting points theoretically • Splice positions: equidistant from the centre of gravity, • Ensure that they are in the most due to minor variations in setting out, all appropriate and optimal area the load could be taken by only 2 lifting points)? • Contingency plans, e.g. redundancy; alternative delivery methods: • Will the load need to be stored in a temporary position on site prior to be lifting into its • Ensuring that there is a robust approach to permanent position? minimise failed manoeuvres • What type of area is required for storage 6.6 The design of fabricated elements required purposes? to be lifted or moved • How will the load be supported after placing? 6.6.1 There are considerations for the design of fabricated elements required to be lifted or • Will it be supported immediately, without moved12: the need for grout to set? • What is the size, weight and position of the • It must be lined and levelled accurately. centre of gravity (CoG)? Does the detailing allow for this? Temporary jacks can be used for fine adjustment • The point of application of the lift must pass through the CoG, or movement will take • The temporary supports and any place; the load will slew, twist or rotate (see permanent works they are attached Figure 5) to, must have adequate strength and stability for all ongoing environmental and NOTE: The position of the CofG varies construction loads (e.g. accidental impact, during the assembly of component parts wind and hydrostatic concrete loads), until incorporated into the permanent works. See also ‘Precast concrete: Good practice and common issues in temporary works’ (TWf2019: 01, TWf, 2019) (https://www.twforum. 12 org.uk/viewdocument/precast-concrete-good-practice-and) Return to the contents 11
Temporary Works forum Constructability: A guide to reducing temporary works – TWf2020: 02 • Can it be adequately supported about its • Have lifting checks been made in all temporary CoG? Is there any novelty in the design states (i.e. at all stages and not just off-site)? of the permanent works which makes the • Is off-line construction an option, e.g. temporary support particularly difficult (e.g. bridge slides, transportation by SMPT or inclined members, cantilever members)? bridge launches (where the road is diverted/ • How is the member required to connect with constructed afterwards) the existing structure? • Consider temporary states of the • Will protruding reinforcement clash with permanent works existing reinforcement? • For multiple lifting operations, ensure the • How will the component be lifted? attachments are designed to suit • Are screw-in loops (eyes) required? Has the • For complex lifts load compensating devices size and position been required, in order to may be required accommodate later construction? • Consider the possibility of redundancy in • Consider the stability of modules lifting equipment • Are braced beams required? NOTE: Beams in pairs are preferred to an odd number of beams • Have any splice positions been considered? Figure 5 - Example of eccentric lift. Centre of gravity is very close to lifting eye NOTE: If the hook is not directly above the centre-of-gravity the load will rotate (In this example, unequal chain lengths were used to achieve a level lift). 12 Return to the contents
Constructability: A guide to reducing temporary works – TWf2020: 02 Temporary Works forum 6.7 The handling and installation of pre- • Consider the stability of precast concrete fabricated elements on site beams13 and steel girders 6.7.1 The considerations for handling and installing • These may be separate or combined fabricated elements on site include: • Are trial lift(s) and/or erection required? • Will pre-fabrication result in ‘locked-in’ • When lifting, consider the access required at stresses in the permanent works? any landing points to make connections and • Consider the effect of the construction remove lifting chains sequence on the final arrangement • Can cross-bracing of girders and similar • Have all the construction load cases been features required during the temporary state considered, e.g. prior to composite action be left permanently in place as sacrificial being achieved elements to reduce dismantling works? • Include horizontal loads 7.0 When to consider constructability • What is the availability of plant? It is suggested that there is benefit in carrying • How does this affect the robustness of the out a formal constructability review at each of the programme to meet the installation date? four phases of the procurement management model (see Figure 6): • What size vehicle is required? • pre project/ initiation (see 8.1.1) • Consider: • options (see 8.1.2) • Dimensions including protrusions • development (see 8.2 and 8.3) • Weight • construction (see 8.4) • Applied ground bearing pressure These are considered in more detail in Sections • What space and/or additional cranage 8.1 to 8.4. It may be appropriate to have a requirements are necessary for rigging and number of constructability reviews during the de-rigging large cranes same phase. These can have the same goal (e.g. • Consider space for additional ballast, as an aid to the selection between alternatives delivery vehicles and turning circles during the initiation phase) or be different (e.g. as in the development phase when the design • What is the direction, distance and height to develops from preliminary design to a pre- be moved? construction cost estimate). • Are there changes in direction of travel and The design develops by a succession of choices slope or fall? between alternative solutions. As the alternatives • What are the site conditions? are considered and preferences selected the • What are the ground conditions, design and detail become more defined. At each topography and foundation requirements? phase the choice of alternatives is limited by the preceding decisions. As the definition increases • Are there constraints from adjacent sites, the range of possibilities for future choices such as headroom near airports, over reduce, until eventually the design is completely railways or near nuclear facilities? defined. • What is the route of transportation (e.g. If, after considering constructability, a decision road, rail, river or sea) and what limitations on which the design has been based needs does this route impose? to be changed, this may invalidate the design • Is on-site assembly of sub-assemblies work that had been based on it. The earlier constructed off site required? the original decision was made, or the later the change is made, the more chance there is • How many items need to be moved, e.g. one- that it would affect other parts of the design; off move or multiple items? and the more re-working necessary. The earlier • Is speed critical (both programme duration that constructability is considered in design and velocity)? development, the more opportunity to influence • What site storage is required? the design and the less need for reworking. • Is delivery ‘just in time’? It should be noted, there is evidence from past projects that constructability was undertaken well • Are there environmental constraints, e.g. during some stages but was absent from others weather, tide and season? (e.g. considered well at the design options stage • What provides the fail-safe in case of but undertaken poorly at the design stage). malfunction? • Is there any aspect in the design of the permanent works which makes its temporary support particularly difficult? 13 Technical Advice Note: Handling of Bridge Beams on Site (PCA) (Now available at: https://www.twforum.org.uk/viewdocument/ technical-advice-note-handling-of) Return to the contents 13
Temporary Works forum Constructability: A guide to reducing temporary works – TWf2020: 02 High Influence Low Influence Results Low Cost High Cost 100% 100% Decreasing Increasing influence cost 0% 0% Project Time Pre project/ Options Development Construction Use / End of use initiation phase phase phase Operation and demolition HE Project 0 Strategy, 1 Option 2 Option 3 Decision 5 6 Construct, 7 Closeout Control shaping and identification selection Preliminary point: Construction commission Framework prioritisation design 4 Statutory preparation and PCF 2008 procedures handover and powers Network Rail 1 Output 2 Feasibility 3 Option 4 Single 5 Detailed 6 Construct, 7 Scheme 8 Project End of use, GRIP definition selection option design test, handback closeout decommis- development commission -sioning and demolition may have such significant 2013 RIBA 0 Strategic 1 2 Concept 3 Developed 4 Technical 5 6 Handover 7 In use consequences Plan of Work definition Preparation design design design Construction and closeout that it is and brief appropriate to use the full Project / programme Construction Stage 1 Stage 2 Stage 3 Stage 4 Stage 5 Stage 6 Stage 7 (in management Industry (Preparation) (Concept ) (Design (Production (Manufacture, (Handover use) model for Council Development) Information) Installation & and this stage (CIC) Construction closeout) (from pre Information) project to impementation) The 0 Strategic 1 2 Concept 3 Spatial 4 Technical 4.5 5 6 Handover 7 In use Structural definition Preparation design Cordination design Production Manufacturing Plan of Work and brief Information and IStructE Construction 2020 8.1.1 8.1.1 8.1.2 8.2 8.2 8.3 8.4 Project Project Options Preliminary Detail Tender Project Initiation Initiation Selection Design Design Construction Figure 6 - How a constructability review can improve the design of permanent works NOTE: A diagram – based on figure 1 – showing the idealised change in the influence and cost of design and constructability decisions on the project cost with respect to project duration, overlaid with project procurement management model and suggested opportunities for formal constructability reviews 14 Return to the contents
Constructability: A guide to reducing temporary works – TWf2020: 02 Temporary Works forum 7.1 Notes on the practical aspects of carrying 7.2 Who should undertake reviews out constructability reviews 7.2.1 To be considered an effective way of ensuring There are a number of issues to consider: constructability, at any stage, constructability Positives: reviews should be undertaken by all parties to a project, bringing together different expertise from 7.1.1 Constructability reviews: all duty-holders: • should be polite and inclusive; • project manager; • can be a team-building exercise, when done • client; well; • permanent works designer (consultant); • will highlight issues which may affect safety, operations, temporary works requirements, • construction expert (temporary works); etc. and may inform ‘design change’; • principal designer; • should consider the likely impact on • specialist construction experts (e.g. neighbours and test whether the proposals proprietary suppliers); have the potential to disadvantage particular • stakeholder technical representative(s); groups in the community; • facility operator; • can enable efficiency for design and execution of the works, enable contingency plans to be • safety expert(s). developed and will troubleshoot issues before 7.2.2 Sometimes, the best constructability advice they get to site. comes from the site team, e.g. foreman. 7.1.2 A constructability review can also: 7.3 Information • ‘de-risk’ a project by ensuring that it can be 7.3.1 The project needs to be defined to a sufficient constructed and in what sequence (allowing a level of detail to be able to carry out a better focus on the most effective options); constructability review. This information may take • facilitate early identification of temporary works the form of reports, surveys, archive information, requirements, to enable early procurement; calculations, drawings and models. • facilitate the production of temporary 7.3.2 Building Information Modelling (BIM) - see works solutions that suit chosen temporary Appendix 3 - can be an effective way of conditions and sequencing; capturing, collating and presenting this information14. • enable early decisions to be made on whether the permanent works design can be amended 8.0 A methodological approach to to improve constructability; constructability reviews • improve constructability to facilitate improved Sections 8.1 to 8.4 show a methodical approach safety, programme and cost. to reviewing constructability. They identify the stages when a constructability review may be Hazards/pitfalls: useful and list some of the pre-requisites, aims 7.1.3 It should be remembered that: and outputs of the review process. • There is more than one way to build The items listed and the topics covered should something and different construction experts be adapted and changed to suit the requirements may have preferred techniques; of a particular project. • The people best at constructing are most More than one constructability review may be likely be on site constructing - the most required during each stage of the project delivery experienced or best construction expert(s) process. For example, it may be appropriate to may be not be available for the constructability have a constructability review at the preliminary review; design stage and another at detailed design. • The continuity of construction experts It is expected that as the use of BIM develops at subsequent constructability reviews within the industry it will become a key tool may depend upon staff retention and the in carrying out and recording constructability contractor’s work commitments. reviews. 14 The TWf [September 2020] is preparing some advice, ‘An open standardized approach to the management of temporary works design – digital collaboration’. Return to the contents 15
Temporary Works forum Constructability: A guide to reducing temporary works – TWf2020: 02 It is important to identify early on any technical NOTE: Engineering assurance and approval authorities, e.g. highways, rail. Large constructability reviews clients may have their own technical approval Large infrastructure organisations such as process and should be engaged. Network Rail and Highways England have 8.1.2 Constructability at option development and engineering assurance processes that seek selection to de-risk designs against numerous criteria - Design development and options selection GRIP such as maintaining open railways and open 1/2/3; RIBA 0/1/2; HE 0/1/2 roads as far as is reasonably practicable – in order to minimise the effects of repairs and The brief (requirements) should be identified. enhancements on rail and road users. Consider the variety of options (forms) developed, e.g. location, number of spans, Undertaking constructability reviews will concrete or steel, practicalities, sequence of enable the project team to home in on the construction, aesthetics, etc. most appropriate, constructible solutions and ensure operations continue without undue The deliverability – in addition to disruption. constructability - should also be assessed. A project risk workshop may, for example, be Such procedures call for schedules of the way to do this. This process may repeat in temporary works to be developed, to include later stages. the following: 8.1.3 The importance of constructability at project • location/description of temporary works initiation, option development and selection • design check category If constructability and temporary works are not • high- or low-risk check category for work considered from the outset the structure may be package planning very difficult (unsafe) and/or impossible (too risky) • confirmation and consideration of to build; as well as too expensive. coordination between all permanent and Decisions on land-take, programme and temporary works aesthetics taken at the project initiation • dates for submission and acceptance for and option development stages will have a deliverables fundamental impact on the delivery of the scheme, e.g. space for site access and cranage, • details of temporary work design key possession dates and length of programme. organisation The designer may introduce risks that could be • details of interdisciplinary interfaces avoided or increase exposure. CIRIA C755 [4.] • requirements for inspections and testing advises: A constructability review will enable early • “Designers would be wise to stray on the determination of the need for such works. side of caution – especially when considering significant (‘life or death’) risks because after a 8.1 Constructability at project initiation, option death legal analysis of reasonableness will be development and selection tinged by the reality and emotion of what has actually happened … 8.1.1 Constructability at project initiation 8.1.4 Actions to be complete before holding Grip 1, RIBA 0, HE 0 constructability review It is never too early to consider constructability; The following actions should be completed: and as early as project initiation stage. A constructability review at this stage should be a • Functional requirements established swift process, as there will be many unknowns • Alternative geographical locations identified and many options to home in on. Such a review • Stakeholders identified will enable appropriate conversations about how a proposal can be built; to test its feasibility for • Value criteria established construction. • Outline solutions determined As early solutions are developed, the basics will • Options preliminary design and feasibility then be better understood and key decisions can be made in principle, e.g. access arrangements, • Site investigation(s) carried out logistics, materials storage, cranage. This will • Restrictions on timing and boundaries of enable key issues to be resolved, e.g. the need site possession identified, e.g. rail interface, to buy or hire land owned by others to facilitate airport/flightpath, tidal working, nearby power construction in good time. transmission 16 Return to the contents
Constructability: A guide to reducing temporary works – TWf2020: 02 Temporary Works forum 8.1.5 Aim of the constructability review 8.2.1 Actions to be complete before holding The aim of the constructability review is to constructability review determine: The following actions should be completed: • whether the project can be built safely in the • Form of structure established time allowed • Geographical locations established • construction materials and methodology • Stakeholders engaged • what specialist plant and contractors are • Check that value criteria are being met required • Determine outline solutions • what geotechnical work has to be carried out • Advanced the options preliminary design • the obstacles that must be overcome • Identify interfaces between functions of works For example, site access and egress (e.g. timings: tides/possessions; environmental, site of • Identify interfaces with other contracts special scientific interest); weather and seasonal • Carry out further site investigation(s) conditions (e.g. monsoon season, school term • Draw up a schedule of site possessions times) 8.2.2 Aim of the constructability review • major items of temporary works; better still, what can be done to design them out The aim of the constructability review is to (elimination) determine: • potential logistics problems • Method for choosing the location of construction joints For example: can the materials and resources be made available; where will they be coming from; • Determine the size of pre-assembled does a mine, quarry or borrow-pit need to be components to be delivered to site established; do people need to be trained • Method of handling (craning) pre-assembled • potential transport problems components. For example: can the materials and resources be NOTE: If reinforcement has to be pre- delivered to site at the correct time fabricated, how will the reinforcement cage temporary structure be designed? • any sources of uncertainty • Method of connecting pre-assembled 8.1.6 Actions to be carried out after components constructability review • Method of supporting pre-assembled The following actions should be completed: components before they become incorporated • best (compromise) solution chosen from into the works and are self-supporting options NOTE: This includes reinforcement, steelwork • safety case developed and precast concrete • hazard identification carried out • Method of providing strength and stability • risks designed out or reduced during early maturity (e.g. concrete strength for slip-forming) • risk register developed • Method of providing stability during early 8.2 Constructability at preliminary and detailed stages of construction design For example: additional bracing in composite Development phase: GRIP 4/5; RIBA 3/4; HE bridges where the steel beams would rely on 3/4/5 the deck to restrain the top flange; longitudinal Consider the form to be chosen: For example, restraint of continuous span bridges that are sequence of construction; bearing details (and constructed in incremental spans temporary fixity/restraint); thermal movements; • Assess the stability of any existing structures residual stresses; temporary support to follow on during the works, e.g. masonry walls upon construction (e.g. temporary support to precast; removal of any adjacent walls, roof or floor precast acting as formwork resisting hydrostatic support; the support of wet concrete on loads; precast acting as edge protection); masonry walls; wind loading on previously unsupported reinforcement; correct poor protected walls and/or structures buildability; eliminate unnecessary temporary works. Return to the contents 17
