CHART GARDEN BUILDINGS - SPECIFICATIONS & PRICE LIST
←
→
Page content transcription
If your browser does not render page correctly, please read the page content below
Specifications &
Price List
Chart Garden Buildings
Manufacturer of
quality Garden Rooms,
Summerhouses,
Pavilions and Gazebos.
Garden Buildings
Delivery Charges
Avon £280 Kent FREE
Contacts & Delivery
Bedfordshire £195 Lancashire DIY
Berkshire £210 Leicestershire £260
Buckinghamshire £185 Lincolnshire POA
Cambridgeshire £185 London £120 Chart Garden Buildings Chart Stables
+44 (0)1233 229898 +44 (0)1233 611123
Channel Islands POA Middlesex £140
enquiries@chartgardenbuildings.co.uk enquiries@chartstables.co.uk
Cheshire POA Norfolk POA
Clywd DIY Northamptonshire £245 Chart Garages Fencing Sales Office
+44 (0)1233 229898 +44 (0)1233 626188
Cornwall £540/£840 Northumberland DIY
enquiries@chartgarages.co.uk enquiries@chartfencing.co.uk
Cumbria DIY Nottinghamshire £300
Derbyshire £340 Oxfordshire £190
Devon POA Powys DIY
Contents
Dorset £275 Shropshire £360 UK & European Sales Office
Chart House, Dencora Way,
Dyfed DIY Somerset £330
Ashford, Kent TN23 4FH
Essex £75/£150 Staffordshire £325
Garden Rooms
Glamorgan – Mid/South POA Suffolk £225
Specifications & Prices 3
Glamorgan – West DIY Surrey FREE
Gloucestershire £320 Sussex – East FREE Summerhouses
Specifications & Prices 4
Gwent DIY Sussex – West £150
Gwynedd DIY Warwickshire £250 Pavilions
Hampshire £165 Wiltshire £270 Specifications & Prices 5
Herefordshire £300 Worcestershire £300
Gazebos
Hertfordshire £160 Yorkshire – South POA
Specifications & Prices 6-7
Humberside DIY Yorkshire – North DIY
2 01233 229898 enquiries@chartgardenbuildings.co.uk www.chartgardenbuildings.co.uk
Chart Garden Buildings
Garden Room Specifications
The Chart Range
Wall Construction
Walls are built with 75mm x 50mm (3" x 2") timber framing at 600mm (24") centres and are diagonally
braced where necessary. Chart Garden Room Prices : 2.285m (7'5") Eaves' Height
Wall Cladding
Selected quality Shiplap, 19mm x 125mm (¾" x 5") pressure treated for a long maintenance-free life. 2.7m (9') Wide 3.6m x 2.7m (12’ x 9') £2,845
Weatherboard or Loglap are available as options. All boarding is fixed with rust resisting nails.
5.4m x 2.7m (18’ x 9') £3,695
Wall Lining
An eco-breather membrane to meet the requirements of BS 4016 Type 2 is placed between the 7.2m x 2.7m (24’ x 9') £4,550
studwork and the exterior cladding of all the walls.
9.1m x 2.7m (30’ x 9') £5,495
Roof Construction
Purlins are 125mm x 50mm (5" x 2") held in place by joist hangers on prefabricated trusses. Roofs are 10.9m x 2.7m (36’ x 9') £6,275
then boarded with 18mm OS board and covered with either black felt tiles or black Onduvilla tiles
as standard. Other colours are also available as an optional extra in shaded brown, red or green.
3.6m (12') Wide 3.6m x 3.6m (12’ x 12') £3,150
Ventilation grilles to aid air flow through roof.
5.4m x 3.6m (18’ x 12') £4,125
Floor
7.2m x 3.6m (24’ x 12') £5,075
Internal timber floors are available as an optional extra, with or without insulation.
Doors 9.1m x 3.6m (30’ x 12') £5,995
Double French doors 1168mm x 1981mm (46" x 78") come as standard complete with separate door
10.9m x 3.6m (36’ x 12') £6,995
frame and sill VAC VAC treated? and incorporate two full height 14mm toughened, double-glazing
panes. Doors are outward opening and secured with five levered mortice lock. Alternatively we also 4.8m (16') Wide 5.4m x 4.8m (18’ x 16') £4,650
offer a range of hardwood and softwood doors.
Single Personal Door 762mm x 1981mm (30" x 78") is available as an optional extra; Shiplap clad, 7.2m x 4.8m (24’ x 16') £5,775
morticed ledged and braced and hung in a separate door frame with door sill. Eco-breather
membrane is placed between the framing and exterior cladding. 9.1m x 4.8m (30’ x 16') £6,885
Windows 10.9m x 4.8m (36’ x 16') £7,995
Depending on the size of your Garden Building it will come with two pressure treated, 615mm x
1050mm double glazed opening windows to match your French Doors. A selection of sizes and 5.4m (18') Wide 5.4m x 5.4m (18’ x 18') £4,875
different designs are available to choose from.
7.2m x 5.4m (24’ x 18') £5,995
Height
2235mm (7’3") to eaves. The overall height of the building will vary depending on the width of 9.1m x 5.4m (30’ x 18') £7,195
your building.
10.9m x 5.4m (36’ x 18') £8,325
Guttering
Black 100mm (4") half round guttering and down pipe fitted to the front and the rear of the building.
Timber Treatment, Staining and Painting
All timber is pressure treated to add to the longevity of your building (excluding roof purlins and All prices exclude VAT. Prices include installation - Refer to page 2 for delivery charges.
doors). The external wall panels of our buildings will take a range of stains and paints should you wish
to add colour. Our Joinery grade doors, frames and windows do require staining or painting after installation.
Please Note: Timber sizes quoted are sawn dimensions and are slightly smaller after planing.
We reserve the right to alter our specifications without notice.
More photographs are available on our website www.chartgardenbuildings.co.uk 3
Summerhouses Specifications
The Chart Range
Wall Construction
Walls are built with 75mm x 50mm (3" x 2") timber framing at 600mm (24") centres and are diagonally
braced where necessary. Chart Summerhouses Prices : 2.285m (7'5") Eaves' Height
Wall Cladding
Selected quality Shiplap, 19mm x 125mm (¾" x 5") pressure treated for a long maintenance-free life, 2.7m (9') Wide 2.7m x 2.7m (9’ x 9') £3,285
fixed with rust resisting nails. Weatherboard cladding is also available.
3.6m x 2.7m (12’ x 9') £3,495
Wall Lining
An eco-breather membrane to meet the requirements of BS 4016 Type 2 is placed between the 5.4m x 2.7m (18’ x 9') £4,550
studwork and the exterior cladding of all the walls.
7.2m x 2.7m (24’ x 9') £5,575
Roof Construction
Gable front profile includes a 600mm overhang to front of building. Roof constructed using raised 3.6m (12') Wide 3.6m x 3.6m (12’ x 12') £3,895
trusses spaced at 600mm centres throughout. Roofs are then boarded with 18mm OS board and
covered with either black felt tiles or black Onduvilla light weight tiles as standard. Other colours are
5.4m x 3.6m (18’ x 12') £4,950
also available as an optional extra in shaded brown, red or green. Ventilation grilles are fitted to aid air
7.2m x 3.6m (24’ x 12') £5,995
flow through roof.
Floor 5.4m (18') Wide 5.4m x 5.4m (18’ x 18') £6,775
Internal timber floors are available as an optional extra, with or without insulation.
7.2m x 5.4m (24’ x 18') £8,475
Doors
Double French doors 1168mm x 1981mm (46" x 78") come as standard complete with separate door
frame and sill and incorporate two full height 14mm toughened, double-glazing panes. Doors are
outward opening and secured with five levered mortice lock. Alternatively we also offer a range of
hardwood and softwood doors. Doors will require staining with recognised proprietary stain after
installation.
Windows
Depending on the size of your Garden Building it will come with two pressure treated, 680mm x
1480mm double glazed opening windows to be in keeping with your French Doors.
Height
2285mm (7'5") to eaves as standard. The overall height of the building will vary depending on the width
of your building.
Guttering
Black 100mm (4") half round guttering and down pipe fitted to the front and the rear of the building.
Soffit and Fascia
Fitted to all sides of your building in pressure impregnated, prepared timber, fixed with rust
resisting nails.
Timber Treatment, Staining and Painting All prices exclude VAT. Prices include installation - Refer to page 2 for delivery charges.
All timber is pressure treated to lengthen the life of your building (excluding doors). The external wall Our Joinery grade doors, frames and windows do require staining or painting after installation.
panels of our buildings will take a range of stains and paints should you wish to add colour. Please Note: Timber sizes quoted are sawn dimensions and are slightly smaller after planing.
We reserve the right to alter our specifications without notice.
4 01233 229898 enquiries@chartgardenbuildings.co.uk www.chartgardenbuildings.co.uk
Chart Garden Buildings
Pavilion Specifications
The Chart Range
Wall Construction
Walls are built with 100mm x 50mm (4" x 2") timber framing at 600mm (24") centres, and are diagonally braced
where necessary.
Wall Cladding
Selected high-quality Shiplap 19mm x 125mm (¾" x 5") pressure-treated for a long maintenance free life fixed with
rust-resisting nails. Weatherboard is available as an option.
Wall Lining
An eco-breather membrane to meet the requirements of BS 4016 Type 2 is placed between the studwork and the Chart Pavilion Prices : 1.2m (4') Verandah
exterior cladding of all the walls. Various internal wall linings and Rockwool insulation are available on request.
3.6m (12') Wide 3.6m x 3.6m (12’ x 12') £4,585
Roof Construction
Roof constructed using raised trusses spaced at 600mm centres throughout. Roofs are then boarded with 18mm 5.4m x 3.6m (18’ x 12') £5,995
OS board and covered with either black felt tiles or black Onduvilla tiles as standard. Other colours are also
available as an optional extra in shaded brown, red or green. Ventilation grilles to aid air flow through roof. 7.2m x 3.6m (24’ x 12') £7,415
Floors 9.1m x 3.6m (30’ x 12') £8,995
Internal timber floors are available as an optional extra, with or without insulation.
10.9m x 3.6m (36’ x 12') £10,550
Covered Veranda to Front
1200mm (4’) deep covered veranda supported by four 100mm x 100mm support posts with 458mm (18") curved 4.8m (16') Wide 5.4m x 4.8m (18’ x 16') £7,250
bracing, newel posts, shamford spindles and hand rails.
7.2m x 4.8m (24’ x 16') £9,215
Doors
Double French doors 1168mm x 1981mm (46" x 78") come as standard complete with separate door frame 9.1m x 4.8m (30’ x 16') £11,210
and sill and incorporate two full height 14mm toughened, double-glazing panes. Doors are outward opening and
secured with five levered mortice lock. Alternatively we also offer a range of hardwood 10.9m x 4.8m (36’ x 16') £13,195
and softwood doors. Doors will require staining with recognised proprietary stain after installation.
5.4m (18') Wide 7.2m x 5.4m (24’ x 18') £10,115
Windows
2 x 14mm pressure treated double glazed casement windows 915mm x 1050mm (36" x 41") are included. 9.1m x 5.4m (30’ x 18') £12,225
Further options of single and double glazed windows can be found in our main brochure.
10.9m x 5.4m (36’ x 18') £14,350
Height
2235mm (7'3") to eaves height. We are able to increase this height, should you require. The overall height of the
6.1m (20') Wide 7.2m x 6.1m (24’ x 20') £11,545
building will vary upon the width or the building.
9.1m x 6.1m (30’ x 20') £13,995
Guttering
10.9m x 6.1m (36’ x 20') £16,375
Black 100mm (4") half-round guttering and downpipes are fitted to the front and rear of the building.
Soffit & Fascia 7.3m (24') Wide 7.2m x 7.3m (24’ x 24') £12,715
Fitted to all sides of your building in pressure impregnated, prepared timber, fixed with rust resisting nails.
9.1m x 7.3m (30’ x 24') £15,365
Timber Treatment, Staining and Painting
All timber is pressure-treated (excluding roof purlins and doors). Joinery grade casement doors and windows will
10.9m x 7.3m (36’ x 24') £17,995
require painting or staining after installation.
More photographs are available on our website www.chartgardenbuildings.co.uk 5
Gazebo Specifications

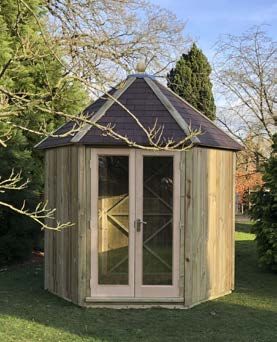

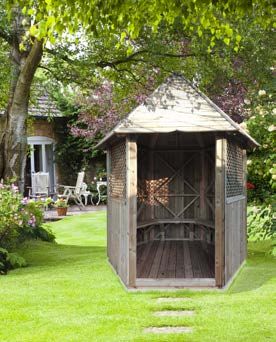

The Chart Range The Chester Range
Hexagonal Gazebo Hexagonal Gazebo
Wall Construction Wall Construction
Upright support posts, Ex-100mm x 75mm (4" x 3") with pressure- Upright support posts, 100mm x 75mm (4" x 3") with pressure-treated
treated softwood framing. As standard the Gazebo comes with three softwood framing. As standard the Gazebo comes with three sides
sides infilled with vertical TGV cladding. infilled with vertical TGV cladding to eaves high, two further sides
Optional extras include diamond trellis infill panels to sides and bench infilled to 1200mm high with vertical TGV cladding and double glazed
seating fitted internally. Refer to the Optional Features. pane above. French double doors VAC VAC treated? With full height
double glazed panes, to the front, to create a more enclosed feel.
Roof Construction
Sectional pitched design finished on top with Shiplap cladding, Roof Construction
lead capping and a finial. Roof sections are finished with 18mm ply and covered with black felt
tiles as standard.
Height As an optional extra, shaded brown, red or green tiles are
To eaves, 2200mm (7’3") including the floor. The overall height of the building will vary upon the width also available.
of the building; please enquire.
Floors
Guttering Floors are constructed using 75mm x 50mm (3" x 2") joists and covered with Ex - 32mm x 125mm
Is not included (1 ¼" x 5") Decking.
Floors Double Glazed French Doors
Floors are constructed using 75mm x 50mm (3" x 2") joists and covered with Ex - 32mm x 125mm French Doors 1168mm x 1981mm (46" x 78") come as standard to the front with two full height 14mm
(1 ¼" x 5") Decking. double-glazed panes. French Doors come complete with separate door frame and sill, outward
opening and secured with five levered mortice lock. Doors will require staining with recognised
Optional Features
proprietary stain after installation.
A range of infill timber clad panels are available to add to your Gazebo to give a very individual
appearance including; diamond trellis panels and the option to have internal fitted bench seating to Non Opening Double Glazed Panes:
three sides . Please refer to our gallery of photos for ideas. Depending on the size of your Garden Building it will come with two pressure treated, 1180mm x
940mm (37" x 46") double glazed non opening panes to match your French doors.
Timber Treatment
All timber is pressure-treated, (excluding rafters). Height
To eaves, 2200mm (7’3") including the floor.
Staining & Painting
The overall height of the building will vary upon the width of the building; please enquire.
The external wall panels of our buildings will take a range of stains or paints should you wish to
add colour. Guttering
Is not included.
Timber Treatment
All timber is pressure-treated, (excluding rafters).
Staining & Painting
The external wall panels of our buildings will take a range of stains or paints should you wish to
add colour.
6 01233 229898 enquiries@chartgardenbuildings.co.uk www.chartgardenbuildings.co.uk
Chart Garden Buildings

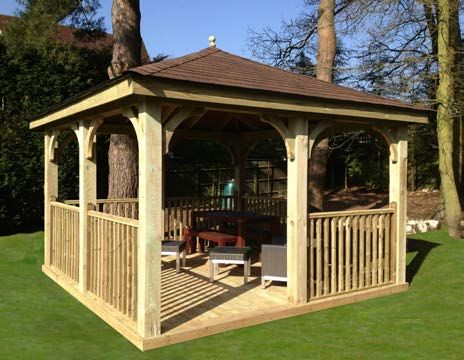

The Large Square Chart Hexagonal Gazebo
Gazebo 1.8m x 2.1m (6’ x 7’) £1,585
Wall Construction 2.1m x 2.4m (7’ x 8’) £1,695
Each elevation up to 3.6m (12’) in width with upright
support posts, 150mm x 150mm (6" x 6"), pressure- 2.4m x 2.7m (8’ x 9’) £1,795
treated softwood framing and include curved
bracing to each corner.
Infill timber clad wall panels are available to either
1.2m (4’) high or up to full height, as an option. Chester Hexagonal Gazebo
Roof Construction
Traditional hip roof, boarded with 18mm Ply and 1.8m x 2.1m (6’ x 7’) £2,545
finished with black felt tiles, lead capping and
a finial 2.1m x 2.4m (7’ x 8’) £2,645
As an optional extra, shaded brown, red or green tiles are also available. 2.4m x 2.7m (8’ x 9’) £2,750
Height
To eaves, 2285mm (7’6") including the floor. The overall height of the building will vary upon the width
of the building; please enquire.
Large Square Gazebo
Guttering
Is not included, but can be fitted as an optional extra. 2.4m x 2.4m (8’ x 8’) £2,325
Floors
3.0m x 3.0m (10’ x 10’) £2,750
Floors are constructed using 75mm x 50mm (3" x 2") joists and covered with Ex - 32mm x 125mm
(1 ¼" x 5") Decking. 3.6m x 3.6m (12’ x 12’) £3,175
Timber Treatment
All timber is pressure-treated, (excluding rafters).
Staining & Painting
The external wall panels of our buildings will take a range of stains or paints should you wish to
add colour.
Optional Features
A range of infill timber clad panels are available to add to your square Gazebo to give a very individual
appearance including; trellis panels as well as hand rails with shamford spindles. Please refer to our
gallery of photos for ideas.
All prices exclude VAT. Prices include installation - Refer to page 2 for delivery charges.
Our Joinery grade doors, frames and windows do require staining or painting after installation.
Please Note: Timber sizes quoted are sawn dimensions and are slightly smaller after planing.
We reserve the right to alter our specifications without notice.
More photographs are available on our website www.chartgardenbuildings.co.uk 7
enquiries@chartstables.co.uk
+44 (0)1233 611123
Garden Buildings
enquiries@chartgardenbuildings.co.uk
+44 (0)1233 229898
www.chartgarages.co.uk
+44 (0)1233 229898
www.chartgardenbuildings.co.uk
Chart Garages, Stables & Garden Rooms, UK & European Sales Office . Chart Fencing Office
Chart House, Dencora Way, Ashford, Kent TN23 4FH
Please Note: Timber sizes quoted are sawn dimensions and are slightly smaller after planing.
We reserve the right to make any changes at any time, without notice, in prices, colours, materials, www.chartfencing.co.uk
and specifications, and also to discontinue products. E&OE. 10.2019 +44 (0)1233 626188
You can also read
