CGS1 Plug&Play kit for
Ducati ducati models
with compression sensor
or direct lever
(external coils control)
User manual
2 0 1 0 0 9 3 0
SP electronics
MAIN FUNCTION
All the CGS1 functions are controlled by two buttons in the eBox near the display(Figura 1).
The buttons realize three fundamental functions: UP, SET and DOWN. In addition they enable to enter inside the main menu
where is possible to set a rpm value under that the CGS1 remains switched off (function enable only in the Kit CGS1 standard and
Triker).
Figura 1: buttons and display (eBox)
Legend of the functions (Figura 2) to better understand the configurations procedure in the next pages.
Figura 2: Legend functions
2 w w w . s p e l e c t r o n i c s . i tSP electronics
DISPLAY MODE

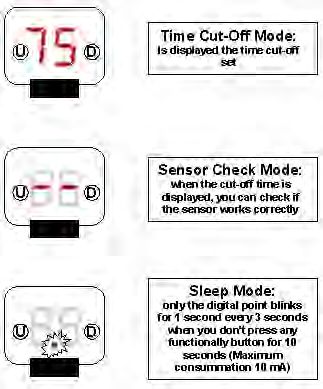

The eBox (Errore: sorgente del riferimento non trovata) has three modes of operation (Figura 3) :
Figura 3: Display mode
3 w w w . s p e l e c t r o n i c s . i tSP electronics
TURNING ON THE DEVICE
When the bike is on, in the eBox displayed "SP" for 3 flashes, after which time appears Cut-Off stored. Just installed the CGS1
verify, with the engine idling, a pressure sensor (hence the auction exchange rate) will lead to a decline of revolutions of the
engine.
THE DISPLAY
The CGS1 was carried out with a display double-digit red leds high-efficiency light in order to see the time Cut-Off from a
minimum of 10 thousandths of a second to a maximum of 99 thousandths of a second at intervals of 1 thousandth of a second. It
also manage sub programming in an easy and intuitive.
SETTING TIME CUT-OFF
To increase the time to Cut-Off press "Up" on the eBox. In any pressure is the increase of one-thousandth of a second, while
holding, the time increases rapidly until the release of the same or upon attaining maximum value of Cut-Off set (99 ms).
! Press the buttons “Up” and “Down” at the same time to activate the “Set” function, which will store the set cut-off (Figura
2+Figura 4).
To decrease the time to Cut-Off press "Down" on the eBox. In any pressure is the decrease of one-thousandth of a second,
while holding, the time decreases rapidly until the release of the same or upon attaining minimum value of Cut-Off set (10 ms).
! Press the buttons “Up” and “Down” at the same time to activate the “Set” function, which will store the set cut-off (Figura
2+Figura 4).

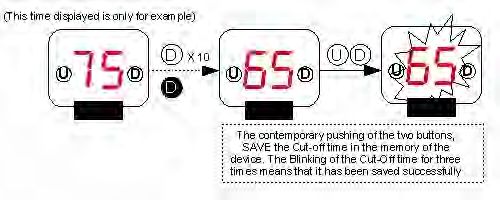

Figura 4: example of time cut-off setting
CHOOSING THE CUT-OFF TIME
The cut-off is a time interval during which the motor stops acting as a “power generator”. In that time the motorbike
transmission is on a temporary phase when it is possible to pass to upper gear. The cut-off setting is aimed to limit the stress
the transmission parts are subjected to and to limit the time when the motor is not producing power.
Too short cut-off time:
Gearing up with the motorbike is usually accompanied by an impulsive metal sound, similar to a strong hit to the transmission
parts, which is a result of a re-gaining of power by the motor before the next gear is completely and perfectly inserted.
The cut-off is to be increased to avoid damage to the transmission.
Too high cut-off time:
Gearing up with the motorbike is usually accompanied by a power loss, long or short, similar to a current lacking to the spark
plugs or to a fuel lacking. The cut-off is to be decreased.
TURNING OFF THE DEVICE
Disconnect Simply plug for quick coupling linking the sMec wiring kit CGS1.
It is available as an accessory On-Off switch from handlebar (Ø 22 mm) in order to activate or deactivate the device.
We recommend disconnecting the CGS1 Kit for use urban and / or whenever it was outside a closed circuit.
4 w w w . s p e l e c t r o n i c s . i t1 2 3 4 5 6 7 8
Analog TRIKER CGS1 Sensore CGS2
A Switch CGS2 A
-Disponibile l'opzione con sensore
su leva diretta per Ducati
-If required the sensor switch is
availaible on Ducati direct lever.
BOBINA
IGNITION COIL
B B
ON
FEED
PULSANTE ON-OFF
ON-OFF SWITCH
BOBINA
IGNITION COIL
ECU
rosso
nero
CENTRALINA MOTORE
ELECTRONIC CONTROL UNIT
C C
BATTERIA
BATTERY
APPLICAZIONE DEL KIT CGS1-TRIKER SULLE BOBINE DI ACCENSIONE (DUCATI 916, 996)
WIRES CONNECTION DIAGRAM OF CGS1-TRIKER KIT FOR EX.IGNITION COIL APPLICATION (DUCATI 916, 996)
D D
SP electronics Titolo documento: Applicazione ANALOG-TRIKER taglio bobine
Via Astichello, 25
36030 Montecchio Prec.no (VI) Codice prodotto: Data emissione: Revisione: Pag.:
Phone 0445-334677
Fax 0445-339595 01/10/2010 Rev. 1 / 1
Disegno di nostra proprietà, divulgazione e
riproduzione totale o parziale vietate ai sensi di File: CGS1 DUCATI TAGLIO BOBINE.SchDoc
legge.
1 2 3 4 5 6 7 8SP electronics
TECHNICAL CHARACTERISTIC
Feed 9 – 16 Vdc
Running Mode 100 mA
Maximum current consumption1
Sleep Mode 10 mA
Dimension eBox 58 x 40 x 15 mm
Weight 130 g
Temperature of exercise -20/+70 °C
Water resistance (not for immersion) and vibrations
For support contact us
Further informations are available on our website in “Support”area at following link:
http://www.spelectronics.it/index.php/customercare/english/main/installations_and_user_manuals/
You can receive support by phone (from 14:00 to 17:00) :
+39 0445 334677
or by email :
tech@spelectronics.it
1 With feed to 12 Vdc.
