2019 SmartBar Effective February 2019 Onwards (version 1) RETAIL PRICE LIST *Prices subject to change without notice
CONTENTS DESCRIPTION PAGE How to use this Guide ................................................................................................................................................................................................. 4 Cover Letter .................................................................................................................................................................................................................. 5 SmartBar Terms & Conditions of Sale ...................................................................................................................................................................... 7 Vehicle Protection ....................................................................................................................................................................................................... 9 Product Code Lookup .................................................................................................................................................................................................. 54 Spare Parts Lookup ..................................................................................................................................................................................................... 55 Light Identification Lookup ......................................................................................................................................................................................... 57 Stockists ........................................................................................................................................................................................................................ 63 Contact Us .................................................................................................................................................................................................................... 65 FORD Falcon FG X ................................................................................................................................................................................................................... 9 Falcon FG1 & FG2 ......................................................................................................................................................................................................... 9 Falcon BF3 ..................................................................................................................................................................................................................... 9 Falcon BF2 ..................................................................................................................................................................................................................... 9 Falcon BF1 ..................................................................................................................................................................................................................... 10 Falcon BA ...................................................................................................................................................................................................................... 10 Falcon AU1 & AU2 ........................................................................................................................................................................................................ 10 Ranger PX3 ................................................................................................................................................................................................................... 11 StealthBar Ranger PX3 ................................................................................................................................................................................................ 12 Ranger PX2 ................................................................................................................................................................................................................... 13 StealthBar Ranger PX2 ................................................................................................................................................................................................ 14 Ranger PX ...................................................................................................................................................................................................................... 14 Everest ........................................................................................................................................................................................................................... 15 StealthBar Everest ....................................................................................................................................................................................................... 17 Courier PG .................................................................................................................................................................................................................... 18 Courier PE ..................................................................................................................................................................................................................... 18 HINO Dutro 300 ...................................................................................................................................................................................................................... 19 Dutro 5000, 5500 ......................................................................................................................................................................................................... 19 HOLDEN Commodore VE & VE2 ................................................................................................................................................................................................. 20 Commodore VY & VZ ................................................................................................................................................................................................... 20 Commodore VT, VX & VU ............................................................................................................................................................................................ 20 Colorado RG ................................................................................................................................................................................................................. 21 Colorado 7 .................................................................................................................................................................................................................... 21 Trailblazer ..................................................................................................................................................................................................................... 22 Rodeo ............................................................................................................................................................................................................................ 22 ISUZU D-Max ............................................................................................................................................................................................................................ 23 M-UX .............................................................................................................................................................................................................................. 24 NPR ................................................................................................................................................................................................................................ 25 NPS ................................................................................................................................................................................................................................ 25 NQR ............................................................................................................................................................................................................................... 25 NNR ............................................................................................................................................................................................................................... 25 500, 550, 700 Series ..................................................................................................................................................................................................... 25 MAZDA BT50 ............................................................................................................................................................................................................................... 26 Bravo ............................................................................................................................................................................................................................. 26
CONTENTS MERCEDES Sprinter VS30 ................................................................................................................................................................................................................ 27 Rear Protection Bar Sprinter VS30 ............................................................................................................................................................................. 27 Sprinter NCV3 ............................................................................................................................................................................................................... 28 Rear Protection Bar Sprinter NCV3 ............................................................................................................................................................................ 29 MITSUBISHI Pajero NX ...................................................................................................................................................................................................................... 30 Pajero NW, NT & NS ..................................................................................................................................................................................................... 31 Pajero NP ...................................................................................................................................................................................................................... 32 Pajero Sport .................................................................................................................................................................................................................. 32 Challenger ..................................................................................................................................................................................................................... 33 Triton MQ ...................................................................................................................................................................................................................... 33 Triton MN ...................................................................................................................................................................................................................... 34 Triton ML ....................................................................................................................................................................................................................... 34 Fuso Canter .................................................................................................................................................................................................................. 34 NISSAN Navara NP300 .............................................................................................................................................................................................................. 35 Navara D40 ................................................................................................................................................................................................................... 36 Pathfinder R51 ............................................................................................................................................................................................................. 37 Patrol GU Series 4, 6, 7 & 8 ......................................................................................................................................................................................... 38 Patrol GU Series 1, 2 & 3 ............................................................................................................................................................................................. 38 TOYOTA Aurion ............................................................................................................................................................................................................................ 39 Camry ............................................................................................................................................................................................................................ 40 LandCruiser 200 Series ............................................................................................................................................................................................... 41 LandCruiser 100 Series ............................................................................................................................................................................................... 42 LandCruiser 70 Series ................................................................................................................................................................................................. 42 Prado 150 ...................................................................................................................................................................................................................... 45 Prado 90 ........................................................................................................................................................................................................................ 48 Fortuner ........................................................................................................................................................................................................................ 48 Hilux .............................................................................................................................................................................................................................. 49 StealthBar Hilux ........................................................................................................................................................................................................... 51 Hiace .............................................................................................................................................................................................................................. 53
HOW TO USE THE GUIDE
MAKE MODEL SERIES (MM/YY) **IF APPLICABLE**
CODE DESCRIPTION RRP FIT TIME SUPPLIED REQUIRED OPTION
1
SAXXXBLXXX Suits 4x2 & 4x4 XXX, XXX, XXX $XXXX H:MM
Compatible with OEM Fog Lights
1
Parking Sensor Kit Required for vehicles with
OE Front Parking Sensors
SAXXXBLXXX WINCH BAR $XXXX H:MM
1,2
Suits 4x2 & 4x4 XXX, XXX, XXX
Compatible with OEM Fog Lights
1
Parking Sensor Kit Required for vehicles with
OE Front Parking Sensors
2
Winch Adaptive Cruise Kit is required for
EXAMPLE ONLY
vehicles with Adaptive Cruise control. The
winch control box may be required to be fitted
in the engine bay or in a location other than the
SmartBar
3
Fitment of the Warn Zeon winch requires
additional Kit
Compatible with Warn XD9000, Zeon 8000-12000
& Premier DV 9000

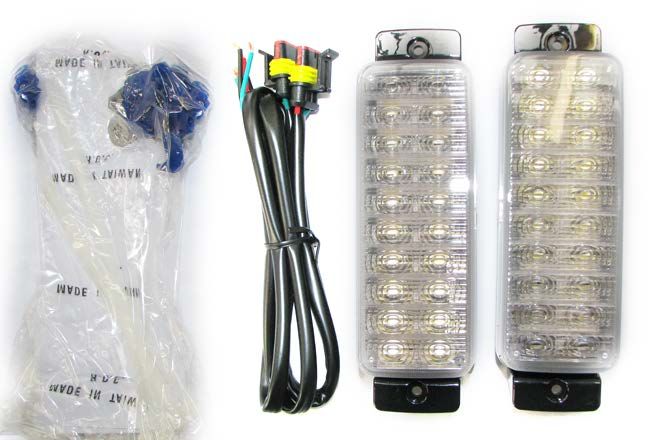

BPXXXX LED Indicator/Parker Lamp Kit (Pair) $XXX H:MM X

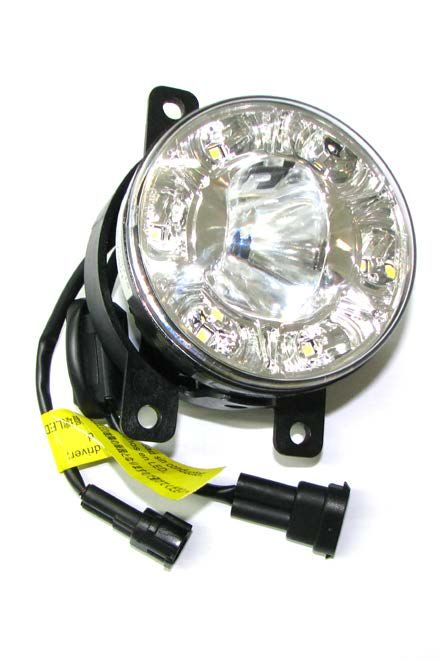

BPXXXX Day Time Running Light (DRL 5631 Hella) (Pair) $XXX H:MM X
1 1
SAXXX-PSK Parking Sensor Kit (refer note ) $XXX H:MM X
2 2
SAXXX-WAK Winch Adaptive Cruise Kit (refer note ) $XXX H:MM X
3 3
SAXXX-ZWK Warn Zeon Control Box Mount Kit (refer note ) $XXX H:MM X
Required if fitting a Zeon winch, and also requires
Warn wiring kit W89965
LEGEND
1. Vehicle Details 7. Estimated Fitted Time Column
Make, model, series and year of applicable vehicle. Estimated time required to fit the SmartBar, accessory kits etc.
2. SmartBar Listing 8. Supplied Accessory/Component/Kit Column
The first listing’s are to indicate the SmartBar options available Filled with “X” in column when the component listed is supplied
for the vehicle; generally listed in sequence “non-winch”, “winch” as standard with the bar, included in the RRP. In the example the
and then any other variants of the SmartBar product. Indicator/Parker Kit is supplied with the bar.
3. Accessory Listing 9. Required Accessory/Component/Kit Column
Protocol is that the accessory listing will always follow on from Filled with “X” in column when the component is required to
the SmartBar Listing; these will detail all the lights/indicators and be purchased in addition to the bar at an additional cost. In the
any other additional components that are either supplied with example the Parking Sensor Kit, Winch Adaptive Cruise Kit and
the bar, or are required/optional for additional purchase. Zeon Control Box Mount Kit are required (subject to footnotes) to
be purchased along with the bar.
4. Code
Identified the unique code for the respective SmartBar product 10. Optional Accessory/Component/Kit Column
(Part Number, Accessory Kit Number, Light Part Number etc). Filled with “X” in column when the component is an optional extra
that can be purchased in addition to the bar at an additional cost.
5. Description In the example the DRL is an optional extra for the bar.
Details pertinent to the Part or Kit Number. Used to describe
fitment/compatibility issues for the SmartBar products. Essential 11. Made to Order
to understand the bar compatibility for the vehicle variants and A note “*MADE TO ORDER*” will appear here if the bar is made to
any notes regarding accessories. order, please enquire for lead time.
6. RRP Column 12. Light Identification Underline and Hyperlink
Recommended Retail Price Including GST for the component. Part or Kit number for Light also features link through to details
4 - 65
COVER LETTER
DEAR VALUED CUSTOMERS
This price book covers the vehicles for which we supply a range of SmartBar manufactured products which includes our bull
bars. It should be considered a replacement for all previous versions of SmartBar price lists.
We are continually sourcing and designing new products to add to our range, so if your vehicle or a particular accessory
is not listed here please enquire with one of our sales staff... we may have just what you’re after.
Due to the complex nature of this price and application list, inevitably human errors will occur, therefore we reserve the right to correct
any genuine errors, application errors and related issues. We will always be fair and reasonable if this results in a problem. SmartBar also
reserves the right to change prices without notification.
VEHICLE COMPATIBILITY
Please note that information contained in this guide is based on manufacturers’ specifications at the time of print. Changes to vehicles or
products may occur after this time that may render a certain accessory unsuitable for aparticular application.
Vehicle model dates contained in this guide are indicative, so please exercise caution when ordering accessories if your vehicle’s build
date falls close to a model change date. If in doubt, please consult your SmartBar distributor, who can assist with determining the correct
products for a particular vehicle.
The products detailed in this guide are fully compatible with air bag systems (when fitted), unless otherwise stated. For information on
the technology behind our products, and how air bag compatibility is achieved please contact the SmartBar technical team.
REMOVAL OF PARTS FROM YOUR VEHICLE
Please note that in some cases, it may be necessary to remove parts from your vehicle in order to carry out the fitment of replacement
parts and accessories.
In most cases, removal of these parts unavoidably destroys them and renders them unsuitable for re-use.
MADE TO ORDER
Please be aware that in some cases, products are not held in stock and are strictly made to order. These products are identified with
**MADE TO ORDER** in the price list; for accurate and current lead times in the event of an order, please contact SmartBar direct.
FREIGHT CHARGES
Prices shown in this book do not include any allowance for the cost of freight. In some states, territories and rural areas some additional
freight costs can be expected.
GST
Prices shown in this book are inclusive of GST.
5 - 65
COVER LETTER
FITTING TIME & CHARGES
Prices listed in this book do not include to the cost of fitment to the vehicle, it is advised to speak to your local supplier regarding
expected charges. The fitting time of the bars and their accessories have been listed as a guide, but please note that the figures are
based on the time required for an experienced installer. First time installers should allow extra time.
In addition, the fitment and wiring of any light accessories may incur additional costs. All wiring should be completed by a qualified
auto electrician. SmartBar bears no responsibility for any electrical failure caused by the incorrect fitment of the lamps or any electrical
components.
BLACK ONLY PRICING
Please note that all prices shown on SmartBar bull bars are for BLACK ONLY. Additional charges apply for alternative colours.
PAINTING/COLOUR CODING SMARTBAR
We are often asked if it is possible, and how to paint the SmartBar product to color code to a vehicle. Please note, we do not recommend
painting our product.
Painting a bar is done at your own risk and SmartBar accepts no responsibility for problems occuring as a result.
THREADED FITTINGS IMPORTANT NOTICE
SmartBar recommends the use of anti-seize on all threaded fittings
CAUTION: A torque specification of 28Nm (M10) or 55Nm (M12) is required for the bolts into the brass nutserts. These must not be over
tightened.
ADDITIONAL PURCHASING NOTES
Ensure all components, as listed in the bill of materials on the back page, are received prior to commencing the fitment. Please retain all
hardware until fit-up is complete.
Fitting instructions are supplied with each SmartBar. Please take the time to read the instructions thoroughly before proceeding with
fitment.
6 - 65
TERMS & CONDITIONS
TERMS AND CONDITIONS OF SALES OF ALL PRODUCTS AND SERVICES
All purchases of Goods or Services from SmartBar on and from 1 September 2017 are subject to these terms and conditions.
1. DEFINITIONS
These words have the following meanings in these terms and conditions:
• Customer means the entity or person purchasing the Goods.
• Goods means all vehicle accessories and associated products sold by SmartBar, including catalogues, brochures and drawings
• SB and/or SmartBar means trading as SmartBar ARB Corporation Limited ABN 31 006 708 756
• Order means an order for Goods or services made in accordance with clause 2.1
• Customisation includes colour coding.
2. ORDERING GOODS
2.1 SmartBar may issue quotations for Goods or services from time to time or otherwise offer Goods for sale. A contract is formed for the
supply of Goods and/or services between SmartBar and the Customer when SmartBar issues an invoice to the Customer or otherwise
notifies the Customer in writing that it accepts a request to purchase Goods. Accepted requests to purchase Goods or services comprise
Orders.
2.2 These terms and conditions apply to all Orders and take precedence over any prior representations, terms or conditions. Customers
should ensure that Orders contain the correct SmartBar product or part number and description and the Customer should use such
number and description when describing Goods.
2.3 Orders may only be varied or cancelled by the agreement of the parties evidenced in writing. Orders cannot be varied or cancelled
after manufacturing of any made-to-order Goods or Customisation of any Goods has commenced.
3. PRICE
3.1 Prices for Goods may vary from those quoted. Prices are fixed on the date of acceptance of the Order. Prices are GST inclusive.
3.2 The cost of delivery of Goods will be borne by the Customer.
4. TERMS OF PAYMENT
4.1 Payment for all Goods and services supplied by SmartBar to Customers holding a valid debtor’s account is due 30 days from the end
of the month in which the invoice for the Goods is issued unless otherwise agreed in writing. Accounts are to be conducted on a monthly
basis. The month end closes on the last calendar day and a statement will be forwarded shortly afterwards.
4.2 For all other Customers, payment for Goods is due at the time of supply or dispatch.
5. DEFAULT IN PAYMENT
5.1 If the Customer does not pay any amount owing to SmartBar for the Goods and services in accordance with the terms of payment,
SmartBar may charge interest on the amount owed at the rate of 12.5% per annum per month (prorated). The interest will be added to
the amount owed by the Customer to SmartBar on the first day of each month while an amount remains overdue and unpaid.
5.2 When an account Customer of SmartBar does not make payment in accordance with these terms and conditions, then SmartBar may
claim from the Customer all monies outstanding and payable to SmartBar at the time of that demand. Upon such claim, all monies owed
shall become immediately due and payable.
5.3 If the Customer does not make a payment in accordance these terms and conditions, then SmartBar may claim from the Customer all
amounts owed plus the costs of collection of monies due, including the fees of any mercantile agent or solicitor.
6. DELIVERY AND SUPPLY
6.1 No notification of anticipated time for delivery or availability of Goods will be construed as a term of contract between SmartBar
and the Customer. The Customer agrees that if SmartBar is not able to deliver Goods in accordance with estimated delivery dates,
the Customer will not make, and will ensure its customers or any party associated with the Customer will not make, any claim against
SmartBar in connection with or arising from the timing of delivery or the non-delivery of the Goods.
6.2 The bill of lading or carrier’s receipts in respect of Goods will be regarded as evidence of delivery of the Goods.
6.3 The Customer must inspect the Goods immediately upon delivery. The Customer must, within 7 days of receipt of Goods, notify
SmartBar in writing of any alleged claims for short or wrongful delivery or for any breach of these terms and conditions. If no such notice
is given, SmartBar will be deemed to have fulfilled theses terms and conditions.
6.4 While SmartBar will endeavour to deliver Goods within notified timeframes, it will not be liable to the Customer for any delays in
delivery.
6.5 If SmartBar is unable to supply Goods because of strikes, lock-outs, acts of God, acts of war or any other event beyond the reasonable
control of SmartBar, SmartBar will advise the Customer of the non-availability of any Goods as soon as reasonably practicable. Upon such
advice being given by SmartBar to the Customer, the Customer may cancel the Order or select alternative Goods, however, the Customer
will not be able to require SmartBar to supply the Goods originally ordered.
7 - 65
TERMS & CONDITIONS
TERMS AND CONDITIONS OF SALES OF ALL PRODUCTS AND SERVICES
7. RETURN OF GOODS
No goods may be returned to SmartBar unless:
(a) the Goods are faulty;
(b) a return authorisation number and freight instructions are given by a SmartBar representative for the Goods;
(c) the Goods are returned within 21 days of the original delivery; and
(d) the Goods are be returned in salable condition.
A handling charge of 5% of the value of the Goods may be deducted from any credit for the retuned Goods unless the Customer shows
that the Goods were incorrectly supplied as the result of an error made by an SmartBar representative.
8. INTELLECTUAL PROPERTY RIGHTS
The Customer acknowledges SmartBar’s title to all product designs, illustrations, photography, designs, graphics, images, logos,
text and other related materials to be copyrights, trademarks, registrations and intellectual property of SmartBar. Use, duplication,
reproduction, distribution, display or transmission of same without the permission of ARB in writing is prohibited.
9. TITLE AND RISK
9.1 Risk in the Goods will pass from SmartBar to the Customer when Goods leave SmartBar’s warehouse for delivery to the Customer.
9.2 Title to the Goods passes from SmartBar to the Customer when payment for the Goods is made in full. Until title passes, the
Customer must:
(a) keep the Goods for SmartBar in the capacity of fiduciary and, store the Goods in such a way that they can be recognised as such;
and
(b) where the Goods are sold in the ordinary course of the Customer’s business, keep separate records in relation to the proceeds of
the sale of such Goods hold the proceeds of sale for the benefit of SmartBar.
9.3 If the Customer does not pay for any Goods on the due date, SmartBar is hereby irrevocably authorised by the Customer to enter
the Customer’s premises (or any premises where the Goods are stored) and take possession of the Goods without liability for the tort of
trespass, negligence or payment of any compensation to the Customer or any third party.
9.4 The customer acknowledges that SmartBar will have a Purchase Money Security Interest (as defined in the Personal Property Security
Act 2009 ( Act )) (PMSI) in any Goods supplied under these terms and conditions or any other contract between SmartBar and the
customer. At any time SmartBar may register the PMSI on the PPS Register (as defined in the Act), and the Customer:
(a) must provide SmartBar with any further information or consent necessary to do this; and
(b) waives its right to receive any notification from SmartBar under the Act.
10. LIMITATION OF LIABILITY
10.1 SmartBar’s liability in respect of the state, quality or condition of the Goods supplied to the customer is limited to the maximum
extent permissible by law to any liability arising under the Competition and Consumer Act 2010 or any other applicable law. Further, if any
Goods supplied by SmartBar are not of a kind ordinarily acquired for personal, household or domestic use then SmartBar’s liability will be
limited for failure to comply with a consumer guarantee under the Australian Consumer Law is limited to one or more of the following:
(a) the replacement of the Goods or the supply of equivalent goods;
(b) the repair of the Goods;
(c) the payment of the cost of replacing the goods or of acquiring equivalent Goods;
(d) the payment of the cost of having the Goods repaired.
10.2 SmartBar’s liability to any person or body for any loss or damage (consequential or otherwise) caused by or resulting from any
failure, defect or deficiency of whatsoever nature or kind in the Goods is limited to the maximum extent permissible by law.
11. JURISDICTION
The laws of South Australia will apply to this agreement, and the parties agree to submit to the jurisdiction of the courts of South
Australia.
8 - 65
FORD
FALCON FG X (12/14+)
CODE DESCRIPTION RRP FIT TIME SUPPLIED REQUIRED OPTION
SA168BL168 PARKING SENSOR MODELS ONLY $1882 3:30
Suits XT, XR6, XR8, G6, Eco Boost
Does not suit Turbo models
Compatible with OEM Fog Lights
SA178BL178 NON PARKING SENSOR MODELS ONLY $1882 3:00
Does not suit Turbo models
Compatible with OEM Fog Lights
TP44768 Indicator Assembly Clear (Pair) $64 0:15 X
FALCON FG & FG2 (05/08-12/14)
CODE DESCRIPTION RRP FIT TIME SUPPLIED REQUIRED OPTION
SA123BL123 Suits XT, XR6, XR8, G6, Eco Boost $1858 3:00
Does not suit XR6 Turbo models
Compatible with OEM Fog Lights
TP44768 Indicator Assembly Clear (Pair) $64 0:15 X
FALCON BF3 WAGON (10/06-08/10)
CODE DESCRIPTION RRP FIT TIME SUPPLIED REQUIRED OPTION
SA099BL099 Suits XT, Futura, Fairmont, Fairlane and RTV $1858 3:00
Not compatible with OEM Fog Lights
1
Bar can only accomodate one option
1
TP4878 100mm Narva Driving Light (complete with $188 0:15 X
1
brackets, no loom) (Pair)
1
TP23923 100mm Narva Fog Light (complete with $200 0:15 X
1
brackets, no loom) (Pair)
TP44768 Indicator Assembly Clear (Pair) $64 0:15 X
FALCON BF2 (10/06-05/08)
CODE DESCRIPTION RRP FIT TIME SUPPLIED REQUIRED OPTION
SA099BL099 Suits XT, Futura, Fairmont, Fairlane & RTV (XR6 $1858 3:00
& XR8 BF2 models require BF1 bar)
Not compatible with OEM Fog Lights
1
Bar can only accomodate one option
1 1
TP21653 100mm Driving Light Kit (Pair) $275 0:15 X
1
TP23923 100mm Narva Fog Light (complete with $200 0:15 X
1
brackets, no loom) (Pair)
TP44768 Indicator Assembly Clear (Pair) $64 0:15 X
9 - 65
FORD
FALCON BF1 (2005-09/06)
CODE DESCRIPTION RRP FIT TIME SUPPLIED REQUIRED OPTION
SA083BL083 Suits XT, Futura, Fairmont, Fairlane & RTV (RTV $1858 3:00
must be ordered as RTV)
XR6 (does not suit XR6 Turbo) & XR8 requires
a BA XT Falcon Grille to suit (to be purchased
seperately from Ford)
Not compatible with OEM Fog Lights
TP4878 100mm Narva Driving Light (complete with $188 0:15 X
brackets, no loom) (Pair)
TP44768 Indicator Assembly Clear (Pair) $64 0:15 X
FALCON BA (10/02-2005)
CODE DESCRIPTION RRP FIT TIME SUPPLIED REQUIRED OPTION
SA083BL083 Suits XT, Futura, Fairmont, Fairlane & RTV (RTV $1858 3:00
must be ordered as RTV)
XR6 (does not suit XR6 Turbo) & XR8 requires
a BA XT Falcon Grille to suit (to be purchased
seperately from Ford)
Not compatible with OEM Fog Lights
TP4878 100mm Narva Driving Light (complete with $188 0:15 X
brackets, no loom) (Pair)
TP44768 Indicator Assembly Clear (Pair) $64 0:15 X
FALCON AU1 & AU2 (1998-10/02) **MADE TO ORDER**
CODE DESCRIPTION RRP FIT TIME SUPPLIED REQUIRED OPTION
SA011BL011 Suits Falcon and Fairmont $1618 3:00
Does not fit XR6 and XR8
Not compatible with OEM Fog Lights
TP4878 100mm Narva Driving Light (complete with $188 0:15 X
brackets, no loom) (Pair)
TP44768 Indicator Assembly Clear (Pair) $64 0:15 X
10 - 65FORD
RANGER PX3 FACELIFT (08/18+)
CODE DESCRIPTION RRP FIT TIME SUPPLIED REQUIRED OPTION
1,2
SA175BL175 Suits 4x2 & 4x4 XL, XLS, XLT $2030 3:00
6
Compatible with OEM fog lights, XLS & XLT only
SA175BL176 WINCH BAR $2383 4:00
1,2,3
Suits 4x2 & 4x4 XL, XLS, XLT
6
Compatible with OEM fog lights, XLS & XLT only
Compatible with Warn XD9000, Warn Magnum 10
& Bushranger DV-9th
SA207BL176LR WINCH BAR WITH LADDER RACK $3323 4:00
4
Suits 4x2 & 4x4 XL
BP50035 LED Indicator/Parker (Left Hand) $153 0:15 X
BP50042 LED Indicator/Parker (RIght Hand) $153 0:15 X
5 5
BP80296 Patch Harness 175 $134 0:00 X
Indicator Parker/Wiring Harness Plug & Play
6 6
BP80311 90mm Fog/Daytime Running Light Combo (Pair) $523 0:30 X
2 2
SA175-PSK Parking Sensor Kit $69 0:45 X
3 3
SA230WAK Winch Adaptive Cruise Kit $148 0:30 X
7 7
3500630 Flip Up License Plate $64 0:15 X
1
Wildtrack Bumper Trim yet to be confirmed.
2
Parking Sensor Kit is Required for XLS, XLT and
vehicles with OEM Front Parking Sensors
3
Winch Adaptive Cruise Kit is required for XLT
with tech pack and vehicles with Adaptive
Cruise control. The winch control box may be
required to be fitted in the engine bay or in a
location other than the SmartBar accessory
bracket
4
Ladder rack available for XL only. The winch
control box needs to be mounted to the
spotlight bracket which can affect fitment of
larger spotlights. The ladder rack must be
supported with a beam from the roofracks,
canopy or tray body and adds an additional
21.5kg to the fitted weight of the winch
compatible bar
5
Only suitable for standard parker/indicator
lights supplied with bar. Will speed up and
simplfy light installation.
6
Optional for all variants. XL requires fog light
wiring loom
7
Only recommended for winch bars with
standard size number plates
11 - 65FORD
STEALTHBAR RANGER PX3 FACELIFT (08/18+)
CODE DESCRIPTION RRP FIT TIME SUPPLIED REQUIRED OPTION
1,2
SA180BL180 Suits 4x2 & 4x4 XL, XLS, XLT $1819 3:00
3
Compatible with OEM fog lights, XLS & XLT only
SA180BL183 WINCH BAR $2180 4:30
1,2,4
Suits 4x2 & 4x4 XL, XLS, XLT
3
Compatible with OEM fog lights, XLS & XLT only
Compatible with Warn XD9000, Zeon 8000-12000,
5
Warn Magnum, Bushranger DV-9th and REVO
SA232FK Infill Kit $55 0:15 X
BP80052 Day Time Running Light (DRL 5631 Hella) (Pair) $219 0:45 X
3 3
BP80311 90mm Fog/Daytime Running Light Combo (Pair) $523 0:30 X
SAALK All in 1 Light (Pair) $398 1:00 X
Note: Five Function Combo Light (Driving, DRL, Fog,
Parker and Indicator). Supplied with hardware &
harness.
2 2
SA180-PSK Parking Sensor Kit $69 0:45 X
4 4
SA230WAK Winch Adaptive Cruise Kit $148 0:30 X
5 5
SA183-ZWK Warn Zeon Control Box Mount Kit $134 0:15 X
MM50822 Accessory Bracket Antenna Mount $58 0:15 X
6 6
3500630 Flip Up License Plate $64 0:15 X
1
Wildtrack Bumper Trim yet to be confirmed.
2
Parking Sensor Kit is Required for XLS, XLT and
vehicles with OEM Front Parking Sensors
3
Optional for all variants. XL requires fog light
wiring loom
4
Winch Adaptive Cruise Kit is required for XLT
with tech pack and vehicles with Adaptive Cruise
control. The winch control box may be required
to be fitted in the engine bay or in a location
other than the SmartBar accessory bracket
5
Fitment of the Warn Zeon winch requires
SA183-ZWK and Warn wiring kit W89965
6
Only recommended for winch bars with
standard size number plates
12 - 65FORD
RANGER PX2 (07/15-07/18)
CODE DESCRIPTION RRP FIT TIME SUPPLIED REQUIRED OPTION
1
SA175BL175 Suits 4x2 & 4x4 XL, XLS, XLT & WildTrak $2030 3:00
Compatible with OEM Fog Lights (excl. WildTrak)
1
Parking Sensor Kit Required for WildTrak and
vehicles with OE Front Parking Sensors
SA175BL176 WINCH BAR $2383 4:00
1,2
Suits 4x2 & 4x4 XL, XLS, XLT & WildTrak
Compatible with OEM Fog Lights (excl. WildTrak)
1
Parking Sensor Kit Required for WildTrak and
vehicles with OE Front Parking Sensors
2
Winch Adaptive Cruise Kit is required for
WildTrak and vehicles with Adaptive Cruise con-
trol. The winch control box may be required to
be fitted in the engine bay or in a location other
than the SmartBar
Compatible with Warn XD9000 & Premier DV 9000
3,4,5,6
SA207BL176LR LADDER RACK BAR $3323 4:30
Suits 4x2 & 4x4 XL, XLS, XLT (excl. WildTrak)
Compatible with OEM Fog Lights (excl. WildTrak)
3
Not compatible with Adaptive Cruise Vehicles
4
Winch Control Box needs to be mounted to
spot light bracket, which can affect fitment of
larger spotlights
5
Ladder Rack must be supported with beam
from the roof racks, canopy or tray body
6
Pedestrian Safety factors of bar are mitigated
BP50035 LED Indicator/Parker (Left Hand) $153 0:15 X
BP50042 LED Indicator/Parker (RIght Hand) $153 0:15 X
BP80296 Patch Harness 175 (does not suit PX) $134 0:10 X
Indicator Parker/Wiring Harness Plug & Play
BP80311 90mm Fog/Daytime Running Light Combo (Pair) $523 0:30 X
1 1
SA175-PSK Parking Sensor Kit $69 0:45 X
2 2
SA176-WAK Winch Adaptive Cruise Kit $53 0:30 X
13 - 65FORD
STEALTHBAR RANGER PX2 (07/15-07/18)
CODE DESCRIPTION RRP FIT TIME SUPPLIED REQUIRED OPTION
1
SA180BL180 Suits 4x2 & 4x4 XL, XLS, XLT & WildTrak $1819 3:00
Compatible with OEM Fog Lights (excl. WildTrak)
1
Parking Sensor Kit Required for WildTrak and
vehicles with OE Front Parking Sensors
SA180BL183 WINCH BAR $2180 4:30
1, 2
Suits 4x2 & 4x4 XL, XLS, XLT & WildTrak
Compatible with OEM Fog Lights (excl. WildTrak)
1
Parking Sensor Kit Required for WildTrak and
vehicles with OE Front Parking Sensors
2
Winch Adaptive Cruise Kit is required for
WildTrak and vehicles with Adaptive Cruise con-
trol. The winch control box may be required to
be fitted in the engine bay or in a location other
than the SmartBar
3
Fitment of the Warn Zeon winch requires
additional Kit
Compatible with Warn XD9000, Zeon 8000-12000
& Premier DV 9000
BP80052 Day Time Running Light (DRL 5631 Hella) (Pair) $219 0:45 X
BP80311 90mm Fog/Daytime Running Light Combo (Pair) $523 0:30 X
Note: a maximum of 2 DRL’s permitted to ADR
requirements
SAALK All in 1 Light (Pair) $398 1:00 X
Note: Five Function Combo Light (Driving, DRL, Fog,
Parker and Indicator). Supplied with hardware &
harness.
1 1
SA180-PSK Parking Sensor Kit (refer note ) $69 0:45 X
2 2
SA183-WAK Winch Adaptive Cruise Kit (refer note ) $73 0:30 X
3 3
SA183-ZWK Warn Zeon Control Box Mount Kit (refer note ) $134 0:15 X
required if fitting a Zeon winch, and also requires
Warn wiring kit W89965
RANGER PX (09/11-06/15)
CODE DESCRIPTION RRP FIT TIME SUPPLIED REQUIRED OPTION
SA149BL149 Suits 4x2 & 4x4 XL, XLT & WildTrak $2030 3:00
Compatible with OEM Fog Lights (excl. WildTrak)
SA149BL150 WINCH BAR $2383 4:00
Suits 4x2 & 4x4 XL, XLT & WildTrak
Compatible with OEM Fog Lights (excl. WildTrak)
Compatible with Warn XD9000 & Premier DV 9000
BP50035 LED Indicator/Parker (Left Hand) $153 0:15 X
BP50042 LED Indicator/Parker (RIght Hand) $153 0:15 X
SA149-H Plug and Play Harness (does not suit PXII) $98 0:10 X
BP80311 90mm Fog/Daytime Running Light Combo (Pair) $523 0:30 X
14 - 65FORD
EVEREST (2019+)
CODE DESCRIPTION RRP FIT TIME SUPPLIED REQUIRED OPTION
1
SA175BL175 Suits 4x2 & 4x4 Ambiente, Trend and Titanium $2030 3:00
Not compatible with OEM Fog Lights
SA175BL176 WINCH BAR $2383 4:00
1,2
Suits 4x2 & 4x4 Ambiente, Trend and Titanium
Not compatible with OEM Fog Lights
Compatible with Warn XD9000, Warn Magnum 10
& Bushranger DV-9th
BP50035 LED Indicator/Parker (Left Hand) $153 0:15 X
BP50042 LED Indicator/Parker (RIght Hand) $153 0:15 X
3 3
BP80296 Patch Harness 175 $134 0:00 X
Indicator Parker/Wiring Harness Plug & Play
4 4
BP80311 90mm Fog/Daytime Running Light Combo (Pair) $523 0:30 X
Note: a maximum of 2 DRL’s permitted to ADR
requirements
1 1
SA175-PSK Parking Sensor Kit $69 0:45 X
2 2
SA230WAK Winch Adaptive Cruise Kit $148 0:30 X
5
3500630 Flip Up License Plate $64 0:15 5
X
1
Parking Sensor Kit Required for Trend,
Titanium and vehicles with OEM Front Parking
Sensors
2
Winch Adaptive Cruise Kit is required for Trend,
Titanium and vehicles with Adaptive Cruise
control. The winch control box may be required
to be fitted in the engine bay or in a location
other than the SmartBar accessory bracket
3
Suitable for standard parker/indicator lights
supplied with bar. Will speed up and simplfy
light installation.
4
Everest OEM fog lights are not compatible with
the SmartBar. Optional aftermarket FOG/DRL
kit available
5
Only recommended for winch bars with
standard size number plates
15 - 65FORD
EVEREST (2016-2018)
CODE DESCRIPTION RRP FIT TIME SUPPLIED REQUIRED OPTION
1
SA175BL175 Suits 4x2 & 4x4 Ambiente and Trend $2030 3:00
Not compatible with OEM Fog Lights
1
Parking Sensor Kit Required for Trend and
vehicles with OEM Front Parking Sensors
$2383 4:00
SA175BL176 WINCH BAR
1,2
Suits 4x2 & 4x4 Ambiente and Trend
Not compatible with OEM Fog Lights
1
Parking Sensor Kit Required for Trend and
vehicles with OEM Front Parking Sensors
2
Winch Adaptive Cruise Kit is required for Trend
and vehicles with Adaptive Cruise control. The
winch control box may be required to be fitted
in the engine bay or in a location other than the
SmartBar
Compatible with Warn XD9000 & Premier DV 9000
BP50035 LED Indicator/Parker (Left Hand) $153 0:15 X
BP50042 LED Indicator/Parker (RIght Hand) $153 0:15 X
BP80296 Patch Harness 175 $134 0:10 X
Indicator Parker/Wiring Harness Plug & Play
BP80311 90mm Fog/Daytime Running Light Combo (Pair) $523 0:30 X
Note: a maximum of 2 DRL’s permitted to ADR
requirements
1 1
SA175-PSK Parking Sensor Kit (refer note ) $69 0:45 X
2 2
SA176-WAK Winch Adaptive Cruise Kit (refer note ) $53 0:30 X
16 - 65FORD
STEALTHBAR EVEREST (2019+)
CODE DESCRIPTION RRP FIT TIME SUPPLIED REQUIRED OPTION
1
SA180BL186 Suits 4x2 & 4x4 Ambiente, Trend and Titanium $1945 3:00
Not compatible with OEM Fog Lights
SA180BL187 WINCH BAR $2305 4:30
1,2
Suits 4x2 & 4x4 Ambiente, Trend and Titanium
Not compatible with OEM Fog Lights
Compatible with Warn XD9000, Zeon 8000-12000,
3
Warn Magnum, Bushranger DV-9th and REVO
BP80052 Day Time Running Light (DRL 5631 Hella) (Pair) $219 0:45 X
4 4
BP80311 90mm Fog/Daytime Running Light Combo (Pair) $523 0:30 X
Note: a maximum of 2 DRL’s permitted to ADR
requirements
SAALK All in 1 Light (Pair) $398 1:00 X
Note: Five Function Combo Light (Driving, DRL, Fog,
Parker and Indicator). Supplied with hardware &
harness.
1 1
SA180-PSK Parking Sensor Kit (refer note ) $69 0:45 X
2 2
SA230WAK Winch Adaptive Cruise Kit (refer note ) $148 0:30 X
3 3
SA183-ZWK Warn Zeon Control Box Mount Kit (refer note ) $134 0:15 X
MM50822 Accessory Bracket Antenna Mount $58 0:15 X
5 5
3500630 Flip Up License Plate $64 0:15 X
1
Parking Sensor Kit Required for Trend,
Titanium and vehicles with OEM Front Parking
Sensors
2
Winch Adaptive Cruise Kit is required for Trend,
Titanium and vehicles with Adaptive Cruise
control. The winch control box may be required
to be fitted in the engine bay or in a location
other than the SmartBar accessory mount
3
Fitment of the Warn Zeon winch requires
SA183-ZWK and Warn wiring kit W89965
4
Everest OEM fog lights are not compatible with
the StealthBar. Optional aftermarket FOG/DRL
kit available
5
Only recommended for winch bars with
standard size number plates
17 - 65FORD
STEALTHBAR EVEREST (2016-2018)
CODE DESCRIPTION RRP FIT TIME SUPPLIED REQUIRED OPTION
1
SA180BL186 Suits 4x2 & 4x4 Ambiente and Trend $1945 3:00
Not compatible with OEM Fog Lights
1
Parking Sensor Kit Required for Trend and
vehicles with OEM Front Parking Sensors
SA180BL187 WINCH BAR $2305 4:30
1,2
Suits 4x2 & 4x4 Ambiente and Trend
Not compatible with OEM Fog Lights
1
Parking Sensor Kit Required for Trend and
vehicles with OEM Front Parking Sensors
2
Winch Adaptive Cruise Kit is required for Trend
and vehicles with Adaptive Cruise control. The
winch control box may be required to be fitted
in the engine bay or in a location other than the
SmartBar
3
Fitment of the Warn Zeon winch requires
additional Kit
Compatible with Warn XD9000, Zeon 8000-12000
& Premier DV 9000
BP80052 Day Time Running Light (DRL 5631 Hella) (Pair) $219 0:45 X
BP80311 90mm Fog/Daytime Running Light Combo (Pair) $523 0:30 X
Note: a maximum of 2 DRL’s permitted to ADR
requirements
SAALK All in 1 Light (Pair) $398 1:00 X
Note: Five Function Combo Light (Driving, DRL, Fog,
Parker and Indicator). Supplied with hardware &
harness.
1 1
SA180-PSK Parking Sensor Kit (refer note ) $69 0:45 X
2 2
SA183-WAK Winch Adaptive Cruise Kit (refer note ) $73 0:30 X
3 3
SA183-ZWK Warn Zeon Control Box Mount Kit (refer note ) $134 0:15 X
Required if fitting a Zeon winch, and also requires
Warn wiring kit W89965
COURIER (02/99+) **MADE TO ORDER**
CODE DESCRIPTION RRP FIT TIME SUPPLIED REQUIRED OPTION
SA061BL081 Suits PG Courier 2WD, 4WD and Turbo Models $1596 3:00
Note: 4WD bars need to be ordered as a 4WD bar
due to flares the on vehicle, bar needs to be wider
SA061BL081 Suits PE Courier 2WD, 4WD and Turbo Models $1596 3:00
Note: 4WD bars need to be ordered as a 4WD bar
due to flares the on vehicle, bar needs to be wider
TP4878 100mm Narva Driving Light (complete with $188 0:15 X
brackets, no loom) (Pair)
TP44768 Indicator Assembly Clear (Pair) $64 0:15 X
18 - 65HINO
DUTRO 300 (2006-2014)
CODE DESCRIPTION RRP FIT TIME SUPPLIED REQUIRED OPTION
SA105BL105 Suits wide body only $2077 3:00
1
BP38538 Indicator/Parker 6220020 (Single) $48 0:15 X
1
BP43891 LED Indicator/Parker with lead (Single) $106 0:30 X
1
Optional LED Indicator/Parker to be used in
place of regular Indicator/Parker
DUTRO 5000,5500 (2005-2006)
CODE DESCRIPTION RRP FIT TIME SUPPLIED REQUIRED OPTION
SA105BL105 Hino Dutro 5000,5500 $2077 3:00
1
BP38538 Indicator/Parker 6220020 (Single) $48 0:15 X
1
BP43891 LED Indicator/Parker with lead (Single) $106 0:30 X
1
Optional LED Indicator/Parker to be used in
place of regular Indicator/Parker
DUTRO 5000,5500 (1995-12/04) **MADE TO ORDER**
CODE DESCRIPTION RRP FIT TIME SUPPLIED REQUIRED OPTION
SA010BL095 Hino Dutro 5000,5500 $1961 3:00
BP1173 Indicator/Parker Assembly PPI-105 (Pair) $98 0:15 X
19 - 65HOLDEN
COMMODORE VE & VE2 (08/06-05/13)
CODE DESCRIPTION RRP FIT TIME SUPPLIED REQUIRED OPTION
SA110BL110 Suits Omega, Calais, Berlina, SV6 & SS $1733 3:00
Includes Sports Wagon & Utes
1
Bar can only accomodate one option
1
TP4878 100mm Narva Driving Light (complete with $188 0:15 X
1
brackets, no loom) (Pair)
1
TP23923 100mm Narva Fog Light (complete with $200 0:15 X
1
brackets, no loom) (Pair)
COMMODORE VY & VZ, EXCLUDING V8 MODELS (10/02-08/06)
CODE DESCRIPTION RRP FIT TIME SUPPLIED REQUIRED OPTION
SA082BL082 Suits Acclaim, Executive, Calais, Berlina, Cross 6 $1733 3:00
& Base Crewman
Includes Wagon & Utes
1
Bar can only accomodate one option
1
TP4878 100mm Narva Driving Light (complete with $188 0:15 X
1
brackets, no loom) (Pair)
1
TP23923 100mm Narva Fog Light (complete with $200 0:15 X
1
brackets, no loom) (Pair)
COMMODORE VY & VZ, V8 MODELS (10/02-08/06) **MADE TO ORDER**
CODE DESCRIPTION RRP FIT TIME SUPPLIED REQUIRED OPTION
SA082BL084 Suits Berlina, Calais, SV8, SS. Same bar as $1733 3:00
above, with different kit (replacement skid pan).
Includes Wagon & Utes
1
Bar can only accomodate one option
1
TP4878 100mm Narva Driving Light (complete with $188 0:15 X
1
brackets, no loom) (Pair)
1
TP23923 100mm Narva Fog Light (complete with $200 0:15 X
1
brackets, no loom) (Pair)
COMMODORE VT, VX & VU (09/00-10/02)
CODE DESCRIPTION RRP FIT TIME SUPPLIED REQUIRED OPTION
SA069BL064 Suits Acclaim, Executive, S, SS $1504 3:00
Includes Wagons & Utes
1
Bar can only accomodate one option
1
TP4878 100mm Narva Driving Light (complete with $188 0:15 X
1
brackets, no loom) (Pair)
1
TP23923 100mm Narva Fog Light (complete with $200 0:15 X
1
brackets, no loom) (Pair)
20 - 65HOLDEN
COLORADO RG (09/16+)
CODE DESCRIPTION RRP FIT TIME SUPPLIED REQUIRED OPTION
SA153BL192 Suits 4x2 & 4x4 LS, LT $2151 3:00
Not compatible with OEM Fog Lights
Not compatible with vehicles fitted with Parking
Sensors (LTZ, Storm and Z71 have sensors as
standard)
SA153BL193 WINCH BAR $2499 4:00
Suits 4x2 & 4x4 LS, LT
Not compatible with OEM Fog Lights
Compatible with Warn XD9000, Premier DV 9000 &
Smitty Bilt X2o Gen2 10000lb
Not compatible with vehicles fitted with Parking
Sensors (LTZ, Storm and Z71 have sensors as
standard)
BP50035 LED Indicator/Parker (Left Hand) $153 0:15 X
BP50042 LED Indicator/Parker (RIght Hand) $153 0:15 X
COLORADO RG (06/12-08/16)
CODE DESCRIPTION RRP FIT TIME SUPPLIED REQUIRED OPTION
SA153BL153 Suits 4x2 & 4x4 DX, LX, LS, LT, LTZ $2151 3:00
Compatible with OEM Fog Lights
SA153BL154 WINCH BAR $2499 4:00
Suits 4x2 & 4x4 DX, LX, LS, LT, LTZ
Compatible with OEM Fog Lights
Compatible with Warn XD9000, Premier DV 9000
& VRS V9500
BP50035 LED Indicator/Parker (Left Hand) $153 0:15 X
BP50042 LED Indicator/Parker (RIght Hand) $153 0:15 X
COLORADO 7 (12/12-08/16)
CODE DESCRIPTION RRP FIT TIME SUPPLIED REQUIRED OPTION
SA153BL153 Suits 4x2 & 4x4 LT & LTZ $2151 3:30
Compatible with OEM Fog Lights
SA153BL154 WINCH BAR $2499 4:30
Suits 4x2 & 4x4 LT & LTZ
Compatible with OEM Fog Lights
Compatible with Warn XD9000, Premier DV 9000
& VRS V9500
BP50035 LED Indicator/Parker (Left Hand) $153 0:15 X
BP50042 LED Indicator/Parker (RIght Hand) $153 0:15 X
21 - 65HOLDEN
TRAILBLAZER (09/16+)
CODE DESCRIPTION RRP FIT TIME SUPPLIED REQUIRED OPTION
SA153BL192 Suits 4x2 & 4x4 LT $2151 3:00
Not compatible with OEM Fog Lights
Not compatible with vehicles fitted with Parking
Sensors (LTZ & Z71 have sensors as standard)
SA153BL193 WINCH BAR $2499 4:00
Suits 4x2 & 4x4 LT
Not compatible with OEM Fog Lights
Not compatible with vehicles fitted with Parking
Sensors (LTZ & Z71 have sensors as standard)
Compatible with Warn XD9000, Premier DV 9000
& VRS V9500
BP50035 LED Indicator/Parker (Left Hand) $153 0:15 X
BP50042 LED Indicator/Parker (RIght Hand) $153 0:15 X
RODEO RA (12/02-12/06) **MADE TO ORDER**
CODE DESCRIPTION RRP FIT TIME SUPPLIED REQUIRED OPTION
SA086BL086 Suits 4x2 & 4x4, 4cyl and 6cyl models $1847 3:00
Only suits flared models
BP1239 Indicator/Parker MB92-220-1 (Right Hand) $58 0:15 X
BP1240 Indicator/Parker MB92-220-2 (Left Hand) $58 0:15 X
RODEO (1988-12/02) **MADE TO ORDER**
CODE DESCRIPTION RRP FIT TIME SUPPLIED REQUIRED OPTION
SA063BL029 Suits 4x2 & 4x4 $1406 3:00
BP1173 Indicator/Parker Assembly PPI-105 (Pair) $98 0:15 X
22 - 65ISUZU
D-MAX (01/17+)
CODE DESCRIPTION RRP FIT TIME SUPPLIED REQUIRED OPTION
SA203BL203 Suits LS-M & LS-U 4x2 & 4x4 $2522 3:30
Wide Body Models
1
Compatible with OEM Fog Lights
SA203BL204 WINCH BAR $2852 4:30
Suits LS-M & LS-U 4x2 & 4x4
Wide Body Models
1
Compatible with OEM Fog Lights
Compatible with Warn 8000/XD9000/XP9.5/
XDC9.5, Magnum 8000-12000lb, Zeon 8000-
12000lb, Zeon Platinum 8000-12000lb, Bushranger
DV-9TH/DS9.5TH & Seal 9.5TH, Smittybilt X20
Comp Gen 2 10,000lb
BP80052 DRL 5631 Hella (Pair) $219 0:45 X
6821287 ARB LED Lamp Kit (Pair) $186 0:15 X
1 1
SA203FBK Fog Light Bracket Kit $57 0:15 X
SA203UWK Under Wing Panel Kit $246 0:15 X
1
Fog Light Bracket Kit required if intending to fit
OEM Fog Lights to SmartBar
2
SA209BL203 Suits EX & SX 4x2 & 4x4 $2311 3:30
Wide Body Models
SA209BL204 WINCH BAR $2641 4:30
2
Suits EX & SX 4x2 & 4x4
Wide Body Models
Compatible with Warn 8000/XD9000/XP9.5/
XDC9.5, Magnum 8000-12000lb, Zeon 8000-
12000lb, Zeon Platinum 8000-12000lb, Bushranger
DV-9TH/DS9.5TH & Seal 9.5TH, Smittybilt X20
Comp Gen 2 10,000lb
3
SA208BL208 NARROW BODY $2641 3:30
Suits SX 4x2
Low Ride Crew Cab Ute & Single Cab Chassis
BP80052 DRL 5631 Hella (Pair) $219 0:45 X
6821287 ARB LED Lamp Kit (Pair) $186 0:15 X
SA203UWK Under Wing Panel Kit $246 0:15 X
2
EX & SX variants not supplied with Fog Lights
3
Narrow body option currently under
development, please enquire for status update
23 - 65You can also read
