GLOBAL LEADER OF ACCESSORIES
FOR EQUINE VETERINARIANS
SINCE 2008
WWW.PODOBLOCK.COM
PRODUCT
CATALOGUE 2021
ABOUT THE COMPANY OUR TEAM
We are the global leaders of accessories in the ALEX BERENDS
CO-FOUNDER & CEO
equine veterinary sector.
ceo@podoblock.com
0031 50820 0052
Our product lines are primarily based on
supplying solutions for every ultrasound and X-ray
systems in the market.
RENÉ VAN WIJK
INSIDE SALES & BACKOFFICE
With almost 30 years of working within the equine sales@podoblock.com
field, we developed expertise in innovating 0031 50820 0056
products to that are durable, high standard and
efficient for every daily job.
KEES LANINGA
Each piece of equipment has been designed, built, PURCHASE & LOGISTICS
and tested by us to ensure our quality and your logistics@podoblock.com
safety. 0031 50820 0053
Environmental conditions can influence
wearability, that is why we choose only the highest JUDITH TACK
quality of materials for our products. That is the OFFICE PROJECT MANAGER
epitome on which we built our brand: Quality, office@podoblock.com
Durability and Safety. 0031 50820 0051
All products are made in the Netherlands with
worldwide delivery service or supplied through a TIEMEN HOVIUS
network of distributors. FINANCIAL MANAGER
finance@podoblock.com
Our customer service is excellent with in-house 0031 50820 0054
repair service and warranty possibilities. And
we take pride in knowing you, our customers,
personally and use short communication lines. Do ROUSANNA BAIRD
MARKETING
not hesitate to reach out if you have any problems
marketing@podoblock.com
or suggestions. We are always ready to assist,
0031 50820 0054
willing to listen.
And because we are continually evolving and
CLAUDIA LUCKER
innovating, we build reliable connections with our
PODOBLOCK USA MANAGER
distributors and veterinarians around the world
claudia.lucker@podoblockusa.com
and created a system for generating the best
001 561 815 2265
ideas and the latest problems to solve.
That is also the reason we are expanding to other
markets, like the small animal and human medical
market, to serve them with our products.
2 CATALOGUE PODOBLOCK PODOBLOCK CATALOGUE 3
CONTENTS
C HA PT ER 1
CHAPTERS PAGES
1. Podoblock 5-7
2. CR Cassette Solutions 8 -11
3. Dental X-Ray Solutions 12 - 17
4. DR Flatpanel Solutions 16 - 27
5. Bucky Solutions 28 - 31
6. Ultrasound Solutions 32 - 38
7. Generator Solutions 39 - 44
8. Protection & Safety 45 - 53
9. X-Ray Markers 54 - 55
10. Special X-Ray Solutions 56 - 57
11. Miscellaneous 58 - 59
12. Parts & Specials 60 - 61
13. Emergency & Care 62 - 65
Outlet 66
PODOBLOCK
Repairs & Service 67
At Podoblock, we recognize the challenges that equine veterinarians face daily.
From the onset of our business in 2008, we have been aware of the hurdles that
come with equine X-raying.
Our very first contraption, the Podoblock, has been a whopping success ever since.
It always guarantees the same angle in every position, and it maximally minimizes
radiation because of the hands-free system.
The Podoblock is robust, solid and almost indestructible. It comes in 3 different
heights and has several optional extras and add-ons, laid out for you on the
following pages.
4 CATALOGUE PODOBLOCK PODOBLOCK CATALOGUE 5
CHAPTER 1 PODOBLOCK PODOBLOCK CHAPTER 1
Podoblock Topblock Flatplate LM / AP/ 45°
• Made of aluminium base and a synthetic PE500 top
For LM / AP / 45° takes with the foot standing flat or
piece
upright pedal.
• Weight Podoblock: 6,5 kg
• Made of synthetic PE500
• 4 rubber feet
• Available in black only
• Includes 1 Topblock of your choice
• LM / AP / 45° Handsfree system
• Avoids fingers on your X-ray
Product Itemnumber
• Height from ground to tip-off hoof in Podoblock is
Topblock Flatplate AP TBF 02500AP
either 90, 120 or 170 mm
Topblock Flatplate LM / AP TBF 02500LMAP
Product Itemnumber Topblock Flatplate LM / AP/45° TBF 0250045
Base Element 90 mm PB 01AL090
BE 90mm + TB 45°BE PB 01AL090-45
90mm + TB 50°BE PB 01AL090-50
90mm + TB 55°BE PB 01AL090-55
90mm + TB 60°BE PB 01AL090-60
Abbreviation:
90mm + TB 60° UP Base PB 01AL090-60 UP MagRayCloxx
Element 120 mm BE PB 01AL120
BE = Base Element 120mm + TB 45°BE PB 01AL120-45 Magnetic X-ray block that greatly enhances both your
TB = Topblock 120mm + TB 50°BE PB 01AL120-50 and the horse’s mobility and working speed. The blocks
UP = Upright Pedal 120mm + TB 55°BE PB 01AL120-55 stay on the horse while making oblique X-rays.
120mm + TB 60°BE PB 01AL120-60
120mm + TB 60° UP PB 01AL120-60 UP The block has a clean break-over and a cut lateral and
Base Element 170 mm PB 01AL170
BE 170mm + TB 45°BE
medial edge.
PB 01AL170-45
170mm + TB 50°BE PB 01AL170-50 Design:
170mm + TB 55°BE PB 01AL170-55 The cloxx can be used with or without (radiolucent)
Dr. Joachim Onderka
170mm + TB 60°BE PB 01AL170-60 foil that is wrapped around the horse’s shoe for safe
170mm + TB 60° UP PB 01AL170-60 UP fixation, and even works on a barefoot horse.
• Made of synthetic PE500
• Size: 150 x 160 x 60 mm
• Clean break-over on both front and side
• Magnets to fix to the horseshoe
• Bottom of Cloxx padded with anti-slip rubber strips
• Comes with radiolucent foil for extra fixation
Product Itemnumber
2 Blocks / 1 Hand dispenser / MRC 01SET2-5
5 Foil rolls
170 mm 4 Blocks / 1 Hand dispenser / MRC 01SET4-12
120 mm
90 mm 12 Foil rolls
1 Hand dispenser / 12 Foil MRC 01FOIL1-12
rolls
Topblock + Optional Wedge Product
Topblock 45°
Itemnumber
TB 0250045
Easily interchangeable blocks for our Podoblock Angle Topblock 50° TB 0250050
diversity 45° to 60° with 5° increments. Topblock 55° TB 0250055
Topblock 60° TB 0250060
• Made of synthetic PE500 Topblock 60° Upright Pedal TBD 0250060
• Available in black only Topblock Wedge 10° TBW 0250010
6 CATALOGUE PODOBLOCK PODOBLOCK CATALOGUE 7
CR CASSETTE SOLUTIONS CHAPTER 2
C HAPT ER 2 Podoholder Protection Cover
To be used in combination with our Podoblock The Protection cover is a standard plane casing for
and Combibox. Protects your cassette and always your Analog and CR Cassettes.
secures the right positions for standard hoof
exams. It comes with a Velcro fastener to secure the Cassette
and is made of strong Polycarbonate.
Optional to the Podoholder are the Podoholder
Lead and Podoholder Grid. If you want to use a Grid
or Backscatter lead, please contact us for optional
possibilities.
Size Itemnumber Size Itemnumber
18 x 24 cm PH 03182418 18 x 24 cm CRP 03182418
24 x 30 cm PH 03243018 24 x 30 cm CRP 03243018
35 x 43 cm Horizontal PHB 03354318 35 x 43 cm Horizontal CRPH 03354318
8” x 10” PH 03232818 8” x 10” CRP 03232818
10” x 12” PH 03283318 10” x 12” CRP 03283318
Please note: this Protection cover is a sub-optimal solution in combination with our Podoblock or CR-Combibox.
Knee Holder
Easy to use distance holder - especially for knee exams
- that creates maximum distance and safety.
Standard supplied with a telescopic stick can be
adjusted to the left or the right in a split second.
• Made of 3 mm polycarbonate
• For use with all Analogue and CR cassettes
CR CASSETTE SOLUTIONS
Size Itemnumber
Computed radiography (CR) systems are still much in use in the veterinary world. 18 x 24 cm KH 04182418
24 x 30 cm KH 04243018
8” x 10” KH 04232818
At Podoblock we offer a complete product line in order to enable your CR system 10” x 12” KH 04283318
for your equine tasks, outlined for you on the following pages.
8 CATALOGUE PODOBLOCK PODOBLOCK CATALOGUE 9
CHAPTER 2 CR CASSETTE SOLUTIONS CR CASSETTE SOLUTIONS CHAPTER 2
Distance Cassette Holder (with Foot Option) Skylinebox
This is the most effective product on the market for high-
quality skyline X-rays and makes taking skyline exams easy
because of the unique built-in angle.
After exposure, it is effortless to open and to reload the tunnel
without replacing the horse.
The Skyline tunnel is available for all sizes of analogue and CR
cassettes.
• Made of polycarbonate 10 mm
• 4 rubber feet and an anti-slip surface
• Skyline angle 5°
Size Itemnumber
18 x 24 SK 05182420
24 x 30 SK 05243020
8” x 10” SK 05232820
10” x 12” SK 05283320
They are crafted to create maximum distance from the
radiation as well as from the horse.
It comes with a 3D-adjustable telescopic stick with only one
knob for securing.
Telescopic foot available in 2 lengths: Combibox
• Short: 28 - 49 cm for hock The Combibox has all the features of the Skyline tunnel above
• Long: 100 - 190 cm for back/neck and can additionally be used for LM / AP, flat and upright
• Weight: 1,5 kg - with foot: 1,9 kg pedal takes when turned over.
• Made of super strong, durable, lightweight polycarbonate
With the optional Podoholder, the Combibox creates a
handsfree system that allows for making Skyline, LM and AP
X-rays of the foot. For optimal results, use it in combination
Size Itemnumber with the Dummy to have both feet at the same height.
DCH 18 x 24 AC 04182418
DCH 18 x 24 Fetlock ACK 04182418 The Combibox is available for all sizes cassettes, both
DCH 24 x 30 AC 04243018
analogue and CR.
DCH 35 x 43 Horizontal ACB 04354318
• Made of polycarbonate 10 and 18 mm
• 70 mm in height
DCH 8” x 10” AC 04232818
• Rubber feet and an anti-slip surface
DCH 8” x 10” Fetlock ACK 04232818
Telescopic foot • Skyline angle 5°
DCH 10” x 12” AC 04283318
DCH 18 x 24 + Short Foot ACS 04182418
DCH 24 x 30 + Short Foot ACS 04243018
DCH 35 x 43 + Long Foot ACBS 04354318 Product Cassette Size Itemnumber
DCH 8” x 10” + Short Foot ACS 04232818 Combibox 18 x 24 LM 208 x 267 mm CO 061824081
DCH 10” x 12” + Short Foot ACS 04283318 Combibox 18 x 24 LM / AP 208 x 267 mm CO 061824082
Optional Support Foot (S) LS 10300MM Combibox 18 x 24 LM / AP & Dummy 208 x 267 mm CO 061824083
Optional Support Foot (L) LS 101200MM Combibox 24 x 30 LM 267 x 327 mm CO 062430081
Combibox 24 x 30 LM / AP 267 x 327 mm CO 062430082
Combibox 24 x 30 LM / AP & Dummy 267 x 327 mm CO 062430083
Combibox 8” x 10” LM 230 x 280 mm CO 062328081
Combibox 8” x 10” LM / AP 230 x 280 mm CO 062328082
Combibox 8” x 10” LM / AP & Dummy 230 x 280 mm CO 062328083
Combibox 10” x 12” LM 280 x 330 mm CO 062833081
Combibox 10” x 12” LM / AP 280 x 330 mm CO 062833082
Combibox 10” x 12” LM / AP & Dummy 280 x 330 mm CO 062833083
Dummy LM CO 06DUM081
10 CATALOGUE PODOBLOCK PODOBLOCK CATALOGUE 11
DENTAL X-RAY SOLUTIONS CHAPTER 3
C HAPT ER 3 Denfinity
• This light-weight portable and collapsible stainless steel
stand offers you the freedom to make high-quality Skull
X-rays in a hands-free fashion.
• The Denfinity stand is a fully stainless steel base plate
and vertical telescopic pole that guarantees a secure
positioning and right height adjustment.
• Starting with the base element of the Denfinity, the base
plate and pole, you can configure with several options
that can quickly and directly be placed on the Denfinity
base.
• The aluminium 3D-joint is used in combination with our
Protectionbox.
• The LM-Head support is best used in combination with
our Protectionbox, Podo-Protectionbox and Cowboybox
and also fixates your CR cassette or DR flatpanel.
• The Protectionbox secures your Cassette or Flatpanel
when using in combination with the 3D-joint and LM-
Head support.
• When ordering the optional Protectionbox or Podoholder,
be sure to state the required cassette measurements you
use.
Denfinity Options
A. Base Element D. Headrest
Base plate: 350 x 405 x 90 mm Polycarbonate 10 mm
Vertical pole: 960 mm Full radiolucent, no metal
D
A Vertical travel: 600 mm parts in the detection area
Material: Stainless steel
E. DR-Buckybox
B. 3D-joint Material: Polycarbonate 3mm.
Aluminium 3D-swivel joint Fully closed cassette which
used in combination with requires 3D-joint to function
Dental or Protectionbox
C. LM-Head support
DENTAL X-RAY SOLUTIONS
Polycarbonate 10 mm Swivel
B
range: 180° Universal adapter
for fixation Podoholder,
Protection Cover, DR-
Protectionbox, DR-Buckybox,

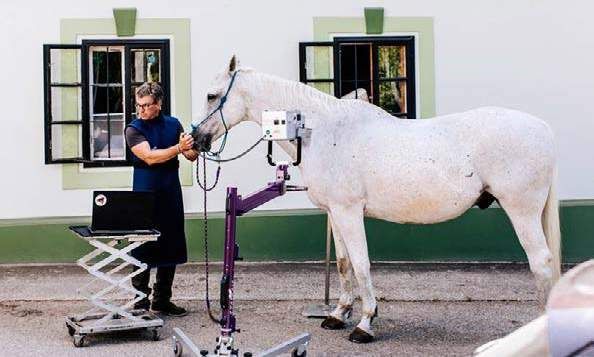

Years ago, we could not have envisioned the demand for dental X-ray solutions we or DR-Cowboybox
E
get these days. From the onset, it soared, and we tried to lead the way from then
on with practical solutions.
Product Itemnumber
Base Element DSJ 1050401
At this junction, we have several standard products to improve and yet simplify 3D-Joint DSJ 10DNL3D
C
these usually tricky tasks. In case you have specific wishes concerning new LM Head-support DSJ 10LMHEAD
Headrest DSJ 10HREST
products, we are happy to collaborate with you on possible solutions to your DR-Buckybox | Wired All Series
needs. DR-Buckybox | Wireless All Series
Note: Revert to pages 17 and 19 - 27 for more information on All Series.
12 CATALOGUE PODOBLOCK PODOBLOCK CATALOGUE 13
CHAPTER 3 DENTAL X-RAY SOLUTIONS DENTAL X-RAY SOLUTIONS CHAPTER 3
XtandR The Juliuster
A revolutionary set of interchangeable bite plates for
equine head radiographs.
The XtandR is only intended for taking X-rays of the
incisors.
They are completely universal to fit all speculi available
in the market.
These radiolucent bite plates have been tested
according to the official DAkkS-DKD-R 3-3 regulation
and can withstand a pressure of 5,13 KN / 513 Kg.
• Material: HMPE1000
• Can withstand a pressure of 5,13 KN / 513 kg
Designed, tested and approved in collaboration with
Product Itemnumber the European Equine Dental Consultancy.
XtandR RBP 10REGU
Easy-to-use device to offset the lower jaw to the left or
right for open-mouth views with offset-technique.
Great to investigate the roots and the occlusion surface
of the cheek teeth. Dorso-ventral views can be made
with 5 cm offset to the left and right.
• Material: HMPE500
• Offset: 5 cm left/right
• Adjusted in 12 mm increments
• Strap: 148 cm Biothane
Product Itemnumber
Juliuster DRS 1011560
Dental X-Block
Can be used directly between the incisors to quickly
create 60, 80 or 100 mm space.
• Material: Rubber 95º shore
• Weight: 650 gr
• Size: 60 x 80 x 100 mm
Product Itemnumber
Radiolucent bite plates sample X-ray Dental X-Block DXB 106810
14 CATALOGUE PODOBLOCK PODOBLOCK CATALOGUE 15
DR FLATPANEL SOLUTIONSS CHAPTER 4
C HAPT ER 4 DR-Protectionbox
• Light-weight protectionbox - Handheld
• Depending on your DR-system, the box comes with a
mounted grip handle or with our Greppstr 2.1 (see P 61)
DR-Podo-Protectionbox
Protectionbox with 5 mm adaptors to place in our Podoblock and
Combibox, that guarantees the same direction and angle with
hoof examinations at all times.
Depending on your DR system, the box comes with a mounted
grip handle or with our Greppstr 2.1
(see P 61)
Product Itemnumber
DR-Protectionbox | Wired All Series
DR-Protectionbox | Wireless All Series
DR-Podo-Protectionbox | Wired All Series
DR-Podo-Protectionbox | Wireless All Series
DR-Cowboybox
Protectionbox, Podo-protectionbox and Remote cassette holder
all-in-one.
Standard with mountable telescopic grip, which can be turned in
3D positions to get extra distance and a mountable and height-
adjustable 300 mm support foot.
Depending on your DR system, the box comes with a mounted
grip handle or with our Greppstr 2.1 (see P 61)
DR-Cowboy Package
The optimal combined package of DR Products to make all X-rays
needed, both safely and in a standardized fashion.
The package deal includes:
• Podoblock
• DR-Cowboybox
• DR-Combibox LM / AP
DR FLATPANEL SOLUTIONS • Combibox Dummy LM
Product Itemnumber
DR-Cowboybox | Wired All Series
DR-Cowboybox | Wireless All Series
Digital Radiography (DR) techniques have evolved rapidly in a relatively short DR-Cowboy Package | Wired All Series
period, not just concerning software, but also hardware, maybe even more so. DR-Cowboy Package | Wireless All Series
The first DR flat panels were a heavy, wired and inconvenient version of what they
are today, yet suitable for most equine vets, thanks to our products.
DR-Buckybox
The evolution to thin, light-weight, wireless and easily manageable flat panels was
The DR-Buckybox is a new affordable alternative version of our
a rapid one and has been a constant challenge for us to keep up with the changes New! x-ray cassette protection case, similar to our DR-Cowboybox.
and developments on the market and provide adequate solutions. • Available from stock for all current DR Flat panels
• Perfect fitting box and secured with locking door
• The Polycarbonate box comes with the Greppstr 2.1 universal
With our DR-product package, we believe we have the most appropriate solution handgrip (for wireless Flat panels) for easy carrying
for today’s equine vet. At least we can’t envision a practice without it!
Overall, we cover 50 brands of flat panels in the market. Product
DR-Buckybox | Wired
Itemnumber
All Series
DR-Buckybox | Wireless All Series
Note: Revert to page 30 for more information about the DR-Buckybox.
16 CATALOGUE PODOBLOCK PODOBLOCK CATALOGUE 17
CHAPTER 4 DR FLATPANEL SOLUTIONS DR FLATPANEL SOLUTIONSS CHAPTER 4
DR-Skylinebox FLATPANEL MANUFACTURERS ISO Panels
This product is a full protection box made of 20mm polycarbonate material
that withstands the weight of the horse’s foot while in standing position
during x-ray exams.
Because of the particular angle, the horse is standing comfortably, and there
is more space for the generator.
The top surface comes with a radiolucent anti-slip surface. A lock secures
the opening of the insert.
• Material: 20 mm polycarbonate
Product Itemnumber
DR-Skylinebox All Series
DR-Combibox LM
The Skyline side of the DR-Combibox LM has the same features as the
original DR-Skylinebox. Because of the special angle the horse is standing
comfortably and there is more space for the X-ray generator.
When turned over the tunnel has extra features to facilitate LM flat views
of the foot. The special adapters on the DR-Combibox allow you to take
1. 2.
"hands-free" X-rays in combination with our DR Podo-Protectionbox, DR-
ISO 24 x 30 ISO 10” x 12”
Cowboybox or DR-Buckybox.
268 x 327 mm 280 x 330 mm
This way the DR flatpanel is protected and always in the right position.
DR-Combibox LM / AP
The DR-Combibox LM / AP has the same features as the DR-Combibox LM
but with the option to facilitate AP flat views of the foot.
This way it is not necessary to replace the foot for both exams.
Product Itemnumber
DR-Combibox LM All Series
DR-Combibox LM / AP All Series
Combibox Dummy LM
The DR-Combibox Dummy LM lifts the equine foot to a higher level.
The special adapter on the Dummy block allows you to take “hands-free”
X-rays in combination with our DR Podo-Protectionbox or DR-Cowboybox.
3. 4.
ISO 14” x 17” ISO 17” x 17”
• Size: L 235 x W 160 x H 88 mm
385 x 460 mm 460 x 460 mm
DR-Combibox Set
Both standing feet on the same height is advised with LM and AP
examinations. That is why our Combibox Dummy can also be supplied with Producttype 1 2 3 4
DR-Protectionbox DR 03ISO2430 DR 03ISO1012 DR 03ISO1417 DR 03ISO1717
the DR-Combibox.
DR-Skylinebox DR 05ISO2430 DR 05ISO1012 DR 05ISO1417 DR 05ISO1717
DR-Combibox LM DR 06ISO2430 1 DR 06ISO1012 1 DR 06ISO1417 1 DR 06ISO1717 1
The Combibox Set is included: DR-Combibox LM / AP DR 06ISO2430 2 DR 06ISO1012 2 DR 06ISO1417 2 DR 06ISO1717 2
• DR-Combibox LM / AP DR-Combibox SET DR 06ISO2430 S DR 06ISO1012 S DR 06ISO1417 S DR 06ISO1717 S
• Combibox Dummy LM DR-Podo-Protectionbox DR 07ISO2430 DR 07ISO1012 DR 07ISO1417 DR 07ISO1717
DR-Cowboybox DR 08ISO2430 DR 08ISO1012 DR 08ISO1417 DR 08ISO1717
Product Itemnumber DR-Cowboy Package DR 08ISO2430 P DR 08ISO1012 P DR 08ISO1417 P DR 08ISO1717 P
Combibox Dummy LM CO 06DUM081DR DR-Buckybox DR 09ISO2430 DR 09ISO1012 DR 09ISO1417 DR 09ISO1717
DR-Combibox Set All Series
18 CATALOGUE PODOBLOCK PODOBLOCK CATALOGUE 19CHAPTER 4 DR FLATPANEL SOLUTIONS DR FLATPANEL SOLUTIONSS CHAPTER 4
Agfa Canon
1. DR10s Wireless 2. DR14s Wireless
DR10e Wireless DR10e Wireless 1. Canon CXDI-31 2. Canon CXDI-60C
Canon CXDI-60G
Eklin Mark IIG
Eklin Mark IIIG
Scope-XS
XDR2
Wireless Wireless
3. DX-D 40C Wireless 4. DX-D 45C Wireless
3. Canon CXDI-70C
DX-D 40G Wireless DX-D 45G Wireless
Canon CXDI-701C 4. Canon CXDI-80C
Agfa DX-D 30C Canon CXDI-801C
Canon CXDI-801G
Konica Minolta SoundEklin Sprint Air
6. FDX3543RPW Wireless
5. AeroDR 1012HQ Wireless
Wireless
Wireless 5. Canon CXDI-710C 6. Canon CXDI-810C
Producttype 1 2 3 4 5 6 Producttype 1 2 3 4 5 6
DR-Protectionbox DR 03ISO2430 DR 03ISO1417 DR 03ISO1417 DRVI 031012N DR 03ISO1012 DR 03ISO1417 DR-Protectionbox DR31 03323330 DR60 03343824 DR 03ISO1417 DR80 03383015 DR 03ISO1417 DR80 03383015
DR-Skylinebox DR 05ISO2430 DR 05ISO1417 DR 05ISO1417 DRVI 051012N DR 05ISO1012 DR 05ISO1417 DR-Skylinebox DR31 05323330 DR60 05343824 DR 05ISO1417 DR80 05383015 DR 05ISO1417 DR80 05383015
DR-Combibox LM DR 06ISO2430 1 DR 06ISO1417 1 DR 06ISO1417 1 DRVI 061012N 1 DR 06ISO1012 1 DR 06ISO1417 1 DR-Combibox LM DR31 06323330 1 DR60 06343824 1 DR 06ISO1417 1 DR80 06383015 1 DR 06ISO1417 1 DR80 06383015 1
DR-Combibox LM / AP DR 06ISO2430 2 DR 06ISO1417 2 DR 06ISO1417 2 DRVI 061012N 2 DR 06ISO1012 2 DR 06ISO1417 2 DR-Combibox LM / AP DR31 06323330 2 DR60 06343824 2 DR 06ISO1417 2 DR80 06383015 2 DR 06ISO1417 2 DR80 06383015 2
DR-Combibox SET DR 06ISO2430 S DR 06ISO1417 S DR 06ISO1417 S DRVI 061012N S DR 06ISO1012 S DR 06ISO1417 S DR-Combibox SET DR31 06323330 S DR60 06343824 S DR 06ISO1417 S DR80 06383015 S DR 06ISO1417 S DR80 06383015 S
DR-Podo-Protectionbox DR 07ISO2430 DR 07ISO1417 DR 07ISO1417 DRVI 071012N DR 07ISO1012 DR 07ISO1417 DR-Podo-Protectionbox DR31 07323330 DR60 07343824 DR 07ISO1417 DR80 07383015 DR 07ISO1417 DR80 07383015
DR-Cowboybox DR 08ISO2430 DR 08ISO1417 DR 08ISO1417 DRVI 081012N DR 08ISO1012 DR 08ISO1417 DR-Cowboybox DR31 08323330 DR60 08343824 DR 08ISO1417 DR80 08383015 DR 08ISO1417 DR80 08383015
DR-Cowboy Package DR 08ISO2430 P DR 08ISO1417 P DR 08ISO1417 P DRVI 081012N P DR 08ISO1012 P DR 08ISO1417 P DR-Cowboy Package DR31 08323330 P DR60 08343824 P DR 08ISO1417 P DR80 08383015 P DR 08ISO1417 P DR80 08383015 P
DR-Buckybox DR 09ISO2430 DR 09ISO1417 DR 09ISO1417 DRVI 091012N DR 09ISO1012 DR 09ISO1417 DR-Buckybox DR31 09323330 DR60 09343824 DR 09ISO1417 DR80 09383015 DR 09ISO1417 DR80 09383015
20 CATALOGUE PODOBLOCK PODOBLOCK CATALOGUE 21CHAPTER 4 DR FLATPANEL SOLUTIONS DR FLATPANEL SOLUTIONSS CHAPTER 4
Fuji FDR Rayence / Vatech
1. D-EVO C24i Wireless 2. D-EVO II C24 Wireless 1. Vatech 1210P 2. 1012WCA Wireless
Agfa DR10e Wireless Samsung 1210P SoundEklin Sprint Bolt
Agfa DX-D 25C Sprint™ Ultralight DR
XDR2-K, XDR2-M, XDR2-S XDR3
meX+ 1210P meX+ 1012WCA
4. D-EVO C35i Wireless
3. ES C24 Wireless ES C35 Wireless
3. Vatech 1012WCC / WGC Wireless 4. 1417PCA / PGA Wireless
1417WCA / WGA Wireless
5. 1417WGC / WCC Wireless 6. 1717WCC / WGC Wireless
5. D-EVO II C35 Wireless 6. D-EVO II C43 Wireless
Agfa DR14e Wireless ES C43 Wireless
Producttype 1 2 3 4 5 6 Producttype 1 2 3 4 5 6
DR-Protectionbox DRFU 03C24i DRFU 03IIC24 DR 03ISO2430 DR 03ISO1417 DRFU 03IIC35 DR 03ISO1717 DR-Protectionbox DRSX 03514528 DRSX 031012WCA DRSX 031012WCC DRSX 031417PGA DRSX 031417WGC DR 03ISO1717
DR-Skylinebox DR 05ISO2430 DR 05ISO2430 DR 05ISO2430 DR 05ISO1417 DR 05ISO1417 DR 05ISO1717 DR-Skylinebox DRSX 05514528 DRSX 051012WCA DR 05ISO2430 DRSX 051417PGA DR 05ISO1417 DR 05ISO1717
DR-Combibox LM DR 06ISO2430 1 DR 06ISO2430 1 DR 06ISO2430 1 DR 06ISO1417 1 DR 06ISO1417 1 DR 06ISO1717 1 DR-Combibox LM DRSX 06514528 1 DRSX 061012WCA 1 DR 06ISO2430 1 DRSX 061417PGA 1 DR 06ISO1417 1 DR 06ISO1717 1
DR-Combibox LM / AP DR 06ISO2430 2 DR 06ISO2430 2 DR 06ISO2430 2 DR 06ISO1417 2 DR 06ISO1417 2 DR 06ISO1717 2 DR-Combibox LM / AP DRSX 06514528 2 DRSX 061012WCA 2 DR 06ISO2430 2 DRSX 061417PGA 2 DR 06ISO1417 2 DR 06ISO1717 2
DR-Combibox SET DR 06ISO2430 S DR 06ISO2430 S DR 03ISO2430 S DR 06ISO1417 S DR 06ISO1417 S DR 06ISO1717 S DR-Combibox SET DRSX 06514528 S DRSX 061012WCA S DR 06ISO2430 S DRSX 061417PGA S DR 06ISO1417 S DR 06ISO1717 S
DR-Podo-Protectionbox DRFU 07C24i DRFU 07IIC24 DR 07ISO2430 DR 07ISO1417 DRFU 07IIC35 DR 07ISO1717 DR-Podo-Protectionbox DRSX 07514528 DRSX 071012WCA DRSX 071012WCC DRSX 071417PGA DRSX 071417WGC DR 07ISO1717
DR-Cowboybox DRFU 08C24i DRFU 08IIC24 DR 08ISO2430 DR 08ISO1417 DRFU 08IIC35 DR 08ISO1717 DR-Cowboybox DRSX 08514528 DRSX 081012WCA DRSX 081012WCC DRSX 081417PGA DRSX 081417WGC DR 08ISO1717
DR-Cowboy Package DRFU 08C24i P DRFU 08IIC24 P DR 08ISO2430 P DR 08ISO1417 P DRFU 08IIC35 P DR 08ISO1717 P DR-Cowboy Package DRSX 08514528 P DRSX 081012WCA P DRSX 081012WCC DRSX 081417PGA P DRSX 081417WGC DR 08ISO1717 P
DR-Buckybox DRFU 09C24i DRFU 09IIC24 DR 09ISO2430 DR 09ISO1417 DRFU 09IIC35 DR 09ISO1717 DR-Buckybox DRSX 09514528 DRSX 091012WCA DRSX 091012WCC DRSX 091417PGA DRSX 091417WGC DR 09ISO1717
22 CATALOGUE PODOBLOCK PODOBLOCK CATALOGUE 23CHAPTER 4 DR FLATPANEL SOLUTIONS DR FLATPANEL SOLUTIONS CHAPTER 4
PerkinElmer Toshiba
1. XRPad 3025™ Wireless 2. XRPad 4336™ Wireless
2. FDX3543RPW
1. FDX2530RPW Wireless
Wireless
DRTECH
Vieworks
DRTECH
3. VIVIX-S 1012N 4. VIVIX-S 1417W Wireless
Examion X-DR M Wifi VW VIVIX-S 1417 N Wireless
Examion X-DR L Wifi VW
3. EVS2430W Wireless 4. EVS3643 Wireless
Examion X-DR M Wifi DT Examion X-DR L Wifi DT
LG
Thales
DRTECH
5. Examion DR810
5. VIVIX-V 2532P 6. Pixium Portable 2430EZ
6. 14HK701G-WP Idexx Equiview
VIVIX-V 2532T Leonardo DR Mini
Idexx DR 810
VIVIX-V 2532D Wireless
FDXD 810
Examion X-DR M Wifi TH
Examion X-DR S DT
Producttype 1 2 3 4 5 6 Producttype 1 2 3 4 5 6
DR-Protectionbox DR 03ISO1012 DR 03ISO1417 DRVI 031012N DR 03ISO1417 DRVI 032532 DR 03ISOISO1417 DR-Protectionbox DR 03ISO1012 DR 03ISO1417 DR 03ISO2430 DR 03ISO1417 DRID 03334225 DR 03ISO2430
DR-Skylinebox DR 05ISO1012 DR 05ISO1417 DRVI 051012N DR 05ISO1417 DRVI 052532 DRVI 05ISO1417 DR-Skylinebox DR 05ISO1012 DR 05ISO1417 DR 05ISO2430 DR 05ISO1417 DRID 05334225 DR 05ISO2430
DR-Combibox LM DR 06ISO1012 1 DR 06ISO1417 1 DRVI 061012N 1 DR 06ISO1417 1 DRVI 062532 1 DRVI 06ISO1417 1 DR-Combibox LM DR 06ISO1012 1 DR 06ISO1417 1 DR 06ISO2430 1 DR 06ISO1417 1 DRID 06334225 1 DR 06ISO2430 1
DR-Combibox LM / AP DR 06ISO1012 2 DR 06ISO1417 2 DRVI 061012N 2 DR 06ISO1417 2 DRVI 062532 2 DRVI 06ISO1417 2 DR-Combibox LM / AP DR 06ISO1012 2 DR 06ISO1417 2 DR 06ISO2430 2 DR 06ISO1417 2 DRID 06334225 2 DR 06ISO2430 2
DR-Combibox SET DR 06ISO1012 S DR 06ISO1417 S DRVI 061012N S DR 06ISO1417 S DRVI 062532 S DRVI 06ISO1417 S DR-Combibox SET DR 06ISO1012 S DR 06ISO1417 S DR 06ISO2430 S DR 06ISO1417 S DRID 06334225 S DR 06ISO2430 S
DR-Podo-Protectionbox DR 07ISO1012 DR 07ISO1417 DRVI 071012N DR 07ISO1417 DRVI 072532 DRVI 07ISO1417 DR-Podo-Protectionbox DR 07ISO1012 DR 07ISO1417 DR 07ISO2430 DR 07ISO1417 DRID 07334225 DR 07ISO2430
DR-Cowboybox DR 08ISO1012 DR 08ISO1417 DRVI 081012N DR 08ISO1417 DRVI 082532 DRVI 08ISO1417 DR-Cowboybox DR 08ISO1012 DR 08ISO1417 DR 08ISO2430 DR 08ISO1417 DRID 08334225 DR 08ISO2430
DR-Cowboy Package DR 08ISO1012 P DR 08ISO1417 P DRVI 081012N P DR 08ISO1417 P DRVI 082532 P DRVI 08ISO1417 P DR-Cowboy Package DR 08ISO1012 P DR 08ISO1417 P DR 08ISO2430 P DR 08ISO1417 P DRID 08334225 P DR 08ISO2430 P
DR-Buckybox DR 09ISO1012 DR 09ISO1417 DRVI 091012N DR 09ISO1417 DRVI 092532 DRVI 09ISO1417 DR-Buckybox DR 09ISO1012 DR 09ISO1417 DR 09ISO2430 DR 09ISO1417 DRSX 09334225 DR 09ISO2430
24 CATALOGUE PODOBLOCK PODOBLOCK CATALOGUE 25CHAPTER 4 DR FLATPANEL SOLUTIONS DR FLATPANEL SOLUTIONS CHAPTER 4
Carestream
Sound
2. DRX Core 3543
1. DRX Plus 2530C
1. Next 2530CW 2. Next 4336W
Wireless Wireless Varian
3. Paxscan 2520E+ |0° 4. Paxscan 2520E+ |90°
Leonardo DR2520+ Cuattro Uno EQ
Protec Rapixx 2520V Sound Eklin truDR
Protec Rapixx 2520V
3. Eklin Mark II Idaho 4. Eklin Mark II Texas
Agfa DX-D 35C
Eklin Mark III Idaho Eklin Mark III Texas
Samsung
O&R
5. XenOR 24CW 6. XenOR 35CW 5. S3025-W 6. S4335-W
Wireless Wireless
Producttype 1 2 3 4 5 6 Producttype 1 2 3 4 5 6
DR-Protectionbox DRVA 032530CW DRVA 034336W DREK 03IDAHO DREK 03TEXAS DR 03ISO1012 DR 03ISO1417 DR-Protectionbox DR 03ISO1012 DR 03ISO1417 DRLE 03234528 DRCU 03234528 DR 03ISO1012 DR 03ISO1417
DR-Skylinebox DRVA 052530CW DRVA 054336W DREK 05IDAHO DREK 05TEXAS DR 05ISO1012 DR 05ISO1417 DR-Skylinebox DR 05ISO1012 DR 05ISO1417 DRLE 05234528 DRCU 05234528 DR 05ISO1012 DR 05ISO1417
DR-Combibox LM DRVA 062530CW 1 DRVA 064336W 1 DREK 06IDAHO 1 DREK 06TEXAS 1 DR 06ISO1012 1 DR 06ISO1417 1 DR-Combibox LM DR 06ISO1012 1 DR 06ISO1417 1 DRLE 06234528 1 DRCU 06234528 1 DR 06ISO1012 1 DR 06ISO1417 1
DR-Combibox LM / AP DRVA 062530CW 2 DRVA 064336W 2 DREK 06IDAHO 2 DREK 06TEXAS 2 DR 06ISO1012 2 DR 06ISO1417 2 DR-Combibox LM / AP DR 06ISO1012 2 DR 06ISO1417 2 DRLE 06234528 2 DRCU 06234528 2 DR 06ISO1012 2 DR 06ISO1417 2
DR-Combibox SET DRVA 062530CW S DRVA 064336W S DREK 06IDAHO S DREK 06TEXAS S DR 06ISO1012 S DR 06ISO1417 S DR-Combibox SET DR 06ISO1012 S DR 06ISO1417 S DRLE 06234528 S DRCU 06234528 S DR 06ISO1012 S DR 06ISO1417 S
DR-Podo-Protectionbox DRVA 072530CW DRVA 074336W DREK 07IDAHO DREK 07TEXAS DR 07ISO1012 DR 07ISO1417 DR-Podo-Protectionbox DR 07ISO1012 DR 07ISO1417 DRLE 07234528 DRCU 07234528 DR 07ISO1012 DR 07ISO1417
DR-Cowboybox DRVA 082530CW DRVA 084336W DREK 08IDAHO DREK 08TEXAS DR 08ISO1012 DR 08ISO1417 DR-Cowboybox DR 08ISO1012 DR 08ISO1417 DRLE 08234528 DRCU 08234528 DR 08ISO1012 DR 08ISO1417
DR-Cowboy Package DRVA 082530CW P DRVA 084336W P DREK 08IDAHO P DREK 08TEXAS P DR 08ISO1012 P DR 08ISO1417 P DR-Cowboy Package DR 08ISO1012 P DR 08ISO1417 P DRLE 08234528 P DRCU 08234528 P DR 08ISO1012 P DR 08ISO1417 P
DR-Buckybox DRVA 092530CW DRVA 094336W DREK 09IDAHO DREK 09TEXAS DR 09ISO1012 DR 09ISO1417 DR-Buckybox DR 09ISO1012 DR 09ISO1417 DRLE 09234528 DRCU 09234528 DR 09ISO1012 DR 09ISO1417
26 CATALOGUE PODOBLOCK PODOBLOCK CATALOGUE 27BUCKY SOLUTIONS CHAPTER 5
C HAPT ER 5 Denfinity
This light-weight portable and collapsible stainless steel stand offers you the
freedom to make high-quality Skull X-rays in a hands-free fashion.
The Denfinity stand is a fully stainless steel base plate and vertical telescopic
pole that guarantees a secure positioning and right height adjustment.
Starting with the base element of the Denfinity, the base plate and pole, you
can configure with several options that can quickly and directly be placed on
the Denfinity base.
The aluminium 3D-joint is used in combination with our Protectionbox.
The Protectionbox secures your Cassette or Flatpanel when using in
combination with the 3D-joint
Bucky Lite
New! The Bucky Lite is a mobile stand for mounting x-ray cassette protection box.
It can easily be adjusted to a suitable height for the perfect x-ray result.
It is collapsible and built with light-weighted material for easy transport or
carrying around. The perfect equipment that is efficient and practical for
your daily working environment.
To set up, simply push down the slide bar located on the vertical tube and
the connecting base wheels will extend outwards, and set into working
position. It requires no tools or skills, and no loose components. The whole
process takes only 5 seconds!
For added usability and compatibility, there is a slide & lock adapter at the
top of the tripod for connecting to the integrated 3D adjustable joint to our
(optional) DR-Buckybox or DR-Cowboybox. It takes only 2 seconds!
BUCKY SOLUTIONS
• Light-weighted aluminium material
• Foldable and movable tripod
• Maximum height of the bracket for the Protective box is 150 cm
• Vertical travel of the telescopic tube is 60 cm
• Easily transported with a weight of 4.2 Kg
• Folded dimensions 94 x 23 x 23 cm
Securing and holding x-ray panels and cassettes have risen in demand over the • Comes with 5 swivel wheels (2 with a locking brake)
years.
Product Itemnumber
In this chapter, you will find our stand-alone securing holders ideal for your mobile Denfinity -Base Element DSJ 1050401
activities. These holders will give you a maximum of radiation safety with ease of Denifity - 3D Joint DSJ 10DNL3D
usage. Bucky Lite BSL 09VIO 3D
They are invented for mobility which will also provide comfort in your working
environment.
Take, for instance, our new Bucky Lite - the perfect equipment for clinical and
mobile use. It is light-weighted, easily transportable with great design. The
adjustability option enhances efficiency, and all for an affordable price.
28 CATALOGUE PODOBLOCK PODOBLOCK CATALOGUE 29CHAPTER 5 BUCKY SOLUTIONS BUCKY SOLUTIONS CHAPTER 5
DR-Buckybox Stat-X Bucky
New! The DR-Buckybox is a new affordable alternative version of our With our Stat-X Bucky, you have the most advanced, all-
x-ray cassette protection case, similar to our DR-Cowboybox. purpose mobile stand that will fully satisfy your needs in your
daily working environment.
It is specially designed for optional use with the Denfinity stand
and the Bucky Lite stand. The Bucky can be ordered with optional short legs (50 cm
instead of 90 cm) and extra counterweight (+6,5 kg).
Located on the backside of the DR – Buckybox is a slide & lock
adapter system which allows efficient and secure manoeuvring For added usability and compatibility, there is a slide & lock
during x-ray exams. This makes the DR-Buckybox compatible with adapter at the top of the Swingarm for connecting to the
the following Podoblock products: integrated 3D adjustable joint to our (optional) DR-Buckybox
or DR-Cowboybox. It takes only 2 seconds!
• Denfinity (type: 3D-joint)
• Bucky Lite Technical Specifications:
• Stat-X Bucky • Swing arm length: 750 mm
• Distance Stick (type: DR-Cowboybox) • Vertical travel arm: 700 mm
• Support Foot • Vertical travel stand: 410 mm
• Max height bracket: 185 cm
• Weight X-ray cassette / Panel: 4,0 – 15,0 kg
• Transport size: L 110 x W 30 x H 32 cm
• Weight: 22 kg
• Colour: PMS260C Satin
Technical Specifications:
• Available from stock for all current DR Flat panels.
• Perfect fitting box and secured with locking door. The Stat-X Bucky is compatible with our DR-Cowboybox and the
• The Polycarbonate box comes with the Greppstr 2.1 universal DR-Buckybox, but it comes without a Cassette or Panel holder,
handgrip (for wireless Flat panels) for easy carrying. these can be ordered separately. See page 17.
Product Itemnumber
DR-Buckybox | Wired All Series
DR-Buckybox | Wireless All Series
Note: Revert to pages 17 and 19 - 27 for more information on All Series.
Weight X-ray cass/panel Itemnumber
4,0 – 7,0 kg BSM 09750|4-7
6.0 – 9.0 kg BSM 09750|6-9
9.1 – 15.0 kg BSM 09750|9-15
Short legs / extra counterweight RSM 09SLEW
Stat-X Swingarm Bucky
The Bucky Swingarm has a weight-bearing capacity from 4.0 up to
15.0 Kg, where the 4.0 – 7.0 kg is most convenient for all systems.
The Bucky Swingarm is compatible with our DR-Cowboybox and
the DR-Buckybox, but it comes without a Cassette or Panel holder,
these can be ordered separately. See page 17.
Swingarm Types Itemnumber
Bucky 4.0 - 7.0 kg SA 09750-DNL| 4-7
Bucky 6.0 - 9.0 kg SA 09750-DNL| 6-9
Bucky 9.1 - 15 kg SA 09750-DNL | 9-15
30 CATALOGUE PODOBLOCK PODOBLOCK CATALOGUE 31ULTRASOUND SOLUTIONS CHAPTER 6
C HAPT ER 6
U-scan
Our own standoff, adaptable for a wide range of linear-
array transducers.
• Thickness sides: 7 mm
• Thickness bottom: 12 mm
• Comes in a protective box
Note: We supply all available kinds of standoff on
request
Flabbus Ultrasound Standoff
The Flabbus Ultrasound Standoff is an exceptionally
elastic item, conforming to patient contours while
maintaining uniform thickness and universal
application to each type of Probehead.
Flabbus Ultrasound Standoff is made of a proprietary
synthetic gel, resulting in a moulded material that does
not suffer inelastic strain from everyday stresses.
Consequently, the Flabbus Ultrasound Standoff does
not have to be bagged or wrapped in plastic film to
maintain its shape and can be easily stored.
For optimal use, the user can cut it to his/her preferred
size-of-use with the supplied scissors. For example, the
300 x 300 mm Flabbus can be cut into six smaller parts
of 100 x 150 mm.
Any other size is a possibility, depending on personal
choice.
• Size: 300 x 300 mm
• Thickness: 3 mm or 5 mm
ULTRASOUND SOLUTIONS
Product Itemnumber
It’s not just X-ray accessories Podoblock has to offer. We also have been a key player U-scan LAS 10804010
Flabbus Standoff - 3 mm FUS 1030303
in the field of ultrasound. As ultrasound machines have developed at a rapid pace, Flabbus Standoff -5 mm FUS 1030305
and thus have become compact and mobile, we offer a range of support products.
Take, for example, the SCANdroid, that has proven itself to be an indispensable and
must-have product, also outside the ultrasound sphere.
On the following pages, you will find all the scanning solutions you’ll ever need.
32 CATALOGUE PODOBLOCK PODOBLOCK CATALOGUE 33ULTRASOUND SOLUTIONS CHAPTER 6
CHAPTER 6 ULTRASOUND SOLUTIONS
SCANdroid
The ideal, height-adjustable scan stool for the mobile
veterinarian to transport to the job site or for clinic use.
The SCANdroid has excellent stability with a total of 5 castor
wheels, 2 of which with a locking device.
The gas spring allows for a stageless height-adjustment and
can be upgraded with an optional Extension pipe.
• Transport: Ø40 cm x 23 cm height / 9.3 Kg weight
• Maximum weight bearing gas spring is 110 kg
Max:
51 cm Working heights are as follow:
• SCANdroid:
23 cm + 38 – 51 cm
• SCANdroid with Extension Short:
23 cm + 38 – 64 cm
• SCANdroid with Extension Long:
23 cm + 38 – 51 cm + 63-75 cm
• SCANdroid with Extension Short and Long:
23 cm + 38 – 75 cm
A
D
B SCANster
This veterinary trolley is the optimal ultrasound solution
for creating the ideal working height at all times. Especially
designed for the portable ultrasound.
Optional ProbeRack can be ordered to store a total of 2
ultrasound probes and a gel bottle.
E Max: • Material: Light-weight durable aluminium
C
75 cm • Transport size: 58 x 41 x 26 cm
• Weight: 13,1 kg
• Plateau size: 55 x 37,5 cm
• Maximum load: 15 kg
• 4 locking Ø 80 mm castor wheels
Max:
64 cm
Optional: ProbeRack Position 1: 25 cm for imaging the foot and pastern
A. Transport Position Position 2: 42 cm for imaging the forelimbs and hind limb
Extension: Long
Position 3: 77 cm for imaging the stifle, shoulder and elbow
B. Position 1: 23cm 1 Possible Positions
Scanning the foot & lower leg area Position 4: 112 cm for imaging the hip, sacrum, back, neck and
Extension: Short endo-rectal images
C. Stageless Height Adjustment 4
Scanning knee front and leg middle area
Product Itemnumber 3
D. Scanning the stifle and higher leg area SCANdroid SK 1039270
SCANdroid + Extension Short SK 1039270 S Product Itemnumber
E. Stow-away rook for gas spring and any SCANdroid + Extension Long SK 1039270 L SCANster VS 1045321910
additional extension(s) 2
SCANdroid + both Extensions SK 1039270 SL ProbeRack CUPH 10SCAN
Extension Short SK 10EXT150 SCANster + ProbeRack VS 1045321910 C
Extension Long SK 10EXT307
* Combi-deals: 1€5, 2€5, 3€15 discount on sale prices.
34 CATALOGUE PODOBLOCK PODOBLOCK CATALOGUE 35CHAPTER 6 ULTRASOUND SOLUTIONS ULTRASOUND SOLUTIONS CHAPTER 6
NewCart
Scan Wedge
Durable, in height adjustable cart for all small and big
Straight-forward wedge for extra extension to be
machines or equipment, accomodated with gas spring placed under the hoof.
for variable, stageless height-adjustment and storage
space in bottom reservoirs. • Material : Rubber 95° Shore
• Dimensions: 180 x 150 x 65-0 mm
Easy transport position with the pull-out handle, easy
• Angle: 20°
storage in vertical position.
Transport size: 42 x 62 x 30 cm
Weight: 19 kg
Plateau size (inside rim): 57 x 37 cm
Height-adjustment from 30 to 106 cm
Maximum load: 15 kg
4 swivel, lockable Ø 100 mm castor wheels
A. Transport Position
D
A B. Position 1: Height 30cm
C. Stageless height adjustment: 30 - 106cm
D. Stageless height adjustment: 30 -106cm
E. Stageless position 30 - 106cm
F. Stageless position 30 - 106cm
B
E Cooperflex
A light-weight, sturdy and highly mobile hoof support
with a pivot that allows you to change the angle of the
foot pedal.
Product Itemnumber Comes with an extension-pipe that gives you more
NewCart VS 10NCART working-height.
F ProbeRack CUPH 10NCART
C NewCart + ProbeRack VS 10NCART C • Material Base plate: High-density Polyethylene
• Material Foot stand: Aluminium
• Weight: 4,5 kg
• Diameter Base: Ø 40 cm
• Low - High position: 20 cm - 40 cm
• Extension pipe also serves as a carrying device
Product Itemnumber
SCAN Wedge SW 1050065-0
Cooperflex CF 10FLSTND
OPTIONAL: ProbeRack
36 CATALOGUE PODOBLOCK PODOBLOCK CATALOGUE 37CHAPTER 6 ULTRASOUND SOLUTIONS
OPU ProbeHolder
C HAPT ER 7
New! Our new ovum pick-up (OPU) probe holder is the
ideal device for ovum ultrasound and is compatible
with most ultrasound brands on the market.
With the ProbeHolder, you have an innovation that
makes equine OPU ultrasound processes simpler,
faster and more comfortable for both vet and
horse.
The unique construction, material and size of this
innovative product are the attributes that make
it valuable. It comes equipped with an integrated
needle chamber which can be (optional) supplied
with a stainless steel needle guide.
Placing your Ultrasound probe is quick and easy
and requires only one locking screw through the
handle with integrated magnets secure it all.
ProbeHolder:
• Material: HMPE – Blue
• Dimensions: 52x6x18 centimetres (including
the removable handgrip)
• One (red) locking screw
• Two integrated magnets for quick locking
• No additional tools required
• The removable handgrip can be placed on
three sides
• Transport case included.
Needle guide:
• Material: stainless steel
• Dimensions: 53,5cm total length
• Outer diameter 4mm
GENERATOR SOLUTIONS
• Inner diameter 3,4mm
• Fits perfectly in the Probeholder
• No additional tools required
• Trumpet piece for easy and safe access with
the needle
With our product line of generator gears, you will have no trouble finding a solution
that will fit your daily needs and demands.
Our Stat-X, jiXtr or X-ray switches will be a real asset to your equine practice, thanks
Product Itemnumber to the all-purpose character of our tools. We can offer standard solutions for every
Esaote CA123 OPU 10E-CA123 mobile generator.
Esaote EC123 OPU 10E-EC123
Esaote SC3123 / mC3-11 OPU 10E-SC3123
Esaote SE3123 / SE3133 OPU 10E-SE3123 Concerning your safety, ease-of-use, quality and convenience, you, your staff and
Sonosite C11X OPU 10S-C11X
Needle Guide | 1 Piece OPU 10NG524-1 your horses will be in good hands with Podoblock equipment!
Needle Guide | 5 Pieces OPU 10NG524-5
Needle Guide | 12 Pieces OPU 10NG524-12
38 CATALOGUE PODOBLOCK PODOBLOCK CATALOGUE 39CHAPTER 7 GENERATOR SOLUTIONS GENERATOR SOLUTIONS CHAPTER 7
TruXRAY™ Switch JiXtr
With the jiXtr your X-ray source becomes an easy-to-handle,
Easy prep-and-expose switch for any portable X-ray versatile and highly portable instrument that will cover every
source available on the market. angle, spot or height you desire, while working quickly and
safely and sparing your back in the process.
• Plug-and-play device
• Comes with adapter for your source The jiXtr can be adjusted without pre-defined increments
• Color: black and has a variable height-adjustment. It is compatible with all
X-ray devices on the market, with a maximum of 15 kg.
Product Itemnumber
• Material: Light-weight aluminium
152 mm TXS 10G-2432 • Transport size: 12 x 15 x 75 cm
165 mm TXS 10G-2433 • Low position: 27 x 29 x 69 cm
178 mm TXS 10G-2434 • High position: 27 x 29 x 201 cm
190 mm TXS 10G-2435 • Stroke range: 165 cm
203 mm TXS 10G-2436 • Weight: 5,0 kg
216 mm TXS 10G-2437 • ‘Fix-and-release’ system
Note: Please measure the width of your generator grip and quote
your generator brand when ordering
Product Itemnumber
JiXtr JSM 09JIXTR
TruXRAY™ Wireless Switch
The rotation of the source in combination with the unlimited tilt of the
Wireless foot- or handswitch designed to give the user
JiXtr secures an accurate position for Skyline views.
increased opportunity to get the shot right.
Footswitch
• Does not conflict with any other wireless product
• Requires no pairing
• Plug-and-play device
• Color: black
Product Itemnumber
Wireless Hand - Poskorn TXS 10G-2420
Wireless Hand - EcoRay TXS 10G-2421
Wireless Hand - MinXray / Gierth TXS 10G-2422
Wireless Hand - Porta TXS 10G-2430
Wireless Foot - Poskom TXS 10G-2425
Wireless Foot - EcoRay TXS 10G-2426
Wireless Foot- MinXray / Gierth TXS 10G-2427
Wireless Foot - Porta TXS 10G-2428
Handswitch
Note: In case you have a different brand of X-ray source, please contact
us. There’s a 99% chance that the switch will fit your source.
Duo Laser Pointer
This ingenious device is compatible with all X-ray generator
on the market. With magnetic functions and a few screws,
attaching the laser pointer couldn’t be simpler! The focus
distance is flexible and adjustable.
By converging two laser points, the measurement of the
correct distance is a breeze, saves time, and eliminates
uncertainty.
The pointer runs on six LR44 batteries (installed) that can be
changed whenever you want.
Product Itemnumber
Duo Laser Pointer DLP 10DUOFIX
40 CATALOGUE PODOBLOCK PODOBLOCK CATALOGUE 41CHAPTER 7 GENERATOR SOLUTIONS GENERATOR SOLUTIONS CHAPTER 7
The Stat-X Options
Swingarm
Available in 2 sizes:
• Swingarm 750 mm Vertical travel 700 mm
Load capacity: 4,0 - 16,5 kg
• Swingarm 580 mm Vertical travel 500 mm
Load capacity: 16,6 - 25,0 kg
The quick-release system will rapidly position the
swingarm in all desired heights.
3D-Head
The 3D head gives you twelve fixed 12° positions with a
maximum of 35° to either side and can be turned
totally upside down.
The 360° rotation with staged locking of the source
secures an accurate position for both skyline views and
head X-rays.
The 3D head will provide for all portable generators
available on the market.
Stat-X Espléndido
• Swing arm length: 750 mm
• Vertical travel arm: 700 mm
• Vertical travel stand: 410 mm
• Max. height bracket: 195 cm
Short Legs • Weight portable X-ray source: 6,0 – 16,5 kg
All Stat-X stands (except for the Stat-X Espléndido) are • Transport size: L 114 x W 30 x H 32 cm
available for stationary use with short legs and extra • Weight: 22 kg
counterweight to create more working space between • Color: PMS260C Satin
horse and stand.
Weight X-ray source Itemnumber
A counterweight at the back of the stand will prevent it 6,0 - 9,0 kg ESM 09750|6-9
from tipping over 9,1 - 15,0 kg ESM 09750|9-15
15,1 - 16.5 kg ESM 09750|15-16.5
All Stat-X models are CE-marked Class 1
medical products European Medical Devices.
MD 93/42/EEG
NL-CA002-2012-24232
Colour
All Stat-X stands come in one standard color:
• PMS260C Satin
42 CATALOGUE PODOBLOCK PODOBLOCK CATALOGUE 43CHAPTER 7 GENERATOR SOLUTIONS
Stat-X Vaquero
C HA PT ER 8
Weight portable X-ray source: 6,0 - 16,5
kg
• Swing arm length: 750 mm
• Vertical travel arm: 700 mm
• Vertical travel stand: 700 mm
• Max height bracket: 209 cm
Optional with short legs (50 cm instead of 90 cm) and extra
counterweight (6.5 kg).
Weight portable X-ray source: 16,6 – 25,0 kg
• Swing arm length: 580 mm
• Vertical travel arm: 500 mm
• Vertical travel stand: 700 mm
• Max height bracket: 198 cm
• Transport size: L 147 x W 30 x H 32 cm
• Weight: 22 kg
Weight X-ray source Itemnumber
6,0 - 9,0 kg RSM 09750|6-9
9,1 - 15,0 kg RSM 09750|9-15
15,1- 20,0 kg RSM 09750|15-16.5
20,1 - 25,0 kg RSM 09580|16.5-25
Short legs /extra counterweight RSM 09SLEW
Swingarm Options
Bucky
Loose Swingarm to upgrade or expand your Stat-X
stand to the next level.
• The Vaquero Swingarm has a capacity from 6.0 up to 25.0 kg
•
•
The Espléndido Swingarm has a capacity from 6.0 – 16.5 kg
The Bucky Swingarm has a weight-bearing capacity from 4.0 PROTECTION & SAFETY
up to 15.0 kg, where the 4.0 – 7.0 kg is most convenient for all
systems
Radiation protection is pivotal to all X-ray exams. It’s the alpha and the omega.
Vaquero The Bucky Swingarm is compatible with our DR-Cowboybox
and the DR-Buckybox, but it comes without a Cassette or Panel Fortunately, we offer a complete range of products to protect our users against
holder, these can be ordered separately. See page 17.
radiation optimally.
With personalized sizes and colours, we have tried to make our product line suitable
Swingarm Types Itemnumber
Bucky 4.0 - 7.0 kg SA 09750-DNL| 4-7 for all our customers.
Bucky 6.0 - 9.0 kg SA 09750-DNL| 6-9
Bucky 9.1 - 15.0 kg SA 09750-DNL | 9-15
Vaquero 6.0 – 9.0 kg SA 09750|6-9 We have solutions for all environments, be they stationary at your clinic or in a
Espléndido
Vaquero 9.1 – 15.0 kg SA 09750|9-15 mobile environment - on any location.
Vaquero 15.1 – 16.5 kg SA 09750|15-16.5
Vaquero 16.6 – 25.0 kg SA 09580|16.6-25
Espléndido 6.0 – 9.0 kg SA 09750-3D|6-9
Espléndido 9.1 – 15.0 kg SA 09750-3D|9-15
Espléndido 15.1 – 16.5 kg SA 09750-3D|15-16.5
44 CATALOGUE PODOBLOCK PODOBLOCK CATALOGUE 45CHAPTER 8 PROTECTION & SAFETY PROTECTION & SAFETY CHAPTER 8
Thyroid Shield X-ray Apron
• Material: Lead vinyl
Indispensable protective Apron against the dangers of
• Velcro or Magnetic fastener
radiation. The X-Ray apron is made of a lightweight nylon.
• Pb 0.5 mm
• One size fits all
• Material: Lead Vinyl
• Pb 0.50 mm Front
• Pb 0.25 mm Back
• Snap fasteners
Colour Options
Size Chest/Waist Length Weight (Kg)
Navy Blue Classic Small 94 – 103 cm 110 cm 3,45
Medium 104 – 113 cm 110 cm 4,55
Black Bold Large 124 – 133 cm 120 cm 5,85
Forest Green Natural
Mountain Grey Stable Colour Options
Purple Inspiring Navy Blue Classic
Back Side
Black Bold
Color - Closing Itemnumber Forest Green Natural
Navy Blue Classic Velcro RS 10BL05V|NB
Black Bold Velcro RS 10BL05V|BL Mountain Grey Stable
Forest Green Natural Velcro RS 10BL05V|FG
Mountain Grey Stable Velcro RS 10BL05V|MG
Purple Inspiring
Purple Inspiring Velcro RS 10BL05V|PL
Navy Blue Classic Magnet RS 10BL05M|NB
Black Bold Magnet RS 10BL05M|BL
Forest Green Natural Magnet RS 10BL05M|FG
Mountain Grey Stable Magnet RS 10BL05M|MG Size & Color Itemnumber
Purple Inspiring Magnet RS 10BL05M|PL S - Navy Blue Classic RJ 10CLI05S|NB
S - Black Bold RJ 10CLI05S|BL
S - Forest Green Natural RJ 10CLI05S|FG
S - Mountain Grey Stable RJ 10CLI05S|MG
S - Purple Inspiring RJ 10CLI05S|PL
X-Ray Gloves M - Navy Blue Classic RJ 10CLI05M|NB
M - Black Bold RJ 10CLI05M|BL
• Flexible vinyl glove M - Forest Green Natural RJ 10CLI05M|FG
• Pb 0.5 mm M - Mountain Grey Stable RJ 10CLI05M|MG
Small Medium Large M - Purple Inspiring RJ 10CLI05M|PL
• Washable Inner linersfor more comfort
L - Navy Blue Classic RJ 10CLI05L|NB
L - Black Bold RJ 10CLI05L|BL
Size Itemnumber L - Forest Green Natural RJ 10CLI05L|FG
Small RH 10LF05S L - Mountain Grey Stable RJ 10CLI05L|MG
Medium RH 10LF05M L - Purple Inspiring RJ 10CLI05L|PL
Large RH 10LF05L
Mittens RH 10MIT05M
Mittens Inner Liners Inner Liners RH 10BINHAN
X-Ray Protective Goggles
• Lead glasses
• Pb Front 0.75 mm
• Pb Side 0.5 mm
‘Speedy’- Black & Orange • Adjustable straps
• Protective case
Back Side Strap Fastener Logo
Product Itemnumber
Protection Goggles - Speedy RB 10SP05
Protection Goggles - Fit Over RB 10FO05
‘Fit Over’- Black
46 CATALOGUE PODOBLOCK PODOBLOCK CATALOGUE 47CHAPTER 8 PROTECTION & SAFETY PROTECTION & SAFETY CHAPTER 8
X-Ray Apron ‘De Luxe’ X-Ray Apron ‘Double Sided’
Apron with integrated Thyroid shield protection. This model Apron is very comfortable and fits like a coat.
Equipped with shoulder pads and a breast-pocket.
• Material: Lead Vinyl The waist belt reduces stress on your back and shoulders to a
• Pb 0.50 mm Front minimum.
• Pb 0.25 mm Back
• Integrated Thyroid Shield • Material: Lead Vinyl
• Snap fasteners • Pb 0.50 mm Front and Back
• Snap fasteners
Size Chest/Waist Length Weight (Kg)
Small 94 – 103 cm 110 cm 3,9
Medium 104 – 113 cm 110 cm 4,8 Size Chest/Waist Length Weight (Kg)
Large 124 – 133 cm 120 cm 6,35 Small 94 – 103 cm 110 cm 5,3
Medium 104 – 113 cm 110 cm 4,8
Large 124 – 133 cm 120 cm 8,0
Colour Options
Navy Blue Classic Colour Options
Black Bold
Navy Blue Classic
Forest Green Natural
Black Bold
Mountain Grey Stable
Forest Green Natural
Purple Inspiring
Mountain Grey Stable
Purple Inspiring
Size & Color Itemnumber
S - Navy Blue Classic RJ 10CLI05STS|NB Size & Colour Itemnumber
S - Black Bold RJ 10CLI05STS|BL S - Navy Blue Classic RJ 10DA05S|NB
S - Forest Green Natural RJ 10CLI05STS|FG S - Black Bold RJ 10DA05S|BL
S - Mountain Grey Stable RJ 10CLI05STS|MG S - Forest Green Natural RJ 10DA05S|FG
S - Purple Inspiring RJ 10CLI05STS|PL S - Mountain Grey Stable RJ 10DA05S|MG
M - Navy Blue Classic RJ 10CLI05MTS|NB S - Purple Inspiring RJ 10DA05S|PL
M - Black Bold RJ 10CLI05MTS|BL M - Navy Blue Classic RJ 10DA05M|NB
M - Forest Green Natural RJ 10CLI05MTS|FG M - Black Bold RJ 10DA05M|BL
M - Mountain Grey Stable RJ 10CLI05MTS|MG M - Forest Green Natural RJ 10DA05M|FG
M - Purple Inspiring RJ 10CLI05MTS|PL M - Mountain Grey Stable RJ 10DA05M|MG
L - Navy Blue Classic RJ 10CLI05LTS|NB M - Purple Inspiring RJ 10DA05M|PL
L - Black Bold RJ 10CLI05LTS|BL L - Navy Blue Classic RJ 10DA05L|NB
L - Forest Green Natural RJ 10CLI05LTS|FG L - Black Bold RJ 10DA05L|BL
L - Mountain Grey Stable RJ 10CLI05LTS|MG L - Forest Green Natural RJ 10DA05L|FG
L - Purple Inspiring RJ 10CLI05LTS|PL L - Mountain Grey Stable RJ 10DA05L|MG
L - Purple Inspiring RJ 10DA05L|PL
Back Side Belt Front Belt Back
Back Side Strap Fastener Logo
48 CATALOGUE PODOBLOCK PODOBLOCK CATALOGUE 49CHAPTER 8 PROTECTION & SAFETY PROTECTION & SAFETY CHAPTER 8
X-Ray Apron ‘The Barrier Flex’ Warning Sign
New! • Provides excellent weight distribution & comfort Mobile warning sign that radiation is being released.
• Two full adjustable Velcro straps cross in the back & attach in Available languages:
the front providing a comfortable fit while keeping the apron • English
securely on the shoulders • German
• Dutch
• Adjustable elastic inserts in the rear flaps offer greater • Danish
comfort, adjustment & support • French
• Comfortable fit during long procedures Other languages on request
• Shoulder pads provide additional comfort
Language Itemnumber
• Thyroid protection shield integrated with magnet closing English WS 10600EN
ensures maximum protection German WS 10600DE
Dutch WS 10600NL
Danish WS 10600DK
• The Pb-free version is made of new material, consisting of a French WS 10600FR
combination of 12 metals and is lead-free. It is more flexible,
much lighter and has the same protection value
Made in the USA, this apron guarantees quality and Barrier Tape
maximum protection!
• Two-sided print
Colour: Navy Blue with silver lining • Easy tear-off
Material: Lightweight ULTRAFLEX™ fabric • Width: 75 mm
Sizes: Small, Medium, Large, Extra Large • 250 m per roll
Weight: Min: 2,7 kg, Max: 3, 45 kg
Size Chest/Waist Length Weight (Kg) Product Itemnumber
Small 88 – 97 cm 90 cm 2,7 1 Roll WT 1025075-1
Medium 98 – 107 cm 95 cm 2,9
Large 108 – 117 cm 100 cm 3,25
Extra Large 118 – 127 cm 105 cm 3,45
Mobile Lead Shield
Size Itemnumber
Small RJ 10FLEX05STS A sturdy protective shield made of anodized
Medium RJ 10FLEX05MTS
aluminium, lined with an impact-resistant plastic layer
Large RJ 10FLEX05LTS
RJ 10FLEX05XLTS
on both sides.
Extra Large
Comes with four Ø80 mm castor wheels, two of which
with brakes.
24 x 30 cm lead glass window.
• Height: 190 cm
• Width: 80 cm
• Pb 2.0 mm
Product Itemnumber
Mobile Lead Shield MLS 1025076986
Back Side Thyroid Shield Logo
50 CATALOGUE PODOBLOCK PODOBLOCK CATALOGUE 51CHAPTER 8 PROTECTION & SAFETY PROTECTION & SAFETY CHAPTER 8
Apron Rack Hanger Scinti Solutions
Glove Rack These standard blocks are made to elevate the horse’s
• 3 pairs gloves • 1 garment
• Wall mount • Wood foot to the desired height in 2 stages, single or stacked.
The blocks are made without any metal parts, in order
to avoid interference with Scintigraphy and comes with
3M anti-slip cover.
Get 2 sets of blocks (4 in total) on which to position the
horse. Stacking the blocks allows for a second, higher
position of the horse.
The 2 available Covers come in 2 different sizes.
• 1 block measures 75 mm in height
• 2 layered blocks measure 145 mm
Apron Rack Wall The SET includes:
• 5 garments • 2 sets of 2 blocks
• Wall mount • 1 small Cover, measuring 76 x 28 cm and Pb 1,5
mm
• 1 large Cover, measuring 76 x 56 cm and Pb 1,5
mm
Both Covers each have 4 corner-grips for easier use
and come in grey.
Product Itemnumber
Cover Small SC 10COVER_S
Cover Large SC 10COVER_L
SCINTI Blocks (2 x 2 blocks) SC 10BLOCK2x2
SCINTI Set SC 10SET
Storage Rack Complete
The Storage Rack is suited for:
• 6 garments
• 3 pair of gloves
• 3 sets of goggles
• Comes in parts - easy set-up
• Size: 70 x 50 x 200 cm
• 4 castor wheels, 2 of which with break pedal
• 6 hangers are included
Product Itemnumber
Glove Rack RR 10CH03
Apron Rack Hanger AH 10WMI
Apron Rack Wall RR 10CH05
Storage Rack Complete RR 10CH06
52 CATALOGUE PODOBLOCK PODOBLOCK CATALOGUE 53You can also read
