call the heater people
2021
INDEX
Standard Underfloor Heating Mats M Series 4-5
Underfloor Heating Cables EHC 6-7
Underfloor Heating
Foil Underfloor Heating Mats F Series 8-9
In-Screed Heating Cables IHC 10
Underfloor Heating Controls Various 12-13
Mirror Demister Pads MD 11
Self-Regulating Trace Heating Cables CRJM 14-16
Heating Cables
Hot Water Maintenance Cables WM 17
Gutter and Downpipe Heating Cables GP 18
Trace Heating Kits PW 19
SystemX Various 20-24
Suspended Ceiling Heaters SCHG 26-27
Surface Mount Ceiling Heaters SMH 28-29
Over Door Heaters 800 30-31
Commercial
Recessed Over Door Heaters RH 32-33
Commercial Air Curtains CA 34-35
‘All Black’ Radiant Heaters ETH 48-49
Patio Heaters HWP2 50-52
Radiant Panels RP 62-63
Ceramic Heaters CH 64-65
web www.bnthermic.co.uk email sales@bnthermic.co.uk tel 01293 547361 fax 01293 531432
PRODUCT GUIDE & PRICE LIST 2021 valid from 1st April 2021
High Capacity Air Curtains HCA2 36-37
Industrial Fan Heaters OUH2 38-40
Destratification Units DSU2 41
Pew Heaters PH 42-43
Industrial Finned Tubular Heaters SWD 44-45
Industrial
Explosion Proof Tubular Heaters TX 46-47
LC110 Convector Heaters LC110 47
Quartz Halogen Heaters HN3 54-56
Halogen Heater Control Box MC-1 57-58
Radiant Cassettes ESP 59-61
Thermostats 66-73
Timers 74
Controls
Switches 75-76
Miscellaneous 77-78
System X 79
Case Studies
Case Studies 80-87
web www.bnthermic.co.uk email sales@bnthermic.co.uk tel 01293 547361 fax 01293 531432
M Series Heating Mats
Standard Output Mats (150W/m²)
Suitable as a main source of heating in most rooms
Model Heated Mat Size kW List Price
Area (m²) (m)
M150-005 0.5 1.0 x 0.5 0.07 £52.00
M150-010 1.0 2.0 x 0.5 0.15 £56.00
UNDERFLOOR HEATING
M150-015 1.5 3.0 x 0.5 0.22 £75.00
M150-020 2.0 4.0 x 0.5 0.30 £101.00
M150-025 2.5 5.0 x 0.5 0.37 £109.00
M150-030 3.0 6.0 x 0.5 0.45 £127.00
M150-035 3.5 7.0 x 0.5 0.52 £145.00
M150-040 4.0 8.0 x 0.5 0.60 £172.00
M150-045 4.5 9.0 x 0.5 0.67 £181.00
M150-050 5.0 10 x 0.5 0.75 £198.00
M150-060 6.0 12 x 0.5 0.90 £236.00
M150-070 7.0 14 x 0.5 1.05 £257.00
M150-080 8.0 16 x 0.5 1.20 £273.00
M150-090 9.0 18 x 0.5 1.35 £299.00
M150-100 10 20 x 0.5 1.50 £323.00
M150-110 11 22 x 0.5 1.65 £369.00
• An economic means of heating a room M150-120 12 24 x 0.5 1.80 £402.00
M150-140 14 28 x 0.5 2.10 £444.00
and providing a luxurious warm floor
M150-160 16 32 x 0.5 2.40 £509.00
• Manufactured to the highest quality
and backed by a Lifetime Warranty
High Output Mats (200W/m²)
Application Recommended for Conservatories
• Suitable for any room including conservatories,
Model Heated Mat Size kW List Price
bathrooms and wet rooms.
Area (m²) (m)
• Ideal for use with a wide variety of floor surfaces
M200-010 1.0 2.0 x 0.5 0.20 £64.00
including ceramic tiles, porcelain tiles, marble,
slate, stone, carpet, vinyl, engineered wood and M200-015 1.5 3.0 x 0.5 0.30 £85.00
laminate flooring. M200-020 2.0 4.0 x 0.5 0.40 £98.00
M200-030 3.0 6.0 x 0.5 0.60 £116.00
Features M200-040 4.0 8.0 x 0.5 0.80 £160.00
• Twin core cable assembled onto fibre glass web M200-050 5.0 10 x 0.5 1.00 £211.00
• 3m power lead
M200-060 6.0 12 x 0.5 1.20 £258.00
• Continuous earth protection foil
M200-070 7.0 14 x 0.5 1.40 £296.00
• Continuous double sided fixing tape
M200-080 8.0 16 x 0.5 1.60 £361.00
M200-090 9.0 18 x 0.5 1.80 £392.00
M Series: heat up to 16m² with a single mat M200-100 10 20 x 0.5 2.00 £485.00
4 web www.bnthermic.co.uk email sales@bnthermic.co.uk tel 01293 547361 fax 01293 531432
Mat Installation Typical M Series Installation
M Series heating mats can be installed in flexible self- Mat cut here
levelling compound or directly into tile adhesive. When
using with carpet, vinyl, engineered wood or laminate
flooring, the lowest tog underlay should be selected.
Kitchen
If there is any doubt about the suitability of a floor surface Cabinet
for use with underfloor heating, confirmation should be
sought from the flooring supplier.
Mat cut here
Selection
UNDERFLOOR HEATING
The objective is to cover as high a per-
centage of the free floor area as possi-
ble. Mats should not be installed under
fixtures such as kitchen cabinets and F-Board-6
shower trays. As a rule of thumb, select and -10
a mat covering an area approximately
10% smaller than the free floor area.
In larger rooms, it is common practice
to use two or more mats. Generally,
the mats are connected in parallel and
controlled by a single thermostat. Emergency
Repair Kit Cold lead
Electrical connection + thermostat Mat cut here
Insulation Boards Repair Kit
Limits downward heat loss
Model Description List Price
Model Dimensions Area List EHM-R-Kit Cable Repair Kit £34.00
(mm) Covered Price (emergency use)
(m²)
F-Board-6 1200 x 600 x 6 0.72 £21.00
F-Board-10 1200 x 600 x 10 0.72 £23.00
FOR THERMOSTATS - See PAGE 12
LIFETIME WARRANTY
NEXT DAY DELIVERY
FREE DESIGN SERVICE
web www.bnthermic.co.uk email sales@bnthermic.co.uk tel 01293 547361 fax 01293 531432 5
EHC Heating Cables
• An economic means
of heating a room and
providing a luxurious warm
floor
• Ideally suited to small and
UNDERFLOOR HEATING
irregularly shaped rooms
• Manufactured to the highest
quality and backed by a
Lifetime Warranty
Applications
• Suitable for any room including
conservatories, bathrooms and wet
rooms
• Ideal for use with a wide variety of
floor surfaces including ceramic tiles,
porcelain tiles, marble, stone, carpet,
vinyl, engineered wood and laminate
flooring.
Features
• Twin core cable supplied with high adhesion tape
• 3m power lead
• Continuous earth protection foil
Heat Cables
Model kW Heated Area (m²) Cable Length (m) List Price
EHC-012 0.12 0.7 – 1.0 11 £57.00
EHC-020 0.20 1.1 – 1.5 19 £67.00
EHC-025 0.25 1.6 – 2.0 24 £76.00
EHC-032 0.32 2.1 – 2.5 32 £89.00
EHC-040 0.40 2.6 – 2.9 37 £95.00
EHC-045 0.45 3.0 – 3.3 46 £109.00
EHC-052 0.52 3.4 – 3.8 50 £112.00
EHC-060 0.60 3.9 – 4.5 64 £141.00
EHC-075 0.75 4.6 – 6.0 76 £152.00
EHC-095 0.95 6.1 – 7.5 87 £182.00
EHC-110 1.10 7.6 – 8.5 115 £223.00
EHC-130 1.30 8.6 – 10.0 131 £256.00
EHC-170 1.70 10.1 – 13.0 159 £317.00
EHC-200 2.00 13.1 – 15.5 194 £412.00
Insulation Boards - Limits downward heat loss
Model Dimensions (mm) Area Covered (m²) List Price
F-Board-6 1200 x 600 x 6 0.72 £21.00
F-Board-10 1200 x 600 x 10 0.72 £23.00
6 web www.bnthermic.co.uk email sales@bnthermic.co.uk tel +44 (0)1293 547361 fax +44 (0)1293 531432
Tiles
Tile adhesive
Typical EHC Installation
Fixing tape
UNDERFLOOR HEATING
F-Board Insulation
Subfloor (optional)
EHC Heating cable
Repair Kit
Model Description List Price
EHM-R-Kit Cable repair kit (emergency use) £34.00
Cable Installation
EHC heating cables can be installed in flexible self-levelling compound or directly
into tile adhesive. When using with carpet, vinyl, engineered wood or laminate
flooring, the lowest tog underlay should be selected.
If there is any doubt about the suitability of a floor surface for use with underfloor
F-Board-6 Emergency heating, confirmation should be sought from the flooring supplier.
and -10 Repair Kit
Selection
The objective is to cover as high a percentage of the free floor area as possible.
Cables should not be installed under fixtures such as kitchen cabinets and shower
Electrical connections trays.
+ thermostat In larger rooms, it is common practice to use two or more cables. Generally, the
cables are connected in parallel and controlled by a single thermostat.
Cold lead
Helpful Hint
Use the following calculation to estimate
centres on cable loops:
Heated Floor Area (m2) ÷ Cable Length (m)
x 1000 = Approximate Loop Centres (mm)
e.g.
2m2 (Heated Floor Area) ÷ 24m (cable
Length) x 1000 = 83.3mm (Approximate
Loop Centres)
EHC heating cable installed in a bathroom
FOR THERMOSTATS - See PAGE 12
web www.bnthermic.co.uk email sales@bnthermic.co.uk tel 01293 547361 fax 01293 531432 7
F Series Foil Heating Mats for laminate and engineered wood floors
• An economic means
of heating a room
and providing a
luxurious warm floor
• Manufactured to the
highest quality and
UNDERFLOOR HEATING
backed by a 10 Year
Warranty
• Installed without
adhesives or
compounds
Applications 10
• Suitable for any room including bathrooms
• Specifically designed for laminate or engineered wood floors
Features
• Heating cables sandwiched between 2 layers of aluminium ensuring excellent heat distribution
• Can be manipulated to fill a space just like a conventional heating mat
• Low profile (2mm approximate) keeps floor build-up to a minimum
• 3m power lead
F Series Foil Heating Mats
Model Heated Area (m²) Mat Size (m) kW List Price
F140-010 1.0 2.0 x 0.5 0.14 £75.00
F140-015 1.5 3.0 x 0.5 0.21 £104.00
F140-020 2.0 4.0 x 0.5 0.28 £122.00
F140-030 3.0 6.0 x 0.5 0.42 £162.00
F140-040 4.0 8.0 x 0.5 0.56 £214.00
F140-050 5.0 10 x 0.5 0.70 £248.00
F140-060 6.0 12 x 0.5 0.84 £288.00
F140-070 7.0 14 x 0.5 0.98 £343.00
F140-080 8.0 16 x 0.5 1.12 £372.00
F140-090 9.0 18 x 0.5 1.26 £447.00
F140-100 10 20 x 0.5 1.40 £464.00
F Series foil heating mat specifically
F140-120 12 24 x 0.5 1.68 £540.00
designed for laminate and engineered
F140-140 14 28 x 0.5 1.96 £666.00 wood floors
Insulation and Fixing Tape
Model Description Area Covered List Price
(m²)
I-Pack-6 Pack of 19 sheets of I-Board-6 insulation/underlay 6mm thick 9.76 £37.00
I-Board-6 Individual sheet insulation/underlay 6mm thick 0.5 £4.50
LHT Fixing tape for I-Board 10 £14.00
AL-50 Fixing tape for F Series mat 10 £14.00
8 web www.bnthermic.co.uk email sales@bnthermic.co.uk tel 01293 547361 fax 01293 531432
Mat Installation
F Series mats should be installed directly below laminate or engineered wood flooring and held in place with
aluminium tape. The mats should be installed on top of a layer of I-Board-6 insulation/underlay which should be held
in place with LHT high adhesion tape.
A low profile F Series Installation
Laminate or engineered wood flooring
F Series Foil Heating Mat
UNDERFLOOR HEATING
I-Board-6 Insulation/underlay
Subfloor
Selection
The objective is to cover as high a percentage of the free floor area as possible. Mats should not be installed under
fixtures such as kitchen cabinets and shower trays. As a rule of thumb, select a mat covering an area approximately
10% smaller than the free floor area.
In larger rooms, it is common practice to use two or more mats. Generally, the mats are connected in parallel and
controlled by a single thermostat.
Typical F Series Installation in a bathroom
Externally
mounted
thermostat Cut mat
here
Cut mat
here
Cold Lead
Cut mat
here
Cut mat
BATH here
SHOWER
TRAY
Cut mat
here
FOR THERMOSTATS - See PAGE 12
I-Board-6 LHT High AL-50
Adhesive Tape Aluminium
Tape
web www.bnthermic.co.uk email sales@bnthermic.co.uk tel 01293 547361 fax 01293 531432 9
IHC In-Screed Heating Cable
• A more robust heating cable suitable for installation
in a concrete screed
• Manufactured to the highest quality and
backed by a 10 year warranty
Applications
• Suitable for any type of room and both domestic and
UNDERFLOOR HEATING
commercial installations
• Specifically designed for installation in a concrete screed
• Can be used with a wide variety of floor surfaces
Features
10
• Twin core cable
• 3m power lead Drum of IHC in-screed cable with IHC-F fixing strip
• Continuous earth protection
• Held in place with metal fixing strips
In Screed Heating Cables
Model kW Cable Area Covered (m²) Area Covered (m²) Area Covered (m²) List Price
length (m) @ 100W/m² @ 150W/m² @ 175W/m²
IHC-016 0.16 8.3 1.6 1.1 0.9 £56.00
IHC-027 0.27 14.0 2.7 1.8 1.5 £71.00
IHC-034 0.34 17.2 3.4 2.3 1.9 £80.00
IHC-045 0.45 22.5 4.5 3.0 2.6 £95.00
IHC-054 0.54 27.4 5.4 3.6 3.1 £104.00
IHC-064 0.64 32.1 6.4 4.3 3.7 £121.00
IHC-072 0.72 35.8 7.2 4.8 4.1 £133.00
IHC-087 0.87 43.8 8.7 5.8 5.0 £153.00
IHC-107 1.07 53.5 10.7 7.1 6.1 £164.00
IHC-129 1.29 64.4 12.9 8.6 7.4 £185.00
IHC-158 1.58 79.0 15.8 10.5 9.0 £211.00
IHC-185 1.85 92.4 18.5 12.3 10.6 £263.00
IHC-230 2.30 117.3 23.0 15.3 13.1 £336.00
IHC-275 2.75 141.4 27.5 18.3 15.7 £425.00
IHC-F Metal fixing strip (10m) – typically one strip is required for every 8m² of heated area £31.00
Cable Selection
The objective is to cover as high a percentage of the free floor area as possible. Cables should not be installed under
fixtures such as kitchen cabinets and shower trays.
In larger rooms, it is common practice to use two or more cables which are usually connected in parallel and controlled
by a single thermostat.
Typically, we suggest a watt density between 150W/m² and 175W/m² however lower densities are often used in well
insulated properties
Cable Installation
IHC cables are installed on a layer of insulation using IHC-F fixing strip. The cable should be arranged in evenly
spaced loops and covered in 80mm to 100mm of concrete screed. IHC cables can be used with a wide variety of floor
surfaces. If there is any doubt about the suitability of the
suitability of a floor surface for use with underfloor heating, FOR THERMOSTATS - See PAGE 12
confirmation should be sought from the flooring supplier.
10 web www.bnthermic.co.uk email sales@bnthermic.co.uk tel 01293 547361 fax 01293 531432MD Mirror Demister Pads
A mirror demister pad's
typical running cost is
5p per week
UNDERFLOOR HEATING
Features
• Protects an area approximately 20%
larger than the pad itself
• Double insulated and completely sealed
for total safety
• Providing a mist free mirror • Less than 1mm thick
• 100% effective in little over 2 • Peel off adhesive backing
minutes • 1m long power lead
• Very low energy consumption
• Simply integrated into the
lighting circuit ensuring that
they are not left running Complete Range
• 230V supply
Width: 300mm
Model Watts Length List Price
MD3-29 16 290 £47.00
MD3-49 27 490 £54.00
MD3-73 40 730 £61.00
MD3-97 54 970 £69.00
MD3-125 69 1250 £79.00
MD3-149 83 1490 £83.00
Width: 500mm
Model Watts Length List Price
MD5-29 27 290 £50.00
MD5-49 46 490 £60.00
MD5-73 69 730 £68.00
MD5-97 92 970 £79.00
MD5-125 119 1250 £91.00
MD5-149 142 1490 £99.00
Width: 700mm
Model Watts Length List Price
MD7-29 38 290 £53.00
MD7-49 65 490 £65.00
MD7-73 98 730 £75.00
MD7-97 131 970 £89.00
MD7-125 169 1250 £105.00
Peel-off adhesive backing MD7-149 201 1490 £116.00
web www.bnthermic.co.uk email sales@bnthermic.co.uk tel 01293 547361 fax 01293 531432 11CONTROLS for Underfloor Heating
Thermostats
• All underfloor heating systems require a thermostat
• Floor probes are supplied as standard
• All BN Thermic thermostats offer air/floor mode and floor only mode.
UNDERFLOOR HEATING
B16C Basic T16CW Touch screen T16CS Touch screen T16CB Touch screen
programmable programmable – programmable – programmable –
white silver black
T16R Optional air Floor probe provided
sensor for T16C with every
BN Thermic thermostat
Thermostats
Model Load Description Details List Price
B16C 16A Programmable Thermostat Page 66 £49.00
T16CW 16A Programmable Touch Screen (White) Page 66 £143.00
T16CS 16A Programmable Touch Screen (Silver) Page 66 £153.00
T16CB 16A Programmable Touch Screen (Black) Page 66 £153.00
T16R Optional IP65 remote sensor for T16C thermostats Page 66 £18.00
Contactors
• For use when the installed load exceeds the switching capacity of the thermostat
Contactors
Model Amperage Max kW (230V 1ph) Details List Price
CON-32 32 7 Page 77 £49.00
CON-32 Contactor
CON-50 50 11.5 Page 77 £65.00
CON-80 80 18 Page 77 £137.00
ENCL-D Enclosure for CON-32 and CON-50 Page 77 £25.00
Relay Box – quieter alternative to contactor
Model Amperage Max kW (230V 1ph) Details List Price
RB26 26 6kW Page78 £77.00 RB26 Relay Box
12 web www.bnthermic.co.uk email sales@bnthermic.co.uk tel 01293 547361 fax 01293 531432Wireless Control
Our wireless thermostat can provide simple, easy to install Wireless Relay Box
control in a single room and is especially convenient when • Usually mounted at skirting level
one thermostat is required to control more than one heating • Switching capacity 16A
mat. It can also control larger loads without requiring a noisy • Supplied with floor probe
contactor.
• Suitable for any room
For multi-room installations, the introduction of a central
programmer allows all the rooms in a house to be controlled Programmable Thermostat
from a single point. • Can be ‘paired’ with up to four relay boxes
Optional Central control
• Touch Screen device
UNDERFLOOR HEATING
• Can be ‘paired’ with up to 24 thermostats
Wireless Control Prices
Model Description Details List Price
WSB-1 Wireless Relay Box 16A Page 67 £112.00
WST-1 Wireless Thermostat (for use with WSB-1 relay box) Page 67 £119.00
WSB-1 Relay Box WSP-1 Wireless Central Programmer Page 67 £248.00
A Typical
Wireless
Control System
LARGE ROOM
Requiring WSB-1
Wireless Relay Box
2x WSB-1
Wireless
Relay Boxes
WST-1
Wireless
Thermostat
WST-1 Wireless
Thermostat WSB-1
Wireless Relay Box
WSP-1
Central
Programmer
SMALLER ROOM
Requiring
1x WSB-1
Wireless
Relay Box
WST-1 WSB-1
Wireless
Thermostat Wireless Relay Box
WSP-1 Central
Programmer
web www.bnthermic.co.uk email sales@bnthermic.co.uk tel 01293 547361 fax 01293 531432 13CRJ Self Regulating Heat Cable for Pipes
PIPE FREEZE & GUTTER PROTECTION
• Prevents water from freezing in metal and plastic pipes
• Maintains temperature in pipes for a wide variety of industrial processes
• Supplied by the metre – order as much or as little as required
Typical Applications Features
• Stables and Farms • Power consumption decreases as pipe temperature increases
• Sprinkler systems • Can be cut to length on site
• Wide variety of industrial plants • Full length earth braid and thermoplastic outer jacket
• All cables require 230V supply
• Installed onto pipe and under insulation
FOR THERMOSTATS • Cables with EX suffix can be used in hazardous areas – Zones 1,
See PAGES 69 & 72 2, 21 and 22 (temperature class T6 with 230V supply) or in safe
areas
CRJ and CRJM Cables
Cables and Prices
Model W/m List Price/m List Price/m
(under 50m) (50m+)
CRJM-11 11 £11.50 £10.50
CRJM-17 17 £12.00 £11.00
CRJ-25EX 2 25 5 £21.00 £20.00
CRJ-40EX 4 40 0 £22.00 £21.00
Trace heated pipe ready for insulation to be installed
Technical Data
Cable ATEX* Max Circuit Length Breaker (type C) for Max Exposure Max Exposure
(0˚C start up) Max Circuit Length Temperature Temperature
(Power On) (Power Off)
CRJM-11 No 128m 16A 65˚C 85˚C
CRJM-17 No 102m 16A 65˚C 85˚C
CRJ-25EX Yes 120m 32A 85˚C 85˚C
CRJ-40EX Yes 94m 32A 85˚C 85˚C
*Suitable for both safe (non-hazardous) areas and hazardous areas zones 1, 2, 21 and 22.
14 web www.bnthermic.co.uk email sales@bnthermic.co.uk tel 01293 547361 fax 01293 531432Accessories
Model Description List Price
Termination Kit (one per circuit) uses shrink on material – suitable
CRJ-T1 for CRJ and CRJM but not for use when ATEX approval required. £19.00
PIPE FREEZE & GUTTER PROTECTION
Prepares cable for electrical connection and seals the far end.
Termination Kit (one per circuit) uses silicone – can be used when
ATEX approval required or for general purpose applications (not for
THK £42.00
use with CRJM). Prepares cable for electrical connection and seals
the far end.
Termination Kit (one per circuit) uses silicone – for use with CRJM.
THKM £42.00
Prepares cable for electrical connection and seals the far end.
Splice/T Kit – one for every splice or T joint. Not for use when ATEX
CRJ-S £20.00
approval required.
Fixing Tape (33mm x 19mm) for fixing cable to pipe – max temp
PF-T £3.50
80˚C
Aluminium Tape (45m x 50mm) – for wrapping plastic pipes before
AL-50 installing cable or for fixing cable to pipe - max temp 110⁰C (note £14.00
maximum exposure temp of cable)
PF-L Caution Label (10 pack) apply to outside of insulation for safety £8.00
Stainless Steel Bracket for THJ junction boxes or THT thermostats
THB c/w stainless steel bands for fixing to pipe – for insulation up to £26.00
50mm thick and pipes up to 150mm diameter
THJ Junction Box IP66 6-way terminal block 40A max £42.00
ATEX Junction Box with 3 x M20 entries (one plugged) 6 way
THJEX £190.00
terminal block 16A max
THT Capillary Thermostat 5 to 50°C IP66 (16A). See page 72. £135.00
THTEX ATEX Capillary Thermostat 0 to 40°C IP66 (16A). See page 72. £672.00
FST2-IN Frost Thermostat Indoor Use (20A) – see page 69 £88.00
FST2-EX Frost Thermostat Outdoor Use IP66 (20A) – see page 69 £166.00
web www.bnthermic.co.uk email sales@bnthermic.co.uk tel 01293 547361 fax 01293 531432 15CRJ Self Regulating Heat Cable for Pipes - Continued
Selection Table – Pipe Freeze Protection 45
(based on a minimum ambient temperature of -20˚C and Nominal output
mineral wool insulation). 40 for cable installed
Cable installed in a straight line. on an insulated
PIPE FREEZE & GUTTER PROTECTION
CRJ-40
35
carbon steel pipe
Outside Pipe Insulation Thickness (mm) 30
Diameter
12 25 50 25
CRJ-25
12mm (½” Pipe) CRJM-11 CRJM-11 CRJM-11 20
25mm (1” Pipe) CRJM-11 CRJM-11 CRJM-11
15
50mm (2” Pipe) CRJM-17 CRJM-11 CRJM-11
W/m
75mm (3” Pipe) CRJ-25EX CRJM-17 CRJM-11 10
100mm (4” Pipe) CRJ-40EX CRJM-17 CRJM-11 5
150mm (6” Pipe) ----- CRJ-25EX CRJM-17
200mm (8” Pipe) ----- CRJ-40EX CRJM-17
0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85
Pipe Temperature (⁰C)
A frost thermostat is always recommended – see page 15
Selection Table - Temperature Maintenance Buswires.
(based on a minimum ambient temperature of -15˚C, carbon
steel pipe and mineral wool insulation). Cable installed in a
straight line. Inherently temperature-safe
self-regulating matrix.
Outside Pipe 25mm Thick 50mm Thick
Pipe Temperature Insulation Insulation
Diameter
Thermoplastic
25mm 20°C CRJ-25EX CRJ-25EX electrical insulation.
(1” Pipe)
30°C CRJ-25EX CRJ-25EX
40°C CRJ-40EX CRJ-25EX
50°C ----- CRJ-40EX
50mm 20°C CRJ-25EX CRJ-25EX Continuous conductive
covering of metal braid.
(2” Pipe)
30°C CRJ-40EX CRJ-25EX
40°C ----- CRJ-40EX
50°C ----- CRJ-40EX
75mm 20°C CRJ-25EX CRJ-25EX
(3” Pipe)
30°C CRJ-40EX CRJ-40EX
Thermoplastic
40°C ----- CRJ-40EX outer jacket.
100mm 20°C CRJ-40EX CRJ-25EX
(4” Pipe)
30°C ----- CRJ-40EX CRJ Self Regulating Cable - Dispensed by
40°C ----- CRJ-40EX the metre
Temperature Maintenance – Important Notes
Changes in selection parameters can affect cable selection. Please call BN Thermic to discuss cable selection for your
project.
Additional pipe temperature control is always recommended
This selection table is designed to cover the more commonly encountered applications. If your requirements fall
outside the limit of this table, please call BN Thermic.
16 web www.bnthermic.co.uk email sales@bnthermic.co.uk tel 01293 547361 fax 01293 531432WM Self Regulating Hot Water Maintenance Cable
• Maintains hot water in pipes at desired temperature
• Ensures hot water is instantly available
PIPE FREEZE & GUTTER PROTECTION
• Eliminates need for return pipework and
re-circulating pumps
Typical Applications
• Hot water pipes in both domestic and
commercial buildings.
Features
• Maintains water temperature at
approximately 50˚C to 60˚C
• Output reduces automatically as
water temperature rises
• Can be cut to length on site WM heating cable maintaining hot water temperature in a school before
• Full length earth braid insulation added
• Requires 230V supply and must be installed under insulation
Insulation Thickness (mm) – Cable should be Maximum Circuit Length and
installed in a straight line under installation Breaker Size
Maintain 15mm 22mm 28mm 35mm 42mm 54mm Max. Circuit (m) Breaker (A)
Temperature Pipe Pipe Pipe Pipe Pipe Pipe 128 20
60˚C 25 30 40 50 60 75
55˚C 20 25 30 40 50 60
50˚C 15 20 25 30 40 50
Accessories Cable and Price
Model Description List Price Model W/m List Price/m
Termination Kit (one per circuit) WM-09 9 £17.00
CRJ-T1 £19.00
uses shrink on material
Termination Kit (one per circuit)
THK £42.00
uses silicone
Splice/T Kit (one for every splice or
CRJ-S £20.00
T joint)
Caution label (10 pack) apply to
PF-L £8.00
outside of insulation
PF-T Fixing Tape (33m x 19mm) £3.50
Aluminium Tape (45m x 50mm) –
AL-50 for wrapping plastic pipes before £14.00
installing cable PF-T Fixing AL-50 PF-L Caution
Junction Box IP66 6 way terminal Tape Aluminium Tape Labels
THJ £42.00
block 40A
web www.bnthermic.co.uk email sales@bnthermic.co.uk tel 01293 547361 fax 01293 531432 17GP Self-regulating cable for Gutters and Downpipes
• Stops accumulation of snow and ice
PIPE FREEZE & GUTTER PROTECTION
• Prevents damage to gutters and
properties
• Reduces danger from collapsing
gutters and falling icicles
Applications
• Domestic properties
• Commercial Premises
Features
• Power consumption decreases as
ambient temperature increases
• No chance of hot spots from cables
crossing or touching
• Can be cut to length on site
Keep gutters and downpipes ice-free
• UV resistant
• Full length earth braid
• Use a single run for gutters up to FST2-EX
120mm wide and an additional run Tin coated copper bus wires
for every extra 120mm
Self limiting polymer with bonded jacket IP66 Frost
• Cables require 230V supply Thermostat
• Connection to power lead via
THJ junction box Thermoplastic insulation
Metal braid
Cable Price
Thermoplastic over jacket
Model W/m List Price/m THK THJ
GP-18 18 £17.00 Structure of GP-18 heating cable Termination Kit IP66 Junction Box
Accessories
Model Description List Price
THK Termination kit (one per circuit) uses silicone £42.00
THJ Junction box IP66 6-way terminal block 40A max £42.00
GP-S Spacer Kit (also protects against sharp edges) £21.00
GP-S spacer kit
Optional Control
Type Description Model Details List Price
Thermostat IP66 Frost thermostat FST2-EX Page 69 £166.00
Cable length against breaker size (assuming 00C start up)
Breaker (A) 6 10 16 20 32
GP-S spacer protecting GP-18
Max Cable length (m) 24 38 62 78 86
cable from a sharp edge
18 web www.bnthermic.co.uk email sales@bnthermic.co.uk tel 01293 547361 fax 01293 531432PW Pipe Freeze Protection Kits
• Prevents water from freezing in metal and plastic pipes
• Avoids the cost and inconvenience of burst
PIPE FREEZE & GUTTER PROTECTION
water pipes
• Quick and simple to install
Applications
• Domestic properties PW Water Pipe
Freeze Protection Cable
• Commercial premises
a low price
• Mobile homes for peace of mind
Features
• 1.5m power lead and 3-pin plug
• Built-in thermostat (pre-set at 3˚C)
• Fully moisture proof
• All cables require 230V supply
• Installed onto pipe and under insulation (20mm max)
• Straight run of cable protects pipes up to 50mm dia.
• Can be wound in an evenly spaced helix (always use
the shortest suitable cable)
Cables and Prices
Model Watts Heated Length List Price
(m)
PW-01 12 1 £85.00
PW-02 24 2 £92.00
PW-03 36 3 £102.00
PW-04 48 4 £107.00
PW-06 72 6 £116.00
PW-10 136 10 £117.00
PW-14 152 14 £118.00
PW-21 281 21 £131.00
PW-30 337 30 £149.00
PW-42 490 42 £173.00 PW-06 with built-in thermostat
and UK plug
Accessories
Model Description List Price
PF-L Caution label (10 pack) apply to outside of insulation £8.00
PF-T Fixing Tape (33m x 19mm) £3.50
Aluminium Tape (45m x 50mm) – for wrapping plastic pipes
AL-50 £14.00
before installing cable
PF-T Fixing AL-50 PF-L Caution
Tape Aluminium Tape Labels
web www.bnthermic.co.uk email sales@bnthermic.co.uk tel 01293 547361 fax 01293 531432 19SystemX Multi-Heater Control for Ceiling Grid Fan Heaters
System Features
• Control up to 12 ceiling heaters from a single
point
• All control connections by Cat5 cable for super
quick and error free installation
FAN ASSISTED HEATERS
• Select 3kW, 4.5kW or 6kW heaters – or any
combination of the three
• Choice of four wall-mounted controllers
• Controllers do not require their own 230V supply
• Can be easily daisy chained with any SystemX
heater – see pages 22 to 24
• BMS compatible using CX-BMS module
XC-30 with compact and stylish System X controller
Heater Features Typical Applications
• Developed from our SCHG range – market leader for 15 years • Shops
• Ceiling mounting allows free use of floor and wall space • Cafes
• Designed to rest in the T bar of 600 x 600 suspended ceiling grid • Changing rooms
• White aluminium egg-crate grille supplied with every heater • Trade counters
600 x 60
Cat 5 Cable 0 Ceiling
grid
Sys
tem
XF
Syste
an
S m
H
X Co
eat
H ntrol
er
O ler
P CLICK
CLICK
CLICK
A System X
installation – Connect Connect Each heater
requires a
ideal for retail heater to heater controller to heater 230V supply
20 web www.bnthermic.co.uk email sales@bnthermic.co.uk tel 01293 547361 fax 01293 531432Super quick and error free connection of up to 12 heaters
Heaters
Model kW Tech Data List Price Each
XC-30 3.0 See SCHG-30 (page 26) £422.00
XC-45 4.5 See SCHG-45 (page 26) £462.00
FAN ASSISTED HEATERS
XC-60 6.0 See SCHG-60 (page 26) £598.00
CX1
with
System X control components
thermostat Type Features Model Details List Price
Thermostat
CX2 Controller On/off/high/low/fan only settings CX1 Page 79 £119.00
with tamper Open window detection
resistant Tamper resistant thermostat
thermostat Controller On/off/high/low/fan only settings CX2 Page 79 £121.00
Open window detection
No thermostat
CX3 Controller CX3 Page 79 £120.00
without On/off/high/low/fan only settings
thermostat Digital programmable thermostat
Controller CX6 Page 79 £210.00
Optimum start feature (optional)
For use with BMS with volt-free
BMS CX-
CX6 signal (for 230V signal a VI interface Page 79 £113.00
Module BMS
digital will be needed - see page 78)
controller Optional remote sensor
Sensor CXS Page 79 £32.00
Use with CX1, CX2 or CX6
Cable Cat5 terminated 5m DX05 --- £8.00
Cable Cat5 terminated 10m DX10 --- £12.00
CX-BMS
module Cable Cat5 terminated 20m DX20 --- £18.00
Joiner Cat5 Cable Joiner JX1 --- £4.00
CXS
optional remote sensor
for CX1, CX2 or CX6 Ceiling heaters allow
free use of wall space
web www.bnthermic.co.uk email sales@bnthermic.co.uk tel 01293 547361 fax 01293 531432 21SystemX Multi-Heater Control – Extended Range
• SystemX controllers can now be used with a wide variety of commercial fan heaters,
industrial fan heaters and air curtains
• Control up to 12 heaters or air curtains in any combination using a single controller
• Controllers can provide thermostatic control and/or variable heat settings – they do
not require their own 230V supply
• All models from extended range can be integrated into a system using SystemX
FAN ASSISTED HEATERS
ceiling grid fan heaters - see page 22
• BMS compatible using CX-BMS module
Overdoor Heaters
• Developed from our 800 Series
• Bracket mounted or suspended from drop rods
• Smart modern design with white paint finish
Typical Applications
• Shops
• Cafes
• Entrance areas
Overdoor Heaters
Model kW Length (mm) Tech Data List Price
XD-30 3.0 635 See 830 (page 30) £385.00
XD-60 6.0 1105 See 860 (page 30) £630.00
XD-90 9.0 1620 See 890 (page 30) £870.00
Surface Mount Ceiling Heaters
• Developed from our SMH range
• Fix directly to the ceiling or suspend from drop rods
• Compact design with white paint finish
Typical Applications
• Shops
• Cafes
• Changing rooms
Surface Mount Ceiling Heaters
(can be suspended)
Model kW Tech Data List Price
XS-30 3.0 See SMH-30 (page 28) £414.00
XS-45 4.5 See SMH-45 (page 28) £438.00
XS-60 6.0 See SMH-60 (page 28) £582.00
Super quick and error free connection of up to 12 heaters - any combination - any sequence
22 web www.bnthermic.co.uk email sales@bnthermic.co.uk tel 01293 547361 fax 01293 531432Recessed Overdoor Heaters

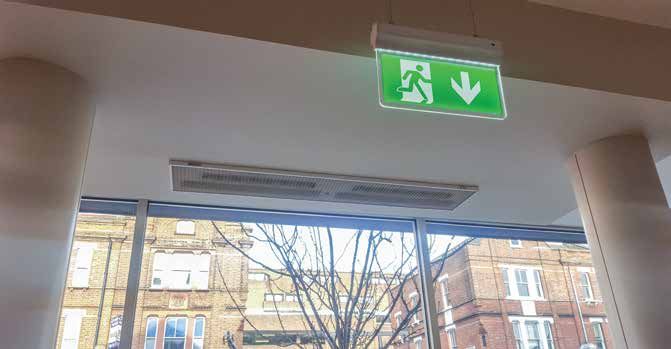

• Developed from our RH range
• Ideal where space above a door is limited
• Only 200mm clearance required above ceiling
Typical Applications
• Shops
• Cafes
• Entrance areas
Recessed Overdoor Heaters
FAN ASSISTED HEATERS
Model kW Length (mm) Tech Data List Price
XR-20 2.0 363 See RH-20 (page 32) £349.00
XR-30 3.0 597 See RH-30 (page 32) £401.00
XR-60 6.0 1198 See RH-60 (page 32) £637.00
Commercial Air Curtains
• Developed from our CA range
• Produces a higher velocity than an overdoor heater
for a more effective air screen
• Reduces heating costs by inhibiting heat loss
Typical Applications
• Convenience stores
• Hotel lobbies
• Schools
Commercial Air Curtains
Model kW Length (mm) Tech Data List Price
XAS-30 3.0 635 See CAS-30 (page 34) £479.00
XAS-45 4.5 635 See CAS-45 (page 34) £486.00
XAD-60 6.0 1105 See CAD-60 (page 34) £750.00
XAD-90 9.0 1105 See CAD-90 (page 34) £854.00
XAT-90 9.0 1620 See CAT-90 (page 34) £961.00
XAT-135 13.5 1620 See CAT-135 (page 34) £1009.00
Rear view of System X heaters showing
ports for Cat5 cable connections
web www.bnthermic.co.uk email sales@bnthermic.co.uk tel 01293 547361 fax 01293 531432 23SystemX Multi-Heater Control - Extended Range Continued
Industrial Fan Heaters
• Developed from our OUH range
• Heavy gauge steel construction
• Wall brackets and suspension
hooks provided as standard
Typical Applications
• Warehouses
• Workshops
• Factories
Industrial Fan Heaters
Model kW Tech Data* List Price
XH-03 3.0 See OUH2-03 (page 38) £1070.00
XH-05 5.0 See OUH2-05 (page 38) £1085.00
XH-07 7.5 See OUH2-07 (page 38) £1100.00
XH-10 10 See OUH2-10 (page 38) £1115.00
XH-15 15 See OUH2-15 (page 38) £1490.00
XH-20 20 See OUH2-20 (page 38) £1520.00
XH-25 25 See OUH2-25 (page 38) £1570.00
*XH models do not have a built-in thermostat
CX1
with
System X control components
thermostat Type Features Model Details List Price
Thermostat
CX2 Controller On/off/high/low/fan only settings CX1 Page 79 £119.00
with tamper Open window detection
resistant Tamper resistant thermostat
thermostat Controller On/off/high/low/fan only settings CX2 Page 79 £121.00
Open window detection
No thermostat
CX3 Controller CX3 Page 79 £120.00
without On/off/high/low/fan only settings
thermostat Digital programmable thermostat
Controller CX6 Page 79 £210.00
Optimum start feature (optional)
For use with BMS with volt-free
BMS CX-
CX6 signal (for 230V signal a VI interface Page 79 £113.00
Module BMS
digital will be needed - see page 78)
controller Optional remote sensor
Sensor CXS Page 79 £32.00
Use with CX1, CX2 or CX6
Cable Cat5 terminated 5m DX05 --- £8.00
Cable Cat5 terminated 10m DX10 --- £12.00
CX-BMS
module Cable Cat5 terminated 20m DX20 --- £18.00
Joiner Cat5 Cable Joiner JX1 --- £4.00
CXS
optional remote sensor Rear view of XH heater.
for CX1, CX2 or CX6 Control connections are as simple
as click – click – click
24 web www.bnthermic.co.uk email sales@bnthermic.co.uk tel 01293 547361 fax 01293 531432Don't forget...
provides
FREE OF
CHARGE heating designs
web www.bnthermic.co.uk email sales@bnthermic.co.uk tel 01293 547361 fax 01293 531432 25SCHG Ceiling Grid Fan Heaters
• High quality commercial fan heaters
manufactured in the UK
• Ceiling mounting allows free use of floor
and wall space
• Suitable for a wide range of commercial
premises
FAN ASSISTED HEATERS
Applications
• Shops
• Cafes
• Changing rooms
• Entrance areas
Features SCHG ceiling grid heater
• Designed to rest in the T bar of a 600 x 600 suspended ceiling grid – ideal for shop heating
• Air inlet and outlet through the front panel – no requirement for air
supply from the ceiling void
• White aluminium egg-crate grille supplied with every heater
• Pre-wired to convenient rear-mounted terminal enclosures
• Output can be reduced from ‘high’ to ‘low’ by removing link in
terminal enclosure
• Models with ‘T’ suffix have adjustable electronic thermostat with CS-7 switch for high/low/fan
optional ‘open window detection’ feature only settings
• All models can be switched directly by a CS-7 wall-mounted controller
• Models without built-in thermostat can be controlled by a CS-7
controller and/or a suitably rated thermostat
• 6kW heaters have a built-in relay meaning that the minimum
switching capacity of a suitable thermostat is reduced to 10A
Heater range and pricing
Model kW Built-in Thermostat List Price
SCHG-30 3.0 No £301.00 Use 3kW heaters for standard
height ceilings and 4.5kW for
SCHG-30T 3.0 Yes £425.00 higher ceilings
SCHG-45 4.5 No £350.00
SCHG-45T 4.5 Yes £462.00
SCHG-60 6.0 No £493.00
SCHG-60T 6.0 Yes £599.00
Physical Data
kW Dimension (mm) Required clearance Weight
W D H above grid (mm) (kg)
3.0 576 592 153 200 9
4.5 576 592 153 200 10
6.0 576 592 152 200 13 6kW heaters are well suited to
larger premises
26 web www.bnthermic.co.uk email sales@bnthermic.co.uk tel 01293 547361 fax 01293 531432Performance Data
kW Volts Airflow dB*@2m Recommended Mounting Height (m)
High Low (m³/h) Min Max
3.0 2.0 230 245 56 2.4 3.0
4.5 2.25 230 345 60 3.0 4.5
6.0 4.0 230 490 58 2.4 3.0
*Noise levels are factory tested not laboratory tested
Control Options and Prices
FAN ASSISTED HEATERS
Type Description Model Details List Price
Switch On/off/high heat/low heat /fan only CS-7 Page 75 £80.00
Electronic programmable thermostat with optional open
Thermostat RT16* Page 70 £116.00
window detection function 16A
Electronic programmable thermostat with optional open
Thermostat RT26 Page 70 £135.00
window detection 26A
Thermostat Adjustable thermostat 20A RST2-IN Page 68 £96.00
Thermostat Tamperproof thermostat 20A RST-TP Page 68 £104.00
*Cannot switch 4.5kW heater directly
An SCHG
fan heater
provides
simple and
reliable
heating in a
car service
reception area
Ceiling heaters
free up wall space
making them ideal
for retail stores
Heater specifically
designed for
integration into a
suspended ceiling grid
FOR MULTI-HEATER SYSTEMS WE RECOMMEND OUR SYSTEM X - See PAGE 20
web www.bnthermic.co.uk email sales@bnthermic.co.uk tel 01293 547361 fax 01293 531432 27SMH Surface Mount Ceiling Heaters
• High quality commercial fan heaters manufactured in the UK
• Ceiling mounting allows free use of floor and
wall space
• Ideal for premises that do not have 3kW and 4.5kW
suspended ceilings versions
FAN ASSISTED HEATERS
Applications
• Shops • Changing rooms
• Cafes • Entrance areas
Features
• Compact design – only 152mm high
• Simple keyhole screw fixing to a conventional ceiling
• M6 threaded holes for suspension by drop rods
• Output can be reduced from ‘high’ to ‘low’ by removing link in
terminal enclosure
• Models with ‘T’ suffix have adjustable electronic thermostat
with ‘open window detection’ feature
• All models can be switched directly by a CS-7 wall-mounted
controller
• Models without built-in thermostat can be controlled by a
CS-7 controller and/or a suitably rated thermostat
• 6kW heaters have a built-in relay meaning that the minimum
switching capacity of a suitable thermostat is reduced to 10A 6kW Model
Heater Range and Prices
Model kW Built-in Thermostat List Price
SMH-30 3.0 No £308.00
SMH-30T 3.0 Yes £415.00
SMH-45 4.5 No £333.00
SMH-45T 4.5 Yes £446.00
SMH-60 6.0 No £477.00
SMH-60T 6.0 Yes £572.00
Physical Data SMH heater suspended from drop rods
kW Dimension (mm) Weight (kg)
W D H
3.0 575 392 152 8.0
4.5 575 392 152 11.0
6.0 575 592 152 12.5
CS-7 switch for
high/low/fan only
settings
Warming customers in a
factory outlet
28 web www.bnthermic.co.uk email sales@bnthermic.co.uk tel 01293 547361 fax 01293 531432Performance Data
kW Volts Airflow dB*@2m Recommended Mounting Height (m)
High Low (m³/h) Min Max
3.0 2.0 230 245 56 2.4 3.0
4.5 2.25 230 345 60 3.0 4.5
6.0 4.0 230 490 58 2.4 3.0
*Noise levels are factory tested not laboratory tested
Control Options and Prices
FAN ASSISTED HEATERS
Type Description Model Details List Price
Switch On/off/high heat/low heat /fan only CS-7 Page 75 £80.00
Electronic programmable thermostat with optional open
Thermostat RT16* Page 70 £116.00
window detection function 16A
Electronic programmable thermostat with optional open
Thermostat RT26 Page 70 £135.00
window detection 26A
Thermostat Adjustable thermostat 20A RST2-IN Page 68 £96.00
Thermostat Tamperproof thermostat 20A RST-TP Page 68 £104.00
*Cannot switch 4.5kW heater directly
SMH heaters installed in an
auction house
The rugged SMH is well suited
to commercial and industrial
applications
FOR MULTI-HEATER SYSTEMS WE RECOMMEND OUR SYSTEM X - See PAGE 22
web www.bnthermic.co.uk email sales@bnthermic.co.uk tel 01293 547361 fax 01293 531432 29800 Series High Level Wall or Overdoor Fan Assisted Heaters
• High quality commercial fan heaters manufactured in the UK
• Smart modern appearance
• Can be used as a general purpose commercial
space heater or as an overdoor heater
Typical Applications
FAN ASSISTED HEATERS
Space heating or overdoor heating in the following premises
• Shops • Entrance areas 830T with wall
bracket fitted
• Cafes • Community halls
• Changing rooms • Workshops
Features
• Smart design with attractive white
paint finish
• Dual function bracket: vertical 860T with wall
discharge (overdoor) or angled bracket fitted
discharge (general space heating) - overdoor
only for 9kW models
• M8 threaded hole for drop rod suspension
• Panel front on/off switch
• Pre-wired to rear-mounted terminal enclosures
• Output can be reduced from ‘high’ to ‘low’ by removing link in terminal enclosure
• Models with ‘T’ suffix have adjustable electronic thermostat
890 9kW Model
• All models can be switched directly by a CS-7 wall-mounted controller
• Models without built-in thermostat can be controlled by a CS-7 controller and/or a
suitably rated thermostat
• 6kW and 9kW heaters have a built-in relay meaning that the minimum switching capacity
of a suitable thermostat is reduced: 6kW (10A), 9kW (3A)
Heater Range and Prices Physical Data
Model kW Built-in Thermostat List Price kW Dimension (mm) Weight (kg)
W D H
830 3.0 No £267.00
3.0 635 108 225 7
830T 3.0 Yes £347.00
6.0 1105 108 225 11.5
860 6.0 No £493.00
9.0 1620 108 225 17
860T 6.0 Yes £591.00
890 9.0 No £795.00
890T 9.0 Yes £897.00
CS-7 switch for
high/low/fan only Overdoor heater
settings providing a warm
welcome for customers
30 web www.bnthermic.co.uk email sales@bnthermic.co.uk tel 01293 547361 fax 01293 531432Performance Data
kW Volts Airflow (m³/h) dB*@2m Recommended Mounting
Height (m)
High Low Min Max
3.0 2.0 230 245 56 1.8 3.0
6.0 4.0 230 490 58 1.8 3.0
9.0 6.0 230V or 400/3N 735 58 1.8 3.0
*Noise levels are factory tested not laboratory tested
Control Options and Prices
FAN ASSISTED HEATERS
Type Description Model Details List Price
Switch On/off/high heat/low heat/fan only CS-7 Page 75 £80.00
Electronic programmable thermostat with optional open
Thermostat RT16 Page 70 £116.00
window detection function 16A
Electronic programmable thermostat with optional open
Thermostat RT26 Page 70 £135.00
window detection 26A
Thermostat Adjustable thermostat 20A (not for use with 'T' suffix models) RST2-IN Page 68 £96.00
Thermostat Tamperproof thermostat 20A (not for use with 'T' suffix models) RST-TP Page 68 £104.00
Overdoor heater
installed to provide a
450 warm air stream
6kW heater combatting draughts
in a church in Kent
An 890 limiting heat loss in a
hotel foyer in Lincoln
FOR MULTI-HEATER SYSTEMS WE RECOMMEND OUR SYSTEM X - See PAGE 22
web www.bnthermic.co.uk email sales@bnthermic.co.uk tel 01293 547361 fax 01293 531432 31RH Recessed Fan Assisted Heaters
• High quality commercial fan heaters manufactured in the UK
• Recessed installation reduces visual impact
• Suitable for ceiling or wall mounting
RH-20
FAN ASSISTED HEATERS
Extremely compact
2kW recessed heater
RH-30
3kW recessed heater commonly
installed above a door
RH-60
6kW recessed heater with
integral relay
Typical Applications
Space heating or overdoor heating in the following premises
• Shops
• Cafes
• Changing rooms
• Entrance Areas
• Community halls
• Workshops
Features
• Air inlet and output through front panel – no
requirement for air supply to the rear of the heater
• White aluminium grille is the only visible part of heater
• Suitable for horizontal or vertical discharge
• Simple fixing through the face of the heater
• Pre-wired to rear-mounted terminal enclosures
• Output can be reduced from ‘high’ to ‘low’ by removing
link in terminal enclosure
• All models without built-in thermostat can be controlled
by a CS-7 controller and/or a suitably rated thermostat
• 6kW heaters have a built-in relay meaning that the
minimum switching capacity of a suitable thermostat is
reduced to 10A
RH-30 providing comfort heat in a charity shop
Heater Range and Prices
Model kW List Price
RH-20 2.0 £235.00
RH-30 3.0 £298.00
RH-60 6.0 £587.00
32 web www.bnthermic.co.uk email sales@bnthermic.co.uk tel 01293 547361 fax 01293 531432FAN ASSISTED HEATERS
The RH range is designed to be recessed
into plaster board ceilings
Recessed heater installed above a doorway to combat
draughts
Physical Data
kW Dimension (mm) Aperture Insert Clearance Weight
A B Size (mm) (mm) (kg)
2.0 363 307 315 x 150 200 4
3.0 597 550 560 x 150 200 6
6.0 1198 1138 1148 x 150 200 12
Performance Data
kW Volts Airflow dB*@2m Recommended Mounting Height (m)
High Low (m³/h) Min Max
2.0 1.0 230 132 50 1.8 2.4
3.0 2.0 230 245 56 1.8 3.0 CS-7 switch for high/low/
6.0 4.0 230 490 58 1.8 3.0 fan only settings
*Noise levels are factory tested not laboratory tested
Control Options and Prices
Type Description Model Details List Price
Switch On/off/high heat/low heat/fan only CS-7 Page 75 £80.00
Electronic programmable thermostat with optional
Thermostat RT16 Page 70 £116.00
open window detection function 16A
Electronic programmable thermostat with optional
Thermostat RT26 Page 70 £135.00
open window detection 26A
Thermostat Adjustable thermostat 20A RST2-IN Page 68 £96.00
Thermostat Tamperproof thermostat 20A RST-TP Page 68 £104.00
FOR MULTI-HEATER SYSTEMS WE RECOMMEND OUR SYSTEM X - See PAGE 23
web www.bnthermic.co.uk email sales@bnthermic.co.uk tel 01293 547361 fax 01293 531432 33CA Commercial Air Curtains
• Produces a higher air velocity than an overdoor heater for a more effective air screen
• Helps to reduce heating costs by inhibiting heat losses
• Electric heating elements offset chill factor associated with fast air movement and
contribute to indoor air temperature
Typical Applications
FAN ASSISTED HEATERS
CAS • Convenience stores
• Hotel lobbies
Features
• Smart design with attractive white paint finish
• Bracket for wall or ceiling mounting
• M8 threaded holes for drop rod suspension
• Models with ‘T’ suffix have adjustable electronic
thermostat
• All models can be switched directly by a CS-7
CAD wall-mounted controller
• Models without built-in thermostat can be
controlled by a CS-7 controller and/or a suitably
rated thermostat
• 6 to 13.5kW heaters have a built-in relay meaning
that the minimum switching capacity of a suitable
thermostat is reduced: 6kW (10A), 9kW and
13.5kW (3A)
CAT
Important Note
CA commercial air curtains produce
higher decibels than the equivalent
overdoor heaters. Please ensure that
noise levels are acceptable before
installing.
Air Curtain Range and Prices Physical Data
Model kW Built-in Thermostat Length (mm) List Price Models Dimensions (mm) Weight
CAS-30 3.0 No 635 £399.00 L D H (kg)
CAS-30T 3.0 Yes 635 £508.00 CAS 635 108 225 8.5
CAS-45 4.5 No 635 £405.00 CAD 1105 108 225 13.5
CAS-45T 4.5 Yes 635 £512.00 CAT 1620 108 225 19
CAD-60 6.0 No 1105 £675.00
CAD-60T 6.0 Yes 1105 £782.00
CAD-90 9.0 No 1105 £726.00
CAD-90T 9.0 Yes 1105 £818.00
CAT-90 9.0 No 1620 £904.00
CAT-90T 9.0 Yes 1620 £1033.00
CAT-135 13.5 No 1620 £942.00
CAT-135T 13.5 Yes 1620 £1036.00
34 web www.bnthermic.co.uk email sales@bnthermic.co.uk tel 01293 547361 fax 01293 531432Performance Data
Model kW Volts Airflow dB*@2m Recommended Mounting
(m³/h) Height (m)
High Low Min Max
CAS-30(T) 3 2 230 345 60 2.5 3.5
CAS-45(T) 4.5 2.25 230 345 60 2.5 3.5
CAD-60(T) 6 4 230 690 62 2.5 3.5
CAD-90(T) 9 4.5 230 690 62 2.5 3.5
CAT-90(T) 9 6 230 or 400/3N 1035 62 2.5 3.5
CAT-135(T) 13.5 6.75 400/3N 1035 62 2.5 3.5
FAN ASSISTED HEATERS
*Noise levels are factory tested not laboratory tested
Control Options and Prices
Type Description Model Details List Price
Switch On/off/high heat/low heat/fan only CS-7 Page 75 £80.00
Electronic programmable thermostat with
Thermostat RT16* Page 70 £116.00
open window detection function 16A CS-7 switch for
Electronic programmable thermostat with high/low/fan only
Thermostat RT26 Page 70 £135.00 settings
optional open window detection 26A
Adjustable thermostat 20A
Thermostat RST2-IN Page 68 £96.00
(not for use with ‘T’ suffix models)
Tamperproof thermostat 20A
Thermostat RST-TP Page 68 £104.00
(not for use with ‘T’ suffix models)
*Cannot switch 4.5kW heater directly
A 13.5kW commercial air curtain
suspended on drop rods in a timber
showroom in Bedford
A commercial air curtain installed in
an M3 service station
FOR MULTI-HEATER SYSTEMS WE RECOMMEND OUR SYSTEM X - See PAGE 23
web www.bnthermic.co.uk email sales@bnthermic.co.uk tel 01293 547361 fax 01293 531432 35HCA2 High Capacity Air Curtain - with SystemX control
• Provides an invisible barrier across entrances
to commercial premises
• Reduces heating and air conditioning costs
• Up to 12 air curtains can be controlled from
a single point
• BMS compatible using
FAN ASSISTED HEATERS
CX-BMS module
Typical Applications
• Large shops
• Offices
• Hospitals
• Hotels
Features HCA2 air curtains reduce heating costs
• Attractive,
sturdy design
• Wall mounting
plate supplied as standard
• Four M6 threaded holes for drop rod suspension
• Control connections by Cat5 cable for super-fast error-free installations
• Controllers do not require their own 230V supply
Air Curtain Range and Prices Physical Data
See page 39 for control options
Model Dimensions (mm) Weight (kg)
Model kW Length List Price L D H
(high setting) (mm)
HCA2-09 1113 265 254 19.6
HCA2-09 9.0 1113 £2058.00
HCA2-13 13.5 1621 £2290.00 HCA2-13 1621 265 254 25.4
HCA2-18 18.0 2121 £2741.00 HCA2-18 2121 265 254 31.9
Performance Data
Model Volts kW Airflow (m³/h) dB* @ 3m Recommended Mounting
Height (m)
High Low High Low Min Max
HCA2-09 400/3N 9.0 4.5 1879 1444 66 2.5 4.0
HCA2-13 400/3N 13.5 6.75 2617 2441 71 2.5 4.0
HCA2-18 400/3N 18.0 9.0 4100 3834 68 2.5 4.0
*Noise levels are factory tested not laboratory tested
An air curtain looking the
part in a prestige London
office building
36 web www.bnthermic.co.uk email sales@bnthermic.co.uk tel 01293 547361 fax 01293 531432SystemX Control Components
Every installation will require one of the following controller options
Type Description Model Details List Price
Thermostat
Controller On/off/high/low/fan only settings CX1 Page 79 £119.00
Open window detection
Tamper resistant thermostat
Controller On/off/high/low/fan only settings CX2 Page 79 £121.00
Open window detection
FAN ASSISTED HEATERS
No thermostat
Controller CX3 Page 79 £120.00
On/off/high/low/fan only settings
Digital programmable thermostat
Controller CX6 Page 79 £210.00
Optimum start feature (optional)
For use with BMS with volt-free signal
BMS-Module (for 230V signal a VI interface will be CX-BMS Page 79 £113.00
needed see page 78)
Optional remote sensor
Sensor CXS Page 79 £32.00
Use with CX1, CX2 or CX6
Cable Cat5 terminated 5m DX05 --- £8.00
Cable Cat5 terminated 10m DX10 --- £12.00
Cable Cat5 terminated 20m DX20 --- £18.00
Joiner Cat5 Cable Joiner JX1 --- £4.00
Control as many as 12 air curtains from a single point
Pair of 18kW air curtains mounted above
automatic sliding doors in a supermarket
Air curtain reducing heating costs
in a DIY store
Air curtain suspended
from drop rods
Important Note. For an HCA2 air curtain to provide an effective air barrier, a high air velocity is required. The
resulting noise output must be considered. For this reason, we do not recommend HCA2 air curtains for smaller
shops or where people are working in close proximity to the entrance.
web www.bnthermic.co.uk email sales@bnthermic.co.uk tel 01293 547361 fax 01293 531432 37OUH2 Industrial Fan Heaters
• An effective means of heating industrial premises
• Extremely robust UK manufactured heaters
• Exceptional reliability – backed by a 5 year warranty
Typical applications 5
• Warehouses
FAN ASSISTED HEATERS
• Workshops
• Factories
Features
• FIVE YEAR WARRANTY
• Heavy gauge steel construction
• Bracket provided with every heater for wall or
ceiling mounting
• Suitable for vertical suspension – hooks
provided as standard
• Built-in temperature control thermostat
• Optional control switch providing on/off/fan only
settings
• A number of heaters can be controlled from a single point
• Over-temperature protection device and heat purge device to clear residual OUH2 Unit Heater
heat Robust, Rugged, Reliable
Built to last – an OUH industrial fan heater
Heater Range and Prices is covered by a 5-year warranty
Model kW List Price
OUH2-03 3.0 £990.00
OUH2-05 5.0 £1005.00
OUH2-07 7.5 £1020.00 Physical Data
OUH2-10 10 £1035.00 kW Dimensions (mm) Weight (kg)
OUH2-15 15 £1420.00 W D H
OUH2-20 20 £1450.00 3 to 10 435 405 320 18
OUH2-25 25 £1500.00 15 to 25 565 485 445 37
38 web www.bnthermic.co.uk email sales@bnthermic.co.uk tel 01293 547361 fax 01293 531432You can also read
