Audi Q3 Sportback
S line 35 TFSI S tronic
Audi Code
AFNBCTK9
audi.com.au/AFNBCTK9
Audi Q3 Sportback | S line 35 TFSI S tronic
Audi Code: AFNBCTK9
Summary
Audi Q3 Sportback
S line 35 TFSI S tronic
Technical Data
Engine type 4-cylinder inline petrol engine with
direct fuel injection and turbo-
charging
Displacement, cc 1,395 ccm
Max. output, kW at rpm 110 / 5,000 - 6,000
Max. torque, Nm at rpm 250 / 1,500 - 3,500 Nm/min -1
Top speed 207 kph
Acceleration 0-100 kph 9.3 Seconds
Fuel grade Petrol
Exterior Colour
Audi Code
Ibis white
AFNBCTK9
Your configuration on audi.com.au
Interior Colour audi.com.au/AFNBCTK9
Seats black with matching stitching Commission Number
761814
Dashboard black
Carpet black
Headlining lunar silver
13/03/2022 2

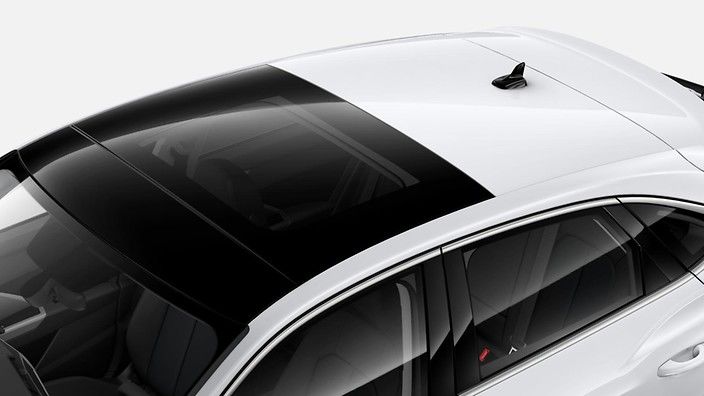

Audi Q3 Sportback | S line 35 TFSI S tronic Audi Code: AFNBCTK9 Optional Equipment Fitted (1/2) Ibis white Comfort Package 19” alloy wheels in 20-spoke V-design, contrasting grey, partly polished with 235/50 tyres Panoramic sunroof 4-way electric lumbar support for the front seats Electric seats for driver and front passenger Heated front seats Exterior mirrors; heated and folding; kerb-side function on the passenger side Auto dimming rear-view mirror Audi pre sense front for adaptive cruise control 13/03/2022 3
Audi Q3 Sportback | S line 35 TFSI S tronic Audi Code: AFNBCTK9 Optional Equipment Fitted (2/2) Adaptive cruise control Adaptive cruise assist with Stop&Go function, emergency assist, and lane change warning Adaptive cruise control 13/03/2022 4
Audi Q3 Sportback | S line 35 TFSI S tronic
Audi Code: AFNBCTK9
Standard Equipment (1/2)
Wheels & Tyres Interior design
7K9 Tyre pressure loss indicator VT5 Front door sill trims with aluminium inlays
including illumination with S logo
1G9 Space-saving spare wheel
0TD Floor mats in front and rear
QJ1 Aluminium look in the interior
Headlights

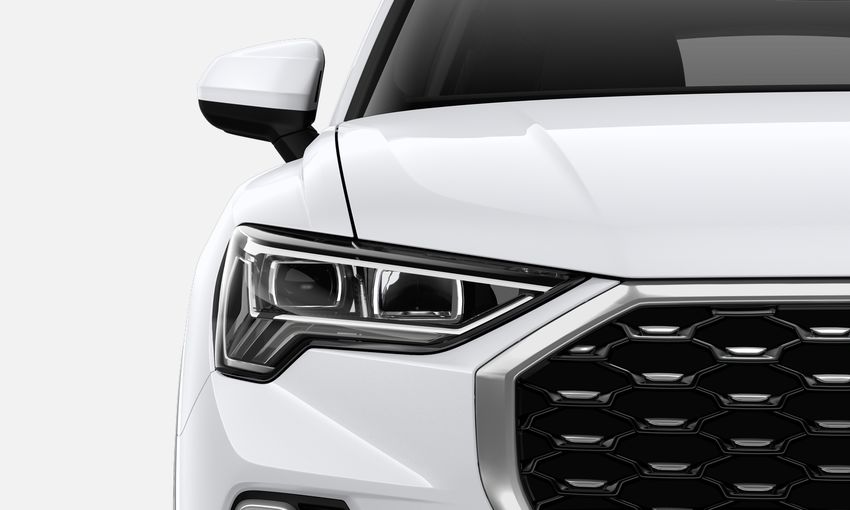

8IT Adaptive LED headlights
Seats & seat upholstery
8VM LED rear lights with dynamic indicators

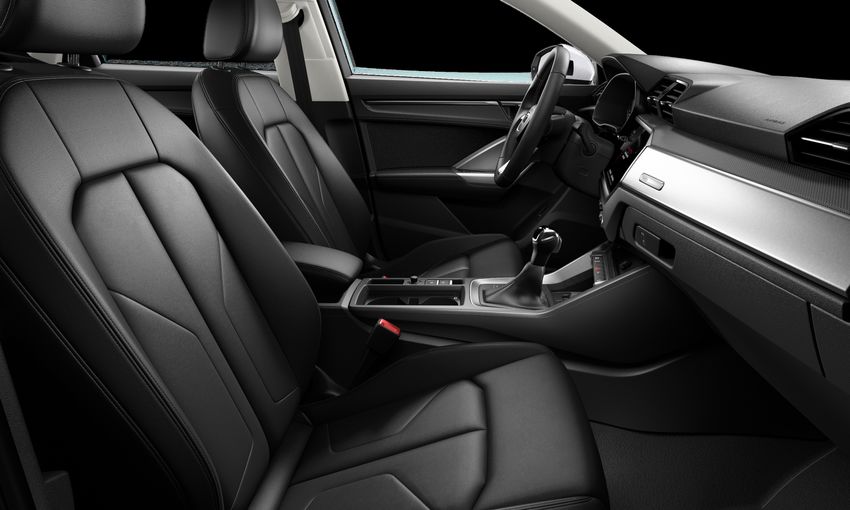

N1M Leather appointed upholstery
8N6 Light and rain sensor
Control elements
Exterior design
1XW Leather steering wheel in 3-spoke design
6FA Body-colored exterior mirror housings with multifunction plus
2JK S line bumpers in contrasting paint
4ZB Window frames in anodised aluminium Light
QQ1 Ambient lighting package
Seats
Q1A Standard seats in front Comfort
6E3 Front centre armrest

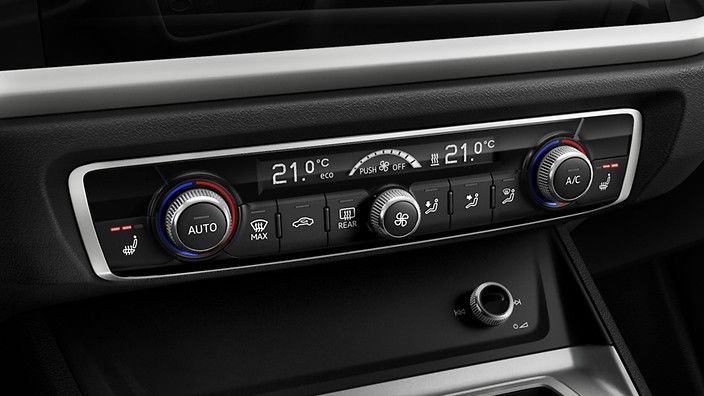

9AK 2-zone climate control system
3B7 ISOFIX child seat anchors and top tether for
outer rear seats 4E7 Electric tailgate
5KR Rear bench seat with adjustable length and 4I3 Convenience key
backrest angle
QE1 Storage and Luggage Compartment package
7B6 12-V outlet and 2 USB ports in rear
Interior design compartment
7HC Door armrest in leatherette
Infotainment
6NJ Headlining in cloth - lunar silver
GT6 Dashboard accent surface in black glass look 9S1 Audi virtual cockpit
5MA Inlays in micrometallic silver 7UG MMI navigation plus with MMI touch
UI2 Audi smartphone interface
13/03/2022 5
Audi Q3 Sportback | S line 35 TFSI S tronic
Audi Code: AFNBCTK9
Standard Equipment (2/2)
Infotainment
8RL Audio system with 6 loudspeakers
QV3 DAB+ Digital radio
IT3 Audi connect plus Navigation & Infotainment
services
Assistance systems
UG5 Hill descent control
7X2 Parking system plus with front and rear
sensors and rear view camera
7W1 Audi pre sense basic
UH2 Hold assist
KA2 Rear view camera system
Technical & Security
1ZL Disc brakes in front, 16-inch (NAO)
1AS Electronic Stability Control (ESC)
2H6 Audi drive select
1N7 Progressive steering
4UE Airbags
1I0 Seat belt reminder
1T3 First aid kit with warning triangle
13/03/2022 6
Audi Q3 Sportback | S line 35 TFSI S tronic
Audi Code: AFNBCTK9
Technical Data
Engine Performance data
Engine type 4-cylinder inline petrol engine with Acceleration 0-100 kph 9.3 Seconds
direct fuel injection and turbo-
charging Top speed 207 kph
Power Level 35
Max. output, kW at rpm 110 / 5,000 - 6,000
Displacement (l) 1.4 l
Max. output ps 150 BHP
Displacement, cc 1,395 ccm
Max. output KW 132 kW
Max. torque, Nm at rpm 250 / 1,500 - 3,500 Nm/min -1
Driveline
Layout FWD
Transmission 6-speed S tronic
Weights
Unladen weight 1,545 kg
Roof load limit 75 kg
Trailer weight limit
unbraked 750 kg
Volumes
Luggage compartment 530 Litres
Fuel tank, approx. 60 Litres (approx.)
13/03/2022 7Audi Q3 Sportback | S line 35 TFSI S tronic Audi Code: AFNBCTK9 Consumption and Emissions Figures1 urban1 9,4 l/100 km extra-urban1 6,1 l/100 km combined1 7,3 l/100 km CO2-emission combined1 167 g/km 13/03/2022 8
Audi Q3 Sportback | S line 35 TFSI S tronic Audi Code: AFNBCTK9 Contact Dealer Audi Centre Doncaster 806-808 Doncaster Road Doncaster 3108 Phone: +61 (3) 9840 8600 Fax: +61 (3) 9840 8601 Web: http://www.audicentredoncaster.com.au email: audinewcars@audidoncaster.com.au Dealer Licence Number LMCT444 13/03/2022 9
Audi Q3 Sportback | S line 35 TFSI S tronic
Audi Code: AFNBCTK9
