90CM PRO LINE FREESTANDING COOKER SINGLE OVEN & 6 BURNER GAS COOKTOP L096NMP/WHC
FREESTANDING: PRO LINE

                           90CM PRO LINE FREESTANDING COOKER
                           SINGLE OVEN & 6 BURNER GAS COOKTOP
                           L096NMP/WHC
                                                                            Get inspired, Get creative,
                                                                            Get out of your comfort zone &
                                                                            Get lost in the moment!
                                                                            True to ILVE’s pedigree in ultimate performance
                                                                            cookers, the NEW PRO-Line series acts as the
                                                                            starting point to the latest range of ILVE’s famous
                                                                            freestanding cookers .

                                                                            ILVE’s PRO-Line Series features our new and
                                                                            improved design cooking surface that have an
                                                                            even, instantaneous heat that lets you simmer at low
                                                                            temperatures or instantly increase to searing hot.

                                                                            Available in three colours and 90cm width,
                                                                            PRO-Line by ILVE is an easy choice to make.

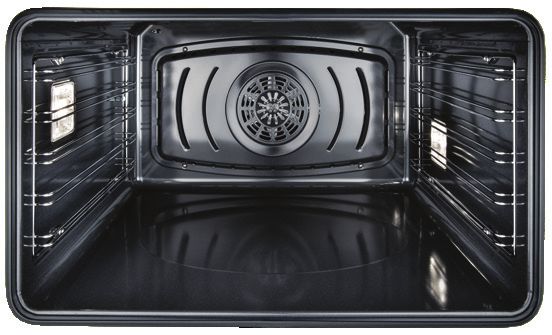

                                                                            Also as apart of the new PRO-Line range ILVE’s
                                                                            freestanding ovens incorporate our new oven
                                                                            cavity. Our new cavity is larger than 600
                                                                                                                   before and our
                                                                                            60

                                                                            new oven cavity incorporates a new rear oven wall
                                                                            featuring 2 air flow gills designed to spread heat
                                                                            more evenly and efficiently around the oven cavity
                                                                            improving the cooking result. and increased internal
                                                                            illumination and grey enamel cavity. Our full piece
                                                                            glass inner door is easy to clean and the internal
600                                                                         accessories are easy to remove.
                                                                                            760

                                                                                                                    E

                         Standard Option - Cooker Colours                                             Standard Option - Cooker Styling
                                                                                                                G
                                                                                            100÷160

                                             White          Matt Graphite
                                          (WH) Pictured         (MG)

                                                                                                       Chrome
                                                                                                         (C)

                            Page 1/4
                            12042021
90CM PRO LINE FREESTANDING COOKER SINGLE OVEN & 6 BURNER GAS COOKTOP L096NMP/WHC
FREESTANDING: PRO LINE

                           90CM PRO LINE FREESTANDING COOKER
                           SINGLE OVEN & 6 BURNER GAS COOKTOP
                           L096NMP/WHC

                           MULTIFUNCTION OVEN CONTROL

                           Delayed start and stop with the programmable timer. 9 cooking functions.

                           COOL DOOR WITH REMOVABLE TRIPLE GLASS

                           Safe for children, perfectly insulated thanks to the three glass panes, easy to clean thanks to the new structure of the door.

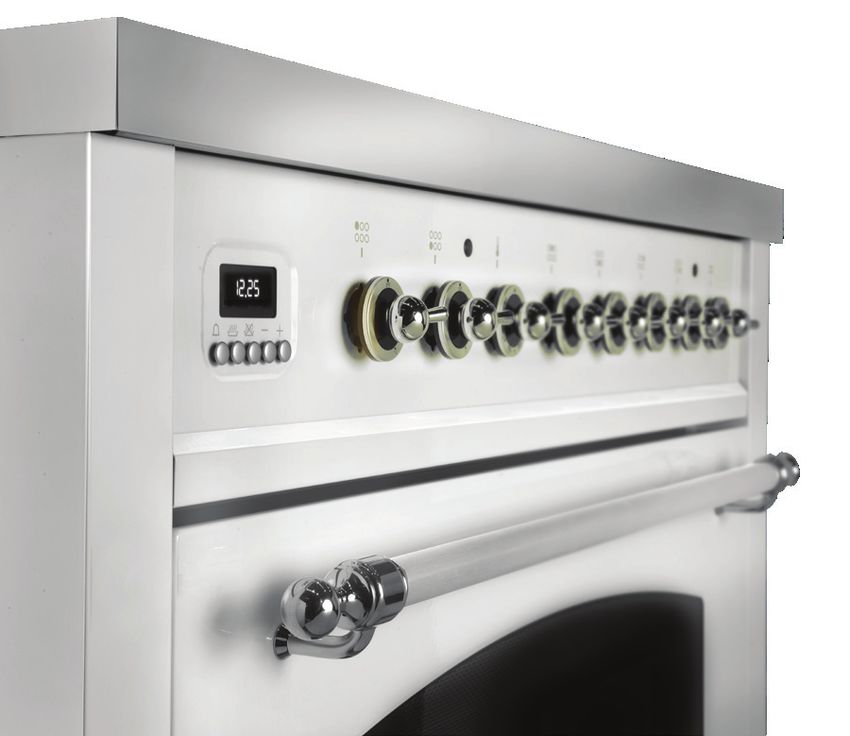

                           STYLING

                           The cooker design is a nod to the Nostalgie series with a more traditional cosmetic from the standard Pro Line cookers

                           BURNERS WITH DOUBLE LINE OF HOLES AND SLANTED FLAME

                           Perfect release of power and optimal distribution of the heat.

                           HOB STRUCTURE IN AISI 304 STEEL WITH A THICKNESS OF 10/10

                           Stamped from a single steel sheet for an easy cleaning process and an increased safety, obtained by removing sharp edges and corners.

                           BRASS BURNER RING

                           Brass is a noble material that guarantees excellent durability and the non-stick nano technological coating facilitates easy cleaning.

                           QUICK START & DEFROST

                           Fast oven preheating function to quickly reach the desired temperature. With a temperature of 30/40° it also perfectly defrosts your frozen meats.

                         FOLLOW US:                                                                                                                                                 Page 2/4
                                                                                                                                                                                    12042021
                               /ilve_appliances/                       /ILVEappliances                            /ILVE_appliances                             /ILVEappliances

                         Australia National Telephone Number 1300 MYILVE (694 583) New Zealand Telephone Number 0508 458 369
                         ILVE showrooms are open daily from 9am-5pm and Saturdays 10am-4pm                                                                                  ilve.com.au

                         NSW & ACT (Head Office)      VIC & SA                 QLD                        WA & NT                                                   New Zealand
                         48-50 Moore Street                                    1/42 Cavendish Road        Unit 10/55 Howe Street                                    PO Box 11.160
                         Leichhardt                                            Coorparoo                  Osborne Park                                              Sockburn Christchurch
                         F 02 8569 4699                                        F 07 3397 0850             F 08 9201 9188                                            F 03 344 5906

         DISCLAIMER
         Eurolinx PTY LTD, trading as ILVE Appliances, is continually seeking ways to improve the design specifications, aesthetics and production techniques of its products. As a result
         alterations to our products and designs take place continually. Whilst every effort is made to produce information and literature that is up to date, this brochure should not be
         regarded as an infallible guide to the current specifications, nor does it constitute an offer for the sale of any particular product. Product dimensions indicated in our literature is
         indicative only. Actual product only should be used to define dimension cutouts. Distributors, and retailers are not agents of ILVE Appliances and are not authorized to bind ILVE
         Appliances by any express or implied undertaking or representation.
90CM PRO LINE FREESTANDING COOKER SINGLE OVEN & 6 BURNER GAS COOKTOP L096NMP/WHC
FREESTANDING: PRO LINE

                           90CM PRO LINE FREESTANDING COOKER
                           SINGLE OVEN & 6 BURNER GAS COOKTOP
                           L096NMP/WHC

                         PRO-LINE SERIES ELECTRIC OVEN                                                        PRO-LINE SERIES GAS COOKTOP
                         FEATURES                                                                              FEATURES
                          •   Integrated twin cavity cooling system                                              • 90cm cooking surface
                          •   Precision thermostatic control: 0°C-250°C                                          • Large cooking surface with spacious burner layout
                          •   Concealed grill element                                                            • Precision turn down control with low simmer on each burner
                          •   Turbowave Quickstart preheating function 0°C-175°C in 8 mins                       • 75% hand built
                          •   Sealed oven: lower temperatures, less food spatter                                 • AS304 stainless steel construction
                          •   Digital programmable timer                                                         • Cast iron heavy duty trivets and burner caps finished in Matt
                          •   Two oven cavity lights on the sides of the oven cavity                                Black
                          •   A class energy rated                                                               • Easy in-bench serviceability
                          •   NEW black knobs and door handle                                                  SAFETY
                          •   S-Move soft close door                                                             • All gas burners fitted with flame failure cut out safety devices
                         SAFETY                                                                                  • Automatic electronic ignition
                          • T
                             riple glazed glass door: tinted to keep the heat inside                          CLEANING
                            the oven and resulting in a ‘cool to touch’ door exterior
                                                                                                                 • Easy clean removable trivets and burners
                          • Cool touch athermic door handles and knobs
                                                                                                                 • Deep cooktop pressing designed to retain spillages
                         FUNCTIONS
                                                                                                               BURNERS
                          • Electric multifunction ovens
                                                                                                                 • Solid brass burners treated with ILVE’s patented Nano technology
                          • Select 10 multifunction cooking modes                                                  matt black non-stick coating
                         CLEANING                                                                                • Triple ring solid brass Infinity WOK burner
                          • NEW ULTRA-EZI Clean interior                                                         • Our new burner design is up to 8% more efficient than ILVE’s
                          • NEW grey enamel interior                                                               previous brass burners with CO2 emission reduced by 66%
                          • Removable door with dismountable inner glass for easy cleaning                       • New flame configuration with two rows of holes with a specific
                                                                                                                   diameter and inclination to improve the burner and flame
                         CAPACITY & INTERIOR                                                                       performance
                          • 97 litre oven (NET use-able space)
                          • Cavity size (cm) 64.5w × 36.5h × 41d
                          • Dual oven cavity lights on sides of oven for increased visibility
                         ACCESSORIES
                          • 2 x oven racks
                          • Baking tray with grill insert
                          • Stainless Steel legs can detach for a built-in fit or are adjustable
                            from 100mm to 160mm

                                For installation specifications, please consult with ILVE. For optimum                                                                          Page 3/4
                                installation, we recommend using the actual product as the best guide.                                                                          12042021

                         FOLLOW US:
                                /ilve_appliances/                           /ILVEappliances                          /ILVE_appliances                          /ILVEappliances

                         Australia National Telephone Number 1300 MYILVE (694 583) New Zealand Telephone Number 0508 458 369
                         ILVE showrooms are open daily from 9am-5pm and Saturdays 10am-4pm                                                                                  ilve.com.au

                         NSW & ACT (Head Office)        VIC & SA                    QLD                   WA & NT                                                   New Zealand
                         48-50 Moore Street                                         1/42 Cavendish Road   Unit 10/55 Howe Street                                    PO Box 11.160
                         Leichhardt                                                 Coorparoo             Osborne Park                                              Sockburn Christchurch
                         F 02 8569 4699                                             F 07 3397 0850        F 08 9201 9188                                            F 03 344 5906

         DISCLAIMER
         Eurolinx PTY LTD, trading as ILVE Appliances, is continually seeking ways to improve the design specifications, aesthetics and production techniques of its products. As a result
         alterations to our products and designs take place continually. Whilst every effort is made to produce information and literature that is up to date, this brochure should not be
         regarded as an infallible guide to the current specifications, nor does it constitute an offer for the sale of any particular product. Product dimensions indicated in our literature is
         indicative only. Actual product only should be used to define dimension cutouts. Distributors, and retailers are not agents of ILVE Appliances and are not authorized to bind ILVE
         Appliances by any express or implied undertaking or representation.
90CM PRO LINE FREESTANDING COOKER SINGLE OVEN & 6 BURNER GAS COOKTOP L096NMP/WHC
FREESTANDING: PRO LINE

                           90CM PRO LINE FREESTANDING COOKER
                           SINGLE OVEN & 6 BURNER GAS COOKTOP
                           L096NMP/WHC

                                          Oven Functions

                                                   Pizza function           Defrost &                   Intense                    Closed door
                                                                            Quick Start                 cooking                    grill cooking

                                                   Fan grill                Top cooking                 Normal static              Bottom
                                                   cooking                                              cooking                    cooking

                                                   Multiple fan
                                                   cooking

                                                               900                                                  600
                                60

                                                                                                                                      40
                                                                                                 60
                                760

                                                                                                                                           860÷920
                                                                                                                                                                                             A
                                                    E
                                                                                                                                                                                     E
                                                                                                                                                                                             B
                                               G

                                                                                                                                                                         230
                                                                                                                                                                                         G
                                100÷160

                                                                                                                                                                                90
                                                                                                   35                                      45

                               PRO-Line L096NMP
                               EAN code: TBC (L096NMP-WHC)
                               Overall Size: 900×600×760 mm
                               Total Electrical Load (Kw) 3.7
                               Total Gas ‘NG’ Consumption (Mj/h) 70.5

                               Maxi oven 800
                               Easy clean grey enamel, 800 electronic oven 50-250°C
