S O C I É T É D U G R O U P E ARYE S
MANUFACTURE BOURGUIGNONNE DE PLASTIQUE
www.mbp-plastics.com
ISO 9001:2015
400g GREASE CARTRIDGE
PULL-OFF OPENING
DIN 1284The MBP 400g grease cartridge
with easy open and total pull ring
Please find the overview of
the most important features of our product
The quality of the Original Cartridge :
The Pull Ring does not break up…make your client open the cartridge as any person would have
naturally done so…” and don’t let him down any longer with the ring in his hand”.
TOTAL EASY OPENING
SYSTEM WITH RING PULL
45°
Residue of grease :
The time when the cartridge could contain residues of grease is over.
Now all grease has to go out…Give a helping hand your customer….
The MBP grease cartridge hardly contains undesired residue of grease.
The bottom of the cartridge is to be open totally - a clean and environment friendly solution.
Marketing success :
Thanks to an in-line printing process MBP promotes the image of your company … Indeed MBP
cartridge really makes the difference from the others cartridges on the market. Our in-house gra-
phics studio follows your projects of designs from the conception to the UV silk screen printing. MBP
technical know-how offers a large range of ink colors with a perfect shine even for the smallest fonts.
Why would you print 5 different designs for 5 different languages? Put directly 27 languages from the
European Union on only one design… It is easier… cheaper and quicker.
Choose the right cartridge – the MBP one
We are proud to offer quality for over 50 years now
NMBP, 3 rue de Bastogne - 21850 Saint Apollinaire – FRANCE - tel : +33 380320104 – fax : +33 380320101 – email : contact@mbp-plastics.com400g GREASE CARTRIDGE
PULL-OFF OPENING
DIN 1284
PRODUCT DESCRIPTION
Grease cartridge with PULL-OFF opening
> 400g > DIN 1284
> Easy and total opening
Personalized designs by UV silk screen printing
> of the
i c i n j ection on of
Plast eati
t r i d g es, cr inting are
> Technical printing specifications to apply (attachment 1) car nd pr te
sign a si
the de alized on
> Printing area (attachment 2) re
Special printing
> Invisible ink (protection against counterfeiting)
> Graphite ink (cartridge dedicated to the mining industry)
MBP’s in-house graphics studio is at your service to create and adapt
your design

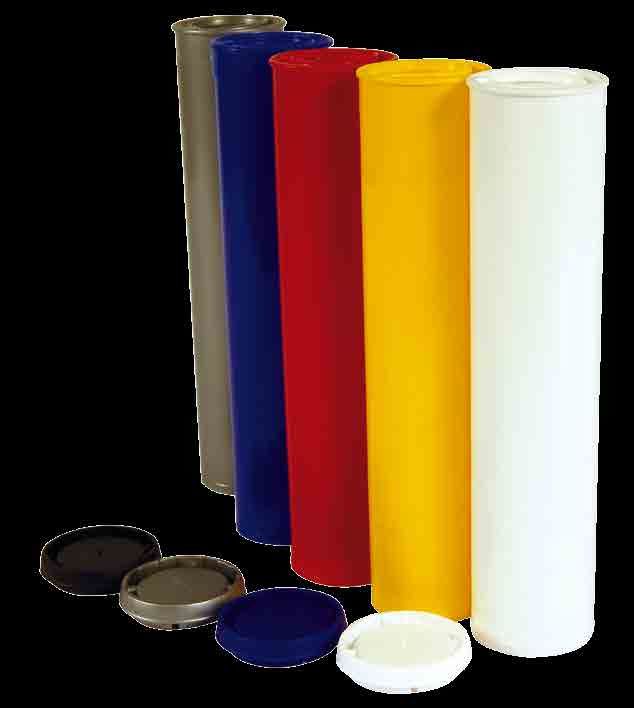

Color range
> Cartridges >>>
> Caps >>>
2 models of cartridge caps - Technical specifications on request
> TG standard > NAPHTA Innovative cap with self centering conception
NMBP, 3 rue de Bastogne - 21850 Saint Apollinaire – FRANCE - tel : +33 380320104 – fax : +33 380320101 – email : contact@mbp-plastics.com400g GREASE CARTRIDGE
PULL-OFF OPENING
NORME DIN 1284
PACKAGING SPECIFICATIONS
400g cartridge with PULL-OFF opening according to DIN 1284
Cartridge material PE or PP
Cartridge weight 36g or 32g approximately
Units / box 112 cartridges
Box dimension 800 x 395 x 248 mm
Units / pallet 24 boxes
i.e. 2688 cartridges
Pallet dimension 800 x 1200 x 2200 mm
Pallet weight 130 kg approximately
Cartridge caps TG CAP NAPHTA CAP
Material PP PP
Weight 3,5g approximately 3,15g approximately
Units / box 1150 caps 2000 caps
Box dimension 590 x 390 x 280 mm 575 x 375 x 475 mm
Units / pallet 35 boxes 20 boxes
i.e. 40250 caps i.e. 40000 caps
Pallet dimension 1000 x 1200 x 2300 mm 1000 x 1200 x 2100 mm
Pallet weight 150kg approximately 136kg approximately
Storage recommendations
Stock management FIFO (First in-First out)
Storage duration 6 months after manufacturing
Storage temperature Mini : 10°C
Maxi : 35°C
Temperature of use Mini : 18°C
Storage area Well-ventilated and odorless area
Hygrometry Maxi : 40%
No stacking of pallets
Recommendation for filling
Use a stopper during
56 mm
Cartridge Stopper
the filling.
20
+ 0
7,8 mm - 0,5
NMBP, 3 rue de Bastogne - 21850 Saint Apollinaire – FRANCE - tel : +33 380320104 – fax : +33 380320101 – email : contact@mbp-plastics.comTECHNICAL PRINTING
SPECIFICATIONS
ATTACHMENT 1
TECHNICAL SPECIFICATIONS FOR SILK CREEN PRINTING (maximum 4 colour print)
Data processing used to develop artworks for silk-screen printing does not allow today to ensure the fidelity of the "OK to print"with the final
aspect of the printed cartridge. The final aspect of printed cartridges being strictly connected to the quality of the supplied files, we advise
strongly to follow the optimal options proposed in our specifications below.
INFOS DIFFERENT OPTIONS Status Comments CHECK
Vector file-no quadrichomy- .eps, .ai or .pdf
1/Complete file Optimal printing quality guaranteed
file
Optimal printing quality guaranteed.
to supply with MAC format
Text can be corrected if needed
Vector file-no quadrichomy- .eps, .ai or .pdf Optimal printing quality guaranteed.Amendments and
2/ Fonts file corrections are impossible.
not supplied- no vector file Loss of printing fidelity vs, original artwork,
Vector file under Illustrator CS4 or previous
Optimal printing quality guaranteed
version - .eps, .ai or .pdf file
Amendment is required. Loss of fidelity according to original
Vector file under Illustrator CS4 with Quadri
artwork
Picture >300dpi - no Quadri - .jpeg, .tiff or
No risk observed. High resolution image
.pdf
3/ Pictures & Logos
Amendment is required. Loss of fidelity according to original
Picture >300dpi - Quadri - .jpeg, .tiff or .pdf
artwork
Picture 0,3 mm thick Perfect readability
8/ Colour superposition > 0,5 mm Superposition between 2 colours will be optimal- Optimal result
NMBP, 3 rue de Bastogne - 21850 Saint Apollinaire – FRANCE - tel : +33 380320104 – fax : +33 380320101 – email : contact@mbp-plastics.comPRINTING AREA
ATTACHMENT 2
6 mm Do not put texts outside of this area because of overprinting 6 mm
Closed print 168 mm
Open print 162 mm
Cartridge base : - 20 mm
M.B.P. - Tél +33 3 80 32 01 04 - Fax +33 3 80 32 01 01 BON À TIRER
Signature
CLIENT : COLOURS :
05/02/18
ITEM :
M.B.P. CODE : CARTRIDGE : WHITE
PANTONE 1 PANTONE 2 PANTONE 3 PANTONE 4
Before signature, please check every element of this “OK to print” (text, colors, etc…)
NMBP shall not be held in any case responsible for the content of this design.
NMBP, 3 rue de Bastogne - 21850 Saint Apollinaire – FRANCE - tel : +33 380320104 – fax : +33 380320101 – email : contact@mbp-plastics.com
Compliance certificate
food contact
Location in the heart of Europe
In-line injection and printing process
In-house graphics studio
Bespoke supply chain
Technical support on filling lines
ISO 9001: 2008 certification
REACH compliance
SOCIÉ TÉ DU GROUPE ARYES
3 Rue de Bastogne
21850 Saint Apollinaire
France
MBP
Customer service
Tel. +33 (0)3 80 32 01 04
Fax. +33 (0)3 80 32 01 01
E-mail : contact@mbp-plastics.com
Site Web : www.mbp-plastics.comYou can also read
