2021/2022 Tools for welding and woodworking
Automatic vice- The vice-grip locking pliers and C-clamps from Armor
Tool have an auto-adjust technology that lets the gripping
grip locking jaws adjust to the workpiece and securely clamp different
pliers and thicknesses without readjustment. Simply set the clamping
force using the clamping screw and start clamping your
C-clamps workpieces.
t e r c o m p a r e d t o o r d in a r y
7 x fa s d C -c l a m p s
v ic e -g r ip p li e r s a n
Subject to technical alterations.
4 Tools for welding and woodworking ANDREAS MAIER GmbH & Co. KG ∙ Phone: +49 711 5766-0 ∙ Web: www.amf.de
No. AT010 Length Clamping range Weight €/Pce.
Order
Vice-grip locking pliers with no.
[mm] [mm] [g] from 1
oval gripping jaws
564500 152 25 275 35,00
Brand: Armor Tool
564501 254 50 650 45,00
vice-grip locking pliers with self-adjusting mechanism for
continuously variable gripping of workpieces of different size
without manual readjustment. With the patented clamping screw,
Design:
the clamping force of the gripping jaws can be set individually, - Oval gripping jaws with integrated wire cutter.
permitting convenient one-hand operation. The release lever
ensures easy and safe unlocking of the pliers. Application:
- Versatile use, e.g. as a locking clamp for clamping sheet metal or as welding tongs for soldering and
The jaws of the vice-grip locking pliers are made of chrome- welding.
vanadium steel. The handle is equipped with Softgrip material for - Reliable holding, clamping, and gripping of round and flat materials.
ergonomic, comfortable work. - Easy removal of stuck screws, nuts, and pipes.
No. AT011 Length Clamping range Weight €/Pce.
Order
Vice-grip locking pliers with no.
[mm] [mm] [g] from 1
pointed jaw shape
564502 178 38 304 50,00
Brand: Armor Tool
vice-grip locking pliers with self-adjusting mechanism for Design:
continuously variable gripping of workpieces of different size
without manual readjustment. With the patented clamping screw, - Pointed gripping jaws with integrated wire cutter.
the clamping force of the gripping jaws can be set individually,
permitting convenient one-hand operation. The release lever Application:
ensures easy and safe unlocking of the pliers. - Versatile use, e.g. as a locking clamp for clamping sheet metal or as welding tongs for soldering and
welding.
The jaws of the vice-grip locking pliers are made of chrome- - For gripping and clamping on narrow and hard-to-reach places.
vanadium steel. The handle is equipped with Softgrip material for - Reliable holding and clamping of round and flat materials.
ergonomic, comfortable work. - Easy removal of stuck screws, nuts, and pipes.
Subject to technical alterations.
ANDREAS MAIER GmbH & Co. KG ∙ Phone: +49 711 5766-0 ∙ Web: www.amf.de Tools for welding and woodworking 5
No. AT020 Length Clamping range Clamping depth movable jaws Weight €/Pce.
Order
C-clamp no.
[mm] [mm] [mm] [g] from 1
Brand: Armor Tool
vice-grip wrench with self-adjusting mechanism for continuously 564503 178 63 76 - 350 41,00
variable gripping of workpieces of different size without manual 564504 178 63 76 ● 386 43,00
readjustment. With the patented clamping screw, the clamping 564505 254 114 133 - 410 43,00
force of the gripping jaws can be set individually, permitting 564506 254 114 133 ● 447 45,00
convenient one-hand operation. The release lever ensures easy 564507 279 82 101 - 894 56,00
and safe unlocking of the pliers.
564508 279 82 101 ● 954 58,00
The jaws of the vice-grip wrench are made of chrome-vanadium 564509 483 203 305 - 1448 70,00
steel. The handle is equipped with Softgrip material for 564510 483 203 305 ● 1515 73,00
ergonomic, comfortable work.
Design:
- Large clamping depth for high reach.
- With movable jaws for flexible adjustment to the workpiece and even distribution of the clamping
force.
Application:
- Versatile use, e.g. as a locking clamp for clamping sheet metal or as welding tongs for soldering and
welding.
- Reliable holding, clamping, and gripping of different profiles and large workpieces.
- Prevents slipping of workpieces during welding, drilling, and bolting work.
Fixed jaws Movable jaws
Clamping depth
Subject to technical alterations.
6 Tools for welding and woodworking ANDREAS MAIER GmbH & Co. KG ∙ Phone: +49 711 5766-0 ∙ Web: www.amf.de
Subject to technical alterations. ANDREAS MAIER GmbH & Co. KG ∙ Phone: +49 711 5766-0 ∙ Web: www.amf.de Tools for welding and woodworking 7
Auto-jig™ Your advantages at a gl ance:
> Automatically adjusts to the workpiece thickness
pocket hole > Automatic setting of the drill depth stop
drilling jig > Adjustable clamping force
> Connection for dust extraction on both sides possible
> Screw selection with colour-coding

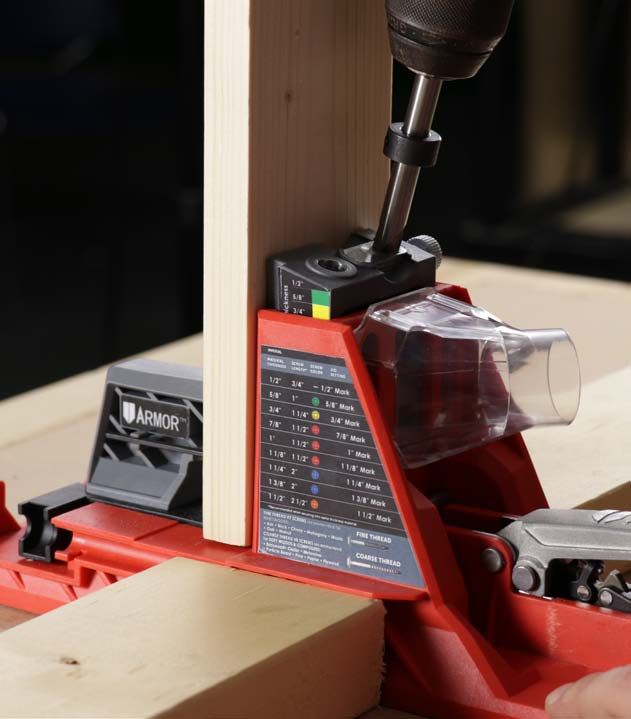

The Auto-JigTM pocket hole drilling jig from Armor Tool changes the landscape of woodworking and the way pocket-holes are
made in workshops. The innovative mechanism of the drilling jig automatically adjusts both the guide and the stop ring of the
drill to the thickness of the clamped workpiece. In contrast to commercially available drilling jigs, no more manual adjustment
or measuring is needed.
With the Auto-JigTM pocket hole drilling jig, you can clamp workpieces of different thickness without readjustment. Just insert
your workpiece and the Auto JigTM pocket hole drilling jig does the rest. The colour-coded screw system with Color-Coat
technology makes it easy to choose the right screw for the pocket hole of your workpiece. In addition, this colour coating
optimally protects the screws from corrosion.
The Auto-JigTM pocket hole drilling jig was developed together with end users and so is ideally designed for their
requirements. The height of the workpiece surface is adapted to the standard dimension 38 x 89 mm and so permits easy
extension of the lateral support to securely clamp long workpieces. The fixture can be easily fastened to every surface for a
permanent work station.
n n e c t w o o d p a r t s q u ic k ly,
Co
e x a c t ly, a n d e a s ily
Subject to technical alterations.
8 Tools for welding and woodworking ANDREAS MAIER GmbH & Co. KG ∙ Phone: +49 711 5766-0 ∙ Web: www.amf.de
No. AT030 Clamping range Weight €/Pce.
Order
Auto-Jig™ pocket hole drilling jig no.
[mm] [g] from 1
Brand: Armor Tool

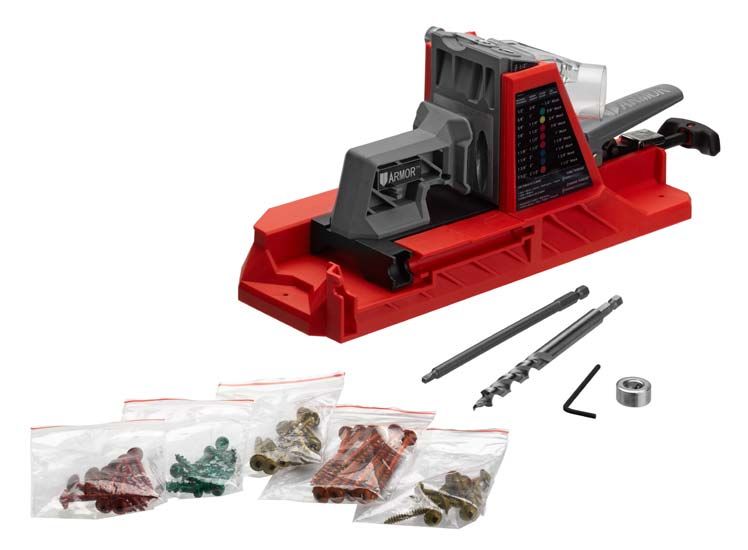

drilling jig with automatic setting function for simple and fast 564511 13 - 38 2076 183,50
drilling of pocket holes for especially robust connections. The
drilling jig automatically adjusts to the thickness of the workpiece. Design:
The stop ring on the step drill is simultaneously adjusted to set - Connection for dust extraction on both sides possible.
the drilling depth. - Screw selection table in inch and millimetre
- Screws in different lengths with three-layered corrosion protection and colour coding for easy
With the integrated clamping screw, the clamping force of the recognition.
gripping jaws can be set individually, permitting convenient one- - Easily accessible clamping lever.
hand operation.
Application:
Included: - Clamping of workpieces with a thickness of 13 mm to 38 mm.
- Armor Tool Auto-Jig™ pocket hole drilling jig - Ideally suited for clamping of boards and plywood.
- step drill Ø 10 mm and stop ring - Height of the workpiece surface of 38 mm adapted to standard dimension 38 x 89 mm.
- Torx screwdriver - Suitable for stationary use on a workbench and portable use.
- Color-Coat™ wood screw starter set
- operating manual
Subject to technical alterations.
ANDREAS MAIER GmbH & Co. KG ∙ Phone: +49 711 5766-0 ∙ Web: www.amf.de Tools for welding and woodworking 9

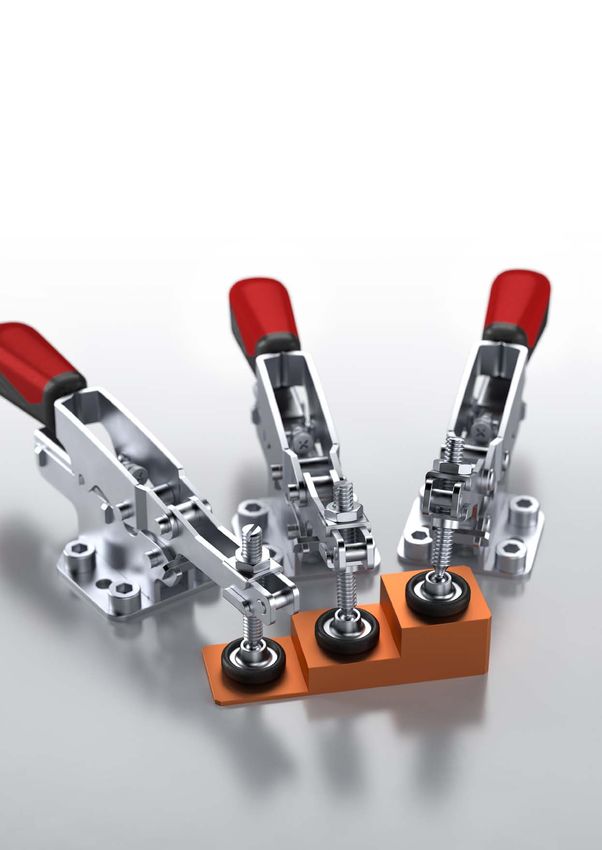

Auto-adjust The benefits at a glance:
> auto-adjust clamping height
toggle clamps > clamps different workpiece types
> ideal for small batch sizes
> adjustable clamping force
> ergonomic 2-component handle
> retained on the clamp arm
Subject to technical alterations.
10 Tools for welding and woodworking ANDREAS MAIER GmbH & Co. KG ∙ Phone: +49 711 5766-0 ∙ Web: www.amf.de
other toggle clamps for
You can find these and many
our extensive product
welding and woodworking in
catalogue
Toggle cl amps –
scHNe llspaN
Ner, maNue ll
weitere kataloge
unter www.amf uNd pNeum atiscH
.de K atalog 2021
Manual & pneumatic
uNd pNeumatiscH
NNer, maNuell
2021 scHNellspa
NullpuNkt spaNNsyst
em „zero-poiN
t“ Hydraulis cHe
spaNNtecH Nik
Vakuumspa NNsysteme
K atalog
magNetspa NNsysteme
FuNkseNso rik
scHNellspaNNer
eiNzel- uNd meHrFacH
spaNNsyst eme mecHaNisc He
spaNNelem eNte
keNNzeicH NuNgs-
reiNiguNgs werk uNd
zeuge
andre as
Maier gmbH
Waiblinger Straße & Co. Kg
116 ∙ D-70734
Phone: +49 711 Fellbach
5766-0
Fa x: +49 711 575725
e-mail: amf@amf.de
2021
web: www.amf.de
allen Verkäufen Bestell-Nr. 454058
Schnel
liegen unsere ∙ € 3,60
Verkaufs-, liefer-
manuell und pnelSpanner
alle fotomechanis und zahlungsbed
chen Vervielfältigun ingungen zugrunde.
gen nur mit unserer alle rechte für
ausdrückliche gestaltung, Fotos
n erlaubnis. 2021/9de und texte beim
> mg 3.//11/2020 Herausgeber
> gedruckt in amF.
deutschland
Katalog_2020_Sch
nellspanner_DE_U
mschlag.indd 1
umatiSch
19.11.2020 14:29:39
ANDREAS MAIER GmbH & Co. KG ∙ Phone: +49 711 5766-0 ∙ Web: www.amf.de Tools for welding and woodworking 11
Tools for welding and woodworking Catalogue 2021/2022
Request additional catalogues from www.amf.de
zero-Point-systems Hydraulic cl amping systems vacuum cl amping systems
magnetic cl amping systems wireless sensoring systems toggle cl amps
single and multiple cl amping systems standard cl amping systems marking and cleaning tools
Andre as Maier GmbH & Co. KG
Waiblinger Straße 116 ∙ D-70734 Fellbach
Phone: +49 711 5766-0
Fa x: +49 711 575725
E-mail: amf@amf.de
Web: www.amf.de
All sales are subject to our terms of sale, delivery, and payment. All rights for design, photographs and texts reserved by the publisher, AMF.
No photomechanical reproduction without our express permission. 2021-2022/29EN > PDF//07/2021You can also read
