2020 PACIFIC WAVE - TruDefinition Duration Designer Colors Collection Shingles
2020
                                SHINGLE
                                COLOR OF

  PACIFIC WAVE
                                THE YEAR

TruDefinition Duration Designer Colors Collection Shingles
            ®         ®
2020 PACIFIC WAVE - TruDefinition Duration Designer Colors Collection Shingles
2020 SHINGLE COLOR OF THE YEAR

                                    PACIFIC WAVE
A beach pebble                      Bring new life to your home with a deep ocean blue wave of rich,
   blue-gray of                     transformative color. Pale blue mixed with dark and light gray granules
                                    adds a sea of dimension that can achieve a relaxed, coastal vibe or
                                    a strong, stately look. All TruDefinition® Duration® Designer Colors
                                    Collection shingles come with the advanced performance of patented
                                    SureNail® Technology, tough enough to weather the elements, year-
                  materials
                                    round. Ride a wave of breathtaking color with a shingle designed to
                                    naturally complement any exterior.

                              shinglecoloroftheyear.com
2020 PACIFIC WAVE - TruDefinition Duration Designer Colors Collection Shingles
Ride the Wave of Versatility — Stylishly Transform Any Home Exterior

SureNail Technology            ®

 There’s a line between a good shingle and a great shingle.                    ®

                                                                                                                                  Excellent Adhesive Power
It’s the nailing line on your shingles. The difference between a good shingle and a                                               Helps keep the shingle layers laminated.
great shingle is having Patented SureNail® Technology, only from Owens Corning.

                                         Outstanding Grip
                                         The SureNail® strip enhances the already
                                         amazing grip of our proprietary Tru-Bond®**
                                         sealant for exceptional wind resistance of
                                         a 130-MPH wind warranty.*

                            Breakthrough Design
                            Patented SureNail® Technology is the
                            first and only reinforced nailing zone
                            on the face of the shingle.

                            “No Guess” Wide Nailing Zone
                            This tough, engineered woven-fabric                                  Triple Layer Protection®††
                            strip is embedded in the shingle to                        A unique “triple layer” of reinforcement
                            create an easy-to-see strong, durable                             occurs when the fabric overlays
                            fastener zone.                                                   the two shingle layers, called the
                                                                                                           common bond area.
                                                                                               Double the Common Bond
                                                                                       SureNail® features up to a 200% wider
For more information and to watch our videos on                                        common bond area in the nailing zone
SureNail® Technology, go to www.owenscorning.com/surenail.                                           over standard shingles.
2020 PACIFIC WAVE - TruDefinition Duration Designer Colors Collection Shingles
SEAL. DEFEND. BREATHE.
                                               ®
                                                                                            Product Attributes

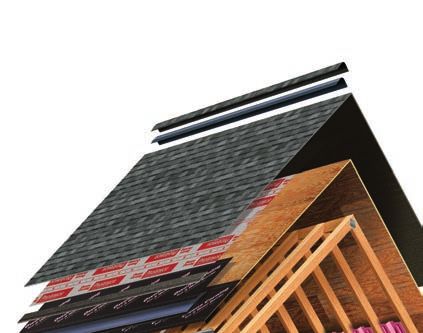

          TOTAL PROTECTION ROOFING SYSTEM      ®
                                                                                                Warranty Length*
                                                                                                Limited Lifetime‡
It takes more than just shingles to protect your home. It takes                                 (for as long as you own your home)
an integrated system of components and layers designed                                          Wind Resistance Limited Warranty*
                                                                                                130 MPH
to withstand the forces of nature outside while controlling
                                                                                                Algae Resistance Limited Warranty*
temperature and humidity inside. The Owens Corning® Total                                                                                                    Algae resistance
                                                                                                10 Years                                                     available in areas shown in white.
Protection Roofing System®^ gives you the assurance that all of                                 TRU PROtection® Non-Prorated Limited Warranty* Period
your Owens Corning® roofing components are working together                                     10 Years

to help increase the performance of your roof — and to enhance
                                                                                            TruDefinition® Duration® Designer
the comfort and enjoyment of those who live beneath it.
                                                                                            Colors Collection Shingles
                                                                                            Product Specifications
                                                                                                Size                                                                   13¼" x 39 ⅜"
   SELF-ADHERED ICE              STARTER                           INTAKE VENTS
    & WATER BARRIER              SHINGLES
                                                                   EXHAUST VENTS
                                                                                                Application Exposure                                                          5⅝"
          SYNTHETIC              LAMINATE                                                       Shingles per Bundle                                                  Not less than 20
      UNDERLAYMENT               SHINGLES
                                 HIP & RIDGE
                                                                                                Average Shingle Count per 3 Bundles                                            64
                                 SHINGLES                                                       Average Coverage per 3 Bundles                                           98.4 sq. ft.

                                                                                            Applicable Standards and Codes
                                                                                                ASTM D228
                                                                                                ASTM D3018 (Type 1)
                                                                                                ASTM D3161 (Class F Wind Resistance)
                                                                                                ASTM D3462
                                                                                                ASTM D7158 (Class H Wind Resistance)
                                                                                                ASTM E108/UL 790 (Class A Fire Resistance)
                                                                                                Florida Product Approval
                                                                                                ICC-ES AC438#
                                                                                                Miami-Dade County Product Approval§
                                                                                                PRI ER 1378E01

                                                                                            Owens Corning® Hip & Ridge Shingles
                                                                                                Owens Corning® Hip & Ridge shingles are uniquely color matched to the
                                                                                                TruDefinition Duration Designer Colors Collection Shingles. The multiple
                                                          PINK FIBERGLAS™
                                                               ®

                                                          BLOWN-IN                              color blends are only available from Owens Corning Roofing and offer a
                                                          ATTIC INSULATION
                                                                                                finished look for your roof.

                                                                                                                                Blended                                             Traditional

                                                                                         * See actual warranty for complete details, limitations and requirements.
                                                                                         † Owens Corning strives to accurately reproduce photographs of shingles. Due to manufacturing
                                                                                           variances, the limitations of the printing process and the variations in natural lighting, actual shingle
                                                                                           colors and granule blends may vary from the photo. The pitch of your roof can also impact how a
                                                                                           shingle looks on your home. We suggest that you view a roofing display or several shingles to get a
                                                                                           better idea of the actual color. To accurately judge your shingle and color choice, we recommend that
                                                                                           you view it on an actual roof with a pitch similar to your own roof prior to making your final selection.
                                                                                           Color availability subject to change without notice. Ask your professional roofing contractor for
                                                                                           samples of colors available in your area.
OWENS CORNING ROOFING AND ASPHALT, LLC
                                                                                        †† The amount of Triple Layer Protection® may vary on a shingle-to-shingle basis.
ONE OWENS CORNING PARKWAY
TOLEDO, OHIO, USA 43659                                                                    For patent information, please visit www.owenscorning.com/patents.
                                                                                           SureNail® Technology is not a guarantee of performance in all weather conditions.
1- 800 - GET- PINK ®
www.owenscorning.com/roofing                                                               SureNail® Technology is available only on Owens Corning® Duration® Series Shingles.
                                                                                         ‡ 40-Year Limited Warranty on commercial projects.
Pub No. 10023670. Printed in U.S.A. October 2019.                                       ** Tru-Bond® is a proprietary premium weathering-grade asphalt sealant that is blended by
THE PINK PANTHER™ & © 1964-2019 Metro-Goldwyn-Mayer Studios Inc. All Rights Reserved.      Owens Corning.
The color PINK is a registered trademark of Owens Corning. © 2019 Owens Corning.         § Applies for all areas that recognize a Miami-Dade notice of Acceptance (NOA).
All Rights Reserved.
                                                                                         # International Code Council Evaluation Services Acceptance Criteria for Alternative Asphalt Shingles.
                                                                                         ^ Excludes non-Owens Corning® roofing products such as flashing, fasteners, pipe boots and wood
                                                                                           decking.
