WESTMORE
FLINDERS RANGE
AND
designed for induction cooking
INDUCTION 18 MJ GAS
COOKTOP BURNER
Australian made and owned
Condensation
When an induction cooktop is selected, condensation may occur.
Steam is vapourised water, and is generally invisible. At standard
temperature and pressure, pure steam occupies about 1600 times the
volume of an equal mass of liquid water. Steam most often refers to the
white mist which forms above boiling water as the hot vapour mixes with
the cooler environment. This mist consists of tiny droplets of liquid water
and when it comes into contact with a cold or cooler environment, water
droplets form on the surface. This water, known as condensation, then
drips back on to the cooking surface.
With an induction cooktop, there is no residual heat on the cooking surface.
The heat source is at the base of the pot or pan. When steam is present,
vapour is formed and is clearly visible. When water is boiled on a gas
burner, heat rises up on the sides of the pot or pan, which prevents vapour
from forming, and heats the rangehood filters relatively quickly.
Only Qasair manufacture rangehoods designed to eliminate this issue of
condensation over induction cooktops.
quietly clearing the air
FLINDERS RANGE
designed for induction cooking

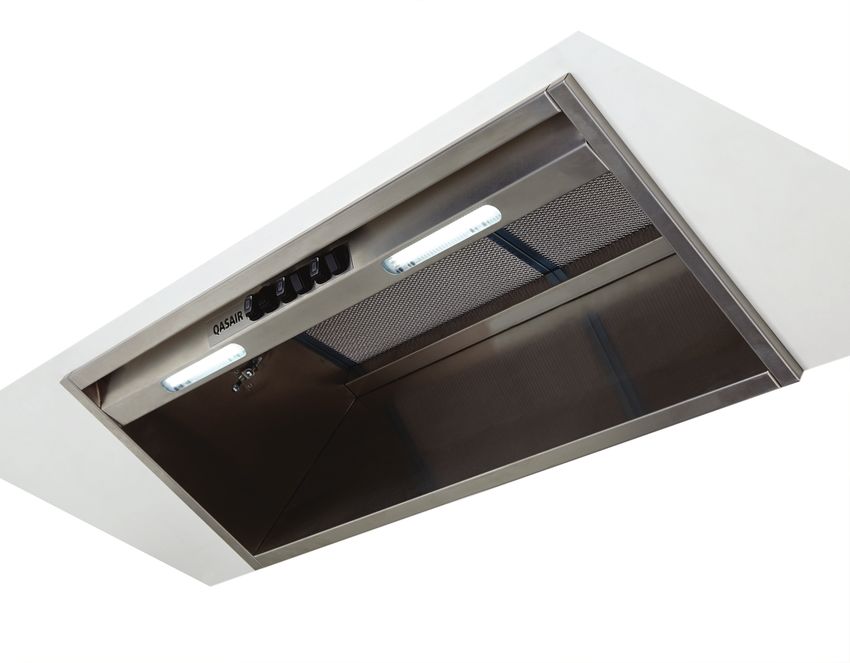

Westmore
Westmore rangehoods are designed for use over induction cooktops, and for installation
heights of 750mm-800mm.
Westmore rangehoods come in the following sizes:
WES 60 L1 - 600mm W x 330mm D
WES 80 L2 - 800mm W x 330mm D
WES 90 L2 - 900mm W x 330mm D
WES 100 L2 - 1000mm W x 330mm D
WES 120 L2 - 1200mm W x 330mm D
Qasair recommend two motors wherever possible over induction cooktops, providing
a maximum air movement of 1800 cubic metres of air per hour when operated on high
speed.
Qasair Westmore rangehoods are fitted with LED lights and mesh air filters which can be
cleaned in a dishwasher. It is important to use mesh filters over an induction cooktop, to
prevent condensation from occurring.
Westmore rangehoods are fitted with Megasorber sound-absorbing panels, to further
reduce the noise level.
FLINDERS RANGE
WESTMORE Specification Sheet
WES Undercupboard 1/2
Model WES 60L-1 WES 80L-2 Model WES 60L-1 WES 80L-2
Body Width 600mm 800mm Filter Size 272 x 272mm 379 x 260mm
Motor Box / Flue Width 565mm 780mm Conversion Top/Back B/T YES YES
Motor Qty 1 2 Electrical Connection 10 Amp Lead 10 Amp Lead
LED Light Cool Cool Minimum Height H N/A N/A
Nightlight YES YES Maximum Height H N/A N/A
Light Qty 2 2 PowderKote® - available N/A N/A
Light Centres 300mm 380mm All-thread Fixing Centres N/A N/A
Filter Qty 2 2 Corner Type Square Square
FLINDERS RANGE
WESTMORE Specification Sheet
WES Undercupboard 2/2
Model WES 90L-2 WES 100L-2 WES 120L-2 Model WES 90L-2 WES 100L-2 WES 120L-2
Body Width 900mm 1000mm 1200mm Filter Size 429x260mm 479x260mm 379x260mm
Motor Box/Flue Width 880mm 980mm 1160mm Conversion Top/Back YES YES YES
Motor Qty 2 2 2 Electrical Connection 10Amp Lead 10Amp Lead 10Amp Lead
LED Light Cool Cool Cool Minimum Height H N/A N/A N/A
Nightlight YES YES YES Maximum Height H N/A N/A N/A
Light Qty 2 2 2 PowderKote® N/A N/A N/A
Light Centres 430mm 480mm 680mm All-thread Fixing Ctrs N/A N/A N/A
Filter Qty 2 2 3 Corner Type Square Square N/A
FLINDERS RANGE designed for induction cooking

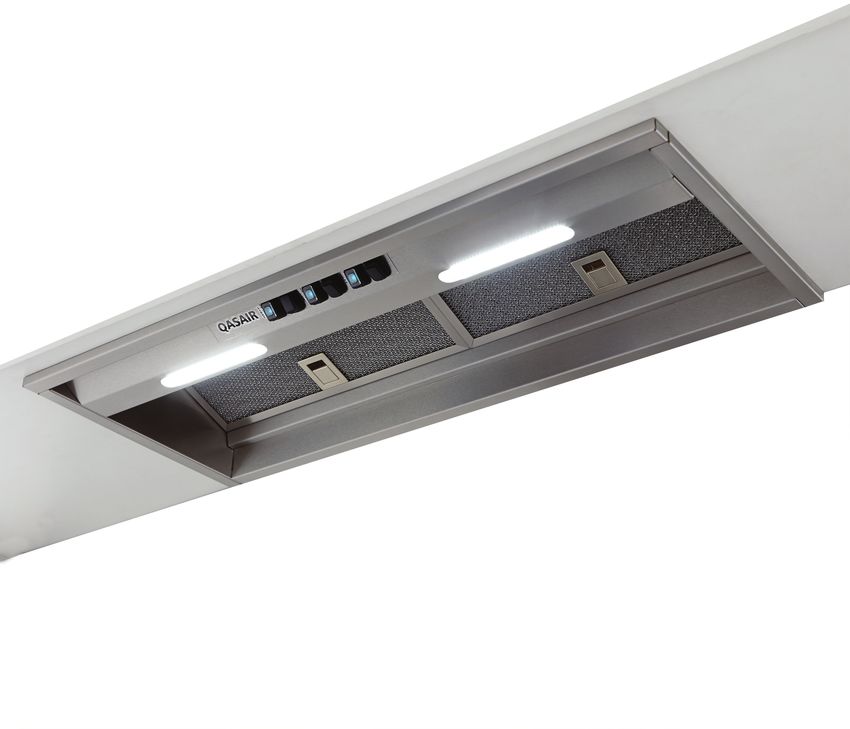

Eastmore
Eastmore rangehoods are designed for use over induction cooktops, and
for installation heights of 600mm-749mm.
Eastmore rangehoods come in the following sizes:
EAS 60 L1 - 600mm W x 330mm D
EAS 80 L2 - 800mm W x 330mm D
EAS 90 L2 - 900mm W x 330mm D
EAS 100 L2 - 1000mm W x 330mm D
EAS 120 L2 - 1200mm W x 330mm D
Qasair recommend two motors wherever possible over induction cooktops,
providing a maximum air movement of 1800 cubic metres of air per hour
when operated on high speed.
Qasair Eastmore rangehoods are fitted with LED lights and mesh air filters
which can be cleaned in a dishwasher. It is important to use mesh filters
over an induction cooktop, to prevent condensation from occurring.
Eastmore rangehoods are fitted with Megasorber sound-absorbing panels,
to further reduce the noise level.
quietly clearing the air
FLINDERS RANGE
EASTMORE Specification Sheet
EAS Undercupboard 2/2
Model EAS 90L-2 EAS 100L-2 EAS 120L-2 Model EAS 90L-2 EAS 100L-2 EAS 120L-2
Body Width 900mm 1000mm 1200mm Filter Size 429x260mm 479x260mm 379x260mm
Motor Box/Flue Width 880mm 980mm 1160mm Conversion Top/Back YES YES YES
Motor Qty 2 2 2 Electrical Connection 10Amp Lead 10Amp Lead 10Amp Lead
LED Light Cool Cool Cool Minimum Height H N/A N/A N/A
Nightlight YES YES YES Maximum Height H N/A N/A N/A
Light Qty 2 2 2 PowderKote® N/A N/A N/A
Light Centres 430mm 480mm 680mm All-thread Fixing Ctrs N/A N/A N/A
Filter Qty 2 2 3 Corner Type Square Square N/AFLINDERS RANGE
EASTMORE Specification Sheet
EAS Undercupboard 1/2
Model EAS 60L-1 EAS 80L-2 Model EAS 60L-1 EAS 80L-2
Body Width 600mm 800mm Filter Size 272 x 272mm 379 x 260mm
Motor Box / Flue Width 565mm 780mm Conversion Top/Back B/T YES YES
Motor Qty 1 2 Electrical Connection 10 Amp Lead 10 Amp Lead
LED Light Cool Cool Minimum Height H N/A N/A
Nightlight YES YES Maximum Height H N/A N/A
Light Qty 2 2 PowderKote® - available N/A N/A
Light Centres 300mm 380mm All-thread Fixing Centres N/A N/A
Filter Qty 2 2 Corner Type Square SquareAt e & s we live and breathe kitchen, bathroom and laundry products. For over 50 years, we have worked hard to bring you the most exciting and innovative products from Australia and around the world. We love supporting Australian-owned companies, and we have a long history of working with Qasair Rangehoods to provide premium rangehoods, specifically designed for use in Australia. We have worked with Qasair to create this exclusive range of hoods which will eliminate the condensation which can occur when an induction cooktop is selected. Our hard working e&s staff understand the importance of buying the best products for your home and will help you make the most informed decisions when choosing your appliances. When you step inside an e & s showroom, you’ll not only marvel at our diverse range of products, but you will be able to test product functions, attend a cooking demonstration and even sit in a bathtub. It’s all there for you to enjoy and explore and best of all, it’s all under one roof.
