VP2 electronic cigarette
By VaprLife
Introduction
Congratulations and thank you for purchasing The VP2.
You are ready to embark on a healthier lifestyle giving you a cleaner and safer environment in your home for
both family and friends.
Please read and pay close attention to the contents of this manual before using this product so you can achieve
the best results.
Please Note:
1. To avoid over usage during a given period, do not exceed 16 drags within one minute.
2. If you take a single prolonged and continuous drag the atomizer can become hot, let cool down before
drawing again. This will prolong the life of your atomizer.
3. Tipping any e cigarette in an up position can leak liquid in your mouth.
4. When the battery is low the indicator light will become dim and your hit will be weak indicating the
need to either recharge the battery or swap it for a fully-charged one.
WARRANTY: 90 Days on Battery housing and charger 14 days on(Batteries/Atomizers) VP2 features: All new units cannot operate in stealth mode (NO LED). With the increase use of low resistance atomizers, the components needed to be changed. So the units will only operate with the battery + end going in first. * Push Button Manual Switch * Bright LED to show you that it is working. * Very cool bright light gives colored illusion at night. * Use (1) PROTECTED 14500 3.7Vdc AA size Batteries. * Built rugged out of Stainless Steel, aluminum, and brass No plastic used. * DSE 801 Brass fitting is of a threaded design, not pressed into aluminum, so it will never be pulled out * Small size, but will last 5 times the standard pen style auto or manual 3/8" batteries. Product Introduction The VP2 is a non-flammable electronic cigarette smoking alternative which incorporates advanced microelectronic technology and atomization technology. The VP2 Atomized Refills contain liquid nicotine, specialized flavoring compounds, and food additives, which when inhaled provide persons who already smoke sensations similar to smoking a traditional cigarette. The E CIG with nicotine can satisfy the smoker's craving for nicotine, but without the health risks that come with traditional cigarette use. The essential differences between The E CIG and traditional cigarettes are as follows: 1. The E Cig contains no tars or other carcinogenic substances. 2. No flame is required thus eliminating release of over 4000 chemical substances produced by traditional cigarettes (such as carbon monoxide, ammonia, and hydrogen cyanide). 3. The E Cig is harmless to the environment and to people around you, with no danger of second-hand tobacco smoke. 4. No flame or fire, The E Cig can be used safely in most “No Smoking” areas. Usage Information
1. To avoid damaging The VP2 only uses the components and accessories that are meant to be used
with it: The 801, RN4072 cartridges and Atomizer, AA 14500 Battery, and Charger.
2. The Charger works under normal conditions with the voltage at AC100V, 50/60HZ.
3. The VP2 should not be dropped or allowed to hit anything hard.
4. If there appears to be a malfunctioning VP2 component, do not attempt to take it apart. Please contact
where you purchased.
Cautions and Warnings
Cautions and Warnings
CAUTION: The Allen set screw opposite the switch, is to keep switch in location.
Tampering with it will make the unit fail, and void the warranty
ADAPTERS: Always put atomizer on adapter first, then screw adapter onto VP
unit just enough to be snug. This allows you to get the designed air flow from the
atomizer.
1. Keep the VP2 away from high temperatures when using or storing it.
2. Keep all parts of The VP2 out of children’s reach.
3. The Vp2 is prohibited for use by anyone other than an adult (over 18), non-pregnant, non-nursing
smoker.
4. For users that may tend to a sore throat or may have an adverse or sensitivity reaction to nicotine or
the food additive propylene glycol, stop using The E CIG immediately and consult a physician.
5. Keep the Batteries away from loose metallic items in your purse, pockets, bags, or any other place of
storage. Foreign metallic items could potentially short circuit the battery causing it to heat up and
possibly cause permanent damage.
7. For best results try to smoke The VP2 at the same times and durations that you would normally
smoke your traditional cigarette.
8. If using The E CIG while driving, use extreme caution and pay attention to the road.
9. Before attempting to clean the outside of the Charger or any of the plugs or cords you must first
unplug them from the wall outlet, cigarette lighter outlet, or computer. Never use any chargers or plugs
in damp or wet conditions. Use extreme caution if using the charger outdoors.
Product Description
1. Components of the VP2 HOUSING BODY.
The body of The VP2 is composed of the cavity for (1) one AA 14500 lithium battery. The switch and
LED light ring and an 801 e cig battery fitting.
Please Note: To install or replace the battery, unscrew the end, turn counterclockwise to remove, turn
clockwise to tighten until snug. Do not over tighten. Keep threads and end cap clean, because you will
lose some power if the end cap gets built up with dirt.
The Atomizers are standard pen style 801. To fill push fiber down into the white cap with a paper clip
or similar device. Fill to top, then lift fiber up to rim of white cap housing. Cap off and install in
atomizer.2. Battery and Charger: The VP2 uses a special 3.6V lithium AA 14500 battery. This Battery and the Charger that comes with it are unique to The VP2 cannot be replaced with conventional batteries or chargers. Please be sure to check the locally-available voltage if traveling to make sure you do not damage the original Battery or Charger. Assembly Assemble the VP2 Step 1: Install a charged Battery into the unit with the (+) end in first. Step 2: Install the Atomizer by screwing onto the brass fitting on the battery housing. Step 3: Fill a cartridge by pushing the fiber down into the white cap with a paper clip or similar device. Fill to top, then lift fiber up to rim of white cap housing. Cap off and install in atomizer. This method is called capping off; another method is dripping 2-4 drops into the atomizer and just using the black tip. The white part of the cartridge pops off to use just the tip. Step 4: Slide the Atomized Refill piece onto the Atomizer and press it down firmly. You are now ready to enjoy The VP2 Cig. Caution: Always hold atomizer when removing cartridges. This is true for all E cigs, the reason is to protect the pressed parts from loosening while trying to install or remove atomizers. Operation of The VP2: The VP2 will turn on only while you press the push button, and will immediately turn off after releasing the button. The indicator light will light up while the button is pressed. It is recommended that The E Cig not be held in an upside down position for any extended period of time since doing so may cause the liquid in the Atomizer to flow out into the user’s mouth upon the next use. Try to keep the VP1 flat or with the tip in the up position. Smoking The VP2: Typical smokers inhale anywhere from 7-12 drags on their traditional cigarette, so after taking 7-12 drags of The E Cig it is recommended the user take a 30 minute break before using again. Determining the optimal number of drags and usage times will vary from user to user and you will have to determine the right number and usage times for yourself. How to use Please Note: 1. to avoid over-usage do not exceed 16 drags within one minute, if you do, the Atomizer can get extremely hot, and will shorten the life of the atomizer. 2. When the Battery is low the indicator light will become dim and you will need to recharge the Battery or swap it for a fully-charged one. The Atomizer is the part that creates the vapor and is the heat source for your E Cig. Imagine a light bulb that gets too much electricity going through it. As you increase the electricity the bulb will burn out. In similar fashion if you take very hard and constant drags on The E Cig eventually the Atomizer might also burn out. In order to prevent this it is highly recommended that you take slower and longer
drags. This will guarantee a much longer life for your atomizer and will create a higher volume of vapor
for your smoking satisfaction.

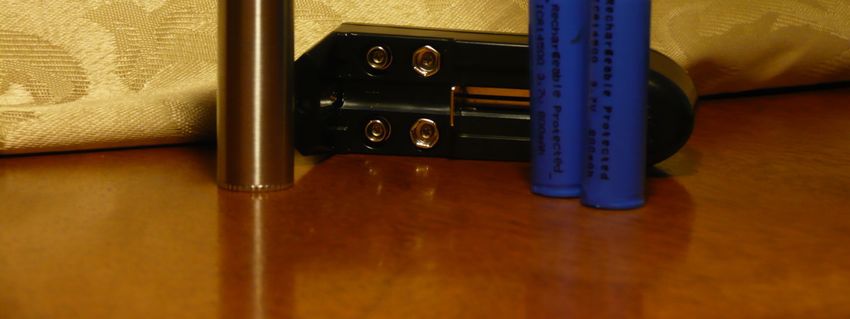

Battery and Charger
Cautionary notes for the Battery and the Chargers
WARNING: THIS BATTERY IS NOT MEANT TO BE A DIRECT REPLACEMENT FOR AA
ALKALINE/NIMH BATTERIES IN CONSUMER DEVICES. THESE LITHIUM ION BATTERIES
OPERATE AT MORE THAN TWICE THE VOLTAGE OF AN ALKALINE BATTERY AND 3
TIMES THE VOLTAGE OF A NIMH CELL AND MAY DAMAGE OR DESTROY ANOTHER
DEVICE.
Battery 14500 3.6V
• Capacity: 700 to 800mAh
• Rechargeable for 600-800 times
• Peak Voltage: 4.2V
• Nominal/Working Voltage: 3.6V
• Temperature: -40C~60C
• Protected Flat-Top Cell - use with appropriate cautions.
NOTE: Use special caution when working with Li-ion cells, they are very sensitive to charging
characteristics and may explode or burn if mishandled. Make sure the user has enough knowledge of
Li-Ion rechargeable batteries in charging, discharging and assembly before use. Always charge in/on a
fire-proof surface. Never leave charging batteries unattended. We are not responsible for damage if
there is any modification of the batteries/chargers in any form or shape (including pack making). We
are not responsible for any damage caused by misuse or mishandling of Li-Ion batteries and chargers.
1. Keep the Battery and the Charger away from high temperatures, especially while charging.
2. Keep anything metallic away from the ends of the Battery. This could cause a short circuit and is not
safe.
3. In the rare case of Battery leakage, only use rubber gloves to dispose of it safely. Never touch
exposed skin to any leaking liquid. In case of eye contact immediately wash eyes out with clean water.
Do not rub the eyes. Get medical attention immediately.
4. If during charging you notice a strange smell, high heat, a color change, or deformation of the
Battery, immediately cut the power supply to the Battery. Do not touch for 10 minutes. Make sure
leakage did not occur and dispose of properly. Do not try to use a Battery if any of these things occur.
5. The Battery and the Chargers are unique and work specifically with each other. Do not attempt to
charge anything else other than Li-ion Batteries with Charger.
6. Your first charge of a new Battery should be at least 8 hours. Thereafter, it is recommended that the
charge last between 90 to 120 minutes or until the red indicator light turns green.
7. If your 14500 battery is not used for an extended period of time, the Battery should be stored and all
components safely stored away from high temperatures or any possibility of moisture.Who May Use the VP2 CIGARETTE?
Accepted Users of The E Cig
Adult, non-pregnant, non-nursing regular smokers of traditional cigarettes who want an alternative way
to smoke with the possibility of smoking everywhere.
Unacceptable and Forbidden Users
Anyone under the age of 18.
Anyone who is not a regular smoker of traditional cigarettes.
Anyone who might be sensitive or allergic to nicotine or the food additive propylene glycol.
Pregnant or nursing women.
Anyone who is already using a nicotine patch, nicotine gum, or other prescribed medication for nicotine
addiction.
E-liquid
This product is not suitable for anybody under the age of 18, and not for use by non-smokers.
Warning: Keep cartridges and fluid out of reach from children Nicotine in its pure form is a poison,
and can cause harm. All nicotine cartridges and fluid must be kept in a safe place and away from
children, as the amount of nicotine in a cartridge, if ingested by a small child could cause serious harm
and medical assistance should be sought.
A Smoking Alternative
The E Cig is designed to be used as a smoking alternative. It is not intended or designed as a smoking
reduction or cessation device or technique. Unlike traditional cigarettes, with The E Cig the smoker has
the option to vary the amount of nicotine intake by choosing different nicotine levels for the Atomized
Refills, ranging from high to medium to low to none.
LEGAL STATEMENT
Vaprlife LLC is not responsible for any damage that may occur by using this product.
The user assumes all responsibility as to the proper use of this product.
THE E CIG HAS NOT BEEN EVALUATED BY THE U.S. FOOD AND DRUG ADMINISTRATION SINCE
IT IS NOT SUBJECT TO ITS JURISDICTION. STATEMENTS MADE ABOUT E CIG PRODUCTS ARE NOT
INTENDED TO DIAGNOSE, TREAT, CURE, OR PREVENT ANY DISEASE. THE E CIG IS SIMPLY A
HEALTHIER ALTERNATIVE TO TRADITIONAL SMOKING. IT IS NOT DESIGNED OR INTENDED AS A
SMOKING REDUCTION OR CESSATION DEVICE.You can also read
