Virgo status and its upgrades - Rencontres de Moriond
Virgo status and its upgrades
Original talk from Jo van den Brandt, Nikhef & VU University Amsterdam &
and Alessio Rocchi, INFN Roma Tor Vergata.

Presented by Marie Anne Bizouard,
ARTEMIS CNRS/Observatoire de la Cote d’Azur/Université de Nice
on behalf of the Virgo collaboration.

Moriond Gravitation 2019, La Thuile
24 March 2019
Virgo status and its upgrades - Rencontres de Moriond

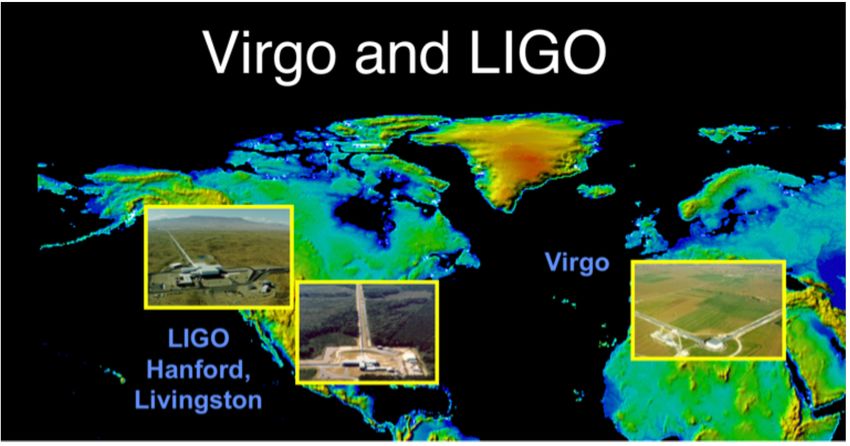

LIGO and Virgo
Observe together as a network of GW detectors. LVC have integrated their data analysis.

                                                                                          2
Virgo status and its upgrades - Rencontres de Moriond
Observing scenarios
Observing run 3 starts on April 1st!

                                       60-85

                                               3
Virgo status and its upgrades - Rencontres de Moriond
Advanced Virgo
Most infrastructure installed for Advanced Virgo. It features many improvements with respect to Virgo and
Virgo+. However the absence of Signal Recycling has great impact.

Instrumentation improvements for Observing run 2
•   Larger beam: 2.5x larger at ITMs

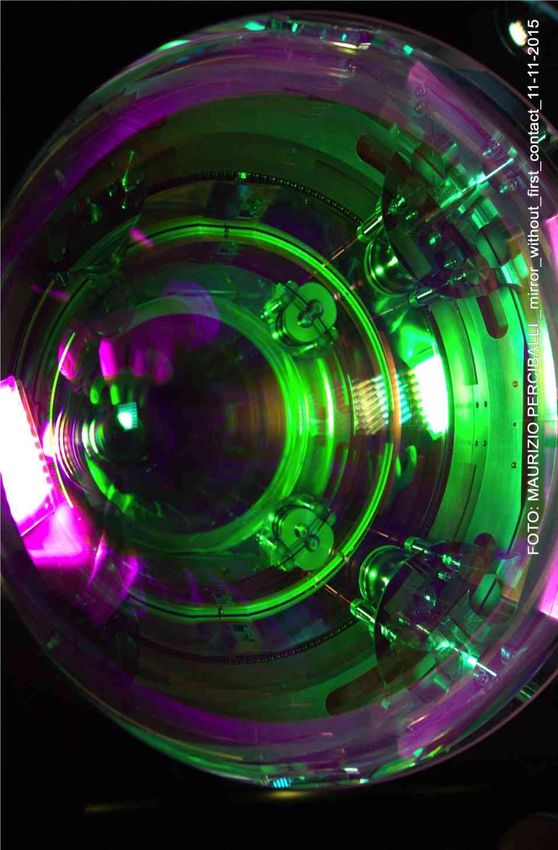

•   Heavier mirrors: 2x heavier
•   Higher quality optics: residual roughness < 0.5 nm
•   Improved coatings for lower losses:
    absorption < 0.5 ppm, scattering < 10 ppm
•   Reducing shot noise: arm finesse of cavities are
     3 x larger than in Virgo+
•   Thermal control of aberrations: compensate for cold
    and hot defects on the core optics:
       ring heaters
       double axicon CO2 actuators
       CO2 central heating
       diagnostics: Hartmann sensors & phase cameras
•   Stray light control: suspended optical benches in
    vacuum, and new set of baffles and diaphragms to
    catch diffuse light
•   Improved vacuum: 10-9 mbar instead of 10-7 mbar
                                                                                                            5
Virgo status and its upgrades - Rencontres de Moriond
Scientific output: new era in physics & astronomy
 Astrophysics of compact objects   Fundamental physics
       Cosmology      Multi-messenger astronomy

                                                         6
Virgo status and its upgrades - Rencontres de Moriond
Scientific output: new era in physics & astronomy
 Astrophysics of compact objects   Fundamental physics
       Cosmology      Multi-messenger astronomy

        See all presentations from the
        LIGO Scientific collaboration
                      &
           the Virgo collaboration

                                                         7
Virgo status and its upgrades - Rencontres de Moriond
Catalogue of known GW sources
released on December 2018
“GWTC-1: A Gravitational-Wave Transient Catalog of Compact Binary Mergers
Observed by LIGO and Virgo during the First and Second Observing Runs”, The LIGO &
Virgo Collaboration, arXiv:1811.12907

●
    Extract information on masses, spins, energy radiated, position, distance, inclination,
    polarization. Population distribution may shed light on formation mechanisms.

                                                                                              8
Virgo status and its upgrades - Rencontres de Moriond
GW data going public … including Virgo data!
https://www.gw-openscience.org   O2 data have been released on Feb 28th

                                                                          9
Virgo status and its upgrades - Rencontres de Moriond
Towards O3

             11
Virgo status and its upgrades - Rencontres de Moriond
Projected sensitivity evolution for Virgo
From the 2013 ‘‘Observing Scenario’’, arXiv:1304.0670. We projected at least 60 Mpc for O3.
Note that LIGO aims at > 120 Mpc
All four test masses are suspended with steel wires

                                                                                              12
12
Towards O3: Virgo performance at the end of O2

                                       Advanced Virgo has
                                       no signal recycling

LIGO-Virgo sensitivities on
August 17th 2017

                                                             13
Hardware changes after O2

                            14
Hardware changes : Nov 2017 – Mar 2018

                                         15
Squeezer installation & commissioning

                                       ●   The AEI squeezer installed in Virgo’s
                                           DET lab.
                                           –   Fully functional and an automated stand-
                                               alone in-air squeezed light laser source.
                                           –   Approximately 1 m2 in footprint.
                                           –   Duty cycle almost 100%.
                                               Phase noise about 3 mrad.
                                           –   Easy to maintain.
                                       ●   Lab experiments have shown that:
                                           –   this squeezer can provide up to 14 dB of
                                               squeezing for downstream application at
                                               very low pump powers.
                                           –   12 dB measured with diagnostic
                                               homodyne detector introducing additional
                                               loss, therefore derived 14dB for
                                               application.

Delivered in Cascina on January 2018                                                      16
And then started the commissioning ….
●   Reach a good sensitivity already in June

                                               17
2018 commissioning
●   Best BNS range 35 Mpc in June;
●   Following the commissioning plan, ITF input
      power increased to 25 W (now 18 W).
          –   Long tuning and recovery required.
          –   Timing distribution system upgraded.
          –   Intracavity losses reduced.
          –   Two campaigns for stray light
                mitigation on detection benches.
          –   Several issues (laser amplifier power
                unit, OMC1, SSFS/IMC and SDB2
                minitower suspension) slowed the
                operations.
●   Difficult summer with very low duty cycle.
●   New mystery noise appeared at low frequency.
●   A lot of work done with no sensitivity pay-off.

                                                      18
2018 commissioning
●   October 2018: go back to 18 W instead of 25W → increase of the duty cycle
    → possibility to investigate

                                      A. Rocchi - AdV commissioning

                                                                            19
2018 fall commissioning
●   Low frequency “f-2..3” origin found: mirror charged by faulty electronics (random movement
    of charge on mirror surface).
●   Mid frequency noise investigation.
●   Inject squeezed light.

                                                                                                 20
2018 fall commissioning

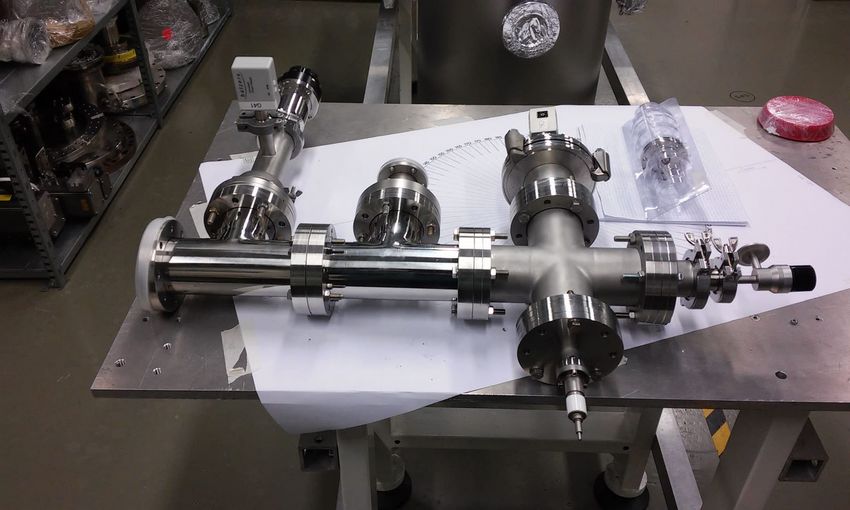

                    Discharger prototype
                                           21
Squeezed light in advanced Virgo
●   12 dB produced by the source.
●   Measured a peak SQZ injection of almost 3 dB (O3 target), equivalent to increasing
    the input power by a factor of 2 (from 18 W to 36 W).
●   BNS range increases by 2-3 Mpc when squeezed light is injected.

                                                                                     22
Commisioning: other activities
●   Injection fast unlocks fixed
●   Output mode cleaners match losses decrease
●   Detection bench stray light hunting
●   Detection bench suspension fixed

                                                 23
Best sensitivity reached in feb 2019

                                            BNS 55 Mpc with 18 W
                                            and squeezing

  Obs. Scenario plots evaluated @ 25 W of
  input power

                                                               24
Virgo sensitivity: significant improvement wrt O2
Comparison to the best sensitivity obtained in O2. Monolithic suspensions are now installed.
Flat noise contribution in mid-frequency range, and significant 50 Hz noise

                                                                                               25
25
O3 startup Virgo sensitivity

                               26
O3 startup LIGO-Virgo sensitivity

                                    O3 starts on April 1st!

                                                              27
Low-latency searches during O3
●   LIGO/Virgo low-latency alerts for transient event candidates
     –   CBC LL searches + Burst LL searches
     –   Notices and circulars available through the Gamma-ray Coordinates Network (GCN)
     –   Event candidates will be publicly available in https://gracedb.ligo.org
          ●   MDC events are there now: search “category: MDC”
     –   There will be no human vetting for Preliminary notice
●   LIGO/Virgo Public Alerts User Guide & Support
     –   https://emfollow.docs.ligo.org/userguide/quickstart.html
●   What goes public?
     –   False alarm rate, sky map. Binaries: distance, probability of {BNS, BBH, NSBH,
         MassGap, and terrestrial}, probability of NS present, probability of non-zero disk mass.
         Bursts: Central frequency, duration.

                                                                                                28
Low latency searches during O3

https://emfollow.docs.ligo.org/userguide/index.html
                                                      29
What’s next?

               30
Towards a global network
KAGRA expected to join LIGO and Virgo in Observation run 3

                                                             31
31

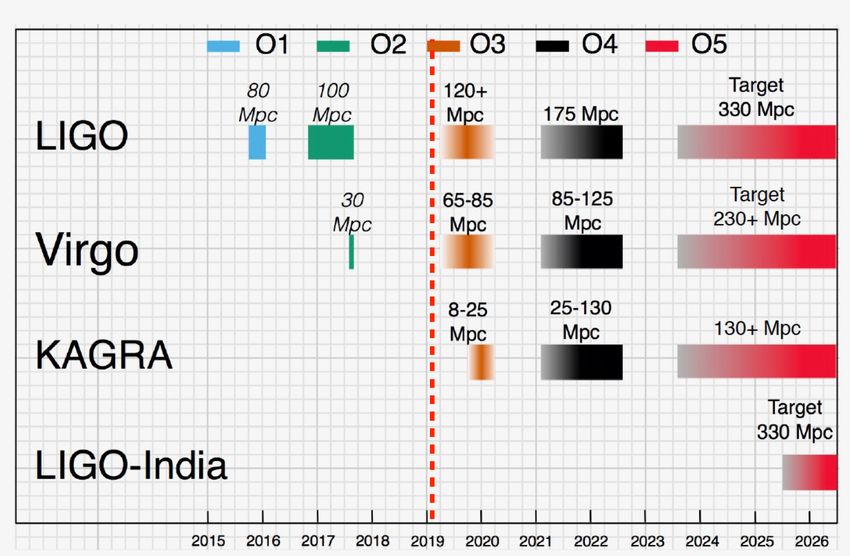

Planned observing timeline
            One-year O3 planned to start in April 2019 with about twice the sensitivity in O3 (thus about 23 in
            rate). During O3 LIGO and Virgo will release Open Public Alerts

       Observation run O3
       ●
           Three detectors and perhaps 1 event per week
       ●
           KAGRA expected to join at the end of O3
Prospects
       ●
           Contribute
          for            to Localizing
              Observing and sky localization    andwith
                                       GW Transients PEaLIGO, AdV and KAGRA                                                                                                    7

                                                                                                                                                                                     ~20% in 20 sq deg   HLV 2019
                                                                     Early                     Mid                      Late                      Design

                                         60-80               60-100                         120-170                                        190
                                          Mpc                 Mpc                             Mpc                                          Mpc

              LIGO                          O1                  O2                               O3

                                                                   25-30                      65-85
                                                                                              60-85                        65-115                    125
                                                                   Mpc                         Mpc                          Mpc                      Mpc

              Virgo                                               O2                             O3                                                                                  ~60% in 10 sq deg   HIKLV 2024

                                                                                                             25-40 40-140                              140
                                                                                                              Mpc   Mpc                                Mpc

              KAGRA
                            2015           2016           2017            2018           2019            2020            2021           2022           2023

Fig. 2 T h e p l a n n e d s e n s i ti v i ty ev o l u ti o n a n d o b s e r v i n g r u n s o f th e a L I G O , A d V a n d K A G R A d e te c to r s
              B. P. Abbott et al., Prospects for Observing and Localizing Gravitational-Wave Transients                                                                                                               32
o v e r th ewithc o mAdvanced
                       i n g y e a r s .LIGO,
                                         T h e c Advanced
                                                 o l o r e d b a r sVirgo
                                                                     s h o wand
                                                                             th eKAGRA,
                                                                                  o b s e r v i n2016,
                                                                                                 g r u n s ,Living
                                                                                                             w i th thRev.e e x pRelativity
                                                                                                                                    e c te d s e n s i19
                                                                                                                                                       ti v i ti e s g i v e n b y
th e d a ta i n F i g u r e 1 f o r f u tu r e r u n s , a n d th e a c h i e v e d s e n s i ti v i ti e s i n O 1 a n d i n O 2 . T h e r e i s s i g n i fi c a n t
u n c e r ta i n ty i n th e s ta r t a n d e n d ti m e s o f p l a n n e d th e o b se r v i n g r u n s , e s p e c i a l l y f o r th o s e f u r th e r i n th e f u tu r e ,
Advanced Virgo+
●   Upgrade of Advanced Virgo
●   Goal: sensitivity increase from ~100 Mpc to more than 200 Mpc
●   Phase 1 (no invasive work):
     –   Signal recycling installation
     –   Higher laser power (O3 with 18 W)
     –   Frequency dependent squeezing (frequency independent squeezing already
         done in advanced Virgo)
     –   Newtonian noise cancellation
●   Phase 2 (invasive work)
     –   High power laser (200 W)
     –   Larger beams → 12 cm on end test masses
     –   100 Kg test masses → end test masses, TBC on input test masses
     –   Better coating: depending on R&D results at the end of Phase I
                                                                                  33

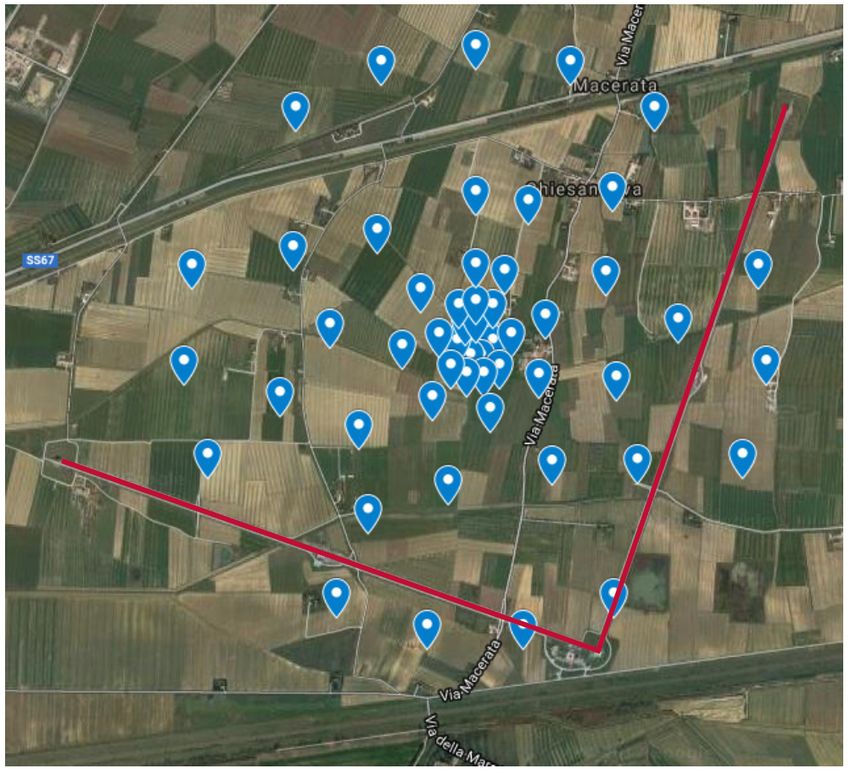

Newtonian Noise Cancellation
Improvements to the infrastructure are expected to have a large impact

Noise at central Building is about an order of magnitude higher than the noise in the vicinity of
Virgo

Need for emphasis on smart infrastructure for gravitational wave observatories
• Smart infrastructure design
• Newtonian noise modeling of infrastructure noise
• HVAC modification

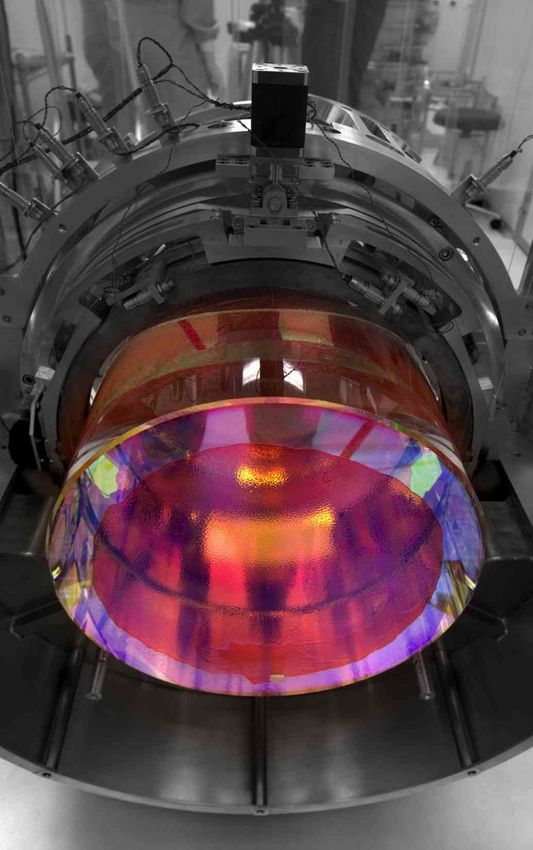

AdV+ upgrade and extreme mirror technology
Laboratoire des Matériaux Avancés LMA at Lyon produced the coatings used on the main mirrors of the two
working gravitational wave detectors: Advanced LIGO and Virgo. These coatings feature low losses, low
absorption, and low scattering properties

Features
-   Flatness < 0.5 nm rms over central 160 mm of mirrors by using ion beam
    polishing (robotic silica deposition was investigated)
-   Ti:Ta2O5 and SiO2 stacks with optical absorption about 0.3 ppm

Expand LMA capabilities for next generation
LMA is the only coating group known to be capable of scaling up

                                                              LMA
Advanced Virgo+ planning
                           phase1   phase2

                                             36
Advanced Virgo+ anticipated sensitivities

                                            37
Summary
●   Huge effort of commissioning, noise hunting, detecto characterization in the last year
        → Virgo is ready for O3 with almost the promised sensitivity.
●   Virgo data are flowing through the low latency search pipelines.
●   O3 will provide more CBC GW sources and maybe new type of sources: NSBH, intermediate
    black hole mergers, core collapse supernovae, etc ...

                                                                                             38
