South Dakota Mines GEOL/GEOE/PALEO Seminar Series
April 16, 2021

US Rare Earths Today:
Misconceptions, Dreams and Realities

David R. Hammond, Ph.D.
Principal Mineral Economist
Hammond International Group
US Rare Earths Today: Misconceptions, Dreams and Realities - South Dakota Mines GEOL/GEOE/PALEO Seminar Series April 16, 2021
Discussion Topics:
➢ What are Rare-Earth Elements?
➢ Where are they found?
➢ What are they used for?
➢ What are the critical issues?
➢ Who are the US players?
➢ What are the realistic solutions?
US Rare Earths Today: Misconceptions, Dreams and Realities - South Dakota Mines GEOL/GEOE/PALEO Seminar Series April 16, 2021
Discussion Purpose:
Bring attention to some of the core issues, problems
and realities associated with current US Department of
Defense initiatives to address needed supply of critical
Rare Earth Elements.

Discussion Order:
 ➢ REE Characteristics
 ➢ REE Markets
 ➢ REE Realities
 ➢ REE Misconceptions
 ➢ US REE Dreams

                            3
US Rare Earths Today: Misconceptions, Dreams and Realities - South Dakota Mines GEOL/GEOE/PALEO Seminar Series April 16, 2021
Rare-Earth Elements:

Lanthanide
  Series

                   4
US Rare Earths Today: Misconceptions, Dreams and Realities - South Dakota Mines GEOL/GEOE/PALEO Seminar Series April 16, 2021
Rare-Earth Element Oxides:
                                                        Total Rare Earth Oxides
                                                                TREO

                     Heavy Rare Earths                                                            Light Rare Earth Oxides
                    HREO           OXIDE                         CRUSTAL                          LREO             OXIDE                              CRUSTAL

                        ATOMIC ATOMIC         ATOMIC             ABUND                                 ATOMIC ATOMIC            ATOMIC                ABUND

     ELEMENT     SYMBOL NUMBER WEIGHT OXIDE WEIGHT Oxide/REE      (ppm)             ELEMENT     SYMBOL NUMBER WEIGHT OXIDE WEIGHT         Oxide/REE    (ppm)

1   Yttrium        Y      39    88.906   Y2O3 225.812    1.270    22.0     1       Scandium       Sc     21   44.956 Sc2O3 137.910                      22

2   Terbium        Tb     65   158.925 Tb4O7 747.700     1.176     0.6     2       Lanthanum      La     57   138.906 La2O3 325.812        1.173        30

3   Dysprosium     Dy     66   162.500 Dy2O3 373.000     1.148     3.5     3       Cerium         Ce     58   140.116 CeO2 172.116         1.228        64

4   Holmium       Ho      67   164.930 Ho2O3 377.860     1.146     0.8     4   Praseodymium       Pr     59   140.908 Pr6O11 1021.448      1.208        7.1

5   Erbium         Er     68   167.259 Er2O3 382.518     1.143     2.3     5       Neodymium     Nd      60   144.242 Nd2O3 336.484        1.166        26
                                                                                                                        Pm2O3
6   Thulium       Tm      69   168.934 Tm2O3 385.868     1.142     0.3     6       Promethium    Pm      61   145.000           337.824                1×10−15

7   Ytterbium     Yb      70   173.040 Yb2O3 394.080     1.139     2.2     7       Samarium      Sm      62   150.360 Sm2O3 348.720        1.160        4.5

8   Lutetium       Lu     71   174.967 Lu2O3 397.934     1.137     0.3     8       Europium      Eu      63   151.964 Eu2O3 351.928        1.158        0.9

                                                                           9       Gadolinium    Gd      64   157.250 Gd2O3 362.500        1.153        3.8

                                                                               5
US Rare Earths Today: Misconceptions, Dreams and Realities - South Dakota Mines GEOL/GEOE/PALEO Seminar Series April 16, 2021
Rare-Earth Elements Applications:

Source: Dudley J. Kingsnorth, 2016, “The Rare Earth Industry in 2016,” Industrial Minerals Company of Australia.
US Rare Earths Today: Misconceptions, Dreams and Realities - South Dakota Mines GEOL/GEOE/PALEO Seminar Series April 16, 2021
Rare-Earth Elements in National Defense:

                    7
Rare-Earth Elements Consumption*:

                                                    (TONS)

              (TONS)

                                      (TONS)

     *View as order of magnitude only; values lack confidence due to issues with Chinese data used

Source: Dudley J. Kingsnorth, 2016, “The Rare Earth Industry in 2016,” Industrial Minerals Company of Australia.
Rare-Earth Element Production Chain:
 Mining      Concentration   Extraction       Refining   Alloying   Fabrication

Rare Earth      TREO           REO             REE         REE         REE
 Minerals    Concentrate      Oxides          Metals      Alloys     Products

                                          9
Principal REE Minerals:
Mineral       Chemical Formula (Ideal)

Bastnäesite   REECO3F
Paristite     CaREE2(CO3)3F2
Synchysite    CaREE(CO3)2F)
Monazite      (REE,Th)PO4
Xenotime      (Y,HREE,Th,U)PO4
Apatite       (Ca,REE)5(PO4)3(F,Cl,OH)
Loparite      (Na,REE)2Ti2O6
Allanite      A2M3Si3O12(OH)

                            Of Special Mention!
Eudialyte     Na15Ca6(Fe,Mn)3Zr3SiO(O,OH,H2O)3(Si3O9)2(Si9O27)2(OH,Cl)2

                                  10
REE Deposit Types:
          Association                           Example
Lateritic Ion-Adsorption Clays     Bayon Obo, China
Peralkaline igneous rocks          Bokan Mountain, Alaska; Round Top, Texas
Carbonatites                       Mountain Pass, California; Bear Lodge, Wyoming
Iron oxide apatites                Pea Ridge, Missouri
Pegmatites                         Spruce Pine, North Carolina; Alces Lake, Saskatchewan
Metamorphic skarn                  Mary Kathleen, Queensland
Stratiform phosphates              Mount Weld, Western Australia
Pelagic muds/Mn nodules            Minami Tori Shima, Pacific Ocean
Paleo pelagic muds/Mn-Fe nodules   Chamberlin, South Dakota
Paleo placers                      Witwatersrand, South Africa
Heavy mineral sands                Cooljarloo, Western Australia
Fluorine-Fluorite associations     Hicks Dome, Illinois

                                           11

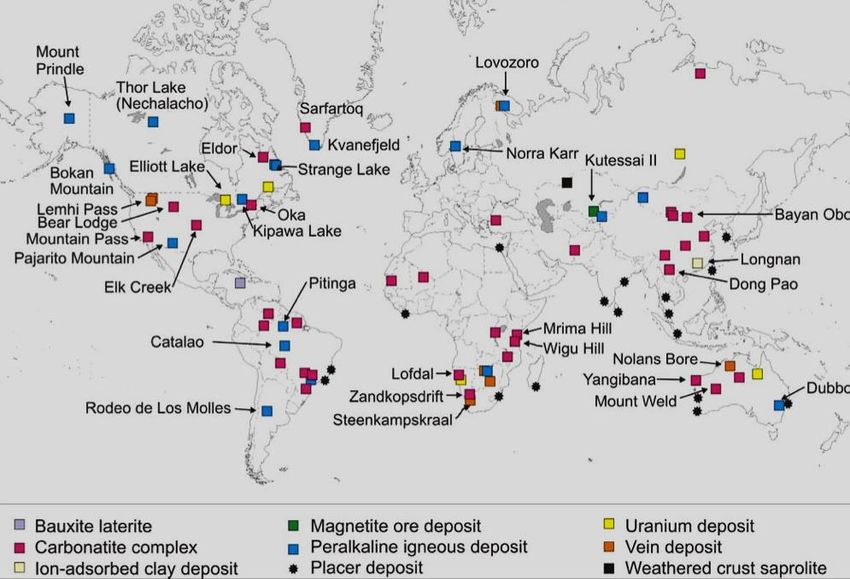

Rare-Earth Minerals Deposits:

Source: www.dggs.alaska.gov/webpubs/dggs/ic/text/ic061.PDF
Rare-Earth Mineralization in the US:

                                                 La Paz

                                                                    Round Mountain

Source: Bradley S. Van Gosen, Philip L. Verplanck, and Poul Emsbo, “Rare Earth Element Mineral Deposits in the United States,” USGS Circular 1454 Ver 1.1, April 2019

                                                                                     13
Rare-Earth Minerals Production & Reserves

    10 Production quota; does not include undocumented production.

Source: USGS Mineral Commodity Summaries 2021 – Rare Earths
Rare-Earth Deposits Reserves & Resources:
Current REO “Posted” Prices:
     Oxide                            Specification                       Price (US$/kg)    Price Change
     Cerium Oxide                     99%min FOB China                          1.50-1.53   nochange
     Cerium Oxide                     99.9%min In warehouse Rotterdam           2.30-2.40   nochange
     Dysprosium Oxide                 99.5%min FOB China                    467.00-472.00   nochange
     Erbium Oxide                     99.5%min FOB China                      32.50-33.50   up
     Europium Oxide                   99.999%min FOB China                    31.50-32.50   nochange
     Gadolinium Oxide                 99.5%min EXW China                      33.50-34.00   nochange
     Holmium Oxide                    99.5%min EXW China                    136.20-136.90   nochange
     Lanthanum Oxide                  99.999%min FOB China                      3.80-3.90   down
     Neodymium Oxide                  99.5%min FOB China                      93.50-94.00   down
     Praseodymium Oxide               99.5%min FOB China                      79.00-80.00   nochange
     Praseodymium Oxide               99.5%min In warehouse Rotterdam         74.00-75.00   nochange
     PrNd Mischmetal                  Pr 25%, Nd 75% FOB China              107.50-108.50   nochange
     Samarium Oxide                   99.9%min FOB China                      19.80-20.30   nochange
     Scandium Oxide                   99.99%min EXW China                   856.80-933.30   nochange
     Terbium Oxide                    99.99%min FOB China                 1408.00-1413.00   down
     Ytterbium Oxide                  99.99%min EXW China                     14.80-14.60   nochange
     Yttrium Oxide                    99.999%min FOB China                      6.40-6.50   down
     Yttrium Oxide                    99.999%min In warehouse Rotterdam         6.90-7.10   nochange

Source: Asian Metals April 14, 2021

                                                                    16
REE “Market” Prices:

Source: Viviana
Fernandez, “Rare-
Earth Elements: A
Historical and a
Financial
Perspective,”
Resources Policy,
September 2017

                    17
Rare-Earth Critical Issues:
➢ “The Middle East has Oil, China has Rare-Earths”
                  (Deng Xiaoping, 1992)
➢ Long-term Chinese strategy is to export REEs in value-added products
➢ China now dominates global REE mining, metallurgical processing,
  technical research, magnet production, etc., etc. . .
    ✓   Produces 80% of REE the world’s REE resources
    ✓   Processes well over 90% of the World’s REOs
    ✓   Produces 95% of World’s REE metals and alloys
    ✓   Possesses well over 90% of World REE production capacity and can expand
    ✓   Holds great majority of modern day REE process & product patents
    ✓   Increasing imports of REE concentrates and oxides
    ✓   Increasing investments in REE primary production outside China
    ✓   Supplies 100% of US defense magnet requirements
➢ China has near total control of global REE supply!
➢ China has 100% control over global REE prices!
REE Realities:
1. Global REE industry represents an “imperfect market”

2. REEs are not created equal!

3. The REE Supply Problem is Processing, not Sourcing of REE
   containing material!

4. Commercial level REE Processing is very difficult!

5. It will take years to develop new REE mines, processing and
   metal fabrication capabilities outside China

6. No major mining companies will get involved with REEs unless
   significant by-product from primary production!

                                 19
More Realities:
1. China is the major customer for REE resource production since
   majority of world's REE metals are produced by Chinese
   controlled entities; Chinese companies are aggressively trying
   to tie up international REE primary supplies.

2. No matter how great your flowsheet is, you must have tons
   AND grade to be an REE supplier that matters; producing small
   share of market demand won’t cut it!

3. REE sales will be to intermediate and end-use consumers via
   non-transparent bi-lateral long-term supply contracts.

4. The logical potential equity partners for miners & processors
   are REE consumers.

5. Lowest possible production costs will be determinant for
   consumer partner investment/supply contract decisions.

                                20
REE Misconceptions:
1. I can use market posted prices for my project economics!

2. I can use the REE “Basket” for projecting project revenues!

3. My REE resource can be processed by typical conventional
   metallurgical processes!

4. My process chemistry/metallurgy fits theory and works at
   bench/pilot scale; it no doubt will work commercially!

5. I have new technology and my costs are going to be lower--see I
   proved it in the lab!

6. I can cash-out my project to some big mining company or bring
   them in as a venture partner!

              Answers: No, No, No, No, No and No!

                                21
So, What is the US Doing About it?
❖ Unfortunately Not Much that has accomplished anything!
   • Basically ignored by Clinton, Bush, and Obama Administrations
   • DOE university funding grants focused on REEs from coal and AMD over
     last decade
   • Recently DOE and DOD funding grants for development of process and
     metal separation technologies

❖ Critical Materials Institute:
   • Government-University-Industry partnership started 2013
   • Focused on 34 Critical Minerals/Elements
   • Funded by DOE
   • Based at the Ames Laboratory, Iowa State University and CSM
   • Mission: “To assure supply chains of materials critical to clean energy
     technologies – enabling innovation in U.S. manufacturing and enhancing U.S.
     energy security.”
More Recent Government Actions:
➢ December 2017: Executive Order 13817

➢ August 2018: National Defense Authorization Act—Section 871:
     “. . . prohibits sourcing of REM’s from China, Russia, North Korea and Iran . . .”

➢ June 2019: “A Federal Strategy to Ensure Secure and Reliable Supplies of Critical
  Minerals”

➢ June 2019: “Presidential Determination Pursuant to Section 303 of the Defense
  Production Act of 1950” (DARPA Title III)

➢ July 2019: DOD RFI regarding LREE and HREE Separation and                        Processing
  Capability

➢ December 2019: DOD FOA regarding REE Element Separation and Processing
  Capability

➢ January 2021: DOD and DOE funding grants

➢ February 2021: Biden administration directive to agencies to critical mineral supply
  chains

                                             23
Near-Term Global Demand for Critical
   REEs:
                                                             2020                 2025
                                                               (mt)                 (mt)

     Total Rare Earth Oxides                               200,000              240,000
     Assumed US Requirement                                  60,000               90,000

     Praseodymium Oxide                                      1,000                1,200
     Neodymium Oxide                                         3,500                5,000
     Terbium Oxide                                             150                  250
     Dysprosium Oxide                                          500                1,500

Source: D R Hammond projections for relative comparison of upstream mine production purposes only!!!!!

                                                  24
Current US REE Resource Prospects:
Coal                       Dream (too low grade & too dispersed)
Coal Waste                 Dream ( “       “    “      “     “    )
Coal Ash                   Dream ( “       “    “      “     “    )
Acid Mine Drainage         Dream ( “       “    “      “     “    )
Round Top                  Dream (extremely low grade)
Bokan Mountain             Dream (very small resource; low-grade)
Elk Creek                  Dream (uneconomic, based on Sc)
La Paz                     Dream (little info, assume is stock play
Hicks Dome                 Interesting, early stage
Chamberlin Paleo Nodules   Very interesting, early stage
Pea Ridge                  Potential, REE as Fe mine by-product
Florida Phosphates         Potential, enormous resource
Bear Lodge                 Development, large resource, high grade
Mountain Pass              Producer (but only LREEs and for China)

                               25
Current US REE Processing Prospects:
MP Materials             Mountain Pass, California: Operating but produces LREE
                         concentrates only which are exported China, new
                         metallurgical facility promoted, $10 million DOD grant.
                         Major Problem: Owned by two hedge funds and Shenghe
                         Resources

Energy Fuels             White Mesa Uranium Mill, Blanding, Utah: Operating, now
                         processing monazite to REE oxide/carbonate, metal
                         extraction to be done in Estonia, owned by Energy Fuels.
                         Major Advantage: has radioactive waste disposal permit!

Lynas/Blueline           Hondo, Texas: Planned facility to develop new
                         metallurgical processing technologies for separation of
                         LREOs, $30 million DOD grant.
                         Advantage: potential for non-China processing of Mt Weld
                         concentrates/oxides

Rare Element Resources   Upton, Wyoming: Near-term development for process of
                         Bear Lodge ore to REE oxides; partnership with General
                         Atomic et al., $22 million DOE grant.
                         Advantage: has number of permits in hand

                                       26
Conclusions:
☼ China controls US’s current/future national defense supply of critical REEs!
☼ There is NO “free market solution” to the US’s REE problem!
☼ Core issue is NOT the need for new REE mines, rather the need for new
  REE refining and metallurgical fabrication capacity outside of China!
☼ Government technical & and economic knowledge of mineral resource
  production is lacking!
☼ Defense Department officials have little to no understanding of the mining
  business in general and the REE value chain in particular!
☼ Junior venture companies will try to capitalize on this lack of understanding
  to keep infeasible REE projects going!
☼ High potential US Government will throw buckets of taxpayer money away
  to promoters, abetted by political influence and pressures!
DOD needs a fully independent advisory board of experienced resource,
mining, and processing experts for guidance on the optimal (cost & quantity)
sourcing of critical REE supply!

                                      27
Realistic Solutions to the Problem:
➢ Government funding, development, and ownership of
  central REE separation and fabrication facility?

➢ REE consumer cooperative to create and operate
  downstream REE processing, including Defense
  Department participation? (e.g., current Rubio Bill)

What’s not realistic is continuing to rely on Chinese
government kindness for finished REE materials, or to
count on Wall Street to bail us out!

                                 28
David R. Hammond, Ph.D.
Principal Mineral Economist
Hammond International Group
        2406 Glenhaven Drive
 Highlands Ranch, Colorado 80126 USA
  mineraleconomics.DrH@gmail.com
            303-807-3671

                  29
Supplemental Slides

         30

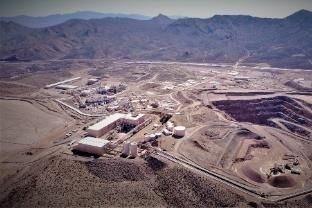

Mountain Pass - Producer:
Owner: MP Materials - JHL Capital Group, QVT Financial LP,
                      Shenghe Resources Holding Co. Ltd.(9.9%)
Deposit Type:                   Carbonatite with 10-15% Bastnäsite
Resource (5.0% TREO C/O):       16.7 Million mt (P & P)*
In-place TREO Grade:              8.0%
In-place TREO:                    1.3 Million mt (83% La and Ce)
Annual Pr Oxide Output:            927 mt (15.4% of 2025 US demand)
Annual Nd Oxide Output:          2,511 mt (16.7% of 2025 US demand)
Annual Tb Oxide Output:          Very small production in past
Annual Dy Oxide Output:          Very small production in past

Comments: - Currently produces only REE concentrates
          - Resource is likely much, much larger than current “reserves”
          - Currently produces only REE concentrates which are all
            exported to China for processing to metal; this reflects
            political strategies, not rational economics!

* 2012 Press Release

                                   31
Bear Lodge – Real Potential:
Owner: Rare Element Resources (REEMF:OTC) and General Atomics
Deposit Type:                  Carbonatite with Bastnäsite
Resource (1.5% TREO c/o):      16.2 Million mt (M & Ind)*
In-place TREO Grade:           8.0%
In-place TREO:                 1.3 Million mt
Annual TREO Production:        20,000 mt
Annual Pr Oxide Output:         1,200 mt ( 7.5% of 2025 US demand)
Annual Nd Oxide Output:         4,500 mt (11.3% of 2025 US demand)
Annual Tb Oxide Output:            30 mt ( 4.9% of 2025 US demand)
Annual Dy Oxide Output:            90 mt ( 3.2% of 2025 US demand)

Comments: - Additional inferred resource of 41 Million mt
          - Most advanced of publically held US located REE projects
          - Entering pilot plant phase with General Atomics

*2014 Feasibility Study and personal communication

                                             32
Round Top - Dream:
Owner: Texas Mineral Resources w/ USA Rare Earths Earn-In (OTCQB:TMRC)
Deposit Type:                  Tertiary peralkaline rhyolite intrusion
Resource:                      364 Million mt (M & I)*
In-place Pr Grade:             10.3 ppm (crustal abundance 7.1 ppm)
In-place Nd Grade:             27.9 ppm (crustal abundance 26.0 ppm)
In-place Tb Grade:              3.5 ppm (crustal abundance 0.06 ppm)
In-place Dy Grade:             33.3 ppm (crustal abundance 3.5 ppm)
Annual Mine Production:         7.3 Million mt TPY (20,000 TPD leach feed)
Annual Pr Oxide Output:         70 mt (0.4% of 2025 US demand)
Annual Nd Oxide Output:        182 mt (0.4% of 2025 US demand)
Annual Tb Oxide Output:         24 mt (4.0% of 2025 US demand)
Annual Dy Oxide Output:        207 mt (7.4% of 2025 US demand)

Comments: - Very low REE grades, commercial feasible highly doubtful!
          - Projected as a multi-industrial minerals/metals and commodity
            chemicals manufacturer, with REEs as by-products
          - PEA (2019) claims project will produce 20 products:
            Y, Pr, Nd, Sm, Tb, Dy, Lu, Sc and Ga Oxides; Be Hydroxide; U3O8,
            Li Carbonate; Al, Fe, Mg, Mn and K Sulfates
*2019 PEA

                                    33
Bokan Mountain - Dream:
Owner: Ucore Rare Metals (TSX-V: UCU, OTCQX:UURAF, FSE: U9U)
Deposit Type:                  Alkaline Igneous Intrusion
Resource (at 0.04 % TREO c/o): 5.8 Million mt (M & I)*
In-place TREO Grade:           0.60%
In-place TREO:                 28,000 mt
Recoverable TREO:              22,500 mt
Annual TREO Production:        1,875 mt (1,500 TPD mill feed)
Annual Pr Oxide Output:           71 mt (1.2% of 2025 US demand)
Annual Nd Oxide Output:          274 mt (1.8% of 2025 US demand)
Annual Tb Oxide Output:           12 mt (5.5% of 2025 US demand)
Annual Dy Oxide Output:           83 mt (7.9% of 2025 US demand)

Comments: - Small resource; Dotson Zone geologically constrained
          - Adjacent to EPA Superfund site (Uranium)
          - Alaska AIEDA commitment of $145 M (but only with a positive
            Feasibility Study – that will never happen!)
          - 2019 PR claims it will produce the REE “basket” plus Nb, Zr,
            Be, Hf, TiO2, V
*2013 PEA plus 2015 Press Release

                                    34
You can also read
