Uni-8® Horizontal Lifeline®
Cable Fall Protection System
Uni-8® Horizontal Lifeline®
cable fall protection system
working safely at heights
A workplace is considered to circumstances, the product
be at height if a person could can span up to 12m between
be injured when falling from it, support brackets. Uni-8 offers
even if it is at or below ground excellent functionality through
level. This means that work it’s free flowing bypass capability
place risks need to be carefully and can navigate corners and
assessed and appropriate and contours in building designs. 02
proportionate control measures Minimal moving parts and high
implemented in order to mitigate grade materials ensure long
such risks. The Uni-8 Horizontal life expectancy, low cost of
Lifeline System combined ownership and add up to a
with good management sound investment. The system
controls provides a simple, yet can be fitted to many types of
comprehensive solution that structure and can also support
will ensure compliance with multiple workers for both
contents current regulations in many fall arrest and work restraint
circumstances. applications.
working safely at heights 02
The Uni-8 product is well suited Detailed information to ensure
features & benefits 03
to modern building projects, safe system design and
components 04 refurbishments and can also integration is provided by our
be used for a wide range of comprehensive Uniline for
for more information about industrial safety applications. Windows software programme
our range of equipment The product is high quality, and further enhanced by a
visit our website at whilst providing excellent comprehensive installation
www.unilinesafety.com value for money. In typical network.
uniline safety systems
features & benefits
• igh quality 316 stainless
h • discreet and unobtrusive
a
steel cable fall protection solution
system offering excellent • s ystem performance
freedom of movement calculated using bespoke
• avigates corners and
n design software
building contours • onforms to EN795 Class
c
• in line energy absorbers C, OSHA 1915.159 &
protect buildings and 1926.502M, ANSI Z359.1
structures 2007 and AS/NZS 1891.2
• s pans of up to 12m (39.36ft) • CE Marked
between intermediate **some aggressive environments can
supports cause corrosion and discolouration of
stainless steel
• lectropolished components
e
provide long-term corrosion
resistance**
03
robust, functional
cost effective
Unieye End Anchorage
Connector – 316 Stainless Uni-8 90 and 45 degree
Steel, electropolished, Uni-8 System Tensioner – 316 corners. 316 stainless steel,
Serial Numbered – 67kN stainless steel with anti-seizure electropolished. Other angles
(14,773lbs) min breaking tensioning unit and tension achieved using variable
strength indicator disc bracket (UI0404-VB)
A. UE0100A
B. U8T0400/0402/0405
C&G. U80405/0406/0407/0411
uniline safety systems
D. U80800
E. UI0404
F. UG0800A

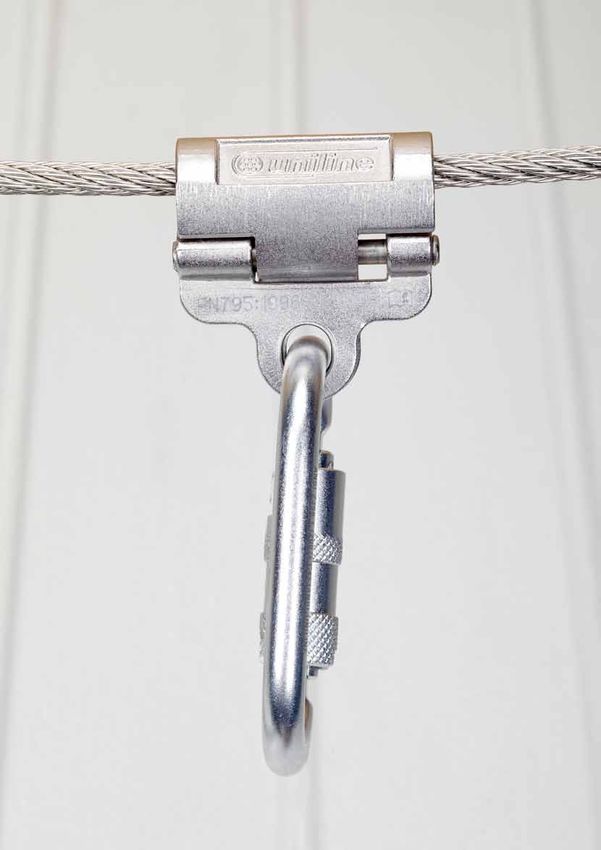

8mm (5/16”) 7x7 316 stainless Uni-8 intermediate bracket – 316 Unigrab Attachment Device
steel cable – min breaking stainless steel, electropolished. weighs only 0.29kg (0.64lbs)
strength 38kn (8,542lbf). Variable positioning available and fits in the palm of your
to suit a range of applications. hand. Can be attached at any
Re-orientates load in the event point along the system. 316
of a fall. stainless steel, electropolished
and serial numbered.
H I A Unieye (UE0100A)
J
G B 8mm Roll Swage 0.8kN Tensioner (U8T0400)*
8mm Hex Swage 0.8kN Tensioner (U8T0402)
8mm Swageless 0.8kN Tensioner (U8T0405)*
F C 8mm Tube Only 45° (U80406)
D 7x7 8mm Stainless Steel Cable (U80800)
E E 8mm Intermediate Bracket (UI0404) 04
F UniGrab (UG0800A)
D
G 8mm Tube Only 90° (U80405)
H 8mm Roll Swage Toggle (U8S0401)*
C 8mm Hex Swage Toggle (U8S0403)
8mm Swageless Toggle (U8S0406)*
B
I Inline Energy Absorber (UA0600)
A
J Wall Plate Anchor (UP0112A)
*This component is different from the one illustrated.
Fasteners for fixing to the structure are not supplied. For more detailed
component information refer to the individual datasheets.
Inline Force Management Wall Anchor Plate – 316
Uni-8 Swage Toggles – 316 Energy Absorber – 316 Stainless Stainless Steel, electropolished.
Stainless Steel Steel, electropolished 50kN min breaking strength
H. U8S0401/0403/0404
I. UA0600
uniline safety systems
Uniline Safety Systems is a leading international manufacturer of fall protection products
and systems. Through a combination of expert knowledge and practical experience,
we can help our customers reduce risk and increase safety when working at height.
Uniline’s comprehensive range of products offers fully compliant, practical solutions for structures
of all types, in all industries. Our ethos of delivering quality, service, training and support for our
customers has earned Uniline a deserved reputation for excellence around the world.
Operating through specialist safety companies in over 25 countries, Uniline provides local
support and installation services to meet the specific safety objectives of all our customers.
