                                                                                                       The Raman Laser Spectrometer for the ExoMars
                                                                                                                  Rover Mission to Mars

                                                                                           Fernando Rull,1 Sylvestre Maurice,2 Ian Hutchinson,3 Andoni Moral,4 Carlos Perez,4 Carlos Diaz,4 Maria Colombo,4
                                                                                             Tomas Belenguer,4 Guillermo Lopez-Reyes,1 Antonio Sansano,1 Olivier Forni,2 Yann Parot,2 Nicolas Striebig,2
                                                                                               Simon Woodward,5 Chris Howe,5 Nicolau Tarcea,6 Pablo Rodriguez,4 Laura Seoane,4 Amaia Santiago,4
                                                                                                 Jose A. Rodriguez-Prieto,4 Jesús Medina,1 Paloma Gallego,4 Rosario Canchal,4 Pilar Santamarı́a,4
                                                                                                                 Gonzalo Ramos,4 and Jorge L. Vago7; on behalf of the RLS Team
Downloaded by 157.88.139.133 from www.liebertpub.com at 03/25/19. For personal use only.

                                                                                           Abstract

                                                                                           The Raman Laser Spectrometer (RLS) on board the ESA/Roscosmos ExoMars 2020 mission will provide
                                                                                           precise identification of the mineral phases and the possibility to detect organics on the Red Planet. The RLS
                                                                                           will work on the powdered samples prepared inside the Pasteur analytical suite and collected on the surface and
                                                                                           subsurface by a drill system. Raman spectroscopy is a well-known analytical technique based on the inelastic
                                                                                           scattering by matter of incident monochromatic light (the Raman effect) that has many applications in labo-
                                                                                           ratory and industry, yet to be used in space applications. Raman spectrometers will be included in two Mars
                                                                                           rovers scheduled to be launched in 2020. The Raman instrument for ExoMars 2020 consists of three main units:
                                                                                           (1) a transmission spectrograph coupled to a CCD detector; (2) an electronics box, including the excitation laser
                                                                                           that controls the instrument functions; and (3) an optical head with an autofocus mechanism illuminating and
                                                                                           collecting the scattered light from the spot under investigation. The optical head is connected to the excitation
                                                                                           laser and the spectrometer by optical fibers. The instrument also has two targets positioned inside the rover
                                                                                           analytical laboratory for onboard Raman spectral calibration. The aim of this article was to present a detailed
                                                                                           description of the RLS instrument, including its operation on Mars. To verify RLS operation before launch and
                                                                                           to prepare science scenarios for the mission, a simulator of the sample analysis chain has been developed by the
                                                                                           team. The results obtained are also discussed. Finally, the potential of the Raman instrument for use in field
                                                                                           conditions is addressed. By using a ruggedized prototype, also developed by our team, a wide range of
                                                                                           terrestrial analog sites across the world have been studied. These investigations allowed preparing a large
                                                                                           collection of real, in situ spectra of samples from different geological processes and periods of Earth evolution.
                                                                                           On this basis, we are working to develop models for interpreting analog processes on Mars during the mission.
                                                                                           Key Words: Raman spectroscopy—ExoMars mission—Instruments and techniques—Planetary sciences—Mars
                                                                                           mineralogy and geochemistry—Search for life on Mars. Astrobiology 17, 627–654.

                                                                                           1. Introduction                                                      Raman spectroscopy is based on the analysis of spectral
                                                                                                                                                             fingerprints due to the inelastic scattering of light when

                                                                                           T  he Raman Laser Spectrometer (RLS) is part of the
                                                                                              Pasteur instrument suite (together with MicrOmega and
                                                                                           MOMA) accommodated in the analytical laboratory drawer
                                                                                                                                                             interacting with matter.
                                                                                                                                                                When monochromatic radiation of wavenumber n0 im-
                                                                                                                                                             pinges on a transparent material—such as a liquid, a gas, or
                                                                                           (ALD) on board the ExoMars rover, scheduled to land on            a crystal—most of the radiation is transmitted in the same
                                                                                           Mars on March 19, 2021.                                           direction of incidence, but a small portion is scattered in all

                                                                                             1
                                                                                               Unidad Asociada UVa-CSIC al Centro de Astobiologı́a, University of Valladolid, Valladolid, Spain.
                                                                                             2
                                                                                               IRAP, University Paul Sabatier—CNRS—Obs. Midi-Pyrénées, Toulouse, France.
                                                                                             3
                                                                                               Department of Physics and Astronomy, Space Research Centre, University of Leicester, Leicester, United Kingdom.
                                                                                             4
                                                                                               Instituto Nacional de Técnica Aeroespacial (INTA), Madrid, Spain.
                                                                                             5
                                                                                               Rutherford Appleton Laboratory Space, Didcot, United Kingdom.
                                                                                             6
                                                                                               Institute of Physical Chemistry, Friedrich-Schiller University, Jena, Germany.
                                                                                             7
                                                                                               ESA-ESTEC, Noordwijk, the Netherlands.

                                                                                                                                                          627
THE RAMAN LASER SPECTROMETER FOR THE EXOMARS ROVER MISSION TO MARS - UVADOC
628                                                                                                                 RULL ET AL.

                                                                                           directions. If the spectral distribution of the scattered radi-     and by Jean Cabannes, Aimé Cotton, and Yves Rocard in
                                                                                           ation is analyzed, the highest intensity is found at the same       France (Rocard, 1928). Old references to this effect in
                                                                                           wavenumber n0 (of the incident light), but a tiny spectral          the Russian and French literature contain the names of
                                                                                           component can be observed at wavenumbers n0 – nm. This              the correspondent codiscoverers. Only, after the 60s did the
                                                                                           nm shift is a result of the incident light’s interaction with the   inelastic scattering of light become widely known as the
                                                                                           atomic vibration modes characteristic of the illuminated            Raman effect in scientific literature.
                                                                                           material.                                                              The observed Raman spectrum of a molecule represents
                                                                                              The radiation scattered with the same incident wave-             its vibrational modes, that is, the collective motions of all
                                                                                           number (energy or wavelength) is called the Rayleigh scat-          the atoms vibrating with the same frequency, synchroni-
                                                                                           tering. The radiation components scattered with the pair of         cally, with respect to their equilibrium position and with
                                                                                           wavenumbers n0–nm and n0+nm receive the name of Raman               different amplitudes. The description of the vibrations is
                                                                                           effect—after the Indian physicist Chandrasekhara Venkata            made in terms of the normal modes of vibration and each of
                                                                                           Raman, and his collaborator K. S. Krishnan observed it for the      these modes of vibration is represented by a normal coordinate.
                                                                                           first time in Calcutta at the beginning of 1928 (Raman and          For a nonlinear molecule or atomic system of N atoms, the
                                                                                           Krishnan, 1928). The Raman spectrum consists of a spectral          number of normal modes/coordinates (and therefore possible
                                                                                           distribution of wavenumbers at both sides of the incident           vibrations) is 3N–6 (for a detailed study of the molecular vi-
                                                                                           wavenumber light (Fig. 1). The bands at wavenumbers n0–nm           brations, please refer to Wilson et al., 1955; Ferraro and Zio-
                                                                                           are referred as the Stokes Raman bands, whereas the bands at        mek, 1969; Poulet and Mathieu, 1970; Rull, 2012).
                                                                                           wavenumbers n0+nm are called the anti-Stokes Raman bands               Raman scattering is a very weak effect. Its intensity is
Downloaded by 157.88.139.133 from www.liebertpub.com at 03/25/19. For personal use only.

                                                                                           (Long, 1976, 2002).                                                 with a function of the electronic polarization induced by the
                                                                                              The discovery of the Raman effect is an interesting his-         exciting radiation in the sample’s molecules or atoms linked
                                                                                           torical subject because the same phenomenon was observed            by chemical bonds. The physical property involved in the
                                                                                           almost simultaneously by Leonid Mandelstam and Grigory              expression of the Raman process is the first derivative of
                                                                                           Landsgberg in Russia (Landsberg and Mandelstam, 1928)               the electronic polarizability. The Raman effect intensity can

                                                                                           FIG. 1. The RLS evolution line with the main steps during the development process. It is interesting to note the period in
                                                                                           which several options for the combined Raman-LIBS were analyzed. RLS, Raman Laser Spectrometer.
THE RAMAN LASER SPECTROMETER FOR THE EXOMARS ROVER MISSION TO MARS - UVADOC
RAMAN, EXOMARS                                                                                                                 629

                                                                                           be interpreted in terms of the general radiation–matter in-         accommodated in the rover and used to analyze samples.
                                                                                           teraction framework. Starting with the first prediction of          We also discuss the Raman technique’s synergies with other
                                                                                           inelastic scattering of light made by Adolf Smekal in 1923          instruments in the payload. Finally, we present the out-
                                                                                           (Smekal, 1923), several models have been developed to               come of experiments performed over the past few years
                                                                                           estimate the Raman intensity of molecules, gases, liquids,          with a simulator of the Raman operation mode and with
                                                                                           and crystals using classical and quantum mechanics de-              science portable prototypes at the field while preparing the
                                                                                           scription. A vast literature is available covering its de-          instrument.
                                                                                           scription, interpretation, and applications (Szymanski, 1967;
                                                                                           Long, 1977, 2002; Slater, 2001; Rull, 2012).
                                                                                                                                                               2. The RLS History
                                                                                              Raman scattering intensity follows the same fourth power
                                                                                           law as Rayleigh scattering: the intensity of the Stokes and            The RLS in its current configuration is the result of a long
                                                                                           anti-Stokes Raman bands are proportional to (n0 – nm)–4.            process and continuous evolution that began with the
                                                                                           This fact has consequences for the design of the excitation         EXLIBRIS proposal presented by Maurice and Rull (2003)
                                                                                           radiation source and will be discussed in detail later on.          on behalf of an international consortium in response to the
                                                                                              The Raman technique remained a curiosity in physics              Pasteur call for ideas issued by ESA on May 2003 (ESA,
                                                                                           laboratories for many years until the discovery of the laser—       letter Number 3, 2004). EXLIBRIS envisaged a combined
                                                                                           the ideal excitation source. A great expansion of Raman             Raman-LIBS instrument, accommodated on a mast, which
                                                                                           applications ensued as a result of its coupling with the mi-        works at a distance of *2.5 m and uses a small ND:YAG
                                                                                           croscope (to give micro-Raman) (Delhaye and Damelincourt,           pulsed laser. Although the standoff mode was not consid-
Downloaded by 157.88.139.133 from www.liebertpub.com at 03/25/19. For personal use only.

                                                                                           1975; Damelincourt, 1979; Rosasco, 1980; Delhaye et al.,            ered for the mission, the instrument was selected as part of
                                                                                           1996), and also thanks to the use of optical fibers and, more       the Pasteur payload.
                                                                                           recently, to the technical advances derived from the minia-            At the same time, other proposals were also presented:
                                                                                           turization of optics and detectors (Pelletier, 1999; McCreery,      GENTNER, for a Raman-LIBS spectrometer working in
                                                                                           2000; Lewis and Edwards, 2001; Dubessy et al., 2012). At            contact mode—led by E. Jessberger ( Jessberger and Cas-
                                                                                           present, the number of applications of Raman spectroscopy is        tellucci, 2003)—and MIRAS, a combination of microscopy
                                                                                           huge; in material science, chemistry, pharmacy, health sci-         and UV Raman spectroscopy—led J. Popp (Popp and Thomas,
                                                                                           ences, and geology, among many others.                              2003).
                                                                                              The main advantages of the Raman technique are as                   Because of the synergies between these concepts and the
                                                                                           follows: (1) it is nondestructive, given the laser irradiance       relationship between the members of the different teams, a
                                                                                           on the sample is below the threshold to induce thermal              joint international consortium was formed for the develop-
                                                                                           damage. This is critical for organic samples and also for           ment of a combined Raman-LIBS instrument among Spain,
                                                                                           thermolabile materials; (2) no sample preparation needed;           France, the United Kingdom, Germany, and the Netherlands.
                                                                                           (3) it can be used in micro- or macromodes, at close or at             The instrument was foreseen to work in contact mode—
                                                                                           long distances, with no physical contact with the samples;          both outside the rover on surface samples with an optical
                                                                                           (4) it is very fast (spectra in favorable conditions take less      head attached to the rover’s robotic arm, and inside the rover
                                                                                           than a fraction of second); and (5) the spectral bands provide      with another optical head analyzing cores obtained by the
                                                                                           definitive characterization of the irradiated material’s com-       drill. The robotic arm, the drill, and the sample preparation
                                                                                           position. These advantages are also the reason why Raman            and distribution system were part of the service instruments
                                                                                           was proposed as a powerful analytical technique for plane-          envisaged in the initial ExoMars Pasteur payload (ExoMars
                                                                                           tary exploration (Wang et al., 1998; Ellery and Wynn-               Mission Configuration proposed at the ESA’s ESWG#2,
                                                                                           Williams, 2003; Popp and Schmitt, 2004).                            31_August-2_September 2005).
                                                                                              To date, Raman spectroscopy has never been used for                 The first Raman-LIBS prototype was developed as an
                                                                                           space or planetary exploration although a previous devel-           elegant bread board (BB) under an invitation to tender
                                                                                           opment led by H. Hasking and A. Wang was foreseen for the           emitted by ESA on June 2005, with TNO as the company
                                                                                           twin MER rovers, Spirit and Opportunity (Wang et al.,               responsible for its technical realization, and with Monocrom
                                                                                           1998, 2003). The RLS instrument for ExoMars was the first           in charge of developing the excitation lasers at 1064 nm
                                                                                           one selected for a rover mission on Mars. However, the              (pulsed) and 660 nm (CW) (Bazalgette Courreges-Lacoste
                                                                                           current launch schedule for ExoMars coincides with that of          et al., 2007).
                                                                                           the NASA Mars 2020 mission, opening new and interesting                From this former concept the instrument evolved with the
                                                                                           possibilities for the Raman technique since two Raman in-           mission. The following stages took place: (1) elimination of
                                                                                           struments are being developed for Mars 2020. One named              the rover’s robotic arm and therefore only Raman-LIBS in-
                                                                                           SHERLOC is a resonance Raman and luminescence spec-                 side, (2) no LIBS and only Raman on solid cores inside, and
                                                                                           trometer that uses deep-UV laser excitation (Beegle et al.,         (3) finally only Raman inside on powdered samples (the
                                                                                           2014) and works at close distance. The second (SuperCam)            ExoMars Payload: confirmation of the payload suite follow-
                                                                                           is a combined instrument implementing several techniques            ing restructuring of the mission; ESAPB_HME [2009]
                                                                                           (LIBS, Raman, time resolved fluorescence [TRF], infrared            45.REV.1.1 14-May [2009]). In Figure 1, the historical evo-
                                                                                           [IR], and visible) working in standoff mode (Gasnault et al.,       lution of the Raman instrument for ExoMars is presented.
                                                                                           2015). The LIBS, Raman and TRF spectroscopies are ex-                  In the current configuration, the RLS instrument will
                                                                                           cited with a pulsed laser.                                          operate on samples collected from the surface and the
                                                                                              In this article, the interest is focused on the description of   subsurface (down to 2 m) with the ExoMars rover drill. The
                                                                                           the RLS instrument. We explain how it will contribute to the        samples will be crushed into a fine powder with a grain
                                                                                           objectives of the ExoMars 2020 mission, how it will be              distribution having as average grain size 200–250 mm (Vago
THE RAMAN LASER SPECTROMETER FOR THE EXOMARS ROVER MISSION TO MARS - UVADOC
630                                                                                                                 RULL ET AL.

                                                                                           et al., 2017). Thereafter, one of two dosing stations will        the evaluation of all aspects previously discussed favors the
                                                                                           deposit powder in a sample container in the carrousel. The        choice of an excitation in the visible. The fluorescence limi-
                                                                                           carrousel will then move to flatten the surface of the powder     tations will be analyzed in detail in the operations mode
                                                                                           before presenting it to the ALD instruments for analysis.         section.
                                                                                              Since context information, such as the relationship be-           The spectrometer selection also poses some questions that
                                                                                           tween the different minerals, is necessary to clearly identify    deserve discussion. Although for space applications, size
                                                                                           a rock, the collected sample will be observed by way of a         and weight are the main driving parameters, the instru-
                                                                                           high-resolution camera (PanCam) and the close-up imager           ment’s overall spectral performance is of great importance,
                                                                                           (CLUPI) before crushing. The physical modifications suf-          in particular, spectral range, spectral resolution, and optical
                                                                                           fered by the sample during the crushing and distribution          response (throughput).
                                                                                           process may have an impact on the resulting Raman spectra            Under these conditions, and considering that having no
                                                                                           (Foucher et al., 2013). However, analyzing powder can have        mobile parts is highly desirable, the main possibilities avail-
                                                                                           its positive counterpart in that it seems to facilitate the de-   able to the designer are those afforded by transmission and
                                                                                           tection of minor phases in some cases (Lopez-Reyes et al.,        reflection gratings. In the case of RLS, after a detailed analysis
                                                                                           2013a).                                                           of several options, the team selected a transmission holo-
                                                                                              Along this process, two main aspects were the objects          graphic grating concept. The main advantage of this optical
                                                                                           of special attention: (1) the laser wavelength and (2) the        configuration is that the spectral resolution does not depend
                                                                                           spectrometer. The laser selection (532 nm in this case) was       on focal length—as is the case for a reflection configuration
                                                                                           based on several criteria. One is the possibility to induce       (Pelletier, 1999; Slater et al., 2001; Dubessy et al., 2012), thus
Downloaded by 157.88.139.133 from www.liebertpub.com at 03/25/19. For personal use only.

                                                                                           fluorescence on the sample. Fluorescence is considered ‘‘the      allowing a compact and luminous geometry in which light
                                                                                           major enemy of Raman’’ because this electronic effect in-         traverses the grating as a collimated beam.
                                                                                           hibits to a large extent the observation of vibrational bands.
                                                                                           Other effects, such as the grain size on powdered samples,        3. RLS Technical Description
                                                                                           can also induce a strong background that harms spectral
                                                                                           quality (Foucher et al., 2013).                                      The RLS instrument comprises the following three main
                                                                                              If only fluorescence is taken into account, then the use of    units: the spectrometer unit (SPU), the optical head unit
                                                                                           long wavelength excitations and, in particular, IR excitation     (iOH), and the electronics control unit (ICEU), which also
                                                                                           (i.e., 1064 nm) would be the right choice. However, other         includes the laser excitation source. Other elements are the
                                                                                           aspects have to be considered as well. Among those, the           calibration target (CT), to be used on ground and during the
                                                                                           Raman efficiency—in terms of its fourth power law—and             mission; the electrical harness (EH) for power and signal
                                                                                           the detector’s spectral response are the most important.          communication between units; and the optical harness (OH)
                                                                                              As it has been previously mentioned, the intensity of          connecting the laser to the optical head, both for illumi-
                                                                                           Raman scattering is proportional to (l0–l)–4 or (n0–n)4—if        nating the sample and for collecting the Raman light and
                                                                                           wavelength or wavenumber are, respectively, used. Excita-         delivering it to the spectrometer.
                                                                                           tions in the UV (at 250 nm) and in the visible (at 500 nm)           The SPU, the laser, the iOH, the CT, and the general co-
                                                                                           are, respectively, around 300 and 20 times more efficient         ordination of the whole instrument undertaking are the re-
                                                                                           than at 1064 nm. Another important consideration is the           sponsibility of the Spanish team. The ICEU is under the
                                                                                           absolute wavenumber or wavelength at which a particular           responsibility of the French team, who is also developing the
                                                                                           Raman band appears. This position depends on the excita-          power board. The CCD detector, the front-end electronics
                                                                                           tion’s l0 (or n0). The whole Raman shift covers normally          (FEE), and the electronics board controlling the CCD detector
                                                                                           the range 0–4000 cm–1. A band observed at the limit of            are contributed by the UK team. The OH connecting the laser
                                                                                           4000 cm–1 has an absolute position of 625 nm when excited         to the iOH and the iOH to the SPU are provided by the Ger-
                                                                                           at 500 nm, and 1852.5 nm when excited at 1064 nm. Again,          man team. A general overview of the RLS team organization
                                                                                           this spectral region is around 60 times stronger with the         is presented in Figure 2.
                                                                                           500 nm excitation than with a 1064 nm excitation taking into         The RLS instrument has been designed to fulfill the
                                                                                           account the fourth power factor (see Edwards and Chalmers,        ExoMars scientific requirements for the rover’s Raman spec-
                                                                                           2005; Dubessy et al., 2012 for details).                          trometer. They are (exm-rl-icd-esa-00008-1.0-RLS_E-ICD):
                                                                                              For the ExoMars scientific objectives, the identification of
                                                                                                                                                               (1) Identify organic compound and search for life;
                                                                                           CH and OH functional groups is of great relevance. As they
                                                                                                                                                               (2) Identify mineral products and indicators of biologic
                                                                                           appear as Raman shift in the range 2800–3650 cm–1, the use
                                                                                                                                                                   activity;
                                                                                           of an excitation that allows a better response in this spectral
                                                                                                                                                               (3) Characterize mineral phases produced by water-
                                                                                           range is of particular importance.
                                                                                                                                                                   related processes;
                                                                                              The second aspect guiding laser wavelength selection is
                                                                                                                                                               (4) Characterize igneous minerals and their alteration
                                                                                           detector efficiency. Most detectors show the maximum
                                                                                                                                                                   products;
                                                                                           response in the visible, with a decrease in efficiency of
                                                                                                                                                               (5) Characterize the water/geochemical environment as a
                                                                                           almost half when approaching the IR. Moving the excita-
                                                                                                                                                                   function of depth in the shallow subsurface.
                                                                                           tion to the red and IR also shifts the Stokes-Raman bands’
                                                                                           absolute position, thus reducing the possibility to observe          The RLS instrument will operate inside the rover’s ALD
                                                                                           appropriately the key spectral features related to the CH         using its internal optical head. A typical sequence of oper-
                                                                                           and OH groups.                                                    ations is as follows. The rover uses its drill to collect a
                                                                                              Although specific modern detectors show enhanced re-           sample, which is imaged by PanCam and CLUPI. Shortly
                                                                                           sponse at the two wings of the visible spectrum (UV and IR),      thereafter the sample is transferred to the ALD. Once in the
THE RAMAN LASER SPECTROMETER FOR THE EXOMARS ROVER MISSION TO MARS - UVADOC
RAMAN, EXOMARS                                                                                                            631
Downloaded by 157.88.139.133 from www.liebertpub.com at 03/25/19. For personal use only.

                                                                                           FIG. 2. The RLS team orga-
                                                                                           nization and key personnel.

                                                                                           ALD, a rock crusher reduces the sample to particulate           well-collimated beam. With the fiber NA = 0.22 and a col-
                                                                                           matter that is deposited in a small, refillable container. A    limator a focal length of 69.71 mm, the two-doublet lenses
                                                                                           carousel can position this refillable container under each of   system reaches by design a #F-number of 2.27. The col-
                                                                                           the ALD instruments’ observation positions.                     lection optics is a four-lenses subsystem with a focal length
                                                                                              In Figure 3, the RLS instrument block diagram is pre-        of 48.82 mm and #F-number 1.59. The lenses are manu-
                                                                                           sented, and in Figure 4, its accommodation inside the rover.    factured with space application glass from SCHOTT Co.
                                                                                                                                                              The dispersive element is a transmission-volume-phase
                                                                                                                                                           holographic grating from Wasatch with 1800 lines/mm. This
                                                                                           4. SPU Description
                                                                                                                                                           configuration allows covering the optical range from 533 to
                                                                                              The SPU is a transmission spectrograph that uses a ho-       676 nm with a spectral resolution between 6 and 8 cm-1.
                                                                                           lographic grating, which disperses the Raman signal that is        The dispersed Raman lines are focused on the CCD de-
                                                                                           projected on the charge-coupled device (CCD) detector           tector. This detector is an e2v technologies’ CCD device
                                                                                           operated at cold temperature (Fig. 5). The spectrometer         working in back-illuminated configuration and mounted in
                                                                                           main subsystems are (1) the collimating and collecting op-      SiC carrier. The full frame has 2048 · 512 pixels (15 mm
                                                                                           tics, (2) the dispersive grating element, and (3) the de-       size) (Fig. 6).
                                                                                           tector. The collimating optics collects the light from the         To reduce noise and improve the scientific performance, the
                                                                                           50-mm-diameter entrance optical fiber (which is fixed to the    detector is operated in the range -10C to -40C. This tem-
                                                                                           spectrometer by a MiniAVIM connector) and produces a            perature is guaranteed by a current-controlled thermoelectric
THE RAMAN LASER SPECTROMETER FOR THE EXOMARS ROVER MISSION TO MARS - UVADOC
Downloaded by 157.88.139.133 from www.liebertpub.com at 03/25/19. For personal use only.

                                                                                                                            FIG. 3.   The Raman instrument block diagram.

                                                                                           FIG. 4. The RLS accommodation inside the rover. In red the ICEU box, in green the SPU, and in yellow the iOH. The
                                                                                           optical and electrical hardness of the units is also presented. SPU, spectrometer unit.

                                                                                                                                                 632
THE RAMAN LASER SPECTROMETER FOR THE EXOMARS ROVER MISSION TO MARS - UVADOC
RAMAN, EXOMARS                                                                                                                633
Downloaded by 157.88.139.133 from www.liebertpub.com at 03/25/19. For personal use only.

                                                                                           FIG. 5. The SPU showing the collimating and collecting optic barrels. The CCD housing is placed at the left. In the figure
                                                                                           the current EQM is presented. The SPU mass is 0.85 kg. EQM, engineering and qualification model.

                                                                                           cooler (TEC) system placed in contact with the detector. The       collecting the scattered radiation from the same area. The iOH
                                                                                           SPU is also thermally controlled by means of three (in-parallel)   is, respectively, connected to the laser and to the spectrometer
                                                                                           heaters, minimizing thermoelastic stress that may degrade the      by optical fibers of 50-mm diameter and NA = 0.22. The iOH
                                                                                           optical quality of the system during operation at different        includes a focusing mechanism to compensate for the (likely)
                                                                                           temperatures on Mars.                                              irregular disposition of the mineral grains on the sample sur-
                                                                                                                                                              face (Fig. 7).
                                                                                                                                                                  Although the iOH excitation and collection geometries at the
                                                                                           5. Internal Raman Optical Head (iOH) Description
                                                                                                                                                              sample are the same, the excitation and collection paths are
                                                                                              The iOH has the double purpose of focusing the incident         different. A key element in the excitation path is the band-pass
                                                                                           laser light on the sample with a 50 mm spot diameter and of        filter for removing unwanted radiation (Raman, background)

                                                                                           FIG. 6. The CCD detector for RLS
                                                                                           with its housing for fixation in the
                                                                                           SPU body.
THE RAMAN LASER SPECTROMETER FOR THE EXOMARS ROVER MISSION TO MARS - UVADOC
634                                                                                                                    RULL ET AL.

                                                                                                                                                                   6. Instrument Control and Excitation
                                                                                                                                                                   Unit (ICEU) Description
                                                                                                                                                                      The ICEU is composed of three electronic boards (DC/
                                                                                                                                                                   DC power board, DPU board, and FEE board). The ICEU
                                                                                                                                                                   also contains the excitation unit (the laser) and its control
                                                                                                                                                                   (Fig. 9).
                                                                                                                                                                      The power (DC/DC) board is responsible for conditioning
                                                                                                                                                                   the rover-provided +28 V primary voltage into the required
                                                                                                                                                                   unit and subunit voltages in a highly stable and safe con-
                                                                                                                                                                   figuration. Within this board is also accommodated the laser
                                                                                                                                                                   driver, which controls—by using a very accurate closed loop
                                                                                                                                                                   (PID)—the current supply for the laser pumping diode,
                                                                                                                                                                   guarantees stable optical power output from the laser.
                                                                                                                                                                      The processor (DPU) board carries out several key
                                                                                                                                                                   functions for the Raman spectrometer control, spectral op-
                                                                                                                                                                   eration, data storage, and communications with the rover.
                                                                                                                                                                   The DPU main functionalities are described below:
                                                                                                                                                                     – To process the received video data coming from the
Downloaded by 157.88.139.133 from www.liebertpub.com at 03/25/19. For personal use only.

                                                                                                                                                                       FEE.
                                                                                                                                                                     – To execute the firmware for the actuator drivers to al-
                                                                                                                                                                       low autofocus operation in the iOH.
                                                                                                                                                                     – To implement the telemetry acquisition function.
                                                                                                                                                                     – To provide data storage (both for scientific data and
                                                                                                                                                                       software code).
                                                                                                                                                                     – To communicate with the rover via its CAN-Bus.
                                                                                             FIG. 7.     The RLS (EQM) optical Raman head (iOH).
                                                                                                                                                                     – To provide clocking plus power up reset functions.
                                                                                                                                                                     – To provide the reception (digitalization) and condition
                                                                                                                                                                       of the thermal sensors and voltage chain.
                                                                                           induced by the laser in the fiber. In addition the fiber’s surface is     – To provide the firmware for the thermal control.
                                                                                           polished with an angle for avoiding backscatter radiation re-
                                                                                           turning to the laser unit.                                                 The FEE board provides the required biasing and control
                                                                                              The combination of a notch- and a long-pass filter in the            signals to drive the CCD detector on the SPU unit. The
                                                                                           collection path removes laser reflection and Rayleigh scattering        commanding of the FEE function comes from the FPGA
                                                                                           with an OD of 10 (Fig. 8). The autofocus mechanism can move             (processor module inside the ICEU) and the biasing is fed
                                                                                           the focusing optics along a –1 mm travel range using a linear           through from the internal supply lines generated at the
                                                                                           ball bearing guide. A linear encoder allows determining the             power module. The FEE also receives the video data coming
                                                                                           optical position, which is optimized by evaluating the low              from the CCD (analogue), digitalizing it and transmitting it
                                                                                           intensity of the laser reflection in a closed-loop algorithm. The       to the processor module.
                                                                                           spatial resolution achievable is of the order of –2 mm.                    The excitation laser unit located inside the ICEU is a
                                                                                                                                                                   critical part of the Raman instrument. The laser must ensure
                                                                                                                                                                   the required wavelength, narrow bandwidth, and intensity
                                                                                                                                                                   required for stimulating the Raman effect in the mineral
                                                                                                                                                                   grains during instrument operation, maintaining the stability
                                                                                                                                                                   of these parameters under all conditions on Mars. In par-
                                                                                                                                                                   ticular, it is the temperature range that imposes the toughest
                                                                                                                                                                   challenge to the laser. To guaranty an adequate laser exci-
                                                                                                                                                                   tation during the whole mission, we have implemented a
                                                                                                                                                                   redundant configuration using two diode lasers optically
                                                                                                                                                                   coupled to the exciting optical fiber.
                                                                                                                                                                      The laser has required a long (more than 7 years) and
                                                                                                                                                                   very hard effort from the Spanish team. Its design started
                                                                                                                                                                   from scratch, without previous space heritage in the sci-
                                                                                                                                                                   entific and technical teams or in the industry responsible
                                                                                                                                                                   (MONOCROM).

                                                                                                                                                                   6.1. Laser description
                                                                                                                                                                      The laser diode is a q-mount wavelength stabilized
                                                                                                                                                                   technology pump diode with an optical output at 808 nm
                                                                                                                                                                   working in the temperature range from 15C to 45C.
                                                                                           FIG. 8. The iOH optical design showing the excitation                   Nevertheless, for obtaining optimum, repeatable, and stable
                                                                                           and collection paths.                                                   performance, a fixed working temperature (around 25C,
THE RAMAN LASER SPECTROMETER FOR THE EXOMARS ROVER MISSION TO MARS - UVADOC
RAMAN, EXOMARS                                                                                                             635
Downloaded by 157.88.139.133 from www.liebertpub.com at 03/25/19. For personal use only.

                                                                                           FIG. 9. The electronic control unit with the different boards stacked in a vertical configuration. From top to bottom: FEE
                                                                                           board, FPGA board, PWR board, laser, optical fibers, and the baseplate assembly. FEE, front-end electronics.

                                                                                           with 0.1C thermal resolution) was set. The laser’s emission     beams has to be performed. This is made by using a po-
                                                                                           is very stable (wavelength position below –50 pm), quite         larization rotator, which consists of a quartz half wave plate
                                                                                           narrow (FWHM below 30 pm). The power output ranges               (532 nm) turning 90 the polarization of the redundant laser
                                                                                           between 10 and 20 mW.                                            channel with respect to the primary channel. This rotator is
                                                                                              The laser diode is directly focused on the active medium      placed in the redundant path, after the end mirror and before
                                                                                           by way of a microlens that allows a high density of pump-        the polarizer cube.
                                                                                           ing. This consists in a neodymium-doped (1%) yttrium-               Another device included in the laser is the double po-
                                                                                           aluminum garnet ceramic (Nd:YAG), generating a 1064 nm           larization beam splitter at 45, which sends most of the
                                                                                           emission. Its front face is coated with a reflective material    green light (94.5%) toward the output receptacle, but lets
                                                                                           specifically designed for 1064 and 532 nm wavelengths, so        pass a small amount (5.5%) through to the feedback pho-
                                                                                           then acting as a front mirror for the laser cavity.              todiode—this is needed for implementing an accurate output
                                                                                              To emit at 533 nm, a second harmonic generator (SHG)          power control by means of a PID closed loop. These coat-
                                                                                           crystal is used. The SHG—or frequency doubler—requires a         ings let pass both polarization directions, the one coming
                                                                                           fine-tuned thermal stabilization to perform efficiently. In      from the inner diode and the one from the outer diode, to
                                                                                           this design, a beta-barium borate SHG crystal was used.          allow for feedback control of both channels at once. In
                                                                                              A difficult aspect related to the redundant laser design is   addition, as before, the mirror does not let through more
                                                                                           combining both beams in a single output fiber. A solution        than 5% of the IR radiation (808 and 1064 nm).
                                                                                           was found by using a polarizer cube, which can let through          This system also includes a mirror with a hole. The hole
                                                                                           two beams with linear polarization perpendicular to each         in the mirror allows either of the two linearly polarized
                                                                                           other. For example, the primary beam will be horizontal and      beams (not existing at the same time) to go through toward
                                                                                           the redundant beam will be vertical. The polarizer cube lets     the focusing lens in the optical receptacle. After the sample
                                                                                           through the beam coming from the outermost channel and           is illuminated, nonlinearly polarized light is reflected back
                                                                                           reflects the beam from the internal channel. In this way, both   from it through the output fiber and the lens. The reflected
                                                                                           beams can trace the same geometrical path toward the             beam has a diameter slightly larger than the hole and
                                                                                           output fiber, illuminating the same spot. Of course, to per-     therefore some of the light is reflected by the mirror and
                                                                                           form such combination, a perpendicular polarization of both      directed toward the autofocus photodiode. The better the in-
THE RAMAN LASER SPECTROMETER FOR THE EXOMARS ROVER MISSION TO MARS - UVADOC
636                                                                                                               RULL ET AL.
Downloaded by 157.88.139.133 from www.liebertpub.com at 03/25/19. For personal use only.

                                                                                           FIG. 10. Left: The optical RLS (EQM) laser design in the redundant configuration. It is possible to see the main laser
                                                                                           components: two diodes, the mirrors, and the cube join both beams. Right: The hermetic laser housing.

                                                                                           focus position reached by the optical head focuser, the           several minerals, single crystals, and polymers because its
                                                                                           higher the reflected light will be on the photodiode.             spectrum shows a sufficient number of fine bands for cali-
                                                                                              The laser has to be thermally controlled, which is critical    bration purposes and also because of its mechanical, ther-
                                                                                           for stability and for achieving optimum performance. This         mal, and low outgassing properties (compatible with the
                                                                                           control is implemented by a thermoelectric module in a            mission planetary protection rules). The CT is used for RLS
                                                                                           closed PID loop with the thermal sensors. These are two           instrument calibration on Mars, and also during assembly,
                                                                                           (redundant) Pt-1000 thermal sensors placed inside the laser       integration, testing (AIT) and prelaunch activities to verify
                                                                                           housing, below the pumping diodes, for getting an accurate        the calibration and performance of the RLS instrument.
                                                                                           measure of the highest temperatures expected.                        Two identical units of the CT will be placed in the
                                                                                              All the components are placed in a laser housing made of       rover’s carrousel. One under the optical head in the sample,
                                                                                           oxygen-free, high-conductivity copper with a gold coating.        processing and distribution subsystem (SPDS) nominal
                                                                                           The main optical components are placed over KOVAR pads            (fixed) position to be used for the AIT and cruise phases
                                                                                           on the laser board by using a solder jet bump technique           allowing, if necessary, on-cruise instrument operation and
                                                                                           (Ferrando et al., 2010). Solder jet bumping is a low-stress,      calibration. Thus, this CT unit will be used during the AIT
                                                                                           highly stable, organic-free soldering technique. The tech-        phase for the verification of the instrument health and
                                                                                           nology is based on the application of small bumping drop-         performance. The second CT will be utilized during the
                                                                                           lets of soldering alloy jetted by pressurized nitrogen            operations phase, once on Mars. The reason for this is that
                                                                                           capillary. Being the solder jet bumps made with a small           the configuration of the carrousel and instruments inside
                                                                                           diameter (100–200 mm) and melted by a very precise IR             the ALD does not allow the RLS instrument to be cali-
                                                                                           laser pulse, just a small thermal stress is induced on the        brated right before operation without disturbing the mar-
                                                                                           optical components during reflow and soldering.                   tian sample surface.
                                                                                              Finally, the laser housing has an ultraclean air pressurized      On Mars, calibrating just before operating the instrument
                                                                                           environment (1 atmosphere) to avoid contamination. This           is critical for assessing with picometer resolution the laser
                                                                                           has been achieved by using a hermetic design for the              wavelength, and also the laser power, at sampling time
                                                                                           housing cover and for every component that closes the             (since both parameters are highly dependent on the laser
                                                                                           housing (photodiodes, optical receptacle, and electrical          temperature). This information will be crucial for a proper
                                                                                           feedthrough). Leak rates obtained with the hermetic sol-          interpretation of the scientific data obtained, as the position
                                                                                           dering process are below 10-8 mbar$l/s. Figure 10 shows the       of the characteristic Raman peaks can change slightly as a
                                                                                           laser optical details and the housing.                            result of temperature variations affecting the laser.

                                                                                           7. CT Description                                                 8. Electrical and Optical Harness Description
                                                                                              The RLS CT is a 1-mm-diameter disk sample of PET                  The various elements of the electrical and OH have been
                                                                                           (polyethylene terephthalate) placed on a cylindrical foot         designed to connect (electrically and optically) the RLS
                                                                                           (Fig. 11). The CT is fixed to the rover carrousel on the          instrument’s main units (SPU, iOH, and ICEU), adapting
                                                                                           Raman optical head field of view, at the same height as the       their length to the ALD layout and to the inside routing and
                                                                                           refillable sample container. PET was selected after testing       fixation needs.
RAMAN, EXOMARS                                                                                                            637
Downloaded by 157.88.139.133 from www.liebertpub.com at 03/25/19. For personal use only.

                                                                                           FIG. 11. The Raman CTs EQM (right) mounted in its support. The PET Raman spectrum (left) shows enough number of
                                                                                           fine bands covering all the instrument spectral range. CT, calibration target.

                                                                                              The EH is composed of three different elements, the EH#1       quence of actions, and these into the final sequence of tel-
                                                                                           for command and control of the optical head; the EH#2 to          ecommands that can be interpreted by the instrument.
                                                                                           thermally control the spectrometer structure and TEC of the
                                                                                           CCD; and the EH#3 for communicating with the CCD and the          10. RLS Operational Concept
                                                                                           FEE. The EH uses MicroD connectors; its design was made to
                                                                                                                                                                The measurements carried out by the RLS will be per-
                                                                                           minimize mass allowing a flexible routing and a safe operation.
                                                                                                                                                             formed as described within the ExoMars Rover Reference
                                                                                              The OH comprises two different patchcords, first the
                                                                                                                                                             Surface Mission, which includes six experiment cycles (with
                                                                                           OH#1 for sending the laser light to the optical head (and for
                                                                                                                                                             two samples each, one extracted from a surface target and
                                                                                           receiving the backscattered laser light for autofocus pur-
                                                                                                                                                             the other at depth) and two vertical surveys (with five
                                                                                           poses) and the OH#2 for taking the Raman signal back to the
                                                                                                                                                             samples each extracted at different depths). For more in-
                                                                                           SPU. The OH configuration is based on MiniAVIM 50-mm
                                                                                                                                                             formation about the Reference Surface Mission, please
                                                                                           APC connectors.
                                                                                                                                                             consult Vago et al. (2017), also in this issue.
                                                                                                                                                                The RLS instrument can analyze several points on the
                                                                                           9. Software Description                                           sample surface presented by the SPDS. This will be done
                                                                                                                                                             based on an autonomous operational concept that takes into
                                                                                              The on-board software of the RLS instrument allows
                                                                                                                                                             account the sample nature and available resources (energy,
                                                                                           performing low-level characterization and unit to system
                                                                                                                                                             time and data bandwidth). Two main complementary oper-
                                                                                           testing campaigns. The on-board software is divided into
                                                                                                                                                             ating modes have been established to optimize the experi-
                                                                                           two main software products: (1) the application software, in
                                                                                                                                                             ments on Mars.
                                                                                           charge of performing the full control of the instrument by
                                                                                           managing the iOH, CCD, thermal control, laser, CANbus                Automatic: Predefined coordinates for the complete
                                                                                           communications, and failure detection, isolation, and safe            coverage of the sample container, acquiring multiple,
                                                                                           procedures; and (2) the boot software, which performs the             consecutive spots over the sample. In this mode, the
                                                                                           initialization sequence and on-flight patching of the appli-          RLS instrument can perform a random mapping on the
                                                                                           cation software.                                                      sample surface. During automatic scanning, the rover
                                                                                              The RLS application software provides simple opera-                displaces the target following a preconfigured sequence
                                                                                           tional units so that any commanded sequence can be per-               of movements under the RLS optical head. RLS takes
                                                                                           formed in a safe manner, while allowing full operational              20 shots at regularly spaced spots on the target. RLS
                                                                                           flexibility. This operational concept is based on three levels:       can continue measuring spots by moving the SPDS
                                                                                           telecommands are the elemental operations that can be                 backward, thus analyzing more spots, until the re-
                                                                                           performed by the instrument. Predefined sequences of tele-            sources allocated for Raman measurements are
                                                                                           commands are grouped into actions, providing the building             reached. This will depend on the efficiency of each spot
                                                                                           blocks of the operation. Sequences of different actions (and          analyzed and the resources spent for their acquisitions.
                                                                                           other tasks) will be grouped in higher level building blocks         Cooperative: This entails a coordinated analysis using
                                                                                           called Tasks. During the operational phase of the mission,            the ALD instruments. An on-board process running on
                                                                                           the Activity Plan, built as a sequence of tasks and actions,          the rover’s computer analyses the results obtained by
                                                                                           will be interpreted by the rover to handle the instrument             the imaging-IR spectrometer MicrOmega to determine
                                                                                           operation by translating tasks into the corresponding se-             particularly interesting targets for RLS and MOMA-
638                                                                                                             RULL ET AL.

                                                                                                 LDMS (please see Vago et al. [2017], this issue). The         consists in quenching the fluorescence emission by
                                                                                                 first instrument to analyze the sample grains, MicrO-         keeping the laser on for several seconds/minutes and
                                                                                                 mega, will acquire multispectral images of the sample         reading spectra periodically. The effect of the laser is to
                                                                                                 in a relatively wide area, providing a general view of        saturate the energy states of the fluorescence emission,
                                                                                                 the materials. In case something of special interest is       resulting in a gradual decrease of the background.
                                                                                                 found, the SPDS will position the sample under the            When the difference between two consecutive spectra
                                                                                                 RLS instrument spot for detailed analysis with Raman          became stable and lower than the precedent difference,
                                                                                                 spectroscopy and under MOMA LDMS for a first                  the RLS algorithm stops and the next spectrum is the
                                                                                                 analysis of organic content with laser desorption mass        real one taken as a measure.
                                                                                                 spectrometry. The combination of RLS, MicrOmega,                 Fluorescence is very common in terrestrial samples
                                                                                                 and MOMA-LDMS data will provide the necessary                 because organics are ubiquitous on Earth. However, it
                                                                                                 inputs to decide if the sample is analyzed with MOMA-         is not expected to observe this effect on Mars very
                                                                                                 gas chromatograph mass spectrometry (GCMS). The               often. Nevertheless, the algorithm is of prime impor-
                                                                                                 reason is that the number of ovens available for the          tance in case organic traces are detected and also when
                                                                                                 GCMS is limited, so only a subset of samples will be          other fluorescence sources appear on the samples.
                                                                                                 analyzed with this technique.                                Cosmic ray detection and removal: Cosmic ray is an
                                                                                                                                                               important source of spectral perturbation and, in par-
                                                                                           11. RLS Spectral Acquisition                                        ticular, on Mars where there is a higher flux than on
                                                                                                                                                               Earth. To reduce and control this effect, the RLS in-
                                                                                              The operation mode at instrument level is understood as
Downloaded by 157.88.139.133 from www.liebertpub.com at 03/25/19. For personal use only.

                                                                                                                                                               strument apart from the shield on the CCD and other
                                                                                           the series of operations and algorithms that the instrument
                                                                                                                                                               critical elements will use dedicated algorithms to detect
                                                                                           needs to execute autonomously for obtaining a Raman
                                                                                                                                                               and remove cosmic rays and spikes that can appear in
                                                                                           spectrum of the highest possible quality. The definition of
                                                                                                                                                               the reference Raman spectra, and which could cause
                                                                                           the operations mode needs to implement the actions that the
                                                                                                                                                               failures in the algorithms if considered as peaks. Details
                                                                                           human operator normally performs on Earth (laser focusing
                                                                                                                                                               of the methodology can be seen in Lopez-Reyes (2015).
                                                                                           on the sample, adjustment of the spectrum’s acquisition            SNR calculation for on-board operations: RLS instru-
                                                                                           time, elimination of fluorescence .) in a system able to
                                                                                                                                                               ment implements an algorithm for the calculation of the
                                                                                           autonomously decide the best parameter combination for a
                                                                                                                                                               spectral quality of a spectrum. These data will be used
                                                                                           particular measurement. An additional difficulty that the
                                                                                                                                                               as the essential reference parameter in the acquisition
                                                                                           Raman spectral acquisition poses for automatic methods
                                                                                                                                                               parameter adjustment algorithms. Details can be also
                                                                                           derives from the great difference between the molar scat-
                                                                                                                                                               seen in Lopez-Reyes (2015).
                                                                                           tering efficiency of different materials, which can reach 4–5
                                                                                           orders of magnitude.                                              After these aspects have been analyzed and corrected (in
                                                                                              When acquiring Raman spectra in the laboratory, there        case), the algorithm provides the adjustment of the inte-
                                                                                           are many instrument parameters, especially for the CCD          gration time and the number of accumulations adequate to
                                                                                           device, that must be configured to optimize spectra. Among      optimize the spectral quality-based spectrum.
                                                                                           these are gain, readout speed, and even temperature. How-
                                                                                           ever, under Mars operational conditions, the number of          12. RLS ExoMars Simulator and BB
                                                                                           parameters requiring adjustments has to be reduced to the
                                                                                                                                                              To achieve the maximum scientific return from the RLS
                                                                                           minimum. Here two operational-level parameters, Integra-
                                                                                                                                                           instrument once on Mars, it is necessary to perform exper-
                                                                                           tion Time (ti) and Number of Accumulations (na), have been
                                                                                                                                                           iments on Earth under the same operational conditions af-
                                                                                           selected as the key parameters. Both can be easily modified
                                                                                                                                                           forded by the rover. To do so, the team has developed two
                                                                                           without affecting the instrument performance, but just total
                                                                                                                                                           main tools: (1) the RLS ExoMars simulator at the Unidad
                                                                                           operation time. However, several undesired effects such as
                                                                                                                                                           Asociada UVa-CSIC-CAB and (2) the RLS BB at INTA
                                                                                           fluorescence and cosmic rays can severely modify the ref-
                                                                                                                                                           (Fig. 12) (Lopez-Reyes et al., 2013a). The scientific simu-
                                                                                           erence spectra and thus impair the ti and na calculation.
                                                                                                                                                           lator allows performing many scientific experiments under
                                                                                              Taking into account these considerations, the instrument
                                                                                                                                                           conditions similar to those provided by the ALD of the
                                                                                           needs to identify and correct several issues to efficiently
                                                                                                                                                           ExoMars rover. It also provides the means to define and
                                                                                           acquire Raman spectra:
                                                                                                                                                           develop the necessary algorithms for the automation of the
                                                                                              Saturation avoidance: if spectra saturate, this can lead    instrument. The basic configuration of the ExoMars simu-
                                                                                               to errors in the operation flow. Thus, it is of paramount   lator consists of an XYZ micrometric positioning system
                                                                                               importance that the spectra used for reference do not       with an optical head attached to the Z axis, and a refillable
                                                                                               saturate.                                                   container attached to the XY positioners. With this system,
                                                                                              Fluorescence detection and removal: the fluorescence        samples can be analyzed at the mineral grain scale with a
                                                                                               effect on a Raman spectrum increases the background         three-dimensional positioning accuracy of 2.5 mm. The
                                                                                               level of the spectrum, potentially decreasing the signal-   Raman optical head has a spot size of 50 mm, which matches
                                                                                               to-noise ratio (SNR) of the Raman signals. Given that       the requirements of the flight instrument. An internal camera
                                                                                               the fluorescence background can decrease when the           permits imaging the sample through the same optical path.
                                                                                               sample remains illuminated by the laser, RLS imple-         In addition, the Raman optical head is coupled to an external
                                                                                               ments a method for automatically calculating the fluo-      camera so that the sample can be imaged by using different
                                                                                               rescence quenching time based on the background             fields of view. The system is also designed to flatten the
                                                                                               decreasing rate. The control applied by RLS basically       sample powder with an SPDS-like design, and to position
RAMAN, EXOMARS                                                                                                              639
Downloaded by 157.88.139.133 from www.liebertpub.com at 03/25/19. For personal use only.

                                                                                           FIG. 12. The RLS simulator (left) and BB (right). Both are complementary tools for developing and testing the Raman
                                                                                           instrument. BB, bread board.

                                                                                           the sample under the instrument’s optical head, which will             Generate engineering and scientific data products after
                                                                                           automatically focus on the sample surface.                              RLS operation in the processing pipelines at ROCC,
                                                                                              In addition, the RLS ExoMars simulator has been                      and combine data product generation of different in-
                                                                                           equipped with a martian chamber to allow performing                     struments and ancillary data from the rover.
                                                                                           analysis of samples on a relevant environment (Catalá               Data resulted from each sample acquisition will be sci-
                                                                                           Espı́, 2015). This chamber (Fig. 13) allows analyzing the         entifically cross-correlated with that obtained by other in-
                                                                                           samples at temperatures and atmosphere representative             struments.
                                                                                           of the ones that will be found inside the ExoMars rover
                                                                                           during operation.                                                      Generate a set of key performance indicators after each
                                                                                              The BB has been conceived to evaluate the entire instru-             operation to provide a broad overview of the scientific
                                                                                           ment’s behavior. This analysis includes verification and vali-          trends of the instrument.
                                                                                           dation of all the scientific requirements previously analyzed
                                                                                                                                                                The IDB provides tables (in the SCOS2000 format) and
                                                                                           with the simulator. In addition, the BB can be utilized to
                                                                                                                                                             the RLS processing pipeline (following PDS4 standard) to
                                                                                           verify the radiometric model, Raman spectral quality, the
                                                                                                                                                             comply with the long-term use of the RLS data hosted in the
                                                                                           calibration procedure, as well as the operation mode. The BB
                                                                                                                                                             ESA archives.
                                                                                           has been built in several steps, starting from commercial, off-
                                                                                                                                                                IDAT is a ground segment system software/hardware tool
                                                                                           the-shelf components and improving to flight representative
                                                                                                                                                             that will be used during the operational phase of the mission,
                                                                                           components. And while the science demonstrator can only
                                                                                                                                                             not only for instrument health assessment but also for short
                                                                                           work in terrestrial ambient conditions, the BB can operate in
                                                                                                                                                             (and long)-term science exploitation. Short-term use of
                                                                                           mission relevant conditions (temperature and pressure).
                                                                                                                                                             IDAT will, on a daily basis, provide the scientific team
                                                                                                                                                             operating the rover with very fast scientific results to make
                                                                                           13. Ground Segment                                                tactical decisions for the following day’s rover activities.
                                                                                                                                                             Having this information analyzed after a very short time
                                                                                             The RLS ground segment combines a fully functional
                                                                                                                                                             (minutes) after the reception of the data from the spacecraft
                                                                                           replicate of the instrument together with the instrument
                                                                                                                                                             is of paramount importance to take the best tactical course
                                                                                           database (IDB) and Instrument Data Analysis Tool of RLS
                                                                                                                                                             of action. However, this kind of operation also imposes very
                                                                                           (IDAT) to do the following:
                                                                                                                                                             strict requirements regarding the robustness and reliability
                                                                                                Assess the activity plan to be uplinked as commands to      of the methods applied for the analyses. It also requires the
                                                                                                 the instrument in the mission’s operational phase—via       development and population of databases both under ter-
                                                                                                 the rover operations control center (ROCC).                 restrial and martian conditions. The comparative analysis of
640                                                                                                             RULL ET AL.

                                                                                                                                                                             FIG. 13. The martian chamber for RLS
                                                                                                                                                                             powdered sample analysis. The chamber
                                                                                                                                                                             also includes a flattening system working
                                                                                                                                                                             under martian conditions to compare the
                                                                                                                                                                             surface characteristics with the prepared
                                                                                                                                                                             under terrestrial conditions.
Downloaded by 157.88.139.133 from www.liebertpub.com at 03/25/19. For personal use only.

                                                                                           samples under terrestrial and martian conditions shows that     RLS team has studied several of them (Rull and Martinez-
                                                                                           no noticeable structural changes are detected with the dif-     Frias, 2003; Rull et al., 2004; González-Toril et al., 2005;
                                                                                           ference on temperature, pressure, and atmospheric condi-        Rogero et al., 2007).
                                                                                           tions between the two planets. Only in some specific cases         On the contrary, terrestrial analogues are very interesting.
                                                                                           of very high hydrated phases, minor changes in the OH           Although no place on Earth is like Mars, several locations
                                                                                           vibrations were observed. And as the general trend, the         offer the possibility to analyze geological processes, and the
                                                                                           Raman widths slightly decrease as a consequence of the low      related materials, that can be compared with those produced
                                                                                           temperature under martian conditions.                           on Mars in the past. Of particular importance are those
                                                                                              In addition, implementation of routines for the automated    materials related to liquid water alteration processes because
                                                                                           analysis of the results is included. These tools will also be   understanding the hydrologic cycle of Mars is a key aspect
                                                                                           available to the scientific team for detailed (and slower)      of understanding its geological cycle. The team has ana-
                                                                                           analysis of the data, providing support for the long-term       lyzed materials from a wide range of places on Earth.
                                                                                           science use of the RLS data products by the team (Fig. 14).     Among these are Rio Tinto, Jaroso Ravine, and Tenerife in
                                                                                                                                                           Spain, Svalbard Islands (Arctic), Barberton (South Africa),
                                                                                           14. Raman Performances and Scientific Capabilities              and Mauritania.
                                                                                           of RSL Within the Mission Framework                                The methodology used consisted in a double study. At the
                                                                                                                                                           field, in situ analysis with portable science prototypes of the
                                                                                           14.1. Laboratory analyses with the RLS simulator
                                                                                                                                                           Raman under development for ExoMars; and in the labo-
                                                                                              To fulfill the mission’s scientific goals, the Raman in-     ratory, using conventional micro-Raman techniques and the
                                                                                           strument must obtain good quality spectra from the wide         spectral operation simulator (Lopez-Reyes et al., 2013b)
                                                                                           variety of materials available at the landing site and en-      allowing reproducing the real RLS operation on Mars
                                                                                           countered while roving on Mars. The main information            (Figs. 12 and 13).
                                                                                           sources about these materials and their spectral responses         Although the spectral information during the operation
                                                                                           are the previous missions, the meteorites (in particular        will be obtained by observation with the Raman optical
                                                                                           martian meteorites), and the potential martian analogues on     head 20 points in a single line on the sample surface, the
                                                                                           Earth. As no Raman has been placed on the martian surface       simulator allows several other options, such as two-
                                                                                           until present, the real materials on which Raman spectros-      dimensional mapping, surface height profiling by using the
                                                                                           copy can be applied, and on the basis of which spectral         optical head autofocus device, and finally, the capability to
                                                                                           databases and models for interpretation of the geological       combine other techniques such as an imager in the visible
                                                                                           processes on Mars can be developed, are those obtained          or in the IR. This last case is of prime importance because
                                                                                           from martian meteorites and terrestrial objects.                the possibility to perform combined science between Ra-
                                                                                              Raman spectroscopy has demonstrated to be a powerful         man and the IR spectrometer MicrOmega, also onboard the
                                                                                           method for precise analysis of martian meteorites and the       ALD, adds a very important extra value to the spectral
RAMAN, EXOMARS                                                                                                              641
Downloaded by 157.88.139.133 from www.liebertpub.com at 03/25/19. For personal use only.

                                                                                           FIG. 14. A general picture of some of the main tools developed for the RLS operation and scientific activities prior and
                                                                                           during the mission. These tools are grouped in two main systems: one related with the construction and management of
                                                                                           spectral databases under terrestrial and martian conditions and the other related with the spectral treatment, including
                                                                                           automatic recognition of spectra.

                                                                                           observations. This combined science rests on the ability of       tensity at each point and the average over all the points
                                                                                           the rover to place both instruments over the same spot in a       analyzed along the line (see Lopez-Reyes et al., 2012,
                                                                                           sequential way.                                                   2013b for details). This process allows increasing the ac-
                                                                                              In Figures 15 to 19, some results obtained by the simu-        curacy and detection limit.
                                                                                           lator working in terrestrial conditions are presented.               In Figure 16, an example is presented for a binary ad-
                                                                                              In Figure 15 are shown Raman spectra performed in au-          mixture of calcite and gypsum. Concentrations (1:99 and
                                                                                           tomatic mode on two simulant samples of early and late            90:10) are shown in Figure 16A, B, although the whole
                                                                                           Mars average materials prepared by ESA and Kaiser-                range from 1:99 to 99:1 was analyzed. These figures rep-
                                                                                           Threde. Some of the spectra obtained from 25 points along a       resent, for 30 points analyzed on each sample, the relative
                                                                                           line are presented overlaid to demonstrate the real results       maximum intensity of the most representative peaks of
                                                                                           obtained by the simulator after an automatic scanning in          calcite (blue) and gypsum (red).
                                                                                           which at each spot the spectral acquisition parameters are           The results show that it is possible to see the minor
                                                                                           obtained from algorithms. It is easy to see that the spectral     concentration phase at many spots along the line. This is an
                                                                                           quality is different at each spot and in some cases, it is hard   important result verified in several other examples because
                                                                                           to obtain useful spectral information. In other cases, the        to experimentally demonstrate the simple analysis along a
                                                                                           spectra are of high quality. Nevertheless, from the whole set     line in the bulk powdered sample is enough to characterize
                                                                                           of spectra, it was possible to identify all the mineral phases    the mineral composition of the whole sample, given a suf-
                                                                                           present in the samples, including minor phases. In early          ficient number of spots are analyzed. Furthermore, when the
                                                                                           Mars sample, the components detected were quartz, mus-            intensity data for each compound from the 30 points are av-
                                                                                           covite, albite, siderite, chlorite, and hematite. In late Mars    eraged, the calibration curve shown in Figure 16C is obtained.
                                                                                           sample, the minerals identified were gypsum, anhydrite,           For comparison, the calibration curve obtained with XRD on
                                                                                           hematite, forsterite, and minor quartz and actinolite. The        the same admixture is shown in Figure 16D. As shown, the
                                                                                           mineral identification was performed by using the spectral        results with RLS improve the calibration curve obtained when
                                                                                           databases developed in this project and confirmed with the        using XRD in terms of curve linearity and detection thresh-
                                                                                           literature. These minerals were also confirmed with XRD as        olds, opening the possibility of pseudo-quantifying mineral
                                                                                           a complementary technique, although some of the minor             phases during operation on Mars, without the need to perform
                                                                                           phases were difficult to identify unambiguously. The carbon       corrections on the calibration curve. Details on this work can
                                                                                           features were not detected by XRD.                                be found in Lopez-Reyes et al. (2012, 2013b).
                                                                                              The point-by-point technique also permits quantifying the         Another interesting aspect of the operation with the RLS
                                                                                           relative amounts of mineral phases in complex admixtures.         inside the framework of the ExoMars mission operation
                                                                                           The method uses spectra normalized by the maximum in-             cycle is the possibility to combine the potential of two or
642                                                                                                               RULL ET AL.
Downloaded by 157.88.139.133 from www.liebertpub.com at 03/25/19. For personal use only.

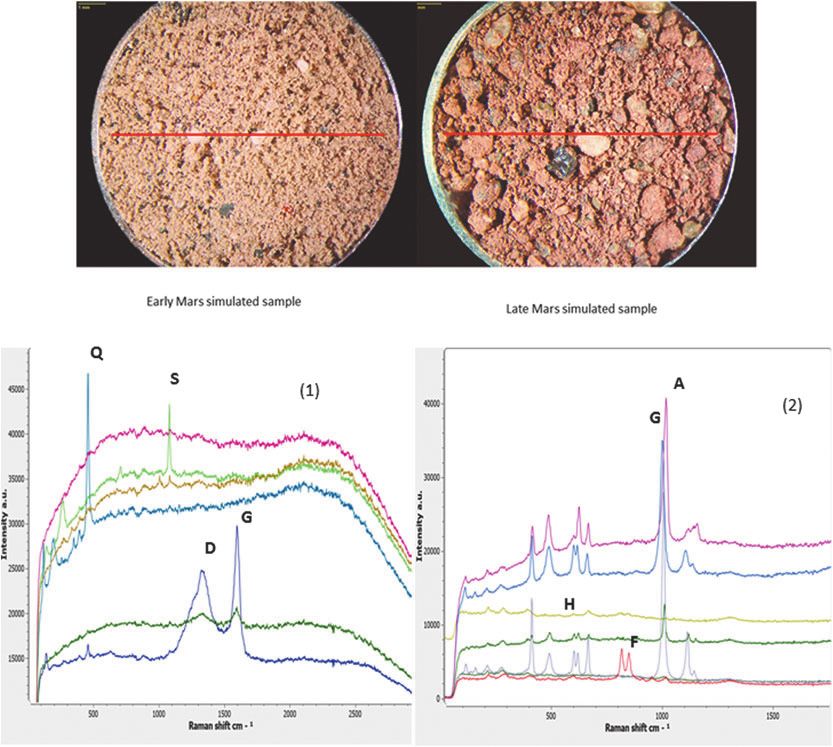

                                                                                           FIG. 15. Raman spectra performed in automatic mode along a line (25 spectral points) on two samples prepared by
                                                                                           Kaiser-Threde for ExoMars test. On top the samples and the 10 mm line along which the spectra were taken. Bottom, a
                                                                                           general picture of some of the 25 recorded spectra in both samples. (1) Early Mars main phases depicted quartz (Q), siderite
                                                                                           (S), and carbon (D, G bands). (2) Late Mars main phases depicted gypsum (G), anhydrite (A), hematite (H), and forsterite
                                                                                           (F). It is interesting to note that in automatic mode at some spots no clear Raman signal is obtained. This is part of the
                                                                                           normal outcome of the process; the spectra are recorded at fixed steps with no possibility to optimize in position.

                                                                                           more techniques to enhance the potential for identification           In Figure 18, the Raman results obtained along 15 points
                                                                                           and analysis of relevant materials for the mission objectives.     around the feature are presented (Lopez-Reyes et al.,
                                                                                           For that the key point is to have the possibility to analyze the   2013b). The Raman spectra clearly show the spectral fea-
                                                                                           same spot with different techniques. In Figures 17 and 18,         tures associated with the mineral grain species present in the
                                                                                           an example of combined science is illustrated. Figure 17           admixture (calcite and quartz) and also at particular posi-
                                                                                           shows the combined SPDS-RLS setup mounted in collabo-              tions (P8 and P9), new bands clearly identified as a doublet
                                                                                           ration with Thales-Alenia at OHB’s facilities in Munich            at 825 and 856 cm-1. This doublet is characteristic of olivine
                                                                                           (Musso, 2013; Paul, 2013). Its objective was to check the          (forsterite). The olivine spectral features practically disap-
                                                                                           possibility to bring a particular spot of sample material (one     pear at positions before and after this particular point. The
                                                                                           that could have been identified with MicrOmega) under RLS          results confirm the capability to detect specific singular
                                                                                           field of view for analysis. The sample was a mixture of            features on the crushed sample’s surface when using the
                                                                                           quartz and calcite with minute amounts of olivine. In this         SPDS carrousel and, therefore, the possibility to perform
                                                                                           case, an unknown feature having a diameter of about 70 mm          combined science with the different instruments during an
                                                                                           was identified by an imager simulating the MicrOmega               ExoMars operational cycle.
                                                                                           capabilities. The SPDS carrousel computed its position and            Very recent results obtained at the University of Valla-
                                                                                           doing the normal operations cycle tried to move the feature        dolid using the MicrOmega engineering and qualification
                                                                                           under RLS optical head. The real methodology consisted on          model, in combination with the RLS science prototype and
                                                                                           placing the carrousel at some fixed distance from the esti-        the powder analysis simulator, show that the two instru-
                                                                                           mated feature’s position and then gradually advancing at the       ments can work together extremely well, complementing
                                                                                           smaller steps achievable (30 mm nominal), fine tuning spa-         each other’s capabilities. The results obtained will be pub-
                                                                                           tially the line around the detected feature.                       lished elsewhere.
You can also read
