THE FUTURE OF INTERNET OF EVERYTHING - Dr. Jeffrey H. Reed
Overview of IoE (or IoT)
2

    IoE envisions a world that is
    fully interconnected through the
    internet
                                         Internet of
    IoE creates a cyber-physical         Everything
    universe around us
    IoE will change the way we
    live, work and play
    IoE will transform the
    characteristics and operation of
    homes, cars, hospitals, factories,
    businesses and etc
THE FUTURE OF INTERNET OF EVERYTHING - Dr. Jeffrey H. Reed
Overview of Presentation
 Why do we need IoE?
 IoE architectures
 Development environments
 Industrial IoE
 Remaining challenges
THE FUTURE OF INTERNET OF EVERYTHING - Dr. Jeffrey H. Reed
Overview of Presentation
 Why do we need IoE?
 IoE architectures
 Development environments
 Industrial IoE
 Remaining challenges
THE FUTURE OF INTERNET OF EVERYTHING - Dr. Jeffrey H. Reed
Why do we need IoE?

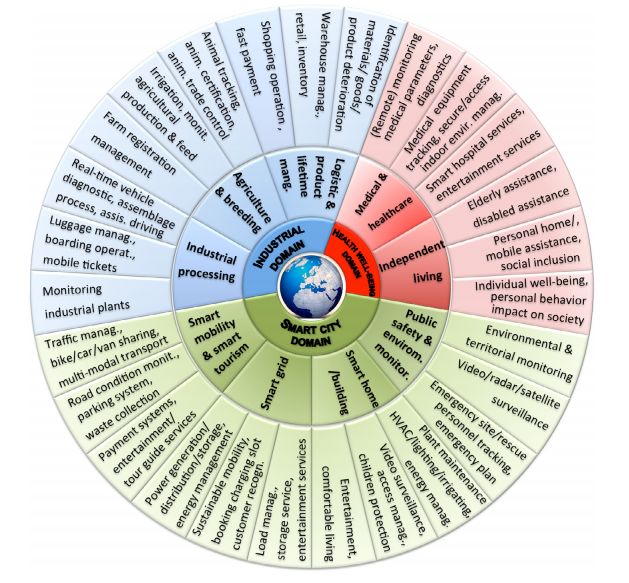

                        IoE is applied in:
                          Industrial domain
                          Public domain: Ex.
                          Smart cities
                          Health and wellness
                          …

                 http://www.sciencedirect.com/science/
                 article/pii/S0140366414003168
THE FUTURE OF INTERNET OF EVERYTHING - Dr. Jeffrey H. Reed
Why do we need IoE?
IoE add productivity and comfort to our
daily lives                               Comfort

   While I am driving back to home,
   dinner starts and thermostat adjusts
                                                         Productivity
   the temperature of the home
   My electric blanket adjusts its heat
   by communicating with a body
   temperature measuring wrist-band
   I can locate my keys using my phone

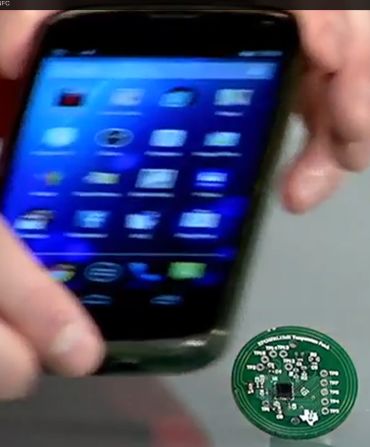

                                          TI’s NFC powered tempe
                                          rature sensor
                                          (https://www.youtube.com/watch
                                          ?v=qBCfB5JMbHE)
THE FUTURE OF INTERNET OF EVERYTHING - Dr. Jeffrey H. Reed
Example of Today’s IoT Devices
v   Fork -- let’s you know if                               v   Egg Tray
     your eating too fast.                                   v   Lighting Control
v   Smart toothbrush – how                                  v   Slow Cooker
     long do you brush
                                                             v   Trash Can
v   Watering System
                                                             v   Pet Feeder
v   Propane Tank
                                                             v   Socks
v   Washing Machine
                                                             v   Locks
v   Piggy Bank
                                                             v   Shirt

        http://www.slideshare.net/ValaAfshar/internet-of-thingsslideshare
THE FUTURE OF INTERNET OF EVERYTHING - Dr. Jeffrey H. Reed
Why do we need IoE?
IoE has industrial benefits
Examples:
     Improving the efficiency of
     energy consumption through
     extensive machine
     instrumentation and data-
     analytics
     Proactive maintenance
     Asset tracking
     Remote control and monitoring
     Agriculture
     Healthcare

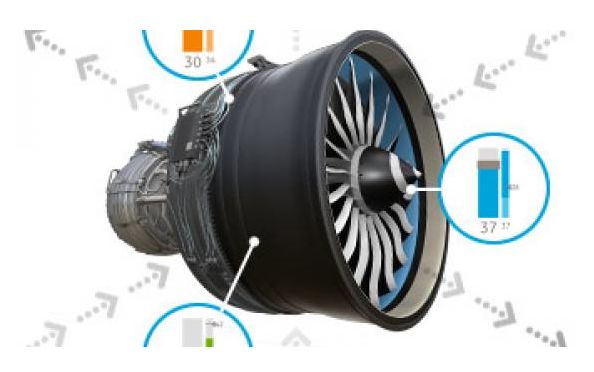

                                     Source: www.gesoftware.com/predix
THE FUTURE OF INTERNET OF EVERYTHING - Dr. Jeffrey H. Reed
Big Picture of Growth
GE Estimates the “Industrial Internet” will
add $10 to $15 trillion to global GDP
over the next 20 years
Cisco forecast $19 trillion to economic
value created by 50B IoE devices in
2020
Gartner estimates IoE products, services
and suppliers will generate incremental
revenue exceeding $300 billion in 2020
IDC forecast world market for IoE
solutions grow from $1.9 trillion in 2013
to $7.1 trillion in 2020
THE FUTURE OF INTERNET OF EVERYTHING - Dr. Jeffrey H. Reed
Overview of Presentation
 Why do we need IoE?
 IoE architectures
 Development environments
 Industrial IoE
 Remaining challenges
Basic IoE Architecture

         e-health, smart home, smart city, energy management,
                                 etc….                                      Applications

                                                                            Service platform
                         P2P, Cloud computing, etc

                                                                        Internet
                                      IP

                          Collect and Backhaul
              (Ethernet, 3G, 4G, satellite, dialup, fiber, etc)
                                                                       Gateway/hub
            Zigbee, Bluetooth, WiFi, White space, NFC, etc             Short-range
                                                                       communication

                                                                        IoE Edges
   Sensors, GPS, actuators, thermostats, light bulb, electric blanket etc
Alternative Architecture: IP-at-the-edge

         e-health, smart home, smart city, energy management,
                                 etc….                                      Applications

                                                                            Service platform
                         P2P, Cloud computing, etc

                                                                        Internet
                                      IP

                                                                        IoE Edges
   Sensors, GPS, actuators, thermostats, light bulb, electric blanket etc

       IP-at-the-edge = no Gateways
Overview of Presentation
 Why do we need IoE?
 IoE architectures
 Development environments
 Industrial IoE
 Remaining challenges
Development Environments 1/3
      Apple’s HomeKit Platform (https://developer.apple.com/homekit/ )
        HomeKit is a framework in iOS 8 that allows IoE app and
        hardware developers to easily configure and control IoE
        accessories from iOS devices

         Bluetooth and WiFi are used for short range
         communication(Designing Accessories for iOS and OS X,WWDC14,
         https://developer.apple.com/videos/wwdc/2014/ ,
         http://www.macrumors.com/2014/11/03/homekit-chips-device-makers/ )

         Gateway for remote control is likely going to be AppleTV
                                                                                                    ,
         http://www.macworld.com/article/2364315/apples-homekit-hub-may-already-be-in-your-house.html
         http://www.pcmag.com/article2/0,2817,2474991,00.asp

         Chip making (Apple-approved) partners are Broadcom, TI,
         and Marvel. The chips are loaded with Homekit firmware
         http://www.forbes.com/sites/aarontilley/2014/11/03/apple-homekit-enabled-chips-
         are-already-shipping-to-smart-home-device-makers/,
         https://mfi.apple.com/MFiWeb/getFAQ.action
Development Environments 2/3
                              Google’s Nest developer program (
                              https://developer.nest.com/ )

                                  Provides the APIs developers can user to
                                  communicate with nest thermostat and smoke
https://developer.nest.com/       detectors (https://developer.nest.com/documentation/cloud/nest-api-intro )
                                  Google-Nest is pushing for a mesh-network
                                  based network protocol called Thread (
                                  http://www.threadgroup.org/About.aspx )

                                         Remove gateways. No single point of failure.
                                  Short-range communication is through WiFi and
                                  IEEE 802.15.4
                                  Companies such as Mercedes-Benz have signed
                                  up into the program (They make “works with nest”
                                  products)
Development Environments 3/3
                                                   Qualcomm development network :
                                                         Qualcomm provides hardware and software
                                                         tools for building IoE apps
                                                   Qualcomm led the establishment of the
https://developer.qualcomm.com/dragonboard-809     Allseen Alliance under the Linux Foundation
4-development-kit-based-snapdragon-810-processor
-apq8094                                           Allseen Alliance (https://allseenalliance.org/ )
                                                         has more than 100 member companies
                                                         is less than 2 years old
                                                   Alljoyn:
                                                      Open-source software framework for interoperable
                                                      IoE
                                                      Lets developers write applications that can discover
                                                      and communicate with near-by devices regardless of
                                                      brand and operating system
                                                      Meant to be the “language of IoE”
IoT Standardization Efforts

                               EPCglobal
          Thread
        ICC
   IETS
           OIC
    ALLSEEN
3GPP IEEE                 oneM2M
                                           Interoperability

ISO ISA
                   IETF
IoT Standards (1/4)

            RFID related standards
              RFID based Electronic Product Code
              (EPC) standard from EPCglobal
              ISO/IEC 15961-1:2013, ISO/IEC
              15962:2013 (address data protocol
              between RFID tag and RFIC reader)
IoT Standards (2/4)

            Wireless communication standards
               IEEE 802.15.4 (PHY for Zigbee, ISA100.11a, etc)
               IEEE 802.15.1 (Bluetooth)
               IEEE 802.11 a/b/g/n/ af (WiFi)
               IEEE 802.15.7 (Visible light communication)
               IEEE 1901 (Broadband over power line)
               3GPP’s LTE (LTE has provision in for “Machine-
               type-communications”)
               IEEE 801.16p/b (WiMax enhancements to support
               M2M)
               etc
IoT Standards (3/4)

              Network and Data-link layer standards
                 Thread
                      Supported by Google-nest and partners
                      It pushes for a mesh-type network architecture
                 IETF’s 6LoWPAN (IPv6 over low-power Wireless
                 Personal Networks)
                         IP for is applied even for small devices
                         IP based IEEE 802.15.4
                 ISA100.11a
                         Industrial use
                         IETF 6LOWPAN network layer
                         IEEE 802.15.4 physical layer
                         Modified IEEE 802.15.4 MAC
IoT Standards (4/4)

              Service layer standardization efforts:
                    Allseen alliance
                    Open-Internet Consortium (OIC)
                    Industrial-Internet Consortium (IIC)
                    oneM2M
                        Consortium of ICT-related
                        standardization bodies and
                        companies
Overview of Presentation
 Why do we need IoE?
 IoE architectures
 Development environments
 Industrial IoE
 Remaining challenges
Industrial IoE

Industrial IoE is driven by
improvement of efficiency,
reliability, and productivity
Currently, only 37% of the
currently connected “things” are
industrial equipment
Cisco expects the share of
industrial IoE to surpass consumer
IoE in 2017
ttp://blogs.cisco.com/news/the-internet-of-things-moving-
beyond-the-hype/
Industrial IoE appears to have                              https://www.ihs.com/articles/insights/things-
                                                            explodes.html
stronger momentum for growth
Data Analytics and Industrial IoE
Data analytics plays a huge role in
Industrial IoE
Data analytics uses row data to examine
and draw conclusions.
     GE is transforming itself from industrial
     machinery maker, to an advanced
     data analytics company (
     https://hbr.org/2014/11/digital-ubiquity-how-
     connections-sensors-and-data-are-revolutionizing-business)
     GE is developing a proprietary
     industrial IoE and big data analytics
     software called Pardix
     Alternative platforms exist
         Example: IzoT
                                                              IzoT Industrial IoE Platform
                                                              (http://www.echelon.com/izot-platform)
Data Analytics and Industrial IoE

Most corporate executives believe big data analytics
is important (http://www.accenture.com/SiteCollectionDocuments/PDF/Accenture-Industrial-Internet-
Changing-Competitive-Landscape-Industries.pdf)
Industrial Internet Consortium (IIC)
 The goal is to create reference architectures, use-
 cases and test-beds for the industrial internet
 Plans to release technology and security guidelines
 Founded by five companies by March, 2014
 Currently, more than 120 members

                          Source: http://www.echelon.com/izot-platform
IoE in the Oil and Gas Industry
  Predictive maintenance
  Pipeline monitoring
  Automated field operation
  Real-data based managerial and financial decisions
  Asset tracking
  Environmental monitoring
  People monitoring
  Closed-loop control
  Health and safety
                           Oil and Gas Industry have implemented
Outcomes:                  aspects for the IoE for many years, but
  Reduces down time        scope and integration will improve with time.

  Improves safety
Overview of Presentation
 Why do we need IoE?
 IoE architectures
 Development environments
 Industrial IoE
 Remaining challenges
 ¤   Complexity
 ¤   Privacy/Security
 ¤   Spectrum
Security: Major Challenge in IoE
   All devices and sensors will have cyber presence
   Traditional cybersecurity approaches not sufficient
   Multi-layer security is necessary

          Gateways should be secured
          IoE edges should be secured
Increasing
  Supply
  Chain
  &
  SCADA

• SCADA
  Security


                            Security
   T hreats


   – DHS:
  US
  u:lity's
  control
  systems
  hit
  by
  advanced
  cyber
  aAack

   – Eugene
  Kaspersky:
  Stuxnet
  has
  gone
  rogue.
  Russian
  nuclear

     power
  plant
  was
  reportedly
  “badly
  infected”
  by
  the
  rogue

     Stuxnet
  virus.

   – NY
  Times
  reports
  cousins
  of
  Stuxnet:
  Duqu,
  Flame
  and
  Gauss


• Counterfeit
  is
  a
  Security
  Concern

  – APEX
  &
  Designer
  Summit:
  Current
  value
  of
  counterfeit

    electronic
  components
  is
  es:mated
  at
  approximately
  $10b

    annually.

  Counterfei:ng
  costs
  the
  US
  economy
  between

    $200b
  -­‐
  $250b
  annually.

  Overall
  global
  counterfeit
  goods

    es:mated
  at
  $3.9T

  – U.S.
  Senate
  CommiAee
  on
  Armed
  Services
  iden:fied
  suspect

    components
  in
  the
  supply
  chains
  for
  the
  CH-­‐46
  Sea
  Knight

    helicopter,
  the
  C-­‐17
  military
  transport
  aircraa,
  the
  P-­‐8A

    Poseidon
  sub
  hunter,
  and
  the
  F-­‐16
  fighter


                                                                                                   30

Why SCADA/ICS Need New Security
Solutions for IoE
Attack surfaces are greatly increased.
Too many variations of hardware and software
Legacy equipment 20+ years (don’t fix it if it isn’t
broken)
Threats from manipulating input data
Real-time protection needed
Threats are behind the firewall
Dormant threats are hard to find
Signature techniques are dead
Example of Security Approach Developed and Spun
Out from Virginia Tech

❑   Power Fingerprinting (PFP) detects anomaly with power
    analysis and signal processing

                                      Compare
  with

        Power
  Analysis
                                  PFP
  Signal

         Non-­‐Contact
                                     Processing
                                                                                                             the
  Baseline
                                   Quantitative
                                                        12

                                                                                                                                                                 Metrics for
                                                        10

                                                                                                             6

           Probe

                                                        8
                                                        6                                                    4
                                                        4                                                    2
                                                        2                                                    0

                                                        0
                                                                                                             -2


                                                                                                                         Security
                                                               2   4   6      8    10   12      14
                                                                                                8

                                                                       Frequency             x 10
                                                                                                                  0   2   4   6   8   10   12

                                  Acquire

                                Power
  or
  RF

                                   Signal                                                                                                       Anomaly?
     yes
                                                                                                                                                                     Alert


                                                                                                                                                 no
                                                                                                Acquire
  New

                                                                                                 Baseline?


For more info. see http://www.pfpcyber.com
http://www.darkreading.com/perimeter/power-consumption-technology-could-help-enterprises-identify-
counterfeit-devices/a/d-id/1318782?
Communication Challenges
Integrated networks (probably a characteristic of 5G)
   Machine-to-Machine Communications in later 4G
Very long battery life
Automated deployment and de-confliction
Spectrum availability and uniformity across national
boundries
Spectrum Scarcity: Another Challenge for IoE

Each IoE connection is expected to generate
small amount of traffic
But the number of connection is very high
Additional spectrum is needed to carry IoE
We are already under spectrum deficit
including for LMR.
Spectrum sharing with government may be
the solution
                                                   Source: FCC
                                                   http://www.hightechforum.org/spectrum-deficit-disorder/

Example: The 3.5 GHz band, where military
radars operate, is now open for shared use
May be possible for private LTE networks

  Wireless@VT is deeply involved in research studying the technical and
  regulatory issues related to spectrum sharing
Towards Software-Defined IoT Devices
    Interoperability a challenge in IoT                                                          Interoperability
    One solution is making IoT devices highly
    flexible to support multiple protocols
    Software-Defined-Radio (SDR) is a good
    candidate to implement flexible IoT devices
    SDRs present their own challenges:

SDR Challenge                Our Solution                 Research Status
Poor RF performance          •Spectrum sensing            - Prototype is developed
                             supported, intelligent RF    and tested                 Prototype of MIMO capable Software-defined IoT GW
                             control                                                 assembled at W@VT
                             • Addresses potential RF
                             issues through intelligent
                             control
Poor handling of high-data   • Firmware/OS level          - Prototype is under
rate waveforms               waveform development         development
                                                                                     Cognitively controlled RF Front-end’s prototype
Conclusions
Technology is about to transform the world through IoE
Industrial IoE will help pave the way for consumer IoE
Standards will be a HUGE issue
IoE presents unique communication challenges:
     Integration with various wireless network
     Low data-rate, large volume of links -- the “one-bit”
     challenge
     Power
     Spectrum resources
     Security
     Automatic deployment and maintenance.
You can also read
