Suraj Subharaman
Design + Strategy + UX

Portfolio 2021
Suraj Subharaman Design + Strategy + UX - Portfolio 2021 - Bitly
Contents
Work
Other Clients
About Me
Experience & Skills
Process
Contact
Suraj Subharaman Design + Strategy + UX - Portfolio 2021 - Bitly
Strategy + UX + Design

TVS RR310
Instrument Cluster
The TVS Apache RR 310 is a sport bike made by the TVS Motor
Company in collaboration with BMW Motorrad that was launched
in India
Suraj Subharaman Design + Strategy + UX - Portfolio 2021 - Bitly
TVS Apache RR310   Work

Rider personas
Suraj Subharaman Design + Strategy + UX - Portfolio 2021 - Bitly
TVS Apache RR310                                                                                                                                   Work

Core User Personas

    Demographics                                        Attributes                                         Behaviour
    •   First time jobs                                 •   Experienced biker                              •   Dual purpose (Regular / Weekends)
    •   Age group: 23-28 Peripheral is upto 35          •   Restless                                       •   Youtube bloggers and active on
    •   Owned bikes previously                          •   Tech savvy/ Gadget freak                           social media
    •   Aspirations are beyond this bike                •   brand conscious                                •   Loves the bike
    •   part of biking group                            •   Show off (Attract the opposite sex)            •   Wants to improve upon his riding
    •   Gen X and Y                                     •   Spec freak                                         skills (top speed ,avg. speed)
                                                        •   Passionate about biking (Spends on training,   •   Particular about rules
                                                            accessories and modifications)
                                                        •   MotoGP/ F1 fanatic

    Note : Based on the workshop and rider interviews
Suraj Subharaman Design + Strategy + UX - Portfolio 2021 - Bitly
TVS Apache RR310                 Work

Insights from rider interviews
Suraj Subharaman Design + Strategy + UX - Portfolio 2021 - Bitly
TVS Apache RR310                                                                                                Work

Discovering Purpose
                   Pain Points                              The Dream                  The Promise

                                                       Convenience & Connectivity
                   Calls                                     Ride planning            Real time update
                                                                                      and status
                   Messages                                  Accepting and
                                                             declining calls
                   Navigation

                                                                   Brands
                   Generic Displays                          Identity Show off        Strong brand character/
                                                                                      recall in the display

                                                         Impactful first impression
                   On-boarding doesn’t give the feel         First screen needs to    Personalisation
                   of the bike/personalised                  be experiential
                   welcome (Hi Rider name)
Suraj Subharaman Design + Strategy + UX - Portfolio 2021 - Bitly
TVS Apache RR310                                                                                                                       Work

Discovering Purpose
                   Pain Points                               The Dream                                  The Promise

                                                           Real-time diagnosis
                   Battery dies                               Warning system                           Active warning

                   Review of bike health                      Optimum driving                          Constant updating
                                                              experience
                                                                                                       Ride analysis

                                                                                                       On demand information

                                                           A richer user experience

                   Displays are not agnostic                  Feedback                                 Access all buttons/menus easily

                   Helmet window is narrowing the vision      Easy navigation                          Relevant information at the right
                                                                                                       place/hierarchy of information
                   Have to look for info                      The display theme should match the
                                                              rider’s driving style                    Real-time interaction
                   Too many buttons (confusing) (button
                   navigation)                                UI should have a higher cc bike feel     Relevant data/shape/design for
                                                                                                       each element (gear/rpm/speed)
                   Too much information                       The ride mode can be changed on the go
                                                                                                       Speedometer experience
Suraj Subharaman Design + Strategy + UX - Portfolio 2021 - Bitly
TVS Apache RR310                                                                                      Work

Intent

                   Build a TFT cluster experience for the street race bikers that is accessible and
                   intuitive to use, keeps the riders updated at key points in the journey, and has
                        a strong resonance with the rider, race culture and in turn the brand.
Suraj Subharaman Design + Strategy + UX - Portfolio 2021 - Bitly
TVS Apache RR310                                                                                                                     Work

Key Pillars

                                                               Sense of                                   Feeling
                     In control
                                                               identity                                    alive

         •   Complete confidence and              •   A bike character that the rider       •   The thrill, the rush and the speed
             authority over the vehicle               associates with and an extension of   •   Like everything is being activated
         •   Strong sense of balance and safety       the rider that he prides over
TVS Apache RR310                                                                                                                             Work

Feature Mapping
  In control    Sense of identity     Feeling alive

  1. Bike check-up                                    2. Warnings with levels of                3. Clear messaging
  An automated bike check prior to                    urgency (colour coded)                    Written indicators for quick communication
  the start of every trip. An indicator               Clear warning method for prompt acton -   • Wear helmet
  to suggest the same.                                Red, Amber, Green                         • Service reminders

                                                      • Tyre pressure                           • Timely messages

                                                      • ABS
                                                      • Batter low
                                                      • Engine temp
                                                      • Engine malfunction
                                                      • Fuel level
                                                      • Take hands off throttle
TVS Apache RR310                                                                                                                     Work

Feature Mapping
  In control    Sense of identity    Feeling alive

  4. Smart navigation                                5. Dynamic layout based on           6. Easy action to
  • The navigation will be designed as a             the scenarios                        incoming calls
    crisp, clear indicator for the rider to          Treating key information based on:   •   Enabling incoming calls only below a
    follow                                                                                    defined speed (define logic)
                                                     •   Scenarios
  • Turn by turn directions
                                                     •   Level of importance              •   Minimal information on display
  • Remaining distance to the destination
                                                     •   Visual format                    •   Info - name and number
  • Remaining time to the destination                                                     •   Accept
  • Street name                                                                           •   Reject
  • Complete and reduced mode viewing
TVS Apache RR310                                                                          Work

Feature Mapping
  In control   Sense of identity   Feeling alive

   7. Onboarding/welcome screen                    8. TFT activation
   Combine visual experience with function         Gradual switching on of TFT elements
   • Brand identity                                for larger impact and thrill
   • Layer of animation                            • A quick TFT check
   • Personalised welcome message
TVS Apache RR310                                                                                            Work

Feature Mapping
  In control   Sense of identity   Feeling alive           In control   Sense of identity   Feeling alive

                                                       12. Ride analysis
   9. Custom shortcuts that can be
   configured by the rider                             • An option to see a brief or elaborate
                                                         overview of the last trips, based on what
   • A dashboard access to functions
                                                         the rider wishes to see.
   • Switching modes on-the-go
                                                       • Key highlights of the rider performance is
   • Quick back to home screen action
                                                         integrated in the snapshot to add the
                                                         aspect of thrill.
   10. Customising the dashboard
   A designated spaces for riders to enable and
   disable what they wants to see on their dashboard

   11. Menu
   A menu system with consolidated information
   and clear hierarchy
TVS Apache RR310                                                       Work

Control Understanding

                                                      Up
                              Up

                   Accept/          Back/    Back/           Accept/
                   Enter            Reject   Reject          Enter

                             Down
                                                      Down
TVS Apache RR310                                                                                           Work

App Map - Base Layout                                 Engine speed (RPM)

Scenario 1 - Ignition On                              Vehicle speed

                                                      Gear position

                                                      Fuel level

                                                      Engine Coolant temp
                                                      (Customisable)

                                                      Odometer

                               Base Layout
                           Scenario 1 - Ignition on   Vehicle Ride Mode (Race street)

                                                      mobile battery level

                                                      mobile signal strength

                                                      Date

                                                      Time

                                                                                        Please refer to
                                                      Warning
                                                                                        warning messages

                                                      Custom widgets (only 3)
TVS Apache RR310                                                                                                                                      Work

App Map - Menu                                       Distance ridden after
                                                     service
                                                     --------------------------
                                                     Last service (days)
                                Service              --------------------------
                                                     Next service due date/km

                                                     On/O!

                                                     Paired device                                                         Delete device    Yes/No
                                                                                  Names of the devices

                                                                                                                           Auto-time sync    Yes/No

                                Connectivity
                                                                                  On/O!

                                                                                  Note:
                                                     Display calls                - Incoming call will be as per certain
                                                                                  modes
                                                                                  - A speed limit has to be set beyond
                                                                                  which the user won’t receive any
                                                                                  calls. TVS to define the speed limit

                                                                                  Reset              Yes/No
                                                     Top Speed*

                                                                                  Top 5 speeds achieved                Rider 1,2,3

                   My Vehicle
                                                                                  No. of laps and their times

                                                     Laps
                                                                                  Best lap

                                                                                  Reset              Yes/No

                                                     0-100
                                                                                  Reset              Yes/No

                                Performance record
                                                     Avg Speed
                                                                                  Reset              Yes/No

                                                     RPM at peak acceleration
                                                                                  Reset              Yes/No

                                                     Lean angle
                                                                                  Reset              Yes/No

                                                     Gear shift accuracy (%)
                                                                                  Reset              Yes/No

                                                     Avg. Mileage
Reset             Yes/No

TVS Apache RR310                                                       Gear shift accuracy (%)
                                                                                                       Reset             Yes/No
                                                                                                                                   Work

                                                                       Avg. Mileage
                                                                                                       Reset             Yes/No

App Map - Menu                                                         Reset All              Yes/No

                                         RR mode             Engine mode name and ABS mode
                                                             name

                                         Race street mode          Engine mode name and ABS mode
                                                                   name

                          Riding Modes

                                         City comfort mode          Engine mode name and ABS mode
                                                                    name

                                         Rain comfort mode           Engine mode name and ABS mode
                                                                     name

                                                                       on/o!
                          Navigation     Reduced map

                                                                       Total distance covered          Odometer range (“from km”
                                                                                                       to “to km”

                                                                       Total time travelled

                                                                       Avg. mileage

                                                                       Fuel consumed
                                         Trip A
                                                                       Average speed

                                                                       Top speed

                   Menu   Trip Details
                                                                       Additional KM covered
                                                                       (Only in comfort city mode)

                                                                       Riding style
                                                                                                       Acceleration Rating

                                         Trip B                        Same as Trip A

                                         Trip C                        Same as Trip A

                                                                       Since the bike has gone in
                                                                       reserve, how much total
                                         Fuel Trip                                                     Odometer range (“from km”
                                                                       distance has been
                                                                       covered?                        to “to km”

                                                                       Engine and ABS mode
                                                                                                       on/o!
                                                                       name
TVS Apache RR310                                                                                                                  Work

Design Principles

                      Legibility                         Contextuality                            Glanceability

         •   Visual clarity                    •   Viewing information in context with   •   It is not just about communicating
         •   Ease with which the rider can         the other                                 information, but the ease of
             identify and relate to elements   •   Adaptability of information based         viewing the information
                                                   on the environment and                •   Reducing cognitive load
                                                   circumstances
TVS Apache RR310                                                                                                                                                Work

Humanist font vs Square Grotesque

        Humanist fonts tend to look more like they are done by a human hand, with a natural, organic
        expanding and contracting of the strokes as if the letters were drawn calligraphically. They have
        roots in calligraphy and evoke a feeling of warmth and personality, in contrast to geometrics
        and neo-grotesques which can feel cold and sterile.

        Facet of Humanist fonts:
        • Less blurring of letterform shapes
        • No clashing between letterforms
        • Less ambiguity while glancing
        • Varied horizontal proportions

     Source: https://www.researchgate.net/publication/264439455_An_Evaluation_of_Typeface_Design_in_a_Text-Rich_Automotive_User_Interface_Original_Manuscript
TVS Apache RR310                                              Work

Font chosen - Inter

                      140           KMPH   3.2         secs

  0-100               Avg. Speed:          Best lap:

                      100           KMPH   02:10:10

   Inter                                   MPH
TVS Apache RR310                                                                                                                                     Work

Wireframes
                                                                                               Low Battery
                                                        05:30 PM
                                                                                                                       05:30 PM
         Street Race
                                                                        Street Race                                               Menu
                                   10                                                      8       10     12
                            8              12
                       6                                                               6                        14                My vehicles
                                                 14
                   4
                           220   Km/h
                                                        16
                                                                                   4

                                                                                   2
                                                                                           220   Km/h
                                                                                                                       16         Riding modes
                   2
                                                                                                                                  Custom Widgets
          E            0           N                           H                       0           N
                                  Gear                                                            Gear
                                           x1000r/min                                                     x1000r/min
                                                                                                                                  Trip details
                                                         C                                                              C
                   F                                                               F

                           ODO    23000 KM                                                                                        Preferences
                                                                                                          Rahul
                                                                                                    9969041253
                                                                                                                                  Navigation
          Tyre pressure          Lap 04           0-100 kmph
                                                                           300 M                 Accept           Reject

                            01:45:10
           Front   40
                                Best Lap          7.17                     Tyre pressure         Lap 04           0-100 kmph
                                                                                                                                  Reset to default
           Back    39       02:19:12
                                                        Sec                40 39           01:45:10                    7.17
                                                                           Front   Back                                 Sec

                                                                   link: https://invis.io/TDQ70SK6MCF#/343304064_01
TVS Apache RR310                                                                               Work

Visual Concept

                                                                        RPM (Tachometer)

                                                  6

                           Engine mode   4                 8
                                             Street Race
                   Fuel level

                                     2
                                             220
                                             120                10        Engine temperature

                    Vehicle speed

                                         0                 12

                                                4Gear
                                                               Gear engaged
TVS Apache RR310                                                                                                Work

Visual Concept

                                                                                Distance and time
                                                                                till destination
                    Upcoming turn
                                                              Destination in
                                                     05KM     15KM 10:20
                   Distance to next turn

                                                     Manoj Shatwanti
                                                                                 Caller name, if in contacts.
                                                                                 Just number, if not
                                           Tyre pressure          0 -100 kmph

                                           F 40 B 39              07:17 Sec
                          Widget#1                                                 Widget#2
TVS Apache RR310                    Work

Final Design - Day and Night mode
Strategy + Design

SBI Life
SBI Life Insurance is a joint venture life insurance company
between State Bank of India, the largest state-owned banking and
financial services company in India, and BNP Paribas Cardif.
SBI Life                                                   Work

Design Pillars

           What are users looking for?

           01   Assurance
                Securing future financial needs

           02   Peace of mind
                Making correct investment decision

           03 Gratification
                Reaping the benefits of their investment
SBI Life                                                                        Work

Existing Pillars

             Today, security is the only emotion behind building
                                Insurance apps
                                                 Lack of service fluidity and
                   Segmented user journey
                                                 transparency

                                                 Lack of timely reminders and
                   Non personalised experience
                                                 updates
SBI Life                                                                                         Work

New Experience

                      Can insurance go beyond security?

                 A connected experience across          Emulate service driven platforms to
                 the complete user journey              integrate transparency and exclusivity

                 Personalised approach for the          Real-time attention and feedback
                 users of today, who love the idea of   for the anywhere/anytime
                 exclusivity.                           customer needs
SBI Life                                                                                                    Work

Smart Care Solution

                                               Creating the solution

                     EDUCATE                            EMPOWER                     SMART CARE

             Provide relevant knowledge          Identify solutions that helps   Reap rewards of having a
           at key points in the user journey     them make sound decisions            secure future
                                                  and serve their core needs
SBI Life   Work

App Map
SBI Life   Work

App Map
SBI Life   Work

App Map
SBI Life                                                                                                  Work

The new SBI smart care insurance flow

           1             2              3          4          5                 6          7      8
           Quick Login   Smart          Easy Pay   Proposal   Personalised      Seamless   Menu   User profile
                         Dashboard                 Tracking   Recommendations   claims
                         for existing
                         users
SBI Life                                                           Work

Features

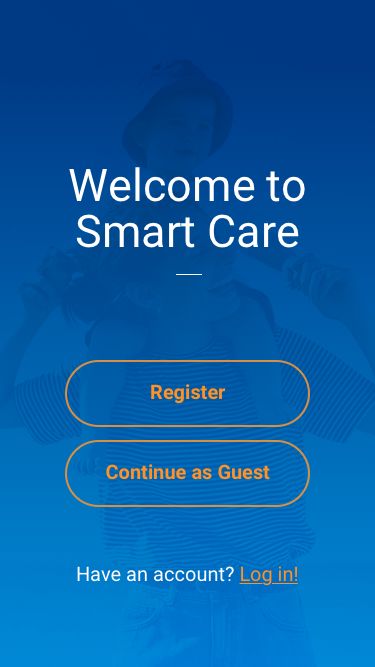

      Quick Login
      • Register with policy number
      • Generate OTP
      • Login through Google/Facebook/MPin

                                             New User   New User
SBI Life                                                               Work

Features

      Quick Login
      • Register with policy number
      • Generate OTP
      • Login through Google/Facebook/MPin

                                             Guest User   Guest User
SBI Life                                Work

Features

      Actionable smart board
      for existing users
      • Updates and realtime feedback
      • Proposal tracking
      • Maturity dues
      • Claim status
      • Payment intimations
      • Recommendations
SBI Life                                Work

Features

      Actionable smart board
      for existing users
      • Updates and realtime feedback
      • Proposal tracking
      • Maturity dues
      • Claim status
      • Payment intimations
      • Recommendations
SBI Life                                  Work

Features

               `

      Easy Pay
      • One tap access to payments from
        dashboard
      • Switch between multiple payment
        modes
SBI Life                                         Work

Features

      Proposal Tracking
      • View current status based on the stage
      • Upload requirements
      • Pay short premiums
      • Schedule medical appointments
SBI Life                                            Work

Features

       Personalised
       Recommendations
       Policy suggestions based on user profiling
SBI Life                                        Work

Features

      Seamless Claims
      • Real-time tracker on claims (Only for
        matured policies or where there is
        some survival benefit payout)
      • Upload of documents
      • FAQs
Patient Na

                                                                        / Mitral        01
                                                                                                                   Geeta P

Strategy + Research + UX                                          Normal            Abnormal

Narayana                                                          Rheumatic Heart Disease

                                                                  Post OMV          Post OP       Pre OP
                                                                                                        Prolapse

Healthcare
Narayana Health is a chain of multi-speciality hospitals, heart
                                                                  Mechanical

centres, and primary care facilities with its headquarters in,
Bengaluru, India. Founded by Dr. Devi Shetty in the year 2000                  Valve Thickness   NEXT
Narayana Healthcare                                                             Work

The Problem

                           The hospital management wanted to digitise the
                      echocardiography process to improve speed and accuracy.
Narayana Healthcare                                                                                              Work

Process

 Research on          Identifying key   On-site        Process         Re-thinking    Digital     Prototype   Internal
 the diagnosis        stakeholders      observation    documentation   the process    Solutions               Testing
 process                                & interviews                   & data entry
Narayana Healthcare                                 Work

Management Goals
•   Improve safety for patients
•   Make the process more convenient
•   Create an accessible solution
•   Improve accuracy of reports

Pain points of Sonographers (primary stakeholder)
•   Lack of alerts
•   Typing errors
•   Sonographer have to multitask
•   Time crunch
Narayana Healthcare                                                           Work

Intent

                      Create an experience that makes the echocardiography
                      process convenient and accurate for both patients and
                                 doctors, thereby ensuring safety.
Narayana Healthcare                                                                                                          Work

Design Pillars

                                  Pillars of convenience and accuracy lead to safety

                Convenience                               Accuracy                                  Safety

          •   Easy and flexible input.            •   Error recognition.                  •   Reduce no. of humans involved
          •   Faster data entry enables          •   Capture all fields on forms.             in the process to limit
              stakeholders to complete           •   Strive towards lower instances of       communication errors.
              more tests.                            errors.                             •   Lower cognitive load on
          •   Auto suggestions.                                                              stakeholders.
                                                                                         •   Reduce verification cycles
Narayana Healthcare                                        Work

Rethinking the profiles

                          Sonographer
                                             Sonographer

                      Student       Typist

                                               Student
Narayana Healthcare                                                                     Work

Rethinking the process

                         New process based on our proposed concepts

           Patient             Digital Data          Data is            Report is
           Scanning            Entry                 verified            Saved in EHR

      Sonographer        Student records echo    Sonographer          Generated report is
      performs test on   test readings and       verifies, edits and   saved in Hinai. It can
      the patient.       sonographer’s           confirms the data.    be printed.
                         comments on an iPad.
Narayana Healthcare                                                                                Work

Option 1: Smart Touch Input

     Device       Stakeholders
     iPad         Sonographer & Student

                                          Overview
                                          1. This solution is about digitizing the echo
                                             form and simplifying the process.
                                          2. Echo form is restructured to enable step-
                                             by-step entry and focused inputting.
                                          3. Field inputs become easier through auto-
                                             suggestion and auto-correction features.
                                          4. Descriptive fields will get intelligent over a
                                             period of time and will be able to suggest
                                             sentences.

                                           CONVENIENCE            ACCURACY                SAFETY
Narayana Healthcare                                                                                Work

Option 1: Smart Touch Input

     Device       Stakeholders
     iPad         Sonographer & Student

                                          Overview
                                          1. This solution is about digitizing the echo
                                             form and simplifying the process.
                                          2. Echo form is restructured to enable step-
                                             by-step entry and focused inputting.
                                          3. Field inputs become easier through auto-
                                             suggestion and auto-correction features.
                                          4. Descriptive fields will get intelligent over a
                                             period of time and will be able to suggest
                                             sentences.

                                           CONVENIENCE            ACCURACY                SAFETY
Narayana Healthcare                                                                                               Work

Option 1: Smart Touch Input

                      How
                      1. Integrated medical dictionary within the app will assist in auto-suggestions.
                      2. Sonographer has to perform test and dictate in a specific order
                      3. Clean and focused layouts with legible text will ease the process of viewing
                         and adding information.

                      Pros:
                      1. Presents a fast learning curve.
                      2. Quick data input and error identification.
                      3. Instances of missing fields on the form will be eliminated.

                      Cons:
                      1. This concept will involve some level of typing, until app gets intelligent over time.
                      2. Initially the sonographer has to slow down in order to match the speed of the student.
Narayana Healthcare                                                                                     Work

Option 2: Digital Notes

     Device            Stakeholders
     iPad and stylus   Sonographer & Student

                                               Overview
                                               1. The desired experience will bring a sense of
                                                  familiarity and aims to replicate the written
                                                  process.
                                               2. Data dictated by the sonographer will be entered
                                                  directly on the iPad by the student using a stylus.
                                               3. Real-time digitization with local storage
                                                  capabilities.

                                                CONVENIENCE           ACCURACY               SAFETY
Narayana Healthcare                                                                                     Work

Option 2: Digital Notes

     Device            Stakeholders
     iPad and stylus   Sonographer & Student

                                               Overview
                                               1. The desired experience will bring a sense of
                                                  familiarity and aims to replicate the written
                                                  process.
                                               2. Data dictated by the sonographer will be entered
                                                  directly on the iPad by the student using a stylus.
                                               3. Real-time digitization with local storage
                                                  capabilities.

                                                CONVENIENCE           ACCURACY               SAFETY
Narayana Healthcare                                                                             Work

Option 2: Digital Notes

                      How
                      1. The concept ensures the retention of the current process of "written
                         note taking”, which is time-tested.
                      2. Comments and inferences of the echo form will be filled in by hand-
                         written notes using a stylus on an iPad.
                      3. If handwriting is not identified, user can switch to typing.

                      Pros:
                      1. Gives a sense of familiarity to the person taking notes.
                      2. Presents a fast learning curve and easy adaptation.
                      3. Quick data input and error identification .

                      Cons:
                      1. Handwriting-to-text technology has to be tested.
                      2. Note-takers will have to avoid writing in running handwriting.
Narayana Healthcare                                                                              Work

Design Considerations

                      1. Non-linear navigation since data entry depends on the diagnosis order
                         preferred by a sonographer

                      2. Technicians work in a dark room with low light

                      3. Process involves students who are in their training period

                      4. The diagnosis room is a low sound environment and dictation is not
                         very
                         audible at times
Narayana Healthcare        Work

Information Architecture
Narayana Healthcare        Work

Information Architecture
Narayana Healthcare        Work

Information Architecture
Narayana Healthcare   Work

Visual designs
Strategy + Research + UX

AB InBev
Anheuser-Busch InBev SA/NV, commonly known as AB InBev, is a
multinational drink and brewing company based in Leuven,
Belgium.
AB InBev                                                                                  Work

Process

 Understand         Identify key   On-site          Process         Re-imaging the   Creating
 business           stakeholders   observation      documentation   process and      strategic
 requirements and                  and interviews                   interaction      roadmap
 the ecosystem
AB InBev                                                                                                                                                                                                                      Work

      Experience Mapping
                                    Routes and
                                    outlets load                                                                                                        Converse with
                                                                                                                                                        outlet manager

                                                                                                        Next outlet
                                                                                                        is open

             Start                                                                                                                                                                            Update Chiller
  +          day                                                                                                                                                                              status

  -
                                                    Travels to
                                                    the outlet
                                                                        Store                                           Turn on         Capture
                                                                        closed                                          Location        photo
                                                                                                                                                                                                            Chiller not working
                        Wait for                                                                                                                                         Input Stock Availability
                                                                                        Capture                                                                                                             INPUTS: the details     No status
                        MJP Sync                                        Lack of                                                                                          (Own/Competition)
                                                                                        photo                                            No visual                                                          Along with postal
                                                                        tracking
                                                                                                                                         confirmation
                        Delay in                                                                                                                                         Tedious data                       Address                 Weakens
                                                                                        Difficulty in                                                                                                                               relationships
                        tracking                                                                                                                                         entry
                                                                                        data input
                                                                                                                                                                                                            Tedious data
                                                                                                                                                                                                            input

                       Still           Sales                                                                                                                                                                                        I wonder if it
           Planning                                 Tasks in         My POCe score      Don’t they                      Don’t they    Did it get          Thinking        Why going through                        Do I have to
THINKING               planning        target for                                                       Tasks in hand                                                                          Chiller purity                       got logged
           the day                                  Hand at outlet   will be effected   trust me                        trust me      captured?           about sales     a long list?                             fill them all?
                       the day         the day

FEELING    Energetic   Impatience      Eagerness    Annoyed          Disappointed       Indifferent     Eager           Indifferent   Confusion           Positive         Annoyed             Neutral             Annoyed          Unsure

                                                                                                                                                                                                                                              64
AB InBev                                                                                                                                                                                                                                                Work

      Experience Mapping

                                                                                                                                                                                                  Save &
                                                                                                                                                                                                  close

                                                                                                                                                                                  Review
           Select          Add visibility                                                                                                                                         data that’s
           visibility      elements                                                          Input                                                                                not been                                                      Visits next
  +        elements                                                                          promotions          Advocacy                                                         filled                                                        outlets

  -

                                                                                                                                   Draught
                                                                                                                                   Machine

                                                                                                                                                                                                                    First outlet manager
                                                                              Refills                                               Time-consuming
                                                                                                                                                           DM complaints                                            calls TSE to let him know
                                                                              visibility                                            due to long scroll
                                                                                                                                                                                                                    the store is open
                                                                                                                                                           Lack of status
                                                                              Demotivating
                                               Taps back twice                                                                                                                                                      Demotivation
                                                                              process
                                                                                                                                                                                                                    due to entry
                                               Loses                                                                                                                                                                debarred
                                               entered data

            My brand                                                       I could have      Looks for the   Decides whether                                                Wish I could
                           I hope I have not       Oh no! I have to fill                                                         This is going to        Why isn’t the                          Finally done with    I have already closed
                                                                           finished this     promotions      to give incentive                                              also see what I                                                       On to the next one
THINKING    elements vs                                                                                                                                                                         this outlet          this outlet. Can’t edit.
                           missed anything         this again                                                                    take time to fill       data retained?
            competitors’                                                   task faster       offered         based on sales                                                 have filled in

FEELING     Positive       Positive                Frustration             Regret             Neutral        Neutral             Bothered                Irritated           Unsure             Relieved             Irritated                      Neutral
AB InBev                                                                                                                                                                                Work

      Experience Mapping

                                                                                                                                                                          Close for the day

                                                                                                                                                      Finishes outlets

  +                                                         Select Routes        Select Outlets                            2 new outlets added

  -                                         Route
                                            Deviation

                                                                                                           MJP Sync

                        Traffic jam                                                                        Delay in
                                                                                                           syncing

                                      I better skip the                                                                     Alright let’s finish   Now to sync all the
            I should’ve checked                           Best possible route   Nearby outlets I can   Hopefully syncing                                                 Finally done for
THINKING                              remaining outlets                                                                     the rest               data
            the route before hand                         I can cover           cover today            doesn’t take time                                                 the day
                                      and finish others

FEELING     Irritated                 Neutral             Neutral                Neutral               Annoyed              Neutral                 Relieved              Happy
AB InBev                                                                                               Work

Key Insights

           UX                                         Information

           1. Current app experience makes it feel    1. The TSE often feels unprepared while
              like a policing app                        approaching an outlet, as he may be asked a
                                                         question that he may not have a status of.
           2. Long list of SKUs makes everyday
              logging and tracking cumbersome         2. A manual entry of stock, notes, etc needs
                                                         to be maintained, making the on-field
           3. Lack of strong visual confirmations at      experience a bit cumbersome.
              important junctions lead to time
              wastage.                                3. Lack of information of his own
                                                         performance makes the TSE feel detached
                                                         from the system.
AB InBev                                                                              Work

Pain Points

                We need to transform our key conflicts to positive experiences

            Tedious               Lack of            Weakens
                                                                       Discouraging
           Data Entry            Tracking           Relationship

           Easy data            Seamless             Stronger
                                                                        Motivation
             inputs              tracking          relationships
AB InBev                                                                                                Work

Intent

           Create an experience that allows users to easily log information with effortless tracking,
                        resulting in enhanced relationships with their assigned outlets.
AB InBev                                                                                                                          Work

Key Features

                                       Easy data            Seamless      Stronger
                                                                                            Motivation
                                        inputs               tracking   relationships

           1. Prioritisation of data                                    2. Edit saved entries
           Data entry will be organized on the basis of past            Saved entries should be editable. This will help the
           entry patterns. This will make the process faster            users to make changes before end of the day.
           and effortless.

           3. Auto-fill data                                             4. Identifying visibility elements
           For chiller/draught complaints, on the basis of the          Based on the location of the element, the list of
           serial number, the details of the chiller can be             visibility elements can be filtered. Now the user will
           pulled out. In case of multiple complaints within 1          get a more concise list and will be able to fill in more
           outlet, there can be only 1 manager’s name and               accurate data.
           number.
AB InBev                                                                                                                      Work

Key Features

                                     Easy data             Seamless      Stronger
                                                                                          Motivation
                                      inputs                tracking   relationships

           5. Calendar/Reminders                                       6. Performance Statistics
           A calendar feature on the app will enable the               It is essential for the TSEs to access their overall
           user to access important dates, and set                     performance and weekly scores. This will enable
           reminders based on his notes.                               them to track their performance and move a step
                                                                       closer to meeting their goals.

           7. Quick access
           Important information like previous stock,
           sales, etc can be provided at the point of
           entering the stock availability.
AB InBev                                                                                                                  Work

Key Features

                                     Easy data          Seamless      Stronger
                                                                                      Motivation
                                      inputs             tracking   relationships

           8. Historical data                                        9. Complaint status
           Having historical data at their fingertips will           The app needs a dedicated complaint center which
           help the TSEs to access the performance of the            will act as a repository for all complaint related
           outlets. This, in turn, will enable them to make          data including status details.
           better sales-related decisions.

           10. Notes
           We can encourage the TSEs to note down
           personal data such as Birthdays, Outlet opening
           day, etc, through reminders within the app.
           Notes can also be shared between TSEs
AB InBev                                                                                                               Work

Key Features

                                     Easy data         Seamless      Stronger
                                                                                    Motivation
                                      inputs            tracking   relationships

           11. Leaderboard                                         12. Messages
           A leaderboard can introduce a healthy dose of           The messaging feature will enable senior
           competition. The TSEs can see their position on         managers to interact directly with the TSEs. They
           the leaderboard and that of their peers. The            can send motivational or congratulatory messages
           objective is to motivate them to perform better         / badges to top performers. This may result in
           and share their accomplishments with family             sense of pride and motivation. (MAST - ICE)
           and friends.
UX + Design

Discovery+
Discovery Channel is dedicated to providing nonfiction content
that informs and entertains viewers about the wonder and
diversity of the world.
Discovery Plus               Work

Visual Design - Mobile app
Discovery Plus            Work

Visual Design - Desktop
Discovery Plus                                                   Work

Visual Design - TV App

         Edd Stafford:
         First Man Out
         2019   TV-PG    3 Seasons

         With food in abundance it's the time of plenty in the
         Serengeti, but a series of unexpected events turns
         families against each other and stretches
         relationships to breaking point.

         Recommended

         New Arrivals
Discovery Plus           Work

Visual Design - TV App
Other Clients
Tata Docomo        Indiabulls
Tata Docomo Shop   Virgin Mobile
Pepsi Deals        Central Mart
Croma Retail       Morphy Richards India
Titan Mobile       Bajaj Electricals
Boom 3D            Bajaj Finserv Limited
Indiabulls         Motif app
About Me
Hi, I am Suraj Subharaman.

I design, read, listen to music and surf the web

I have been obsessed with conceptualising experiences and crafting
digital products that provide value to both the business and the end user
since 2008.
Experience & Skills
Fulcro (formerly ibs)   Ideation                     Experience Strategy
2007-2015               Problem Solving              Personas
Lead UX/UI Designer     UX Audit                     Experience Mapping
                        Discovery Workshops          App/Site Maps
Robosoft Technologies   Design Sprint Facilitation   User Flows
2016-2020               Stakeholder Interviews       Wireframing
UX/UI Designer
                        User Interviews              Prototyping
                        User Research                Visual Design
                        Organisational Research      Usability Testing
                        Customer Development
Process*
                     Conduct &                                                                           Build,
    Uncover                                Frame              Explore              Frame
                      Collate                                                                            Test &
     Intent                               Insights           Concepts             Solution
                     Research                                                                           Measure

* - I keep updating my process constantly and each stage has a number of plug-in and out tools I use,
depending on the need and time of the project
Contact
Suraj Subharaman
Design + Strategy + UX
suraj.ux@gmail.com | +91 9833388199 | Linked In

                                     Additional work available upon request
Thank You
You can also read
